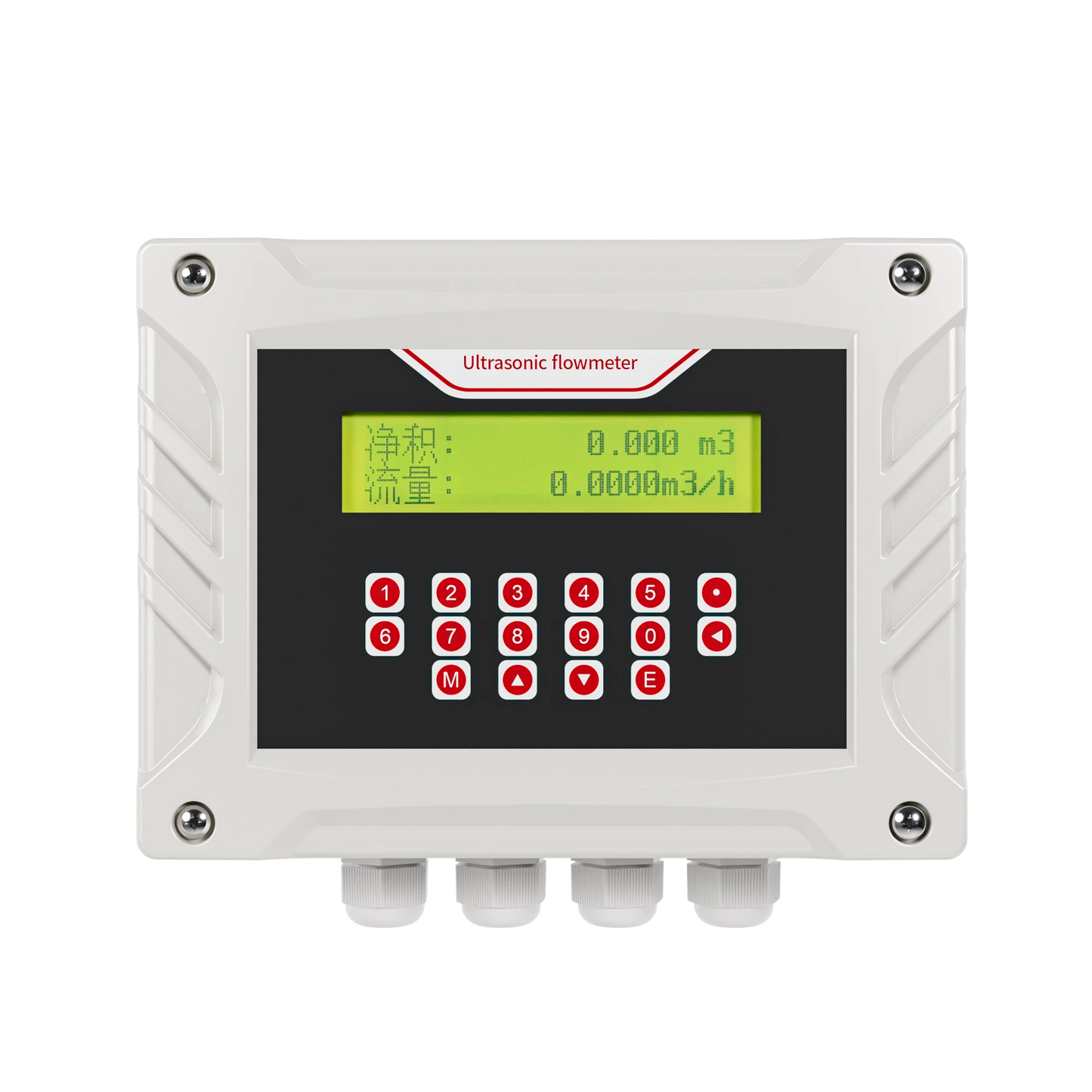

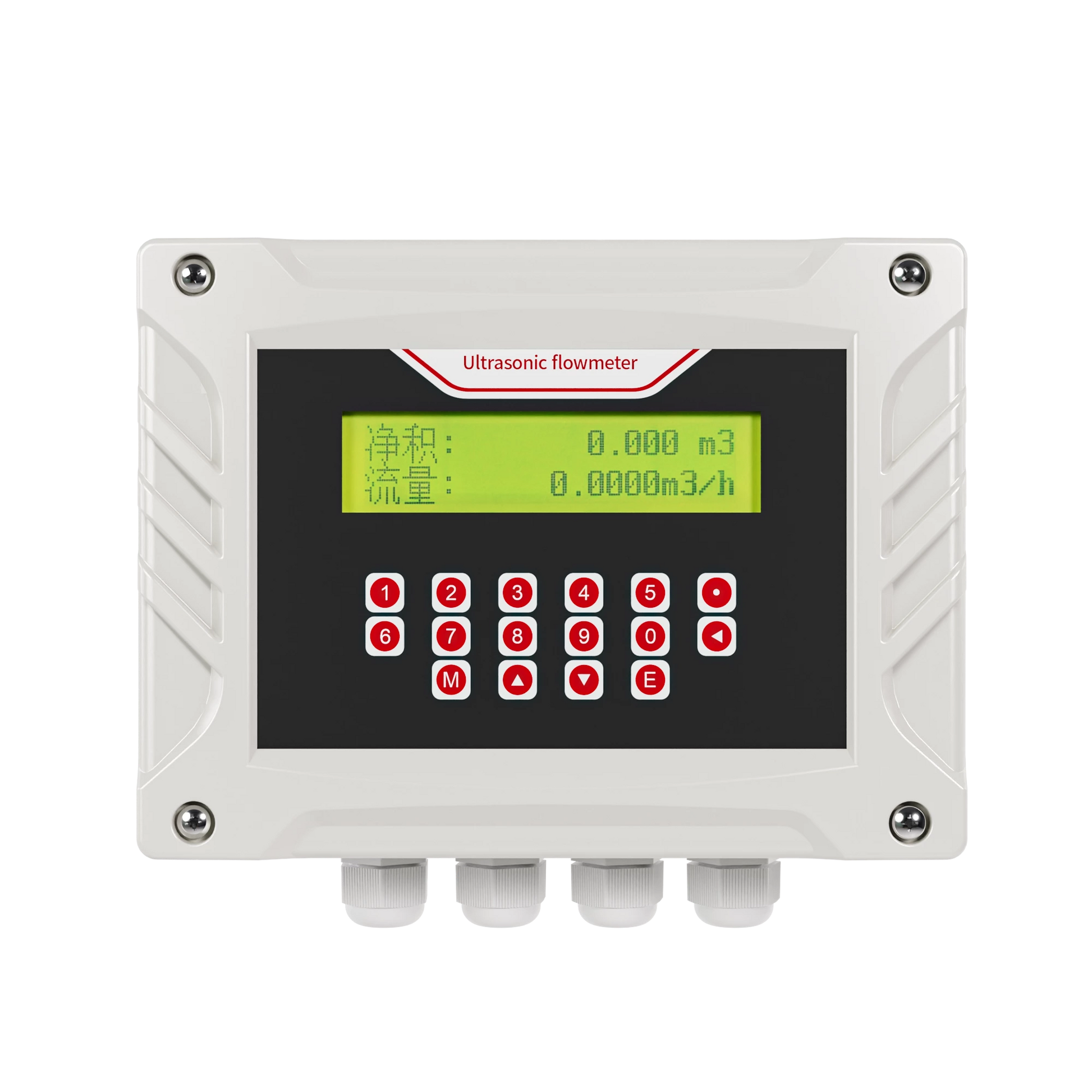

Wall-Mounted Ultrasonic Flow Meter FSC400

Wall-Mounted Ultrasonic Flow Meter FSC400

$727.00 USD
$727.00 USD
Sale Sold out
This is an all-inclusive reference price (product, international shipping, and import duties), based on a few selected configurations. Actual pricing may vary by size, options, and order quantity. Minimum order may apply for low-value items, while better pricing may be available for larger requirements. For a confirmed quote or to place an order, please contact us.
View full details

Introduction

The wall-mounted ultrasonic flowmeter is suitable for continuous flow measurement of most single-phrase homogeneous liquids that do not contain high concentrations of suspended particles or air bubbles in industrial environments. It supports heat energy totalizing functions, which can be enabled by adding a pair of temperature sensors to the basic ultrasonic flowmeter to calculate thermal energy. This product is widely used in industries such as petroleum, chemical engineerign, electric power, food processing, and other industrial sectors.

Specification

Model Type:

  • Medium-sized clamp-on (DN50–DN700) |
  • Standard insertion (DN80–DN6000) |
  • Extended insertion (DN80–DN6000)

Temperature Range:

  • -30°C to 90°C

Accuracy:

  • 1.0 grade

Output & Power Supply:

  • Pulse + 4-20mA + RS485 + SPST, 24VDC/220VAC dual power supply

Electrical Interface & Housing Material:

  • M20*1.5 cable gland, plastic ABS, IP65/IP68

Cable Length Options:

  • Standard: 5m, 10m, 20m | Custom: Up to 100m

Measuring principle

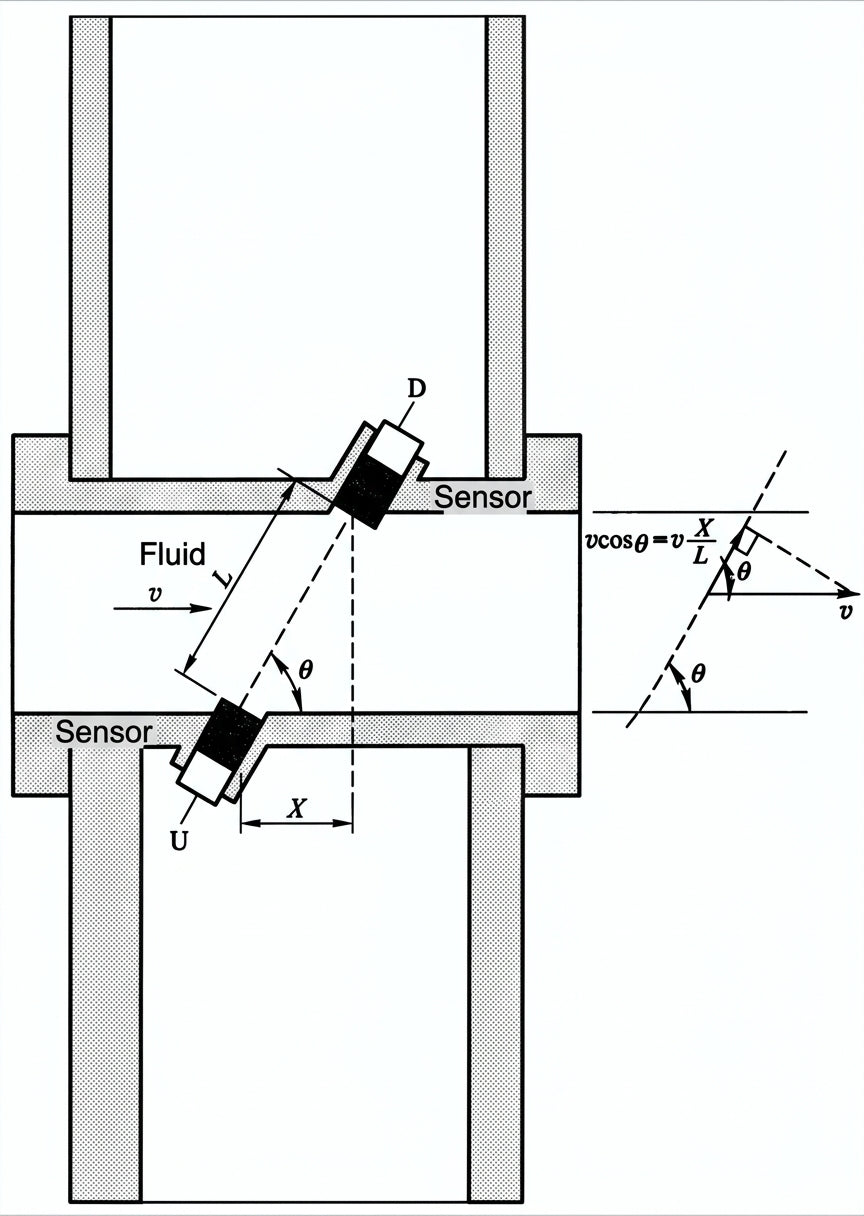

Ultrasonic flow meters measure flow based on the Transit-Time Difference Method. This method uses two mounted ultrasonic sensors to transmit and receive signals in opposite directions through the fluid medium. By measuring the difference in propagation time between ultrasonic waves traveling with the flow (downstream) and against the flow (upstream), fluid velocity is determined indirectly. Volumetric flow rate is then calculated using this velocity and the pipe’s cross-sectional area.
