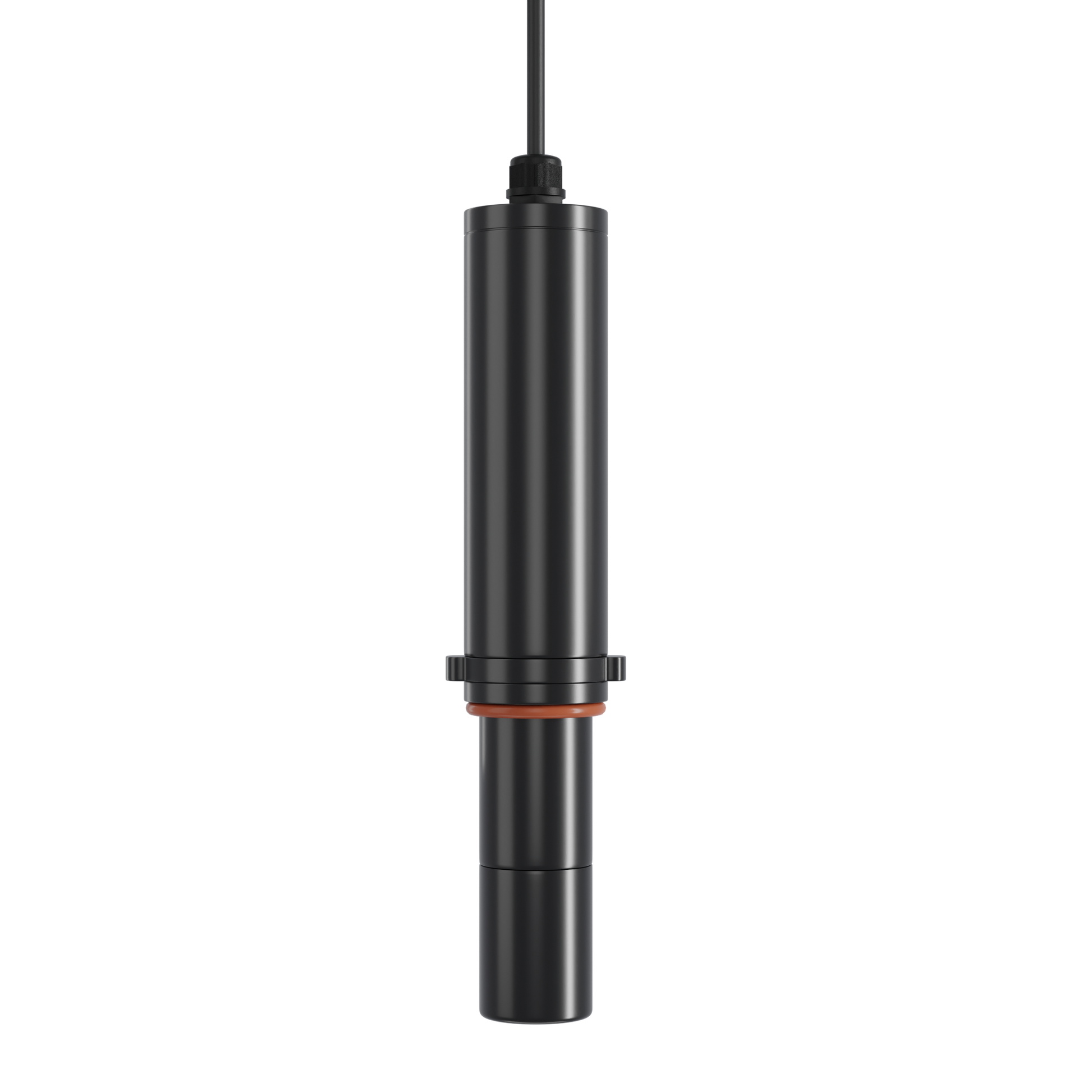

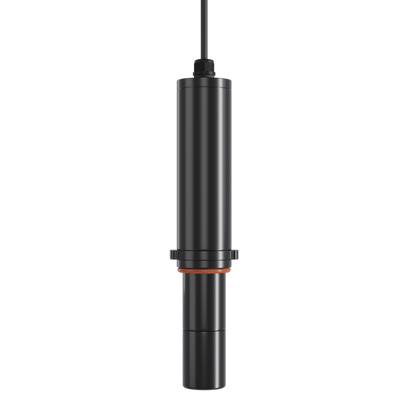

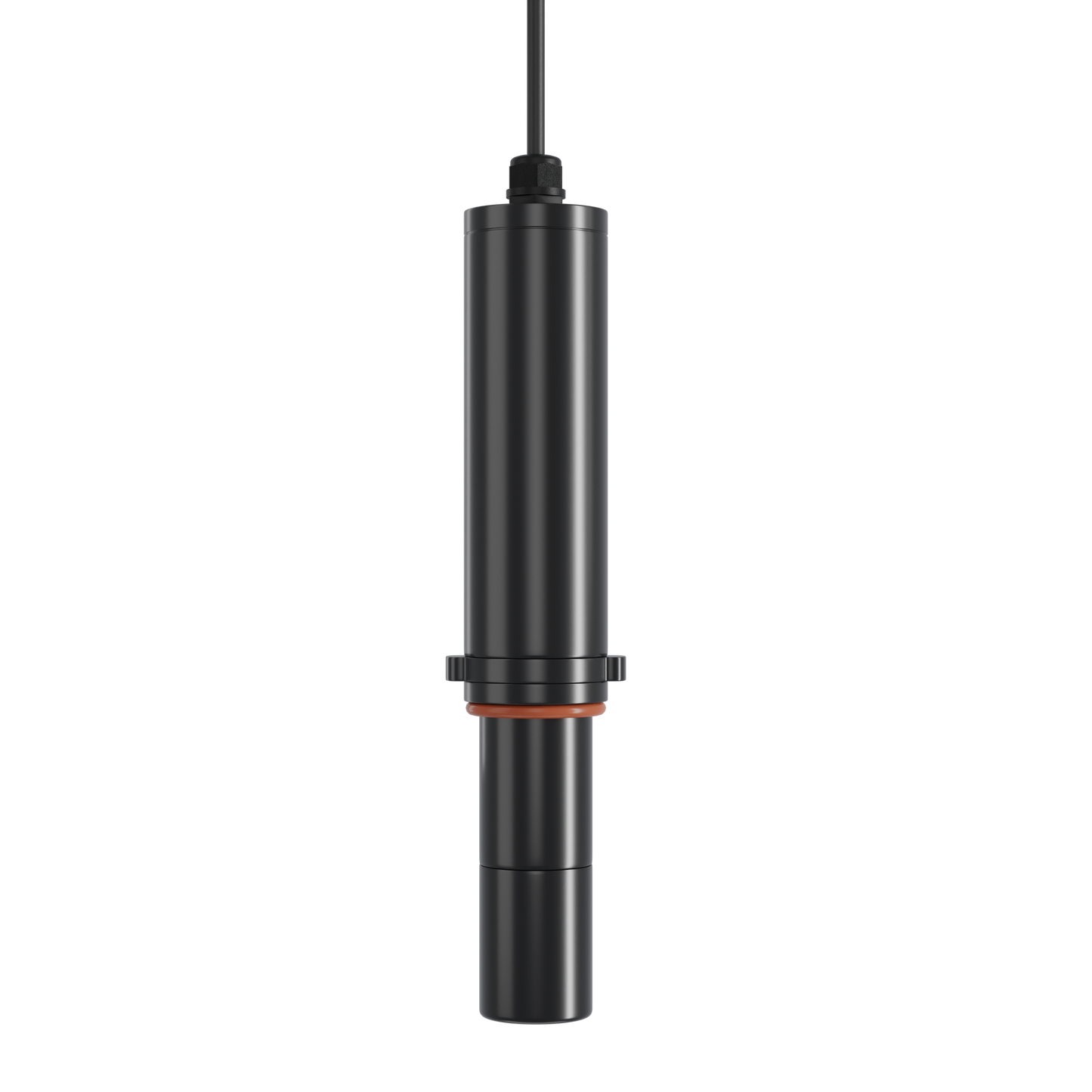

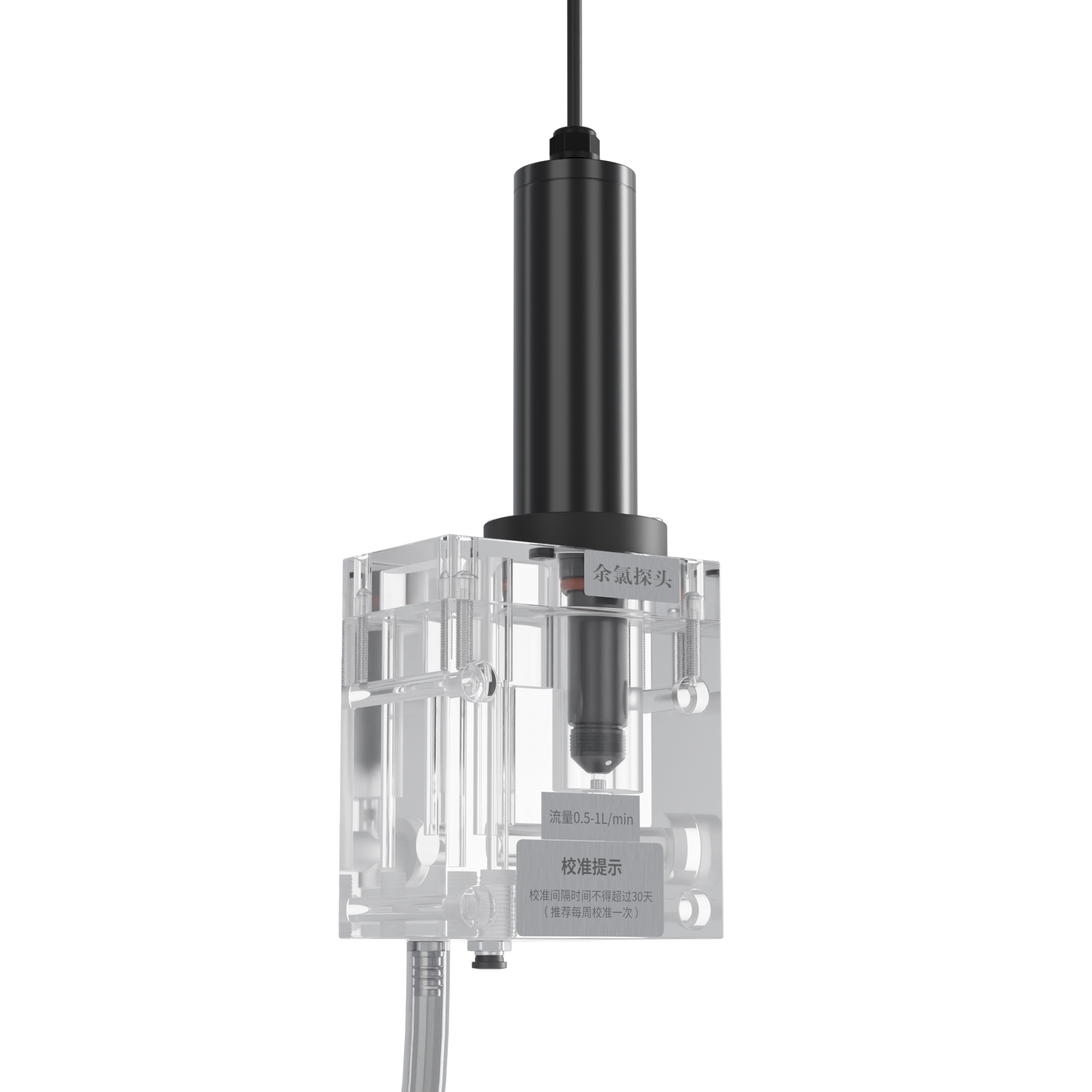

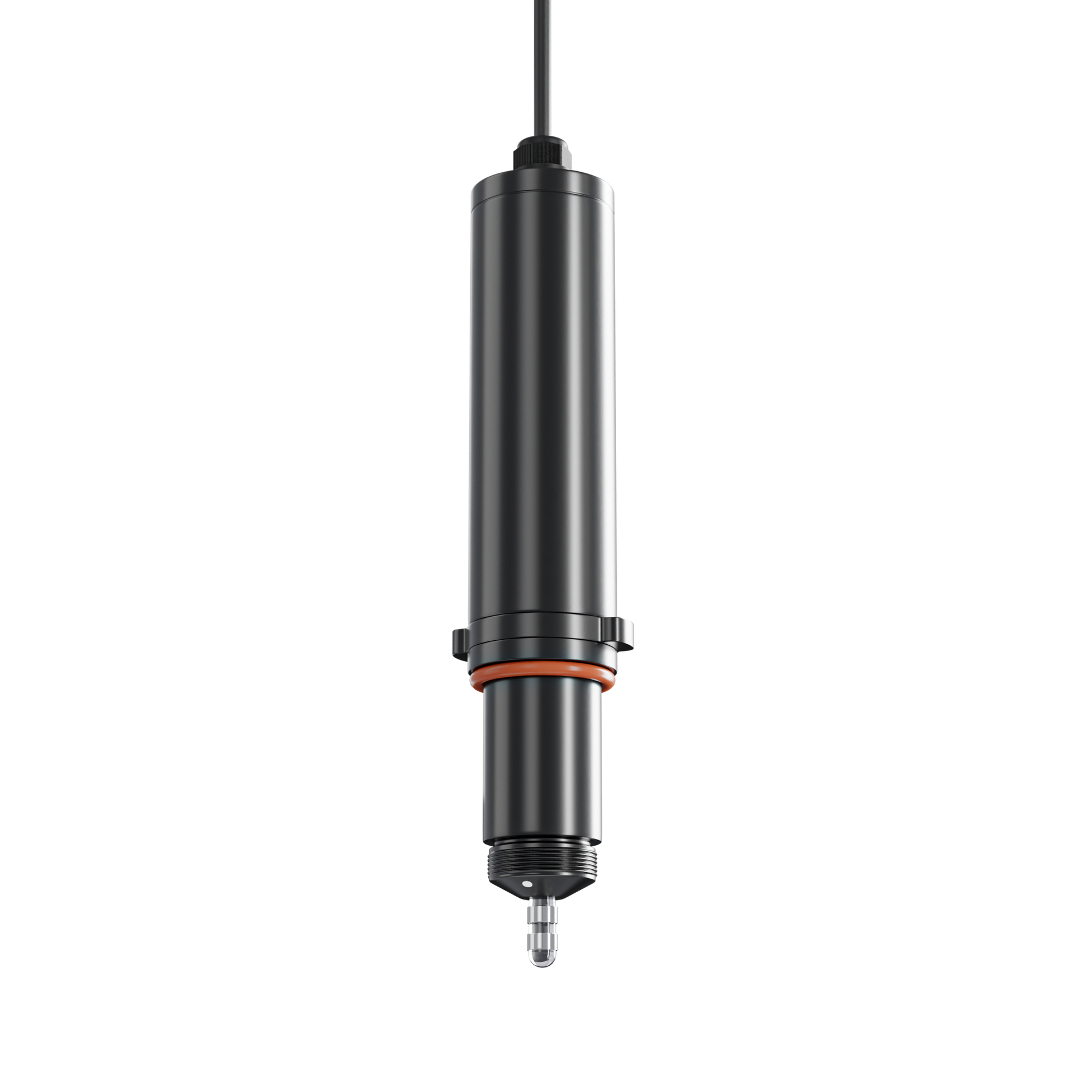

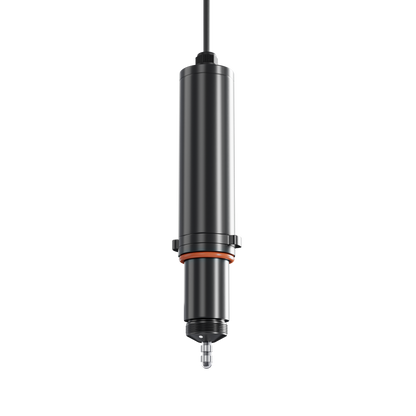

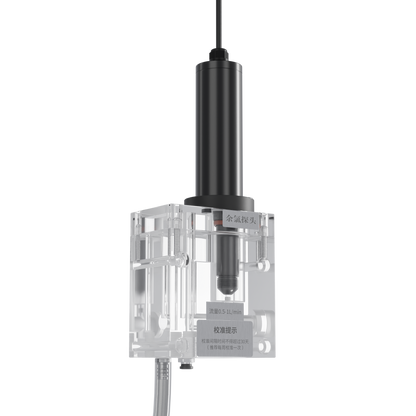

Supmea ADI7000 Digital Residual Chlorine Electrode/Sensor

Supmea ADI7000 Digital Residual Chlorine Electrode/Sensor

US$860.00
US$860.00
Sale Sold out
Prices Shown Include Delivery.

Low stock: 10 left • Lead Time: 2-4 Weeks
View full details

Product Overview

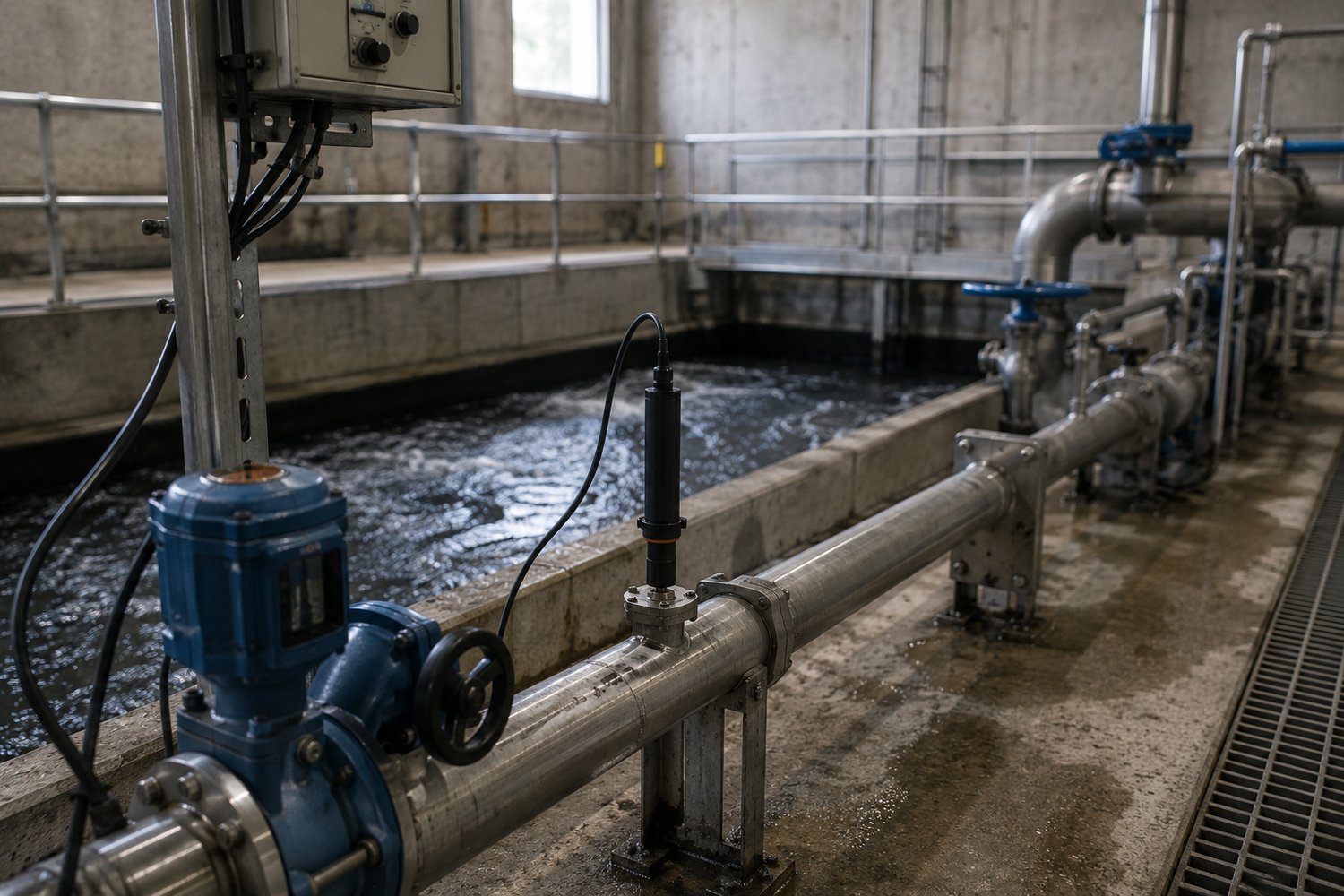

The SUP-ADI7000 Residual Chlorine Electrode is a digital electrochemical disinfectant sensor designed for continuous online monitoring of residual chlorine, high-purity chlorine dioxide, and ozone. Featuring a membrane-less three-electrode measurement system with integrated ARM processing and RS485 Modbus communication, it delivers stable, accurate measurements without reagent consumption. It is ideal for drinking water treatment, municipal water systems, swimming pools, industrial process water, and other water disinfection applications.

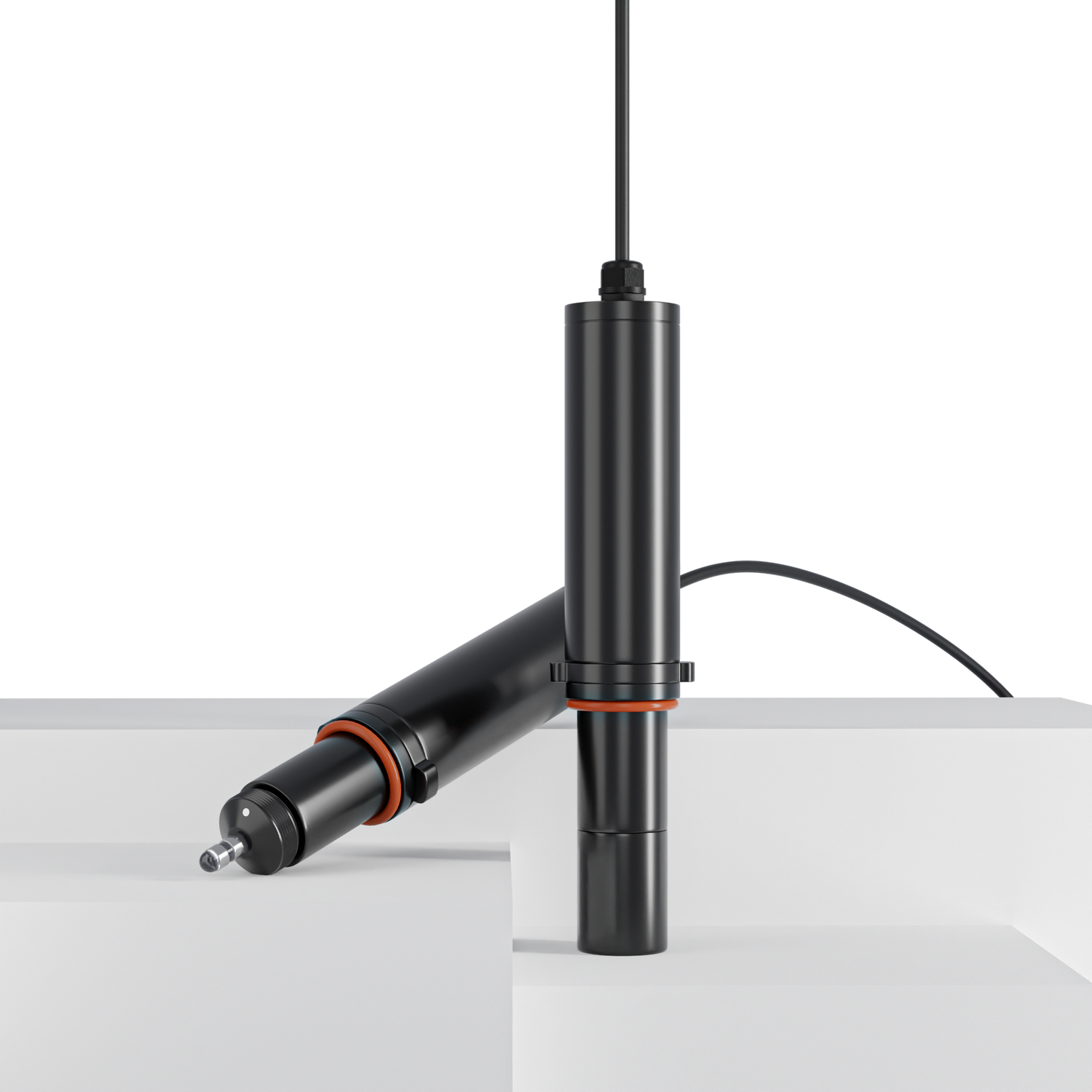

Key Features

  • No membrane replacement or electrolyte refilling required, reducing maintenance costs and downtime.
  • Provides excellent zero-point stability with high sensitivity for reliable long-term monitoring.
  • Supports Modbus RTU communication for seamless integration with PLCs, SCADA systems, and remote monitoring platforms.
  • Advanced filtering algorithms effectively suppress electrical noise for stable measurements.
  • Advanced filtering algorithms effectively suppress electrical noise for stable measurements.
  • Electrochemical measurement eliminates chemical reagent consumption and secondary pollution.
  • Provides measurement results comparable to the DPD colorimetric method under stable pH conditions.

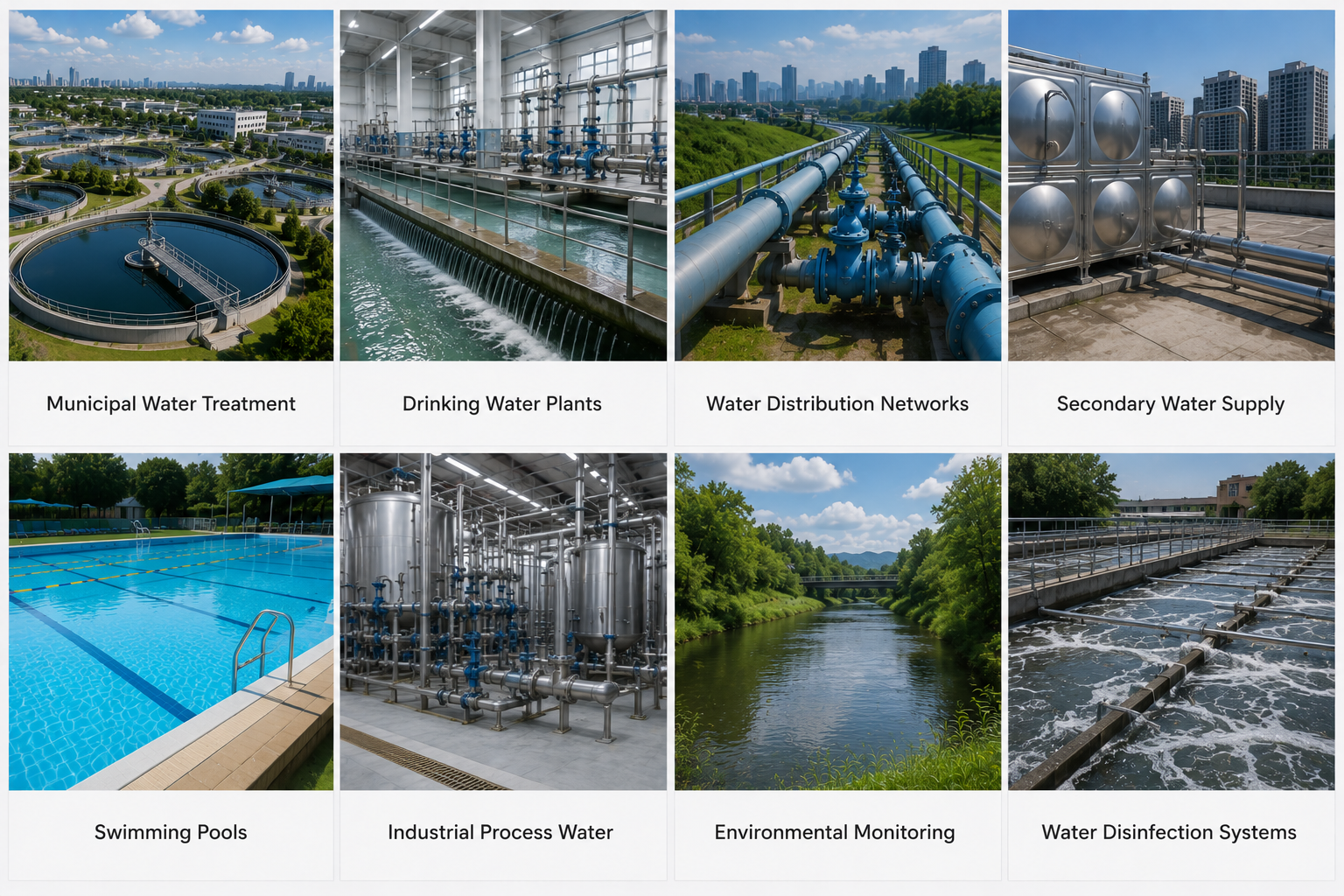

Applications

Technical Specifications

Measured Variables Residual Chlorine, High-Purity Chlorine Dioxide, Ozone
Measuring Range 0–5 mg/L (Standard), 0–20 mg/L (Optional)
Accuracy ±5% (DPD comparison error ±10% or ±0.05 mg/L, whichever is greater)
Resolution 0.001 mg/L
Temperature Compensation NTC 10K
Communication RS485, Modbus RTU
Power Supply 9–28 VDC
Power Consumption ≤0.5 W
Sensor Connector Aviation Plug
Operating Temperature 32–122°F (0–50°C)
Maximum Pressure ≤14.5 psi (≤0.1 MPa)

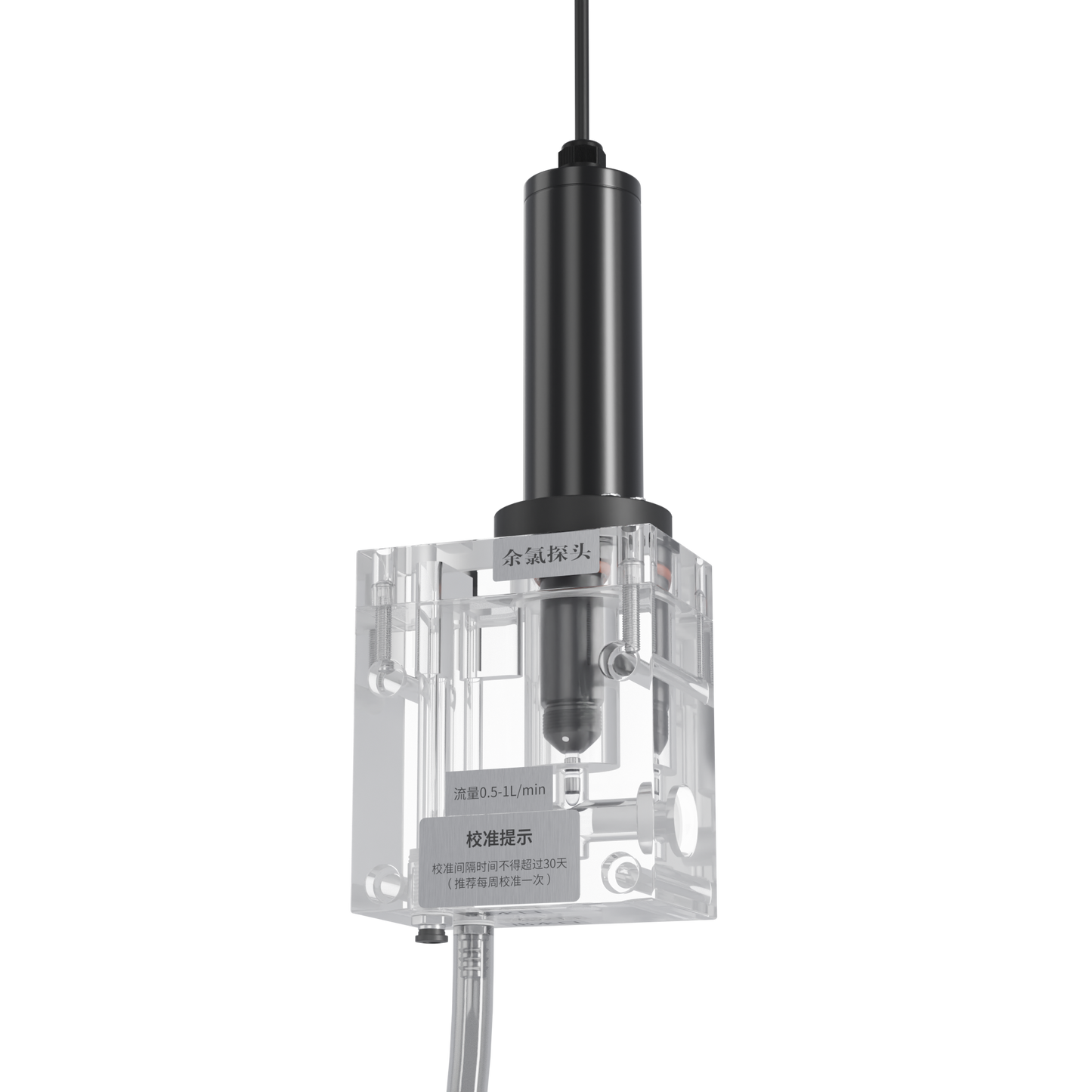

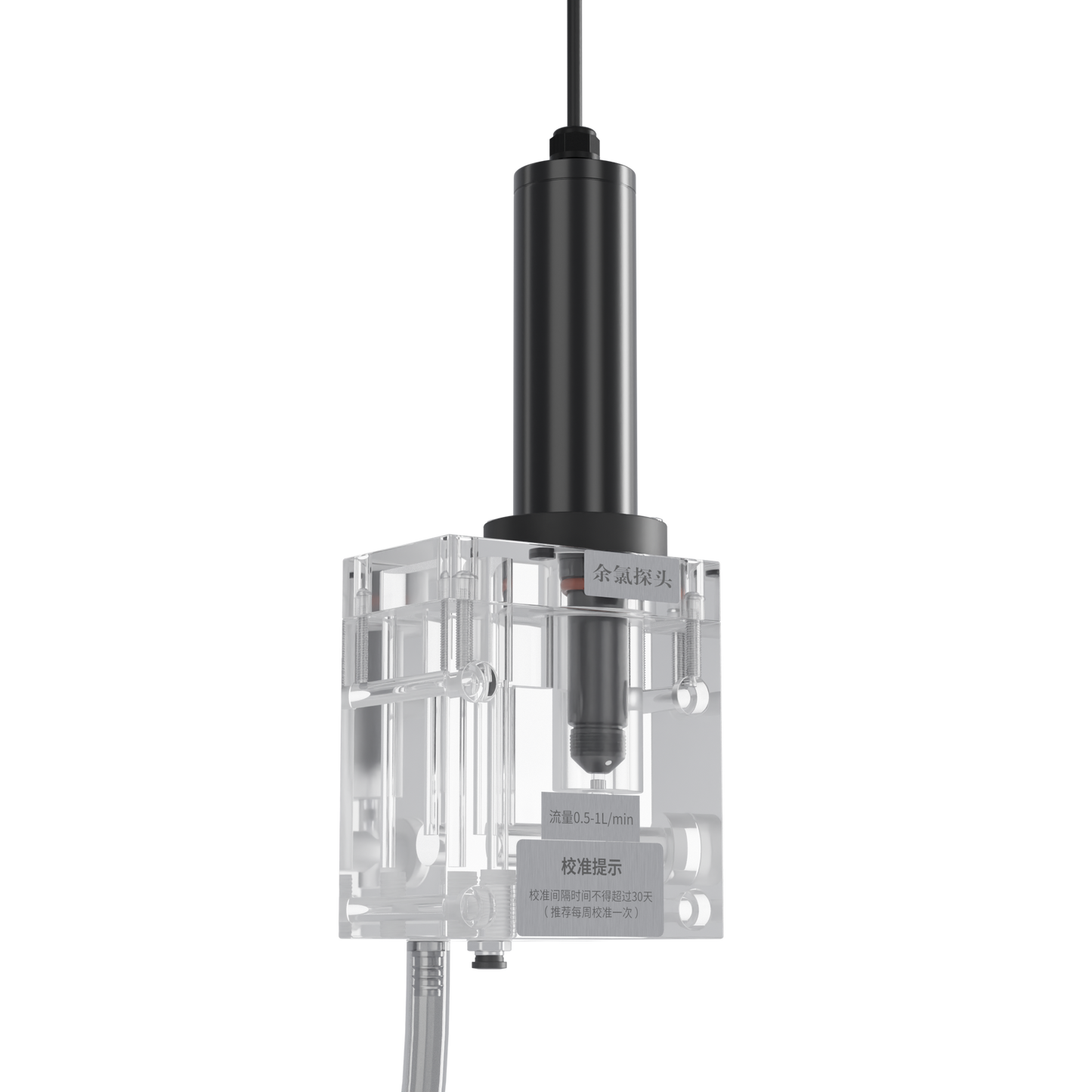

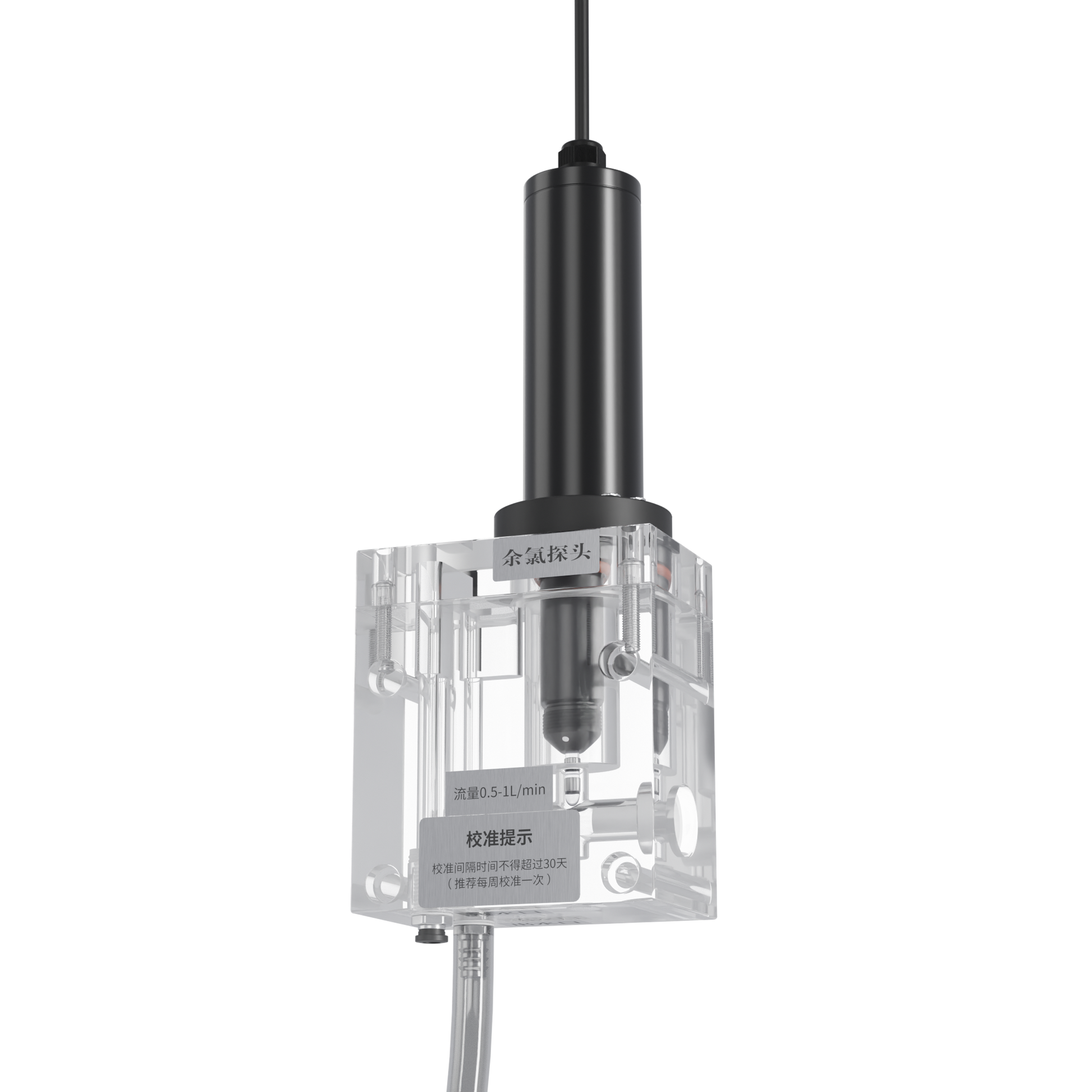

Recommended Flow Rate 0.13–0.26 GPM (0.5–1 L/min)
Cable Length 6.6 ft Standard (Custom Available)

Downloads

User Manual
Datasheet

FAQ

What disinfectants can the ADI7000 measure?

The sensor measures Residual Chlorine, High-Purity Chlorine Dioxide, and Ozone using electrochemical measurement technology.

Does the sensor require reagents?

No. The ADI7000 is completely reagent-free and requires no chemical consumables during operation.

How often should calibration be performed?

Supmea recommends:

  • Once per week during the initial operation period.
  • Approximately once per month after the sensor stabilizes.
  • Calibration should be performed using the DPD colorimetric comparison method.
Does the sensor use a replaceable membrane?

No. The membrane-less design eliminates membrane replacement and electrolyte maintenance.

What warranty do you provide?

Please refer to BayMeters Warranty Policy or contact our sales team for warranty details.

How long does shipping take?

Products in the US warehouse typically ship within 3–5 business days
