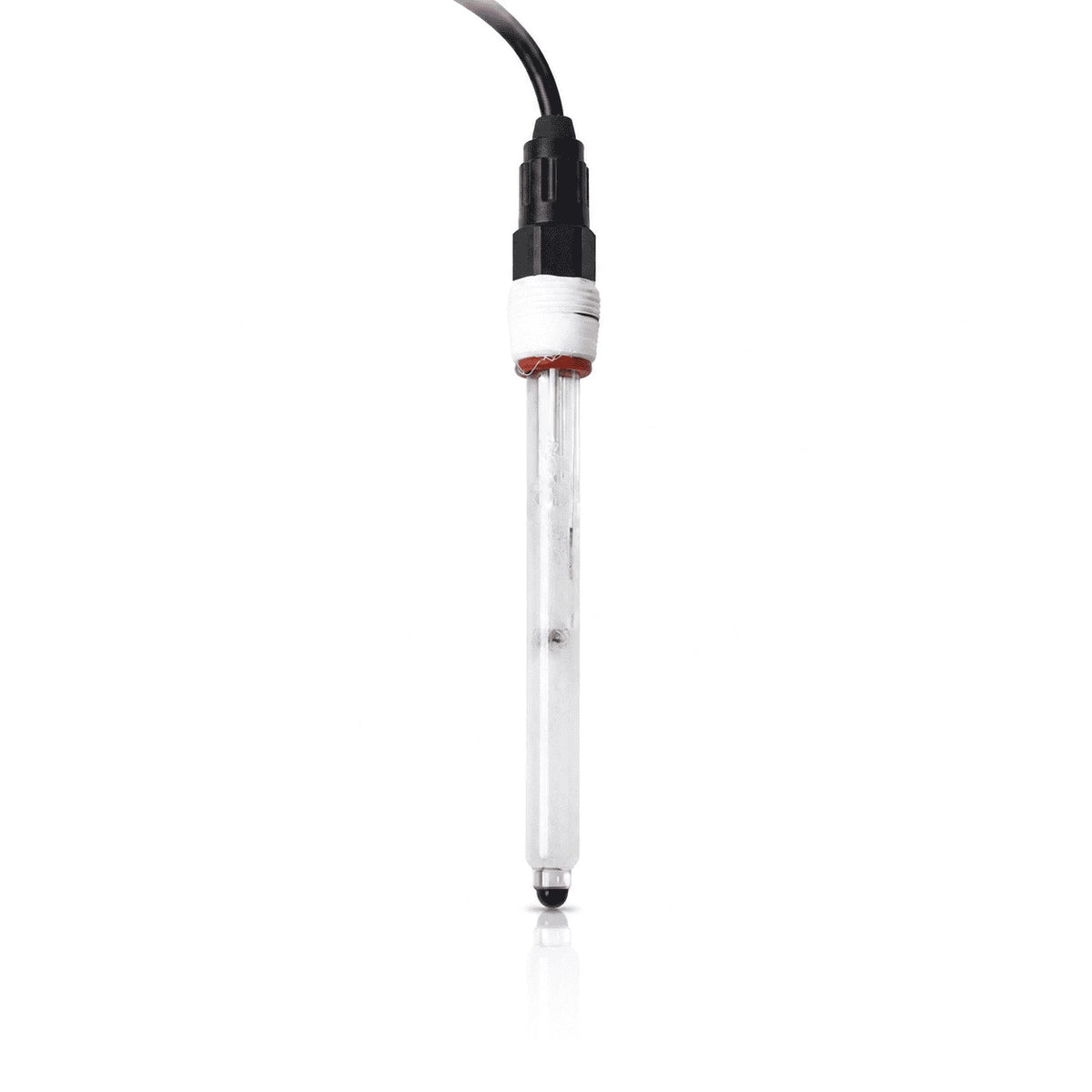

Supmea ASP2330 Glass pH Electrode/Sensor

Supmea ASP2330 Glass pH Electrode/Sensor

 Pricing depends on your project requirements and configuration. Contact us for a tailored quote.

Lead Time: 4 Weeks Or More

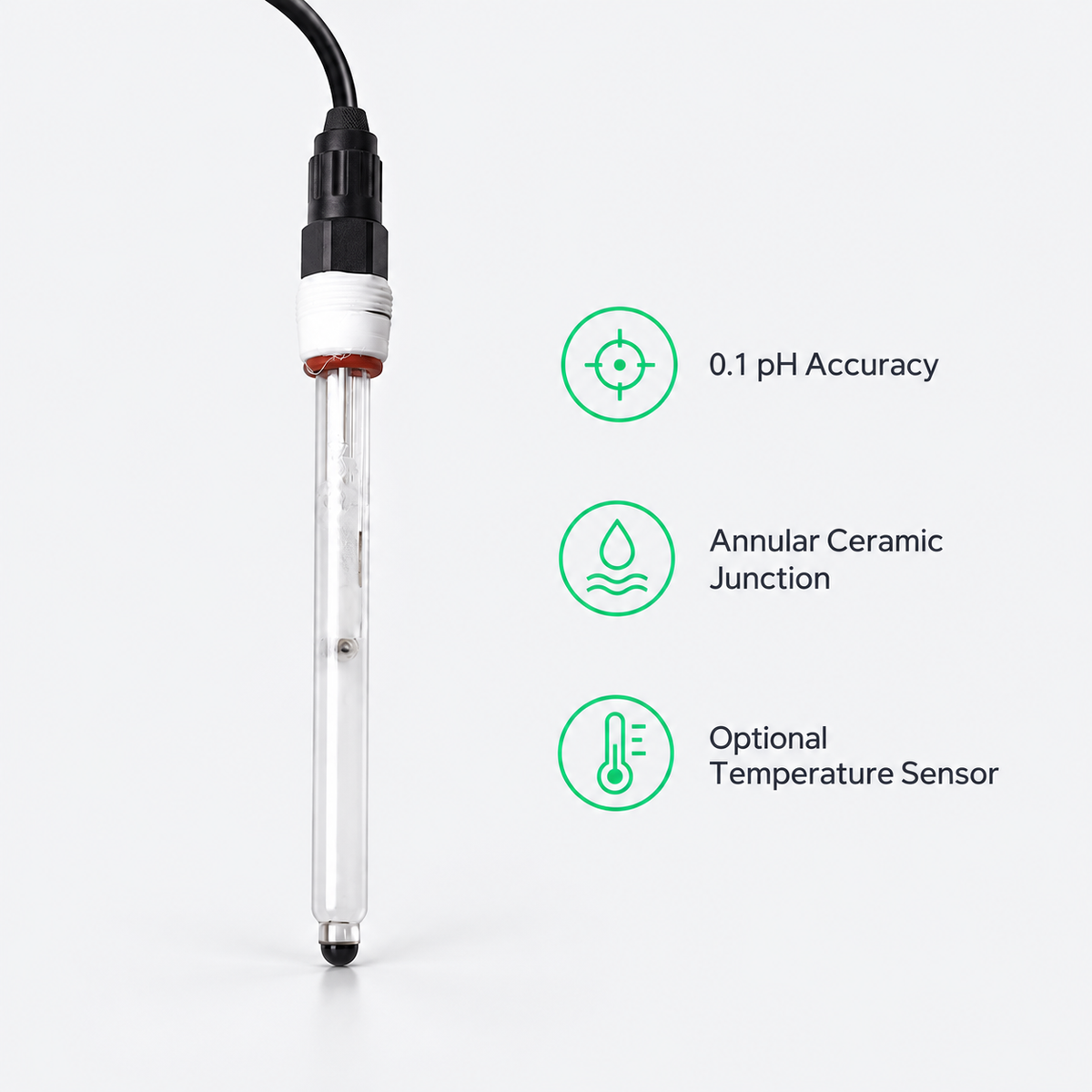

  • Glass Combination Electrode
  • 0.1 pH Accuracy
  • Annular Ceramic Junction
  • Optional Temperature Sensor
Request Quote
View full details
Overview
Features
Applications
Specifications
Downloads
FAQ

Product Overview

The ASP2330 is a glass combination pH electrode that integrates a pH-sensitive glass membrane with an Ag/AgCl reference system. Used with a compatible pH transmitter or controller, it monitors acidity and alkalinity in drinking water, surface water, and industrial wastewater.

Key Features

  • Combines the glass measuring electrode and Ag/AgCl reference electrode in a single probe.
  • Provides 0.1 pH measurement accuracy for water and process monitoring.
  • Uses an annular ceramic junction to maintain contact between the reference system and the sample.
  • Features SNEX high-temperature solid-gel electrolyte within the reference system.
  • Offers optional Pt100, Pt1000, or NTC temperature elements for use with compatible instruments.
  • Features a PG13.5 mounting connection for installation with compatible electrode holders.

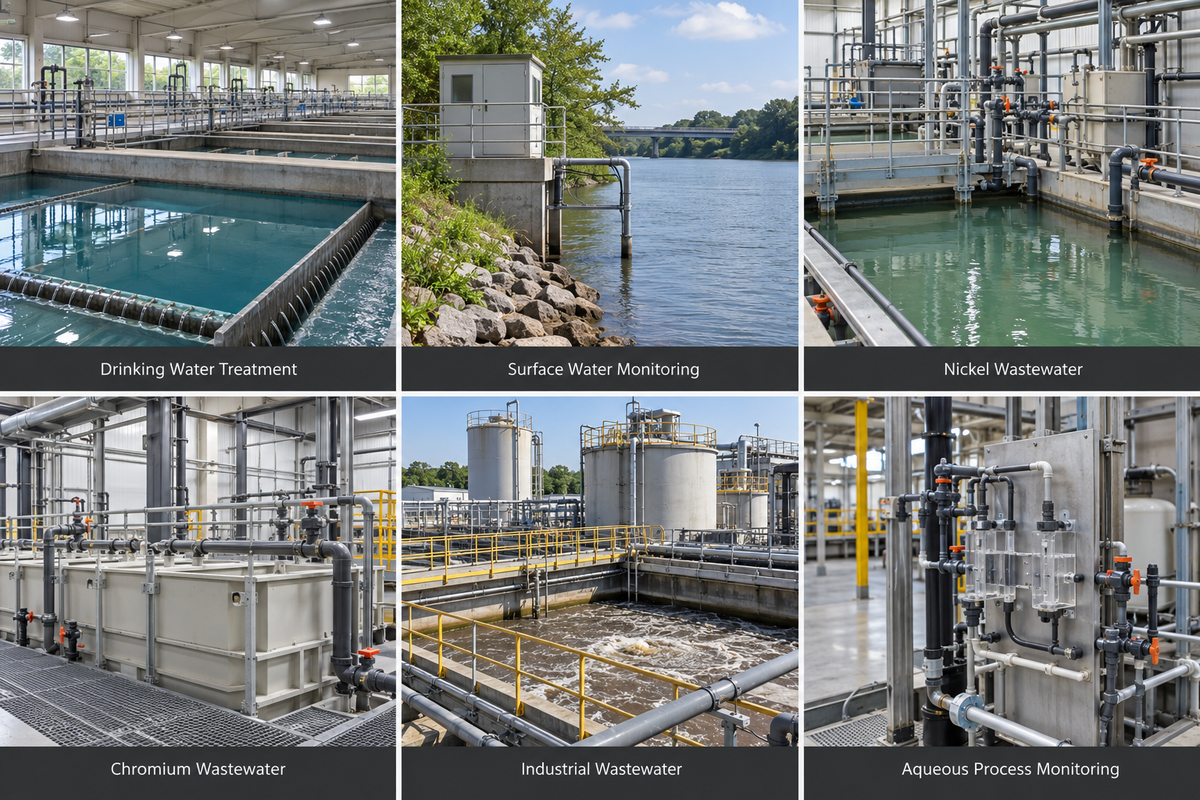

Applications
