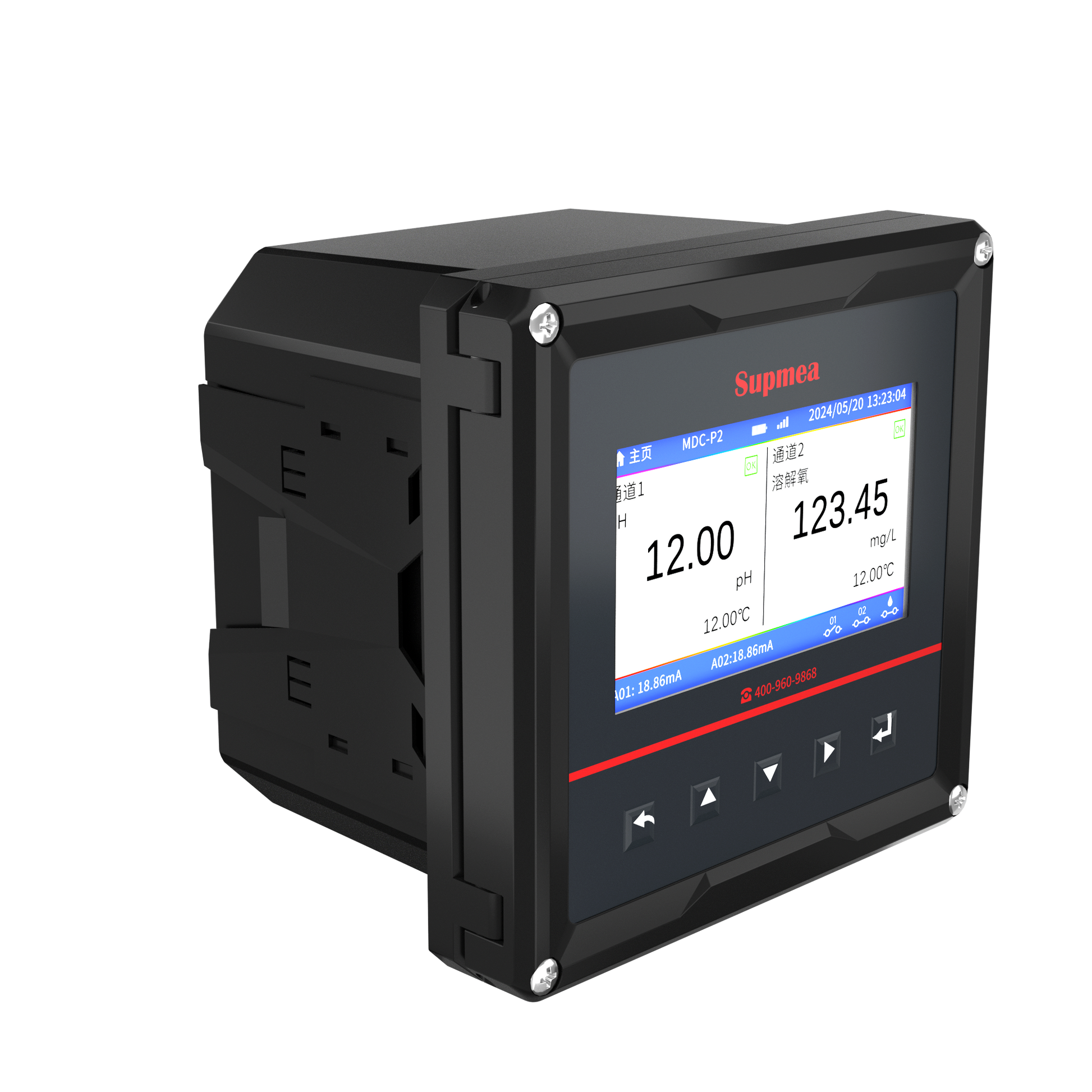

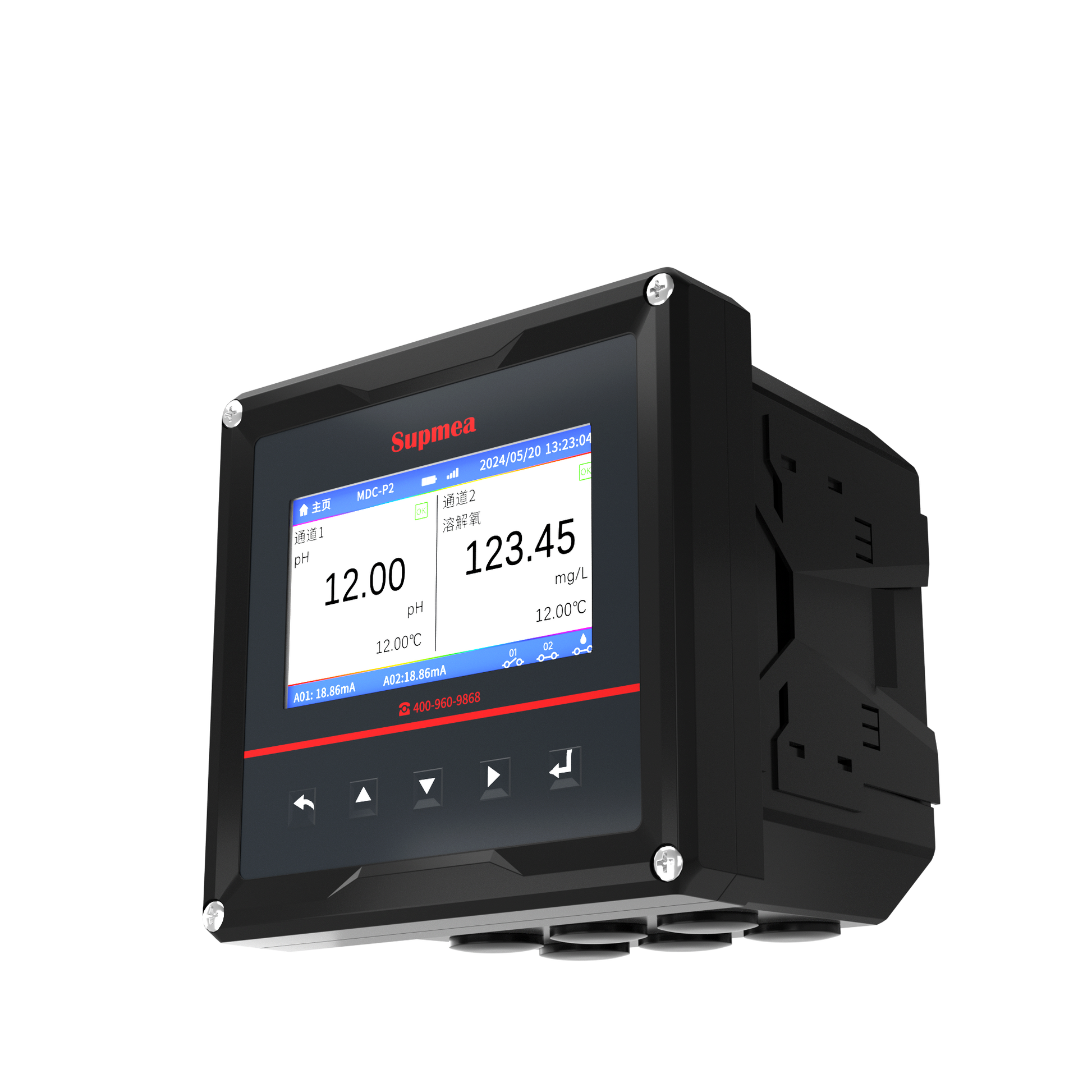

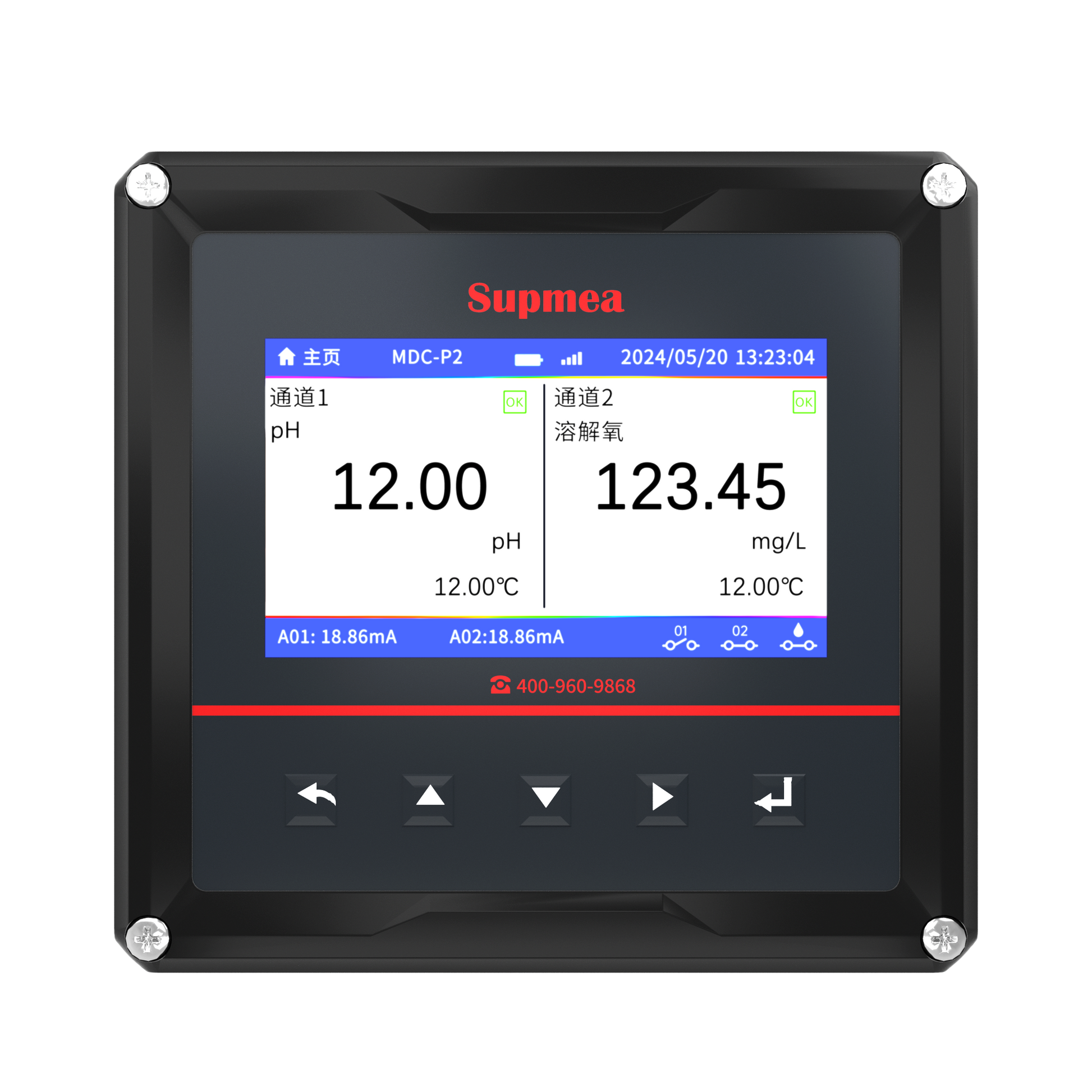

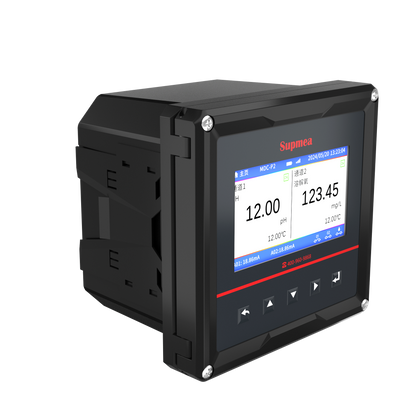

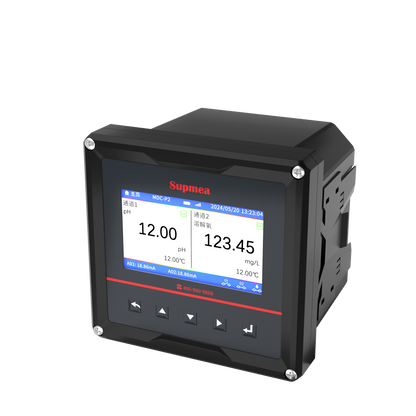

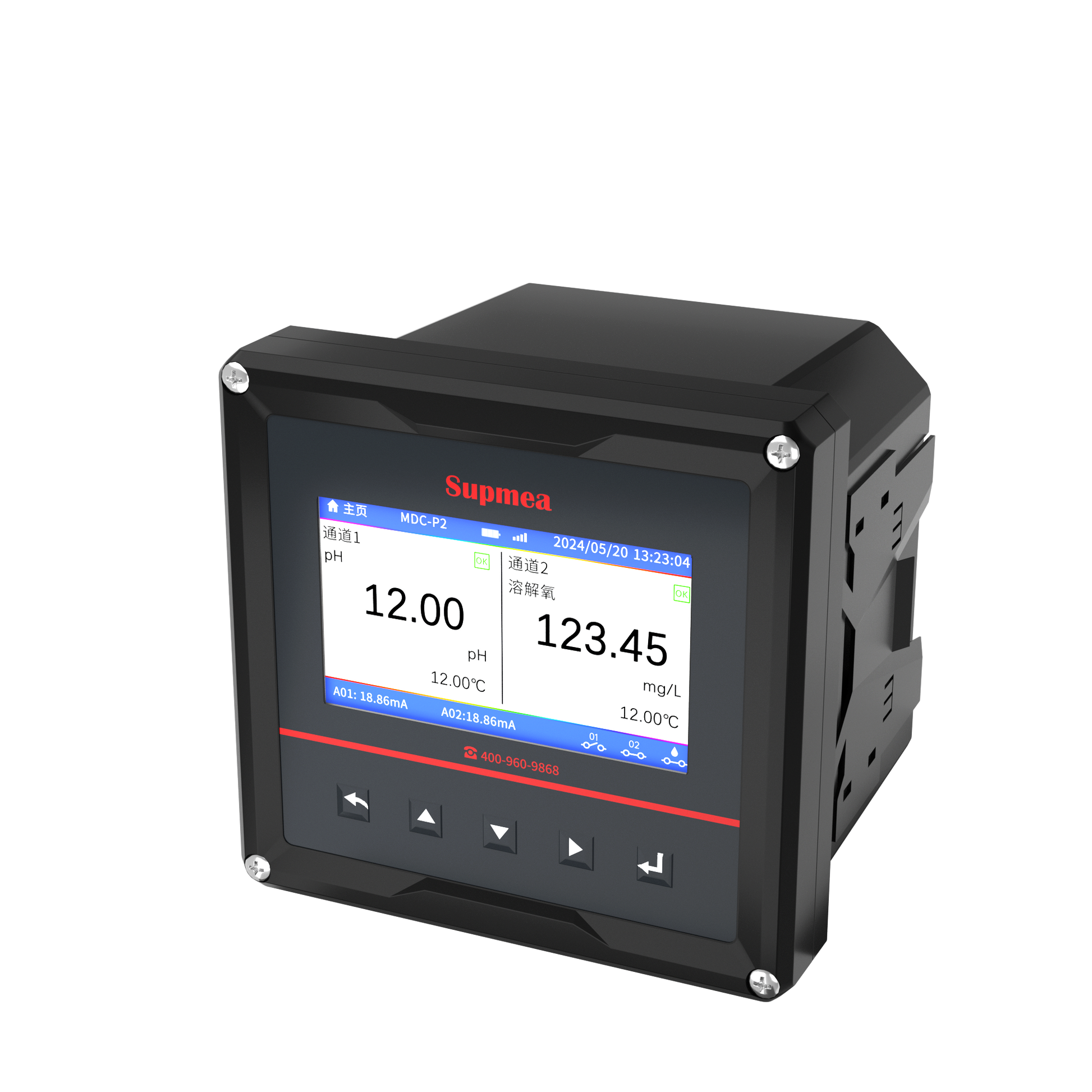

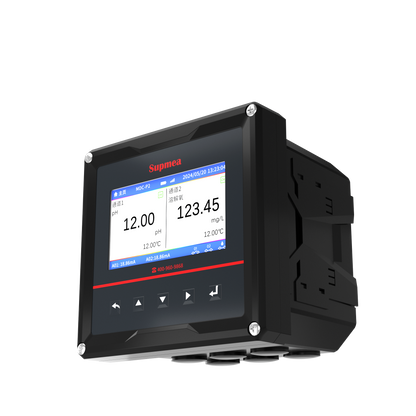

Supmea MDC-P2 Dual Channel Universal Controller
Supmea MDC-P2 Dual Channel Universal Controller
- 36 Months Limited Warranty
Couldn't load pickup availability
Introduction

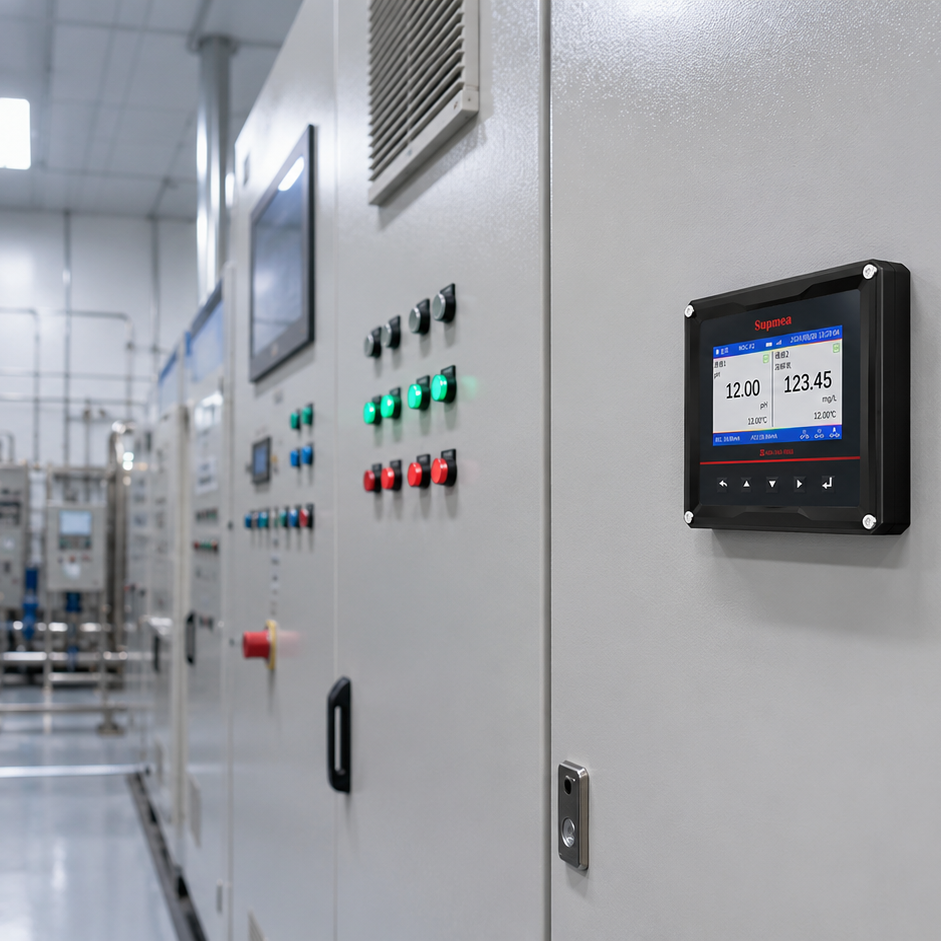

The SUP-MDC-P2 is an intelligent dual-channel universal controller designed for advanced online process monitoring and water quality analysis. It supports both analog and digital sensors, allowing simultaneous measurement of multiple process parameters through a single controller. With isolated 4–20 mA outputs, Modbus RTU communication, optional NB-IoT or 4G wireless connectivity, and a 4.3-inch full-color touchscreen, the controller provides reliable monitoring, remote communication, and process control for industrial automation, water treatment, and environmental applications.

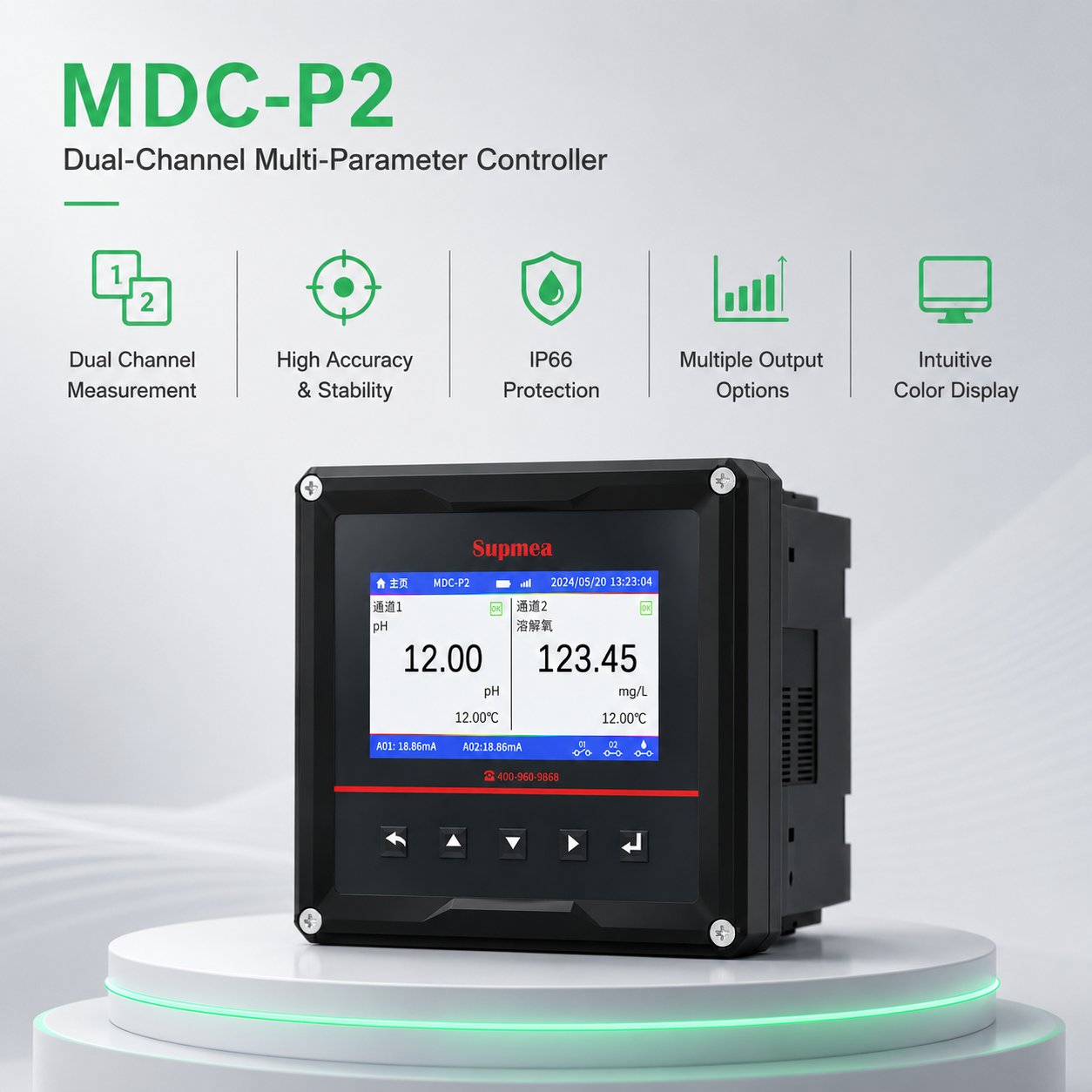

Key Features
Technical Specifications
Analog sensor input
Measured Variables
• pH
• ORP
• Antimony
Measured Range
• pH / Antimony: -2.00 to 16.00 pH
• ORP: -2000 to +2000 mV
Input Impedance
• ≥10¹² Ω
Supported Temperature Sensors
• NTC10K
• Pt1000
• Pt100
Temperature Range
• 14 to 266°F
Accuracy
• pH: ±0.02 pH
• Antimony: ±0.2 pH
• ORP: ±2 mV
• NTC10K
- 14 to 140°F: ±0.54°F
- 140 to 266°F: ±3.6°F
• Pt1000: ±0.54°F
• Pt100: ±0.54°F
Resolution
• pH / Antimony: 0.01 pH
• ORP: 1 mV
Repeatability
• pH: 0.02 pH
Temperature Compensation
• Manual Compensation
• Automatic Compensation
- Linear
- Acid
- Base
- Pure Water
Digital sensor input
Measured variables：
- pH/ORP/Conductivity/Dissolved
- Oxygen/Turbidity/Sludge Concentration/Inductive Conductivity/Residual
- Chlorine/Ammonia nitrogen/Nitrate nitrogen/COD, etc.
Measuring ranges：
- pH: (0.00 ~14.00)pH
- ORP: (-2000 ~ 2000)mV
- Dissolved oxygen: (0～40)mg/L
- Saturation: (0～200)%
- Conductivity: (0～500)mS/cm
- Turbidity: (0～4000)NTU
- Sludge concentration: (0～120000)mg/L
- Inductive conductivity: (0～2000)mS/cm
- Residual chlorine: (0~ 100)mg/L
- Ammonia nitrogen: (0~ 1000)mg/L
- Nitrate nitrogen: (0~1000)mg/L
- COD: (0~1500) mg/L
- Note: Actual measurement ranges should refer to thetechnical data of the connected sensors.
Output
Current output ：
Isolated,2-channel (0/4~20) mA configurable to corresponding measurement ranges, load capacity 750Ω,output accuracy ±0.1%FS,compliant with NAMUR NE 43 standards.
Communication output：
Isolated, RS485 interface,Modbus-RTU communication protocol.
Alarm output：
2 Alarm Relays + 1 Cleaning Relay
250 VAC / 5 A
Alarm relay delay：
0~9999 seconds, adjustable.
Electrical specifications
Power Supply
• AC: 85–265 VAC, 50/60 Hz
• DC: 21.6–26.4 VDC
Power Consumption
≤28 W
Cable Entry
M20 × 1.5 Cable Gland
Cable Compatibility
• Spring Terminals
- AWG16–24 (0.2–1.5 mm²)
• Plug-in Terminals
- AWG12–28 (1.0–2.5 mm²)
Environment
Operating Environment
• Temperature: 32–140°F (0–60°C)
• Humidity: 10–85% RH (Non-condensing)
Storage Environment
• Temperature: 5–149°F (-15–65°C)
• Humidity: 5–95% RH (Non-condensing)
• Altitude: <6,560 ft (<2,000 m)
Protection Rating
• IP66
Flammability Rating
• UL94 V-0

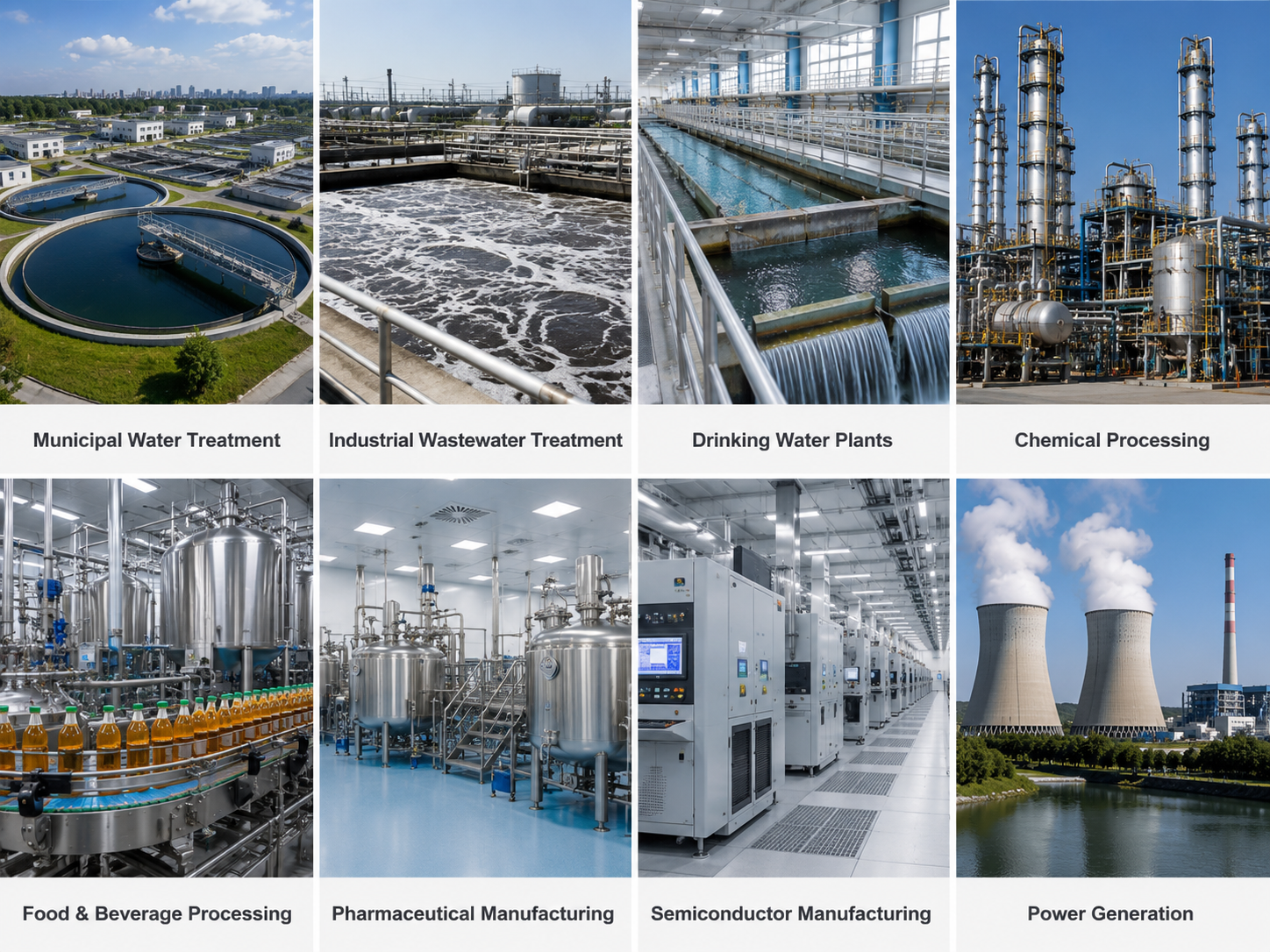

Applications
