Supmea MPP1000 Multi-parameter Water Analyzer

Supmea MPP1000 Multi-parameter Water Analyzer

US$5,497.00
US$5,497.00
Sale Sold out
Prices Shown Include Delivery.

Low stock: 10 left • Lead Time: 2-4 Weeks
View full details

Introduction

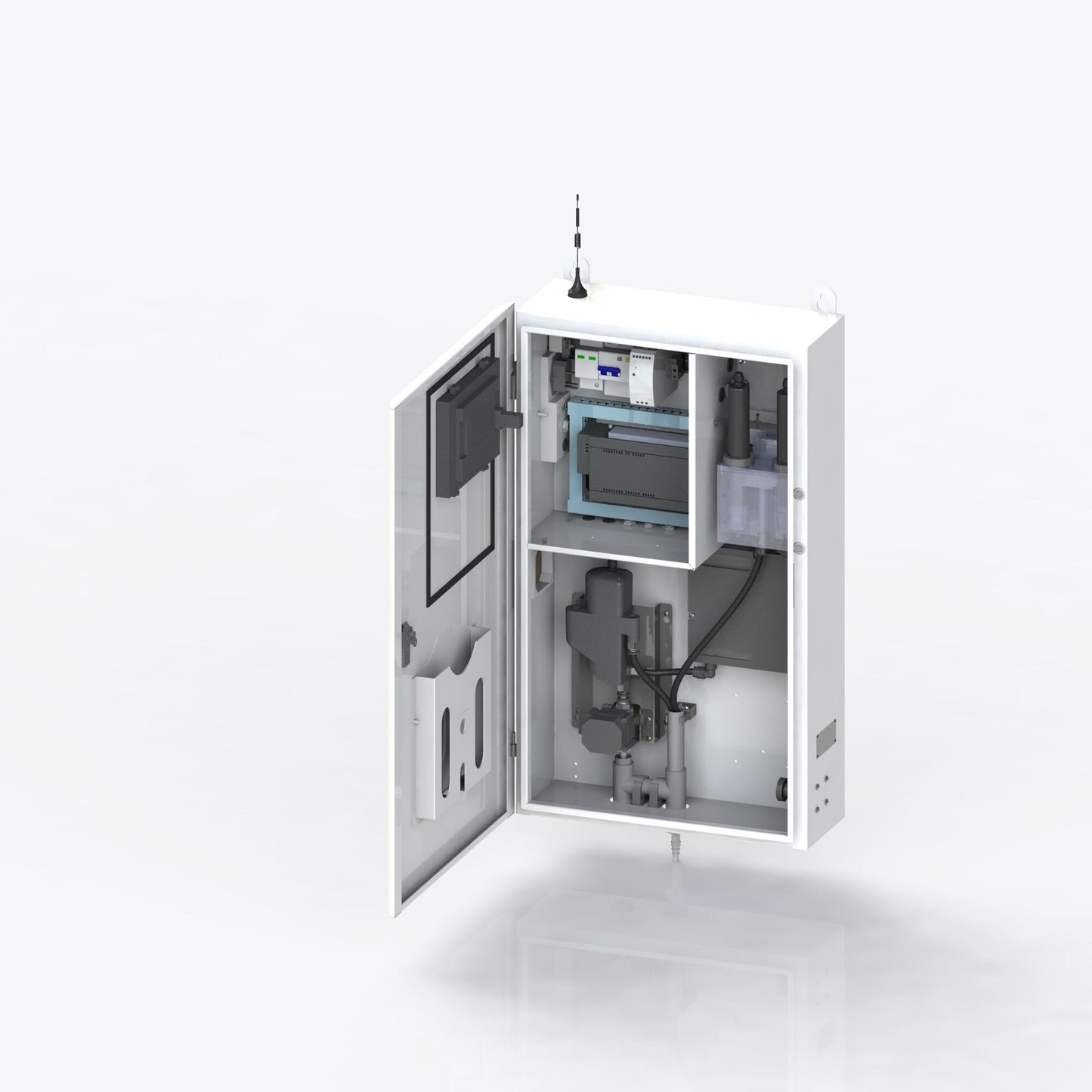

The SUP-MPP1000 combines multiple water quality sensors, flow management, sampling, data processing, and communication into one compact monitoring cabinet. Designed for continuous online operation, it delivers stable and accurate measurements for drinking water treatment plants, municipal water networks, secondary water supply systems, and industrial water processes.
With a modular architecture, users can configure different parameter combinations based on project requirements while maintaining one centralized monitoring platform.

Specification Details

System

  • working power (110±22)VAC, (50±1)Hz
  • Power 30W
  • Cabinet size 800mm*506mm*180mm (standard version)
  • Weight about 15Kg
  • Storage temperature 4℃~+50℃
  • Working temperature 4℃~+50℃ / -25℃~+50℃(optional temperature control heating antifreeze module)
  • Working humidity ≤95%RH (no condensation)
  • Inlet flow 500-1000 mL/min
  • Inlet pressure < 3kg/cm³
  • Communication interface RS485 Modbus RTU communication protocol + wireless interface

Turbidity

  • Range 0-1NTU / 0-20NTU / 0-100NTU / 0-4000NTU
  • Resolution 0-1NTU / 0-20NTU / 0-100NTU:0.001NTU 0-4000NTU:0.01NTU
  • Lower detection limit 0.02 NTU; 0.1NTU (0-4000NTU)
  • Zero drift ≤1.5%
  • Indication stability ≤1.5%
  • Accuracy 2% or ±0.02NTU; 5% or 0.5NTU (0-4000NTU)
  • Repeatability ≤3%
  • Response time T90≤120s
  • Recommended maintenance period 3-12 months (depending on the water quality on site)

Residual chlorine/chlorine dioxide

  • Range 0-5mg/L / 0-20mg/L
  • Resolution 0.01mg/L
  • Lower detection limit 0.05mg/L
  • Accuracy ±0.05mg/L or ±5% (DPD comparison error ±10%)
  • Response time ≤120 seconds
  • Recommended maintenance period 1-3 months or weekly calibration, 3-6 months to replace consumables

PH /ORP(optional)

  • Range 0-14 pH, ±2000 mV (ORP)
  • Resolution 0.01 pH, ±1 mV (ORP)
  • Accuracy ±0.1 pH, ±20 mV (ORP) or ±2%
  • Repeatability ±0.1 pH, ±10 mV (ORP)
  • Response time ≤60 seconds
  • Recommended maintenance period 1-3 months

Temperature

  • Range 0℃ - 50℃
  • Resolution 0.1℃
  • Accuracy ±0.5℃
  • Repeatability ≤0.5℃
  • Response time ≤25 seconds
  • Recommended maintenance period 12 months

Conductivity (Optional)

  • Range 0-2000uS/cm
  • Accuracy ±1.5%FS
  • Repeatability ≤0.5%FS
  • Response time ≤30 seconds
  • Recommended maintenance period 3-6 months

Dissolved oxygen (Optional)

  • Range 0-20mg/L
  • Accuracy ±0.3mg/L
  • Repeatability ≤±1.5%
  • Response time ≤30 seconds
  • Recommended maintenance period 1-3 months

Expansion port

  • Port type RS485, 4-20mA

Key Features

  • Supports simultaneous monitoring of multiple water quality parameters from a single cabinet, reducing installation complexity.
  • Choose from turbidity, residual chlorine, chlorine dioxide, pH, ORP, conductivity, dissolved oxygen, temperature and additional optional sensors.
  • 7-inch color touchscreen provides intuitive operation, calibration and parameter management.
  • Designed for 24/7 unattended monitoring with automatic protection functions and long-term measurement stability.
  • Supports RS485 Modbus RTU communication for seamless connection with PLC, SCADA and DCS systems.
  • Integrated flow management, automatic protection and modular sensor layout simplify routine maintenance.

Applications

Downloads

User Manual
Datasheet

FAQ

Which water quality parameters can the analyzer monitor?

The SUP-MPP1000 supports simultaneous online monitoring of multiple water quality parameters, including turbidity, residual chlorine or chlorine dioxide, pH, temperature, conductivity, dissolved oxygen, and ORP. Different configurations are available to match your application requirements.

Can I customize the parameter combination?

Yes. The analyzer is available in several standard configurations and can also be customized for specific monitoring requirements. You can choose different parameter combinations based on your project, helping reduce unnecessary costs while meeting process needs.

What maintenance is required during operation?

Maintenance depends on the selected sensors and water quality. Routine maintenance typically includes sensor cleaning, periodic calibration, and replacement of consumable components when required. The integrated cabinet design allows easy access for servicing while reducing maintenance time.

Is the analyzer suitable for unattended operation?

Yes. The system is designed for continuous online monitoring with integrated sensors, centralized data management, and automatic protection features. It minimizes manual intervention and is ideal for long-term operation in municipal and industrial water systems.

What warranty do you provide?

Please refer to BayMeters Warranty Policy or contact our sales team for warranty details.

How long does shipping take?

Products in the US warehouse typically ship within 3–5 business days
