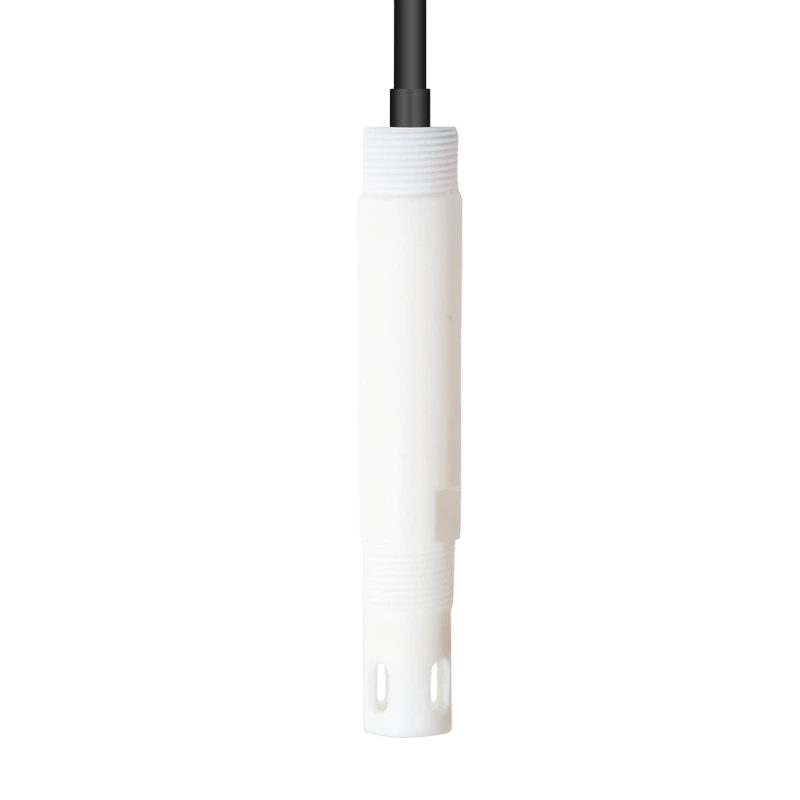

Supmea PH5013A PTFE pH Electrode/Sensor for Corrosive Medium

Supmea PH5013A PTFE pH Electrode/Sensor for Corrosive Medium

US$272.00
US$272.00
Sale Sold out
Prices Shown Include Delivery.

Low stock: 10 left • Lead Time: 2-4 Weeks
View full details

Product Overview

The SUP-ADU3500 Pressure-Compensated Turbidity Sensor is designed for continuous online turbidity monitoring in water quality applications. Based on the 90° laser light scattering measurement principle, it provides high-precision turbidity detection with fast response and stable long-term operation. Its pressure-resistant flow channel design reduces bubble interference, while the self-cleaning optical window helps extend maintenance intervals. The compact structure makes it ideal for integration into drinking water, filtration, and industrial water monitoring systems.

Key Features

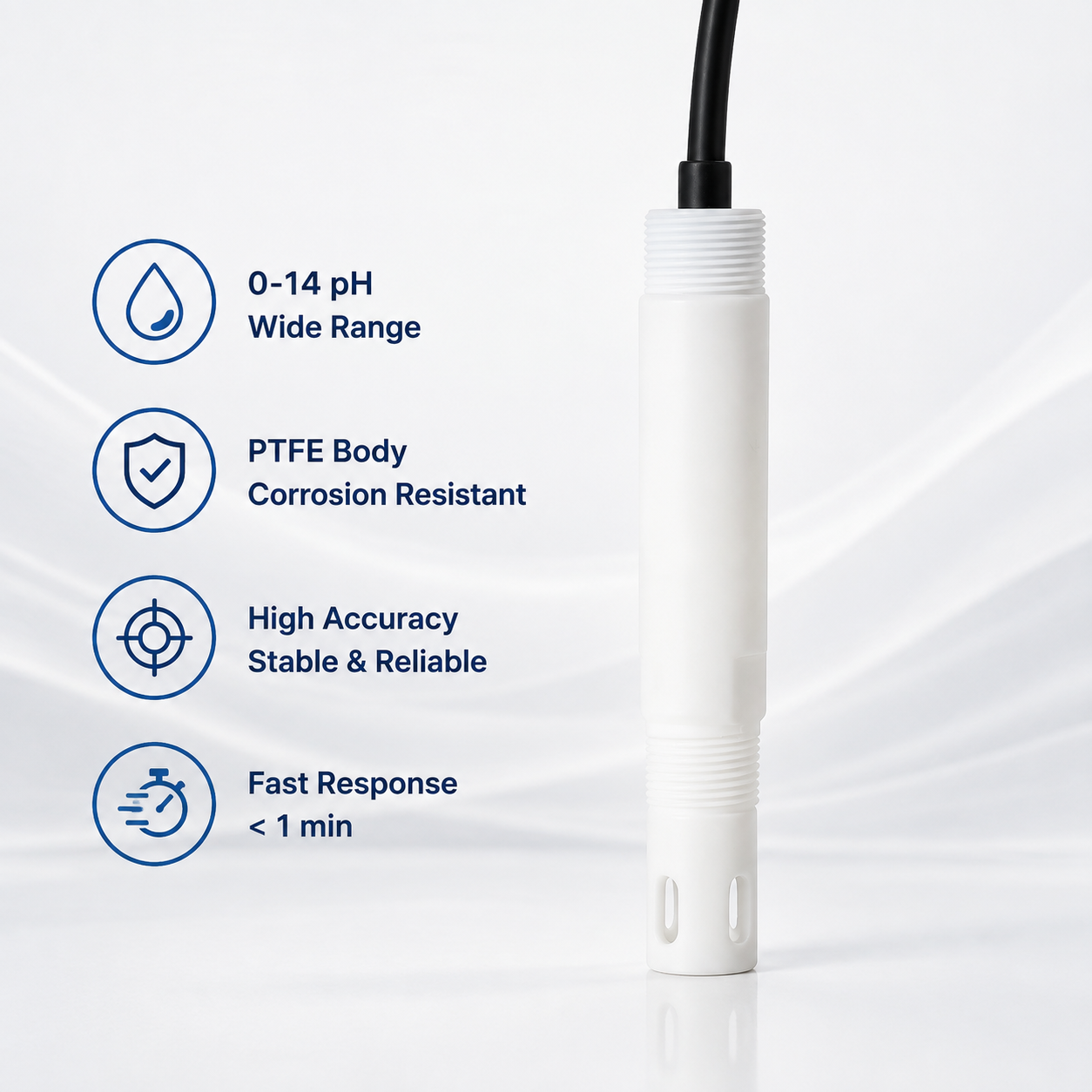

  • PTFE construction and low-impedance glass sensitive film provide excellent chemical resistance for harsh industrial environments.
  • Features a stable Ag/AgCl reference system with conversion coefficient ≥95% for reliable pH measurement.
  • Practical response time is less than 1 minute, enabling rapid process monitoring.
  • PTFE ring salt bridge design extends electrode durability in demanding applications.
  • Supports Pt100, Pt1000, NTC10K, NTC22K, and NTC30K temperature compensation options.
  • Supports 3/4 NPT threaded installation for industrial tanks and pipelines.

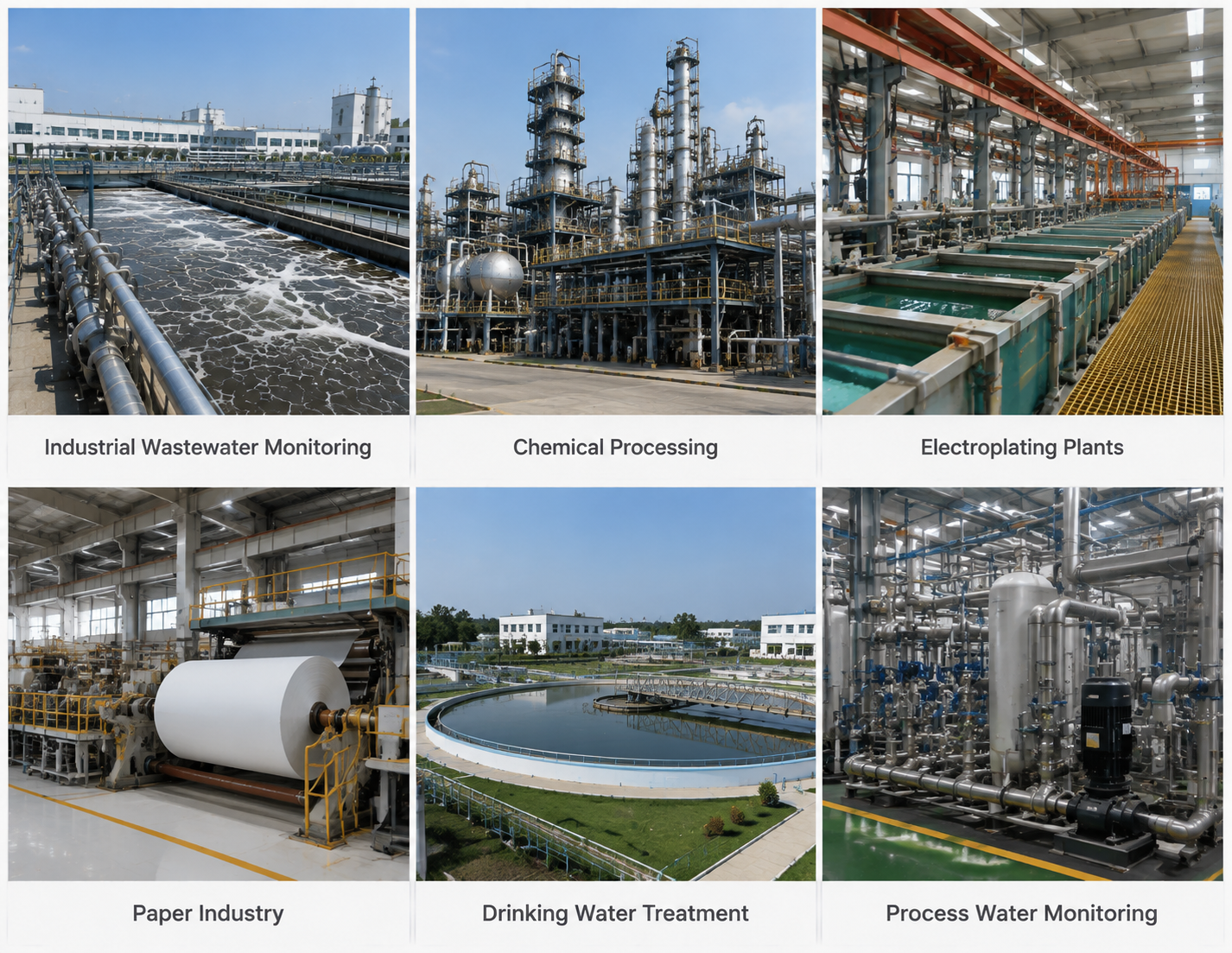

Applications

Technical Specifications

Measurement Range 0–14 pH
Temperature Range 32–176°F
Temperature Compensation Pt100 / Pt1000 / NTC10K / NTC22K / NTC30K
Reference System Ag/AgCl
Zero Potential Point 7 ±0.25 pH
Conversion Coefficient ≥95%
Membrane Resistance <500Ω
Response Time <1 min
Salt Bridge Ring PTFE Junction
Pressure Resistance 43.5 psi
Thread Connection 3/4 NPT
Housing Material PTFE

Downloads

User Manual
Datasheet

FAQ

What liquids can the SUP-pH5013A measure?

It is designed for industrial liquid pH measurement, especially applications involving wastewater, chemical processes, and corrosive media.

Is this electrode suitable for strong acidic or alkaline solutions?

Yes. The PTFE structure and acid-resistant sensitive glass film allow operation in aggressive chemical environments.

Does the electrode support automatic temperature compensation?

Yes. It supports Pt100, Pt1000, and multiple NTC temperature compensation options.

How often should the pH electrode be calibrated?

Calibration frequency depends on the application conditions. Regular calibration is recommended for maintaining accuracy.

What warranty do you provide?

Please refer to BayMeters Warranty Policy or contact our sales team for warranty details.

How long does shipping take?

Products in the US warehouse typically ship within 3–5 business days
