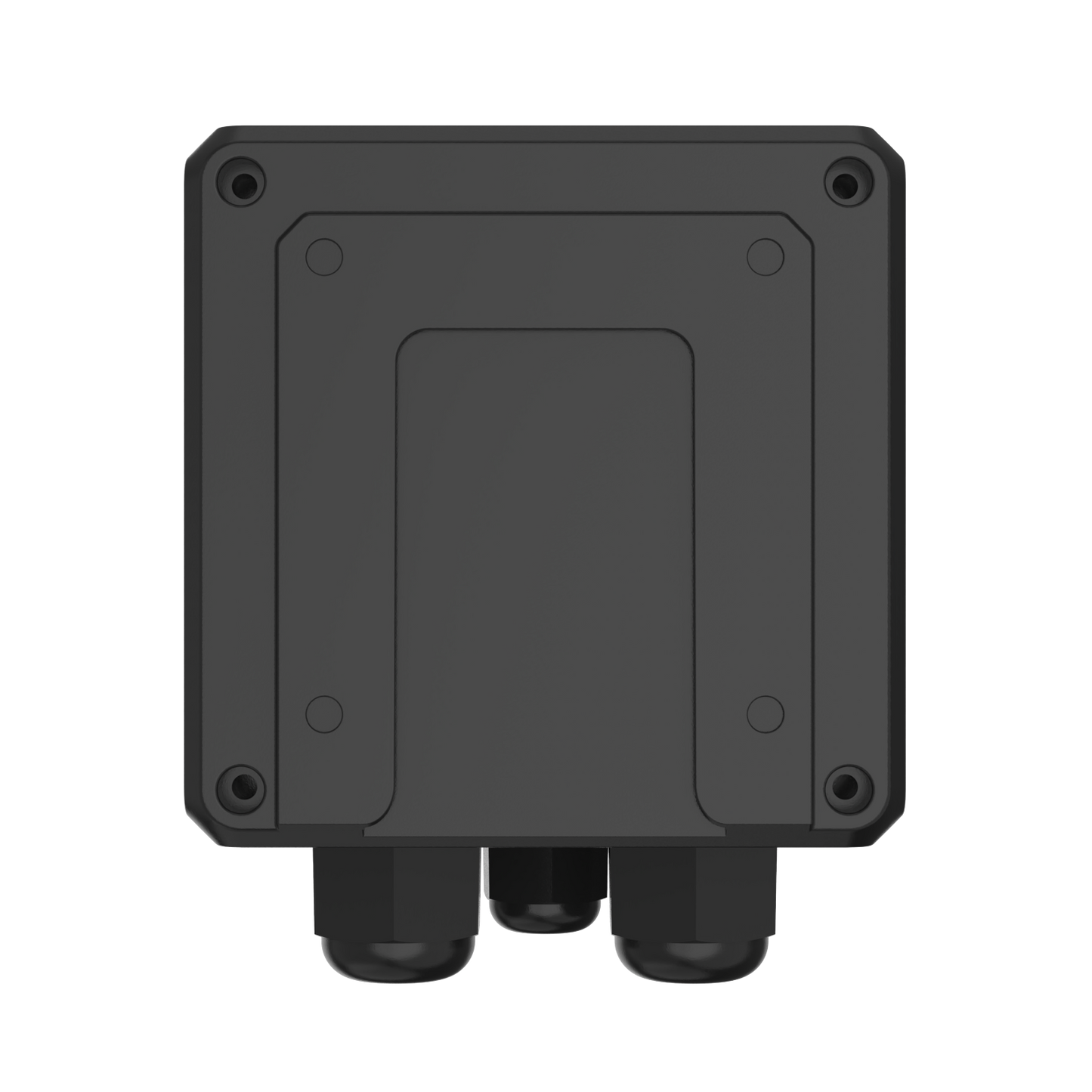

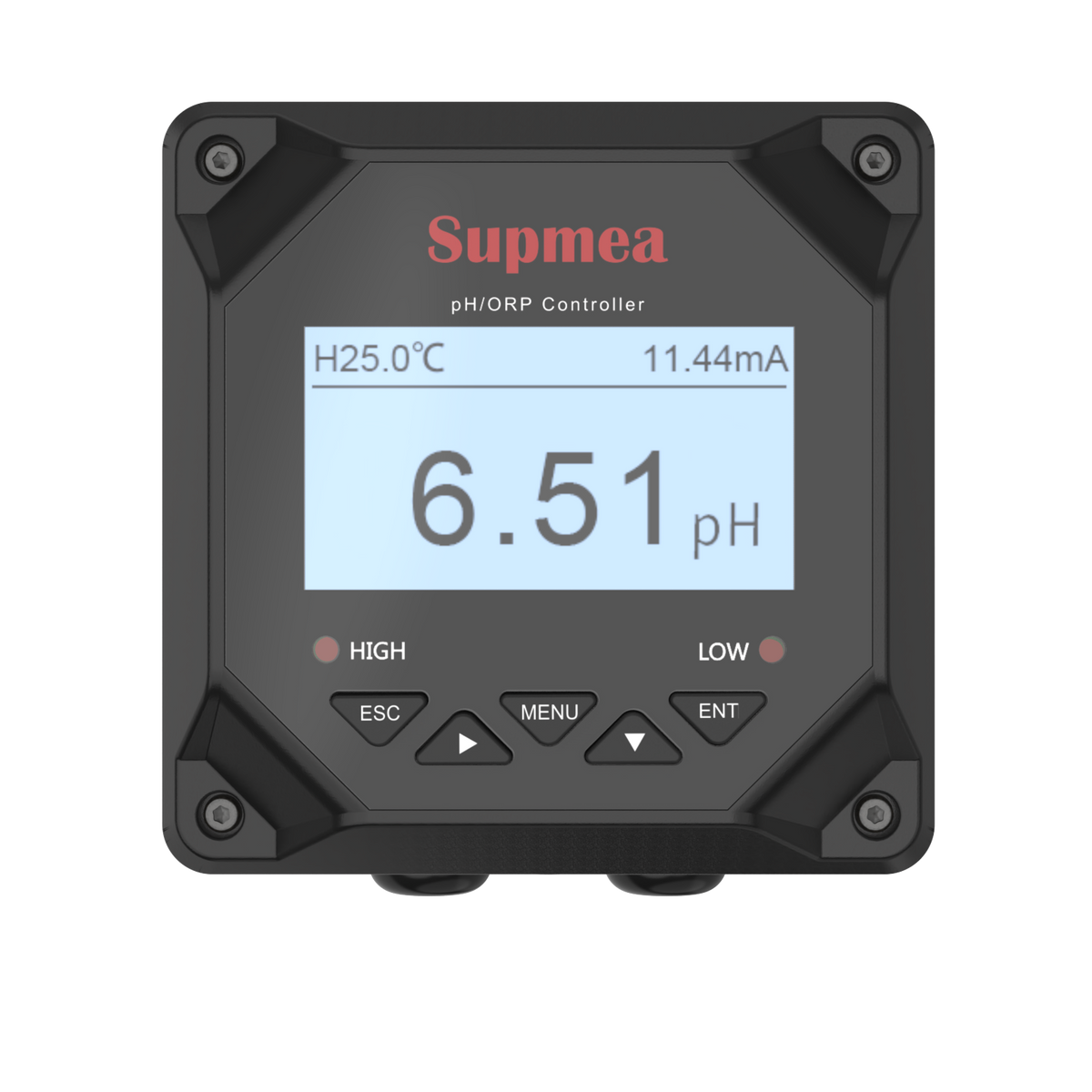

Supmea PH6.5 pH/ORP Controller

Supmea PH6.5 pH/ORP Controller

US$343.00
US$343.00
Sale Sold out
Prices Shown Include Delivery.

20 in stock • Lead Time: 2-4 Weeks
View full details

Product Overview

The SUP-PH6.5 pH/ORP Controller is an intelligent online chemical analysis controller designed for continuous monitoring of either pH or ORP, and temperature in industrial water treatment processes. It supports isolated 4–20 mA analog output and RS485 Modbus RTU communication, enabling seamless integration with PLC, DCS, and SCADA systems.
Featuring a modular hardware design, configurable high/low alarm outputs, automatic or manual temperature compensation, and a 2.8-inch LCD display, the controller provides stable, reliable performance for thermal power, chemical processing, pharmaceutical manufacturing, environmental protection, and municipal water treatment applications.

Key Features

  • Supports continuous online measurement of either pH or ORP, with automatic or manual temperature compensation for stable and accurate monitoring.
  • Board-card modular architecture simplifies assembly, maintenance, and future configuration upgrades.
  • Provides isolated analog transmission with excellent noise immunity for industrial environments.
  • Supports isolated RS485 communication for easy integration with industrial automation systems.
  • Supports configurable high/low alarm limits, alarm delay, and relay outputs for process control.
  • Supports NTC10K, Pt1000, and Pt100 sensors with manual or automatic temperature compensation.

Applications

Technical Specifications

Model SUP-PH6.5
Measuring Range pH: 0.00–14.00 pH ORP: -2000 to 2000 mV
Display 2.8-inch Monochrome LCD 128 × 64 Resolution
Accuracy pH: ±0.02 pH ORP: ±1 mV (±2 mV at extreme ranges)
Resolution 128 × 64 Display Resolution
Relay Output 2 × SPDT Relay, 250 VAC / 3 A
Output Signal Isolated 4–20 mA (Max Loop 750 Ω, ±0.2% FS)
Communication Isolated RS485, Modbus RTU
Power Supply 110 VAC 24VDC
Operating Temperature 32–140°F (0–60°C)
Protection Rating IP5X
Dimensions 3.94 × 3.94 × 5.91 in (100 × 100 × 150 mm)
Multi-channel Input Single-channel pH / ORP
Alarm Output High & Low Alarm, Configurable Delay

Downloads

User Manual
Datasheet

FAQ

Can the SUP-PH6.5 measure pH and ORP at the same time?

No. The SUP-PH6.5 is a single-channel controller. It can be configured for either pH measurement or ORP measurement, but it cannot measure both parameters simultaneously. If your application requires monitoring multiple water quality parameters at the same time, consider a universal multi-parameter controller such as the SUP-DC2000.

What temperature sensors are supported?

The controller supports NTC10K as standard and Pt1000 / Pt100 temperature sensors for automatic or manual temperature compensation.

What mounting method is used?

The controller is designed for panel mounting with a 92.5 × 92.5 mm cutout and is recommended for indoor industrial installations.

Does the controller support PLC or SCADA systems?

Yes. The controller provides isolated 4–20 mA output and RS485 Modbus RTU communication for seamless integration with industrial control systems.

What warranty do you provide?

Please refer to BayMeters Warranty Policy or contact our sales team for warranty details.

How long does shipping take?

Products in the US warehouse typically ship within 3–5 business days
