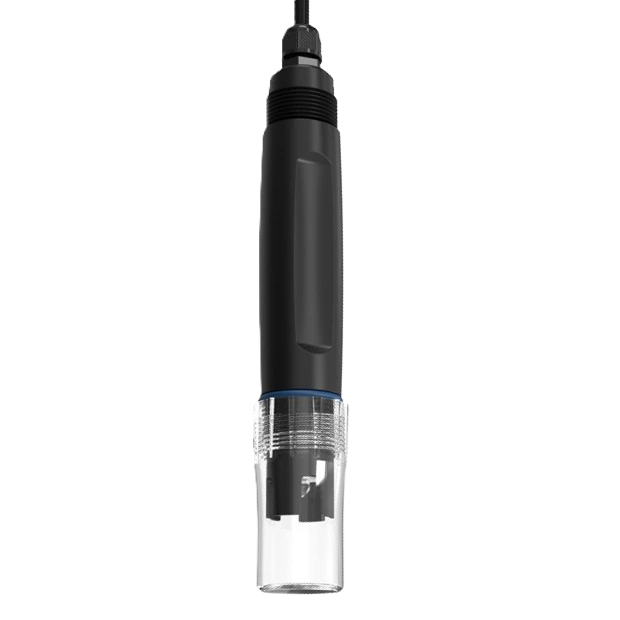

Supmea PH6001 Plastic pH Electrode/Sensor

Supmea PH6001 Plastic pH Electrode/Sensor

US$116.00
US$116.00
Sale Sold out
Prices Shown Include Delivery.

Low stock: 10 left • Lead Time: 2-4 Weeks
View full details

Product Overview

The SUP-PH6001 is a durable industrial pH electrode designed for continuous online pH monitoring in water treatment and dosing applications. It features an Ag/AgCl reference electrode, annular PTFE junction, and corrosion-resistant ABS housing to ensure stable measurement performance and reliable long-term operation.
Compatible with most industrial pH controllers, the sensor supports multiple installation methods and is ideal for environmental monitoring, aquaculture, chemical dosing, and general water treatment processes.

Key Features

  • Designed for continuous monitoring in industrial processes and compatible with most domestic and imported pH transmitters.
  • The Ag/AgCl reference system and annular PTFE junction provide stable readings with excellent resistance to contamination.
  • Supports NTC10K / PT1000 for improved measurement accuracy under varying process temperatures.
  • The corrosion-resistant ABS body is suitable for continuous operation in industrial water applications.
  • Supports Pipe installation，Threaded installation，Flange installation，Submersible installation allowing easy integration into existing systems.
  • Solid electrolyte structure and PTFE liquid junction minimize clogging while extending electrode lifespan.

Applications

Technical Specifications

Measuring Range 2–12 pH
Temperature Range 32–176°F (0–80°C)
Pressure Rating 58 psi (0.4 MPa)
Temperature Compensation NTC10K / PT1000
Reference System Ag/AgCl
Junction Type Annular PTFE Junction
Housing Material ABS
Mounting Thread 3/4" NPT
Cable Length 16.4 ft (5 m), customizable
Sensor Size Φ0.98 × 6.50 in (Φ25 × 165 mm)

Downloads

User Manual
Datasheet

FAQ

What industries is the SUP-PH6001 suitable for?

It is widely used in water treatment, aquaculture, environmental protection, and chemical dosing systems requiring continuous online pH monitoring.

What controllers is the SUP-PH6001 compatible with?

The electrode is compatible with most domestic and imported industrial pH controllers using standard pH inputs.

How should the electrode be stored?

When not in use, rinse the electrode and store it with the protective cap filled with saturated KCl solution to keep the sensing membrane active.

How often should the electrode be calibrated?

Calibration frequency depends on the application. For critical industrial processes, regular calibration using standard buffer solutions is recommended to maintain optimal accuracy.

What warranty do you provide?

Please refer to BayMeters Warranty Policy or contact our sales team for warranty details.

How long does shipping take?

Products in the US warehouse typically ship within 3–5 business days
