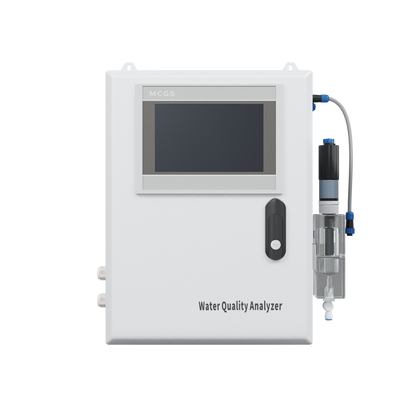

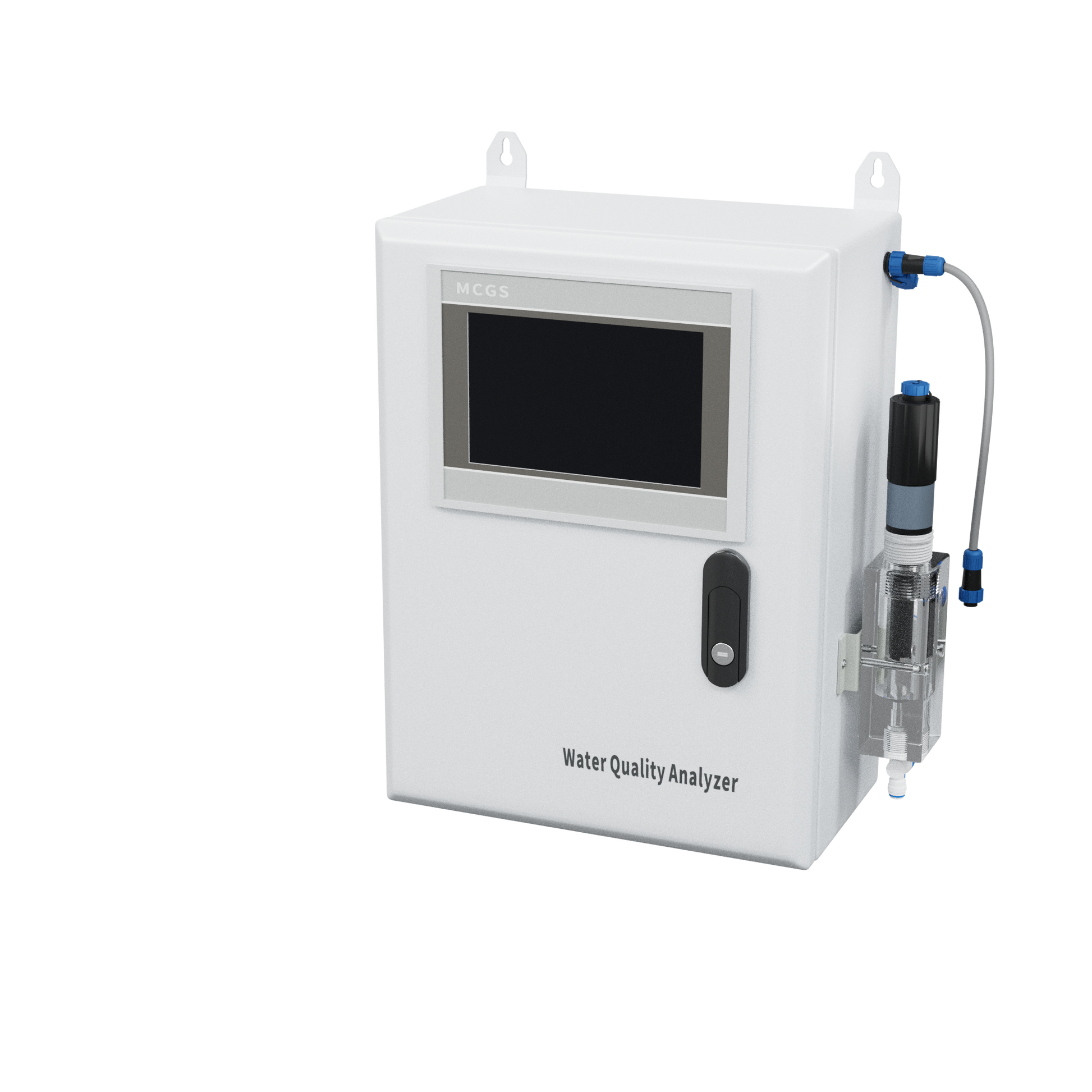

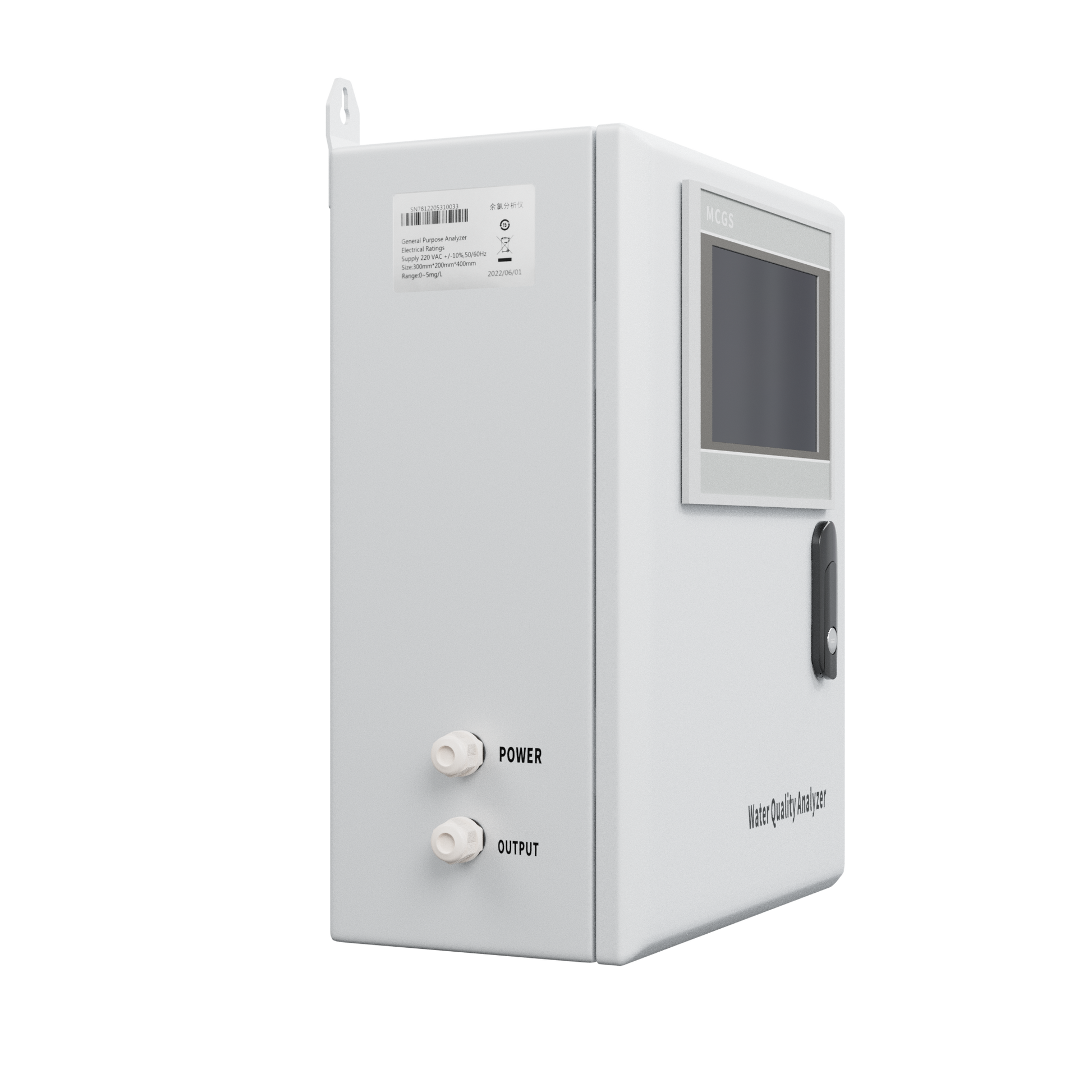

Supmea TRC400 Residual Chloride Meter

Supmea TRC400 Residual Chloride Meter

US$3,834.00
US$3,834.00
Sale Sold out
Prices Shown Include Delivery.

Low stock: 10 left • Lead Time: 2-4 Weeks
View full details

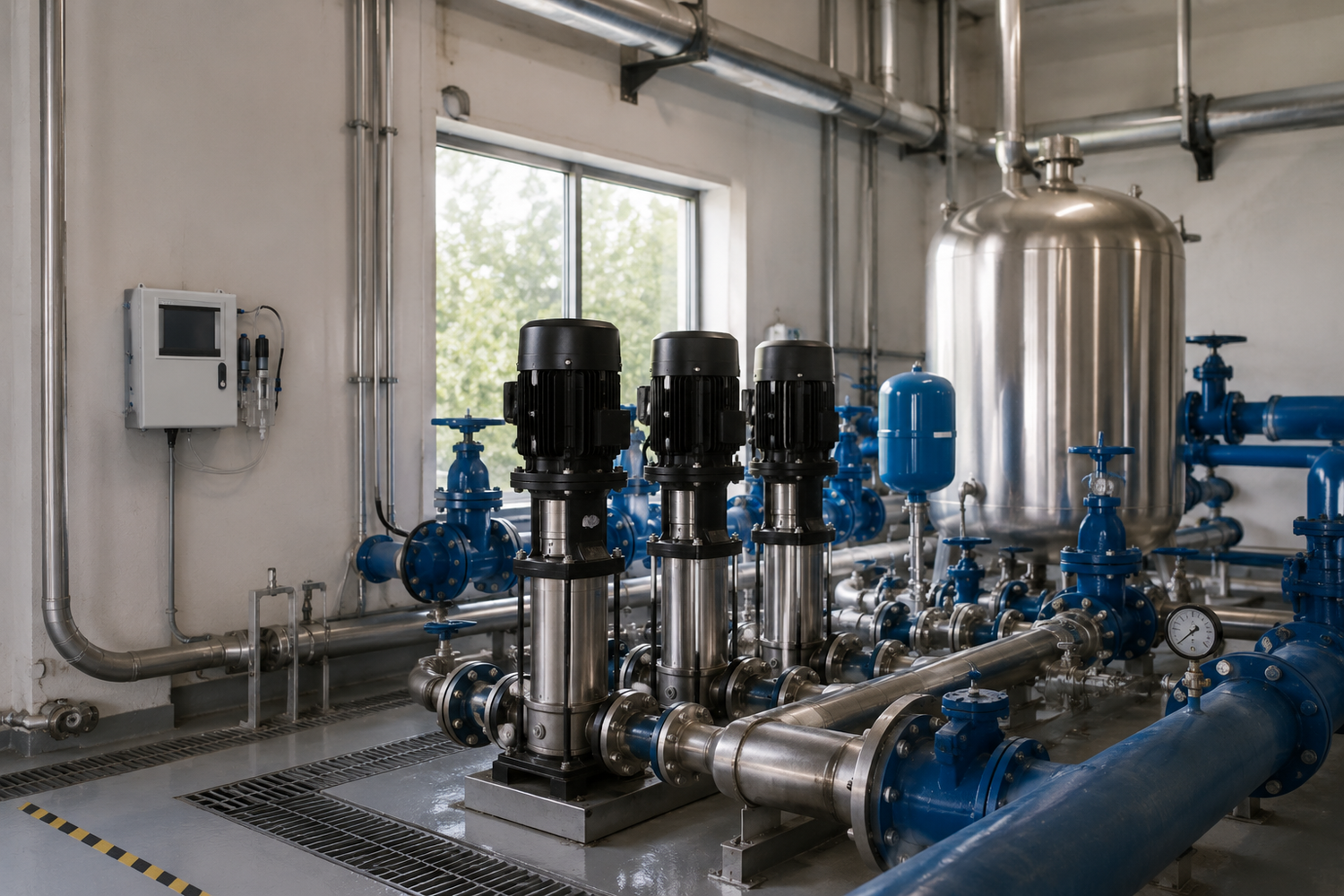

Product Overview

The SUP-TRC400 Online Residual Chlorine Meter is a complete monitoring system for continuous measurement of free chlorine in water treatment applications. Integrating a high-performance analyzer, flow cell, and residual chlorine sensor, it provides accurate, fast-response measurements with low maintenance requirements. Supporting both 4–20 mA and RS485 (Modbus RTU) outputs, the system easily integrates into PLC, SCADA, and process control systems for real-time disinfection monitorin

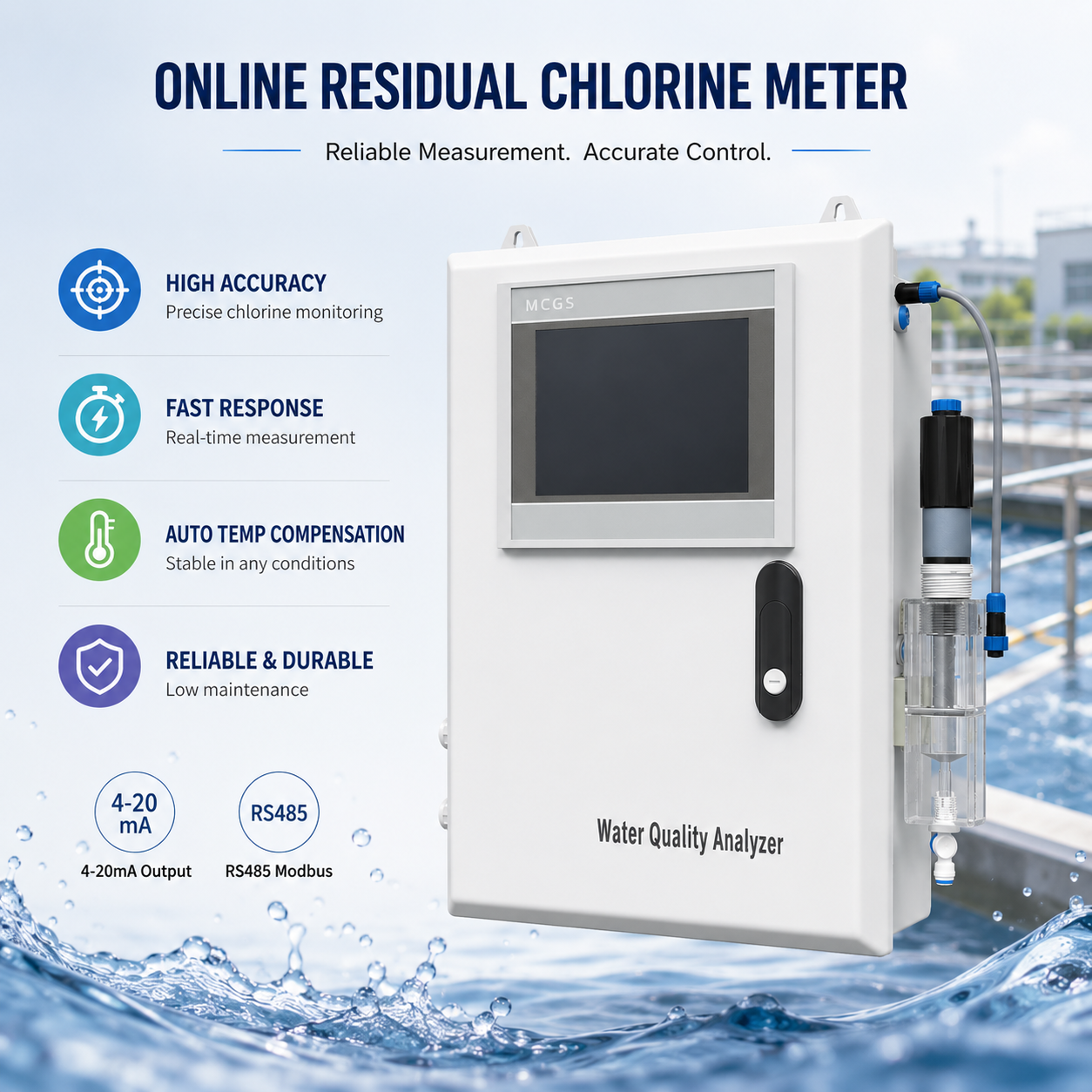

Key Features

  • Built-in electrochemical sensor provides fast response and stable measurement performance for continuous online monitoring.

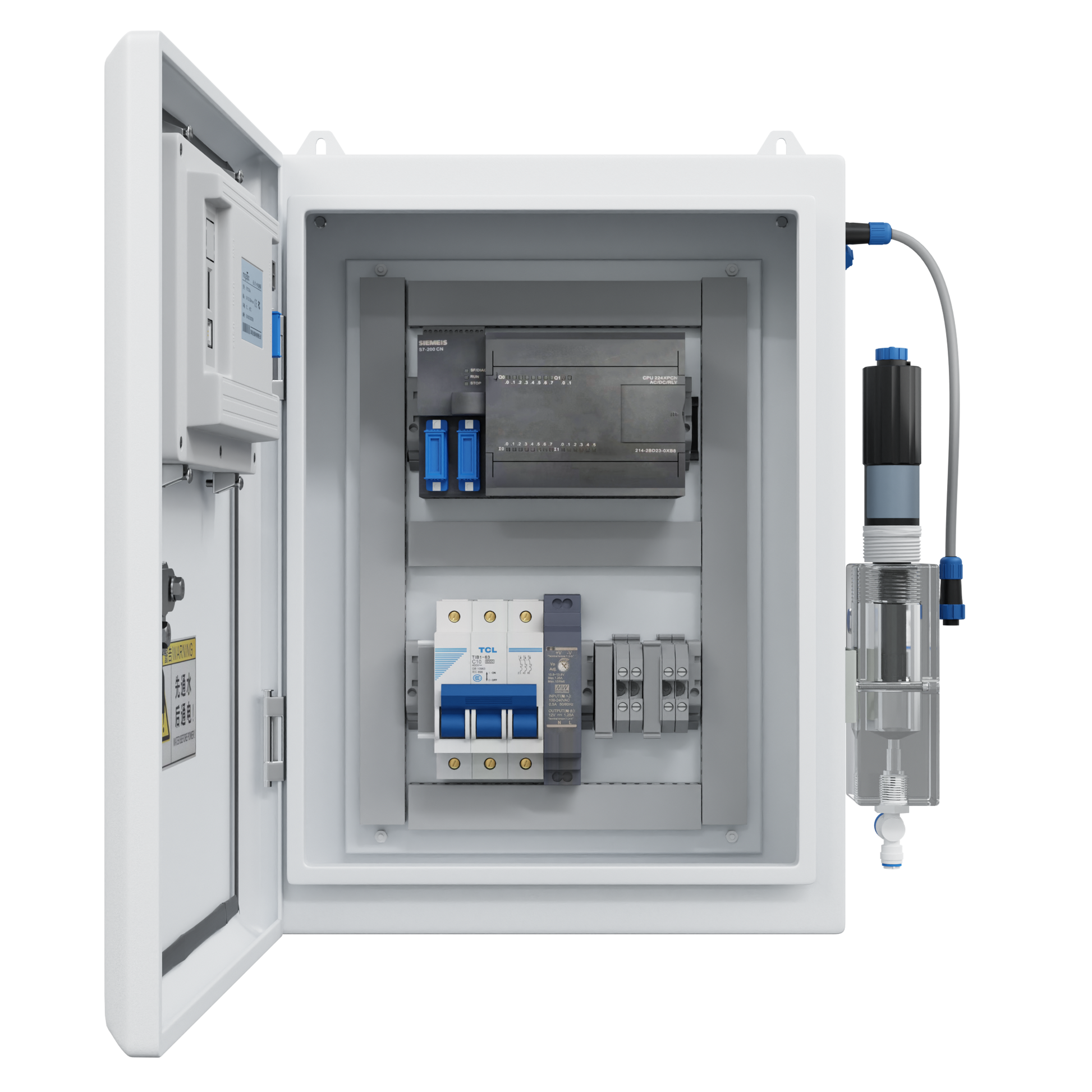

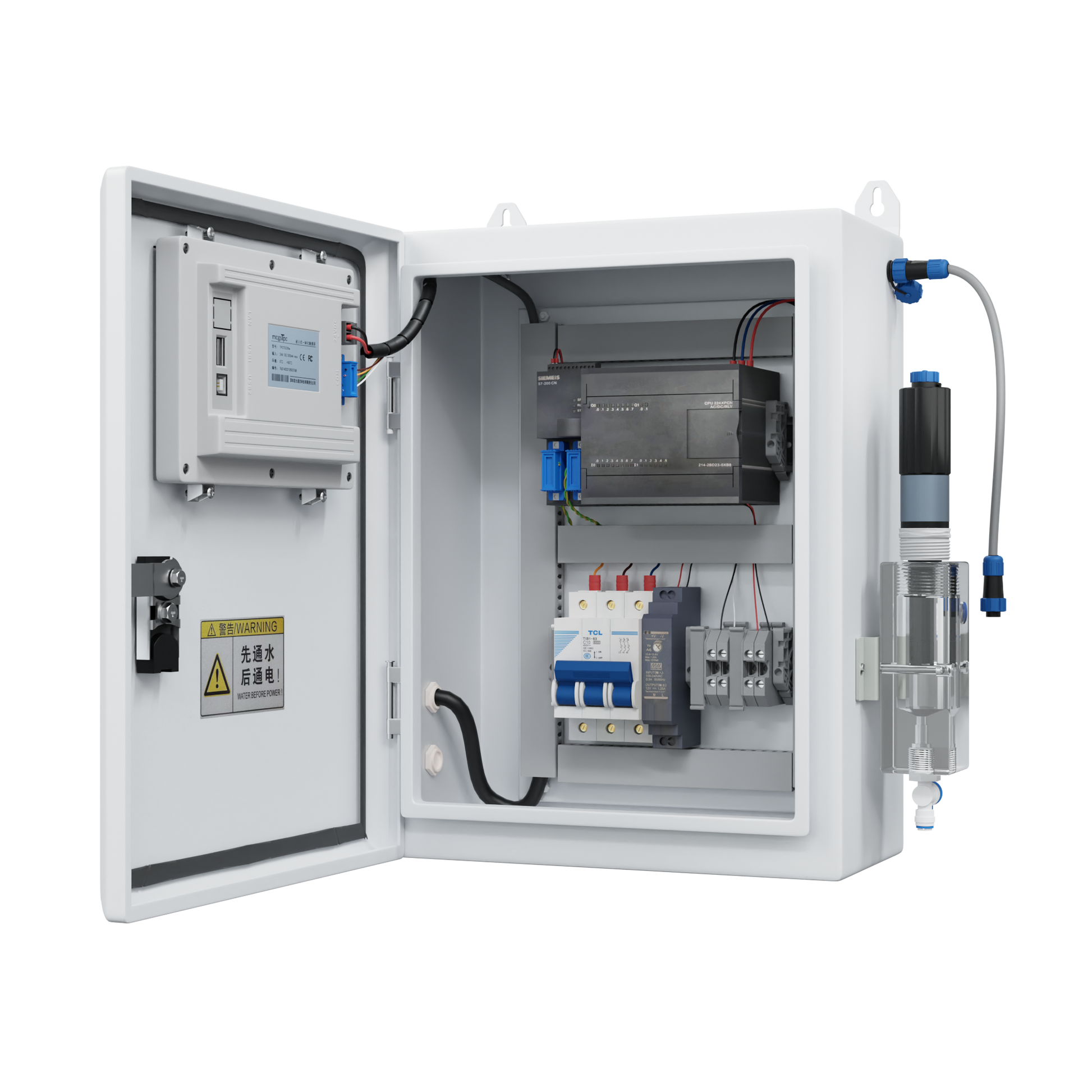

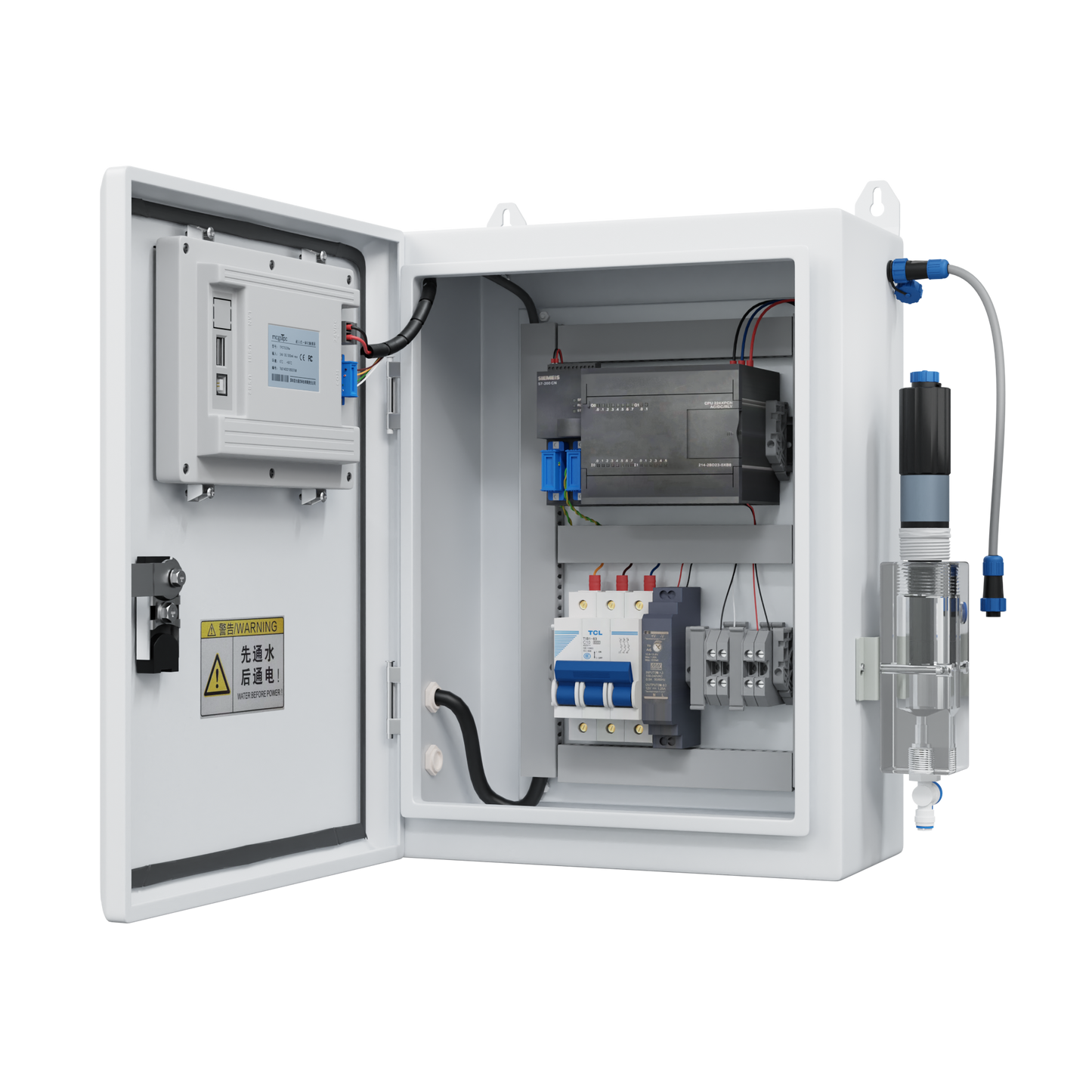

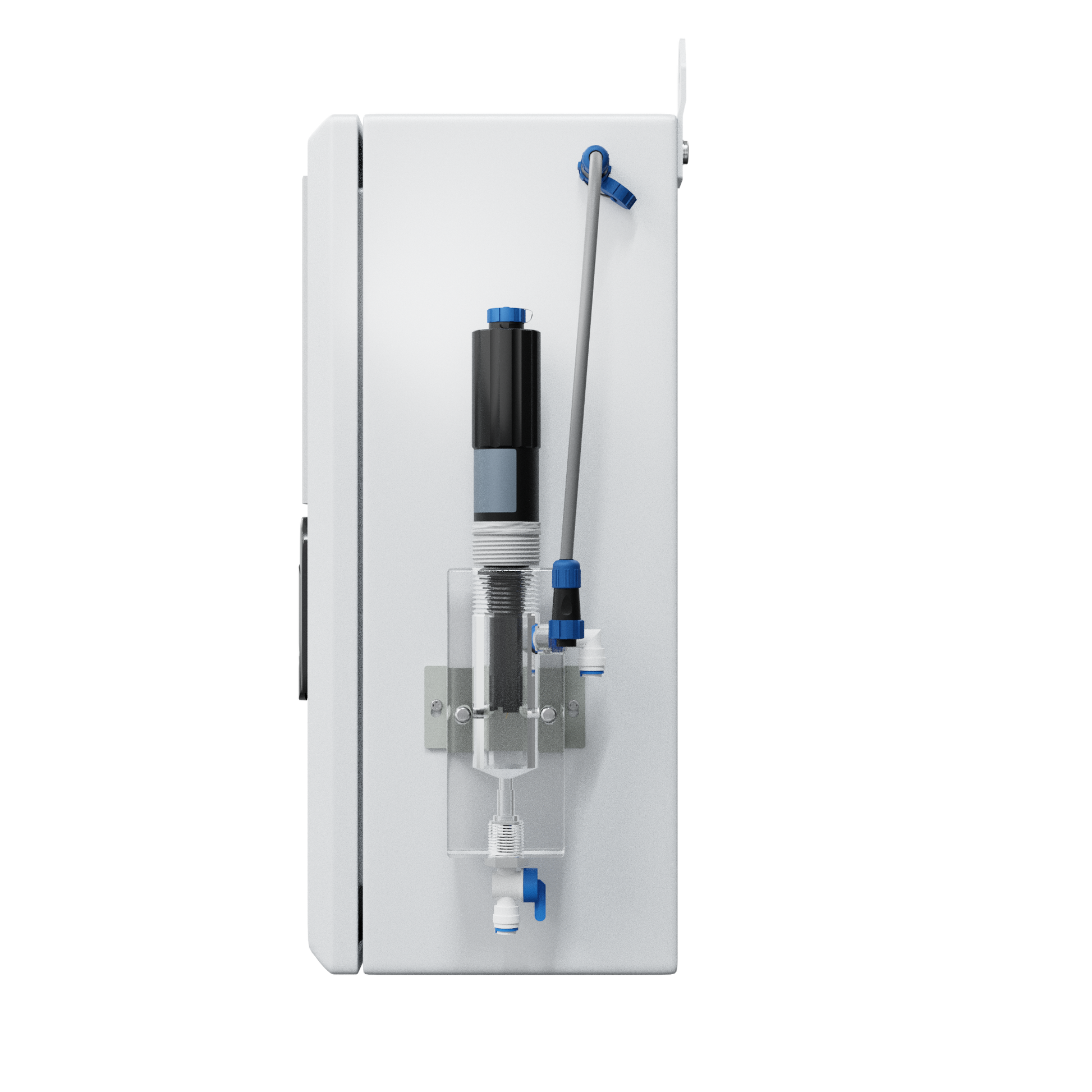

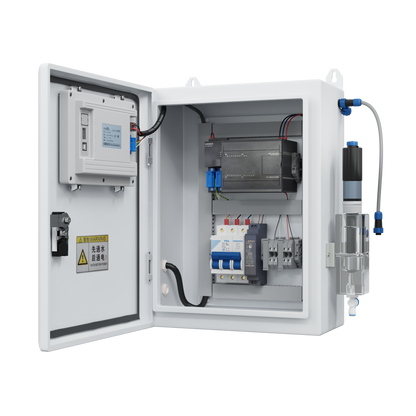

  • Supplied as a complete solution including analyzer, touchscreen controller, flow cell, and residual chlorine sensor for simplified installation.
  • Integrated Pt1000 temperature compensation improves measurement stability under varying process conditions.
  • Large color touchscreen simplifies parameter configuration, calibration, alarm settings, and historical data review.
  • Configurable high/low alarms, relay outputs, historical data storage, trend curves, and data export improve process management.

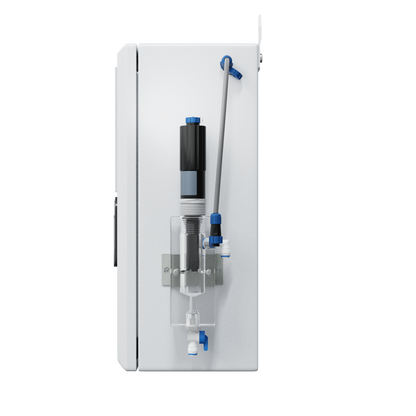

  • Fast-response membrane sensor and optimized flow cell design minimize routine maintenance while providing reliable long-term operation.

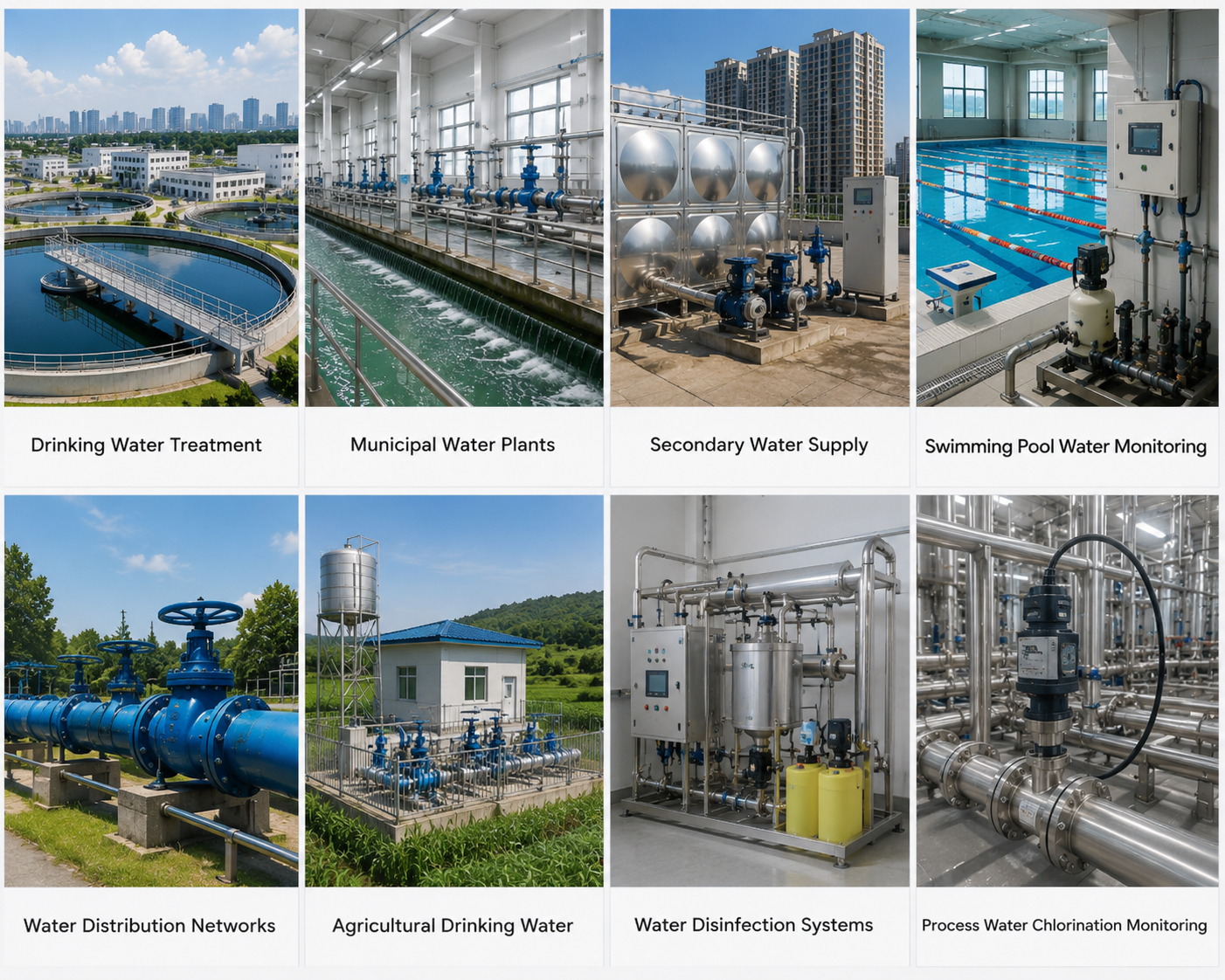

Applications

Technical Specifications

Measured Variable Free Chlorine
Measuring Range 0–5 mg/L
Temperature Range 32.2–104°F (0.1–40°C)

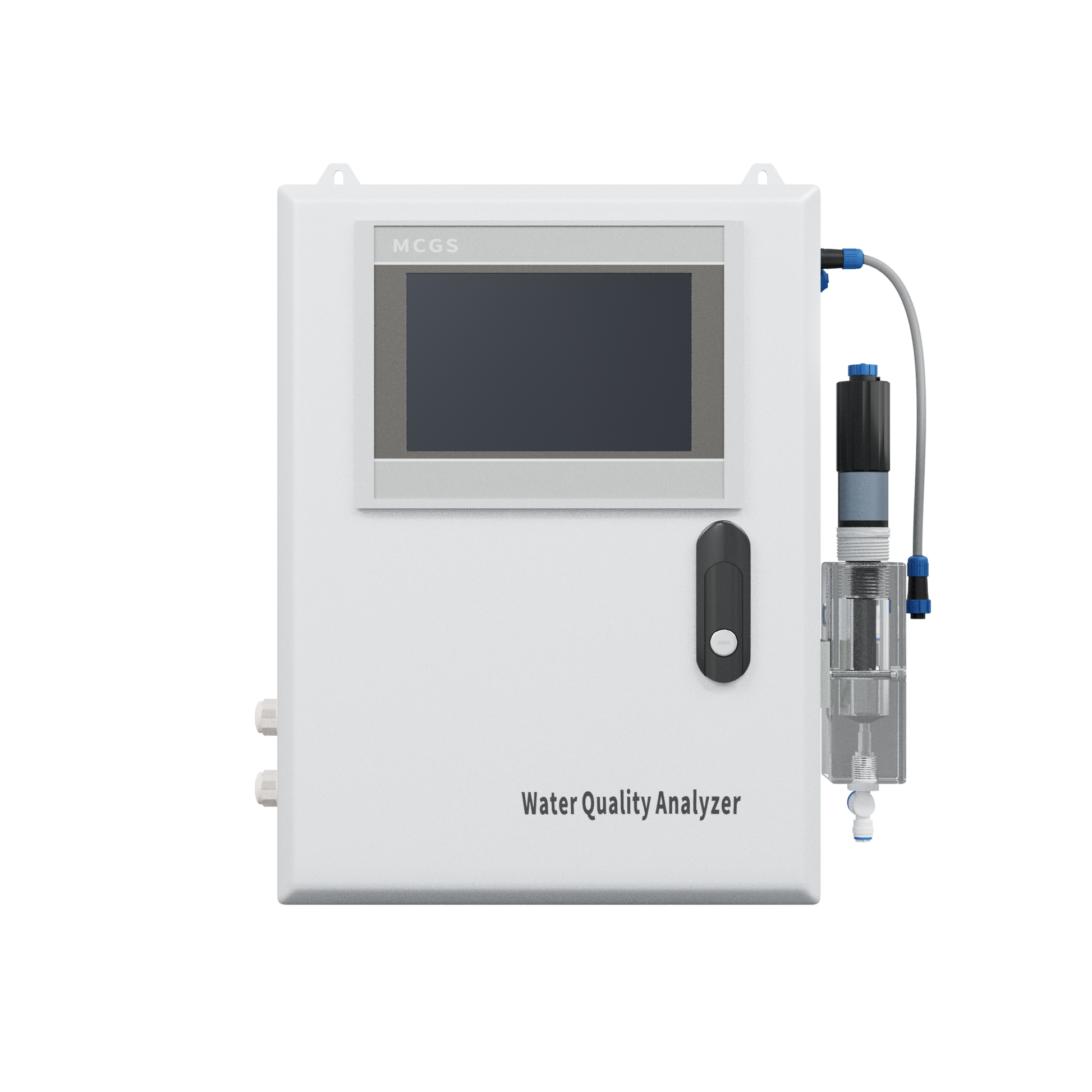

Display 7-inch Color Touchscreen
Temperature Compensation Integrated Pt1000 Automatic Compensation
Analog Output 4–20 mA
Digital Output RS485 (Modbus RTU)
Load Resistance ≤750 Ω
Power Supply 110 VAC
Protection Rating IP43
Ambient Humidity ≤95% RH (Non-condensing)
Protective Box Size 15.7 × 11.8 × 7.1 in (400 × 300 × 180 mm)
Probe Thread NPT 3/4
Probe Cable Length 9.8 ft (3 m), Custom Available
Maximum Working Pressure 58 psi (4 bar)
Recommended Flow Velocity ≥0.03 m/s
pH Range 5–9 pH

Downloads

User Manual
Datasheet

FAQ

What does the SUP-TRC400 measure?

The system continuously measures free residual chlorine in water for disinfection process monitoring.

Is this a complete monitoring system?

Yes. The SUP-TRC400 includes the analyzer, residual chlorine sensor, flow cell, touchscreen controller, and supporting electronics for complete online monitoring.

What calibration methods are available?

The analyzer supports Zero Calibration, Slope Calibration, Quick Calibration, and Temperature Calibration to ensure long-term measurement reliability.

Does the analyzer support automatic temperature compensation?

Yes. The system includes an integrated Pt1000 temperature sensor for automatic temperature compensation, improving measurement accuracy.

What warranty do you provide?

Please refer to BayMeters Warranty Policy or contact our sales team for warranty details.

How long does shipping take?

Products in the US warehouse typically ship within 3–5 business days
