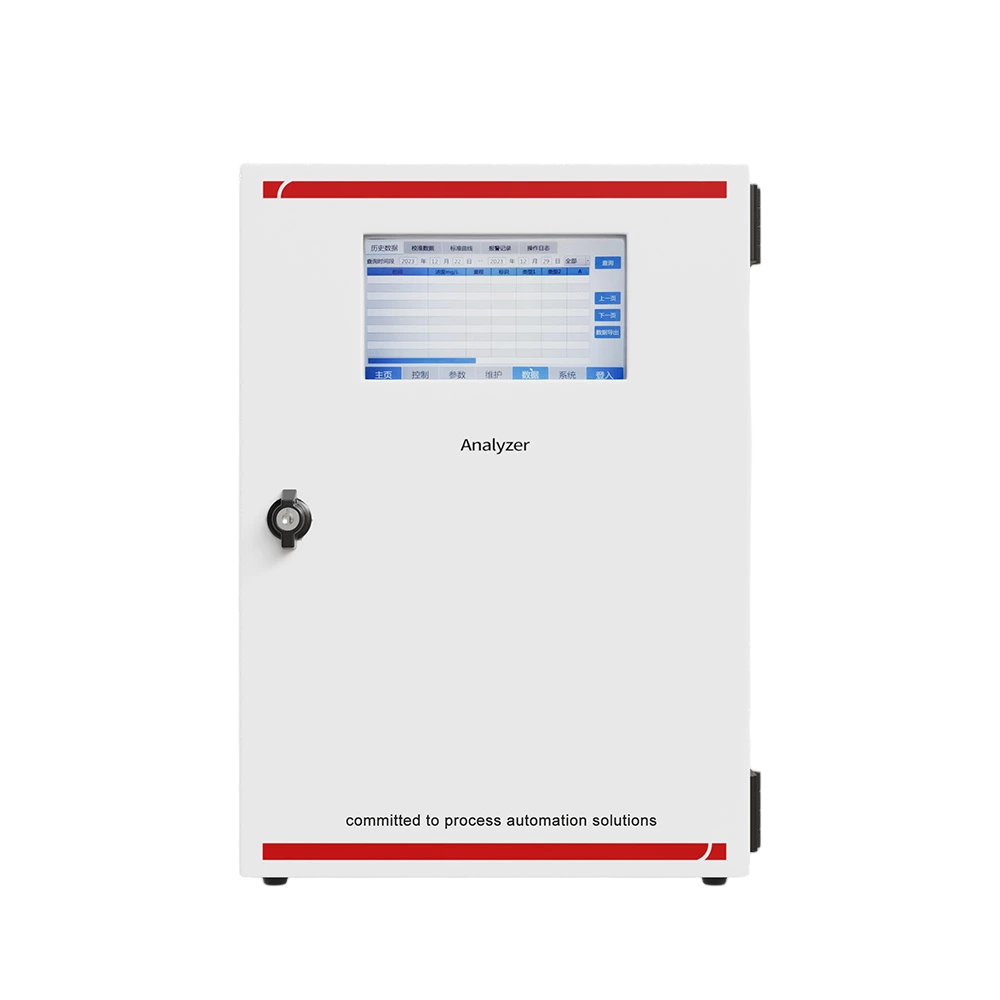

COD Analyzer Liquiline System: Precise Monitor for Wastewater Treatment

COD Analyzer Liquiline System: Precise Monitor for Wastewater Treatment

$12,479.00 USD

$12,479.00 USD

Sale Sold out

This is an all-inclusive reference price (product, international shipping, and import duties), based on a few selected configurations. Actual pricing may vary by size, options, and order quantity. Minimum order may apply for low-value items, while better pricing may be available for larger requirements. For a confirmed quote or to place an order, please contact us.

View full details

Introduction

The Supmea COD Analyzer Liquiline System offers unparalleled online measurement of chemical oxygen demand, supporting precise monitoring of wastewater cleaning capacity and various chemical reactions in industries, laboratories, urban and rural water treatment facilities, and sewage treatment systems. Automatic calibration and cleaning ability save your budget on a large scale, along with the advanced documentation processing via remote control.

Specification

Measuring range：

(0～100 / 200 / 500 / 1000 / 2000) mg/L

Error：

20% Range:±8%; 50% Range:±5%; 80% Range:±3%

Repeatability：

≤3%

24h low concentration drift：

±5 mg/L

24h high concentration drift ：

≤3%

Minimum Maintenance Period：

≥168 h/time

Digital communication：

RS232、RS485、RJ45

Analog communication:

(4~20)mA input; (4~20)mA output Power requirements (220±22)VAC；(50±1)Hz

Ambient temperature:

(5~40)℃

Size:

300mm×420mm×240mm (W×H×D)

Weight:

＜15 Kg

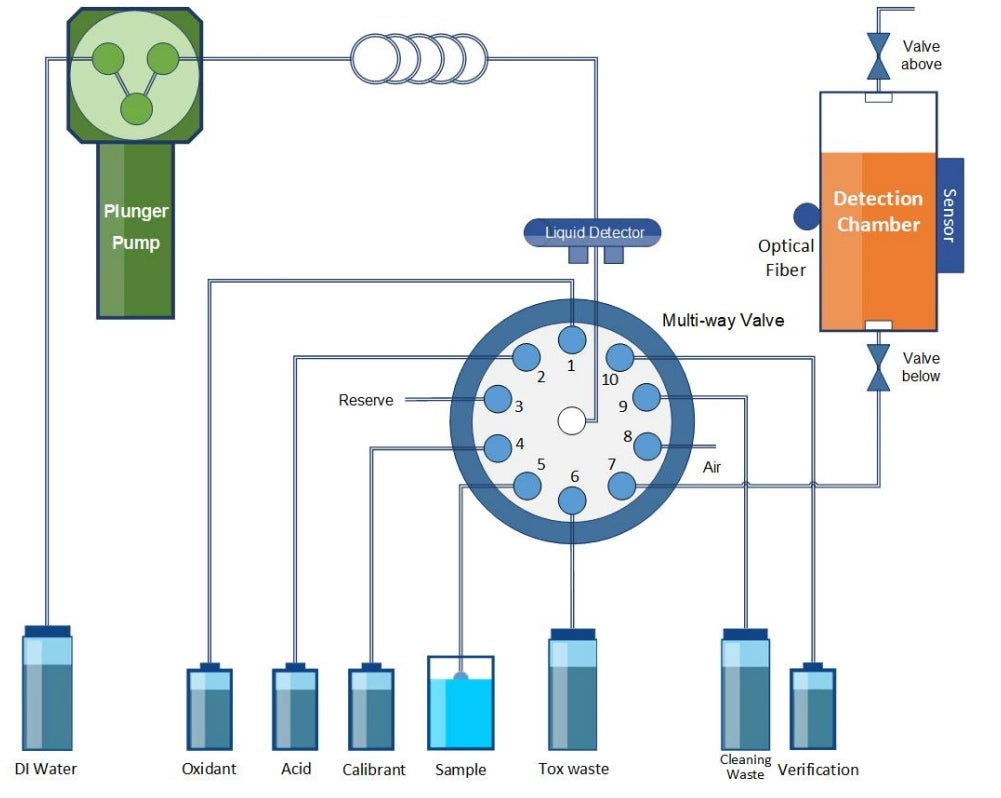

Measuring principle

The sample is rapidly digested under strong oxidant (potassium dichromate), catalyst (silver sulfate), and high temperature conditions. Chromium (VI) is reduced to Chromium (III), and the color of the reaction solution changes; the degree of color change is proportional to the concentration of organic compounds in the sample. The instrument can calculate COD through spectrophotometric.
