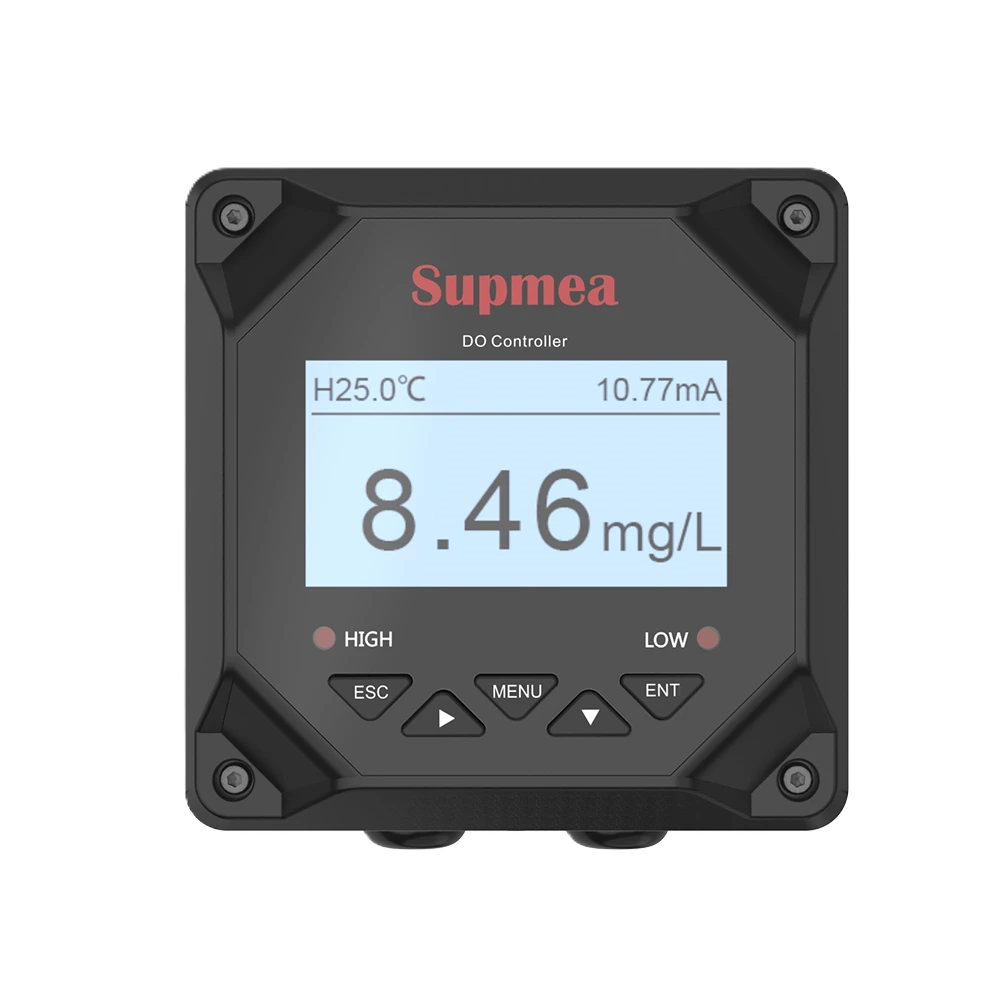

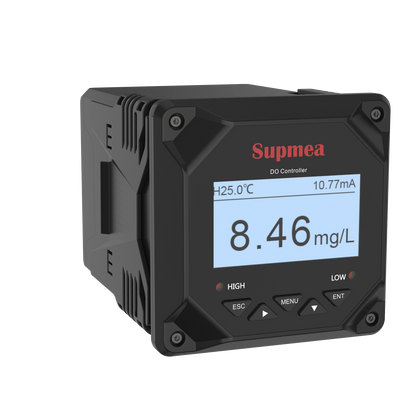

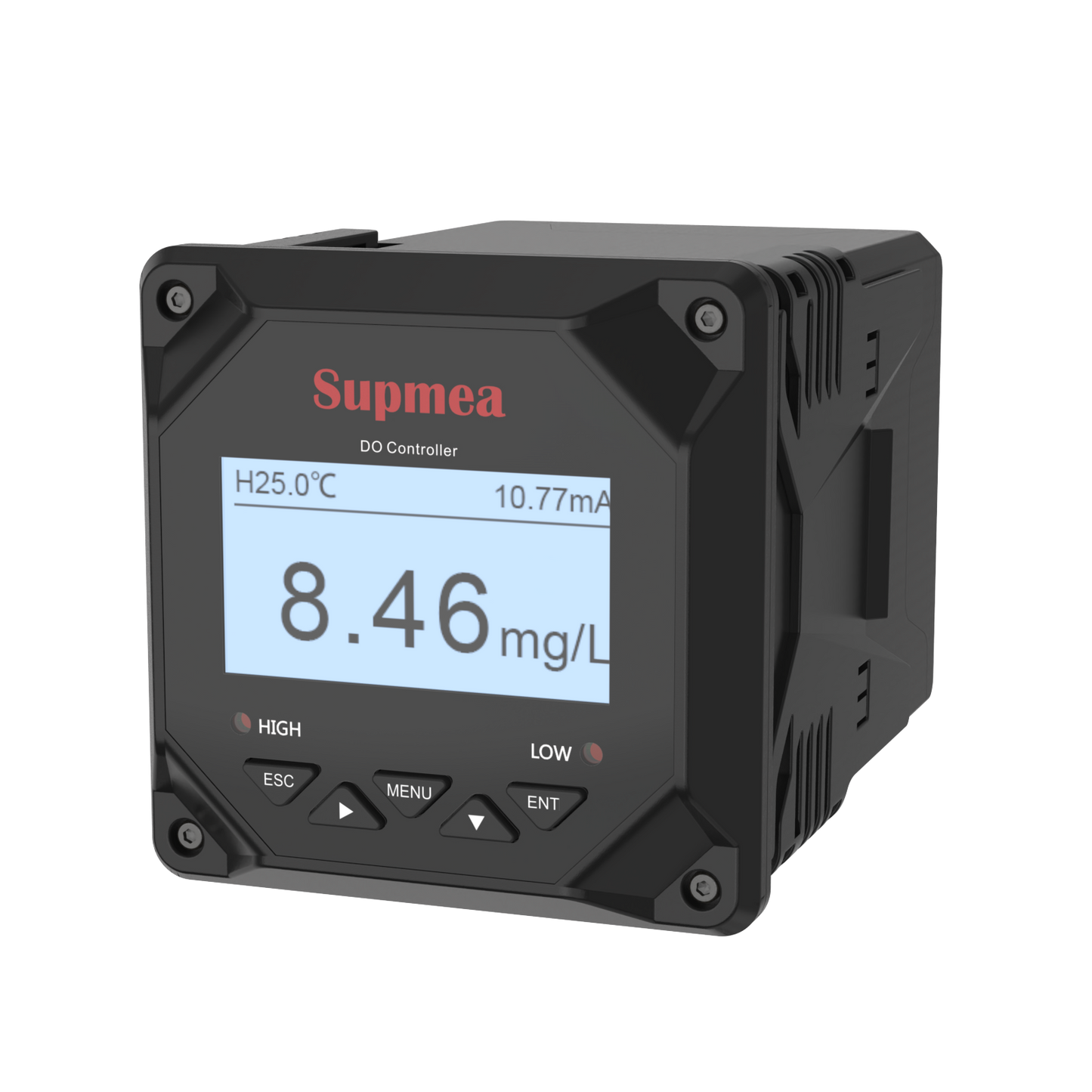

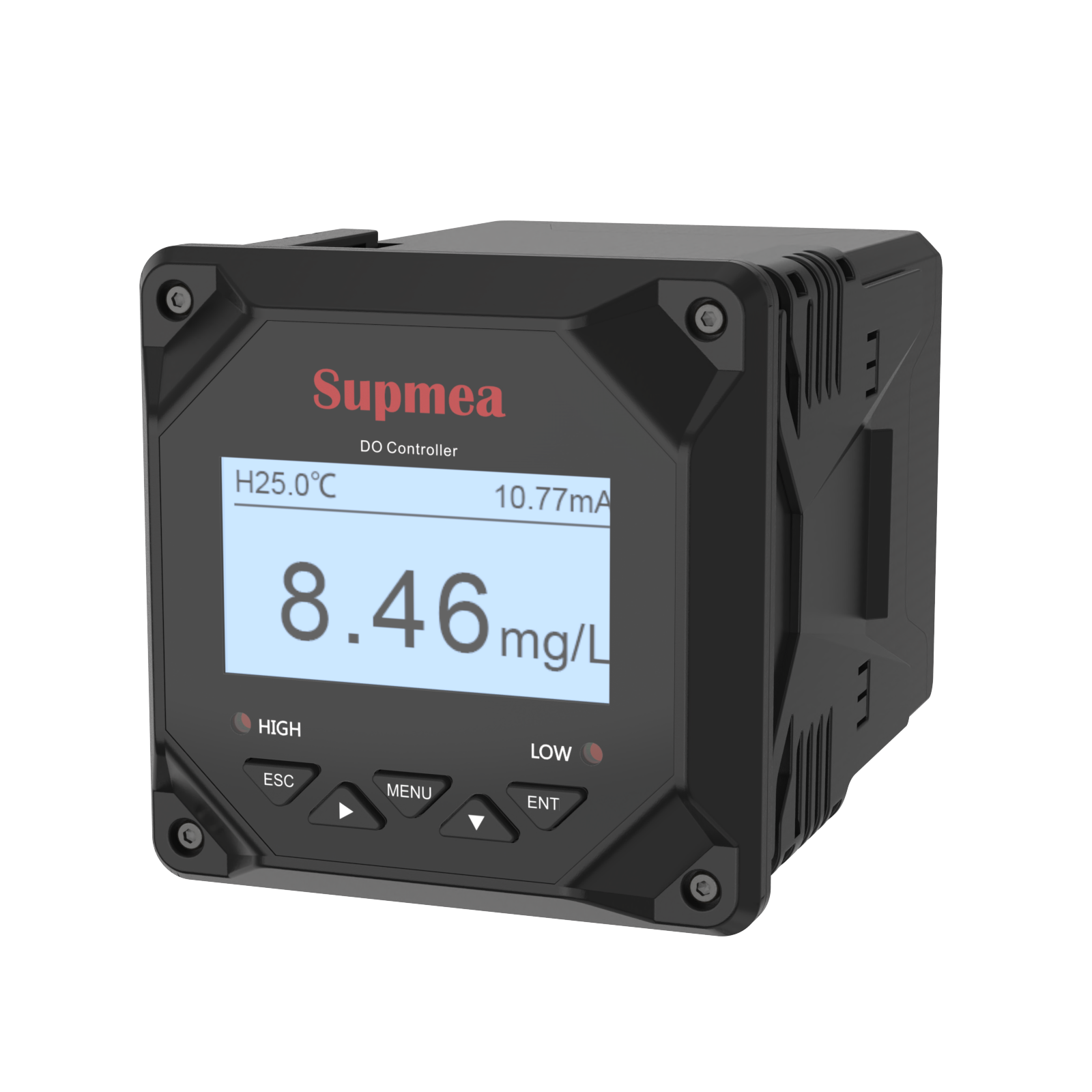

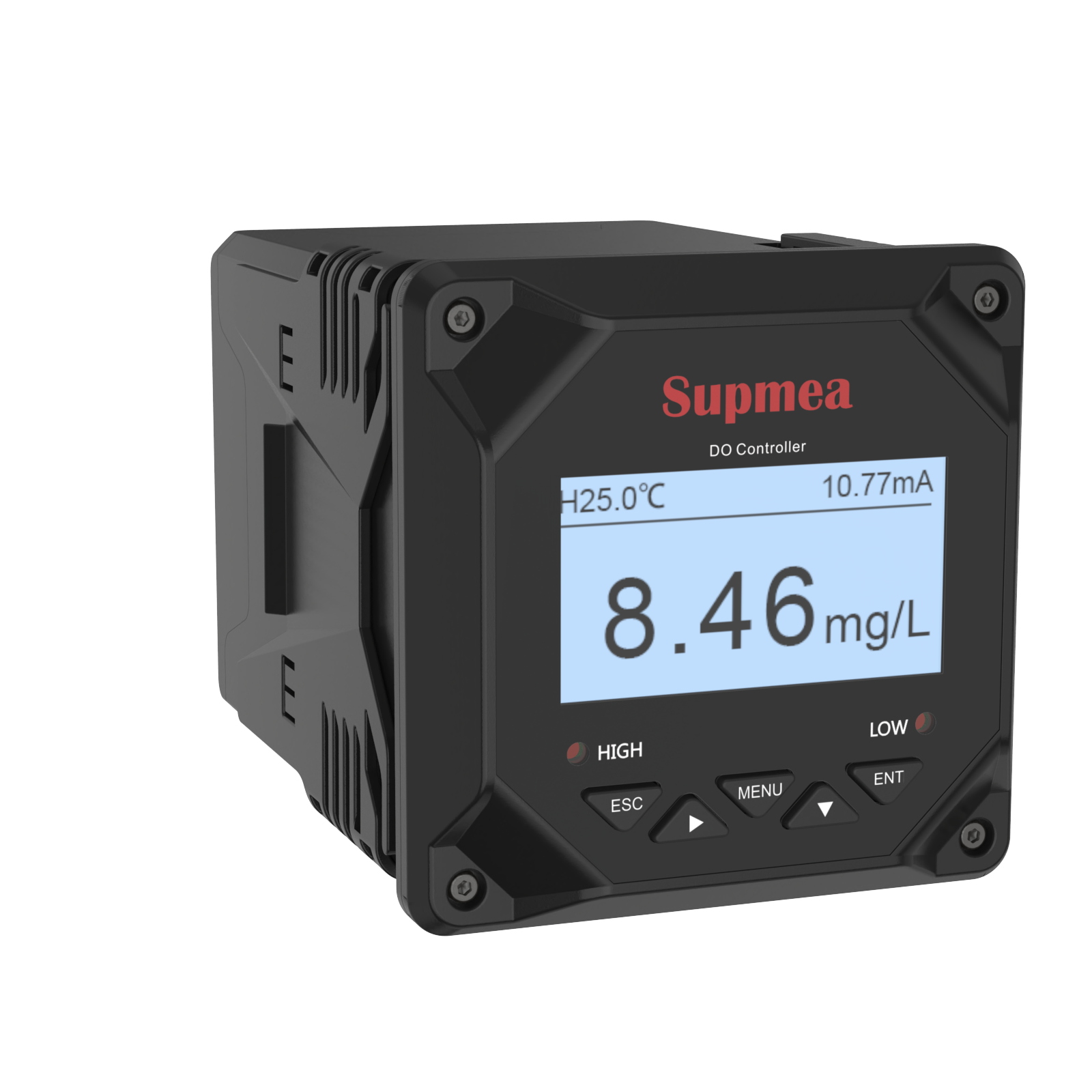

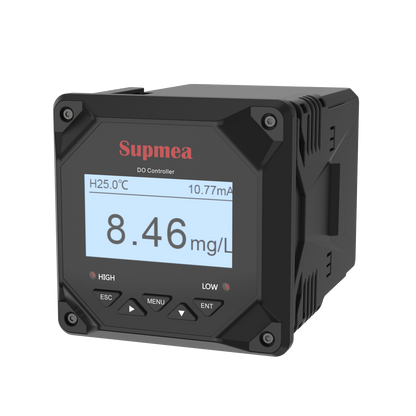

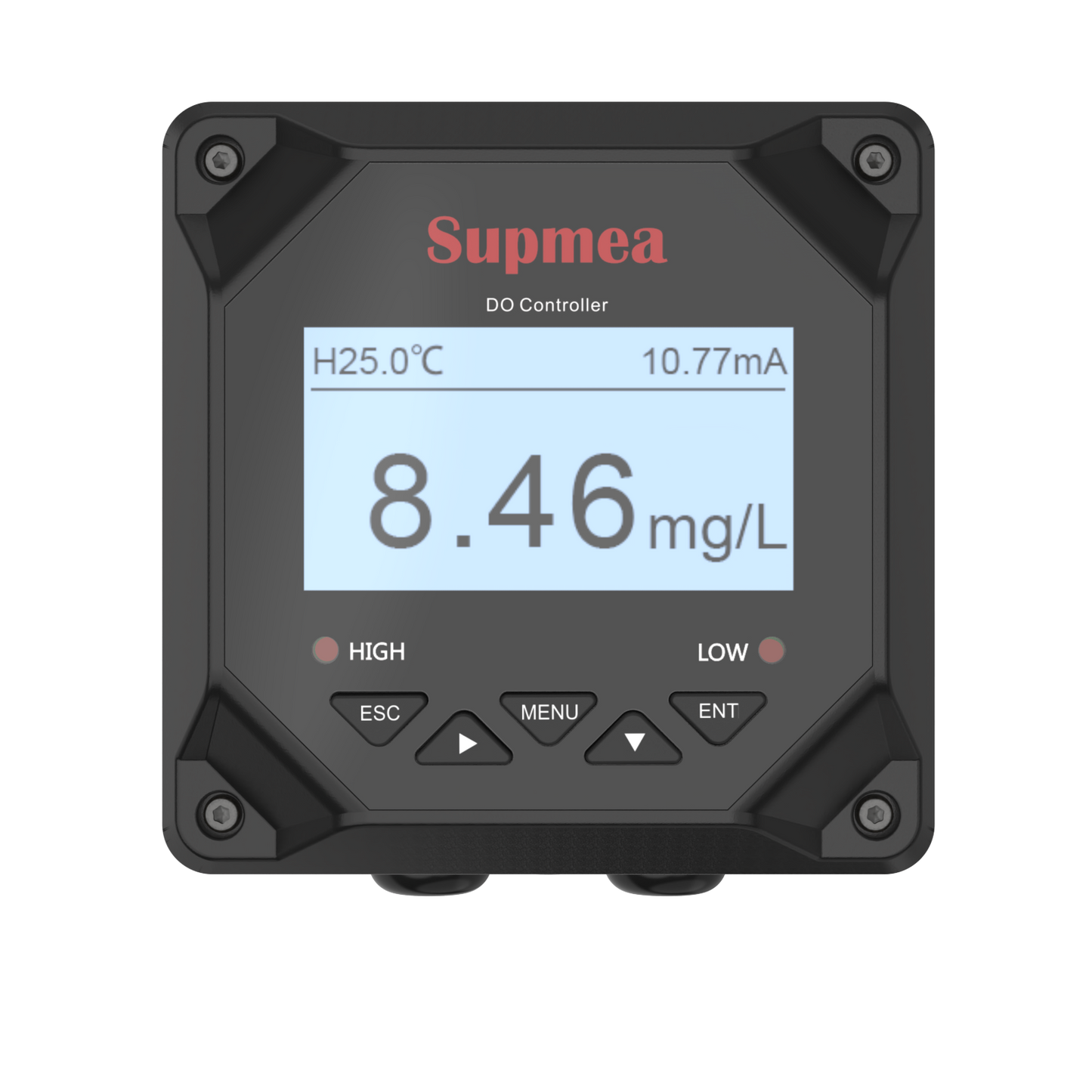

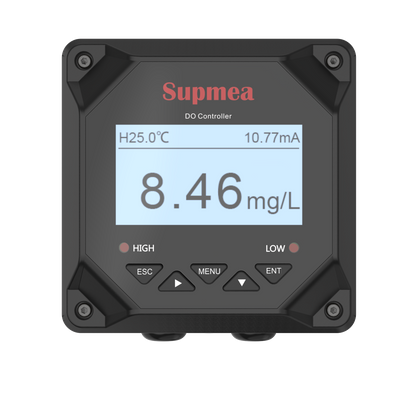

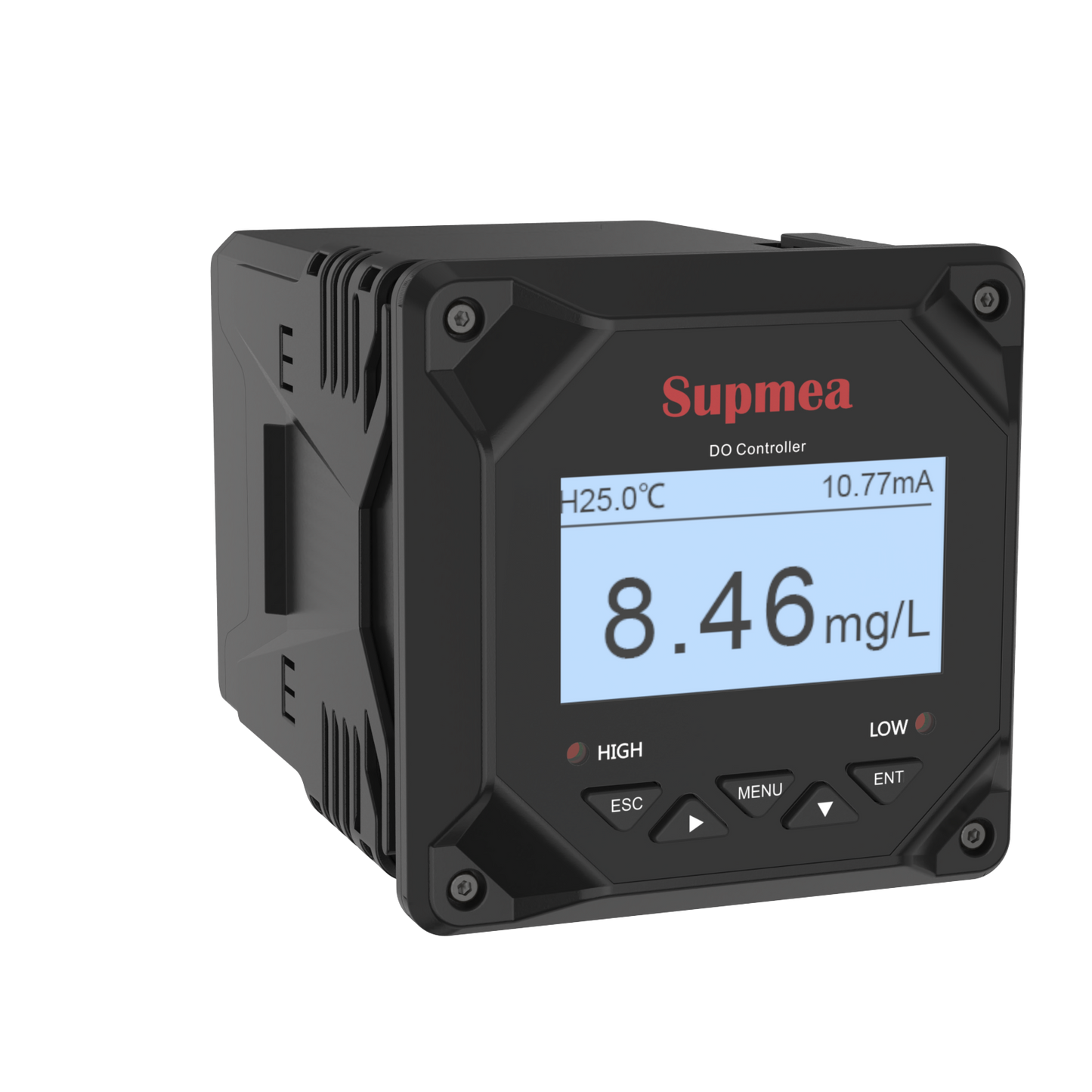

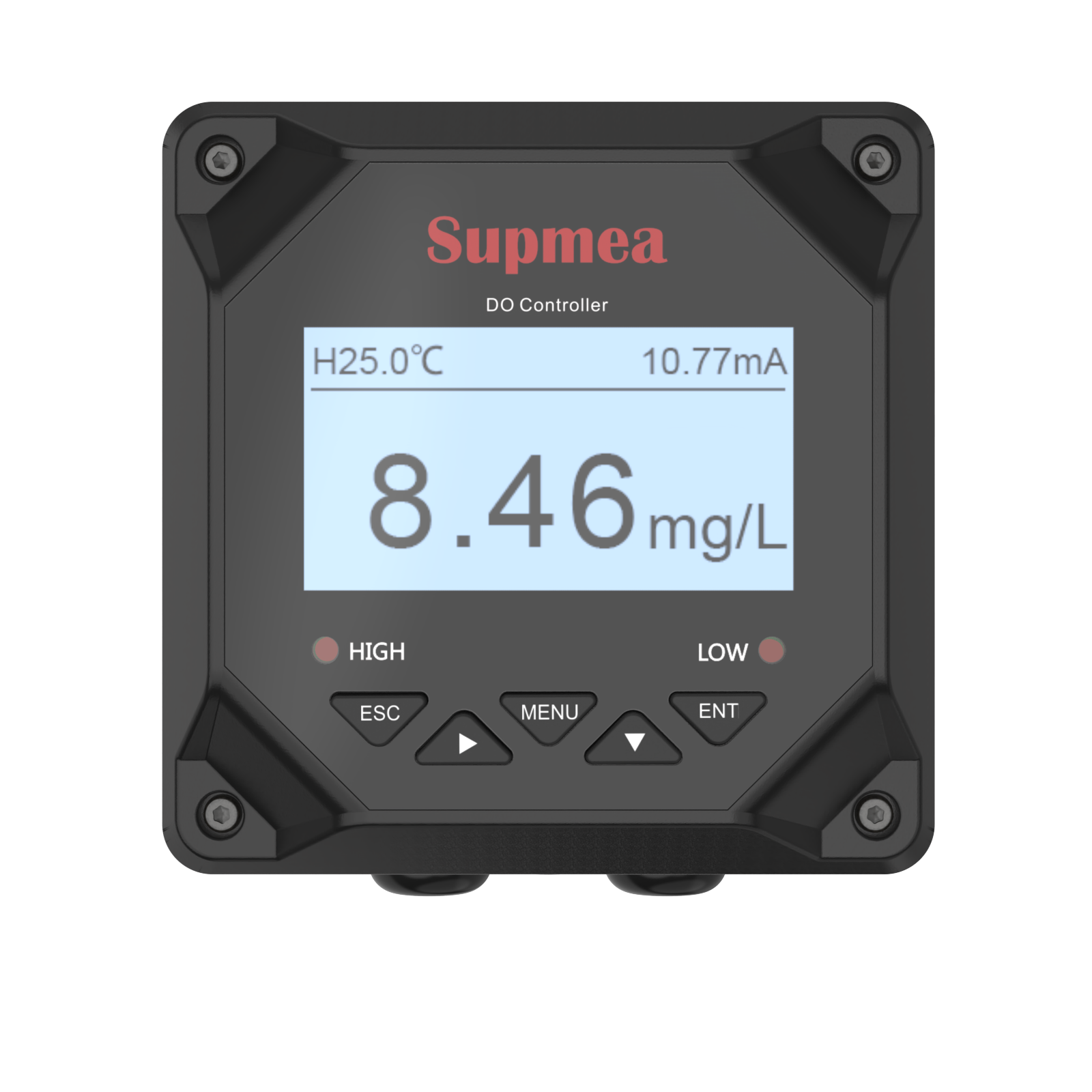

Membrane dissolved oxygen meter DM2800

Membrane dissolved oxygen meter DM2800

$311.00 USD
$311.00 USD
Sale Sold out
This is an all-inclusive reference price (product, international shipping, and import duties), based on a few selected configurations. Actual pricing may vary by size, options, and order quantity. Minimum order may apply for low-value items, while better pricing may be available for larger requirements. For a confirmed quote or to place an order, please contact us.

Low stock: 10 left • Ships in 3-5 business days
View full details

Product Overview

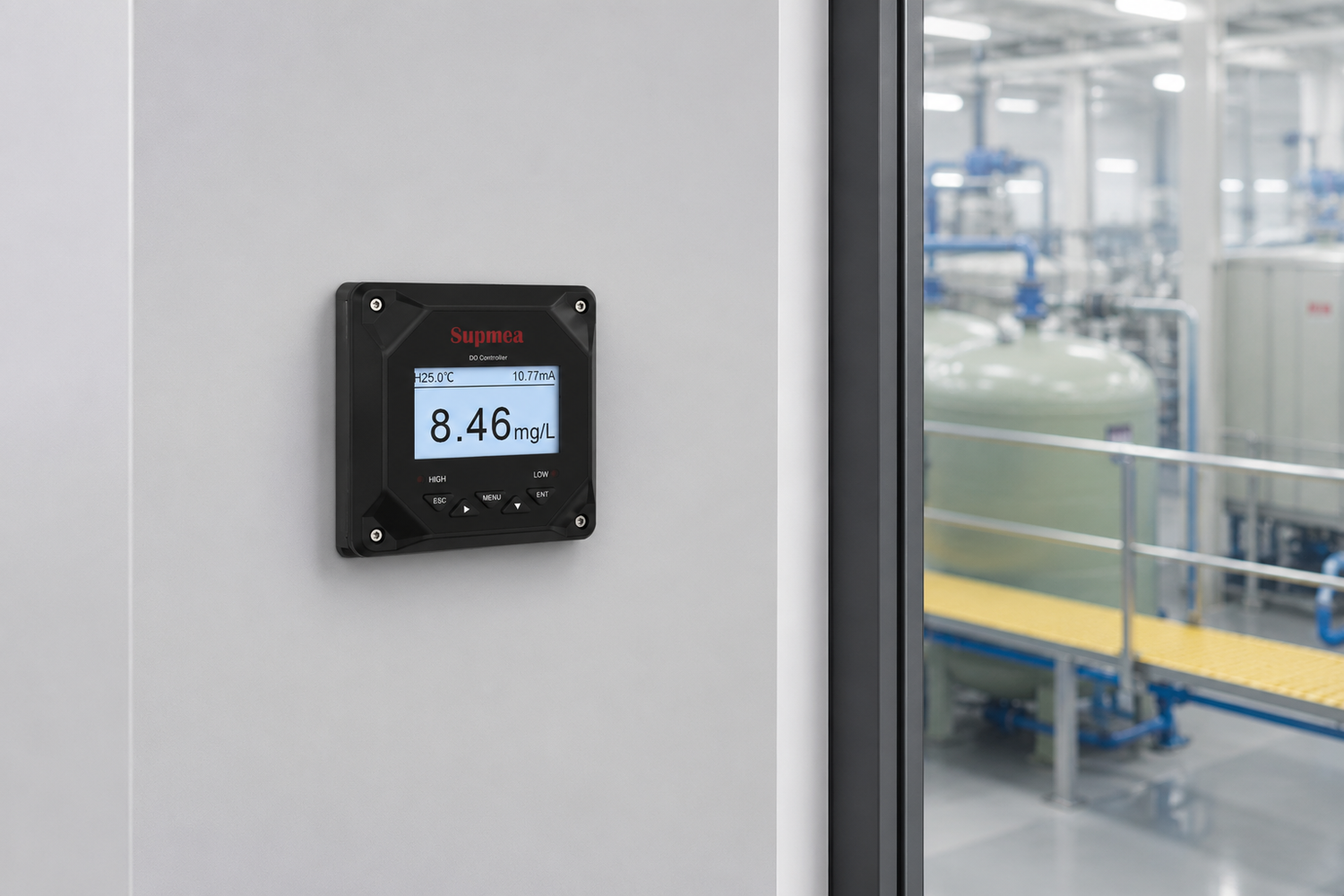

The SUP-DM2800 is an industrial online dissolved oxygen analyzer designed for continuous monitoring of dissolved oxygen concentration in water treatment and process control applications.
It simultaneously measures dissolved oxygen, oxygen saturation, oxygen partial pressure, and temperature while providing automatic temperature compensation for improved accuracy. With isolated analog output, MODBUS RTU communication, programmable alarms, and multiple calibration functions, the analyzer is ideal for wastewater treatment, environmental monitoring, power plants, food processing, and aquaculture systems.

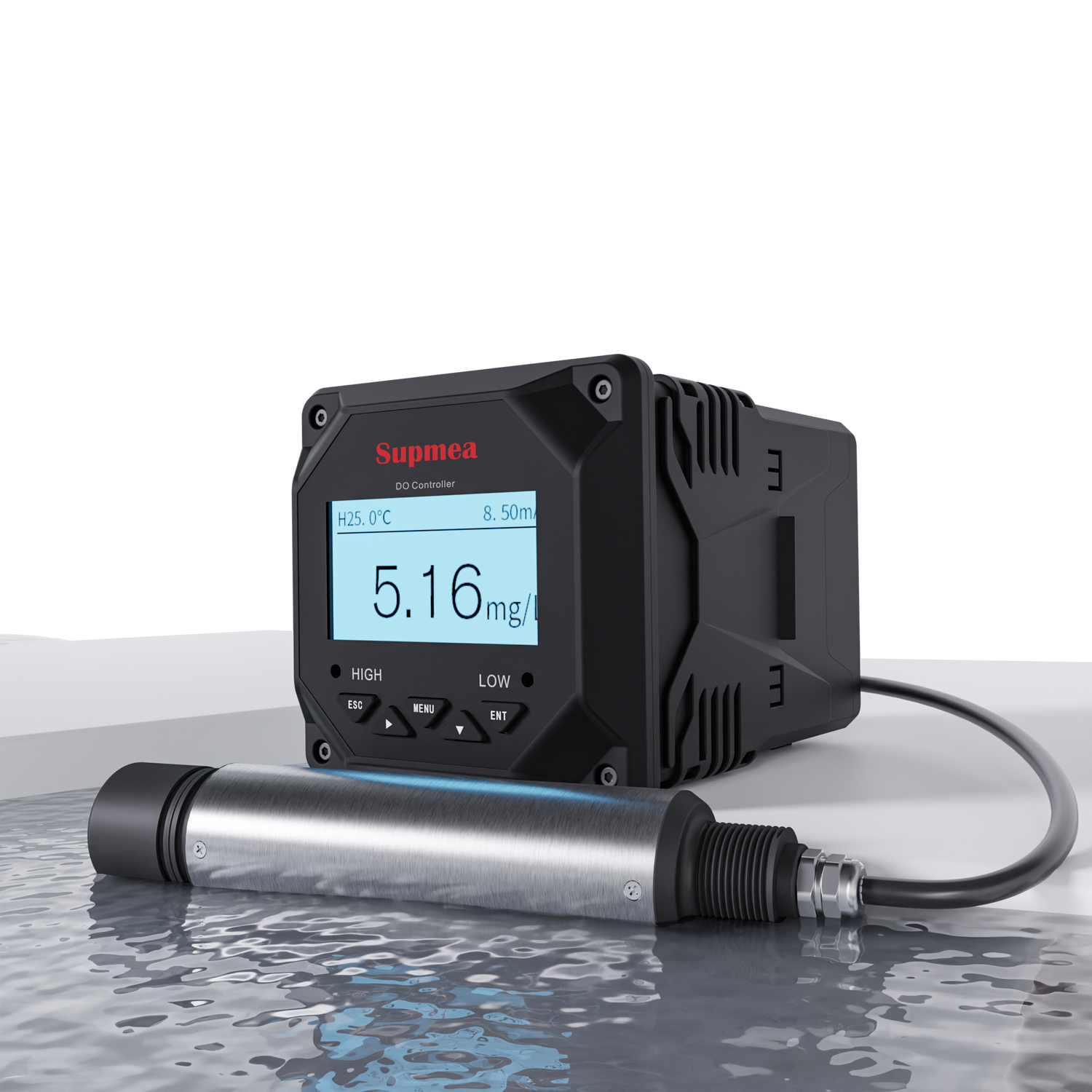

Key Features

  • Simultaneously measures dissolved oxygen, saturation, oxygen partial pressure, and temperature for comprehensive process monitoring.
  • Supports both automatic and manual temperature compensation to improve measurement accuracy under changing process conditions.
  • Provides isolated 4–20 mA analog output and MODBUS RTU communication for easy integration with PLC and SCADA systems.
  • Supports convenient air calibration and zero-point calibration for reliable long-term measurement performance.
  • Configurable high and low alarm relays help operators respond quickly to abnormal dissolved oxygen conditions.
  • Built for stable 24/7 online monitoring in demanding industrial and municipal water treatment environments.

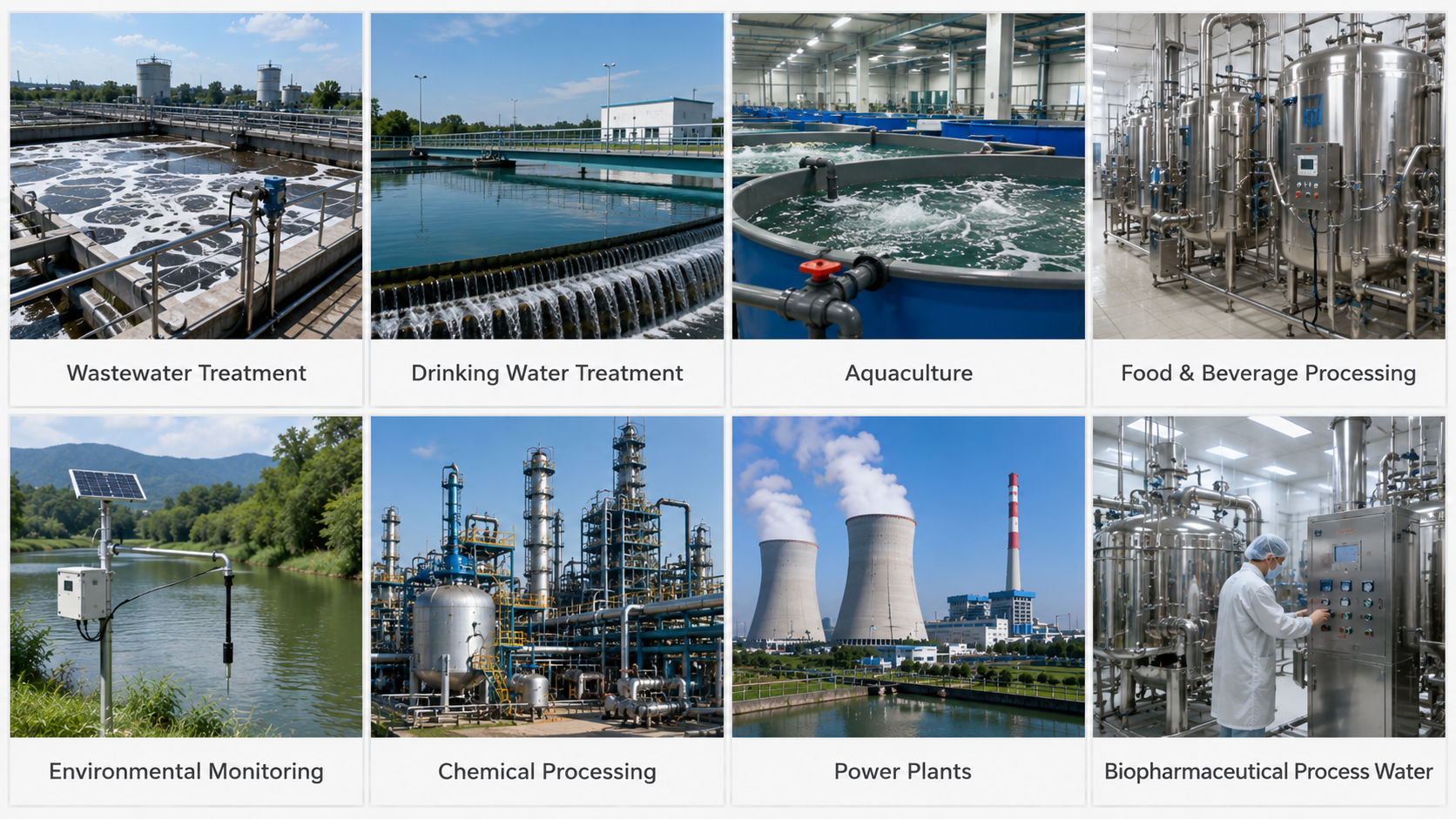

Applications

Technical Specifications

Model SUP-DM2800
Range Dissolved Oxygen： 0–20 mg/L Saturation： 0–200%
Accuracy ±1.5% F.S.
Temperature Compensation Automatic / Manual (NTC10K or PT1000)
Analog Output Isolated 4–20 mA
Communication RS485
Alarm Output 2 × SPDT Relay
Operating Temperature 32–140°F (0–60°C)
Protection Rating IP54
Power Supply 110 VAC ±10%, 5 W Max

Downloads

User Manual
Datasheet

FAQ

What parameters can the SUP-DM2800 measure?

The analyzer continuously measures dissolved oxygen (DO), oxygen saturation, oxygen partial pressure, and temperature for comprehensive water quality monitoring.

Can the analyzer communicate with PLC or SCADA systems?

Yes. It supports isolated MODBUS RTU communication over RS485 as well as isolated 4–20 mA analog output for integration into industrial automation systems.

How is the analyzer calibrated?

The analyzer supports air calibration, zero oxygen calibration using sodium sulfite solution, and full-scale calibration in air or saturated air, helping maintain long-term measurement accuracy.

Does the analyzer provide alarm outputs?

Yes. The analyzer includes programmable high and low alarm relays for dissolved oxygen, saturation, and oxygen partial pressure, enabling timely process control and operator notification.

What warranty do you provide?

Please refer to BayMeters Warranty Policy or contact our sales team for warranty details.

How long does shipping take?

Products in the US warehouse typically ship within 3–5 business days
