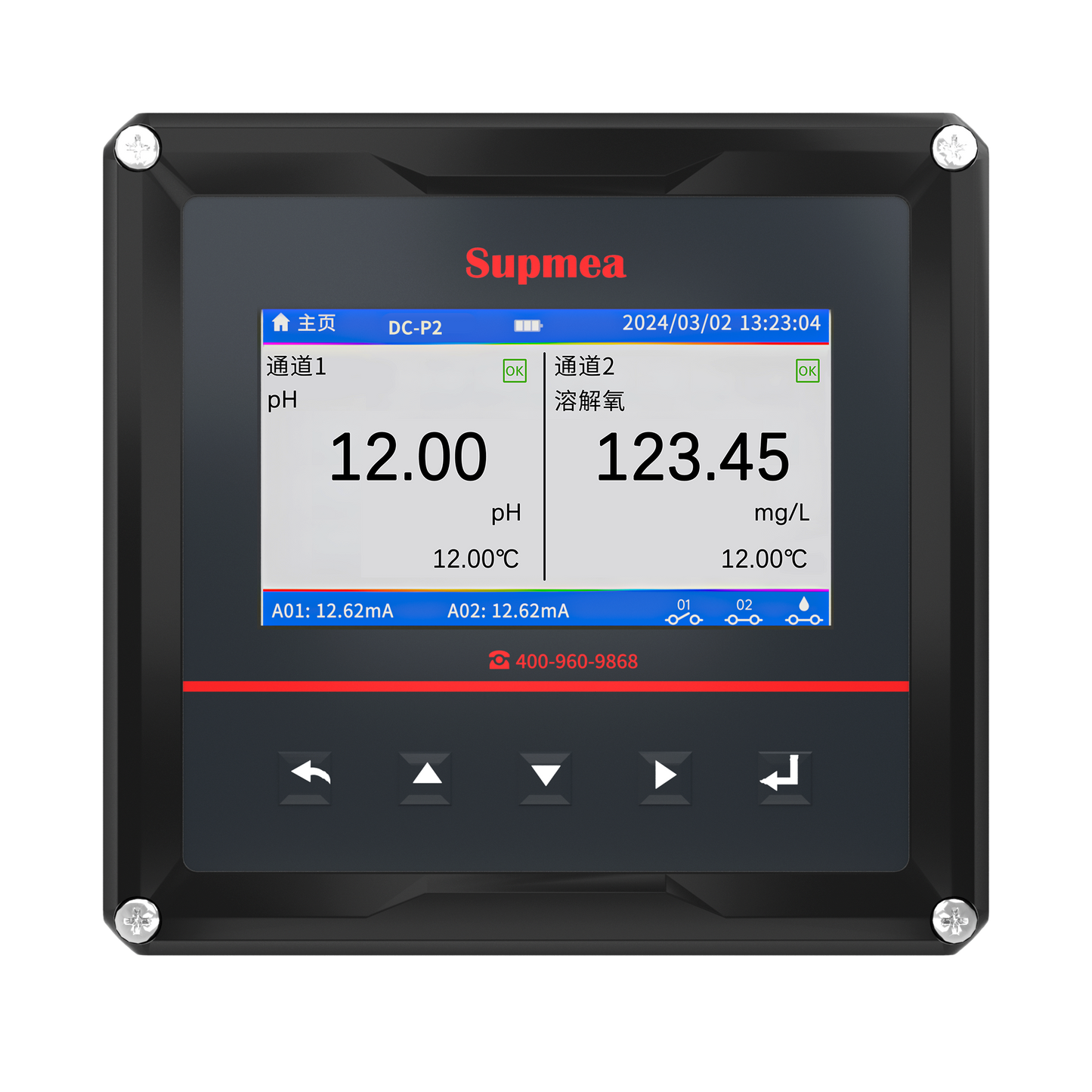

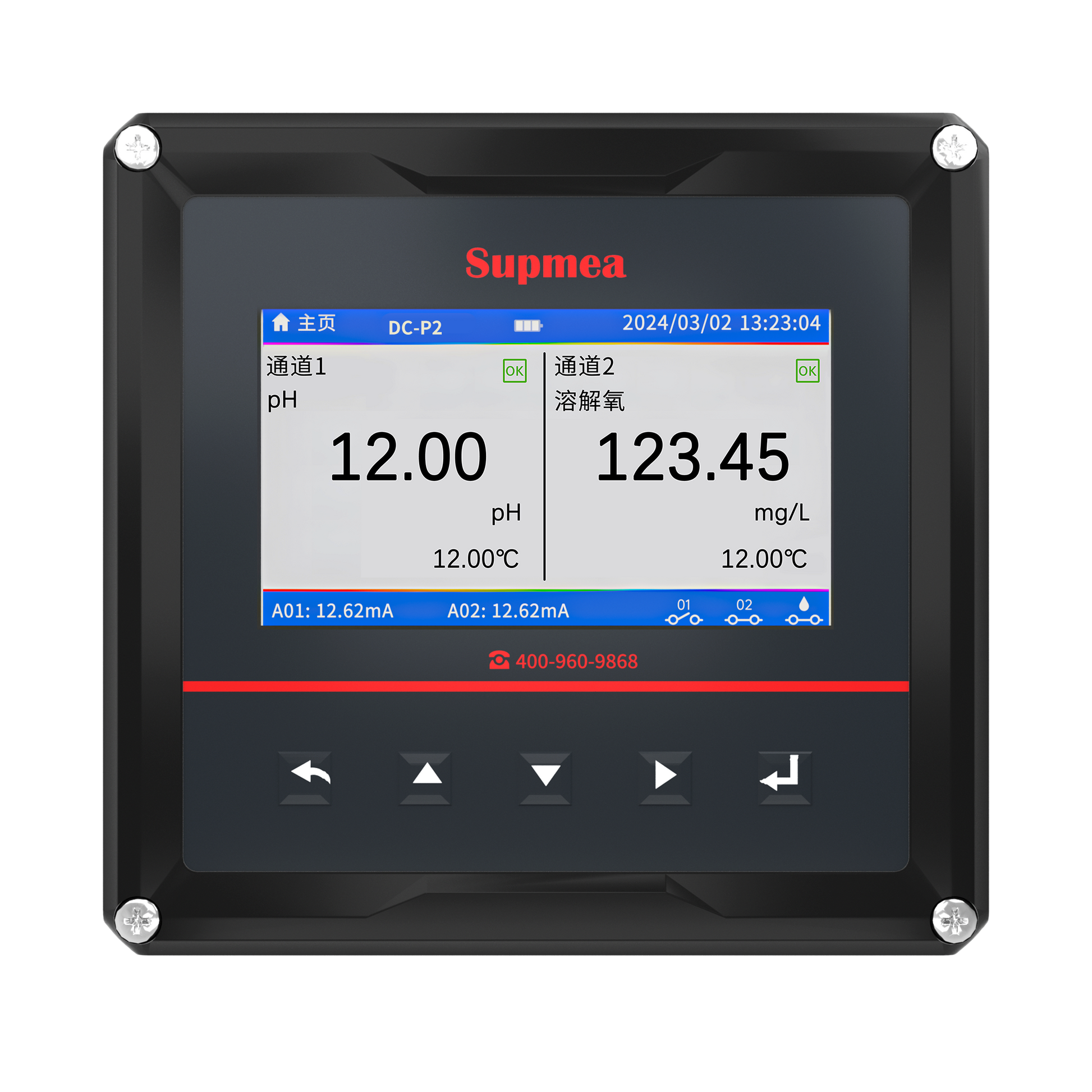

Dual Channel Universal Controller DC-P2

Dual Channel Universal Controller DC-P2

$779.00 USD
$779.00 USD
Sale Sold out
Shipping calculated at checkout.

Lead Time: 2-4 Weeks
View full details

Product Overview

The SUP-DC-P2 is an advanced dual-channel intelligent online controller designed for multi-parameter monitoring. It supports two sensor inputs, with the first channel compatible with both analog and digital sensors and the second channel supporting digital sensors. The controller enables simultaneous measurement of various parameters including pH, ORP, conductivity, dissolved oxygen, turbidity, sludge concentration, and more.

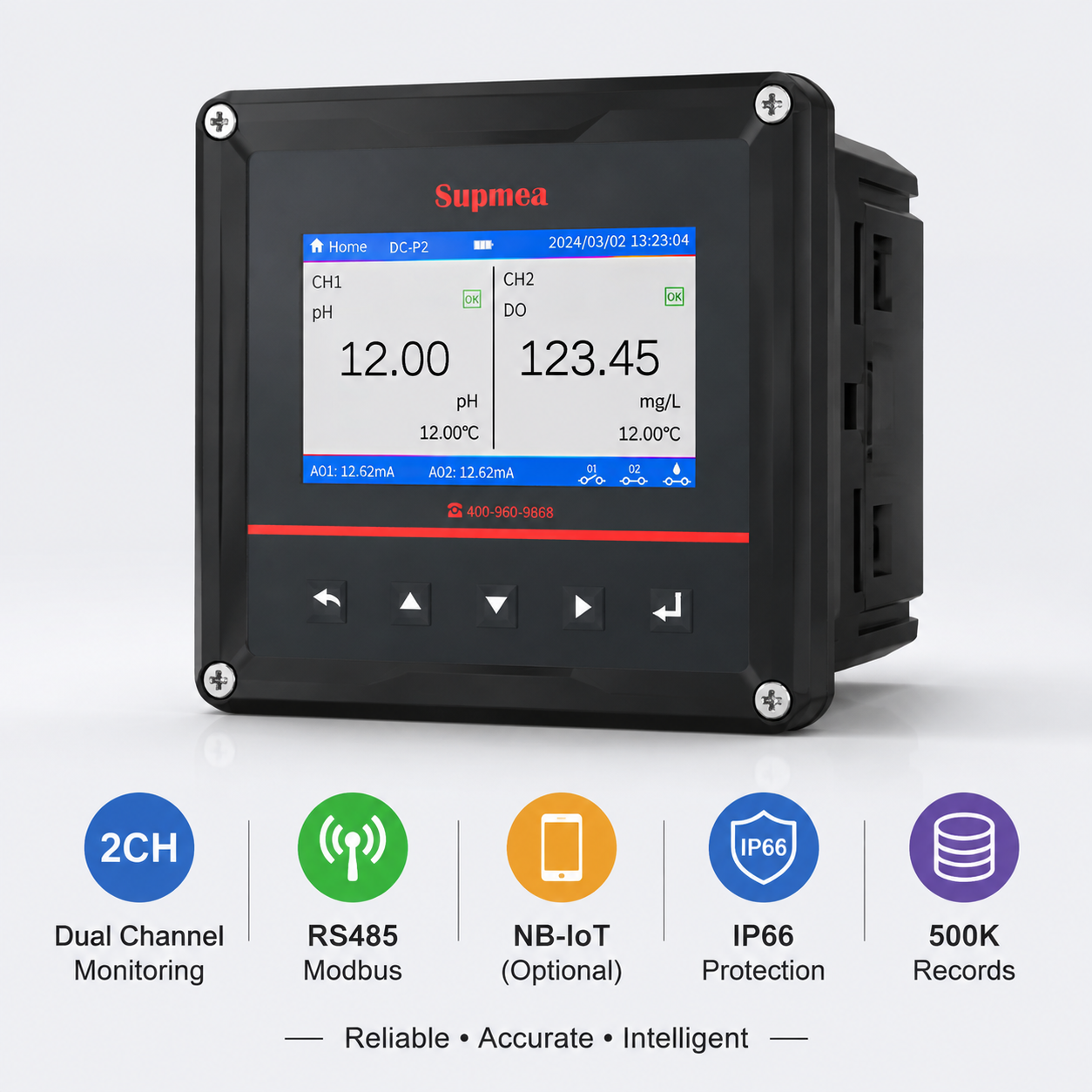

Key Features

  • Supports various sensors for monitoring pH, ORP, conductivity, dissolved oxygen, turbidity, sludge concentration, residual chlorine, ammonia nitrogen, nitrate nitrogen, COD, and other parameters.
  • The hybrid input design allows connection with both analog and digital sensors, simplifying system configuration and future upgrades.
  • Supports two sensor inputs, allowing simultaneous monitoring of different water quality parameters and reducing system costs.
  • Equipped with a 4.3-inch full-view color display supporting digital display and real-time curve modes.
  • Stores up to 500,000 measurement records for long-term monitoring and analysis.
  • IP66 protection rating and optimized signal/power grounding design provide stable operation in demanding environments.

Applications

Technical Specifications

Measurement Variables pH / ORP / Conductivity / DO / Turbidity / Sludge Concentration / Chlorine / COD
Range PH: 0.00–14.00 pH ORP: -2000–2000 mV Dissolved Oxygen: 0–40 mg/L Conductivity: 0–500 mS/cm Turbidity: 0–4000 NTU Sludge Concentration: 0–120,000 mg/L COD: 0–1500 mg/L
Analog Output 2 × 4–20 mA, isolated
Communication RS485 Modbus-RTU
Alarm Output 2 SPST alarms + 1 cleaning relay
Relay Capacity 250 VAC, 5 A
Data Storage Up to 500,000 records
Display 4.3-inch color LCD
Power Supply 85–265 VAC / 21.6–26.4 VDC
Power Consumption ≤28 W
Protection Rating IP66
Cable Entry M20 × 1.5 cable gland
Operating Temperature 32–140°F (0–60°C)
Sensor Input Dual Channel Input
Channel Configuration CH1: Analog or Digital Sensor CH2: Digital Sensor

Downloads

User Manual
Datasheet

FAQ

What is the difference between DC-P1 and DC-P2?

The DC-P2 features a dual-channel design, allowing two sensors to be connected simultaneously, while DC-P1 supports single-channel measurement.

Can DC-P2 measure two parameters at the same time?

Yes. The dual-channel structure allows simultaneous monitoring of different parameters depending on the connected sensors.

Is the controller suitable for outdoor installation?

With an IP66 protection rating, the controller is suitable for industrial environments requiring protection against dust and water ingress.

How much measurement data can be stored?

The controller can store up to 500,000 measurement records for historical analysis.

What warranty do you provide?

Please refer to BayMeters Warranty Policy or contact our sales team for warranty details.

How long does shipping take?

Products in the US warehouse typically ship within 3–5 business days
