SUP-MCA-CL2 Online Residual Chlorine Analyzer

SUP-MCA-CL2 Online Residual Chlorine Analyzer

$2,391.00 USD
$2,391.00 USD
Sale Sold out
Shipping calculated at checkout.

Lead Time: 2-4 Weeks
View full details

Product Overview

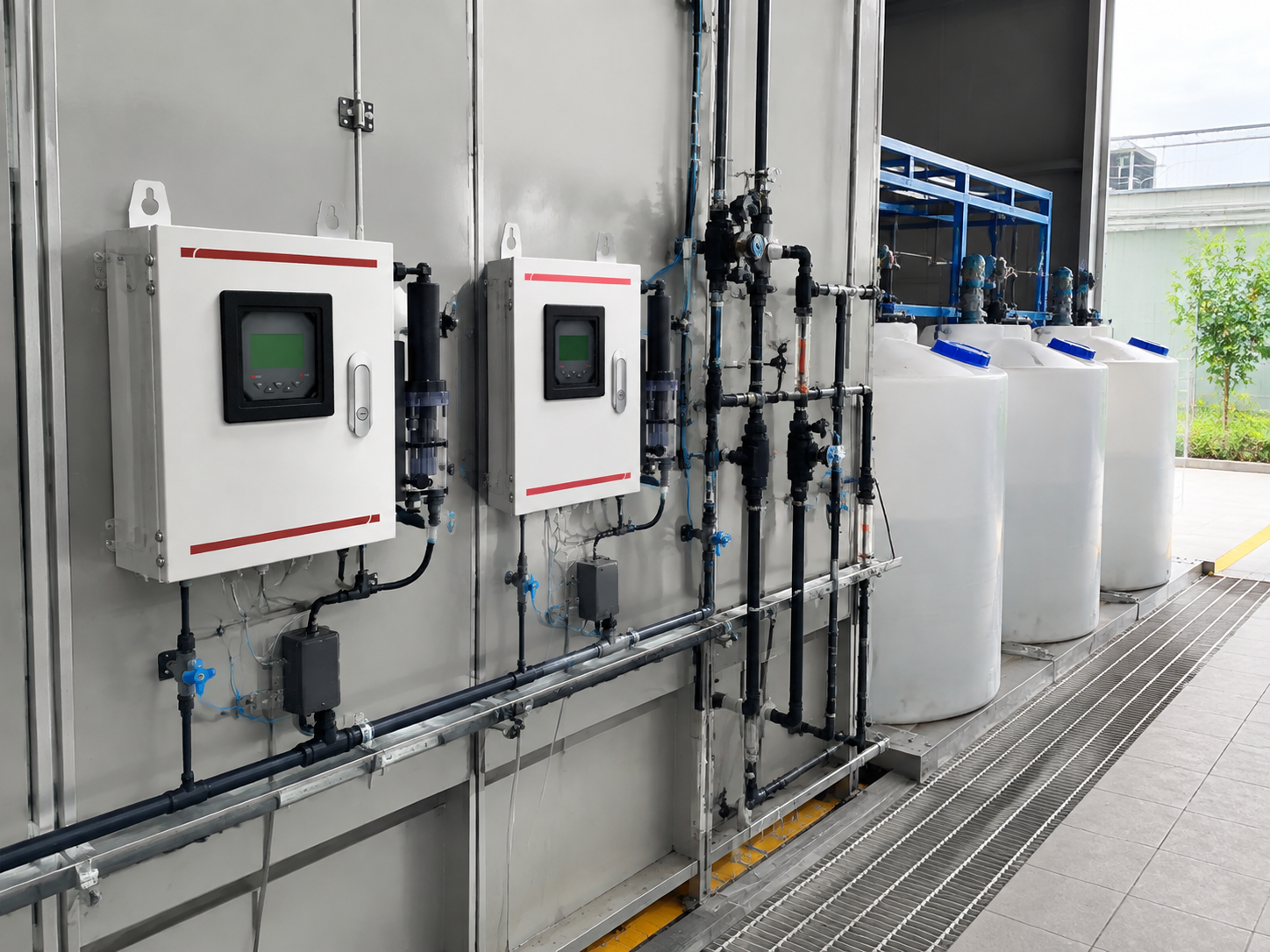

The SUP-MCA-CL2 Online Residual Chlorine Analyzer is an intelligent water quality monitoring instrument designed for continuous residual chlorine measurement. Using a reagent-free electrochemical three-electrode amperometric measurement system, it provides stable and accurate chlorine monitoring without chemical consumption or pollutant discharge. The integrated flow-through design with wall-mounted installation simplifies system integration, maintenance, and long-term operation. It is widely used in drinking water treatment, distribution networks, swimming pools, and industrial water quality monitoring applications.

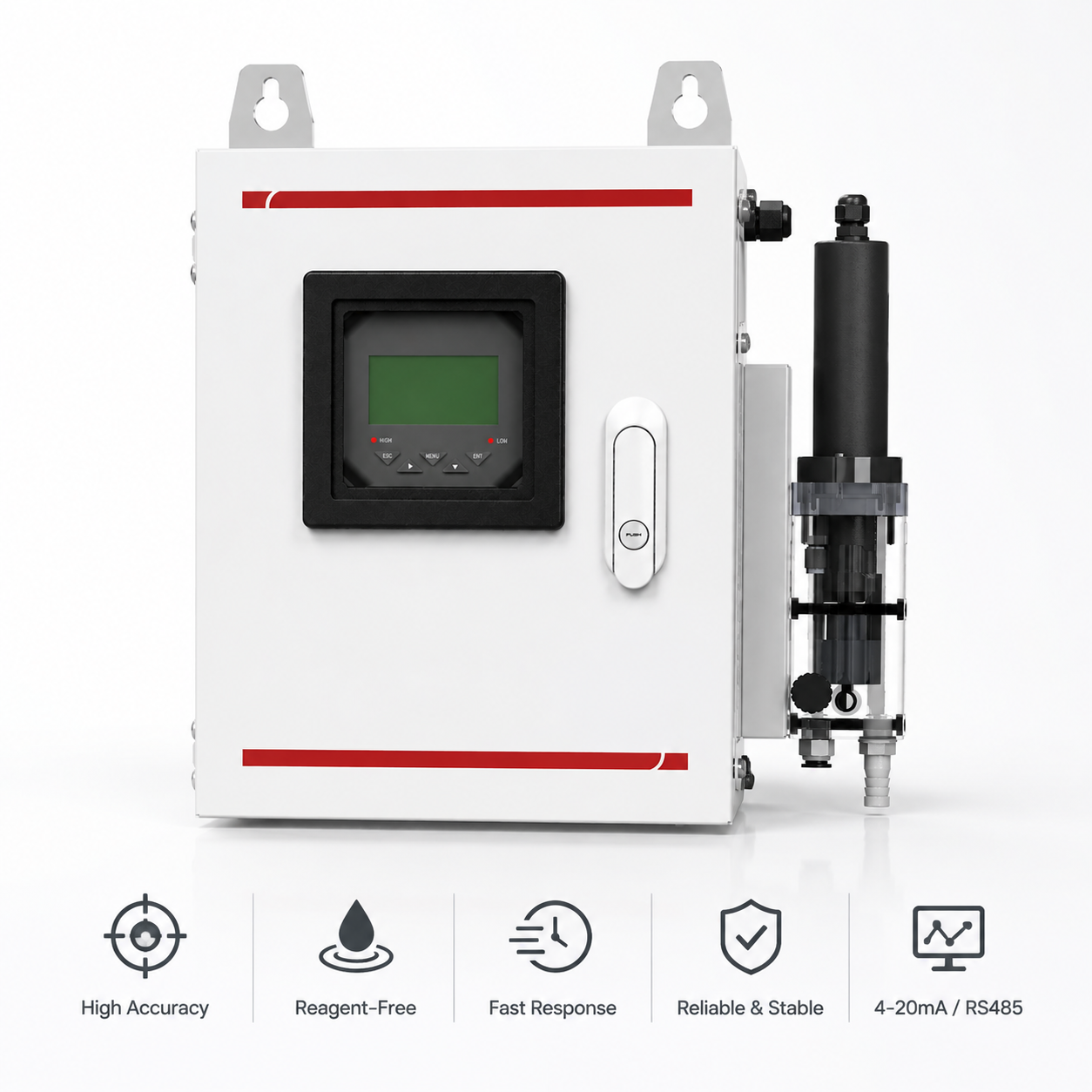

Key Features

  • Uses a three-electrode amperometric sensor technology with no reagent consumption, reducing operating costs and maintenance requirements.
  • Designed for continuous flow monitoring of residual chlorine concentration in water treatment and distribution systems.
  • Adopts polarographic/amperometric technology with high-quality components to ensure reliable long-term measurement performance.

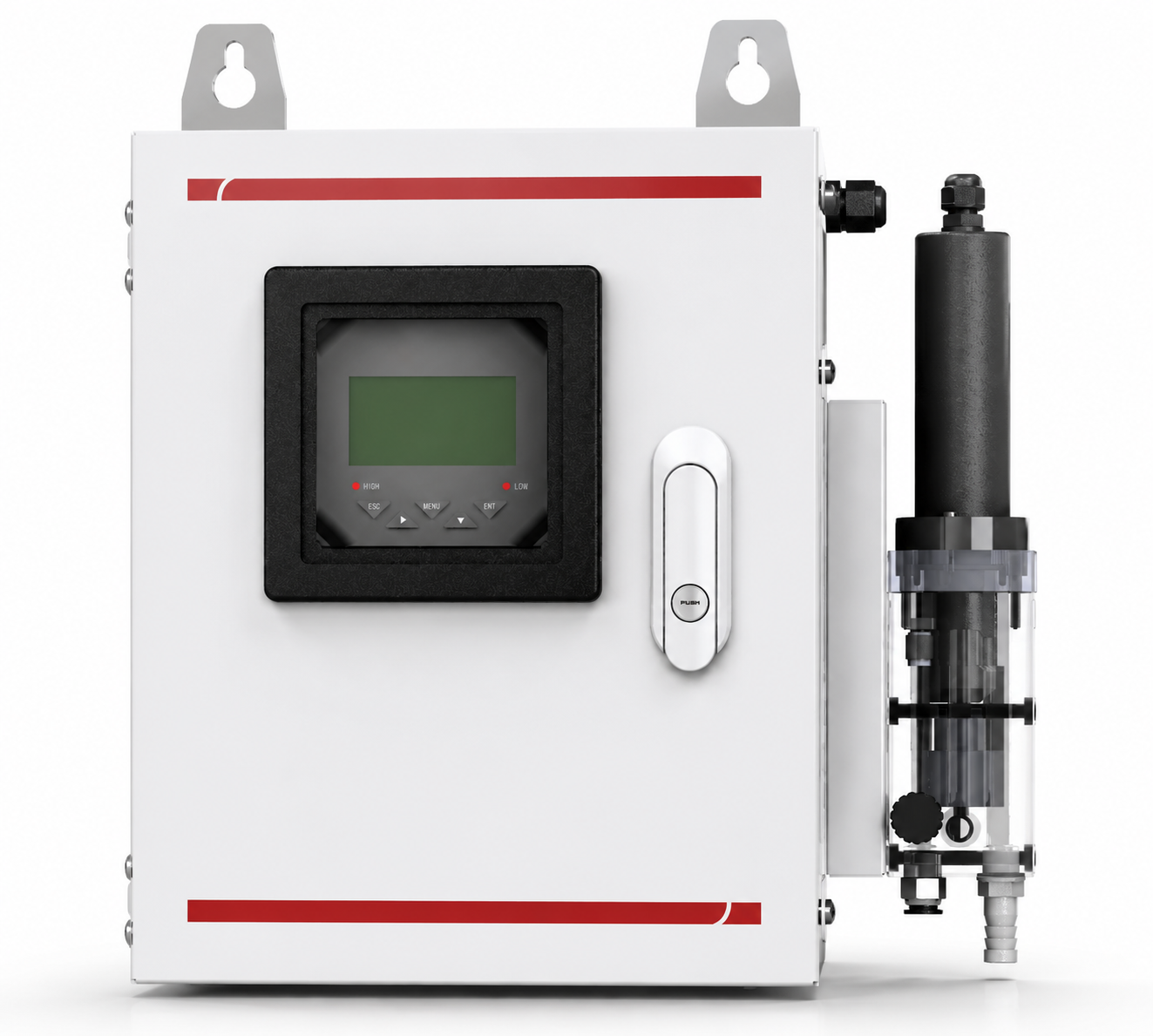

  • Features unified inlet and outlet connections with a compact wall-mounted structure, saving installation space and simplifying maintenance.
  • Supports isolated 4–20 mA output and RS485 Modbus-RTU communication for integration with PLC and SCADA systems.
  • Provides high and low alarm thresholds with adjustable hysteresis for real-time process monitoring and control.

Applications

Technical Specifications

Measuring Range 0–5 mg/L; 0–20 mg/L
Detection Limit ≤0.030 mg/L
Accuracy ±3% of Reading
Resolution 0.001 mg/L
Response Time T90 ≤90 seconds
Output Signal Isolated 4–20 mA
Communication RS485 Modbus-RTU
Alarm Output 2-channel SPDT Relay, 250 VAC 3A
Power Supply 220 VAC / Optional 24 VDC
Pressure Resistance ≤72.5 psi
Operating Temperature 32–113°F (0–45°C)
Protection Rating IP54
Dimensions 12.6 × 11.8 × 7.9 in
Weight 16.5 lb

Downloads

User Manual
Datasheet

FAQ

What does the SUP-MCA-CL2 measure?

The analyzer is designed for continuous measurement of residual chlorine concentration in water quality monitoring applications.

Does this analyzer require chemical reagents?

No. The SUP-MCA-CL2 uses a reagent-free electrochemical measurement method, eliminating reagent consumption and chemical waste.

What is the measurement principle of this analyzer?

The sensor uses a three-electrode amperometric system. Hypochlorous acid reacts at the working electrode, and the generated current is converted into residual chlorine concentration according to Faraday's law.

Can the analyzer connect to a PLC or SCADA system?

Yes. It supports isolated 4–20 mA output and RS485 Modbus-RTU communication for industrial automation integration.

What warranty do you provide?

Please refer to BayMeters Warranty Policy or contact our sales team for warranty details.

How long does shipping take?

Products in the US warehouse typically ship within 3–5 business days
