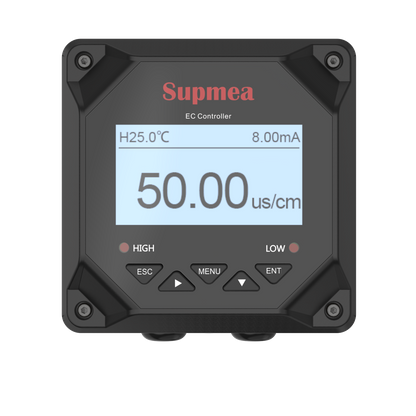

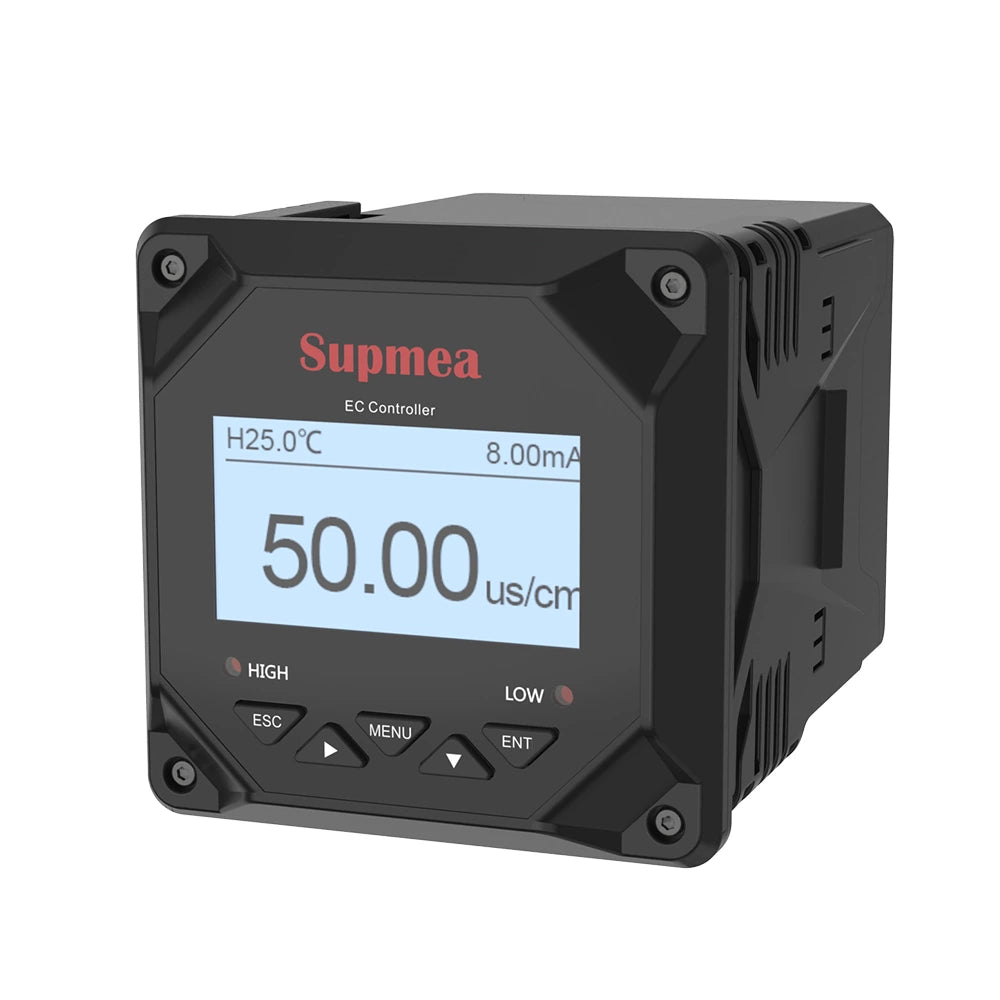

EC controller SUP-TDS210-B

EC controller SUP-TDS210-B

$311.00 USD
$311.00 USD
Sale Sold out
Shipping calculated at checkout.

Low stock: 5 left • Ships in 3-5 business days
View full details

Product Overview

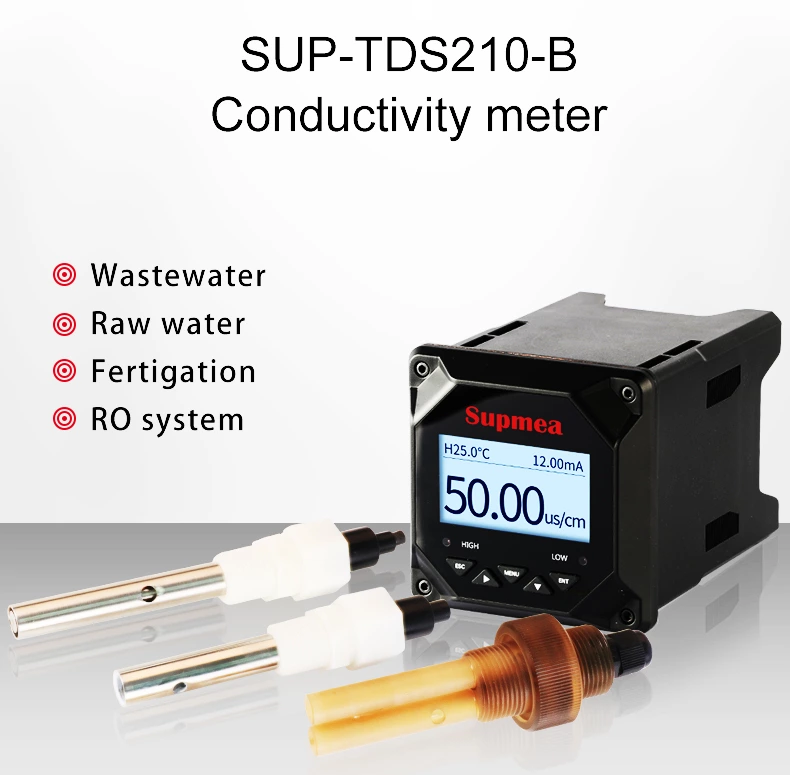

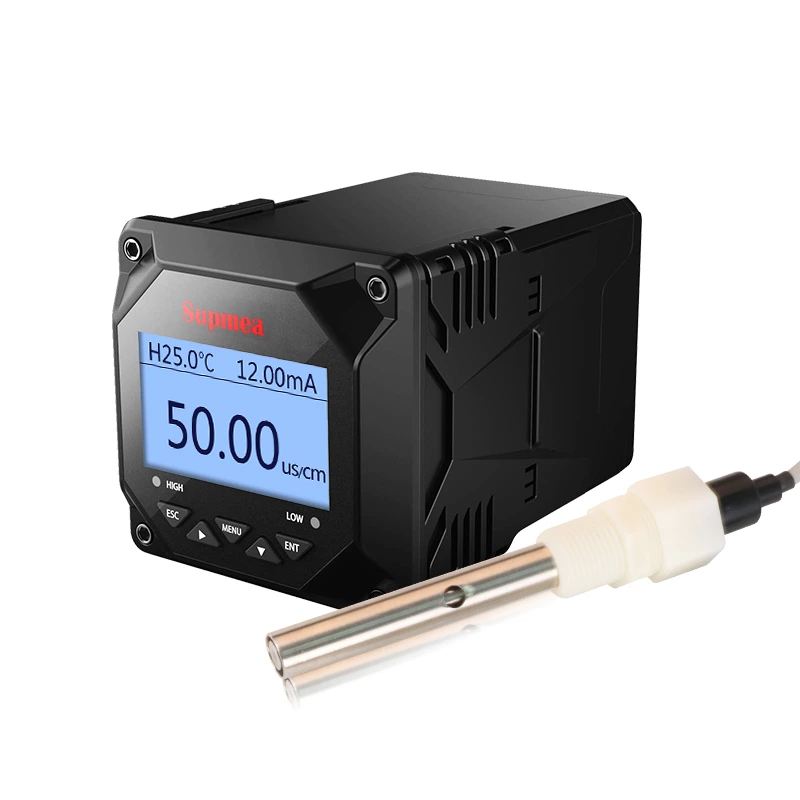

The SUP-TDS210-B Conductivity Controller is designed for continuous online monitoring of conductivity (EC), total dissolved solids (TDS), resistivity (ER), and solution temperature. It provides stable measurement performance for industrial water treatment applications while supporting automatic temperature compensation and isolated signal transmission.

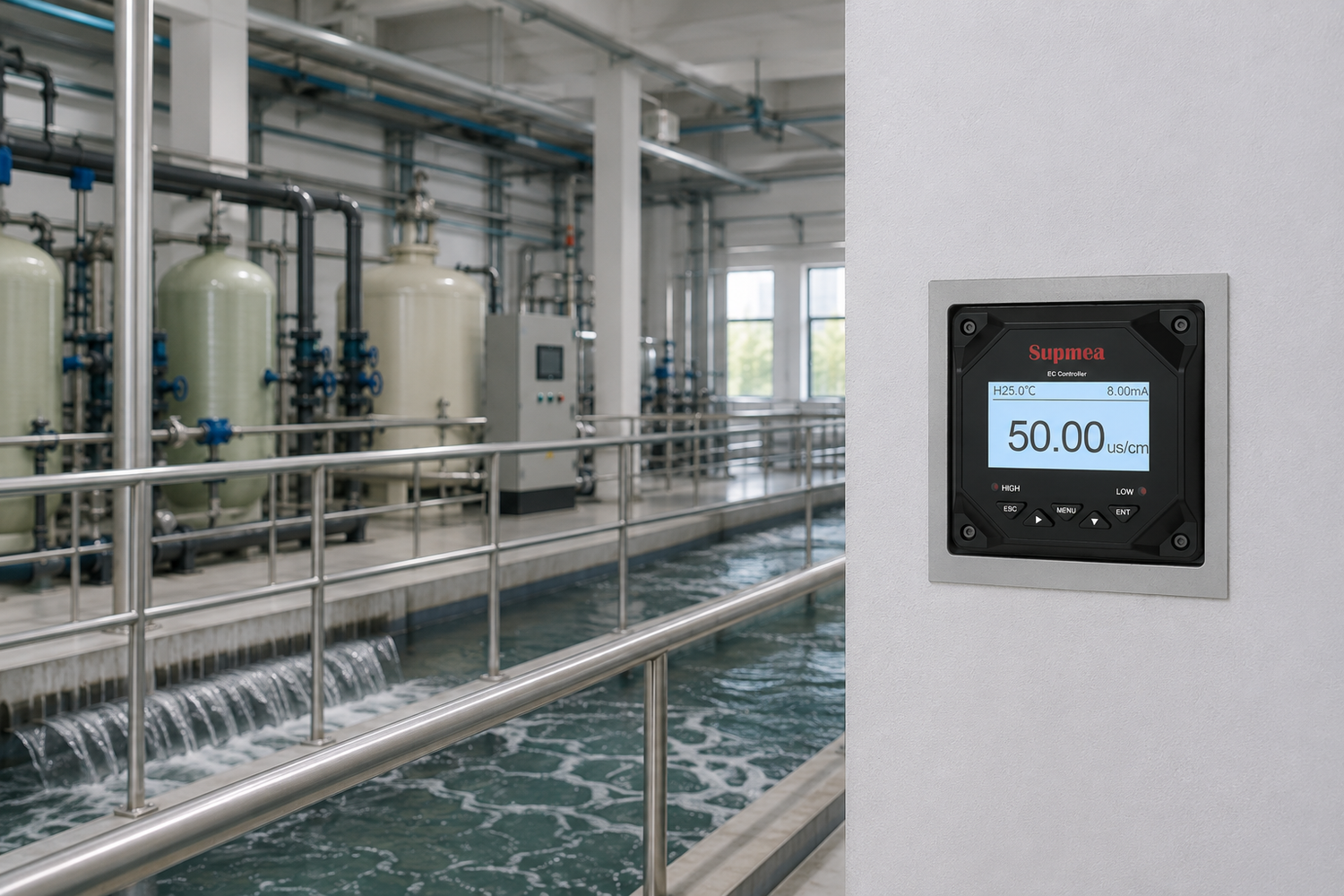

Featuring a 2.8-inch LCD display, isolated 4–20 mA output, RS485 Modbus RTU communication, dual relay outputs, and flexible AC/DC power options, the controller can be integrated into a wide range of industrial automation systems. It is widely used in thermal power plants, water treatment systems, chemical processing, pharmaceutical manufacturing, food & beverage production, and municipal water applications.

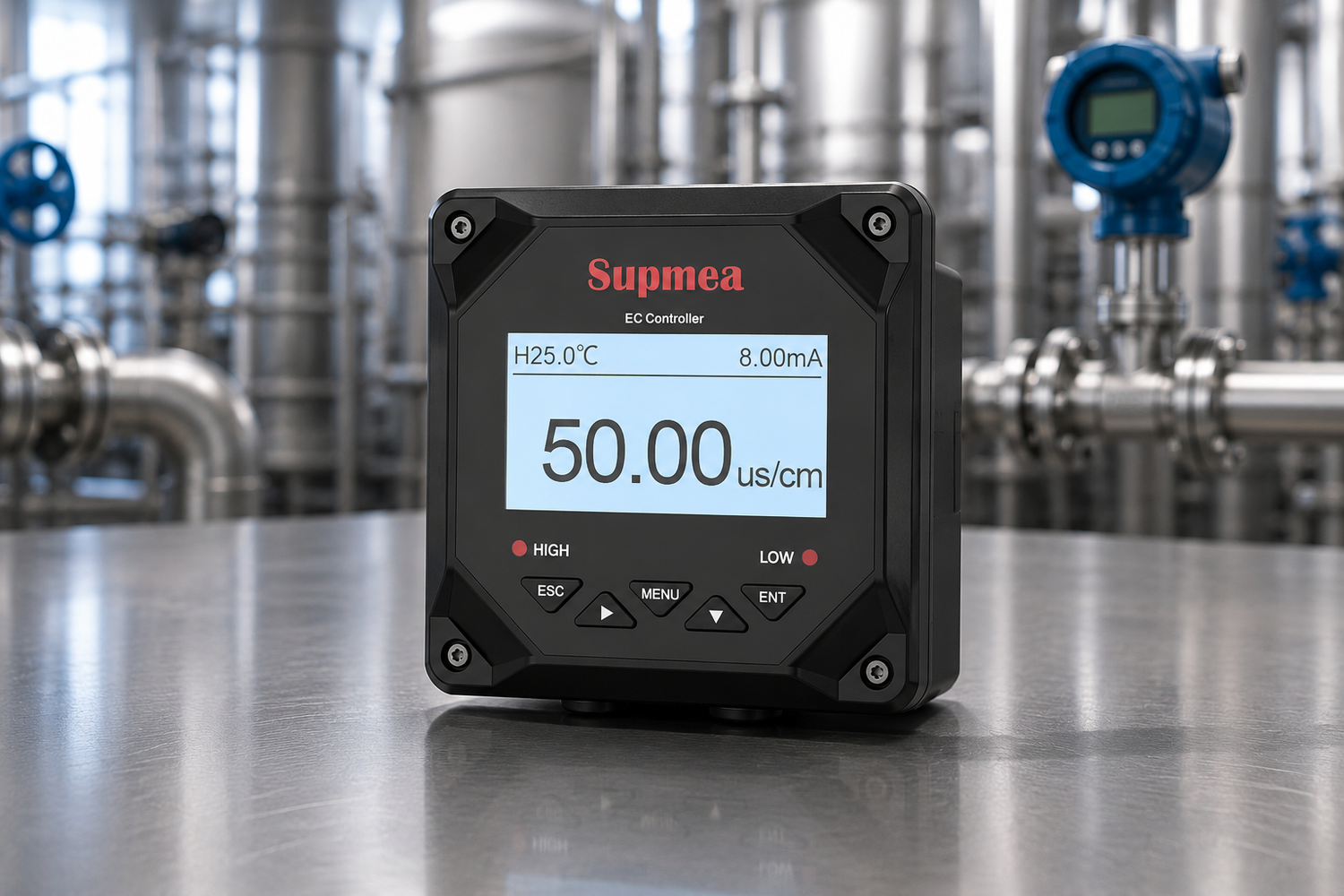

Key Features

  • Measures conductivity (EC), TDS, resistivity (ER), and temperature simultaneously through one controller.
  • Provides isolated 4–20 mA output with excellent anti-interference performance for industrial environments.
  • Supports isolated RS485 communication for seamless integration with PLC, DCS, and SCADA systems.
  • Supports NTC10K and Pt1000 temperature sensors with automatic or manual temperature compensation.
  • Equipped with two configurable relay outputs for high/low alarm control and process automation.

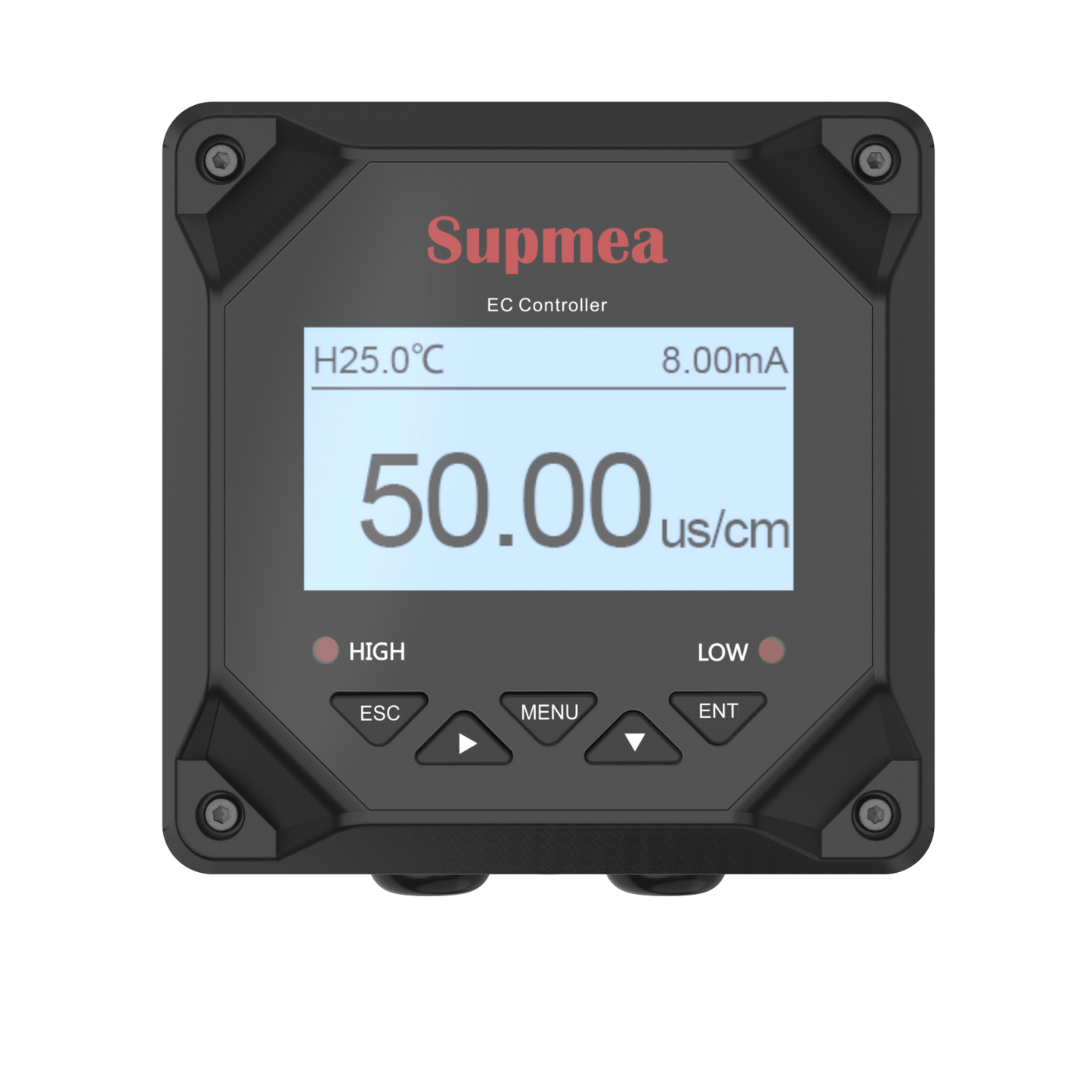

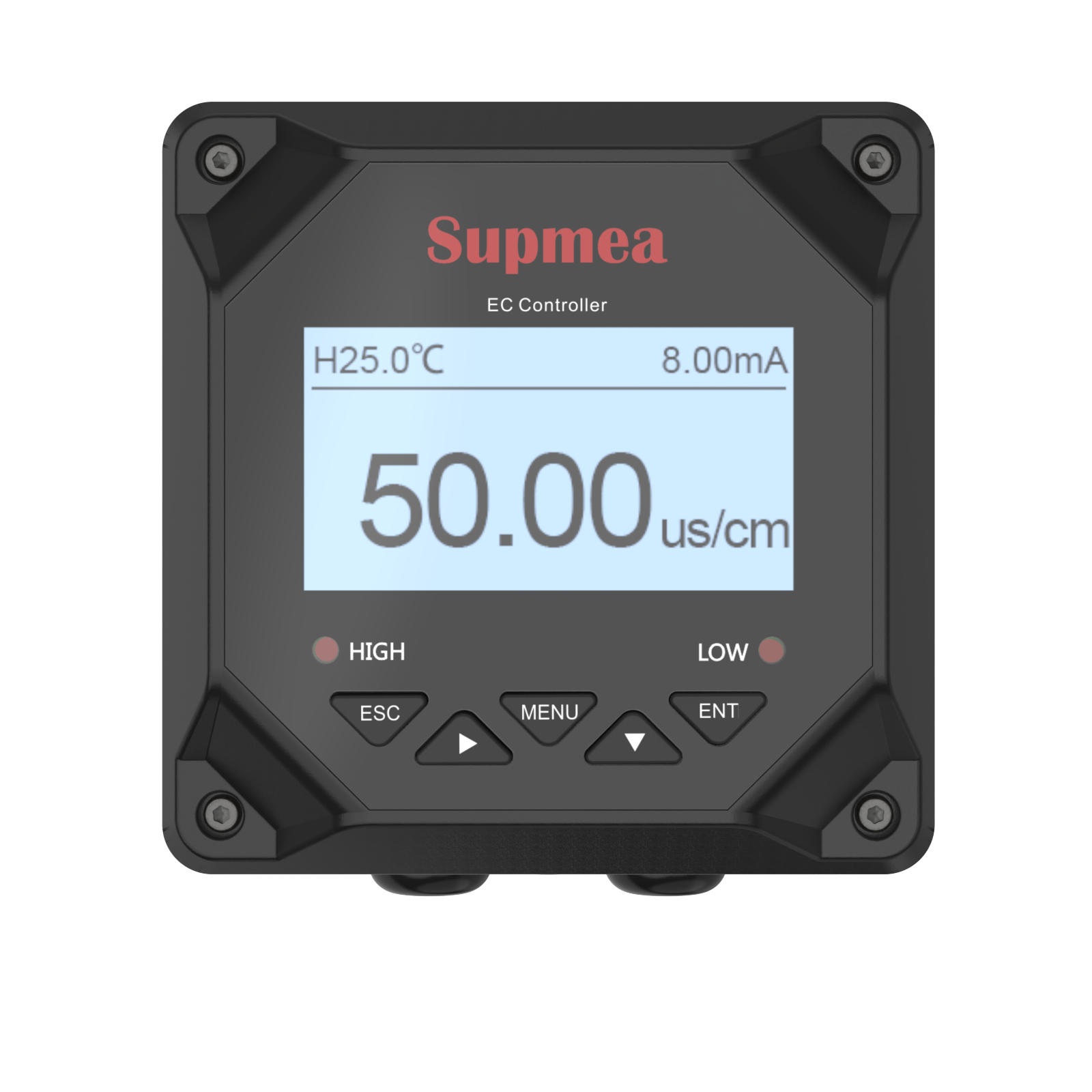

  • Large 2.8-inch monochrome LCD display provides clear readings and simple operation in industrial environments.

Applications

Technical Specifications

Model SUP-TDS210-B
Display 2.8-inch Monochrome LCD (128 × 64)
Measuring Range Conductivity: 0.00 μS/cm–600 mS/cm (depending on electrode constant) TDS / Resistivity (ER) Supported Temperature: 14–266°F (-10–130°C)
Accuracy ±2% FS (Instrument)EC/TDS/ER: ±1% FS
Resolution 128 × 64 Display Resolution
Operating Temperature 32–140°F (0–60°C)
Input Power 110 VAC ±10% 24VDC ±20%
Communication Isolated RS485 (Modbus RTU)
Analog Output Isolated 4–20 mA (Max Loop 750 Ω)
Relay Output 2 × SPDT Relay, 250 VAC / 3 A
Temperature Compensation Manual or Automatic (NTC10K / Pt1000)
Compatible Sensors Conductivity Electrodes (K=0.01 / 0.1 / 1.0 / 10.0)
Protection Rating Front Panel IP65 (Panel Mounted)
Panel Cutout 3.64 × 3.64 in (92.5 × 92.5 mm)

Downloads

User Manual
Datasheet

FAQ

What is the SUP-TDS210-B used for?

The SUP-TDS210-B is designed for continuous online monitoring of conductivity, TDS, resistivity, and temperature in industrial water treatment processes.

Which conductivity sensors are compatible?

The controller supports conductivity electrodes with K=0.01, K=0.1, K=1.0, and K=10.0 cell constants.

Does the controller support panel mounting?

Yes. The controller is designed for panel installation with a 92.5 × 92.5 mm panel cutout.

Does the controller support PLC or SCADA systems?

Yes. The controller features isolated RS485 Modbus RTU communication and isolated 4–20 mA analog output, making it suitable for PLC, DCS, and SCADA integration.

What warranty do you provide?

Please refer to BayMeters Warranty Policy or contact our sales team for warranty details.

How long does shipping take?

Products in the US warehouse typically ship within 3–5 business days
