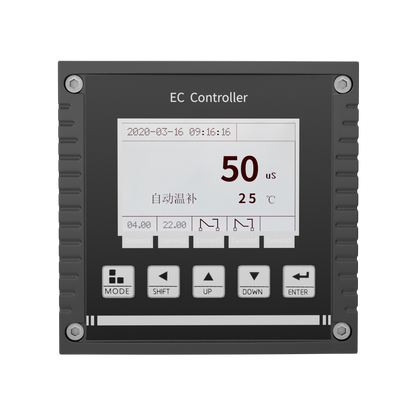

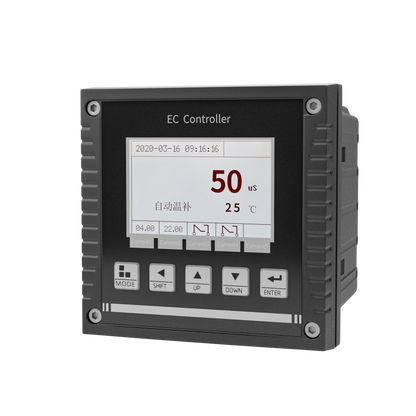

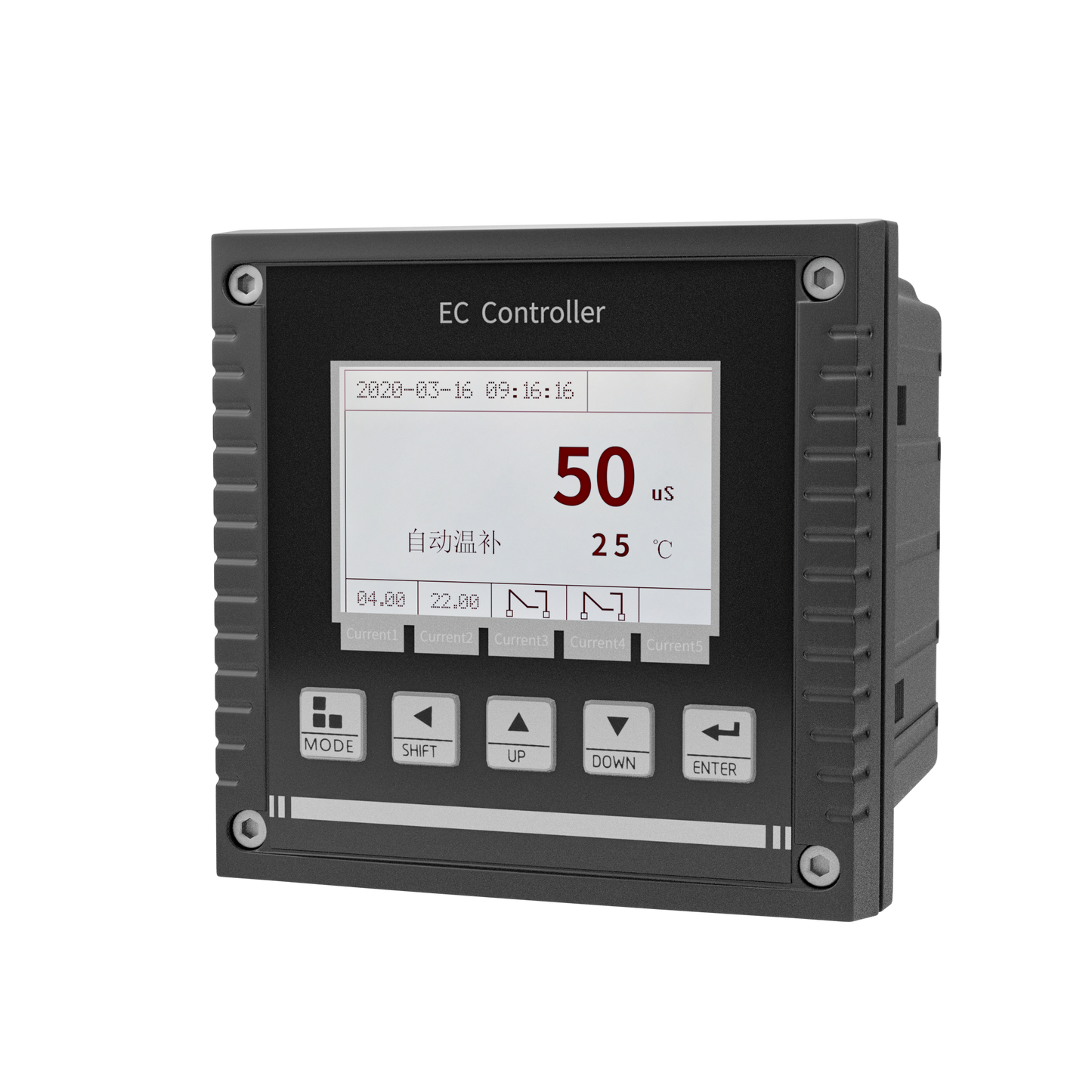

EC controller EC8.0

EC controller EC8.0

$727.00 USD
$727.00 USD
Sale Sold out
This is an all-inclusive reference price (product, international shipping, and import duties), based on a few selected configurations. Actual pricing may vary by size, options, and order quantity. Minimum order may apply for low-value items, while better pricing may be available for larger requirements. For a confirmed quote or to place an order, please contact us.

Low stock: 10 left • Ships in 3-5 business days
View full details

Product Overview

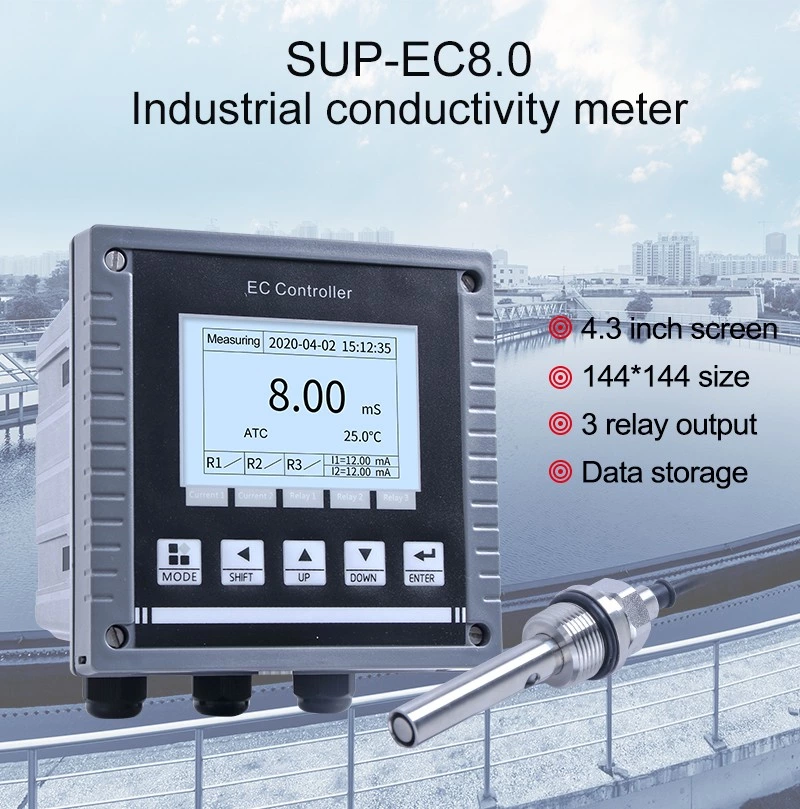

The SUP-EC8.0 is an intelligent online conductivity controller designed for continuous monitoring of conductivity, resistivity, salinity, TDS, and temperature in industrial water treatment systems.
Supporting both 2-electrode and 4-electrode conductivity sensors, the controller offers automatic temperature compensation, isolated analog outputs, MODBUS RS485 communication, programmable relay control, and onboard data logging. Its versatile installation options and industrial-grade design make it suitable for municipal water treatment, pure water production, food processing, aquaculture, and environmental monitoring.

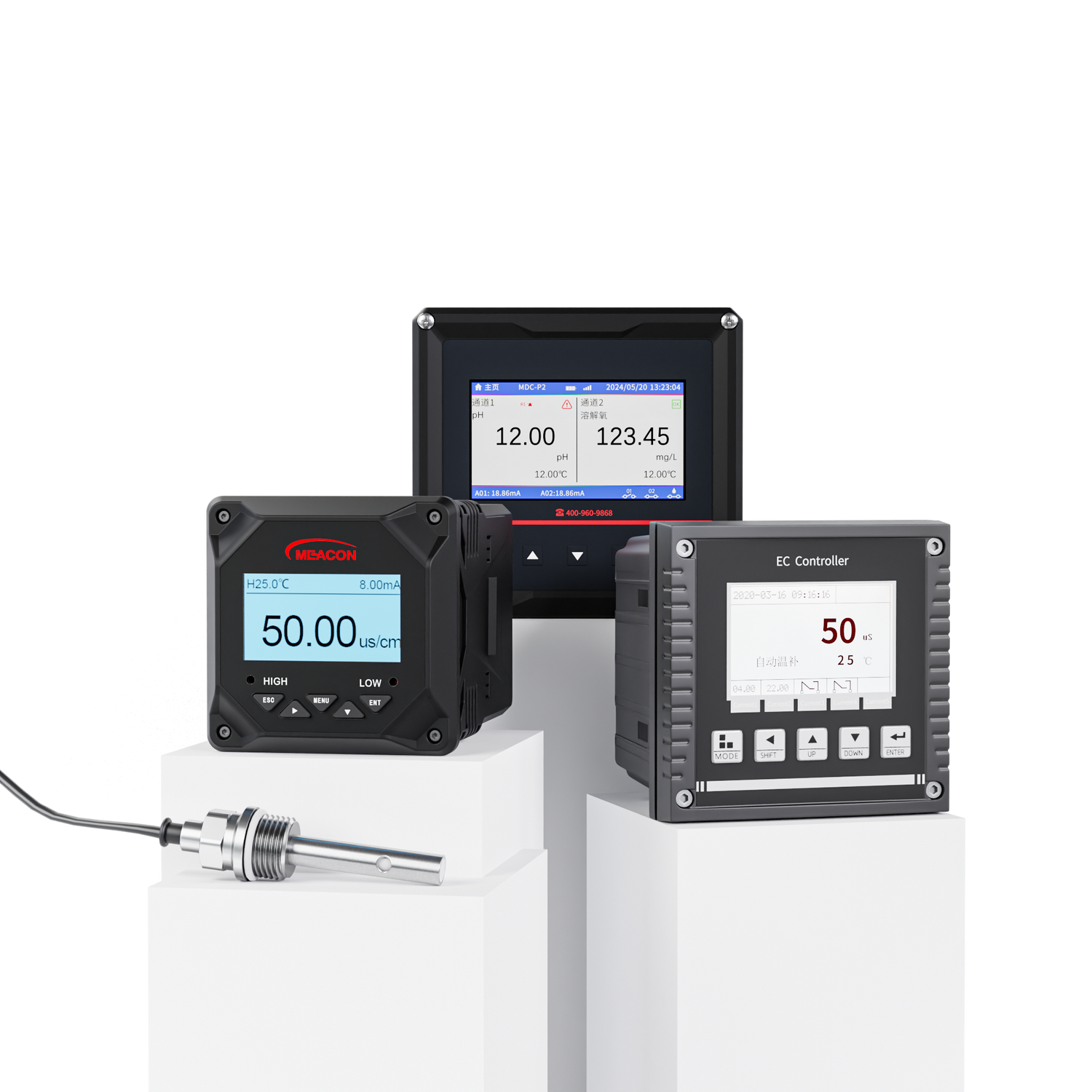

Key Features

  • Measures conductivity, resistivity, salinity, TDS, and temperature with a single controller.
  • Automatic temperature compensation improves measurement stability across changing process conditions.
  • Designed for seamless integration with PLCs, SCADA systems, and industrial automation platforms.
  • Built-in data logging and programmable outputs simplify long-term process monitoring and maintenance.

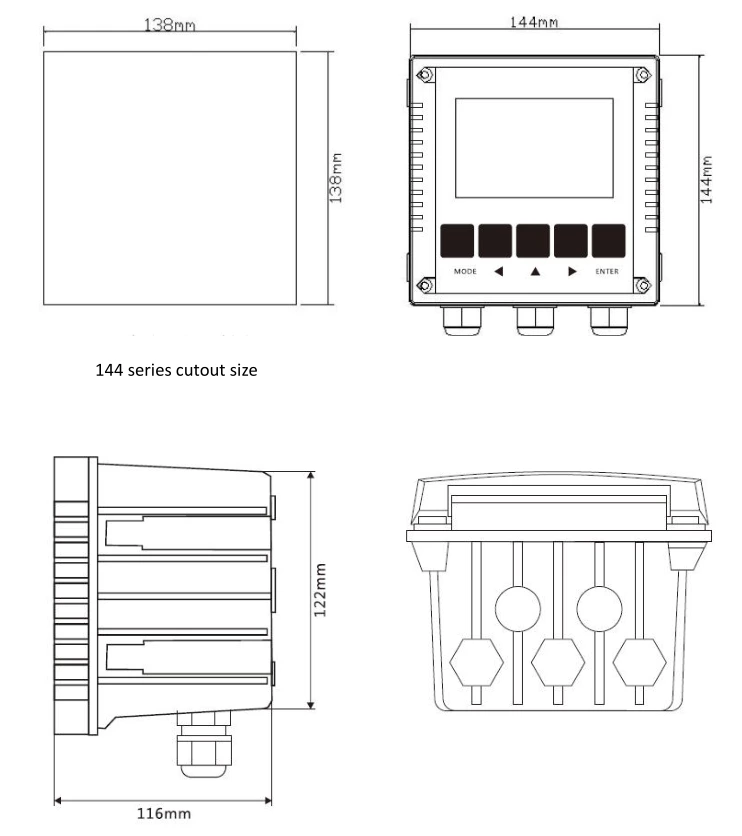

  • Supports panel, wall, and pipe mounting with an intuitive user interface for fast commissioning.
  • Built for continuous operation in demanding industrial water treatment environments.

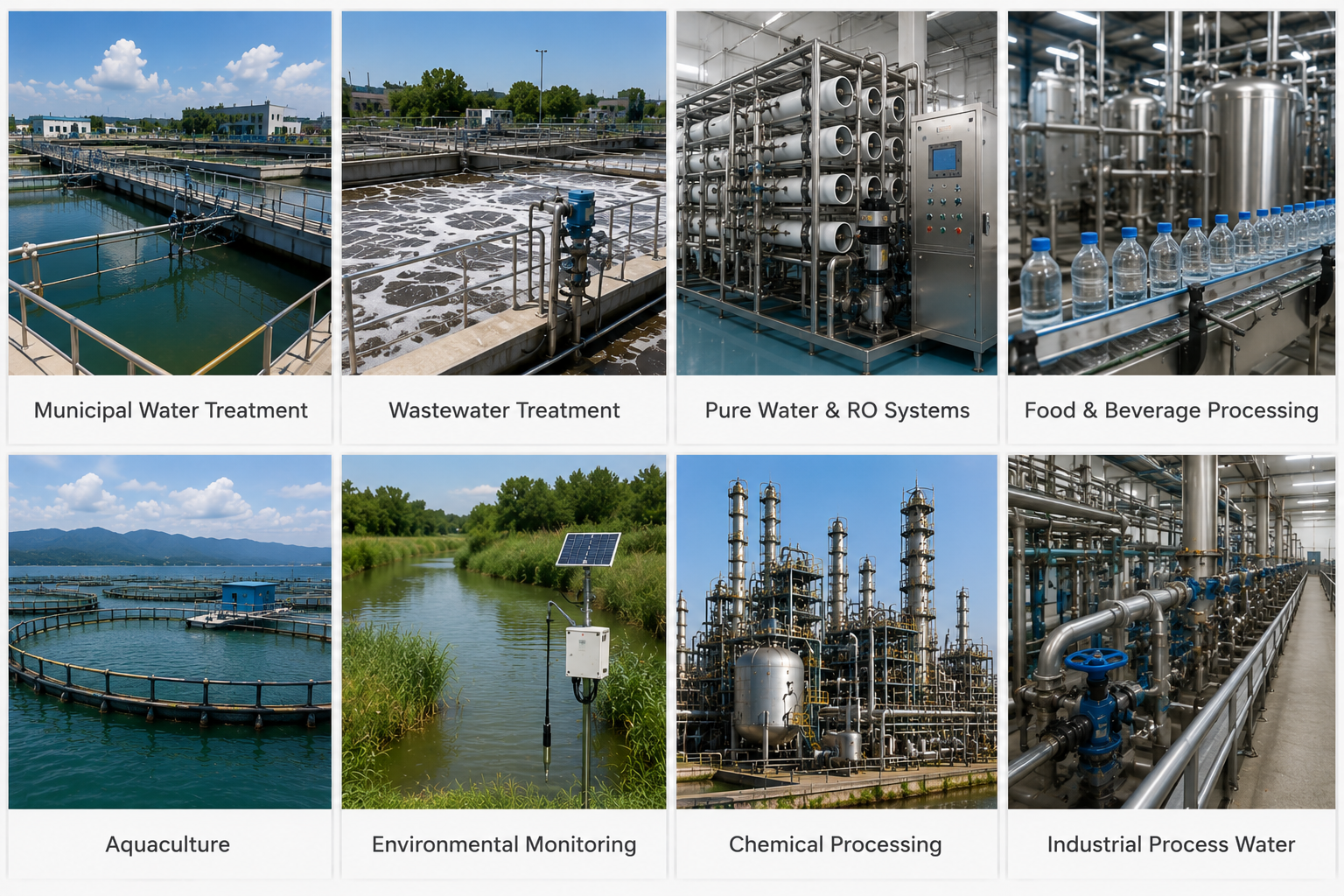

Applications

Technical Specifications

Model SUP-EC8.0
Range 0.00 μS/cm to 2000 mS/cm
Accuracy ±1% F.S.
Temperature Compensation Automatic / Manual, Pt1000 or NTC30K (14–266°F)
Analog Output 2 × Isolated 4–20 mA
Communication RS485
Relay Output 3 × Programmable Relays
Power Supply 110VAC
Protection Rating IP65
Operating Temperature 32–158°F

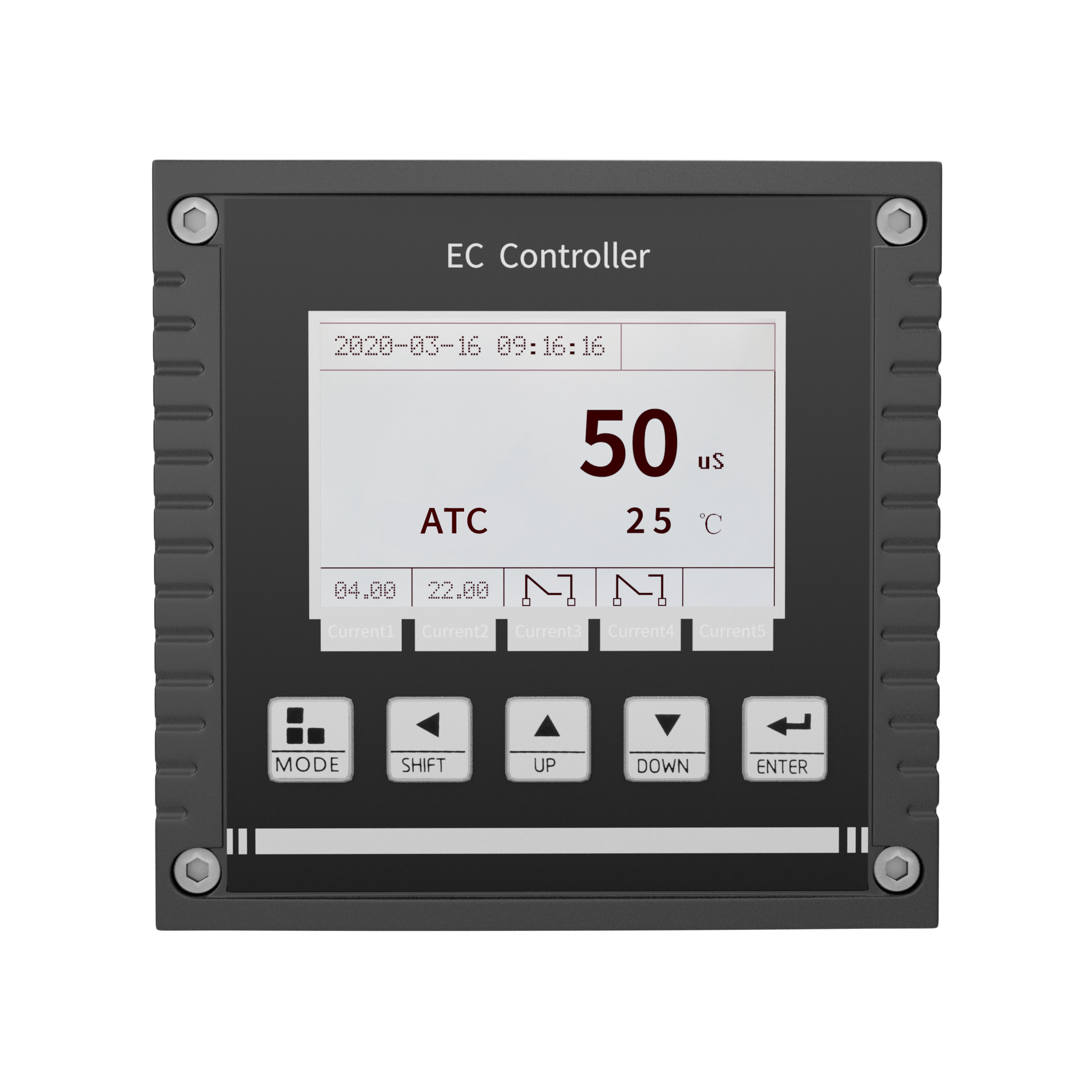

Display Backlit Dot Matrix LCD

Downloads

User Manual
Datasheet

FAQ

What can the SUP-EC8.0 measure?

The SUP-EC8.0 measures conductivity, resistivity, salinity, total dissolved solids (TDS), and temperature, making it suitable for a wide range of industrial water treatment applications.

Which conductivity sensors are compatible?

The controller supports both 2-electrode and 4-electrode conductivity sensors, providing flexibility for different conductivity ranges and applications.

What installation options are available?

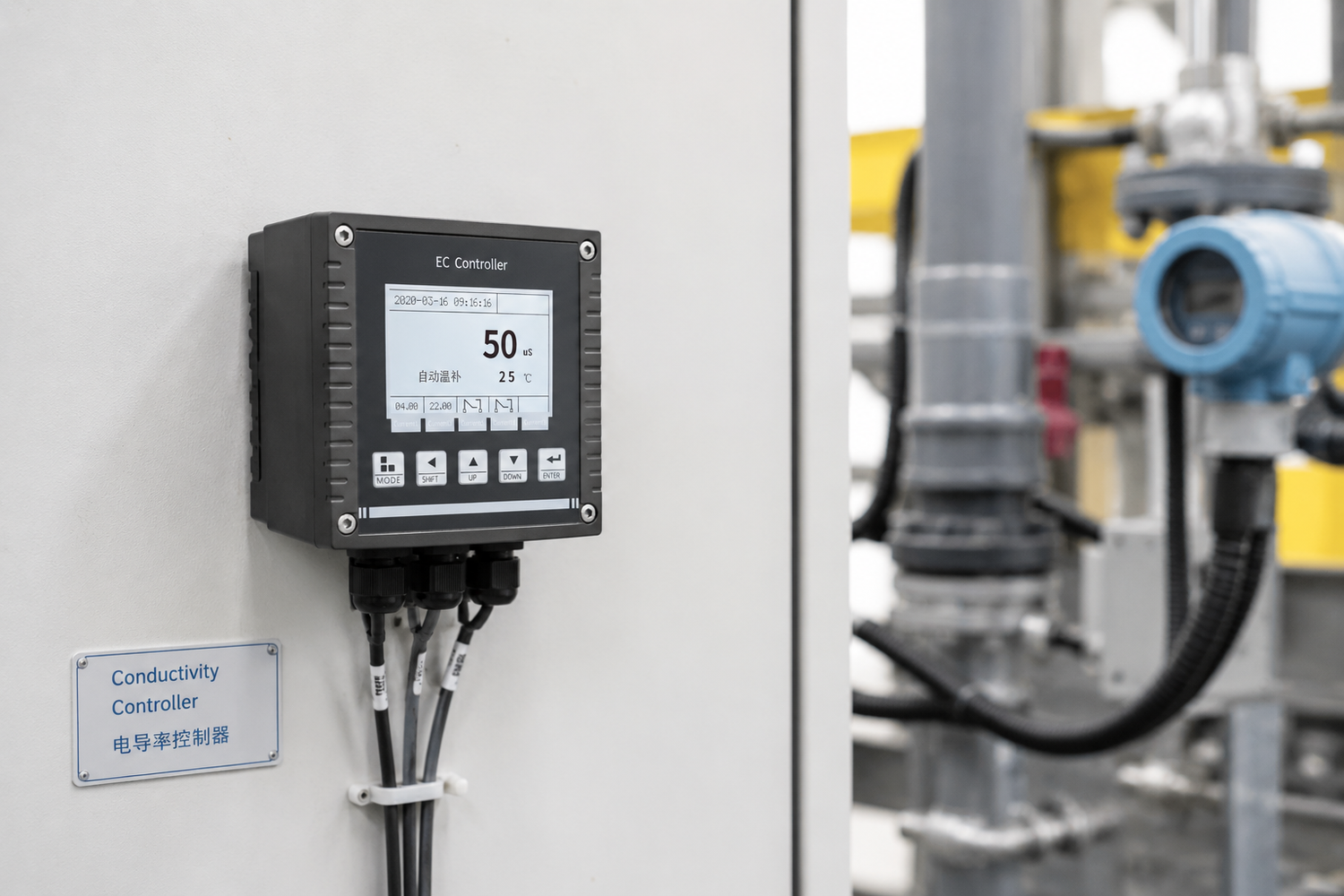

The controller supports panel, wall, and pipe mounting, allowing flexible installation in industrial control cabinets or field applications.

Does the controller support data logging?

Yes. The SUP-EC8.0 features built-in data logging with a storage capacity of up to 500,000 records, making it suitable for long-term process monitoring and historical data review.

What warranty do you provide?

Please refer to BayMeters Warranty Policy or contact our sales team for warranty details.

How long does shipping take?

Products in the US warehouse typically ship within 3–5 business days
