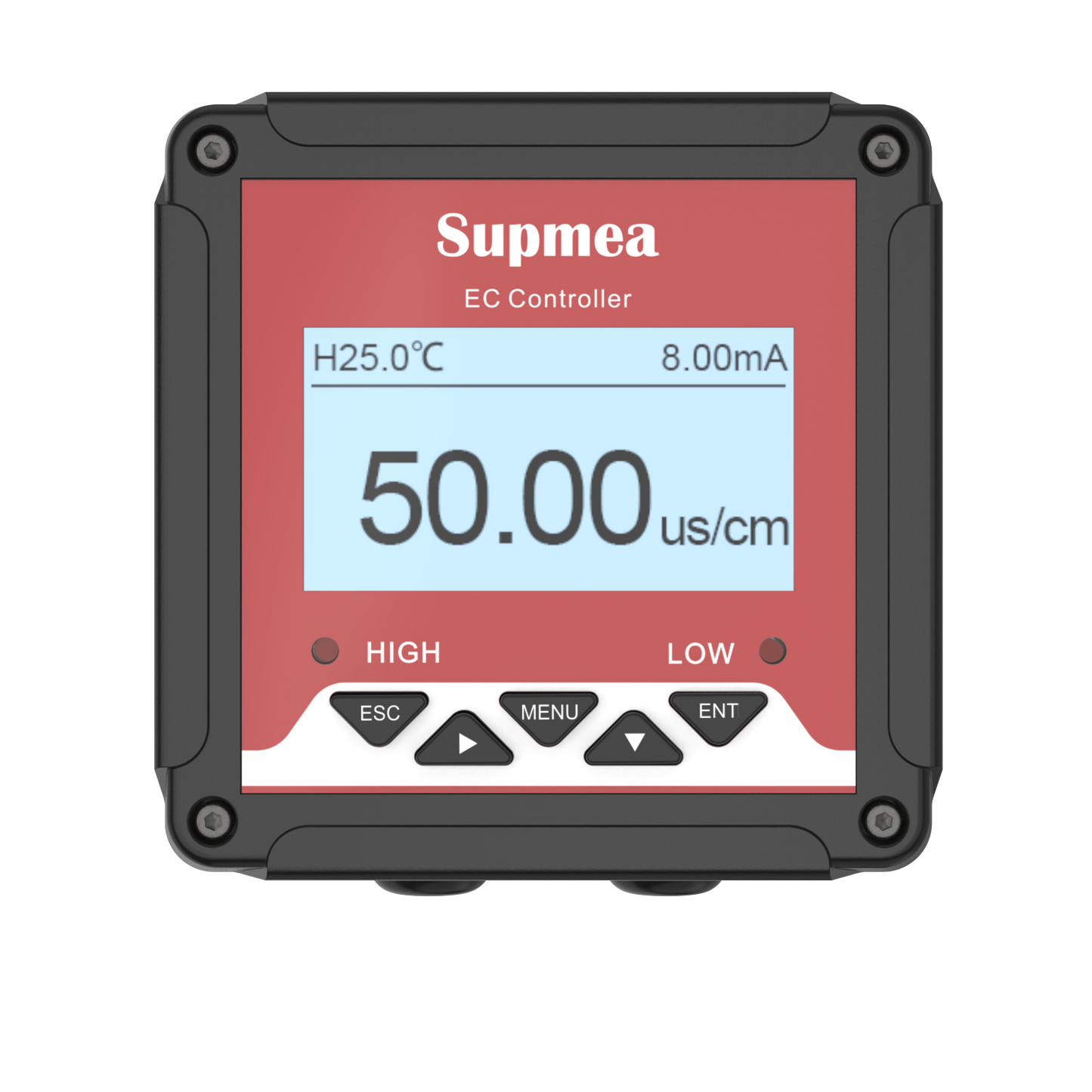

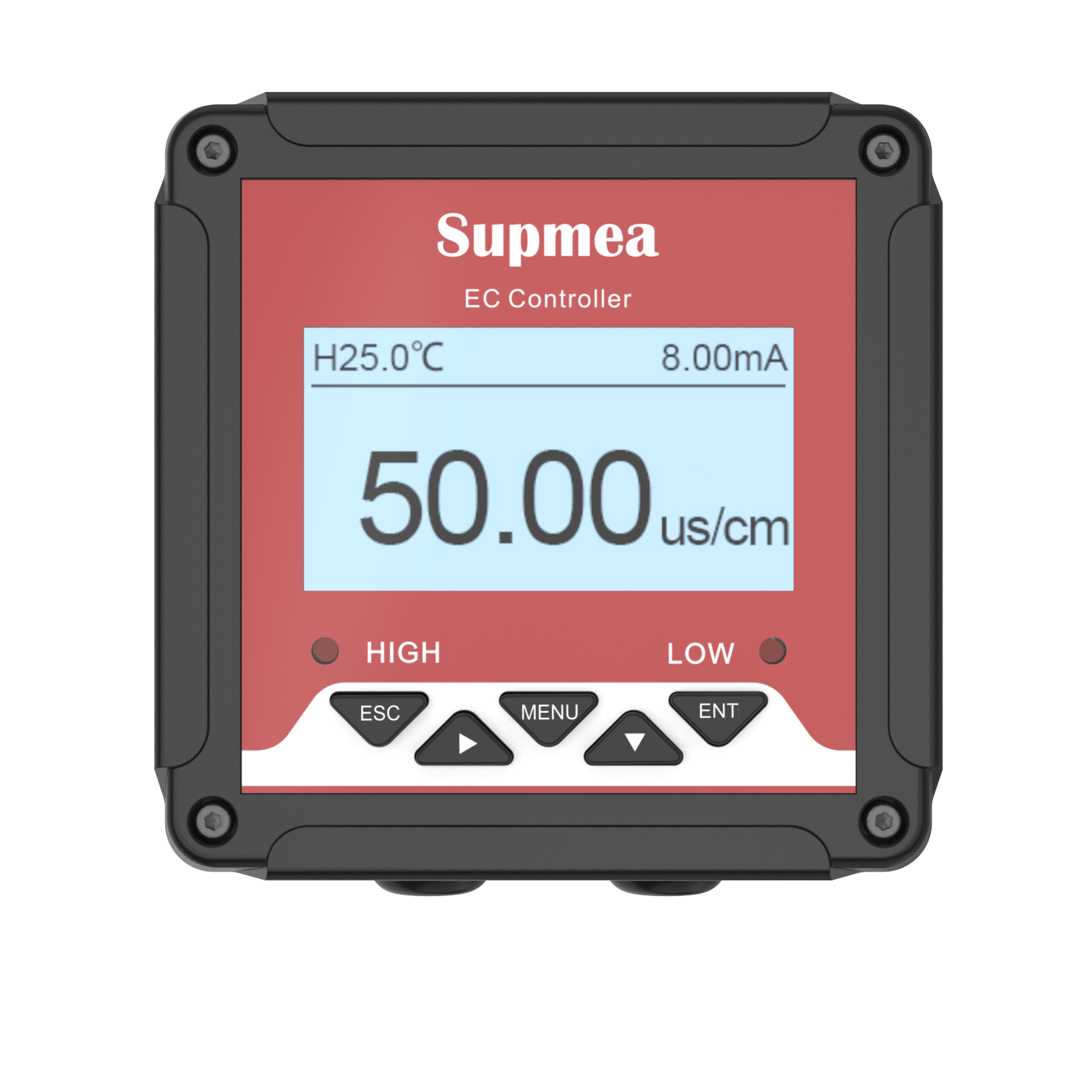

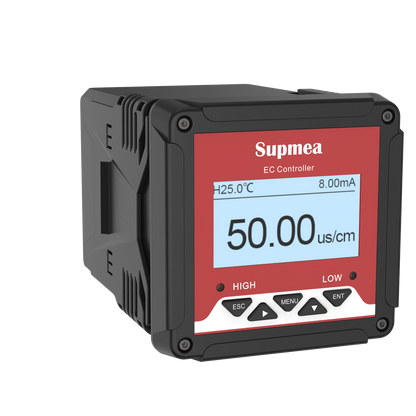

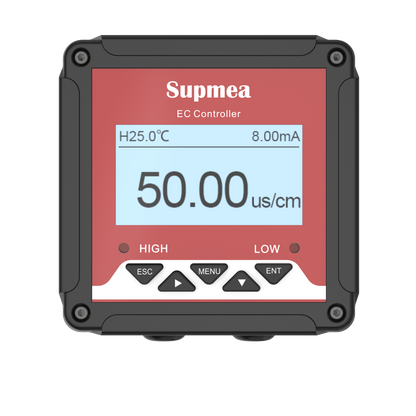

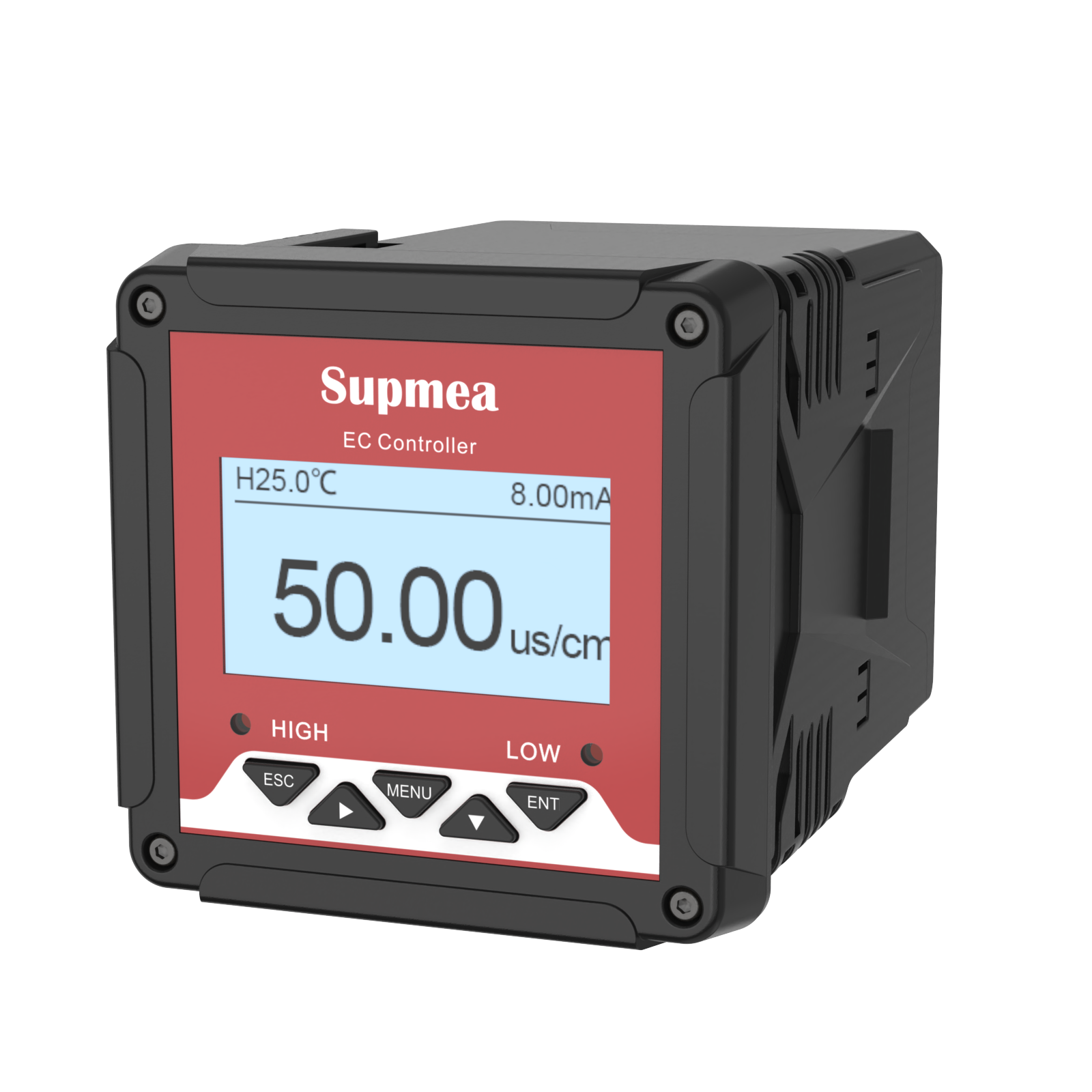

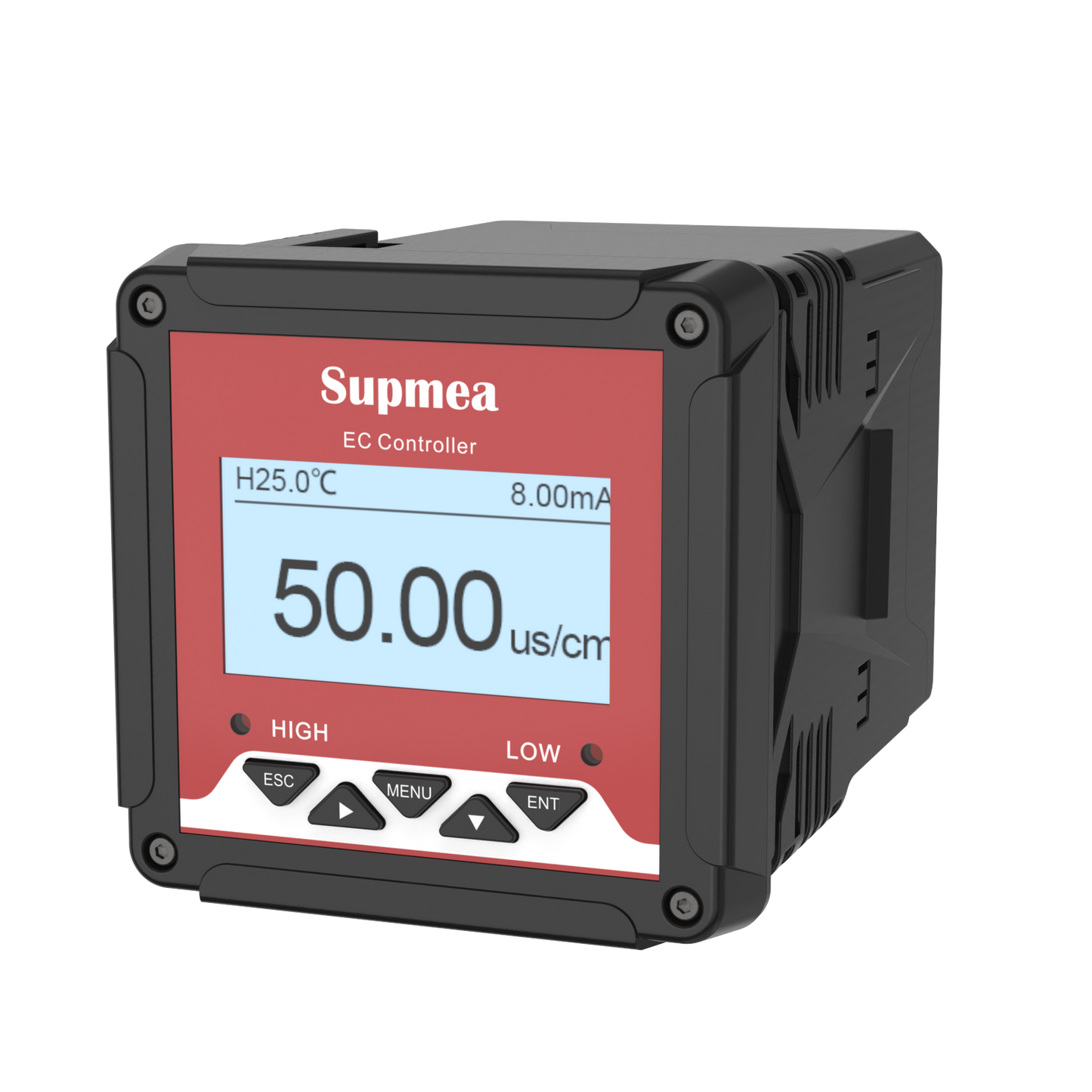

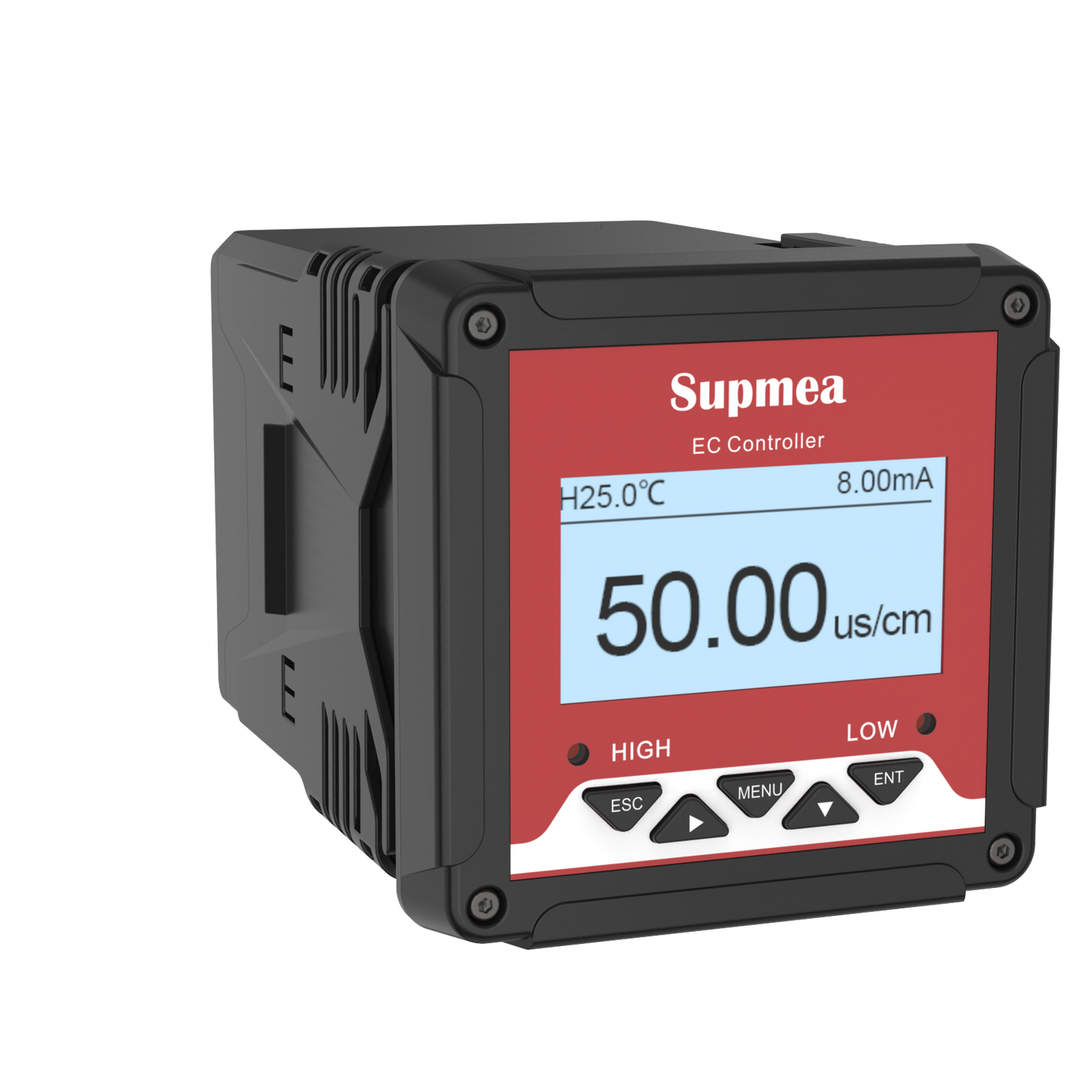

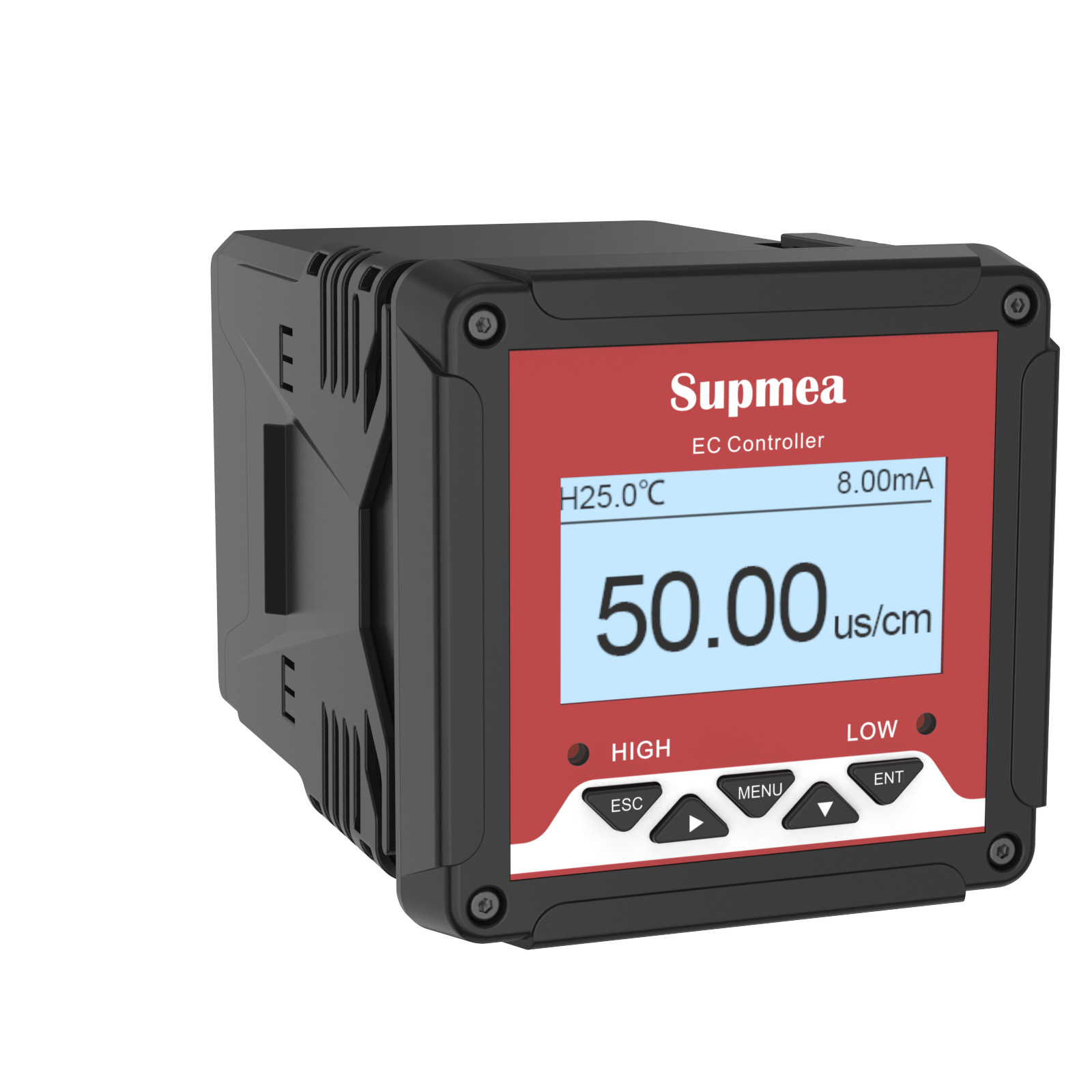

EC controller TDS210-C

EC controller TDS210-C

$246.00 USD
$246.00 USD
Sale Sold out
This is an all-inclusive reference price (product, international shipping, and import duties), based on a few selected configurations. Actual pricing may vary by size, options, and order quantity. Minimum order may apply for low-value items, while better pricing may be available for larger requirements. For a confirmed quote or to place an order, please contact us.

Low stock: 10 left • Ships in 3-5 business days
View full details

Product Overview

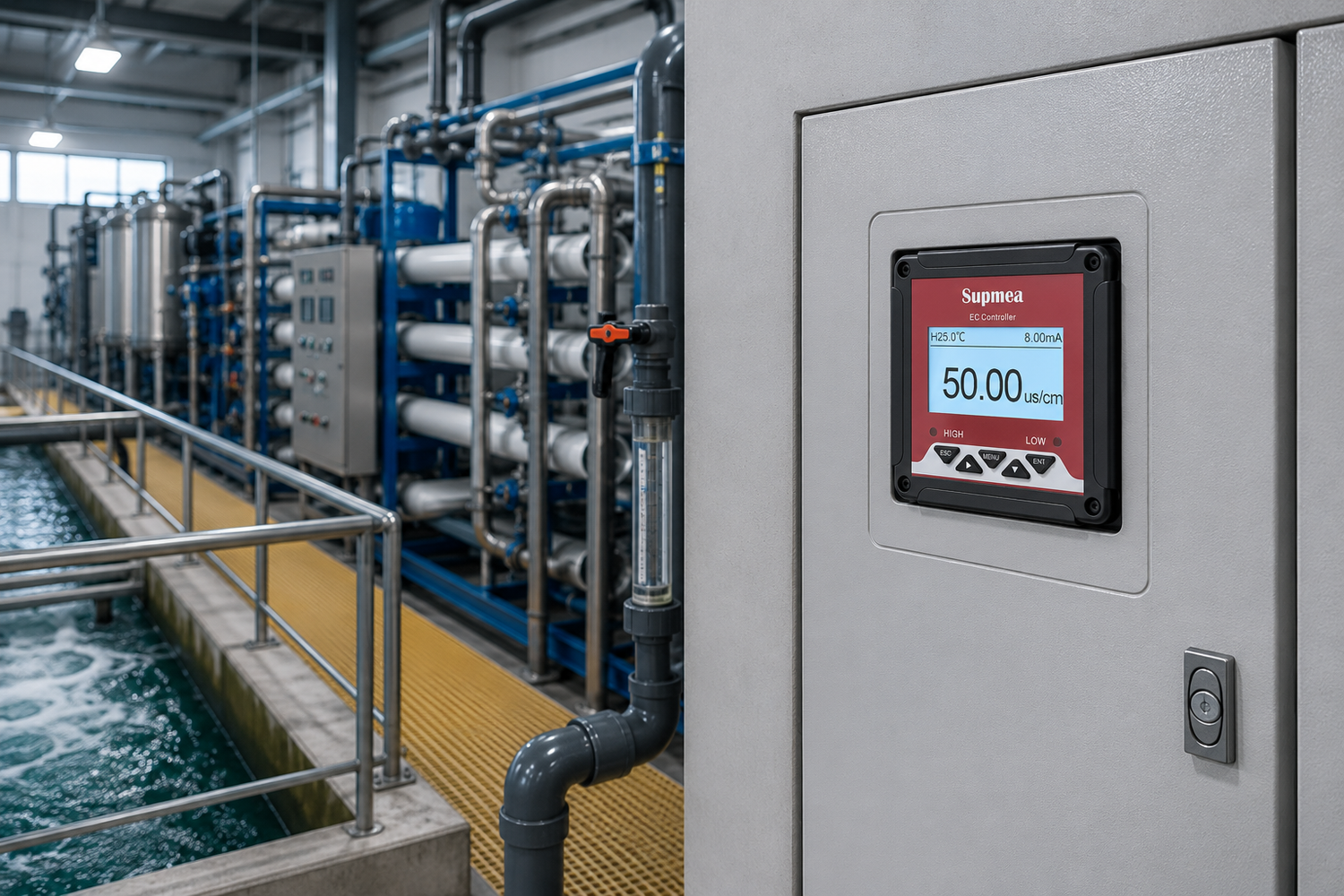

The SUP-TDS210-C Conductivity Controller is a microprocessor-based online analyzer designed for continuous measurement of conductivity (EC), total dissolved solids (TDS), resistivity (ER), and temperature. Compatible with multiple conductivity cell constants, it features automatic temperature compensation, dual alarm relays, isolated 4–20 mA output, and RS485 Modbus RTU communication. It is widely used in reverse osmosis systems, water treatment, industrial process control, food & beverage production, power plants, and laboratory applications.

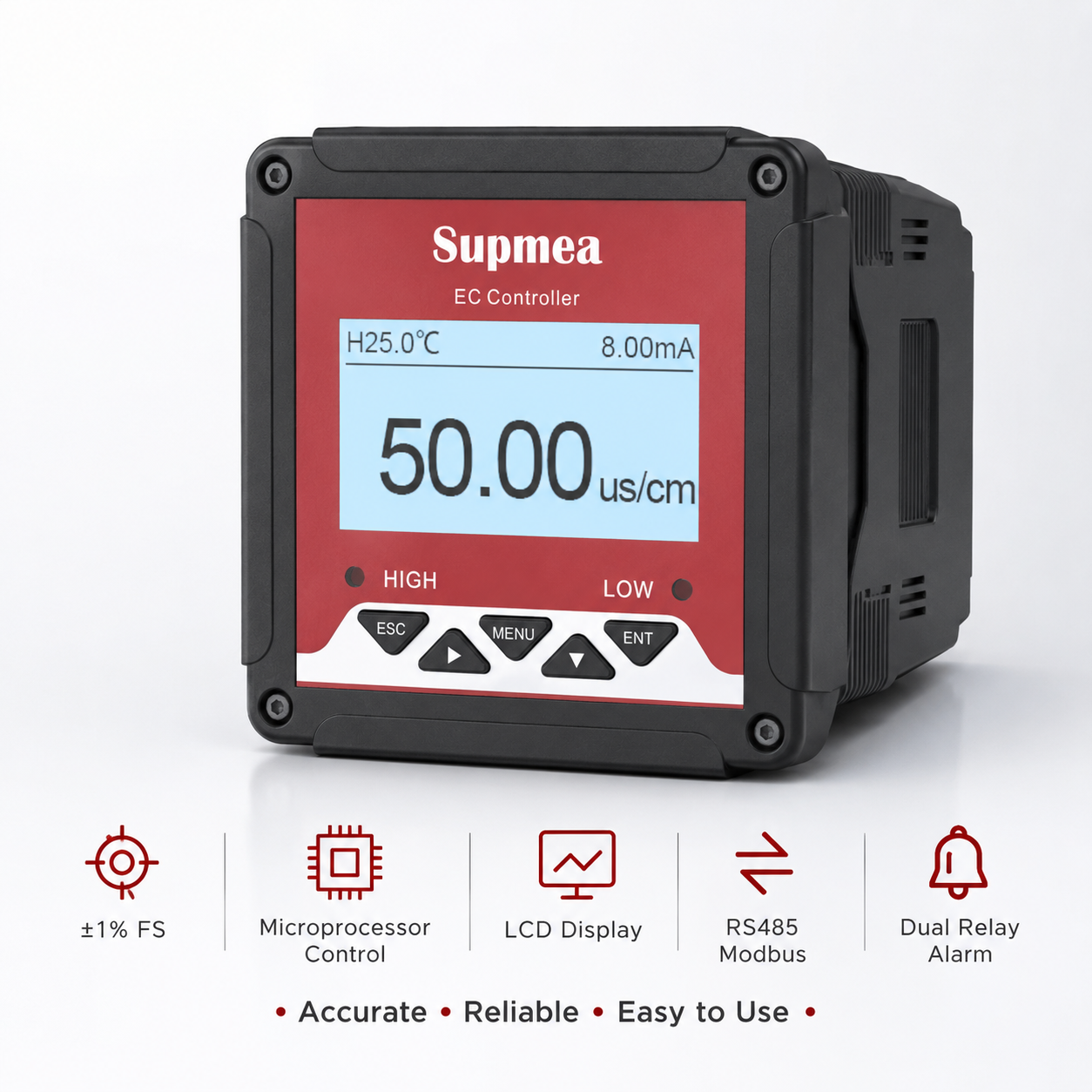

Key Features

  • Supports conductivity (EC), total dissolved solids (TDS), resistivity (ER), and temperature measurement in a single controller.
  • Works with conductivity cells of K=0.01, 0.1, 1.0, and 10.0, covering applications from ultrapure water to high-conductivity industrial solutions.
  • Supports NTC10K and Pt1000 temperature sensors with both automatic and manual temperature compensation for improved measurement accuracy.
  • Equipped with isolated RS485 Modbus RTU communication and isolated 4–20 mA analog output for easy PLC, DCS, and SCADA integration.
  • Provides configurable high and low alarm relays for process monitoring and automatic control.
  • Simple front-panel operation with one-point calibration, electrode constant selection, and quick access shortcut keys.

Applications

Technical Specifications

Measurement Variables Conductivity (EC), TDS, Resistivity (ER), Temperature
Conductivity Range 0.00 μS/cm – 20.00 mS/cm (depends on electrode constant)
Supported Cell Constants K=0.01 / 0.1 / 1.0 / 10.0
Temperature Range 14–266°F (-10–130°C)
Temperature Compensation Automatic Manual (NTC10K or Pt1000)
Accuracy ±1% F.S. (Electronic Unit)
Display 2.8 in LCD (128 × 64)
Analog Output Isolated 4–20 mA
Digital Communication RS485 Modbus RTU
Relay Output 2 × SPDT Relay (250 VAC / 3 A)
Power Supply 110 VAC 24 VDC (optional)
Protection Rating IP54
Panel Cutout 3.64 × 3.64 in (92.5 × 92.5 mm)

Downloads

User Manual
Datasheet

FAQ

What can the SUP-TDS210-C measure?

The controller measures conductivity (EC), total dissolved solids (TDS), resistivity (ER), and temperature, depending on the selected operating mode.

Can alarm outputs be configured?

Yes. Two configurable relay outputs allow users to set high and low alarm thresholds for monitoring and process control.

Does the controller support different conductivity sensors?

Yes. It is compatible with conductivity electrodes having cell constants of K=0.01, 0.1, 1.0, and 10.0, making it suitable for a wide range of water quality applications.

Does the controller provide automatic temperature compensation?

Yes. It supports both automatic and manual temperature compensation using NTC10K or Pt1000 temperature sensors to improve measurement accuracy.

What warranty do you provide?

Please refer to BayMeters Warranty Policy or contact our sales team for warranty details.

How long does shipping take?

Products in the US warehouse typically ship within 3–5 business days
