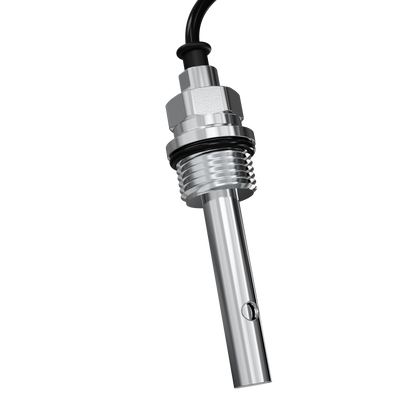

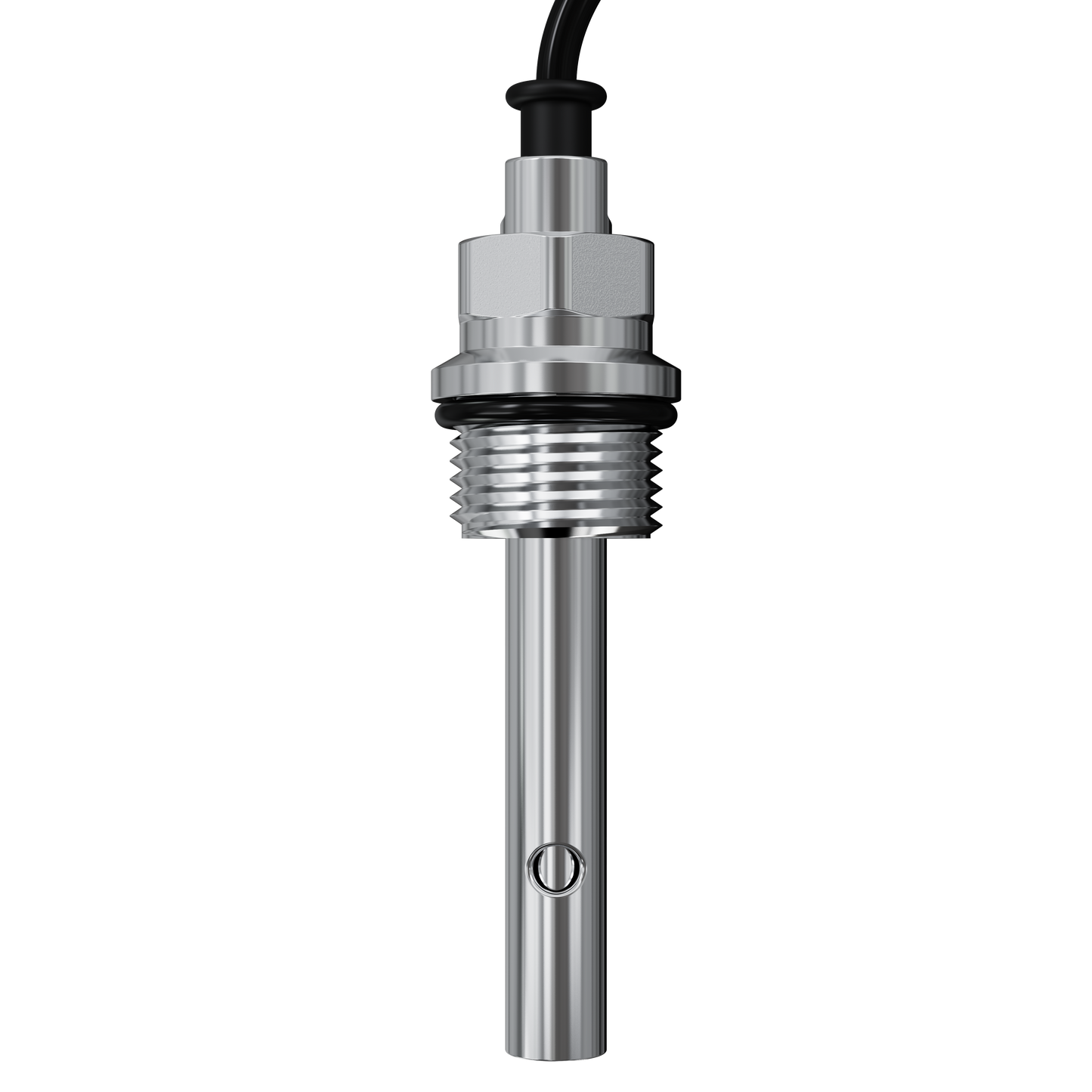

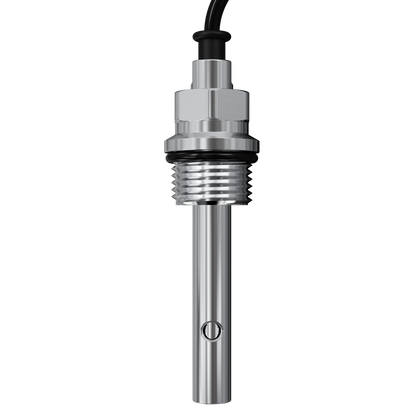

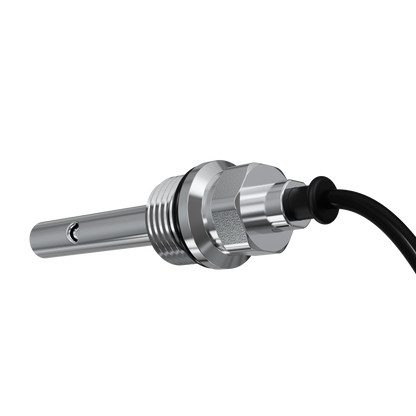

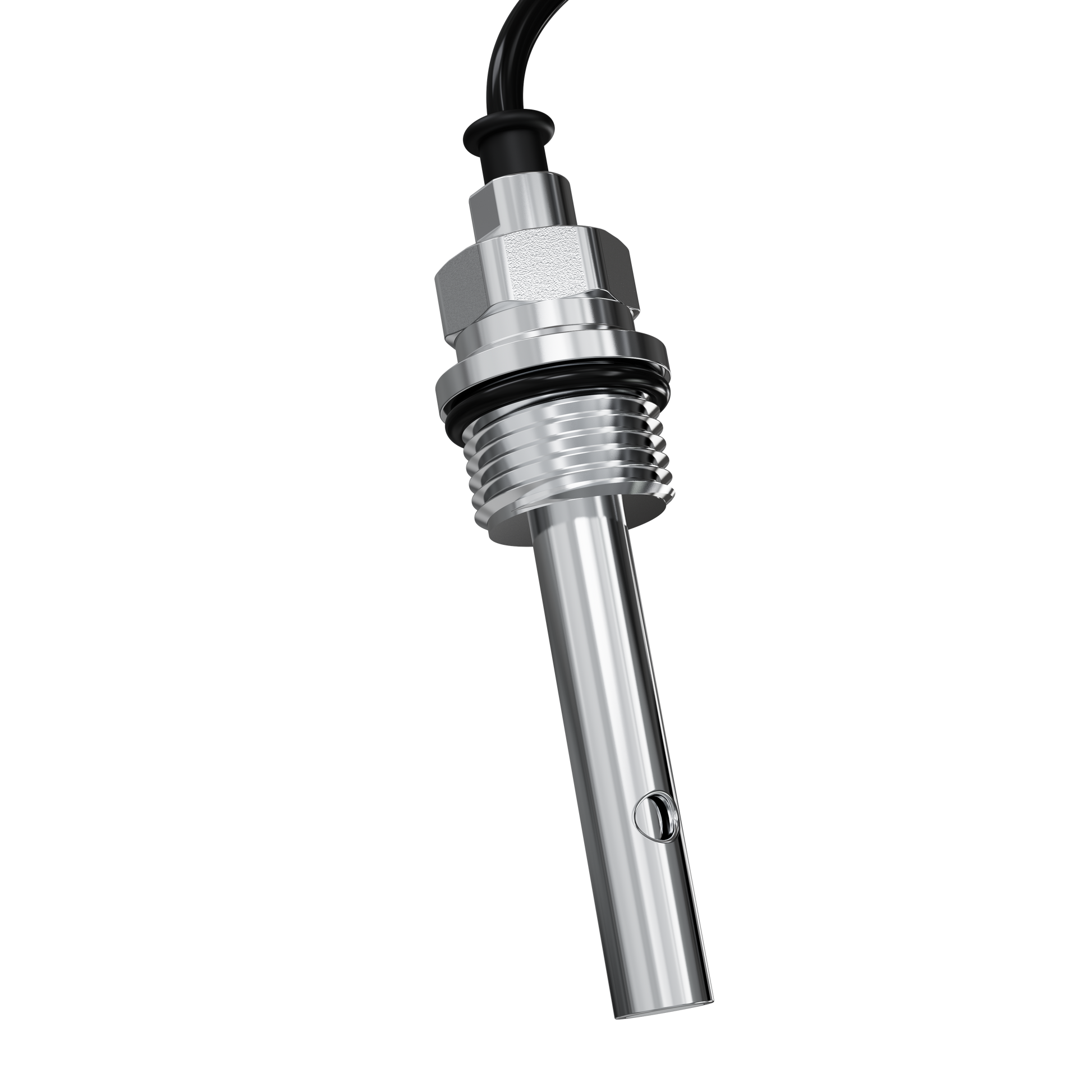

SS304/ SS316 EC sensor SUP-TDS7001

$194.00 USD

Sale Sold out

Shipping calculated at checkout.

1-Year-Limited-Warranty

Low stock: 5 left • Ships in 3-5 business days

View full details

Product Overview

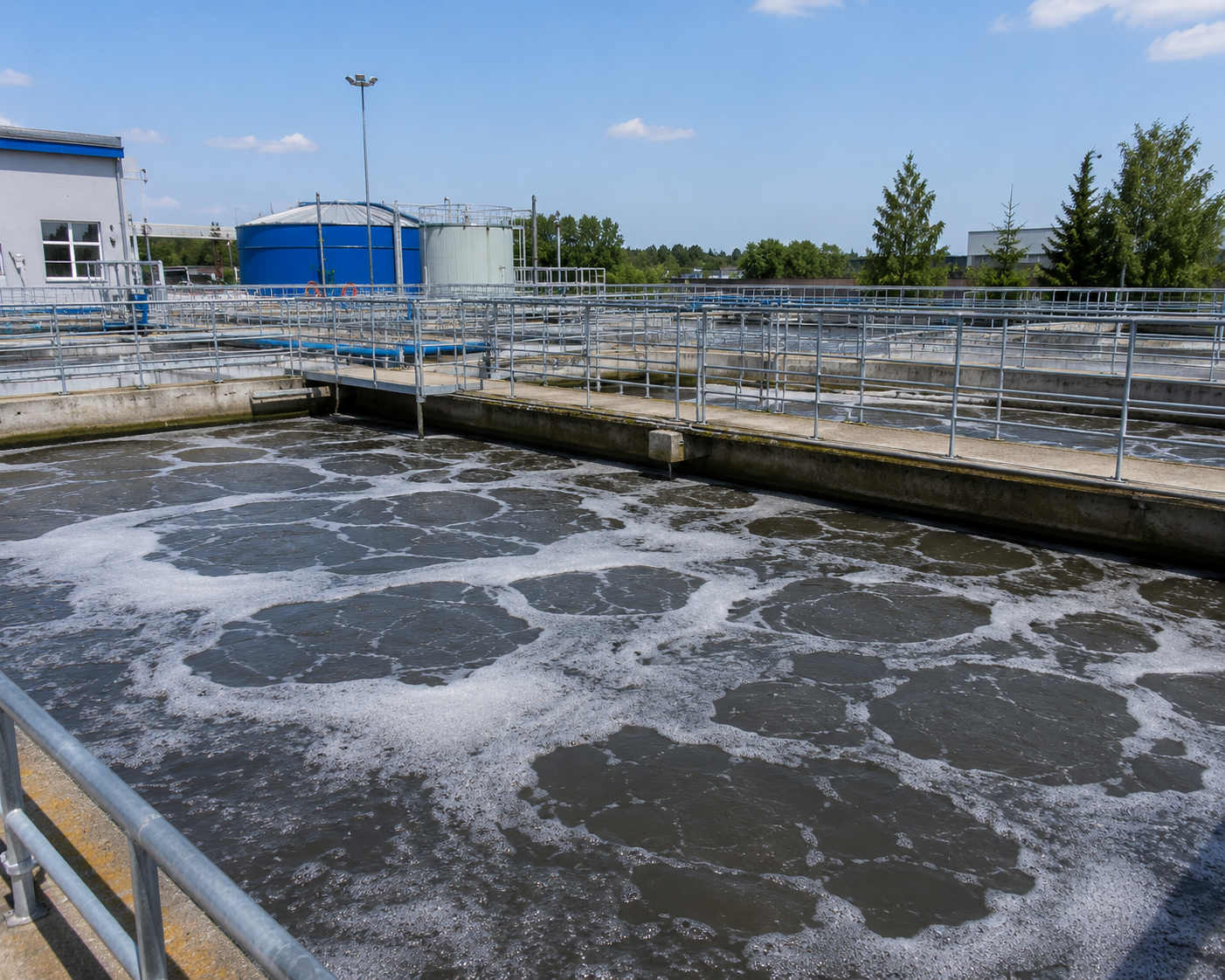

The SUP-TDS7001 Conductivity Stainless Steel Electrode is designed for accurate conductivity and TDS measurement in industrial water treatment applications. It combines reliable conductivity sensing with optional temperature compensation, making it suitable for continuous monitoring in boiler water, reverse osmosis (RO) systems, sewage treatment, and pharmaceutical processes.
Constructed with a corrosion-resistant stainless steel housing and IP68 protection, the electrode delivers stable long-term performance in demanding industrial environments. It supports multiple conductivity ranges and flexible installation options for various water quality monitoring applications.

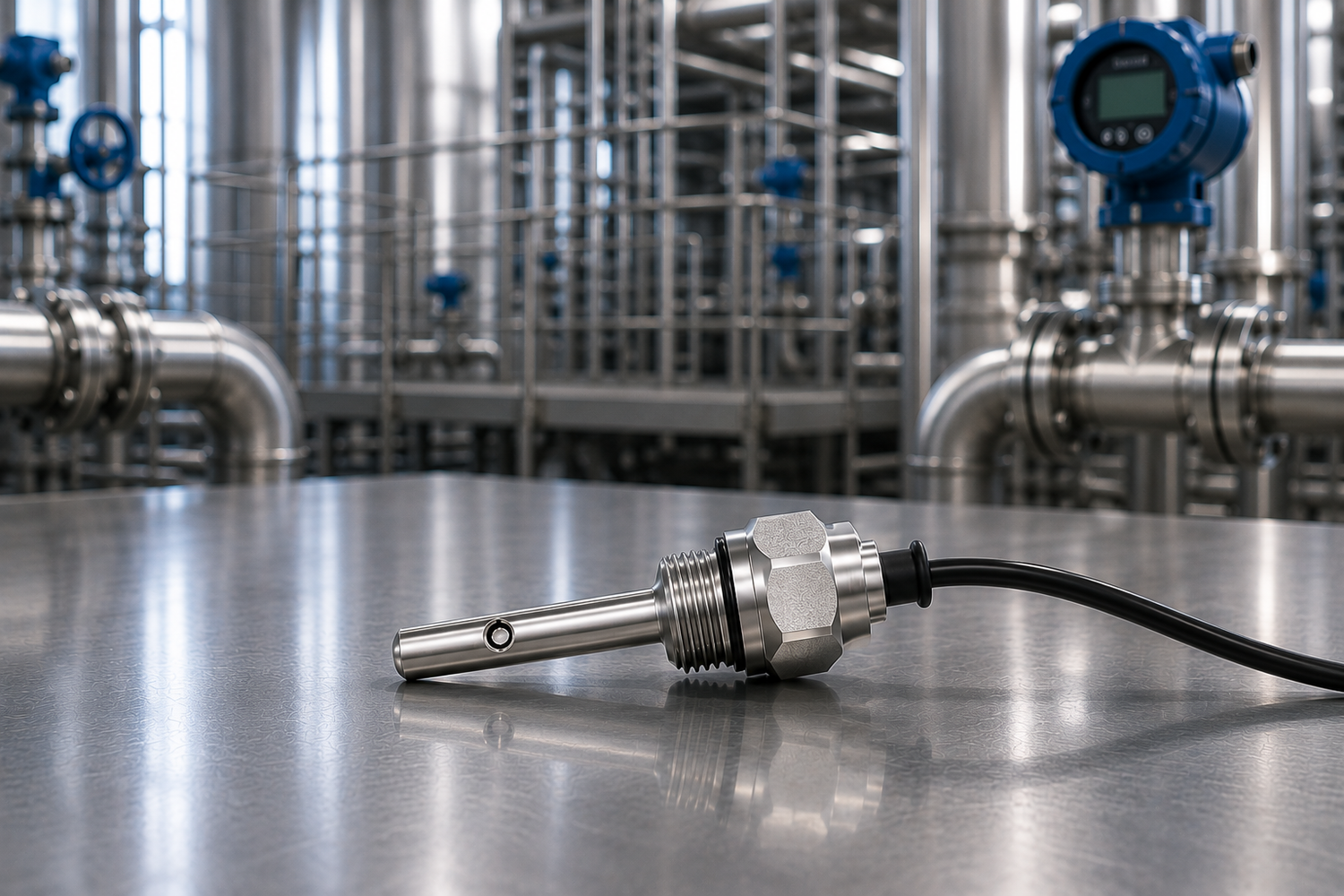

Key Features

Supports conductivity (EC) and TDS measurement in one electrode for versatile water quality monitoring.
Supports NTC10K as standard, with optional PT100 and PT1000 temperature compensation sensors.
Provides stable conductivity measurement with ±1% accuracy.
Designed for industrial applications with high pressure resistance and broad operating temperature capability.
316/304 stainless steel housing provides excellent corrosion resistance.
Threaded process connection simplifies installation and replacement.

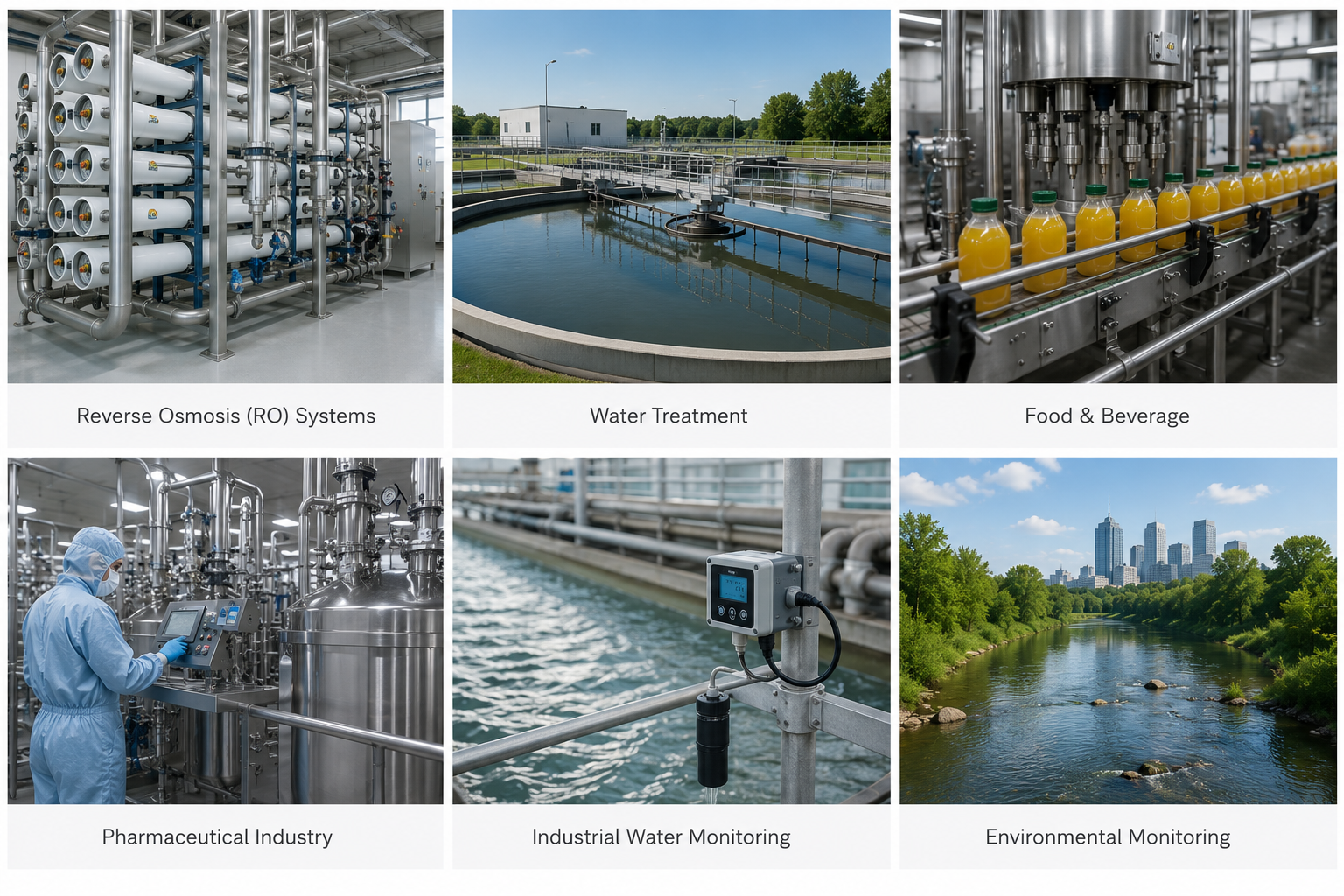

Applications

Technical Specifications

Model	SUP-TDS7001
Measuring Range	0–20 μS/cm 0–200 μS/cm 0–2000 μS/cm
Accuracy	±1%FS
Operating Temperature	32–122°F (0–50°C)
Process Connection	3/4" NPT G3/4 Thread
Wetted Material	304 SS / 316 SS
Protection Rating	IP68
Temperature Compensation	NTC10K standard; PT100 / PT1000 optional
Pressure Resistance	72.5 psi (5 bar) for K=0.01 / K=0.1 101.5 psi (7 bar) for K=1
Cable Length	16.4 ft (5 m)/32.8 ft (10 m)/49.2 ft (15 m)/65.6 ft (20 m)/98.4 ft (30 m)/Custom

Downloads

User Manual

Datasheet

FAQ

What is the SUP-TDS7001 used for?

The SUP-TDS7001 is designed for conductivity and TDS measurement in water treatment, RO systems, industrial process water, environmental monitoring, and laboratory applications.

What process connections are available?

The electrode is available with 3/4" NPT or G3/4 threaded process connections.

Is the sensor suitable for continuous industrial monitoring?

Yes. The stainless steel housing and IP68 protection rating make it suitable for continuous industrial water quality monitoring.

Do you provide technical support?

Yes. BayMeters provides technical support for product selection, installation, configuration, and troubleshooting. If you need assistance, please contact our technical support team.

What warranty do you provide?

Please refer to BayMeters Warranty Policy or contact our sales team for warranty details.

How long does shipping take?

Products in the US warehouse typically ship within 3–5 business days
