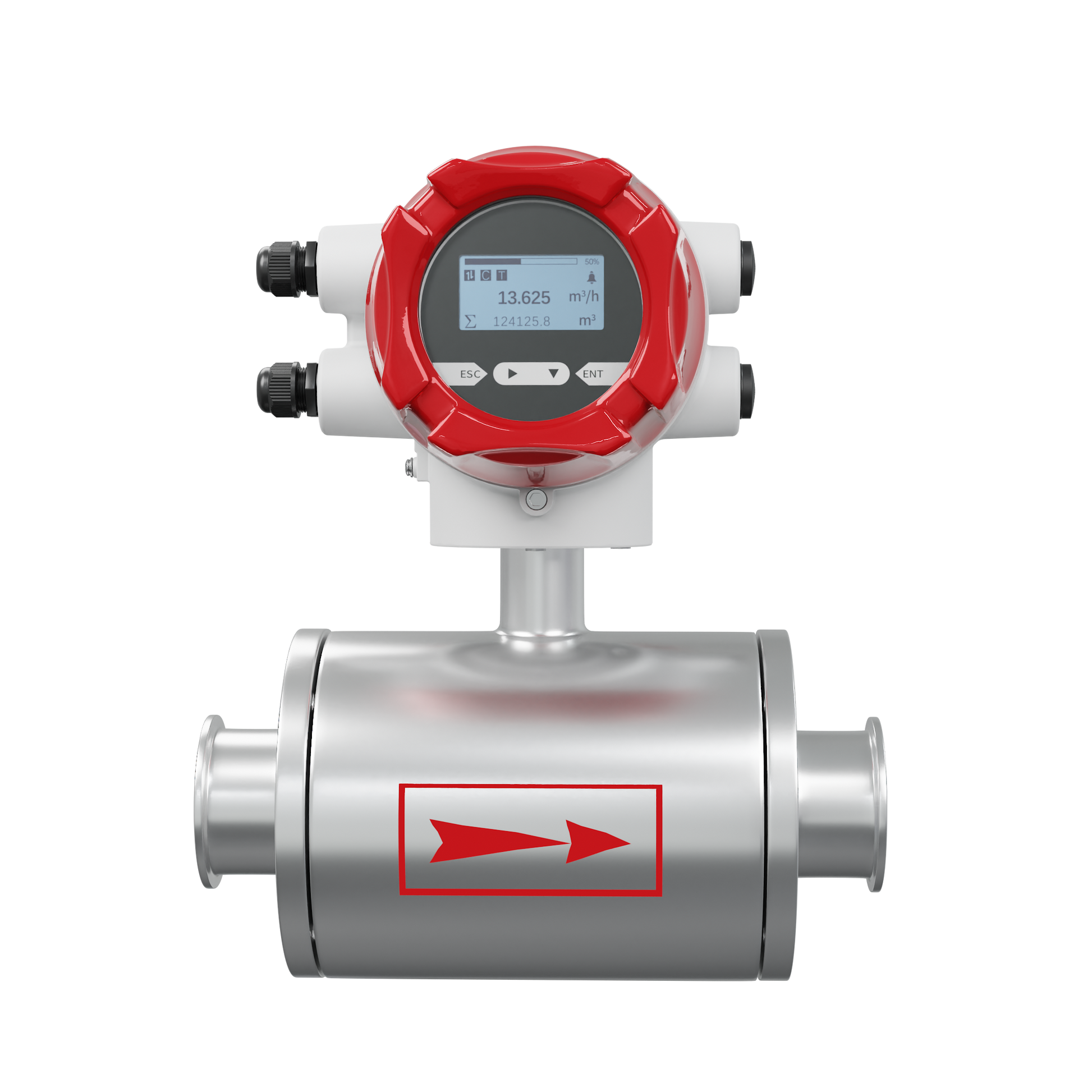

Sanitary magnetic flowmeter for food processing LDG

Sanitary magnetic flowmeter for food processing LDG

$2,279.00 USD
$2,279.00 USD
Sale Sold out
This is an all-inclusive reference price (product, international shipping, and import duties), based on a few selected configurations. Actual pricing may vary by size, options, and order quantity. Minimum order may apply for low-value items, while better pricing may be available for larger requirements. For a confirmed quote or to place an order, please contact us.
Diameter
Electrode Material
Lining Material
View full details

Introduction

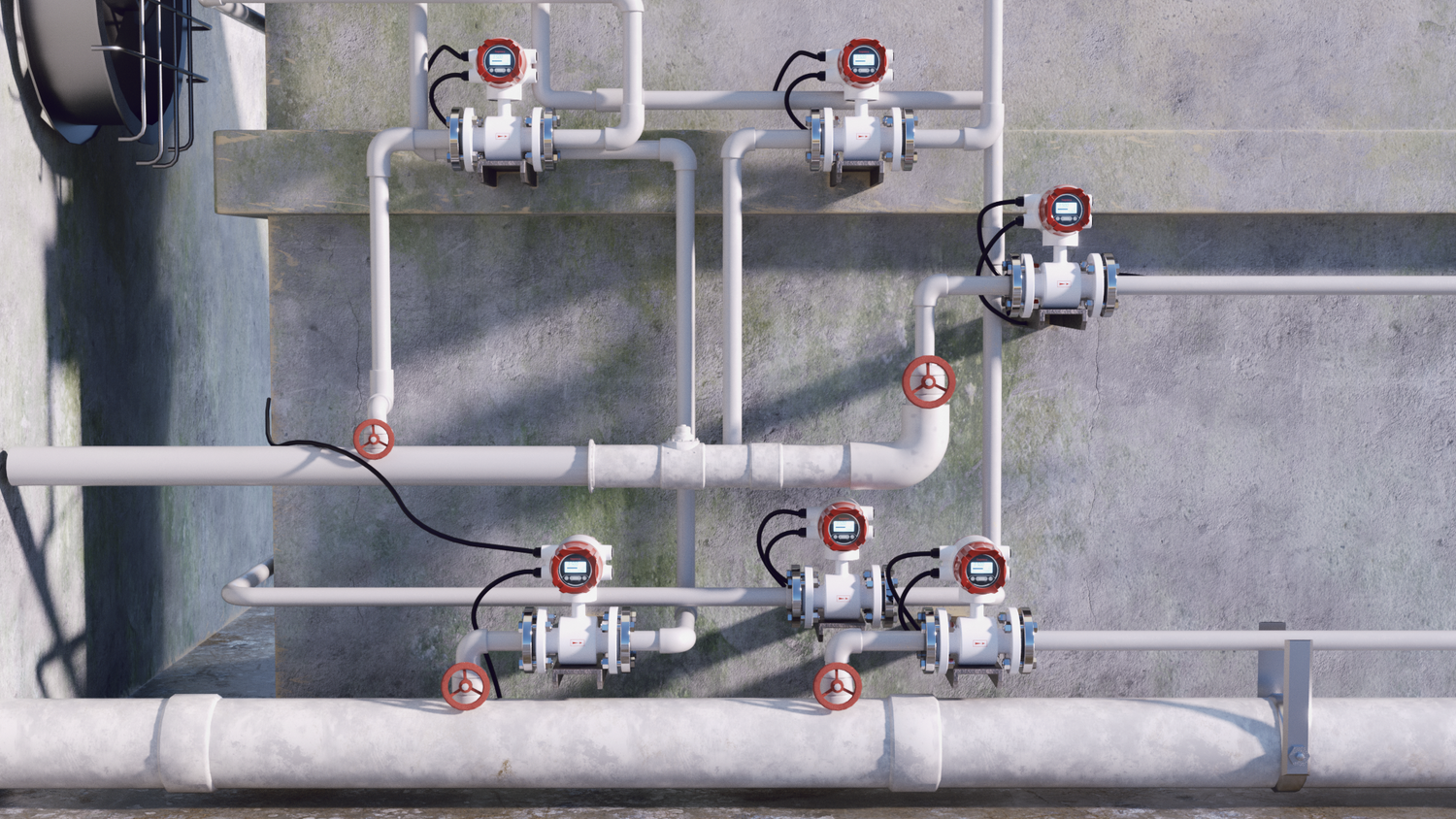

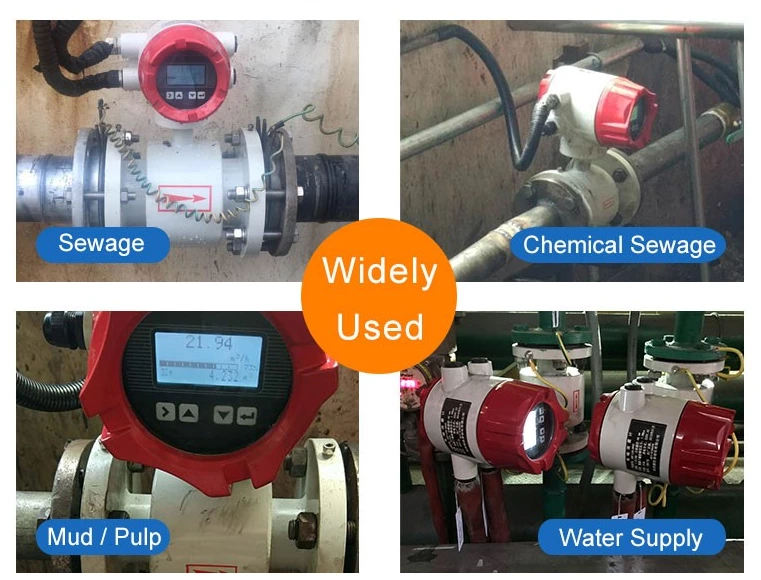

Electromagnetic flowmeter is only applicable to measure the flow of conductive liquid, which is wide used in water supply, sewage water measuring, industry chemical measuring etc. The remote type is with high IP protection class and can be installed in different locations for the transmitter and converter. Output signal can pulse,4-20mA or with RS485 communication.

Specification

Diameter Nominal
DN15(1/2”)~DN100(4”)

Nominal Pressure
0.6~4.0 MPa (87~580 psi)

Accuracy
±0.5%，±2 mm/s (flow rate <1 m/s → <3.28 ft/s)

Repetitiveness
0.2%

Liner Material
PFA, F46, Neoprene, PTFE, FEP

Electrode Material
Stainless steel SUS316L, Hastelloy C, Titanium, Tantalum, Platinum-iridium

Medium Temperature

  • Integral type: -10℃~80℃ (14℉~176℉)
  • Split type: -25℃~180℃ (-13℉~356℉)

Ambient Temperature
-10℃~55℃ (14℉~131℉)

Power Supply

  • 100-240 VAC，50/60 Hz
  • 22 VDC—26 VDC

Electrical Conductivity

  • Water: 20 μS/cm
  • Other medium: 5 μS/cm

Ingress Protection
IP65, IP68 (optional)

Product Standard
JB/T 9248-2015

Measuring principle

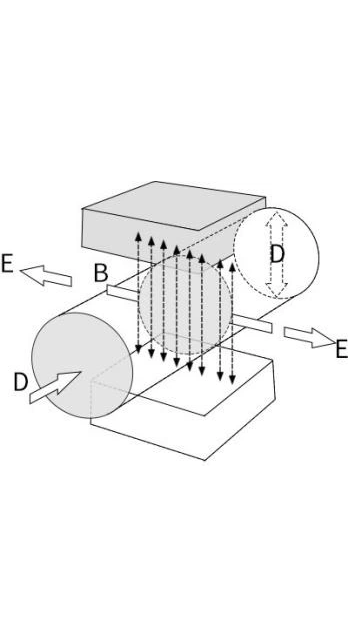

Mag meter works based on Faraday's law, when the liquid goes through the pipe at the flow rate of v with a diameter D, within which a magnetic flux density of B is created by an exciting coil, the following electromotive E is generated in proportion to flow speed v:

E=K×B×V×D

Where:
E－Induced electromotive force
K－Meter constant
B－Magnetic induction density
V－Average flow speed in cross-section of measuring tube
D－Inner diameter of measuring tube
