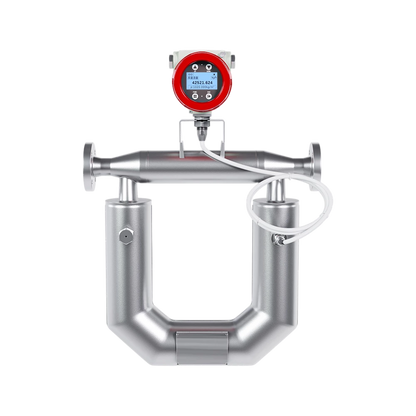

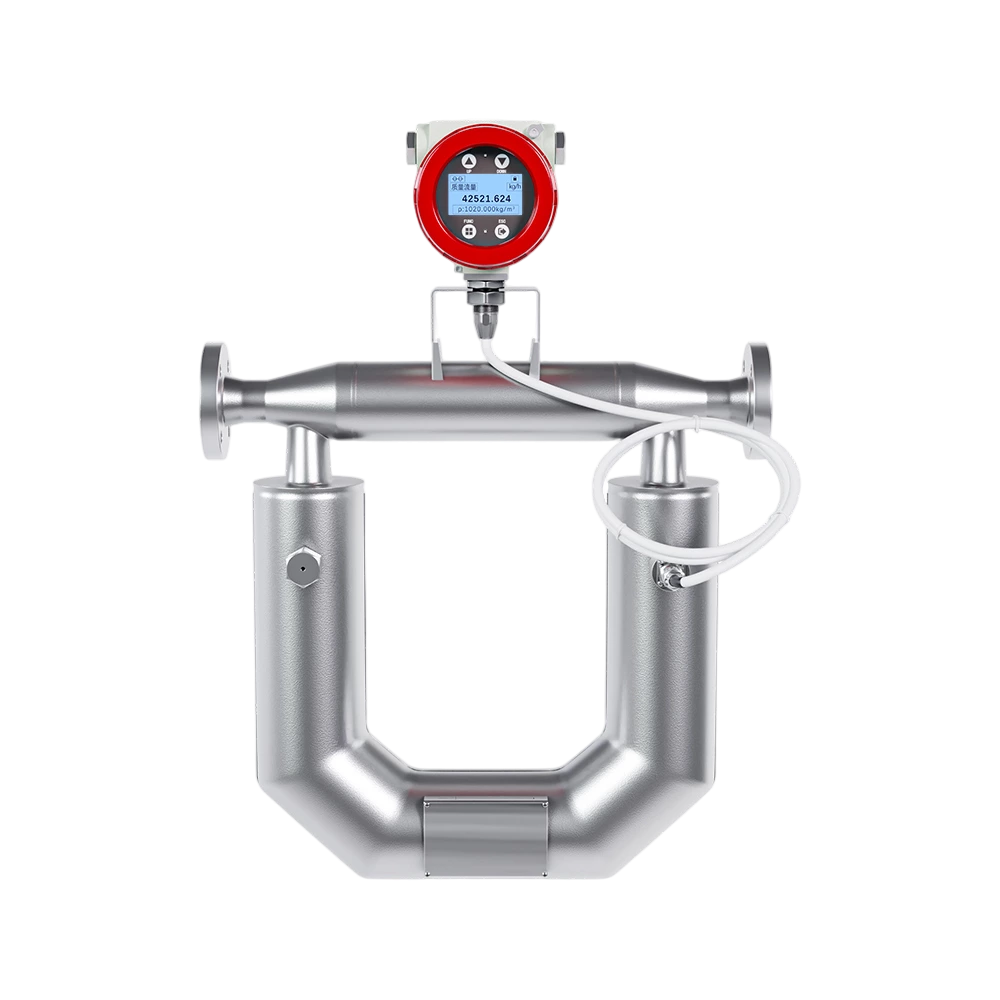

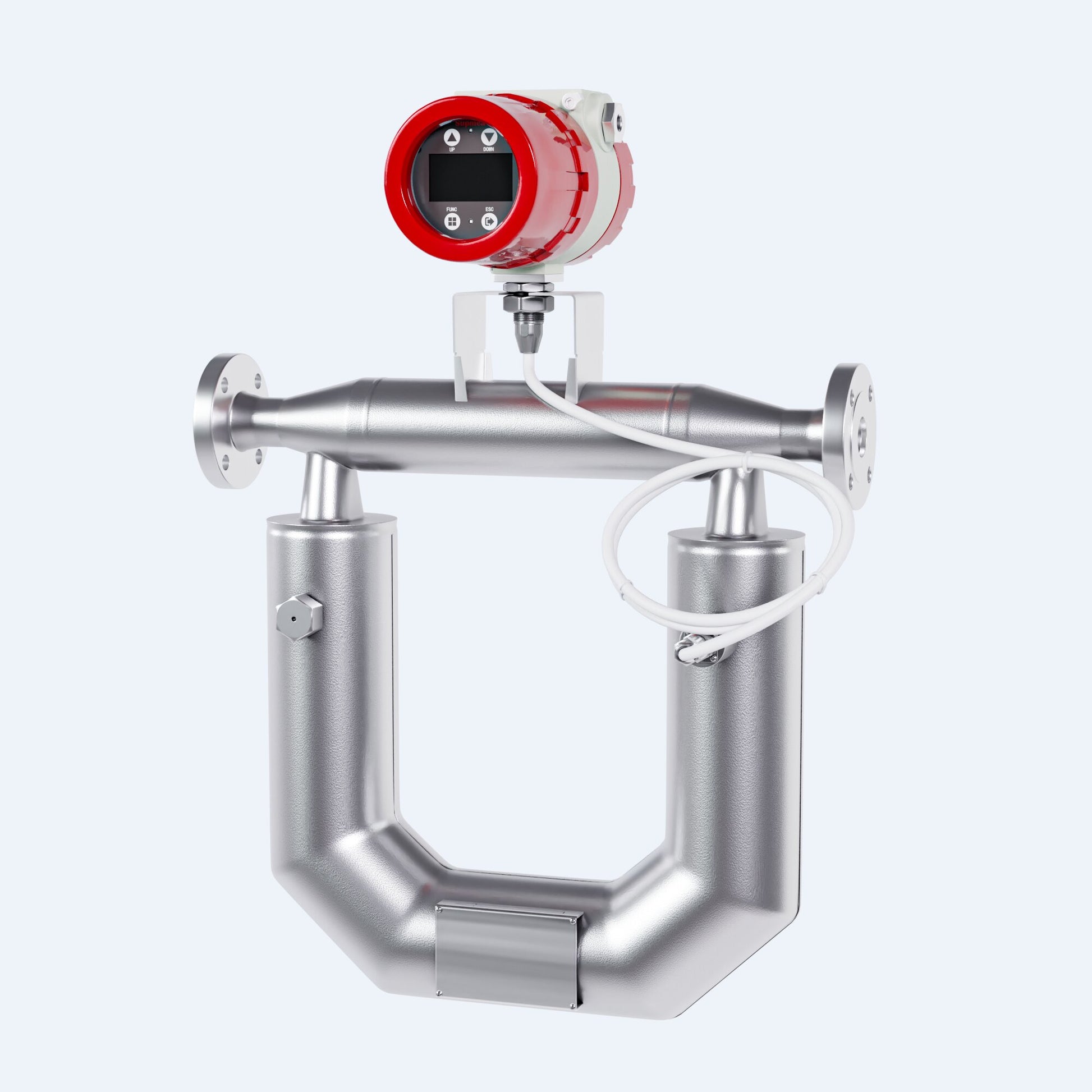

FCC-300 Coriolis Effect Mass Flow Meter For Oil, Gas, Liquid Processing

$13,383.00 USD

Sale Sold out

Shipping calculated at checkout.

12-Month-Limited-Warranty

Lead Time: 2-4 Weeks

View full details

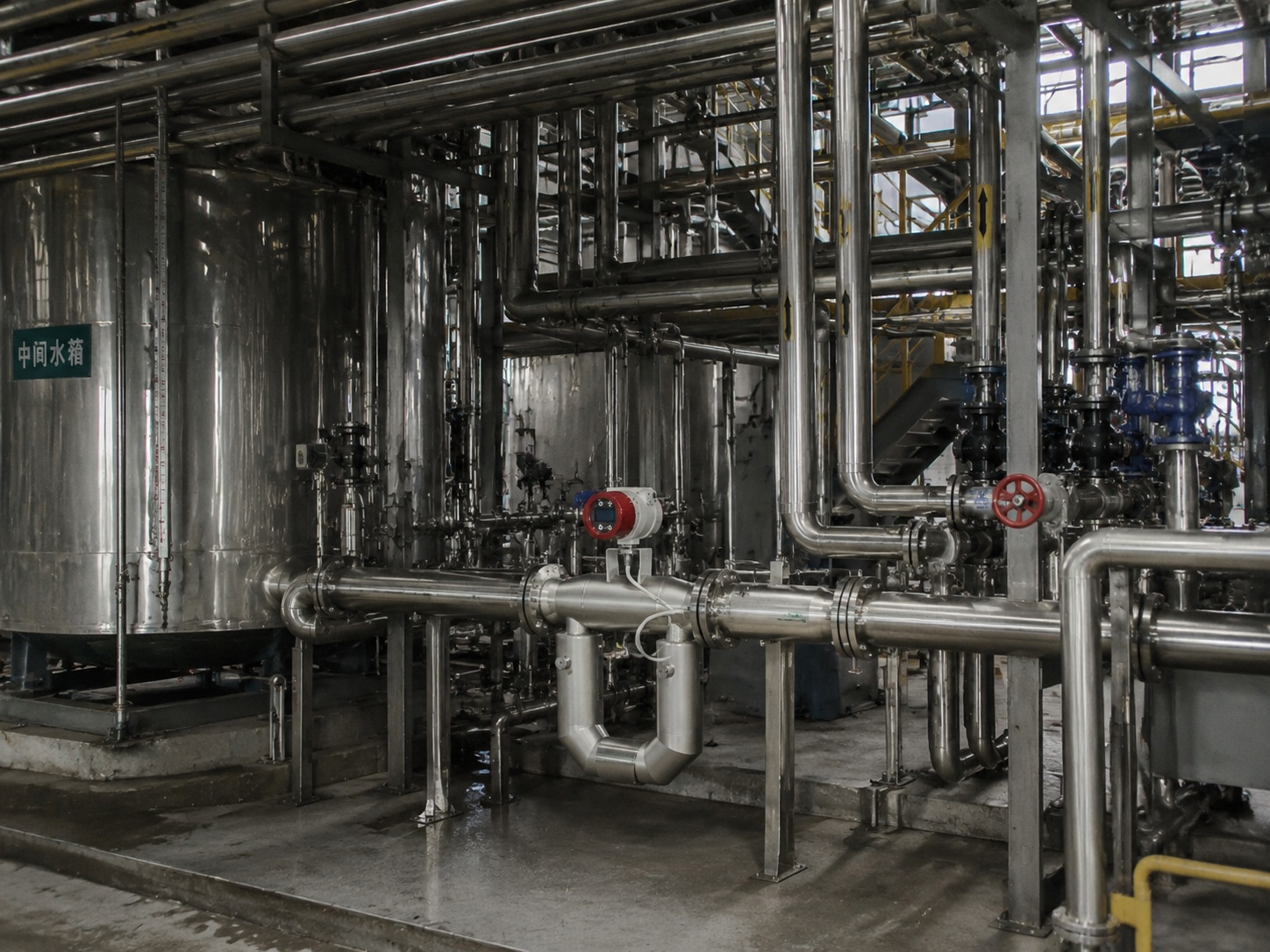

Product Overview

The SUP-FCC300 Coriolis Mass Flow Meter is designed based on the Coriolis force measurement principle, enabling direct measurement of fluid mass flow, density, and temperature in closed pipelines. With high accuracy, wide measuring range, and minimal installation requirements, it is suitable for demanding industrial applications including chemical processing, petroleum, food & beverage, pharmaceutical, and paper industries. The meter can measure challenging media such as high-viscosity fluids, slurries, and suspensions while providing reliable operation with low maintenance requirements.

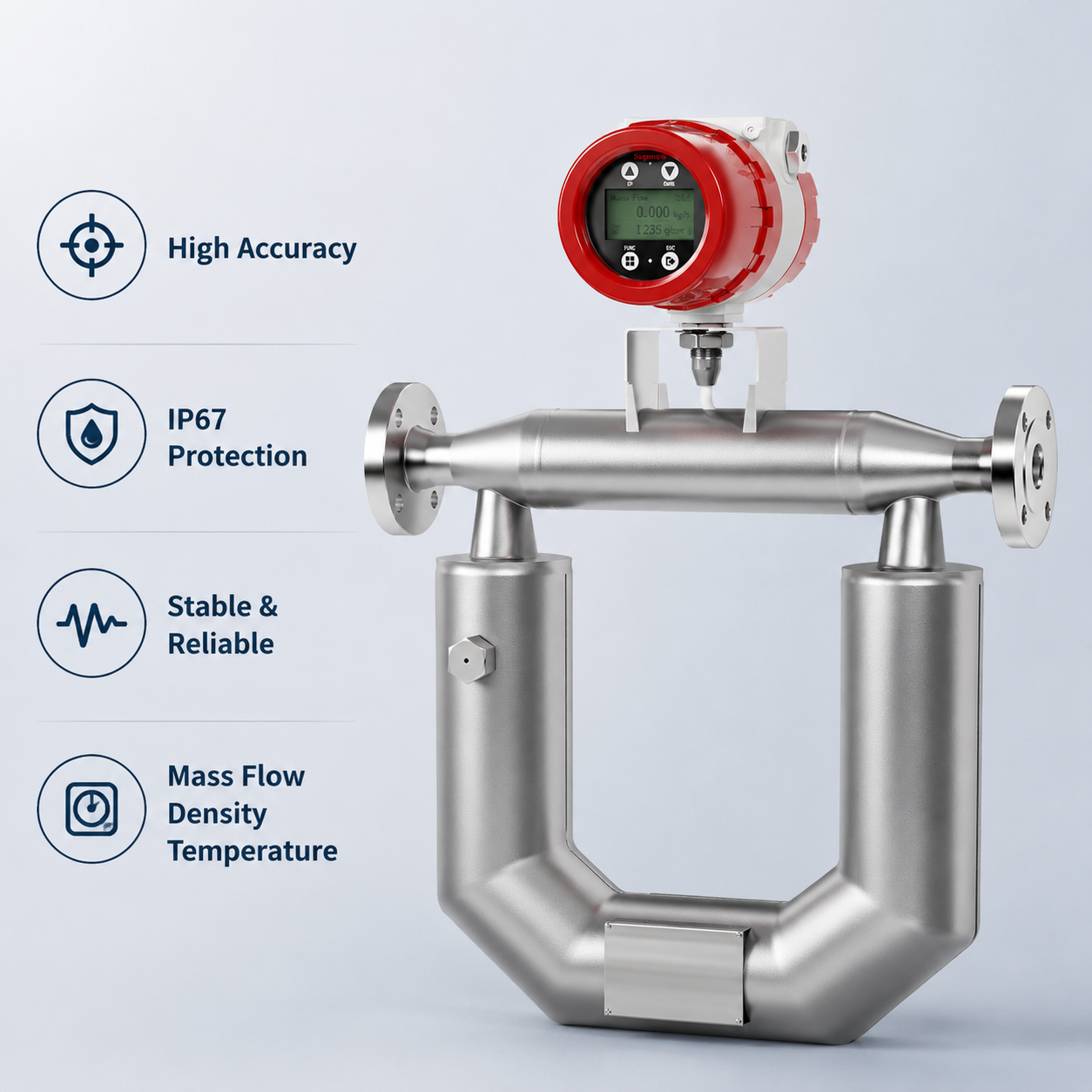

Key Features

Measures the actual mass flow rate of fluids without requiring additional density compensation or conversion calculations.
Provides reliable measurement performance with accuracy options up to Class 0.2 for demanding industrial processes.
Simultaneously measures mass flow, fluid density, and temperature, enabling comprehensive process monitoring.
Handles challenging fluids including high-viscosity liquids, slurries, and suspensions where conventional flow meters may struggle.
Requires no upstream or downstream straight pipe sections, simplifying installation in compact piping systems.
Designed for long-term industrial operation with stable performance and minimal maintenance needs.

Applications

Technical Specifications

Nominal Diameter	Straight Tube: DN8–DN80 U-Type: DN20–DN150 Triangular: DN3–DN15
Flow Range	Refer to selected sensor size
Density Measurement Range	0.3–3.000 g/cm³
Temperature Measurement Range	-200–300°C (-328–572°F)
Flow Accuracy	±0.2% / ±0.5%
Density Accuracy	±0.002 g/cm³
Temperature Accuracy	±1°C (±1.8°F)
Repeatability	1/2 of measurement error
Process Pressure	0–4.0 MPa (0–580 psi)
Medium Temperature	Standard: -50–200°C (-58–392°F) High Temperature: -50–300°C (-58–572°F) Low Temperature: -200–200°C (-328–392°F)
Power Supply	24VDC / 110VAC
Power Consumption	≤15W
Output Signal	4–20mA
Communication	RS485 Modbus-RTU / HART (optional)
Pulse Output	Active output, 10mA, 24V open circuit voltage
Electrical Interface	M20×1.5
Protection Grade	IP67
Ambient Temperature	-40–60°C (-40–140°F)
Humidity	35–95% RH

Downloads

User Manual

Datasheet

FAQ

What parameters can the SUP-FCC300 measure?

The SUP-FCC300 can simultaneously measure mass flow, fluid density, and temperature, providing multiple process variables for industrial monitoring.

Can this flow meter measure high-viscosity fluids or slurry?

Yes. The Coriolis measurement principle allows the SUP-FCC300 to measure difficult media such as high-viscosity fluids, slurries, and suspensions.

Does the SUP-FCC300 require straight pipe sections before or after installation?

No. Unlike many traditional flow meters, the SUP-FCC300 does not require upstream or downstream straight pipe sections, making installation easier in limited spaces.

What should be considered during installation?

The sensor should be installed with proper pipe support to avoid external vibration affecting measurement accuracy. For liquid applications, vertical installation with upward flow is recommended when possible.

What warranty do you provide?

Please refer to BayMeters Warranty Policy or contact our sales team for warranty details.

How long does shipping take?

Products in the US warehouse typically ship within 3–5 business days
