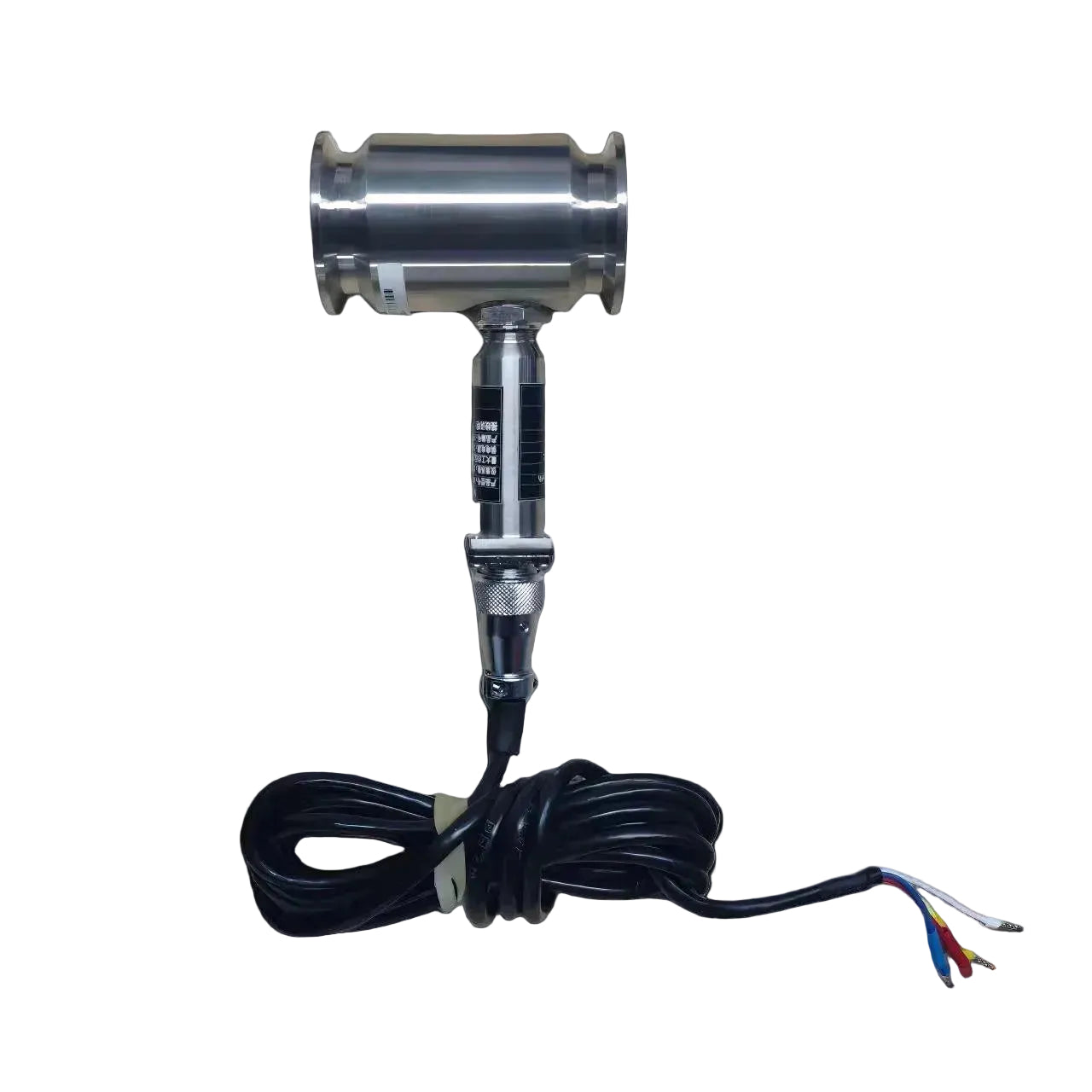

FLC420 Turbine Flowmeter

FLC420 Turbine Flowmeter

$430.00 USD
$430.00 USD
Sale Sold out
Shipping calculated at checkout.

Lead Time: 2-4 Weeks
View full details

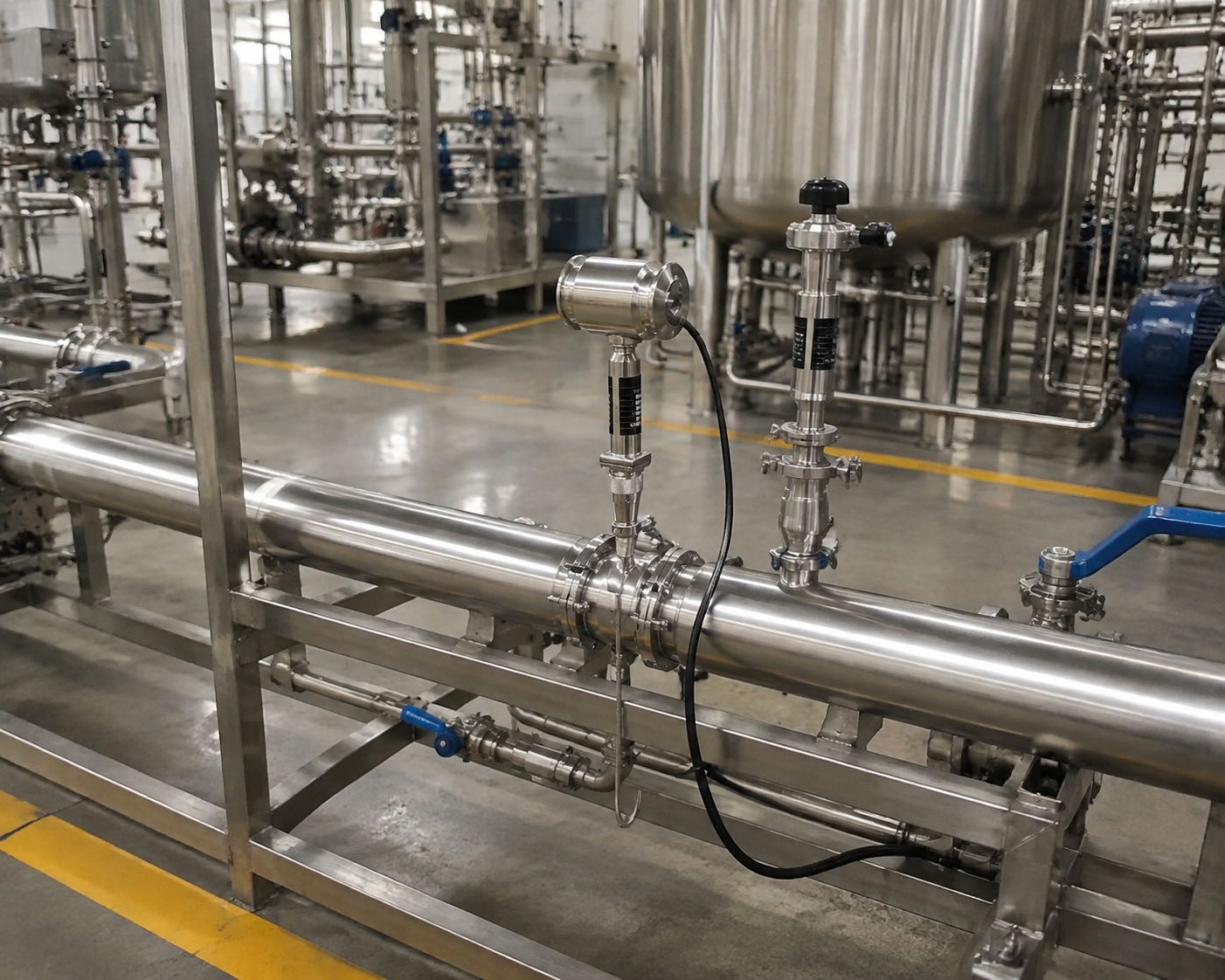

Product Overview

The FLC420 Turbine Flowmeter is designed for accurate volumetric flow measurement of low-viscosity liquids in closed pipelines. It uses a turbine rotor structure to convert liquid velocity into pulse signals, providing reliable flow monitoring for clean liquids in pharmaceutical, chemical, food & beverage, and small-scale production applications.

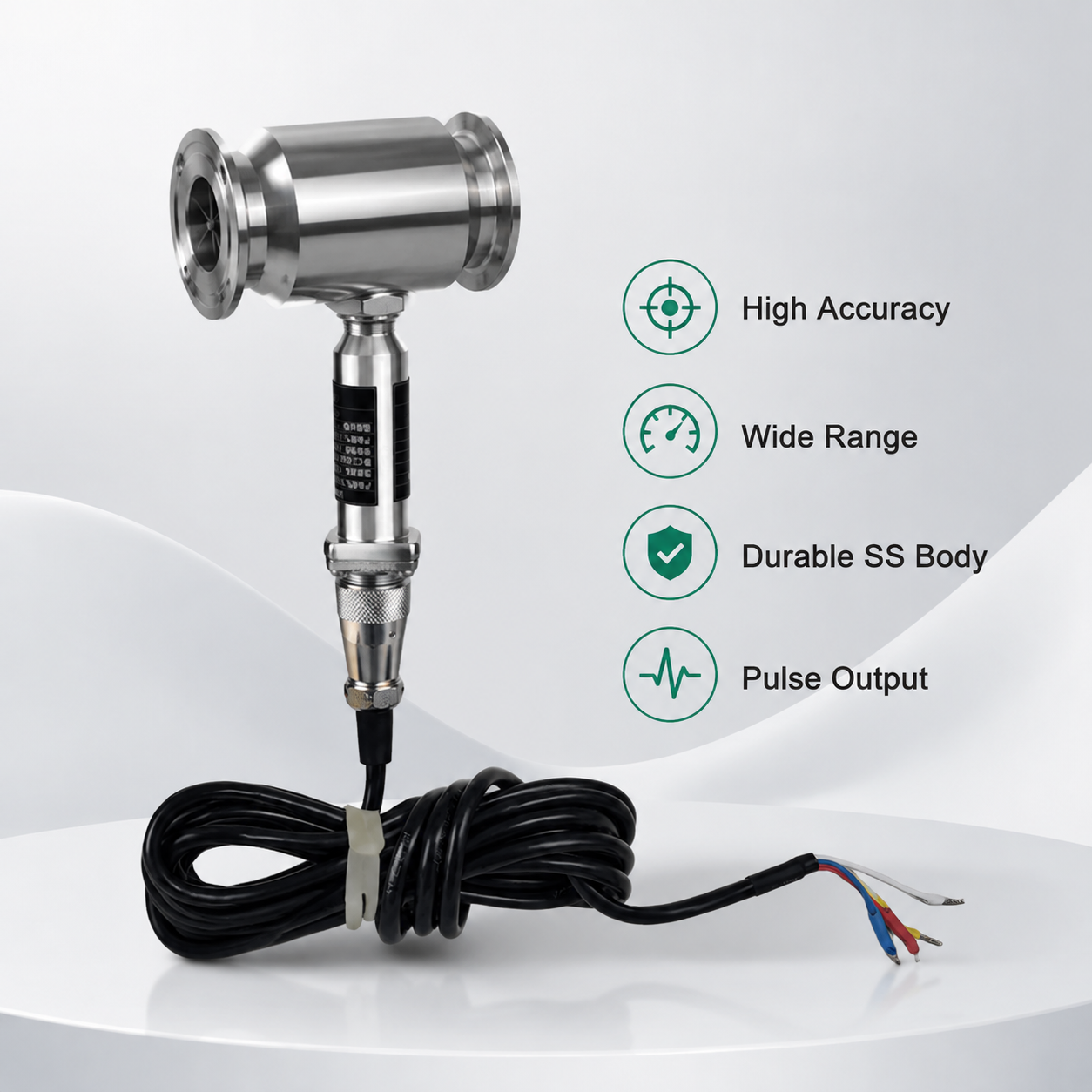

Key Features

  • Provides reliable measurement performance with accuracy up to Class 0.5 and excellent repeatability for demanding flow monitoring applications.
  • Supports a range ratio up to 10:1, allowing flexible measurement across different flow conditions.
  • Designed for efficient operation with maximum power consumption of only 0.5W under 24VDC supply.
  • Available with threaded, flange, and clamp process connections to fit different installation requirements.
  • Uses 304SS casing with optional 304SS or 316LSS body materials for corrosion resistance and durability.
  • Provides active pulse output signals for easy integration with flow displays, controllers, and automation systems.

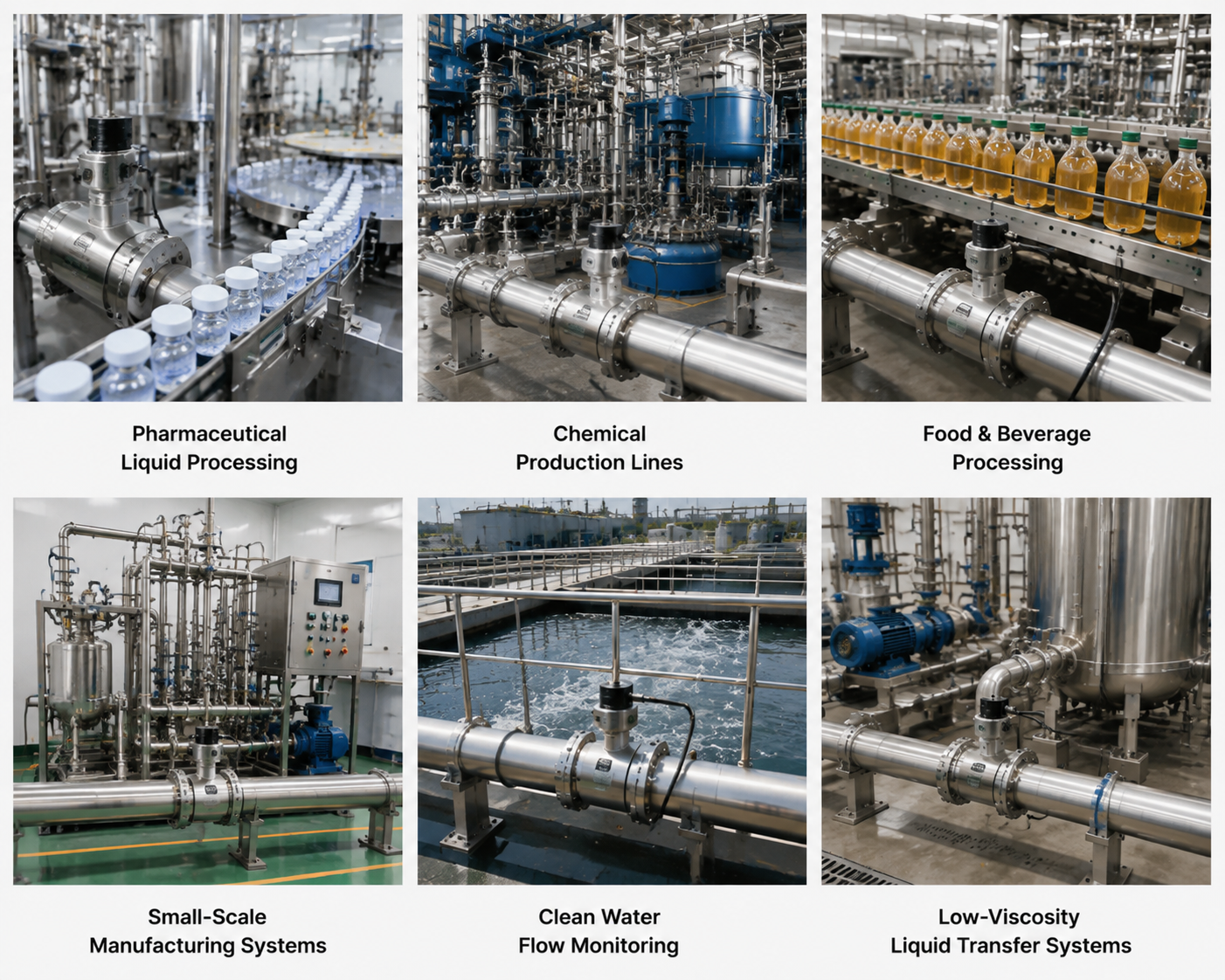

Applications

Technical Specifications

Measuring Principle Turbine velocity flow measurement
Measured Variable Volumetric flow
Flow Range 0.2–800 m³/h (depending on diameter)
Nominal Diameter DN10–DN200
Accuracy Class 0.5 / Class 1.0
Repeatability 1/3 of accuracy level
Range Ratio Up to 10:1
Output Signal Active pulse output
Pulse Frequency 1–2000 Hz
Power Supply 12–24VDC
Power Consumption Max. 0.5W (24VDC)
Medium Temperature -4 to 176°F (-20 to 80°C)
Ambient Temperature -4 to 140°F (-20 to 60°C)
Process Connection Threaded / Flange / Clamp

Downloads

User Manual
Datasheet

FAQ

What liquids can the FLC420 measure?

The FLC420 is designed for low-viscosity liquids such as water, liquefied petroleum gas, refined petroleum products, light crude oil, organic liquids, and inorganic liquids without fibers or particulate impurities.

What is the maximum operating temperature?

The standard stainless steel measuring tube supports medium temperatures from -4 to 176°F (-20 to 80°C). A high-temperature option up to 302°F (150°C) is available according to the ordering code.

What installation conditions are required?

The pipeline should remain completely filled with liquid, and air bubbles should be avoided because they may affect measurement accuracy. Proper straight pipe lengths should also be maintained before and after the meter.

Does the FLC420 support digital communication?

The standard configuration provides active pulse output. Other output configurations can be customized according to ordering requirements.

What warranty do you provide?

Please refer to BayMeters Warranty Policy or contact our sales team for warranty details.

How long does shipping take?

Products in the US warehouse typically ship within 3–5 business days
