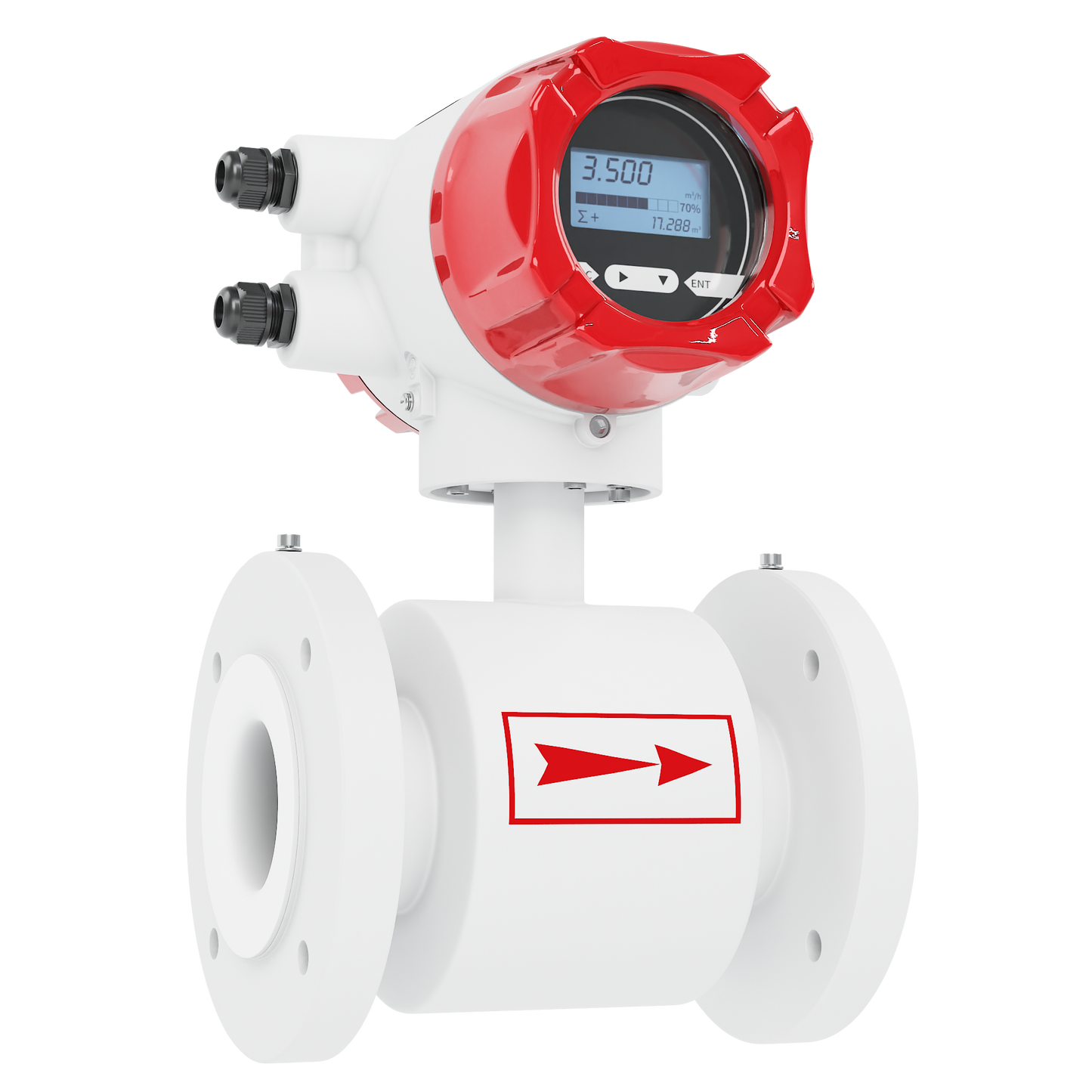

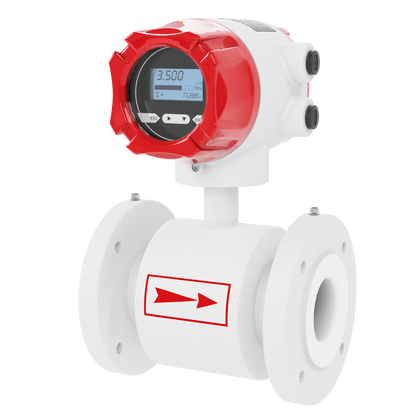

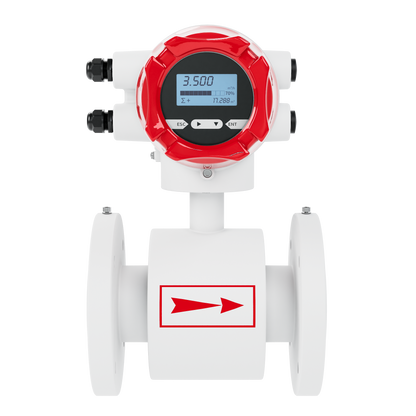

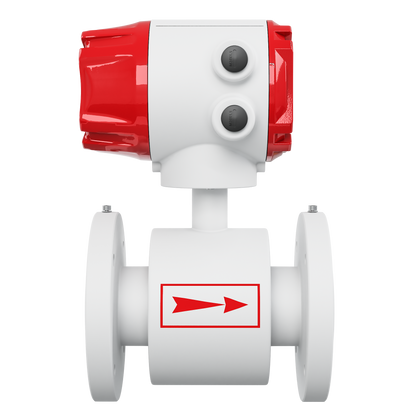

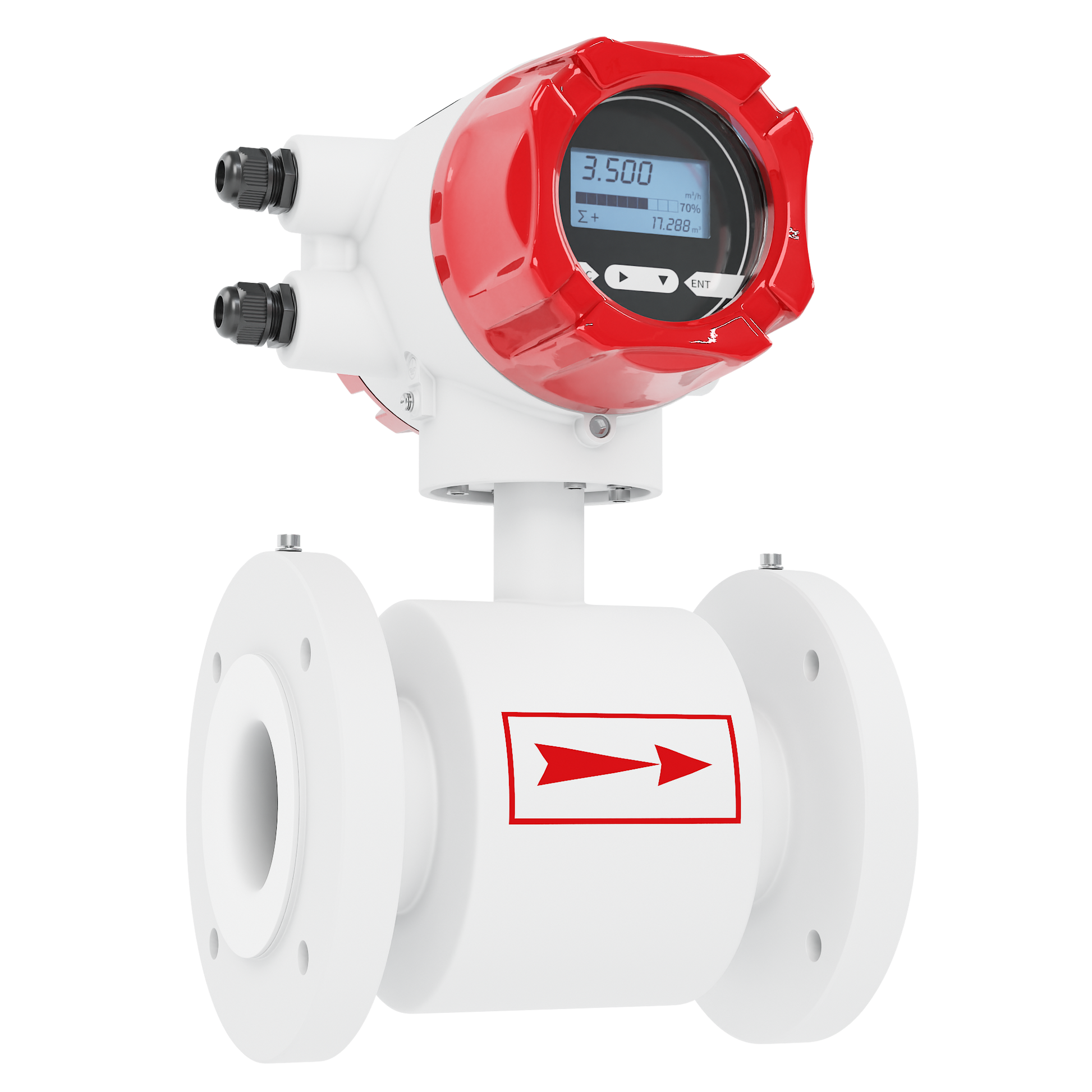

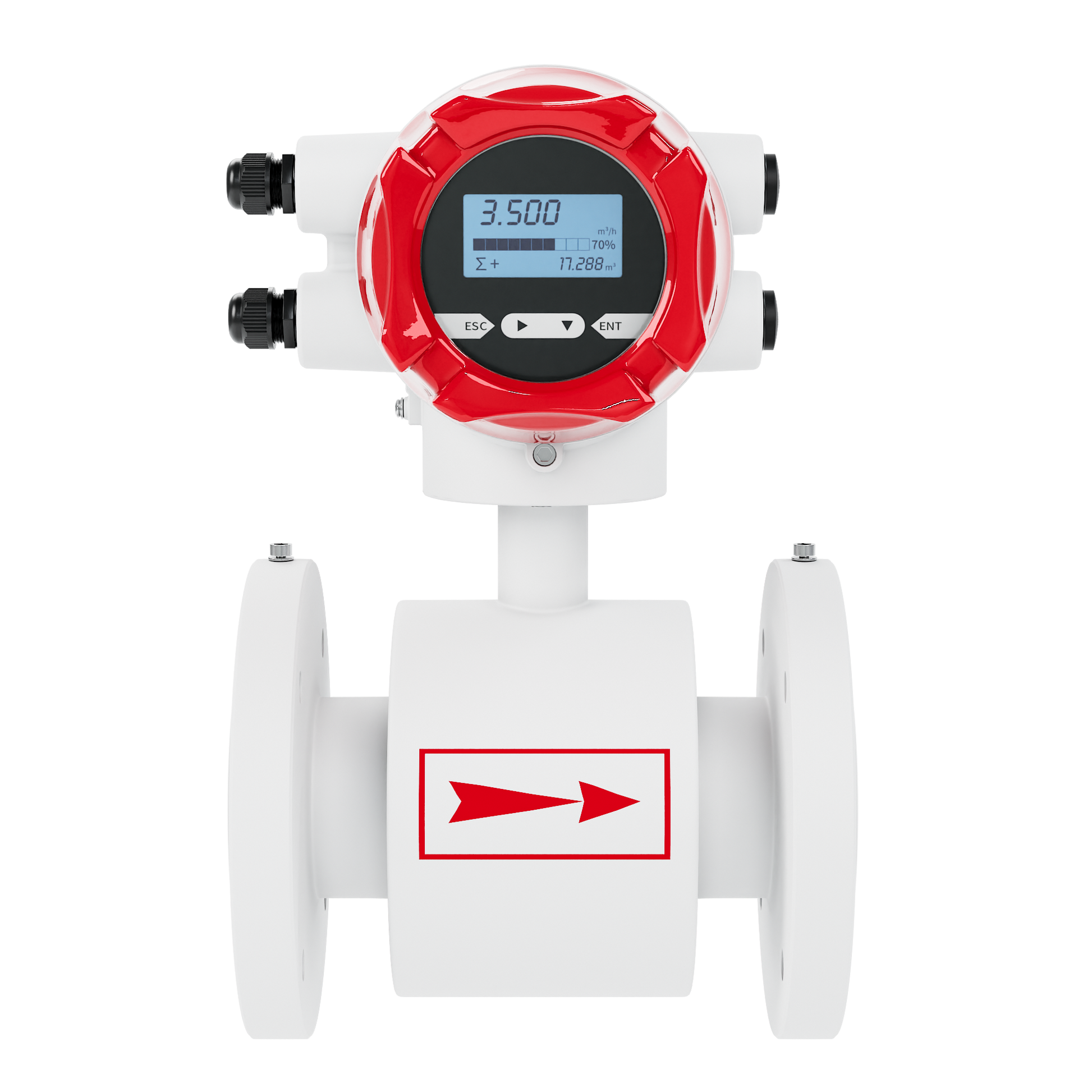

Supmea A100 Electromagnetic Flowmeter

Supmea A100 Electromagnetic Flowmeter

US$1,050.00
US$1,050.00
Sale Sold out
Prices Shown Include Delivery.

Lead Time: 4 Weeks Or More
View full details

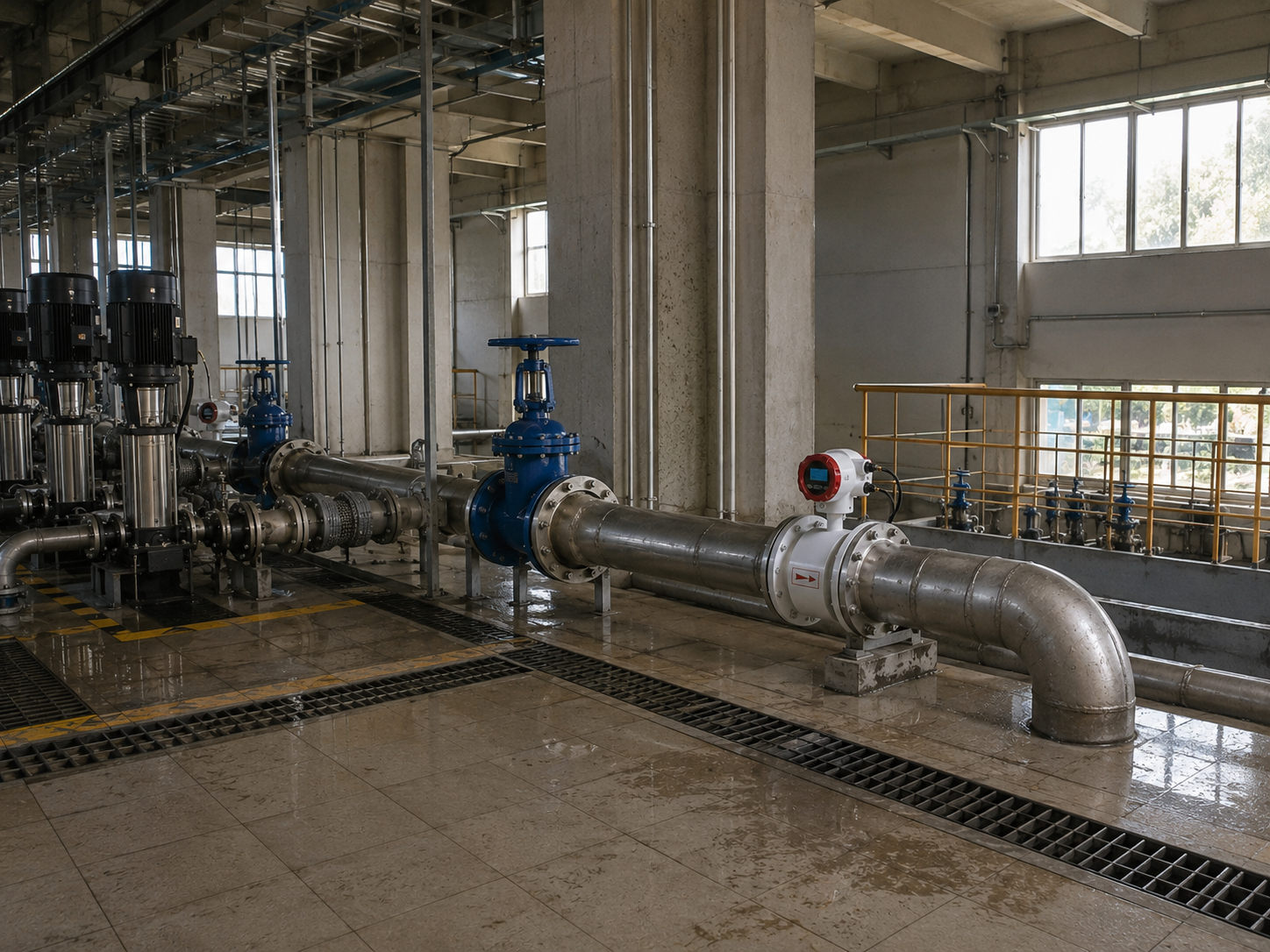

Product Overview

The BayMeters LDG-SUP-A100 Electromagnetic Flow Meter is a high-performance flow measurement solution designed for conductive liquids in closed pipelines. Utilizing Faraday's Law of Electromagnetic Induction, it provides highly accurate, obstruction-free flow measurement without pressure loss or moving parts. Available in both integrated and remote configurations, the LDG-SUP-A100 supports multiple communication protocols and output options, making it ideal for water treatment, chemical processing, environmental monitoring, mining, pulp & paper, and industrial automation applications.

Key Features

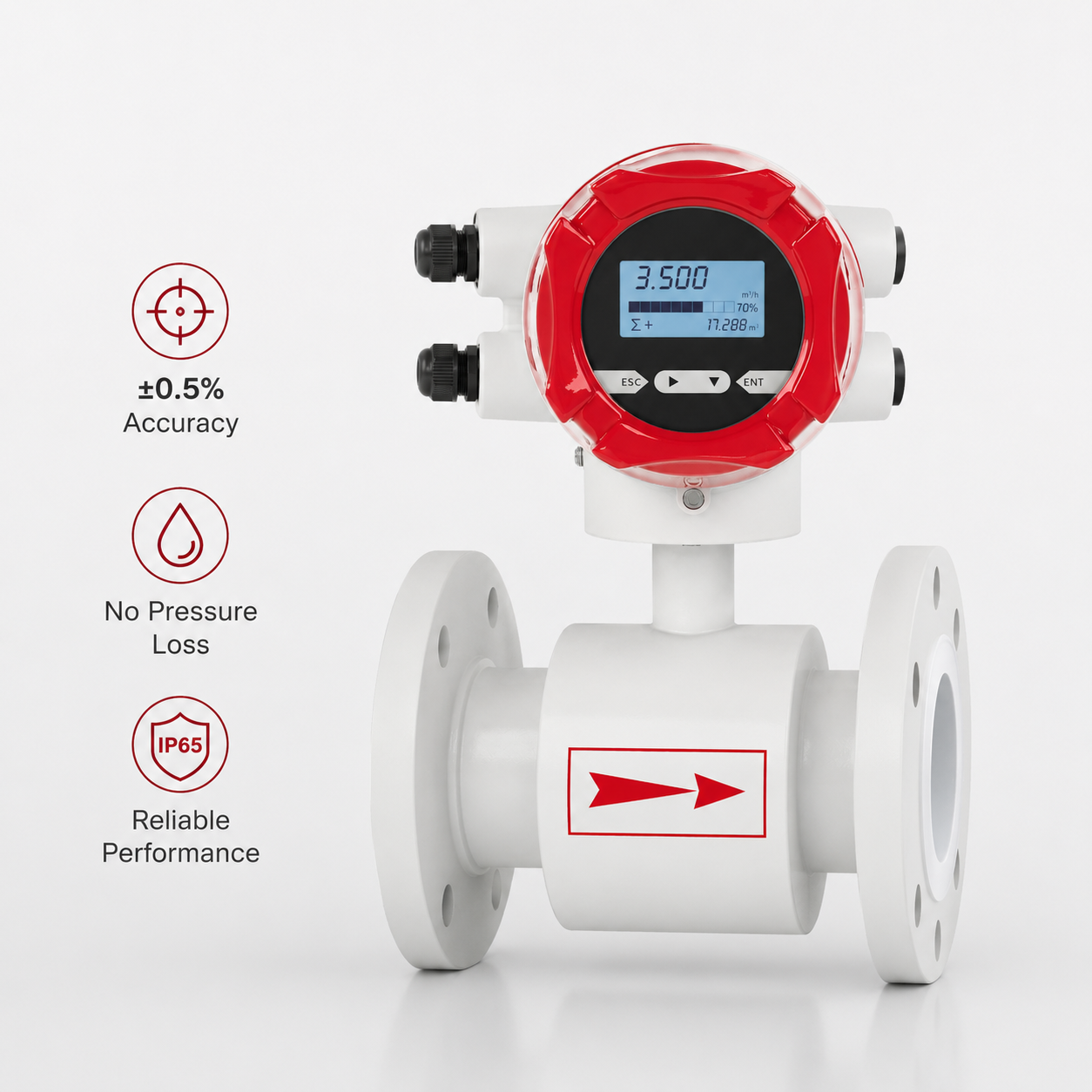

  • Provides ±0.5% of reading as standard, with selected pipe sizes available at ±0.3% accuracy for demanding process applications.
  • The full-bore electromagnetic measuring principle eliminates mechanical wear, reducing maintenance while ensuring long-term measurement stability.
  • The unobstructed measuring tube introduces virtually no pressure drop, making it ideal for continuous process monitoring.
  • Accurately measures both forward and reverse flow without requiring additional hardware or configuration changes.
  • Supports 4–20 mA, Pulse Output, RS485 Modbus RTU, and optional HART communication for seamless integration into PLC, DCS, and SCADA systems.
  • Choose between compact integrated installation or remote-mounted converter for challenging environments and easier maintenance.

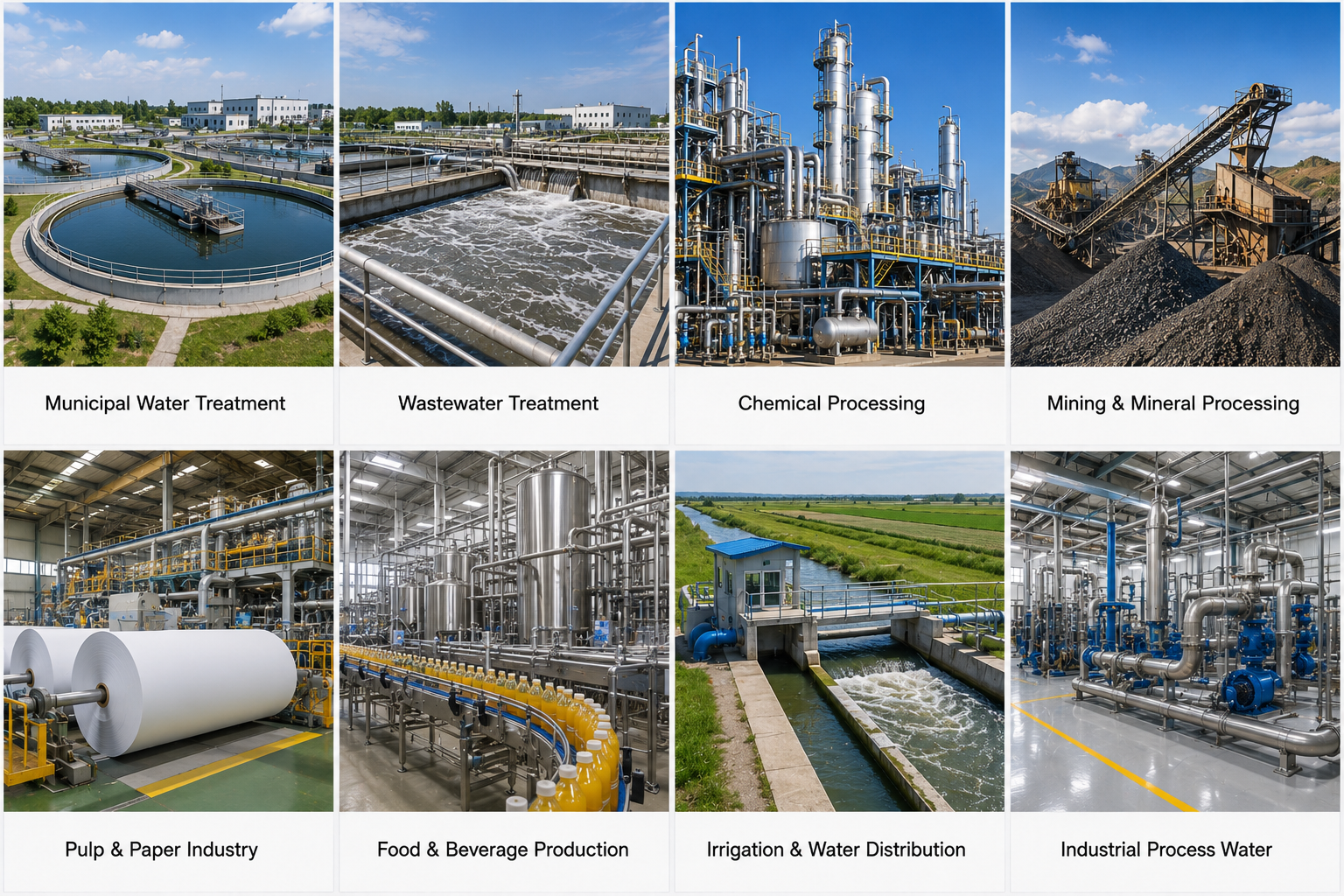

Applications

Technical Specifications

Measured Media Conductive Liquids (≥50 μS/cm)
Pipe Size DN10–DN1000 (3/8"–40")
Flow Velocity 1.6–16.4 ft/s (0.5–5 m/s Recommended)
Accuracy ±0.5% of Reading (Standard), ±0.3% Optional
Repeatability 0.16%
Rangeability 10：1
Pressure Rating Up to PN16 (232 psi) Larger sizes PN10 (145 psi) High-pressure versions available
Medium Temperature CR: 14–158°F PU: 14–140°F PTFE/FEP: 14–248°F
Ambient Temperature Integrated: 14–131°F Remote Converter: -4–131°F
Outputs 4–20 mA, Pulse Output, RS485 Modbus RTU, Optional HART
Relay Output Dual SPST Relay (Optional)
Power Supply 100–240 VAC or 20–28 VDC
Power Consumption ≤15 W
Process Connection JB/T, GB, EN1092-1, ASME B16.5, JIS, ISO2852 Clamp
Protection Rating IP65 Standard; IP66/IP67 Optional; Remote Converter IP68

Downloads

User Manual
Datasheet

FAQ

What liquids can the LDG-SUP-A100 measure?

The flowmeter measures electrically conductive liquids with a minimum conductivity of 50 μS/cm, including water, wastewater, acids, alkalis, slurries, and many chemical solutions. It is not suitable for oils, gases, or steam.

Should I choose an integrated or remote version?

The integrated version is ideal for standard installations with convenient access, while the remote version is recommended for high-temperature, submerged, or difficult-to-access locations where the converter needs to be mounted separately.

Does the flowmeter cause pressure loss?

No. Because the measuring tube has no moving parts or flow obstructions, the electromagnetic flowmeter introduces virtually no pressure loss into the pipeline.

Can it measure flow in both directions?

Yes. The LDG-SUP-A100 supports bi-directional flow measurement and can display and output both forward and reverse flow values.

What warranty do you provide?

Please refer to BayMeters Warranty Policy or contact our sales team for warranty details.

How long does shipping take?

Products in the US warehouse typically ship within 3–5 business days
