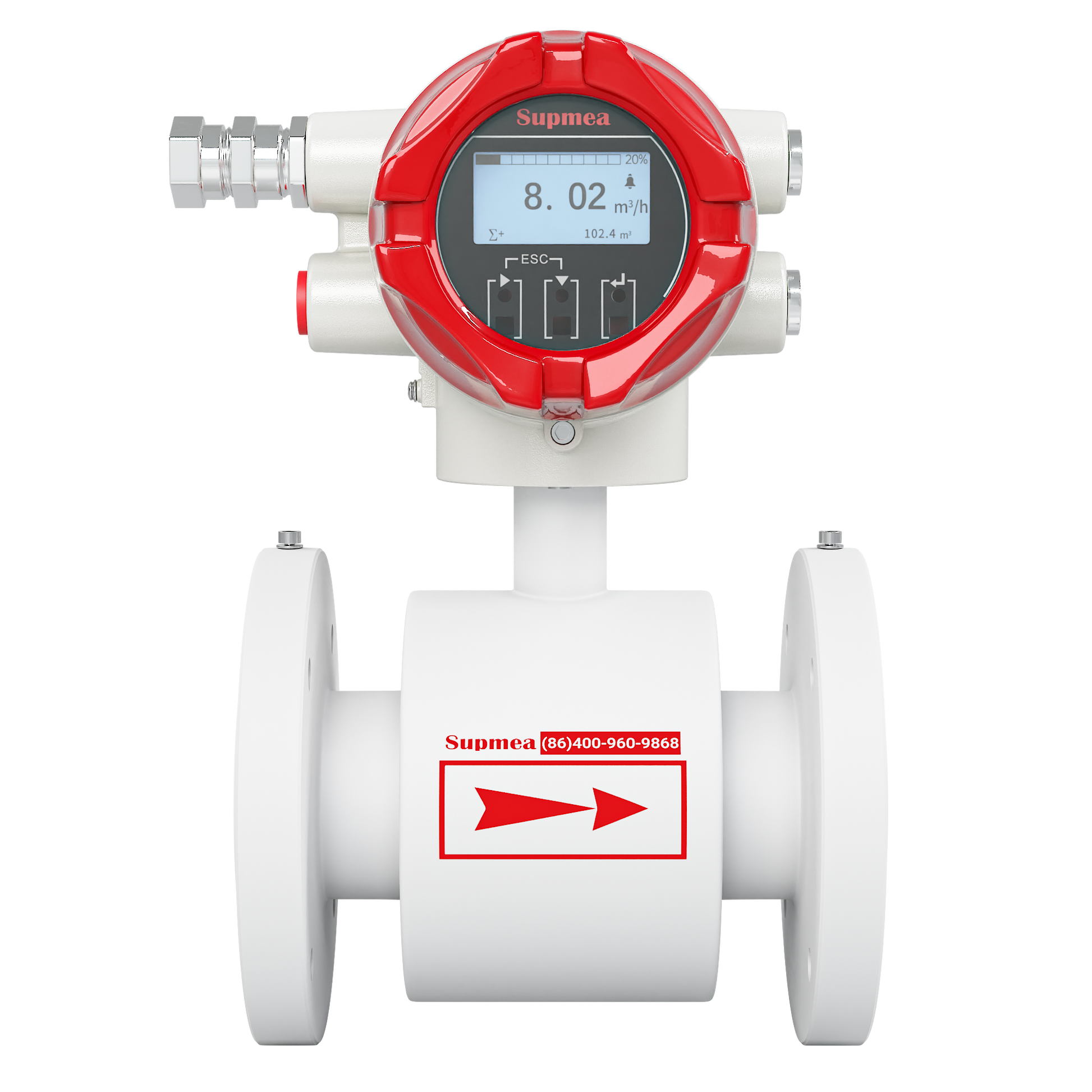

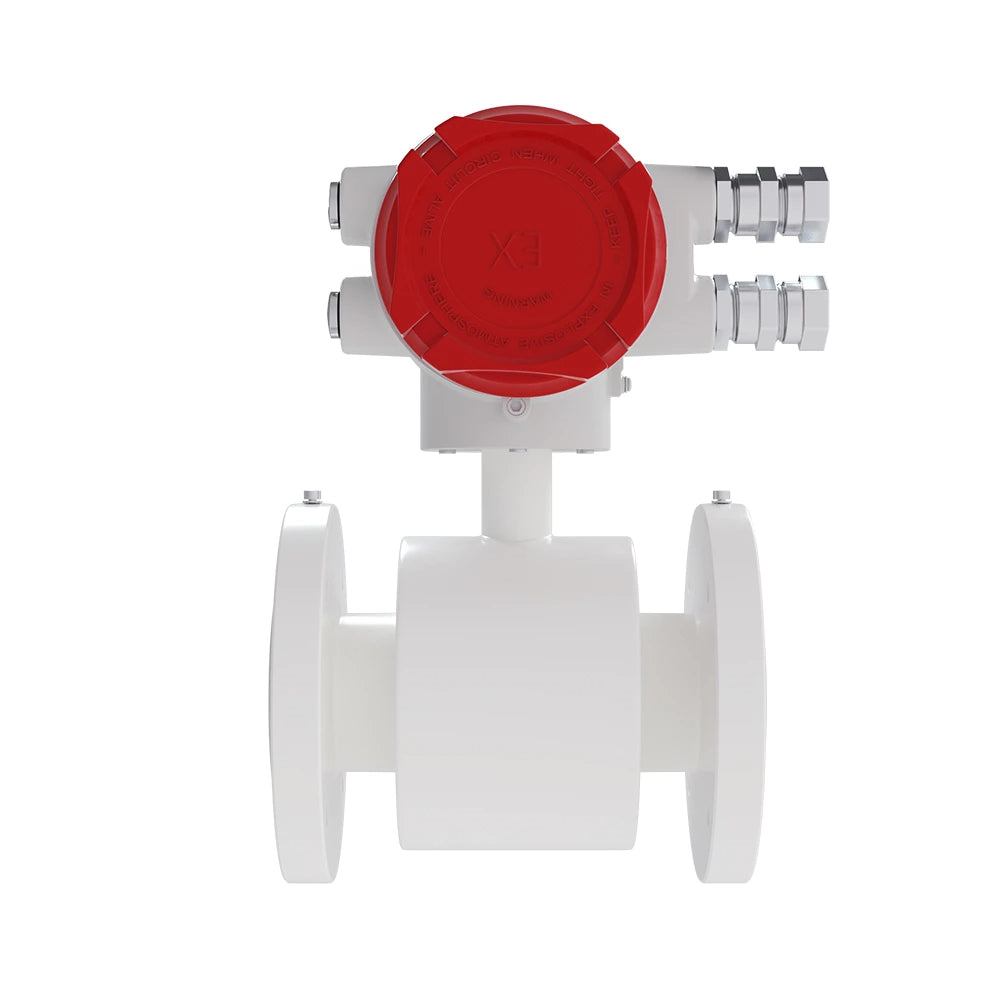

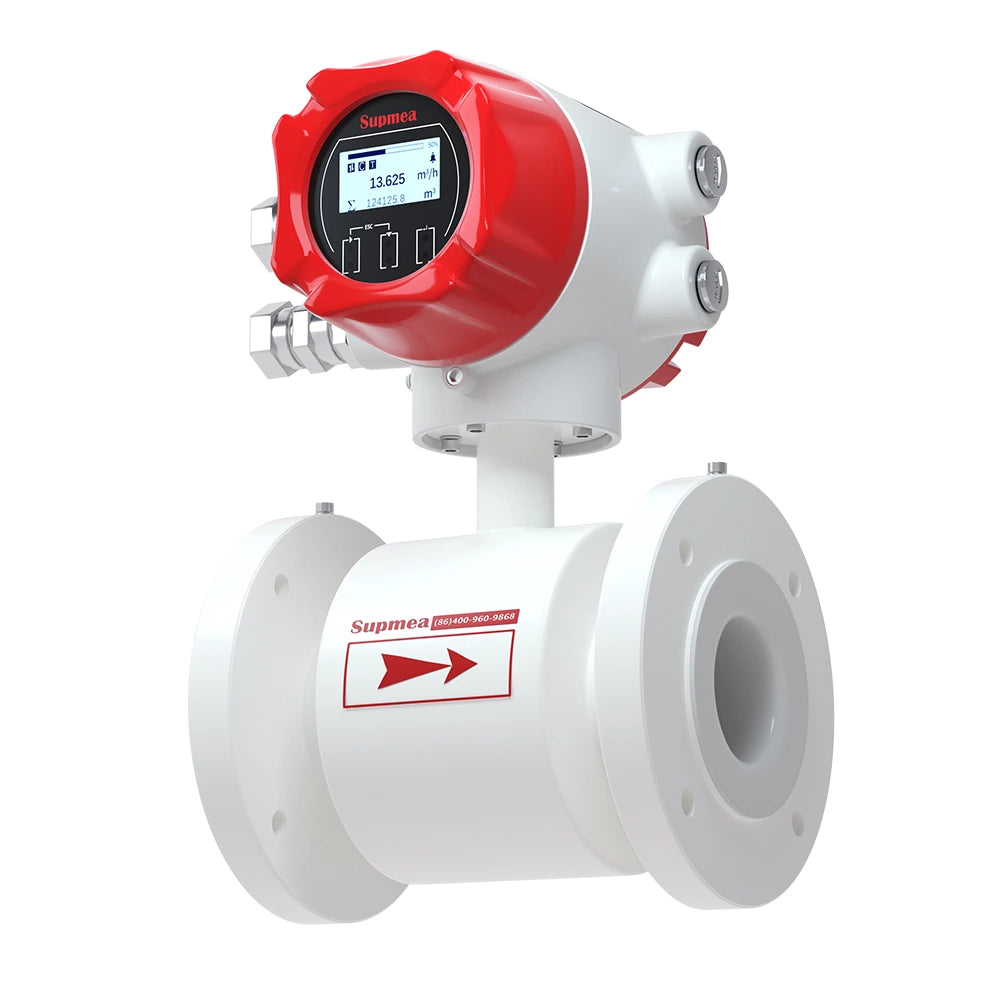

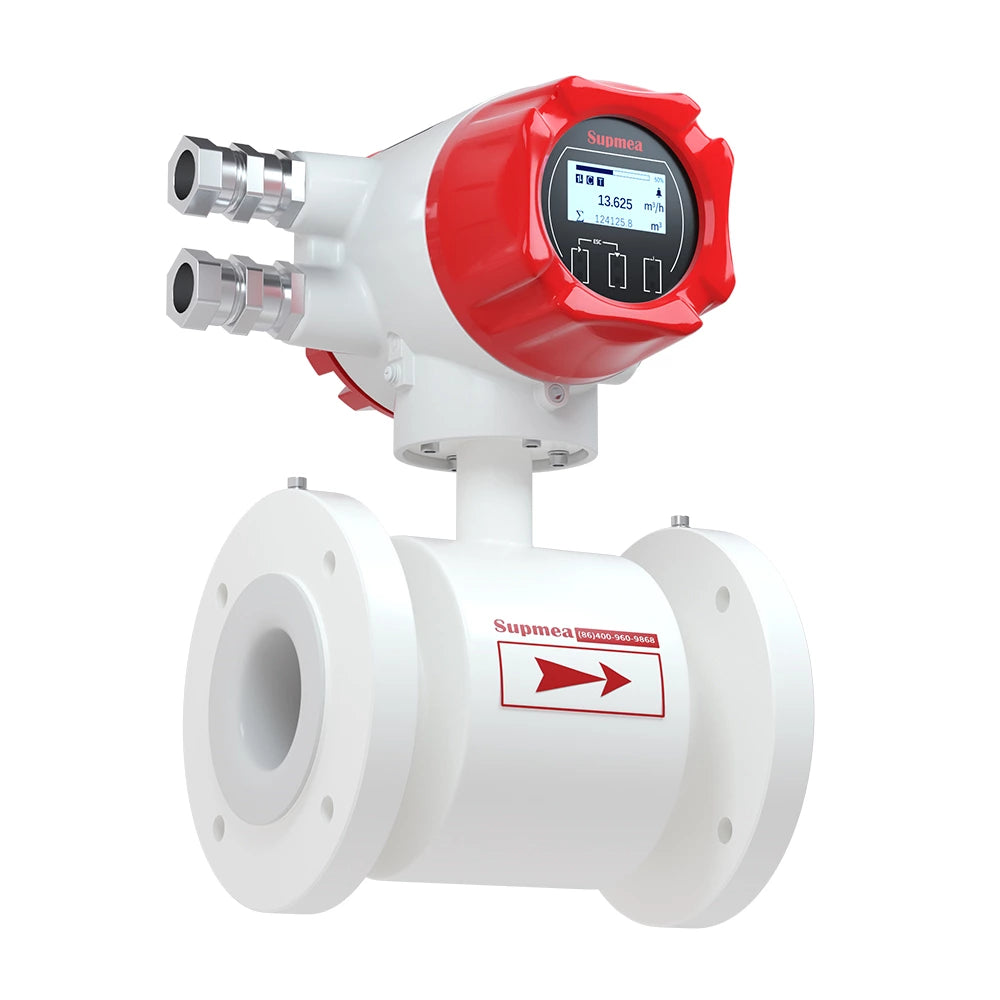

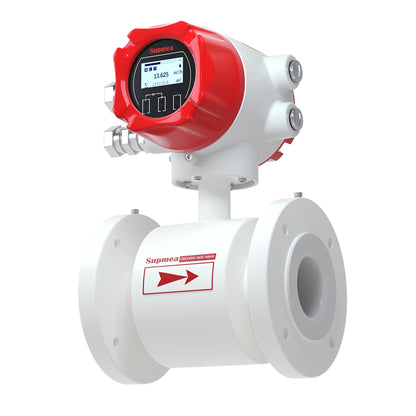

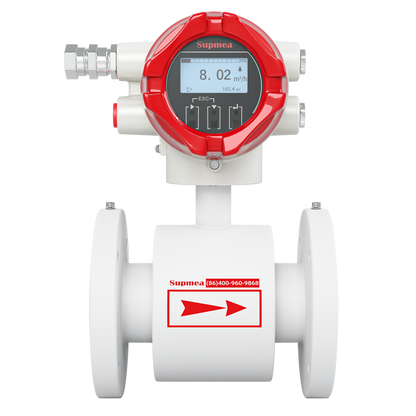

Supmea A100D Explosion-Proof Electromagnetic Flowmeter

US$1,504.00

Sale Sold out

Prices Shown Include Delivery.

12 Months Limited Warranty

Lead Time: 4 Weeks Or More

View full details

Product Overview

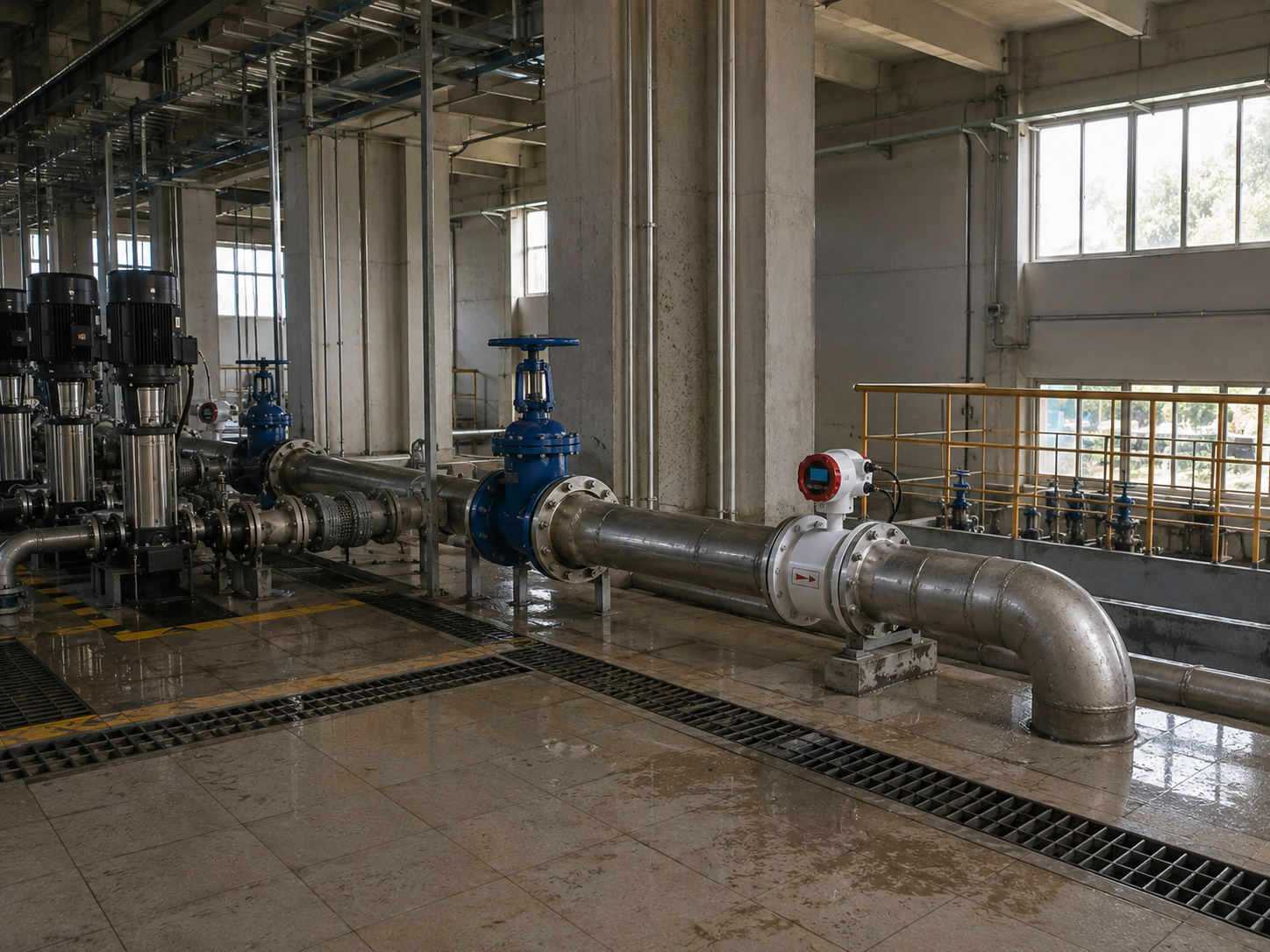

The Electromagnetic Flowmeter is designed based on Faraday’s electromagnetic induction principle to measure the flow rate of conductive liquids in closed pipelines. With high accuracy, stable performance, and no moving parts, it provides reliable flow measurement for water treatment, chemical processing, environmental protection, metallurgy, and industrial applications. The meter supports multiple output signals including 4–20 mA, pulse output, and RS485 Modbus RTU communication for seamless integration with PLC, DCS, and control systems.

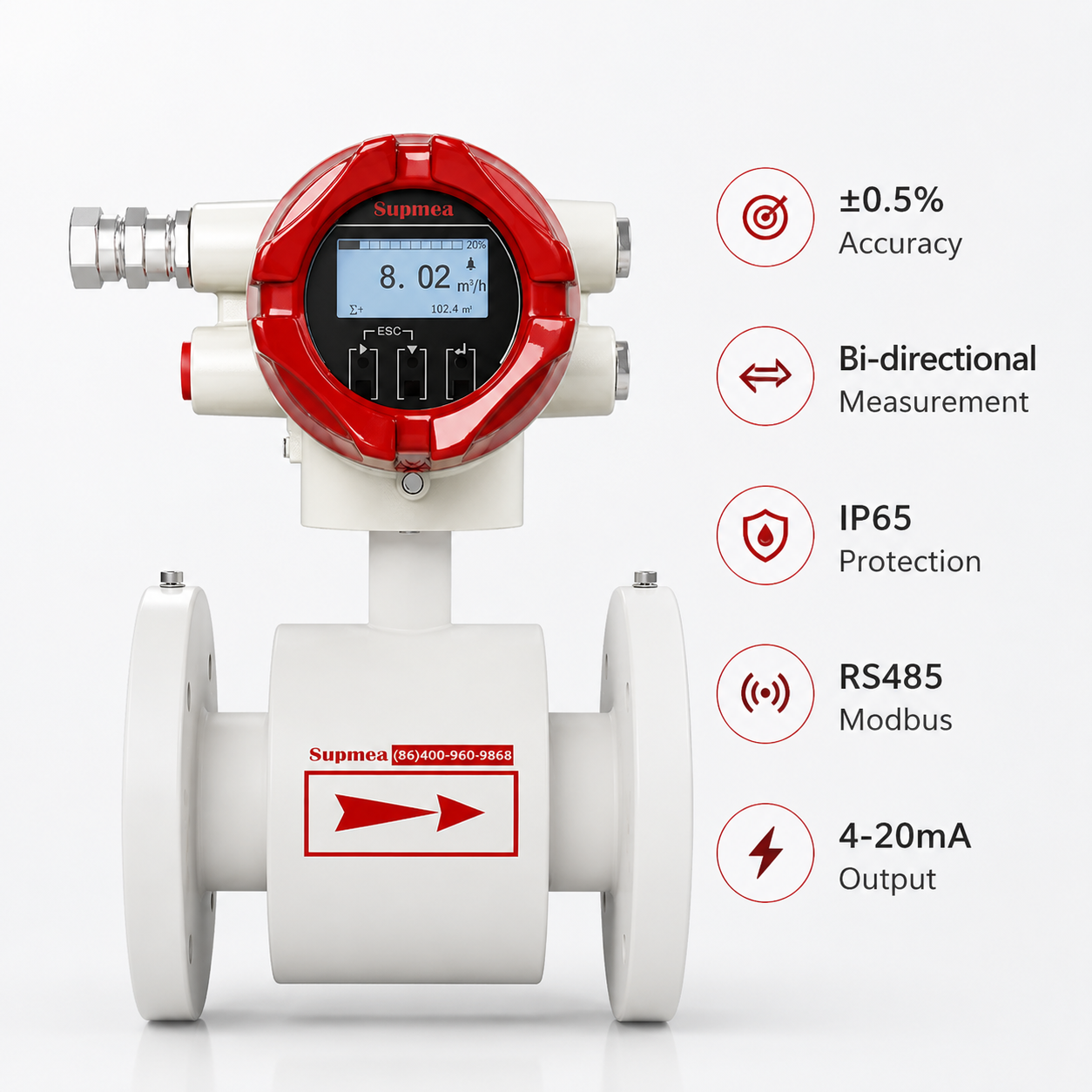

Key Features

Provides reliable flow measurement with accuracy up to ±0.5% of measured value under standard operating conditions.
Features a compact structure with no moving parts, reducing mechanical wear and maintenance requirements.
Supports accurate measurement in both forward and reverse flow directions.
Uses low-frequency square wave excitation technology for stable zero-point performance and reliable operation.
Designed with flameproof and intrinsic safety composite explosion-proof structure for hazardous environments.
Supports multiple liner and electrode material options for different chemical and industrial media.

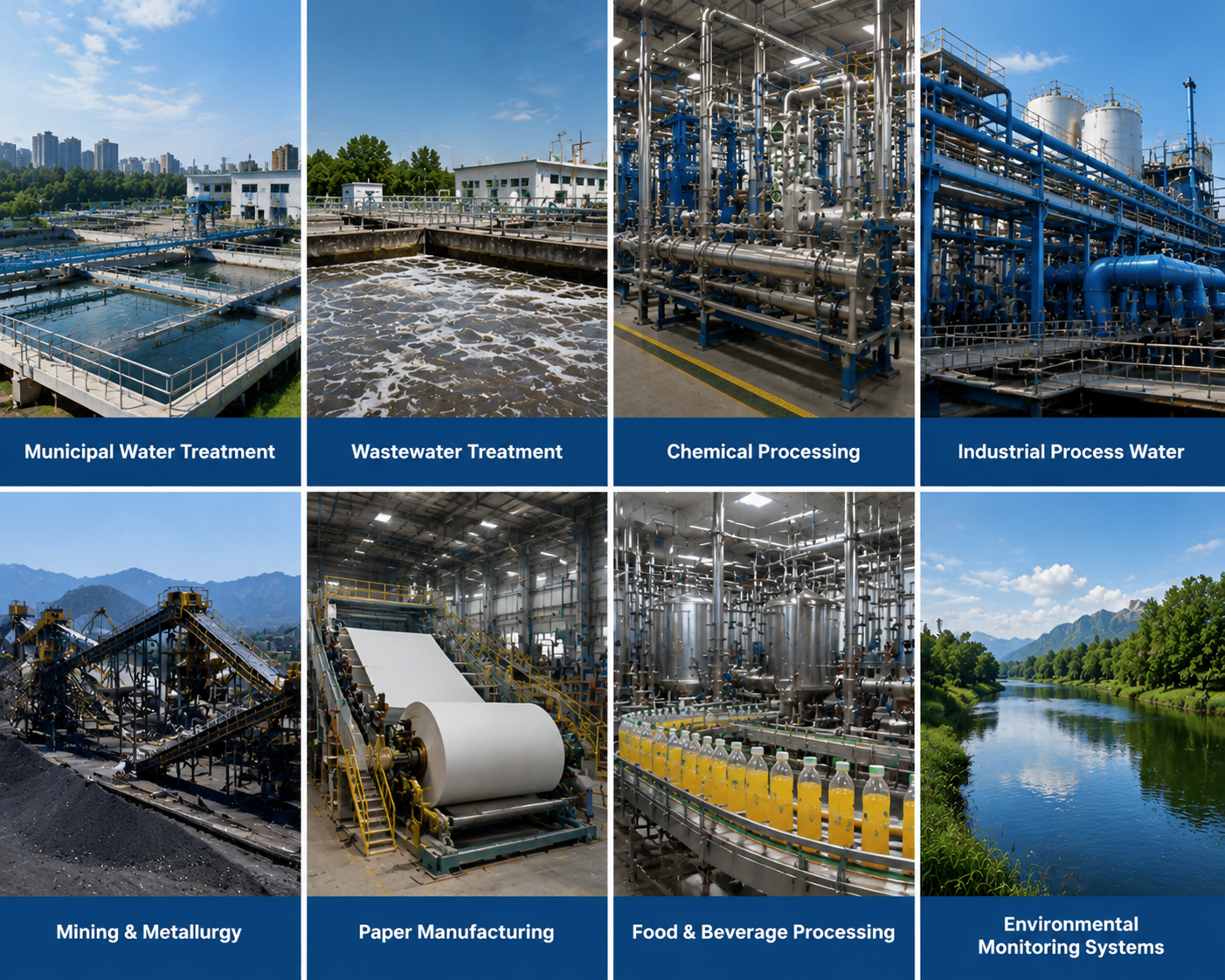

Applications

Technical Specifications

Measurement Principle	Faraday Electromagnetic Induction
Measuring Medium	Conductive Liquids
Nominal Diameter	DN15–DN300 (0.6–11.8 in)
Flow Velocity Range	1.6–16.4 ft/s
Accuracy	±0.5% of measured value
Repeatability	0.16%
Conductivity Requirement	≥50 μS/cm
Output Signal	4–20 mA, Pulse Output
Communication	RS485 Modbus RTU (HART Optional)
Power Supply	24 VDC / 110 VAC Options Available
Protection Rating	IP65
Operating Temperature	14–131°F (-10–55°C)

Downloads

User Manual

Datasheet

FAQ

What liquids can this electromagnetic flowmeter measure?

The meter is designed for conductive liquids with conductivity ≥50 μS/cm, including water, wastewater, and various industrial process fluids.

Does the flowmeter support reverse flow measurement?

Yes. The meter can measure both forward and reverse flow directions through configurable bidirectional measurement settings.

Can this flowmeter be used in hazardous areas?

Yes. The product supports explosion-proof configurations with Ex db ib IIC T6...T4 Gb certification parameters for hazardous environments.

Does this flowmeter have moving parts?

No. The electromagnetic flowmeter has no mechanical moving parts, which reduces maintenance requirements and improves long-term reliability.

What warranty do you provide?

Please refer to BayMeters Warranty Policy or contact our sales team for warranty details.

How long does shipping take?

Products in the US warehouse typically ship within 3–5 business days
