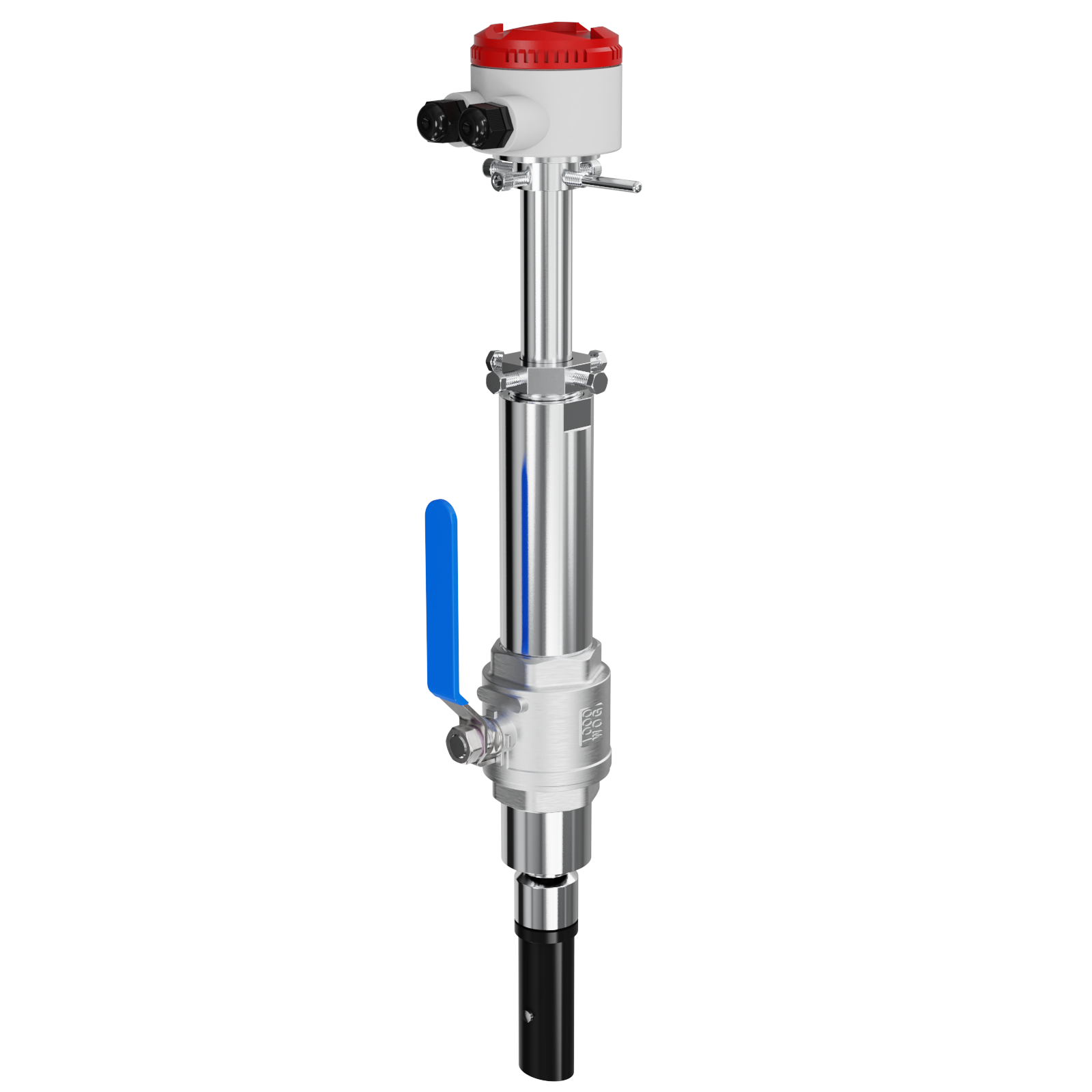

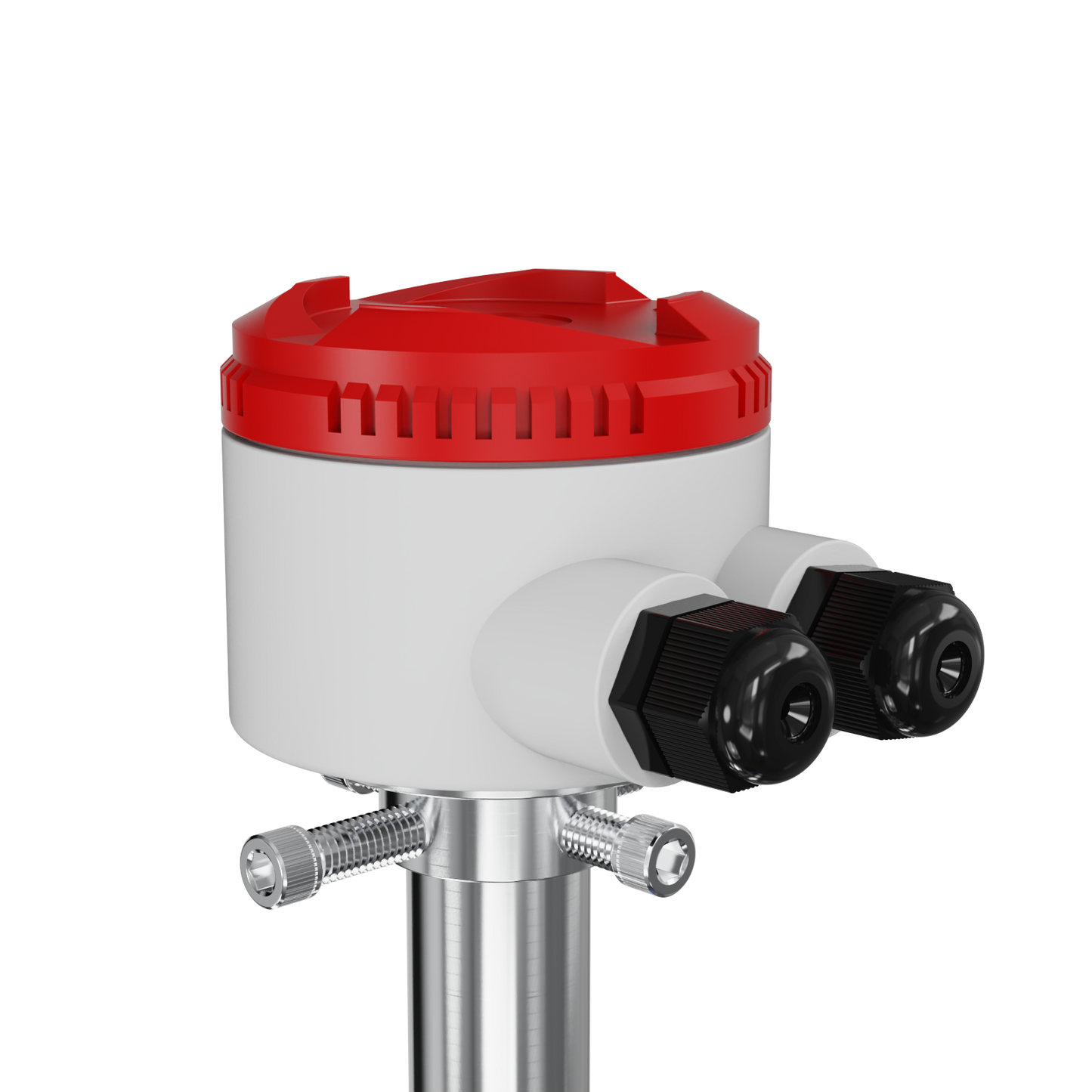

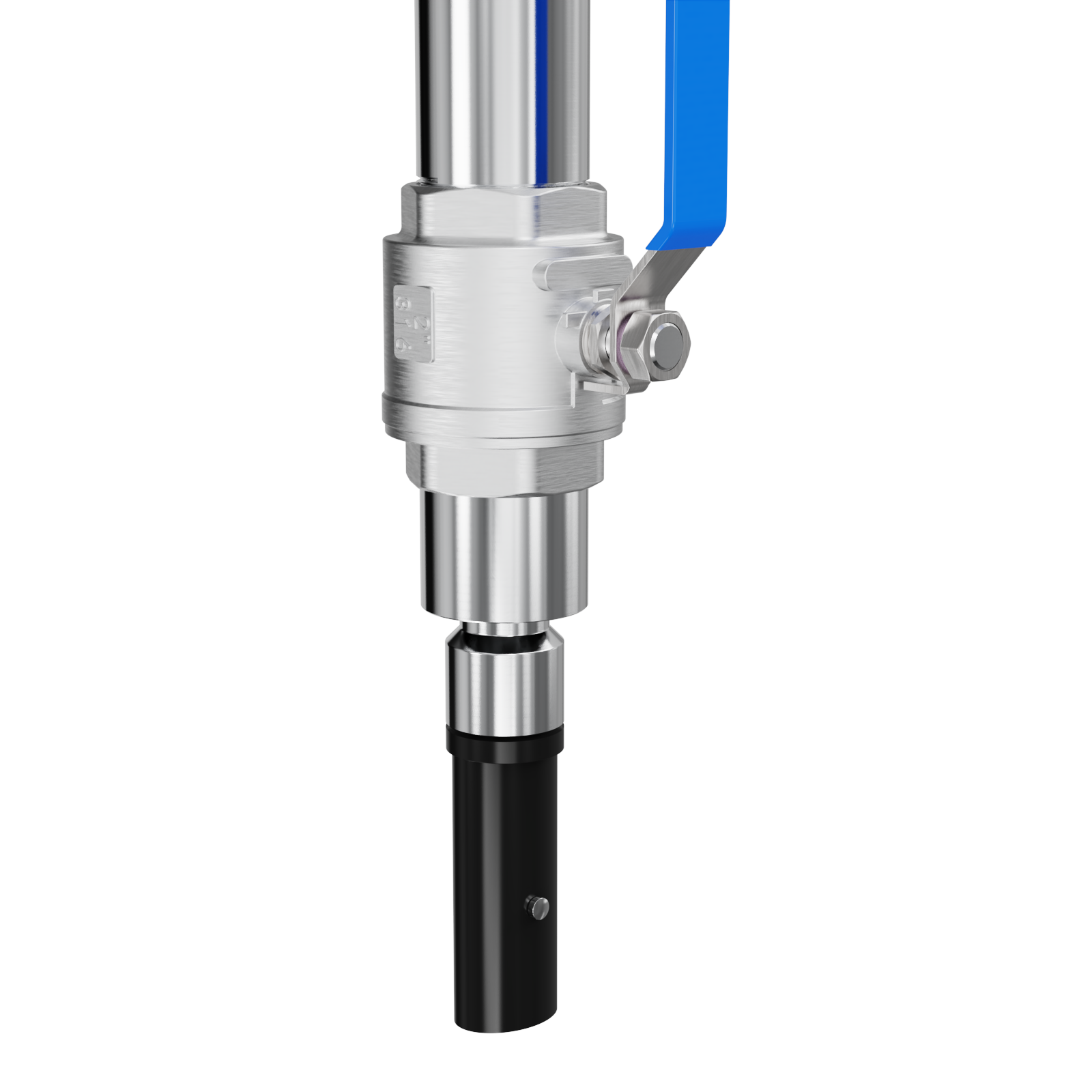

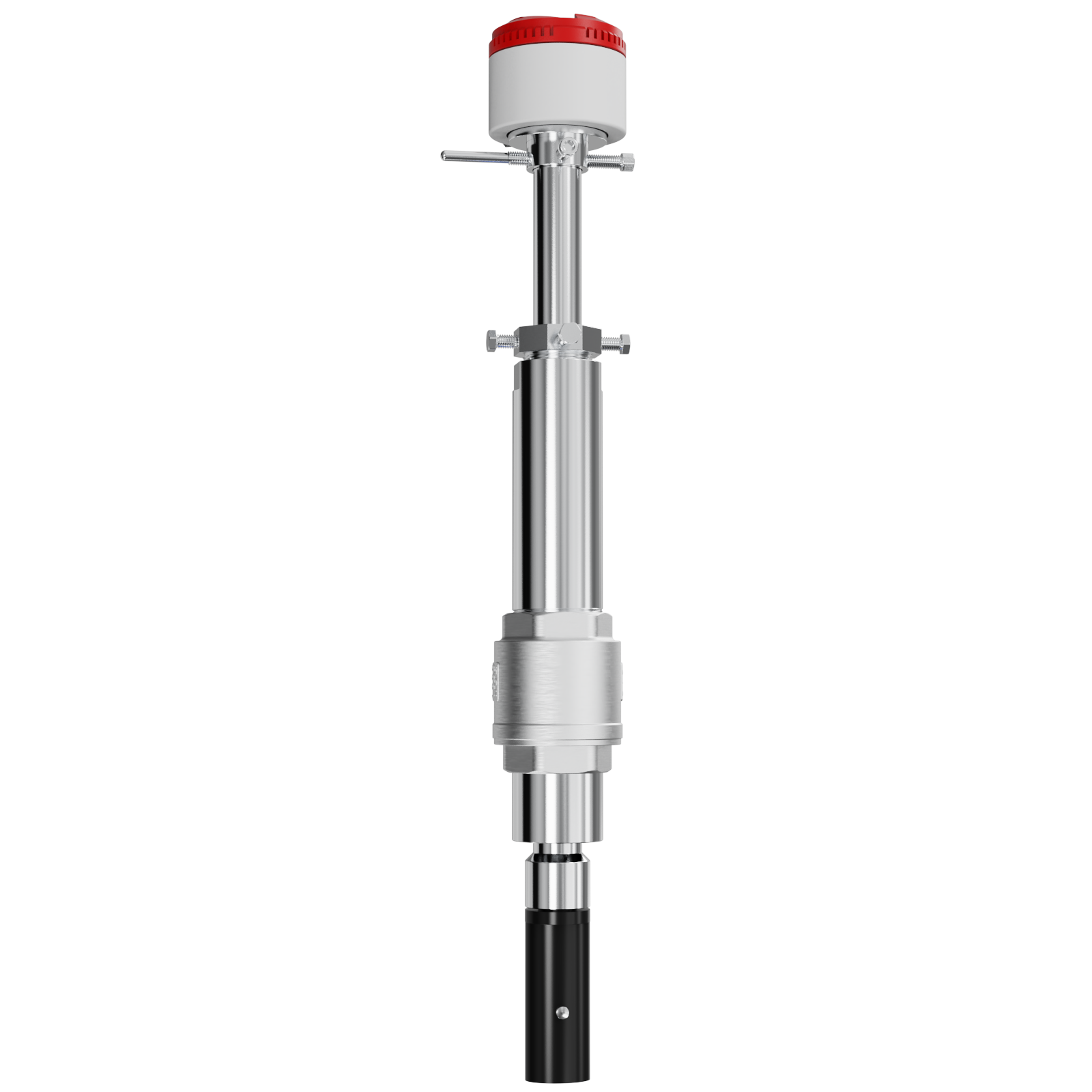

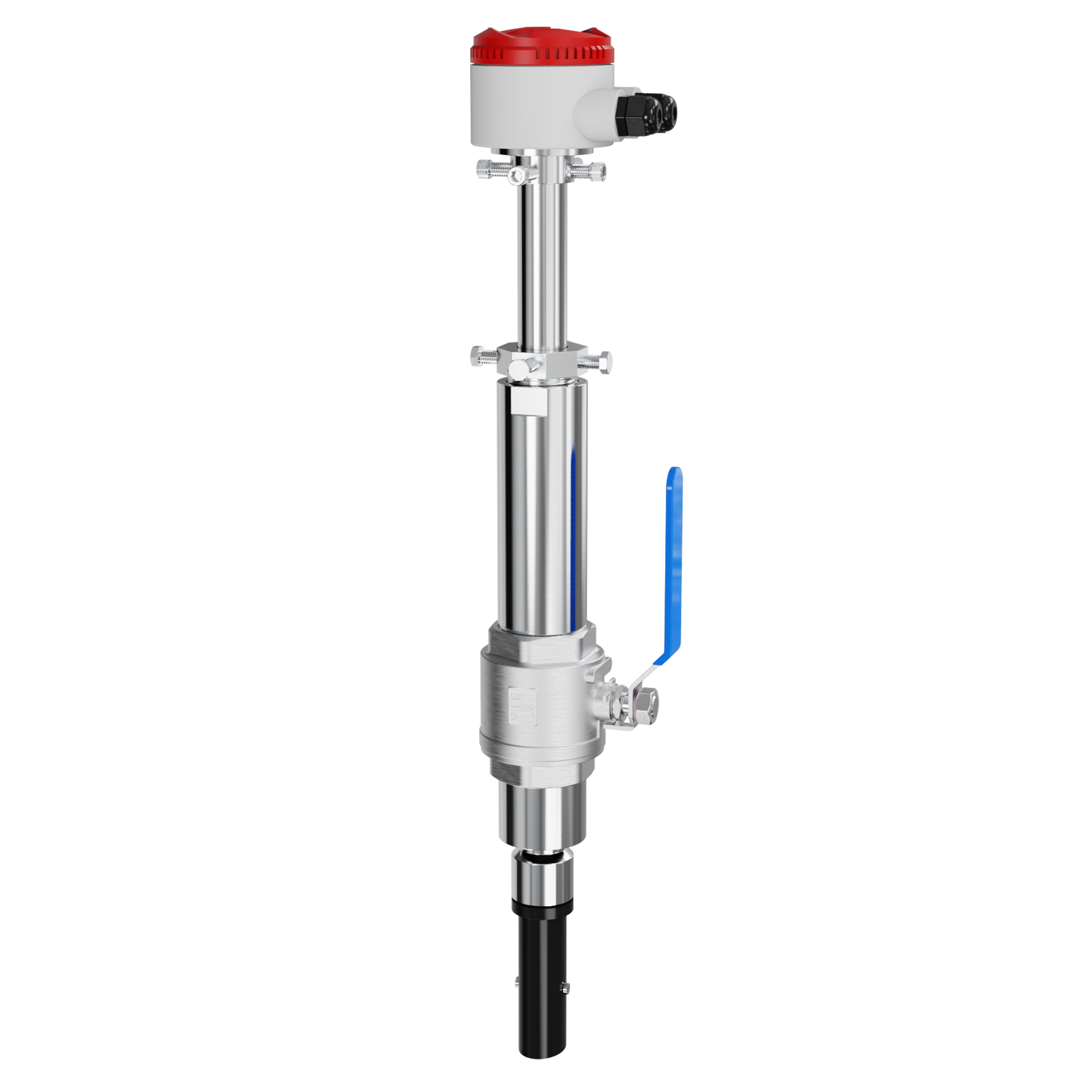

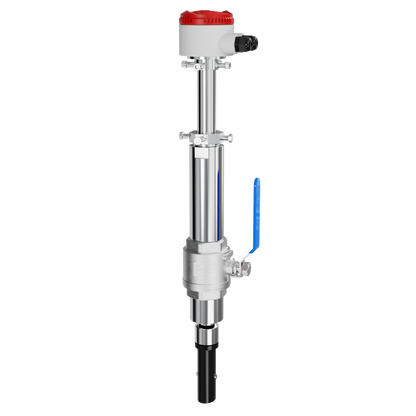

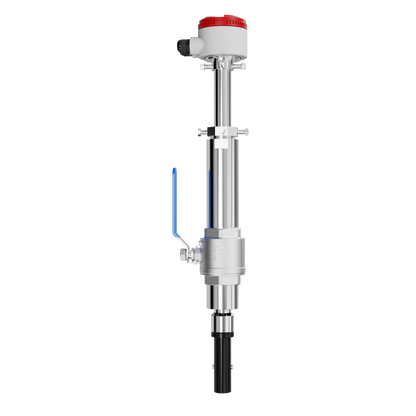

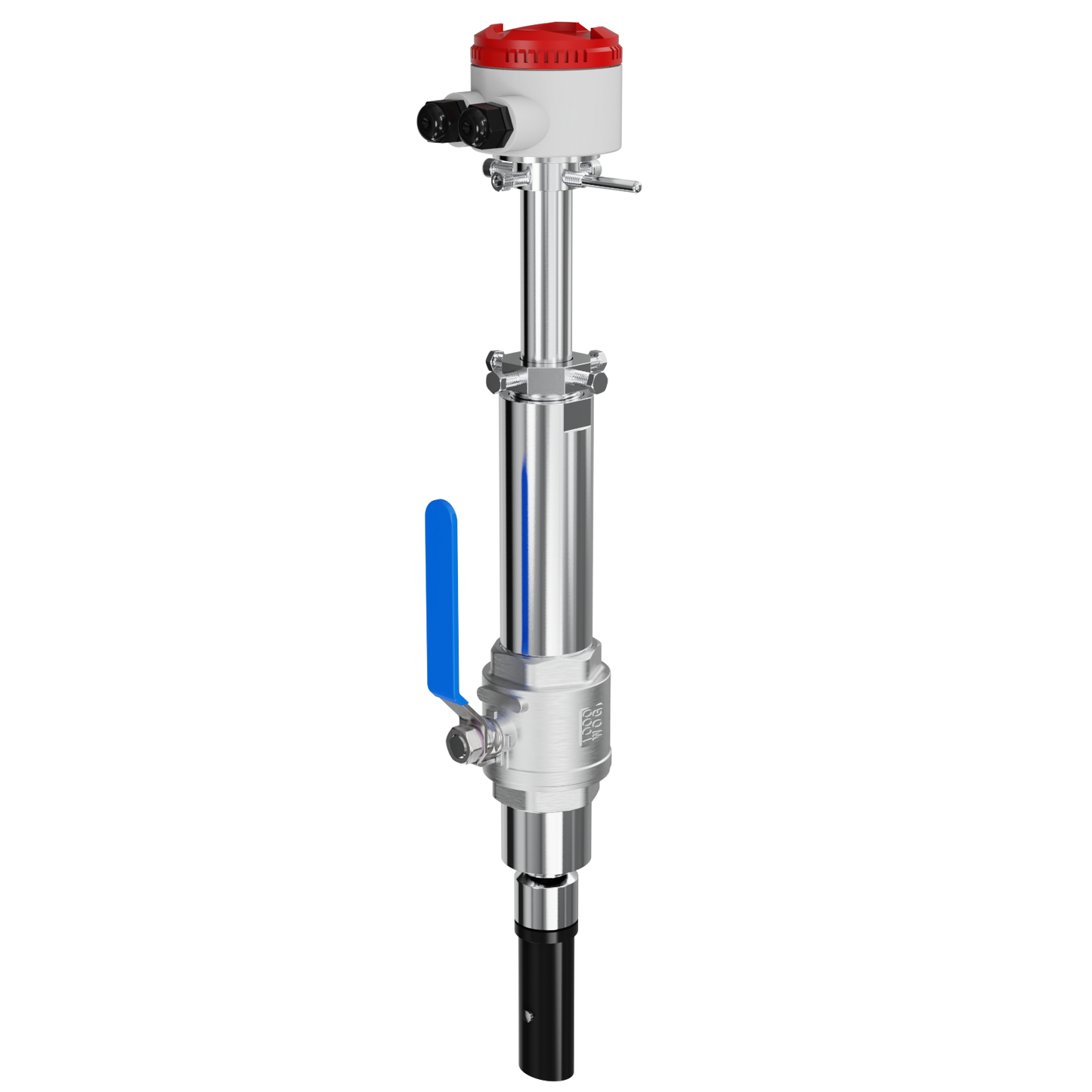

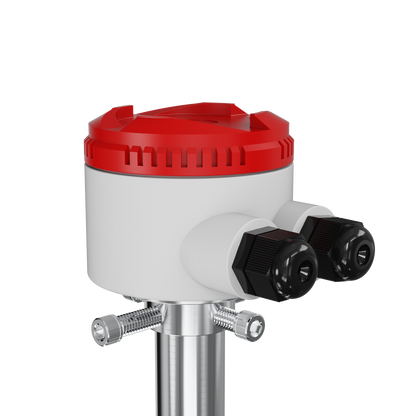

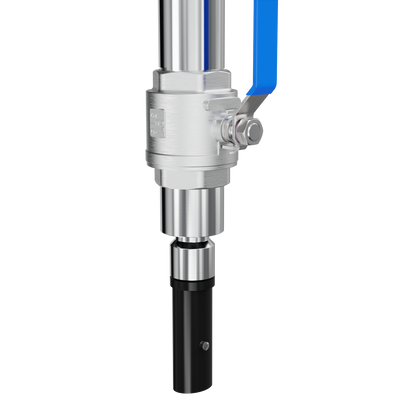

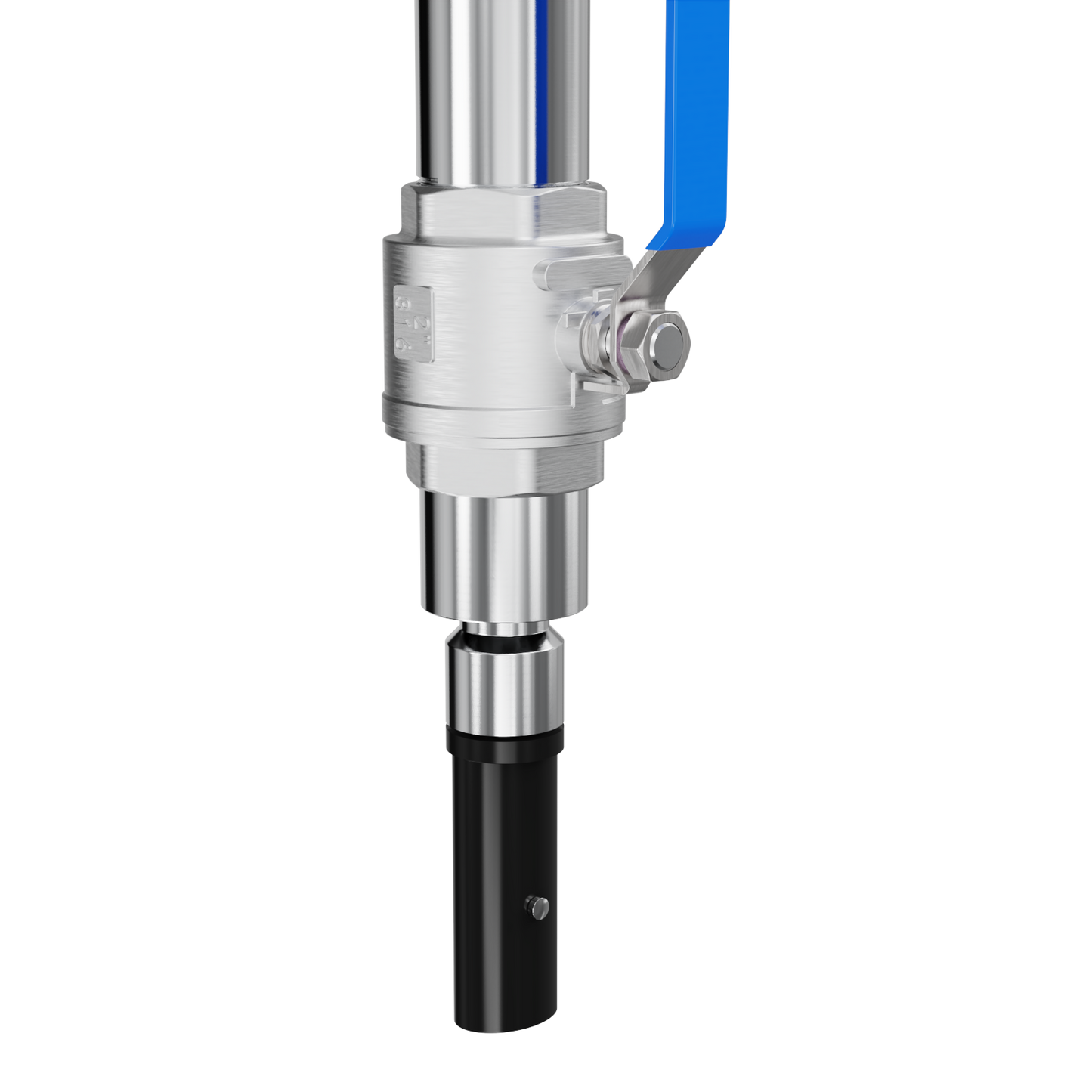

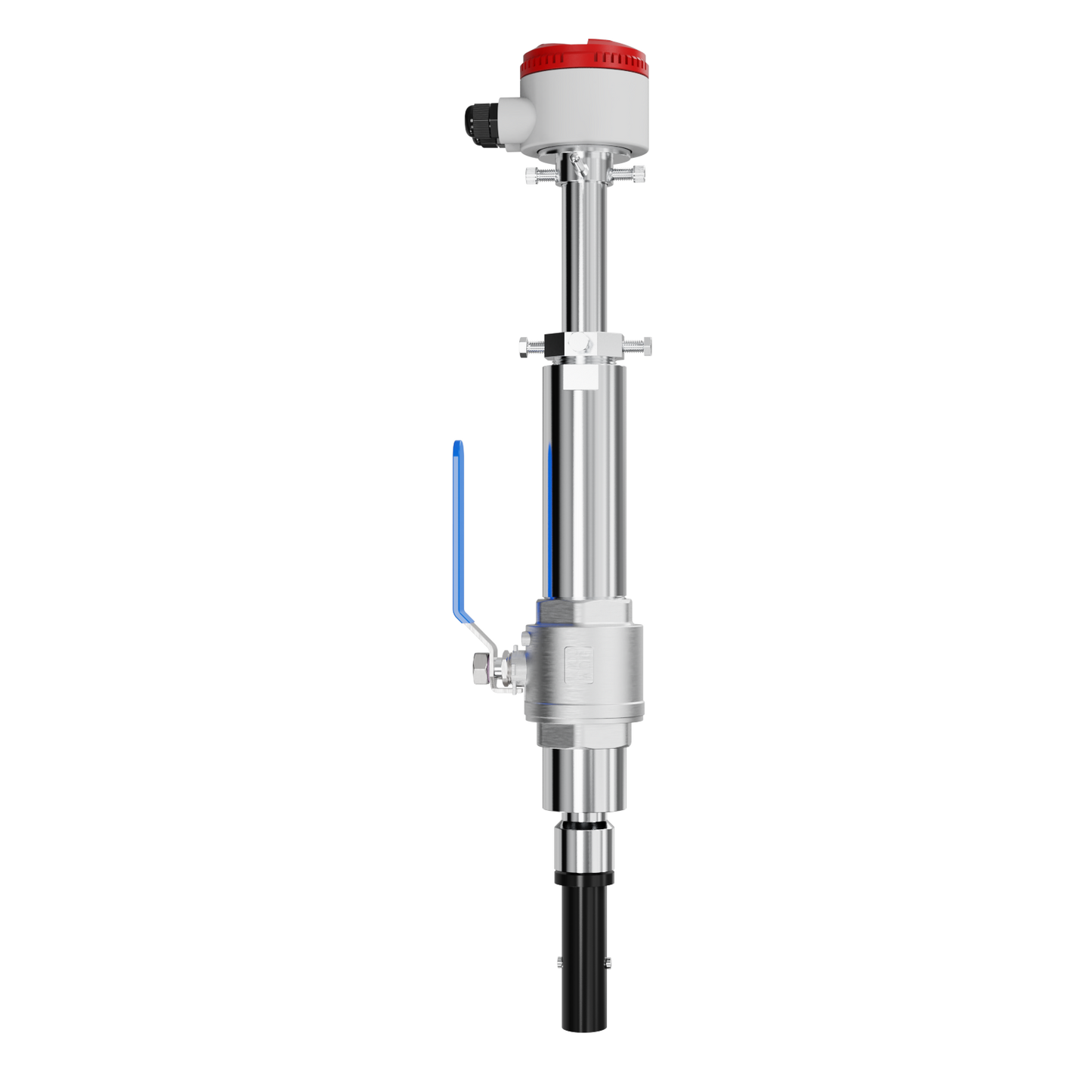

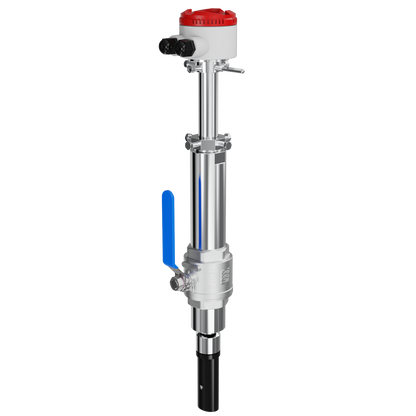

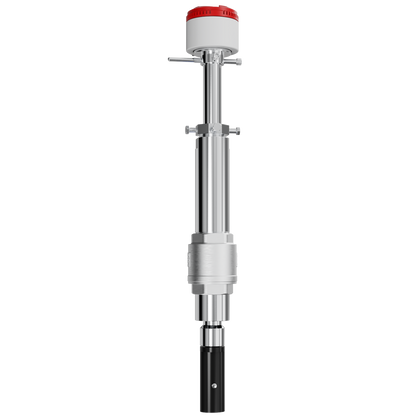

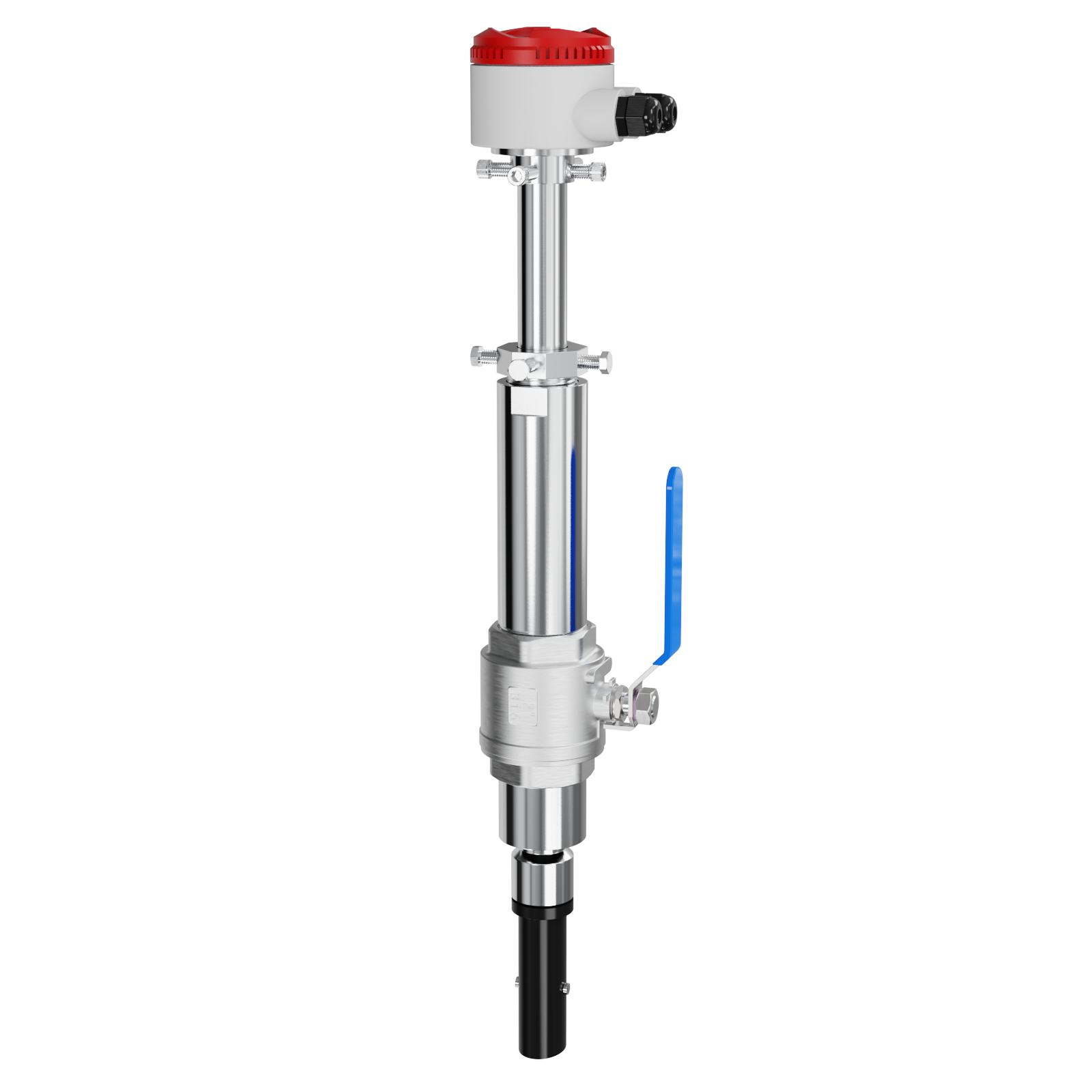

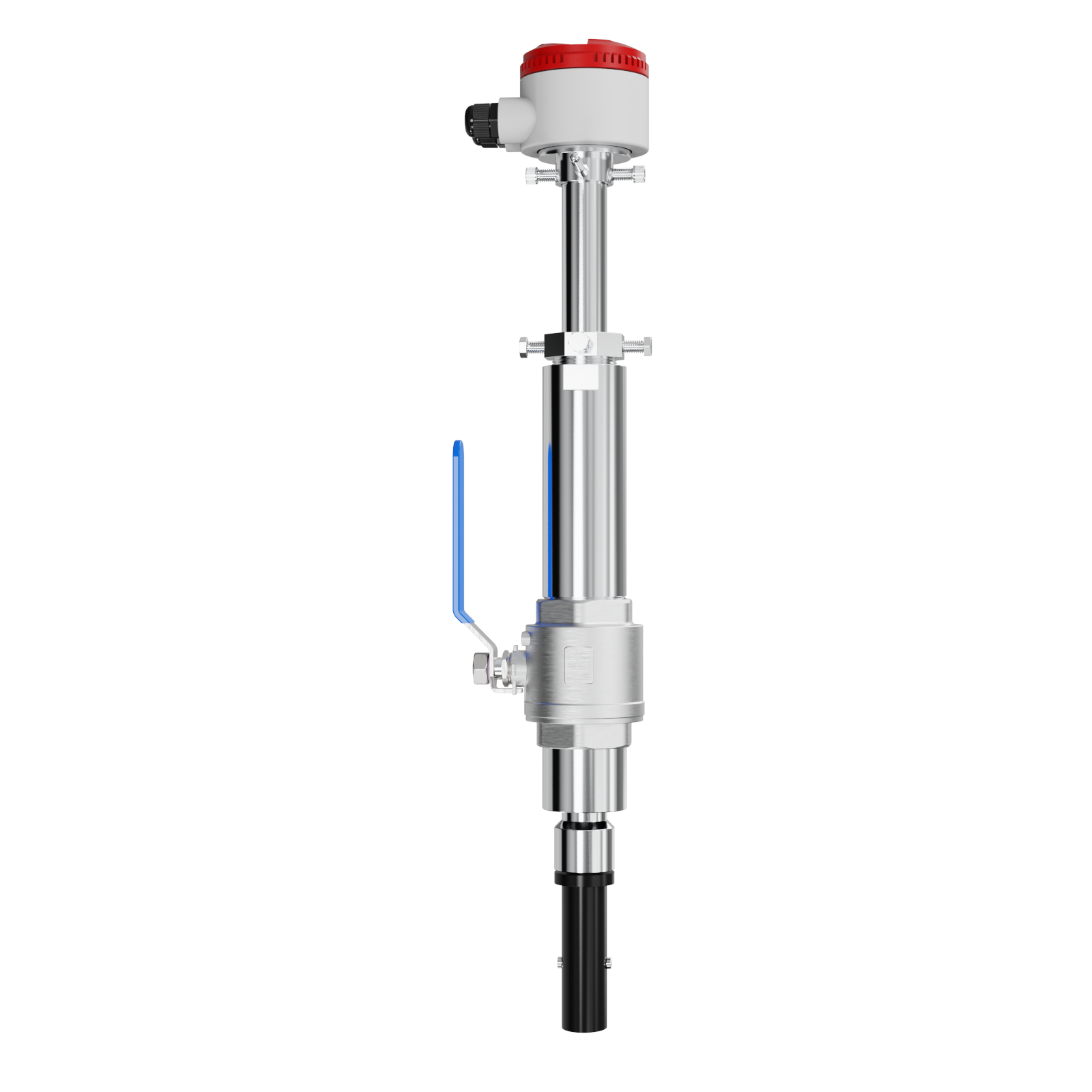

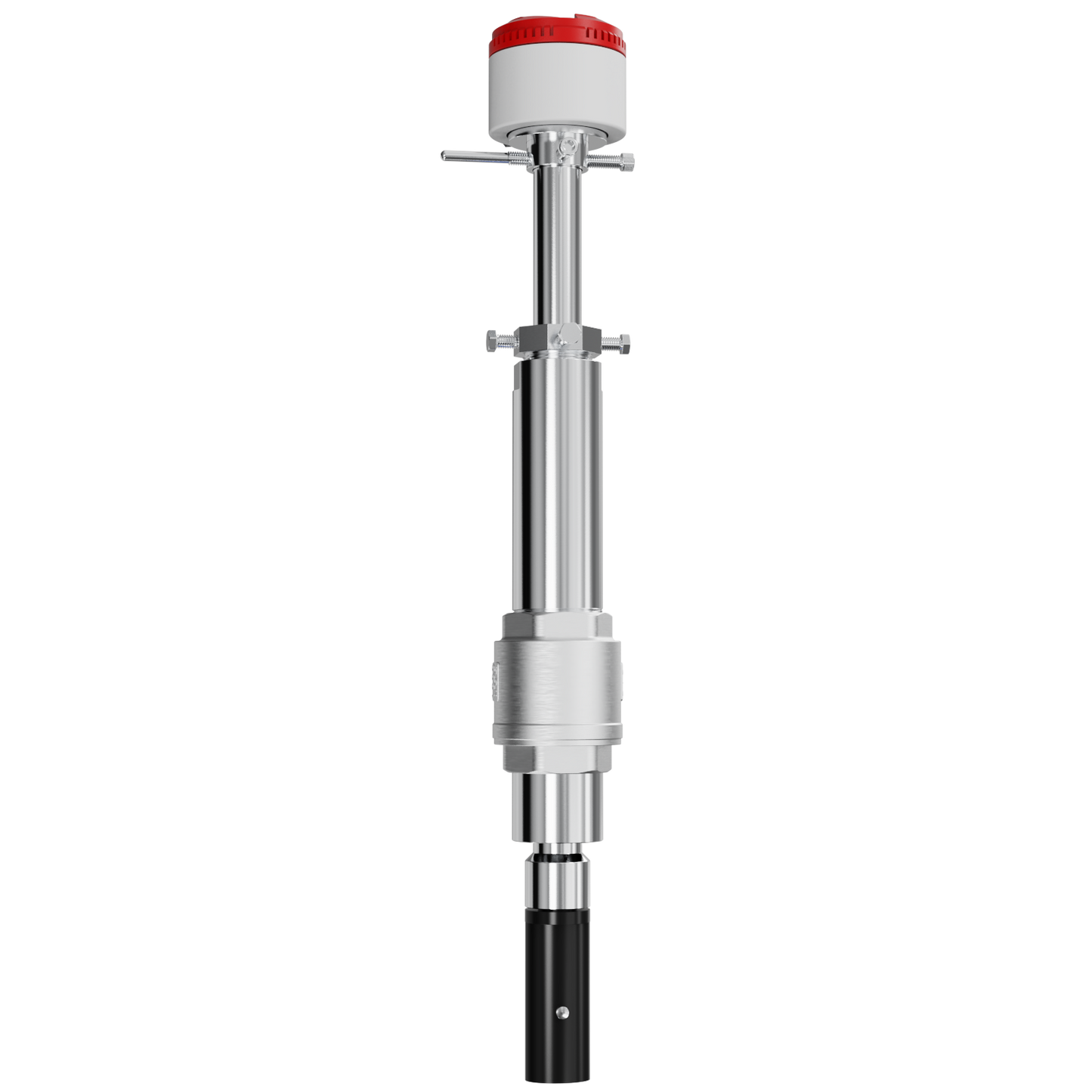

Supmea Insertion Type Electromagnetic Flowmeter

Supmea Insertion Type Electromagnetic Flowmeter

US$2,534.00
US$2,534.00
Sale Sold out
Prices Shown Include Delivery.

Lead Time: 4 Weeks Or More
View full details

Product Overview

The Electromagnetic Flowmeter is designed based on Faraday’s electromagnetic induction principle to measure the flow rate of conductive liquids in closed pipelines. With high accuracy, stable performance, and no moving parts, it provides reliable flow measurement for water treatment, chemical processing, environmental protection, metallurgy, and industrial applications. The meter supports multiple output signals including 4–20 mA, pulse output, and RS485 Modbus RTU communication for seamless integration with PLC, DCS, and control systems.

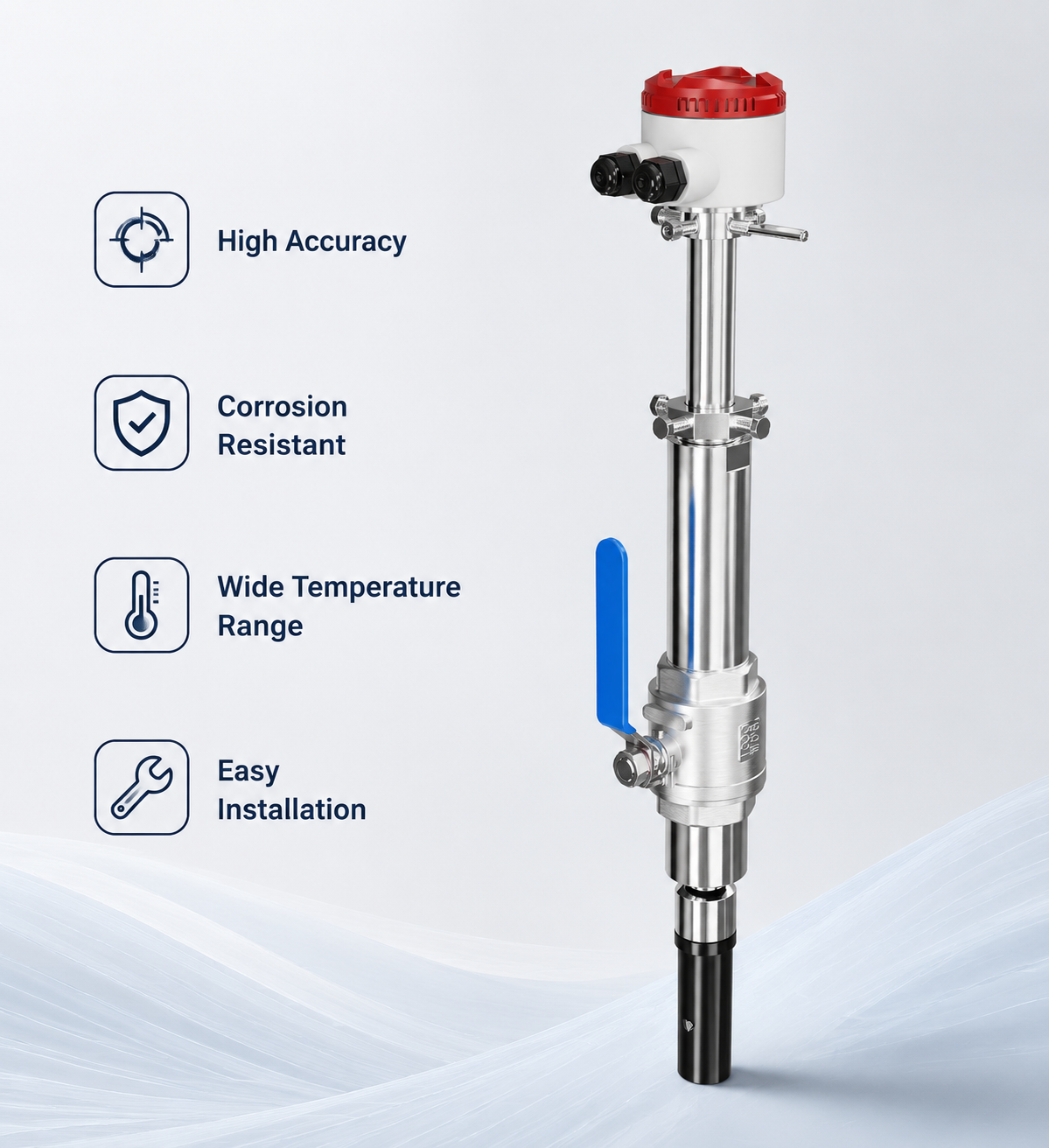

Key Features

  • Provides accurate flow and thermal energy measurement with flow accuracy up to ±0.5% of measured value under standard conditions.
  • Supports heating, cooling, and combined heat/cooling measurement modes for comprehensive energy monitoring.
  • Uses electromagnetic measurement technology to eliminate mechanical wear and reduce maintenance requirements.
  • Supports forward and reverse flow detection with configurable flow direction settings.
  • Supports RS485 Modbus RTU communication for integration with building management systems and industrial control platforms.
  • Features empty pipe detection, self-diagnosis functions, and stable long-term performance.

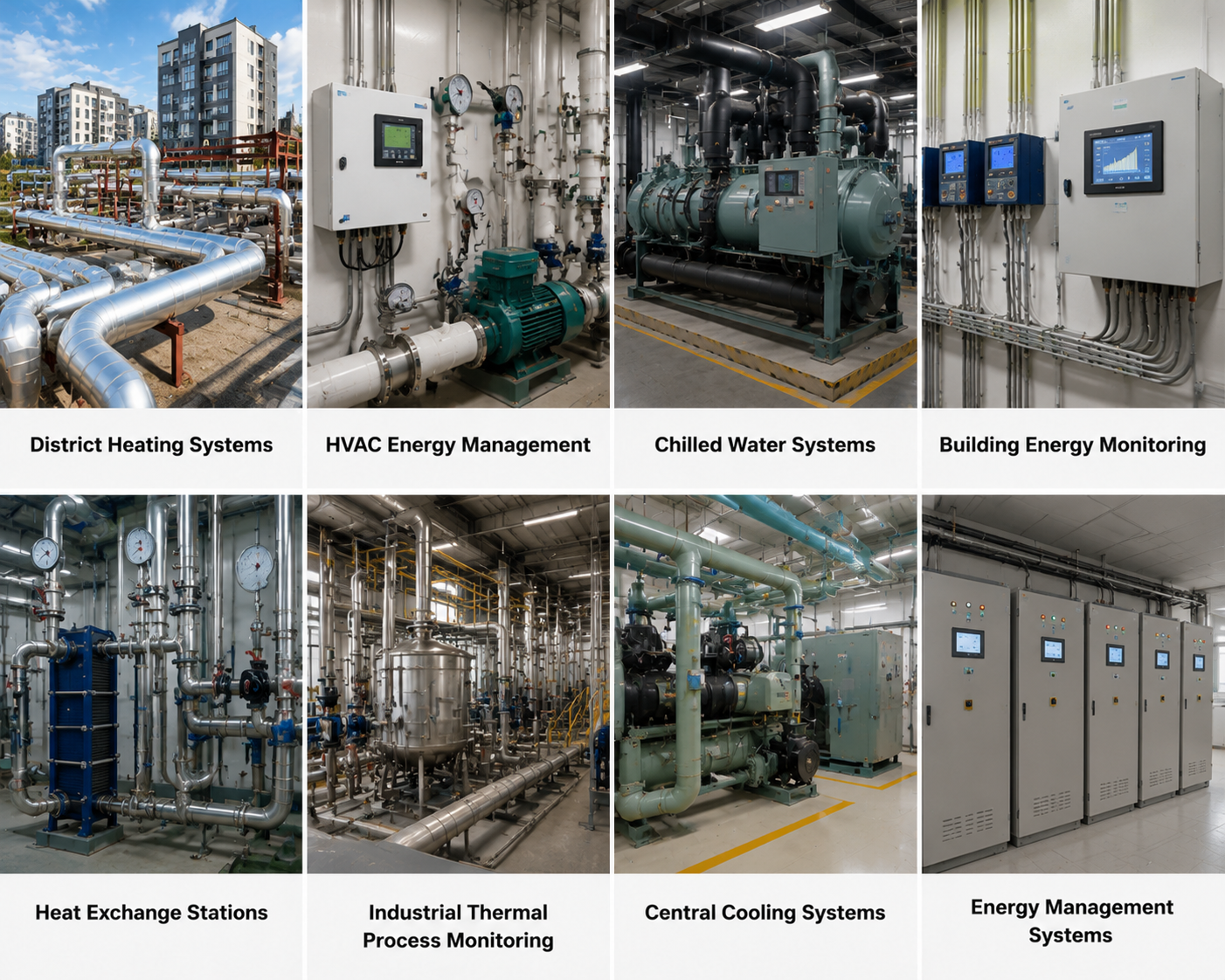

Applications

Technical Specifications

Pipe Size Range DN10–DN2000
Flow Accuracy ±0.5% of measured value
Heat Measurement Accuracy Class 2.0
Medium Conductivity ≥50 μS/cm recommended
Medium Temperature Range -14°F to 356°F (-10°C to 180°C, depends on liner material)
Ambient Temperature 14°F to 131°F (-10°C to 55°C)
Power Supply 85–250 VAC / 20–36 VDC
Power Consumption ≤20 W
Communication Interface RS485 Modbus RTU
Current Output 4–20 mA
Frequency Output 1–5000 Hz
Protection Rating IP65 / IP68 (optional)
Sensor Cable Length Standard 32.8 ft (10 m), max. 328 ft (100 m)

Downloads

User Manual

FAQ

What is the LDGC-L Electromagnetic Flow Meter used for?

The LDGC-L is designed for heating and cooling energy monitoring applications. It measures fluid flow and temperature differences to calculate thermal energy consumption in HVAC and industrial systems.

Can the LDGC-L measure both heating and cooling systems?

Yes. The LDGR-L supports heating, cooling, and combined heat/cooling measurement modes, making it suitable for various thermal management applications.

Does the LDGC-L require regular maintenance?

No. The electromagnetic measurement principle has no moving parts, which reduces mechanical wear and minimizes maintenance requirements.

How does the LDGC-L calculate thermal energy?

The meter calculates thermal energy based on measured flow rate, supply and return temperature difference, and operating time to provide accurate energy consumption data.

What warranty do you provide?

Please refer to BayMeters Warranty Policy or contact our sales team for warranty details.

How long does shipping take?

Products in the US warehouse typically ship within 3–5 business days
