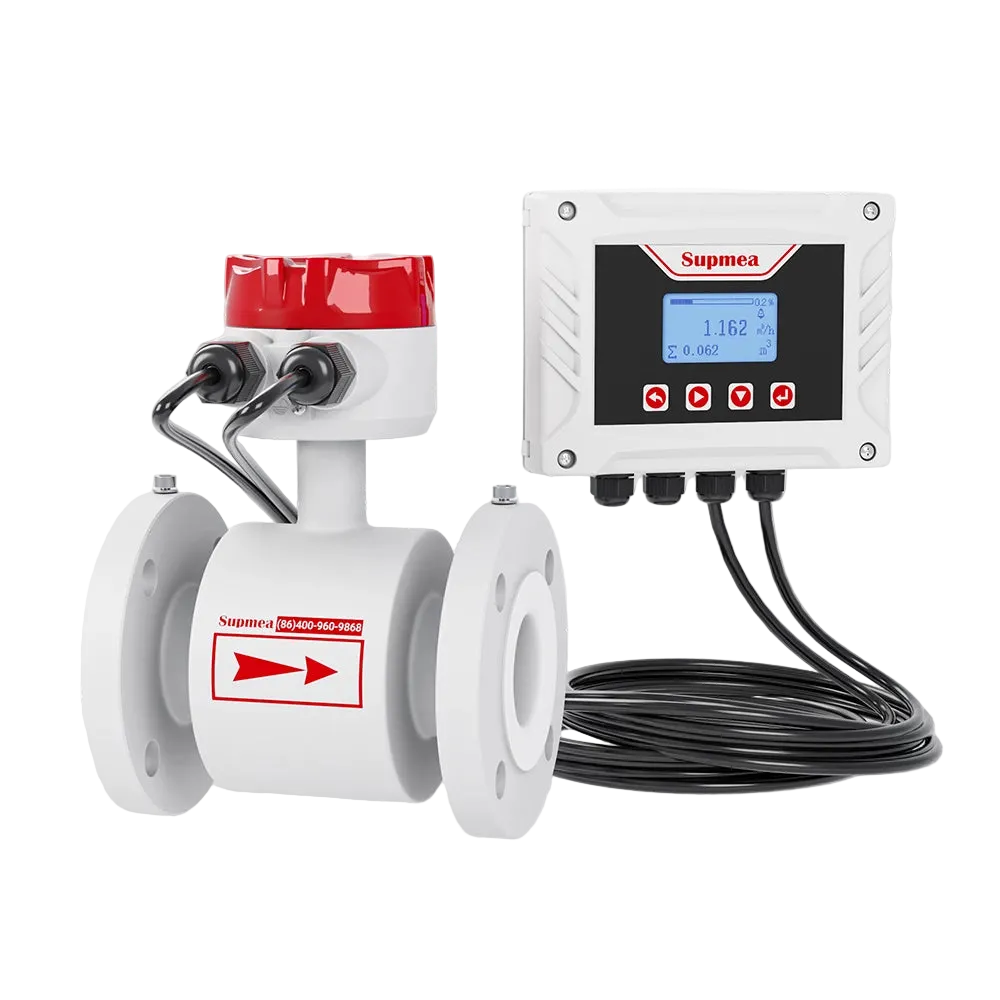

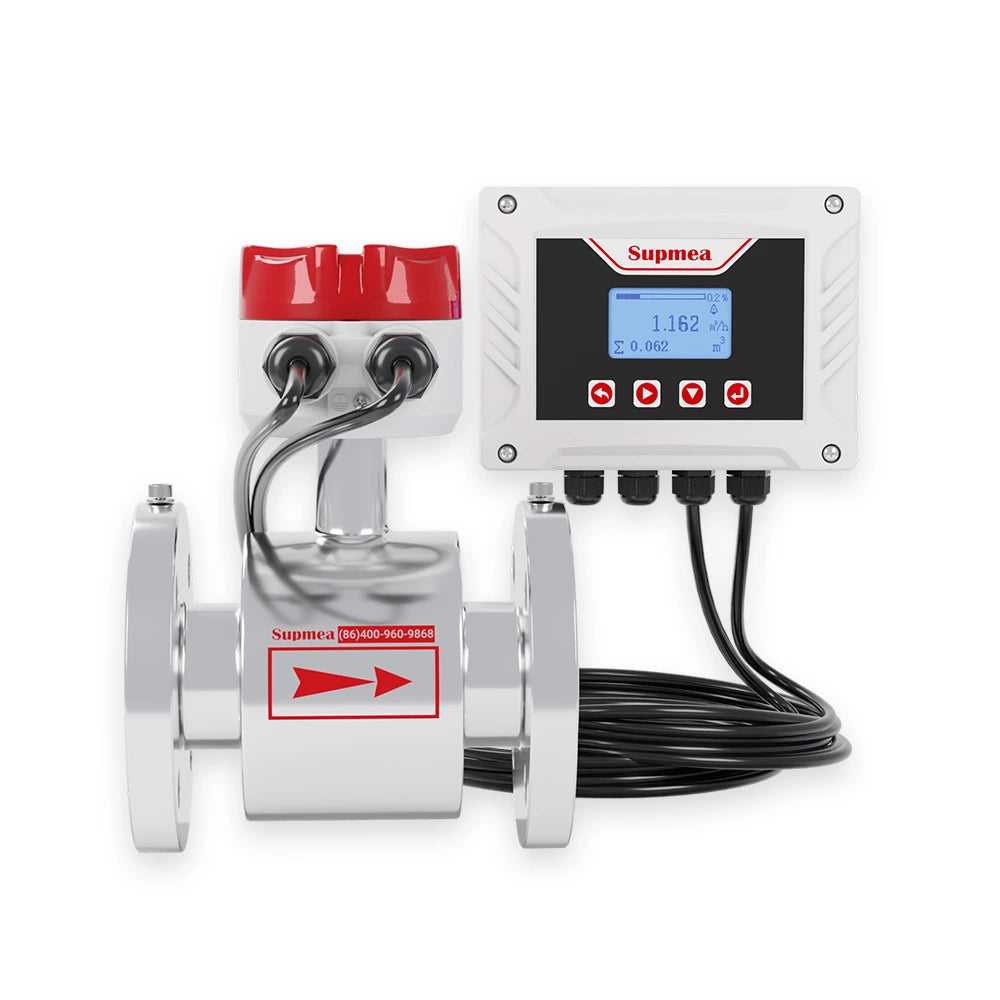

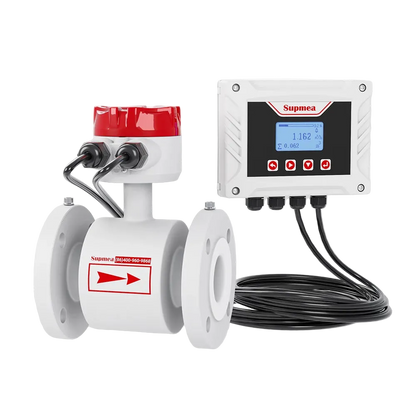

Supmea Electromagnetic Flowmeter with Remote Display

Supmea Electromagnetic Flowmeter with Remote Display

US$1,290.00
US$1,290.00
Sale Sold out
Prices Shown Include Delivery.

Lead Time: 4 Weeks Or More
View full details

Product Overview

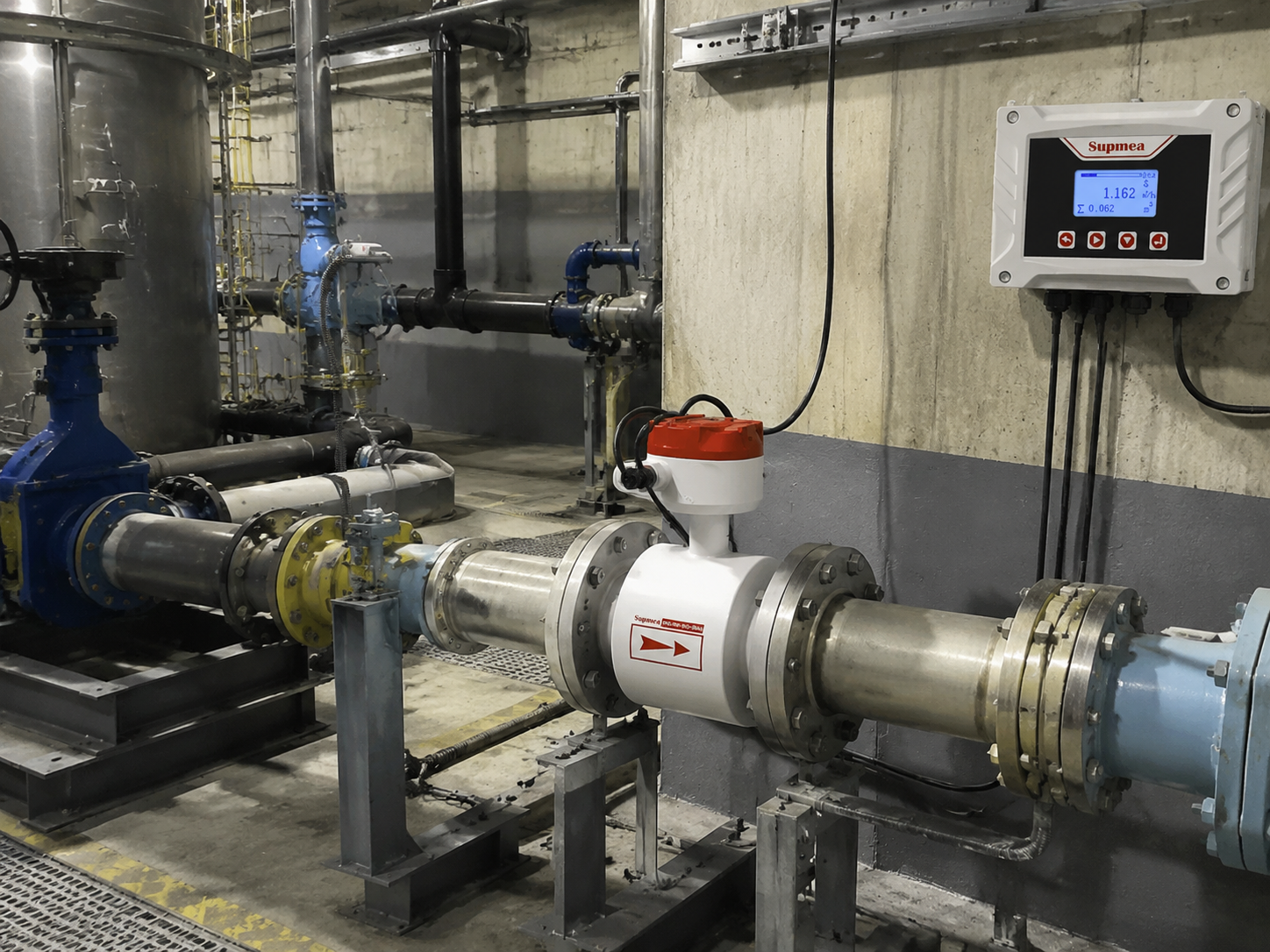

The LDG Remote Type Electromagnetic Flowmeter is designed based on Faraday’s law of electromagnetic induction for accurate measurement of conductive liquids in closed pipelines. It consists of a separate electromagnetic flow sensor and signal converter connected by a signal cable, allowing flexible installation when the measurement point and display location need to be separated.The flowmeter provides stable measurement performance with no moving parts, low maintenance requirements, and supports multiple output signals for industrial monitoring and control systems.

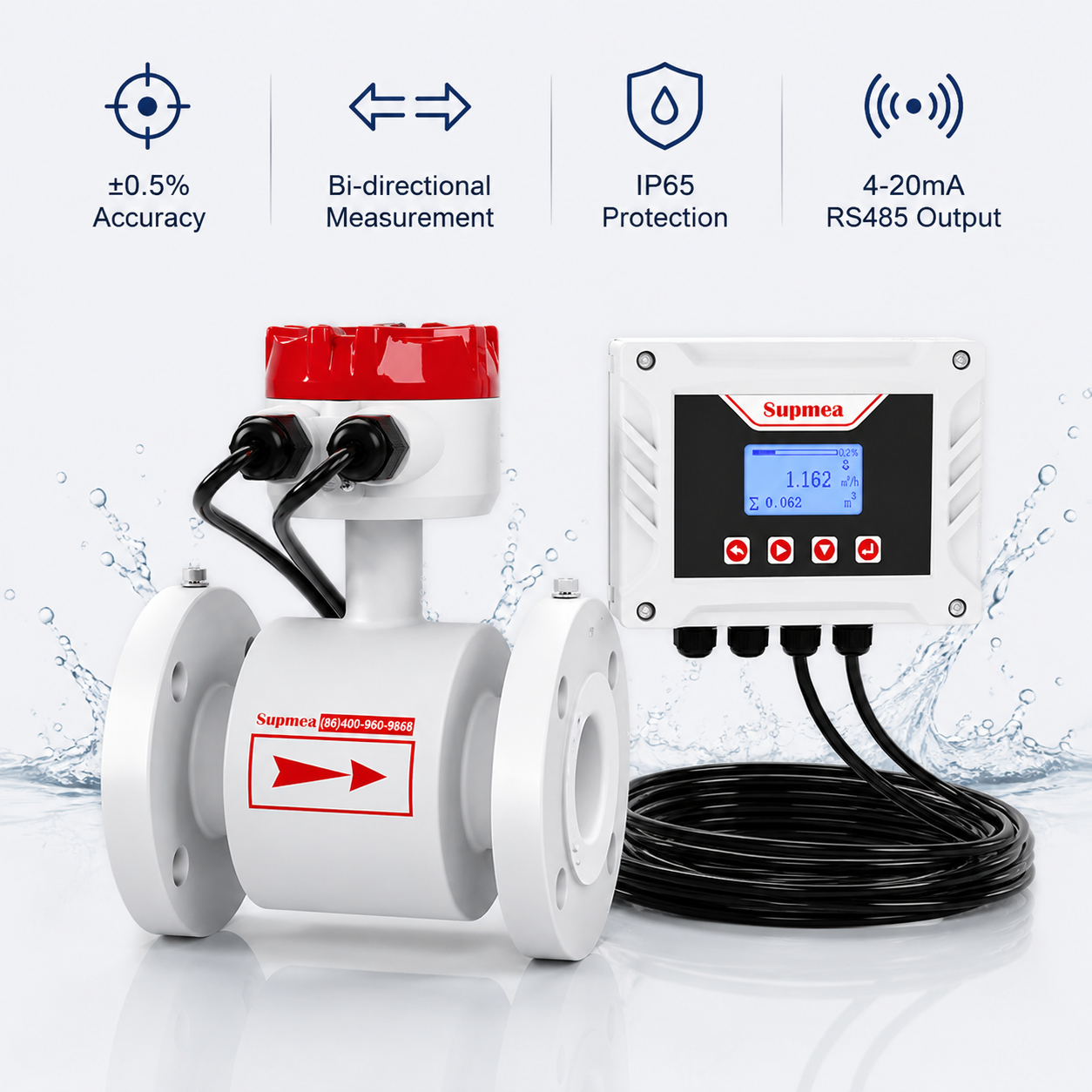

Key Features

  • The converter can be installed away from the sensor, improving accessibility for operation, monitoring and maintenance.
  • Provides reliable flow measurement with accuracy up to ±0.5% of measured value under standard operating conditions.
  • Designed for measuring conductive liquids and liquid-solid two-phase flow in industrial pipelines. The measured liquid conductivity should generally be above 5 μS/cm.
  • With no moving parts inside the measuring tube, the electromagnetic flowmeter creates minimal resistance and avoids additional pressure loss.
  • Supports forward and reverse flow measurement with configurable flow direction settings.
  • Measurement performance is not affected by changes in liquid temperature, pressure, density and viscosity.

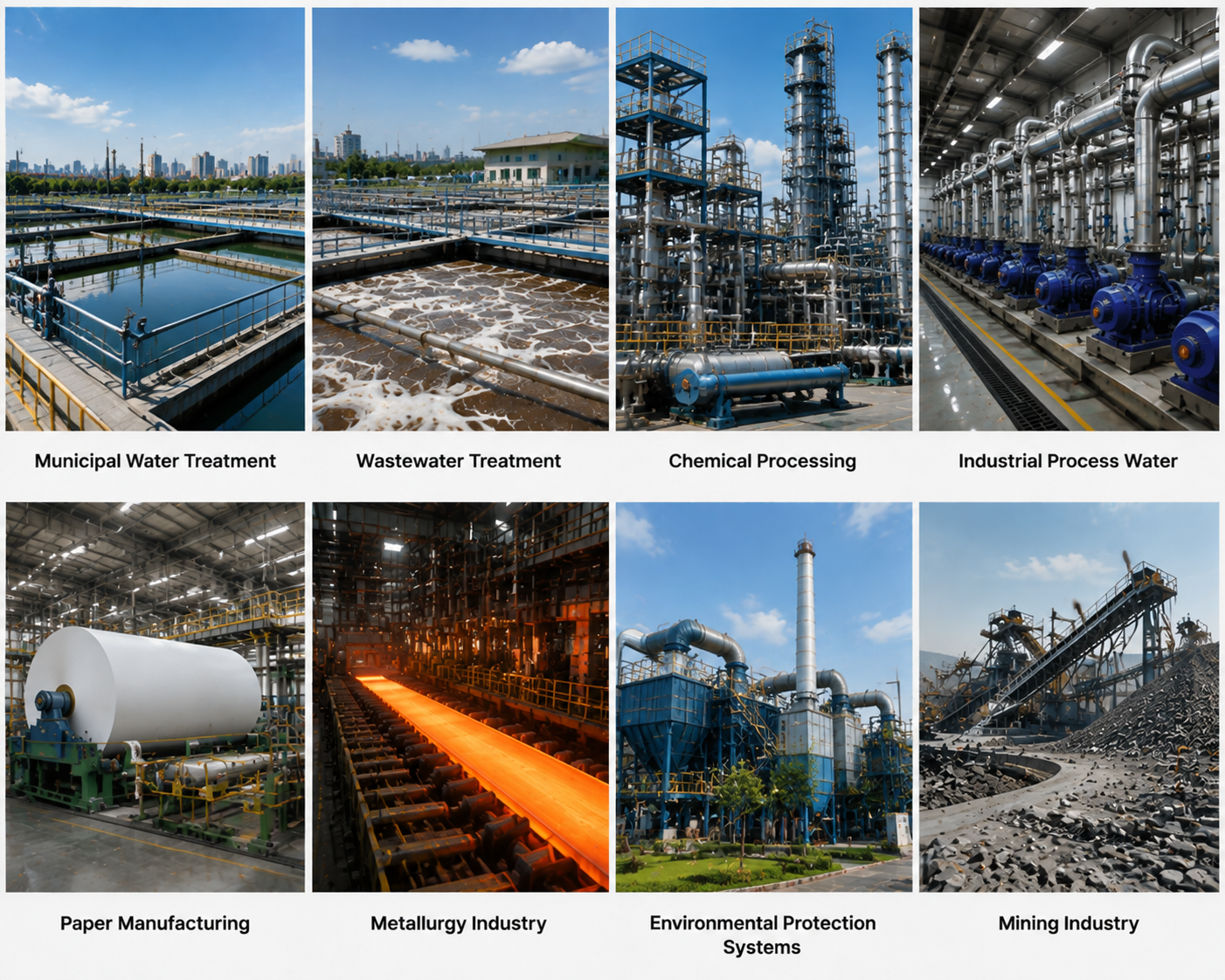

Applications

Technical Specifications

Medium Conductive liquids / liquid-solid two-phase fluids
Conductivity Requirement ≥5 μS/cm
Accuracy ±0.5% of measured value

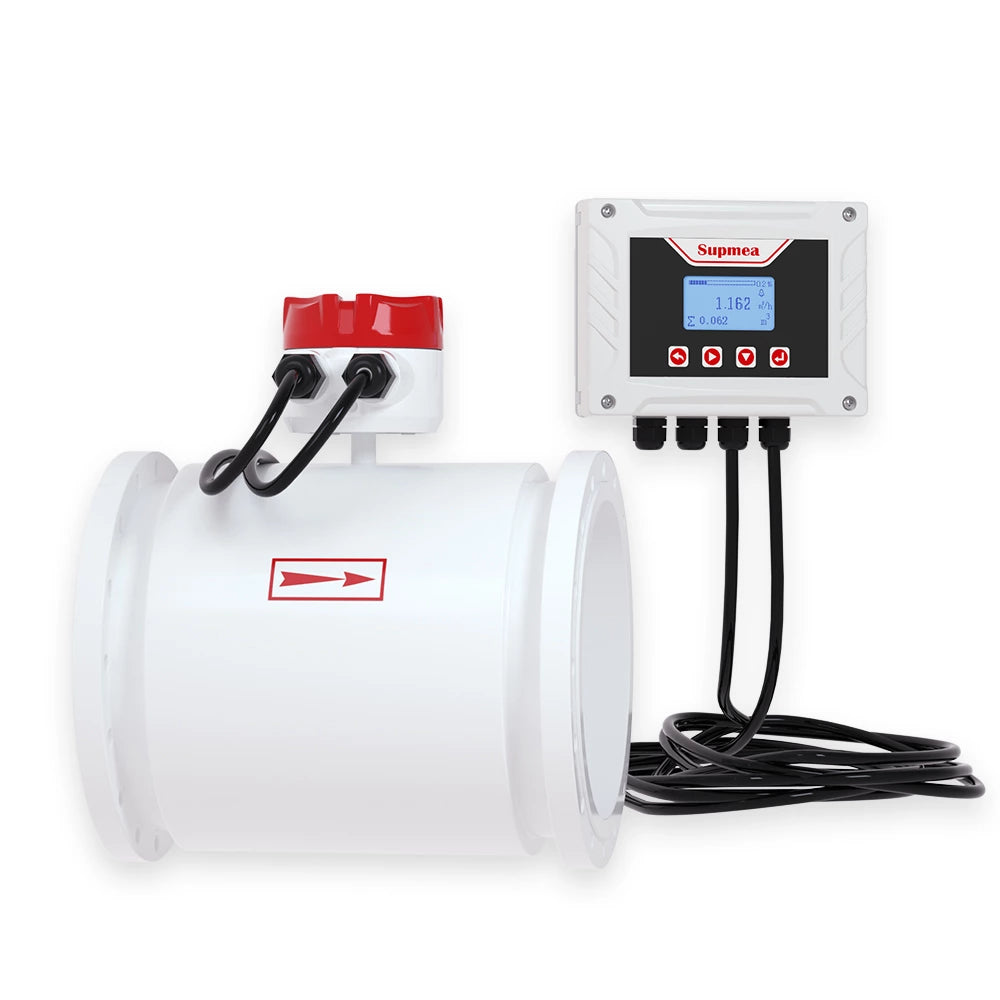

Nominal Diameter DN15–DN1200 (0.5"–48")
Flow Velocity Range 1.6–32.8 ft/s
Measurement Direction Forward / Reverse / Bidirectional
Liner Material PTFE / Rubber / Other options
Electrode Material 316L Stainless Steel / Other options
Output Signal 4–20 mA, Pulse, Frequency
Communication RS485 Modbus RTU
Power Supply 110 VAC, 50/60 Hz 24 VDC
Protection Grade IP65 / IP68 options
Structure Separate Sensor and Converter
Installation Type Remote Mounted
Converter Protection IP65

Downloads

User Manual
Datasheet

FAQ

What liquids can the LDG electromagnetic flowmeter measure?

LDG electromagnetic flowmeters are designed for conductive liquids and liquid-solid two-phase fluids. The liquid conductivity should meet the minimum requirement for stable measurement.

Can LDG measure reverse flow?

Yes. LDG supports forward, reverse and bidirectional flow measurement modes.

What is the difference between remote type and compact type electromagnetic flowmeter?

The remote type separates the sensor and converter with a signal cable connection, while the compact type integrates both components into one unit. Remote type is preferred when the installation location and display location need to be separated.

When should I choose a remote type electromagnetic flowmeter?

The remote type is recommended for applications where:

  • The pipeline installation space is limited
  • The converter needs to be installed in an easier-to-access location
  • The measurement point is located in a harsh environment
What warranty do you provide?

Please refer to BayMeters Warranty Policy or contact our sales team for warranty details.

How long does shipping take?

Products in the US warehouse typically ship within 3–5 business days
