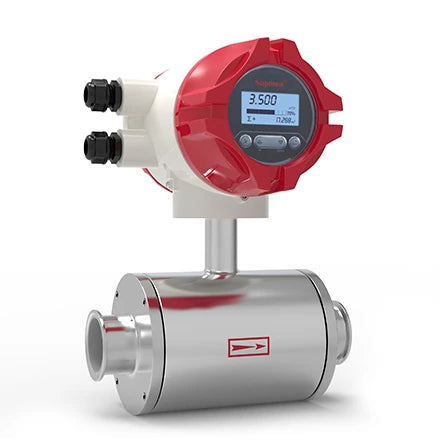

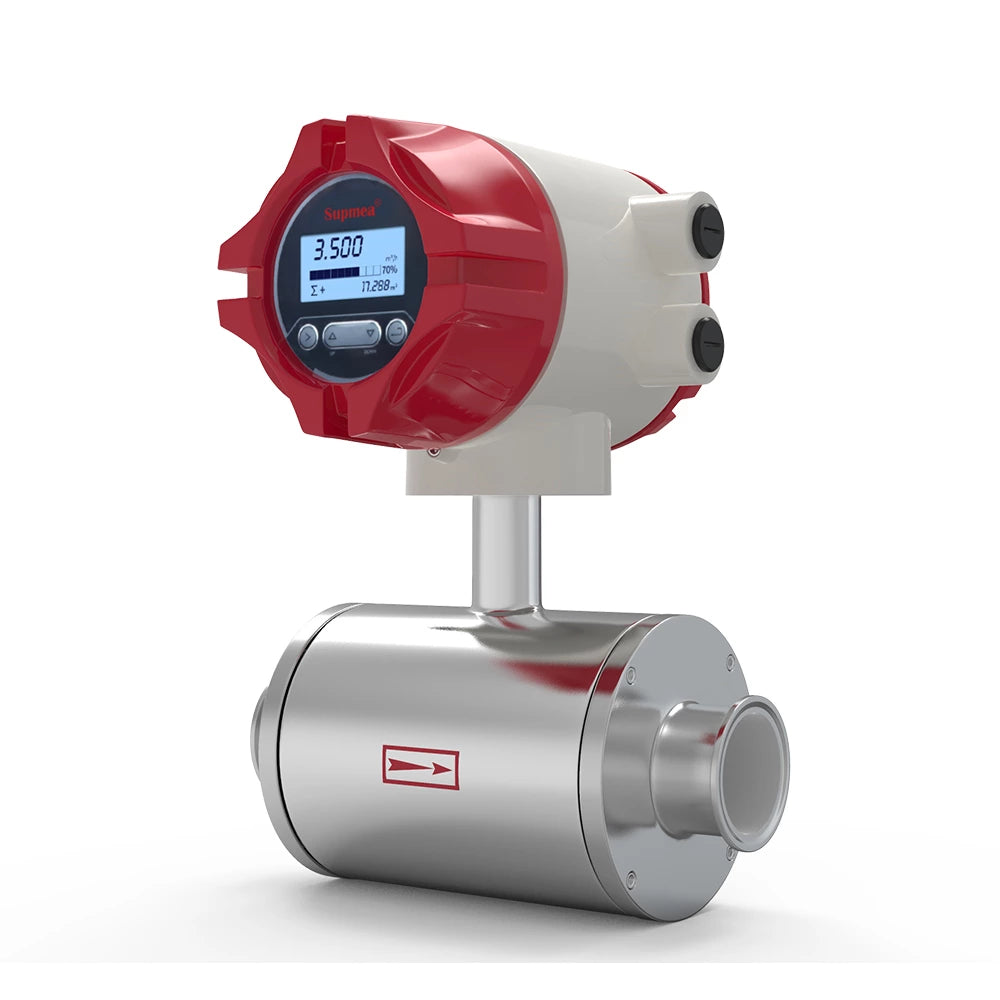

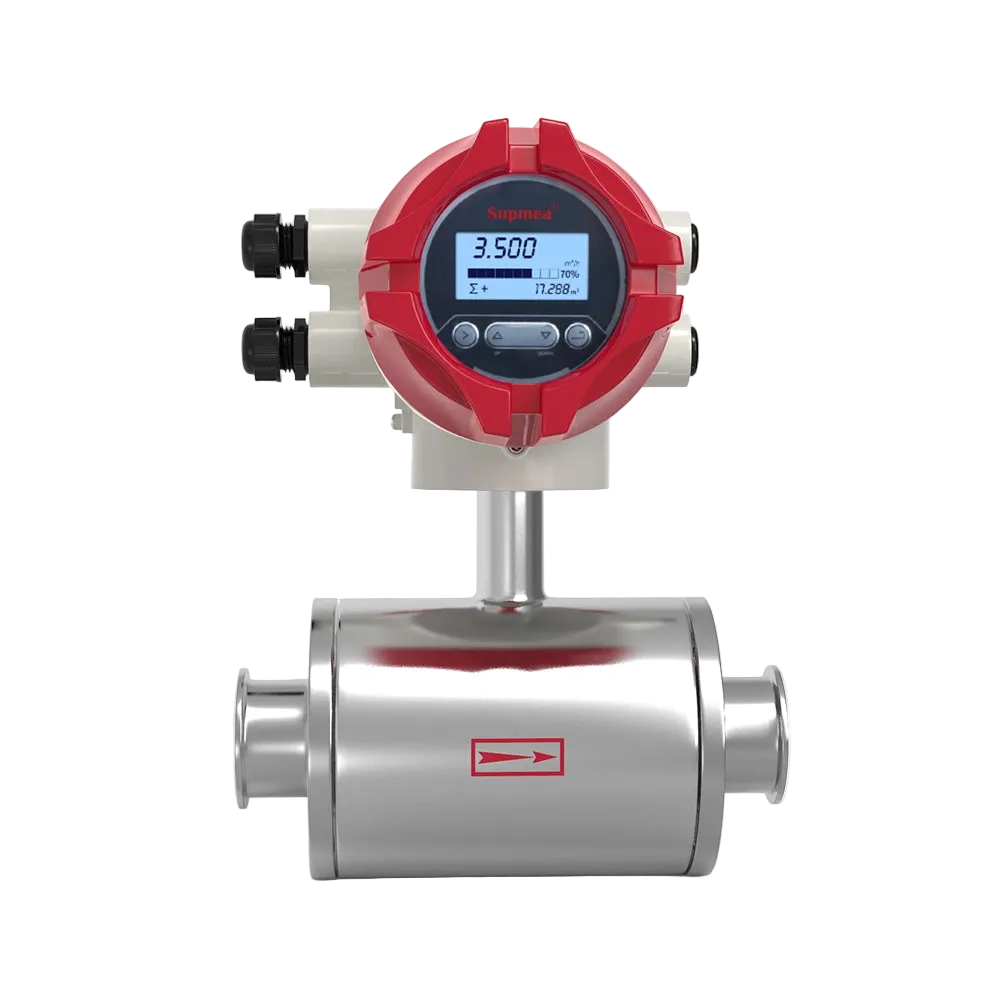

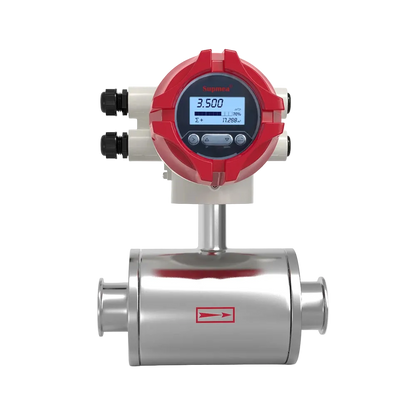

Supmea Electromagnetic Flowmeter for Sanitary Food Processing

Supmea Electromagnetic Flowmeter for Sanitary Food Processing

US$1,576.00
US$1,576.00
Sale Sold out
Prices Shown Include Delivery.

Lead Time: 4 Weeks Or More
View full details

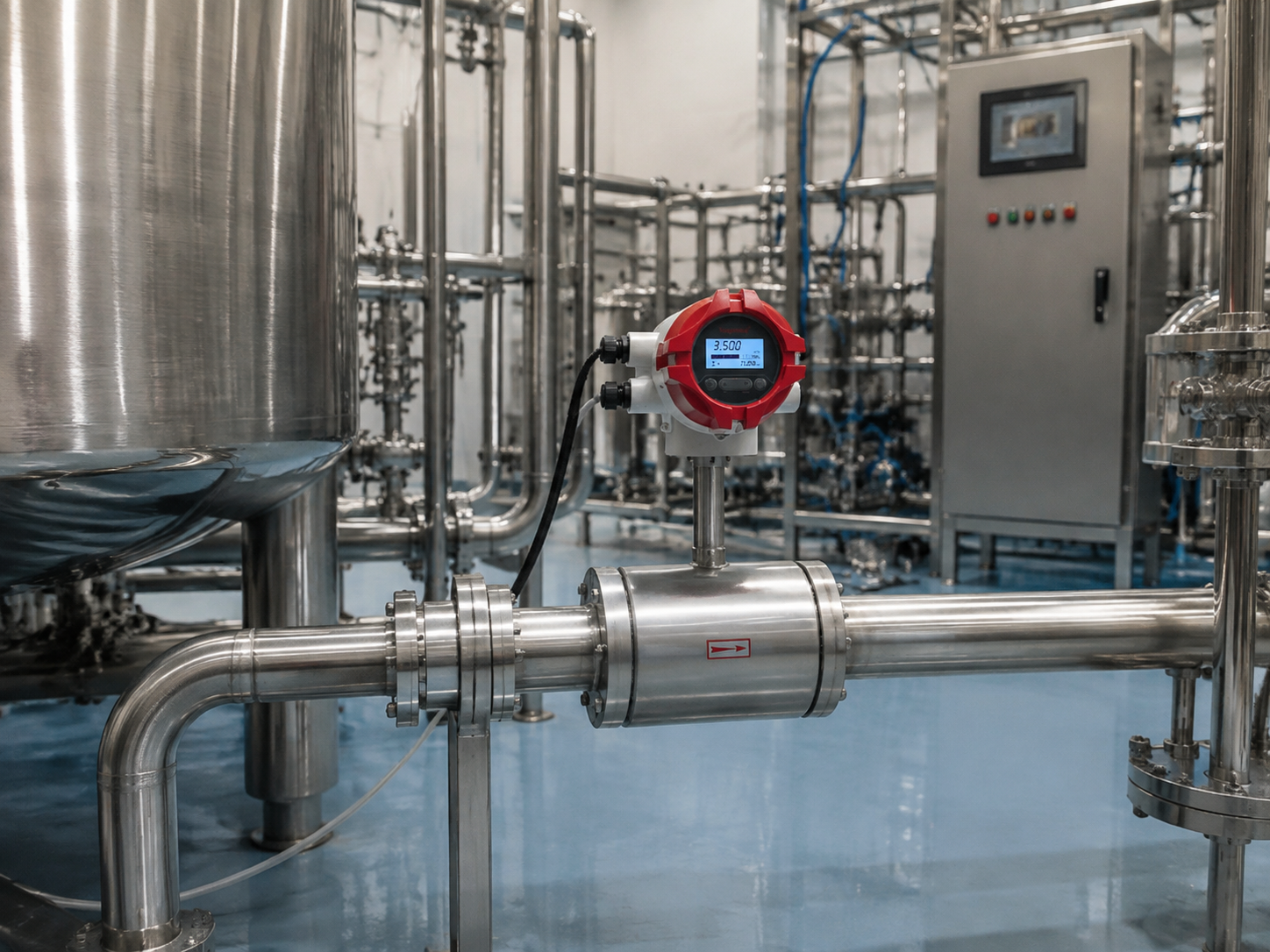

Product Overview

The Sanitary Electromagnetic Flowmeter is specially designed for hygienic liquid measurement in food, beverage, pharmaceutical and other sanitary processing applications. It features a sanitary connection design and food-grade wetted materials to meet strict hygiene requirements, while supporting easy cleaning and maintenance in production systems.

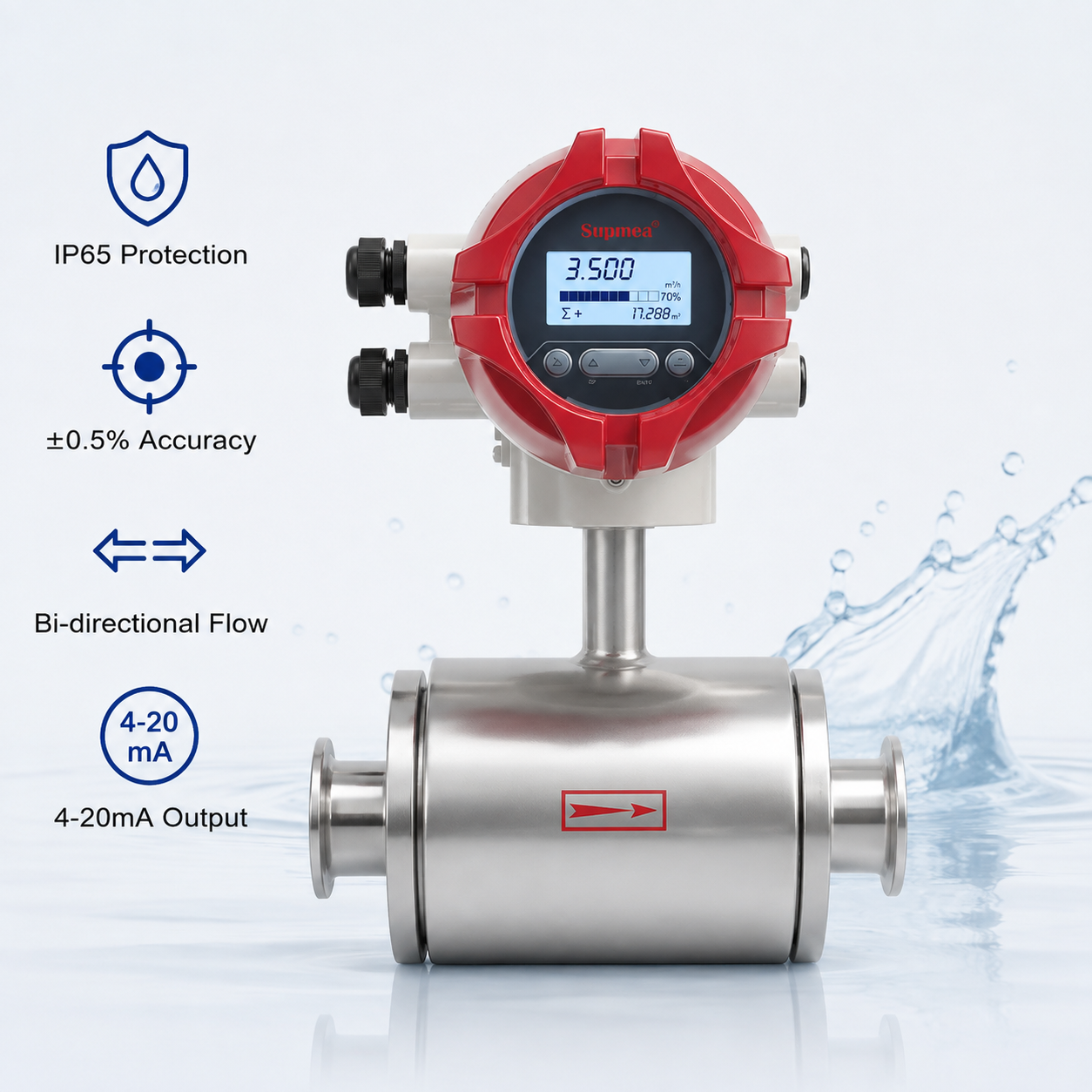

Key Features

  • Designed with smooth internal surfaces and sanitary-grade construction to minimize contamination risks and meet hygienic process requirements in food and beverage production.
  • Provides reliable flow measurement with accuracy up to ±0.5% of measured value under standard operating conditions.
  • Designed for measuring conductive liquids and liquid-solid two-phase flow in industrial pipelines. The measured liquid conductivity should generally be above 5 μS/cm.
  • With no moving parts inside the measuring tube, the electromagnetic flowmeter creates minimal resistance and avoids additional pressure loss.
  • Supports forward and reverse flow measurement with configurable flow direction settings.
  • Measurement performance is not affected by changes in liquid temperature, pressure, density and viscosity.

Applications

Technical Specifications

Medium Conductive liquids / liquid-solid two-phase fluids
Conductivity Requirement ≥5 μS/cm
Accuracy ±0.5% of measured value
Nominal Diameter DN15–DN1200 (0.5"–48")
Flow Velocity Range 1.6–32.8 ft/s
Measurement Direction Forward / Reverse / Bidirectional
Liner Material PTFE / Rubber / Other options
Electrode Material 316L Stainless Steel / Other options
Output Signal 4–20 mA, Pulse, Frequency
Communication RS485 Modbus RTU
Power Supply 110 VAC, 50/60 Hz 24 VDC
Protection Grade IP65 / IP68 options
Connection Type Sanitary Clamp / Hygienic Connection
Wetted Material Food-grade Stainless Steel Options
Cleaning Method CIP Compatible

Downloads

User Manual
Datasheet

FAQ

What liquids can the LDG electromagnetic flowmeter measure?

LDG electromagnetic flowmeters are designed for conductive liquids and liquid-solid two-phase fluids. The liquid conductivity should meet the minimum requirement for stable measurement.

Can LDG measure reverse flow?

Yes. LDG supports forward, reverse and bidirectional flow measurement modes.

What is the difference between sanitary and standard electromagnetic flowmeters?

The sanitary electromagnetic flowmeter is designed for hygienic applications with sanitary connections and food-grade wetted materials, while standard electromagnetic flowmeters are mainly used for general industrial processes.

Can the sanitary flowmeter be used with CIP cleaning systems?

Yes. The hygienic structure supports easy cleaning and is suitable for process systems using CIP cleaning procedures.

What warranty do you provide?

Please refer to BayMeters Warranty Policy or contact our sales team for warranty details.

How long does shipping take?

Products in the US warehouse typically ship within 3–5 business days
