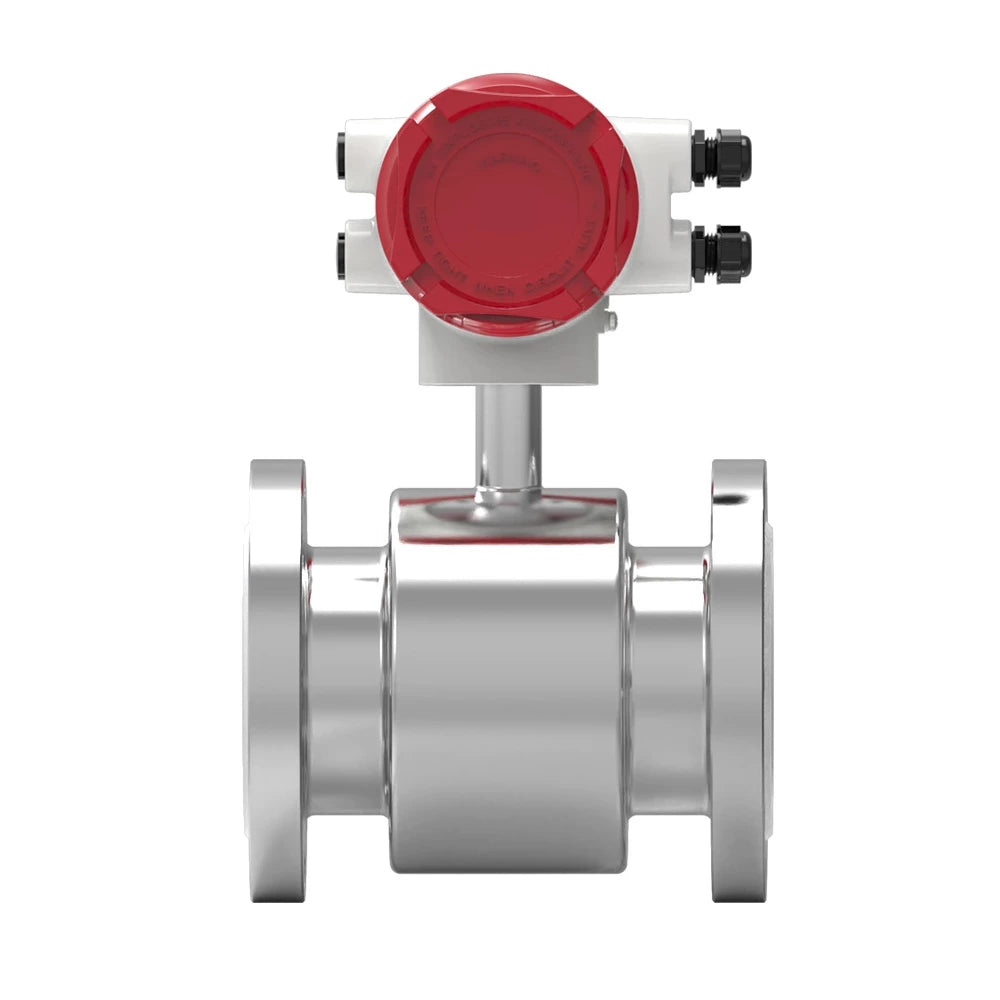

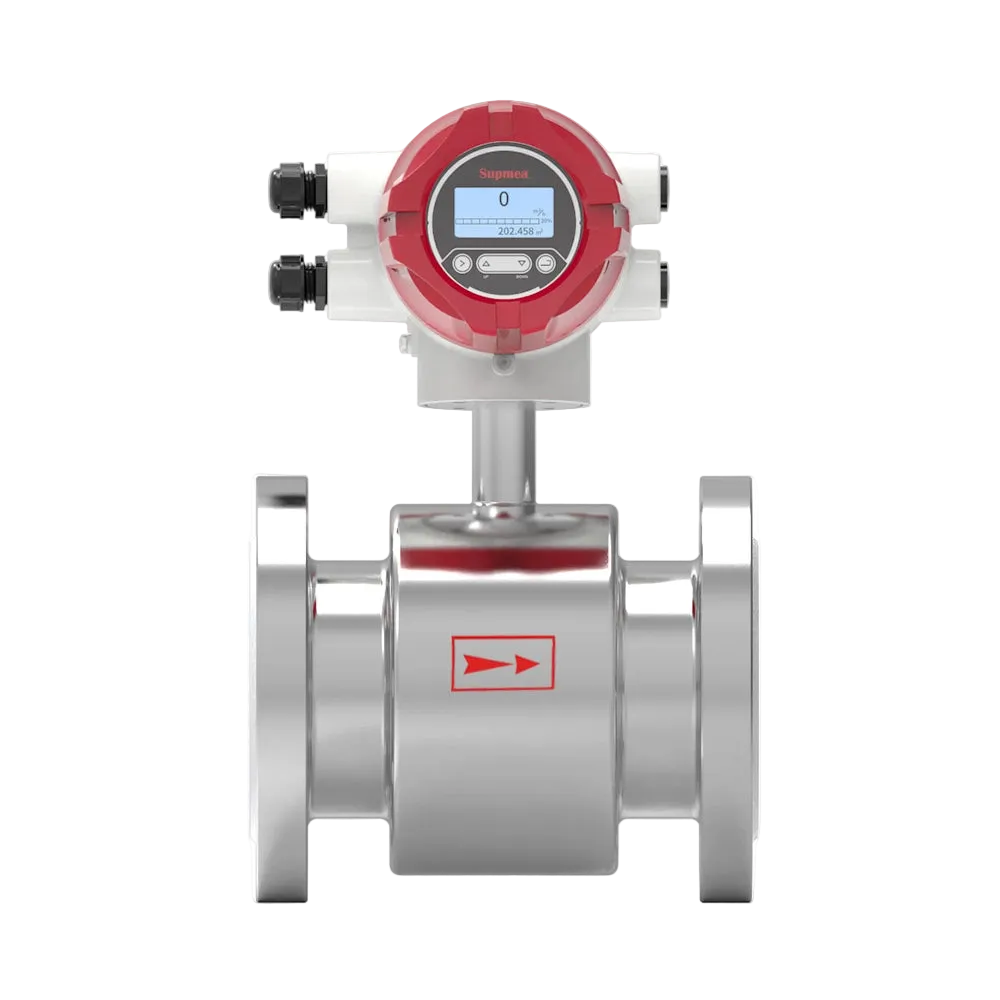

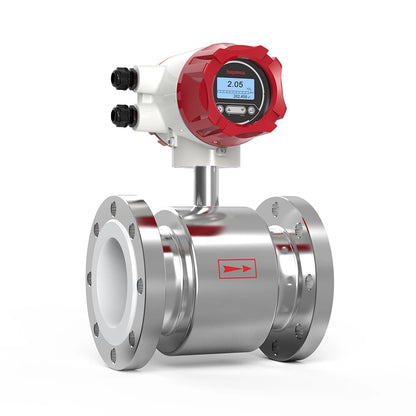

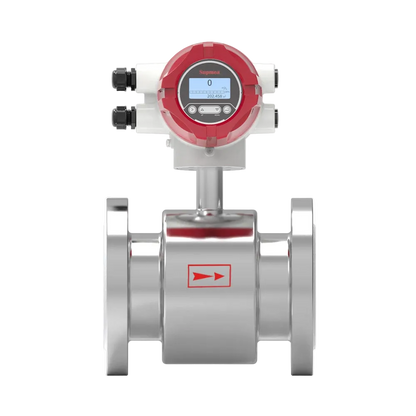

Supmea Electromagnetic Flowmeter with Stainless Steel Body

US$1,576.00

Sale Sold out

Prices Shown Include Delivery.

36-Month-Limited-Warranty

Lead Time: 4 Weeks Or More

View full details

Product Overview

The Stainless Steel Body Electromagnetic Flowmeter features a stainless steel sensor body design that provides enhanced mechanical strength, corrosion resistance, and durability for demanding industrial environments. It is designed for applications requiring reliable flow measurement in harsh conditions such as chemical processing, industrial water systems, and outdoor installations.

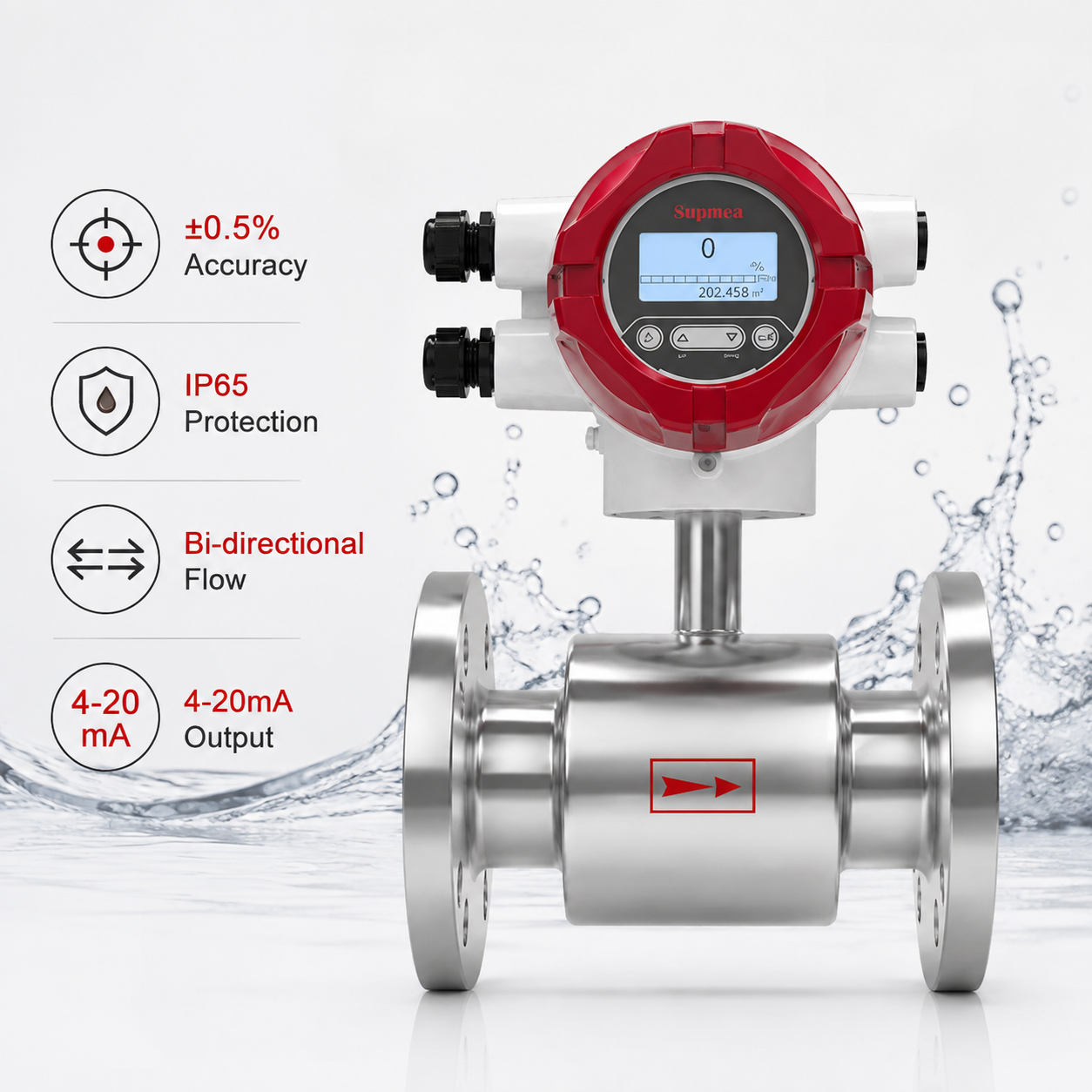

Key Features

Constructed with a stainless steel flow sensor body to improve corrosion resistance and mechanical durability in industrial environments.
Provides reliable flow measurement with accuracy up to ±0.5% of measured value under standard operating conditions.
Designed for measuring conductive liquids and liquid-solid two-phase flow in industrial pipelines. The measured liquid conductivity should generally be above 5 μS/cm.
The stainless steel structure provides better resistance against moisture, chemical exposure, and harsh operating conditions compared with standard painted housings.
Supports forward and reverse flow measurement with configurable flow direction settings.
Measurement performance is not affected by changes in liquid temperature, pressure, density and viscosity.

Applications

Technical Specifications

Medium	Conductive liquids / liquid-solid two-phase fluids
Conductivity Requirement	≥5 μS/cm
Accuracy	±0.5% of measured value
Nominal Diameter	DN15–DN1200 (0.5"–48")
Flow Velocity Range	1.6–32.8 ft/s
Measurement Direction	Forward / Reverse / Bidirectional
Liner Material	PTFE / Rubber / Other options
Electrode Material	316L Stainless Steel / Other options
Output Signal	4–20 mA, Pulse, Frequency
Communication	RS485 Modbus RTU
Power Supply	110 VAC, 50/60 Hz 24 VDC
Protection Grade	IP65 / IP68 options
Housing Structure	Stainless Steel Sensor Body
Installation Type	Pipeline Mounted

Downloads

User Manual

Datasheet

FAQ

What liquids can the LDG electromagnetic flowmeter measure?

LDG electromagnetic flowmeters are designed for conductive liquids and liquid-solid two-phase fluids. The liquid conductivity should meet the minimum requirement for stable measurement.

Can LDG measure reverse flow?

Yes. LDG supports forward, reverse and bidirectional flow measurement modes.

What is the difference between stainless steel body and standard electromagnetic flowmeters?

The stainless steel body electromagnetic flowmeter uses a stainless steel sensor housing to provide improved corrosion resistance and mechanical durability for demanding industrial environments.

Why choose a stainless steel body electromagnetic flowmeter?

It is recommended for applications where stronger mechanical protection, corrosion resistance, and long-term reliability are required.
