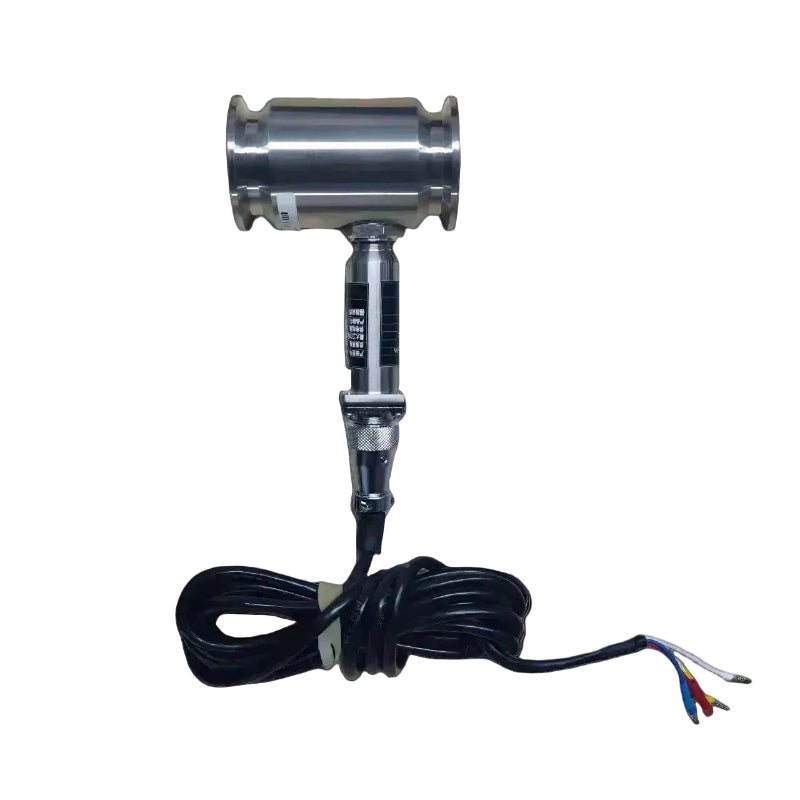

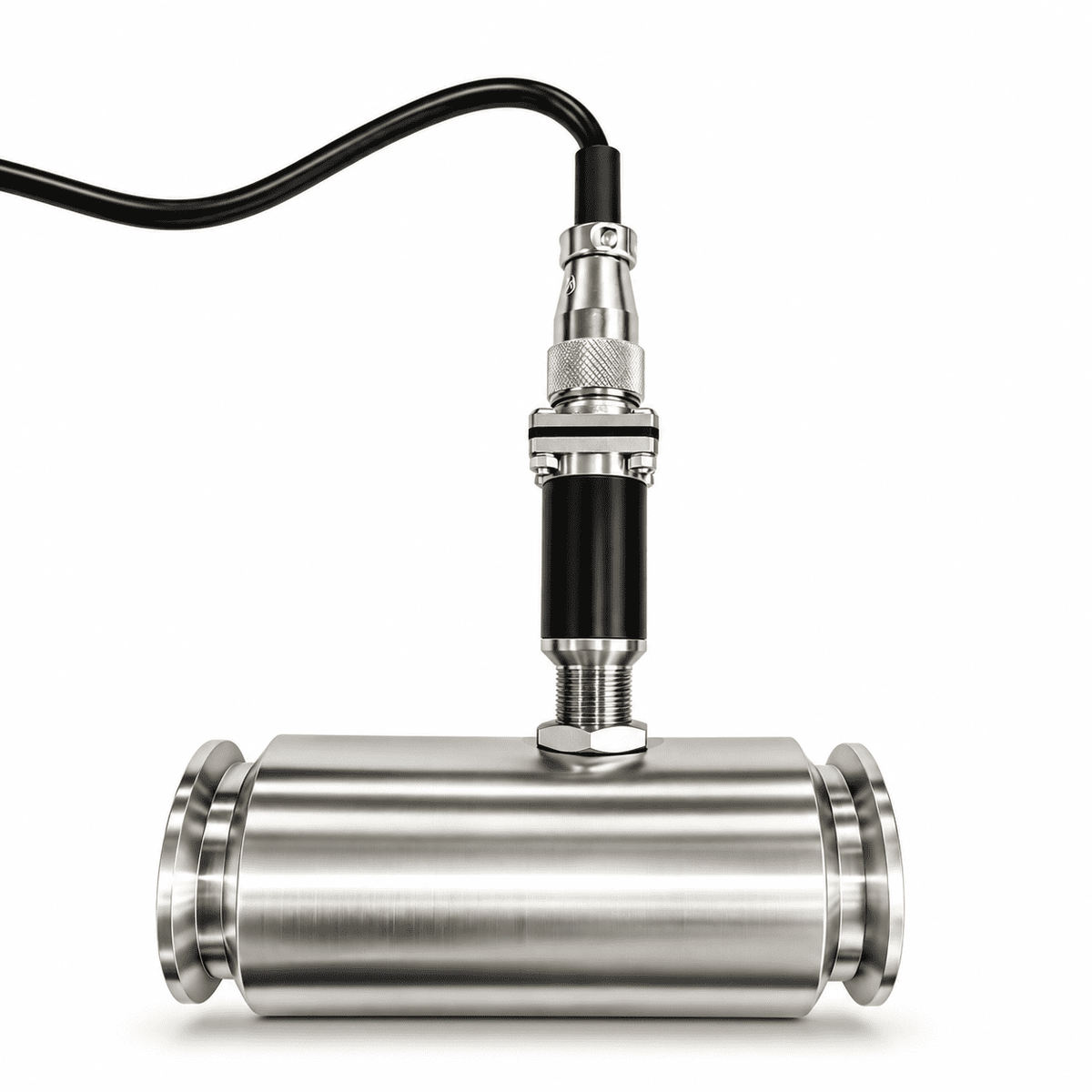

Supmea FLC420 Turbine Flowmeter

Supmea FLC420 Turbine Flowmeter

US$331.00
US$331.00
Sale Sold out
Prices Shown Include Delivery.

Lead Time: 4 Weeks Or More

Datasheet User Manual
View full details
Overview
Features
Applications
Specifications
Downloads
FAQ

Product Overview

The FLC420 Turbine Flowmeter is designed for accurate volumetric flow measurement of low-viscosity liquids in closed pipelines. It uses a turbine rotor structure to convert liquid velocity into pulse signals, providing reliable flow monitoring for clean liquids in pharmaceutical, chemical, food & beverage, and small-scale production applications.

Key Features

  • Provides reliable measurement performance with accuracy up to Class 0.5 and excellent repeatability for demanding flow monitoring applications.
  • Supports a range ratio up to 10:1, allowing flexible measurement across different flow conditions.
  • Designed for efficient operation with maximum power consumption of only 0.5W under 24VDC supply.
  • Available with threaded, flange, and clamp process connections to fit different installation requirements.
  • Uses 304SS casing with optional 304SS or 316LSS body materials for corrosion resistance and durability.
  • Provides active pulse output signals for easy integration with flow displays, controllers, and automation systems.
