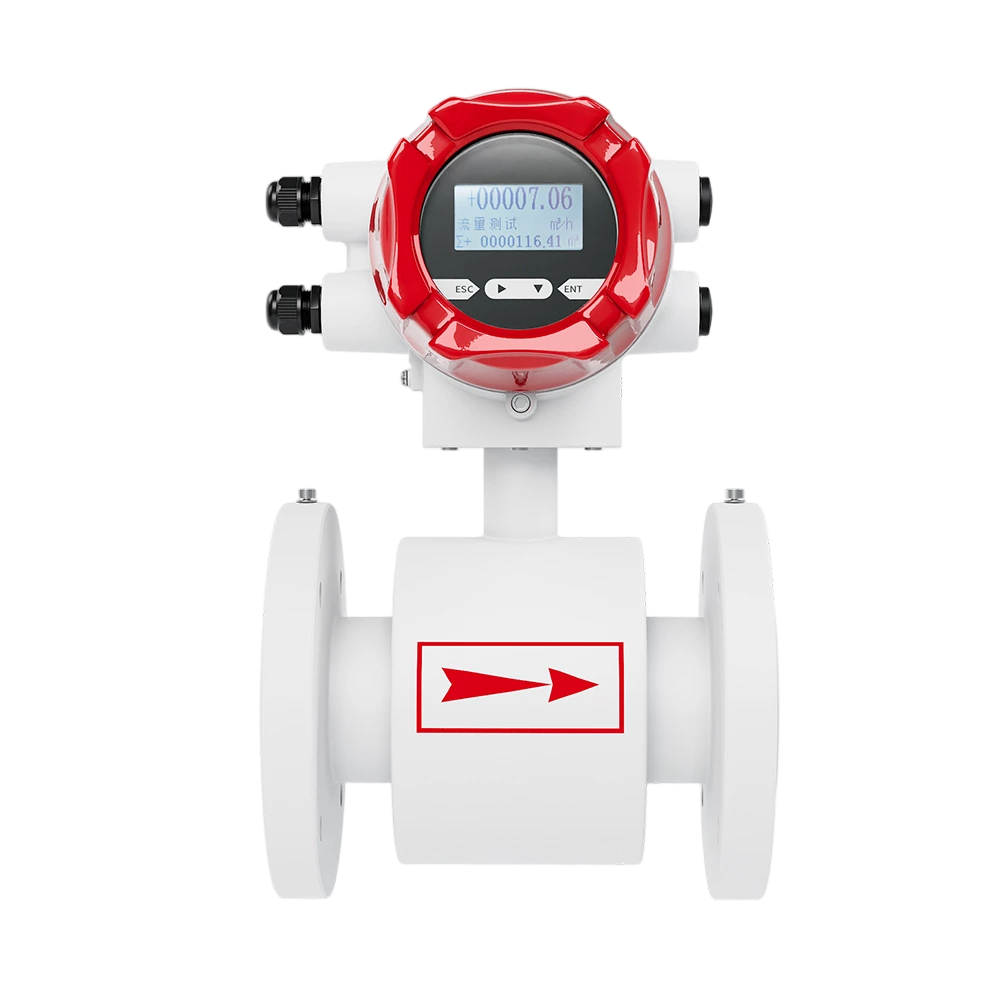

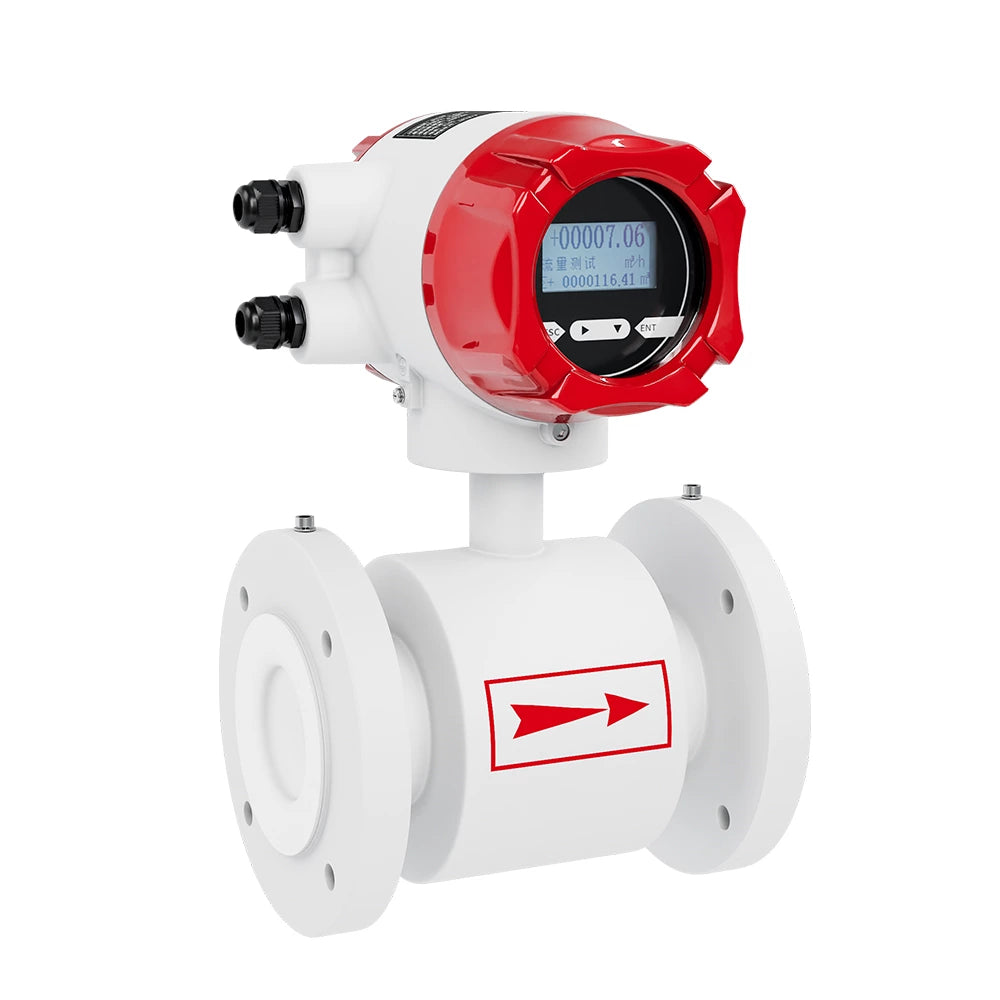

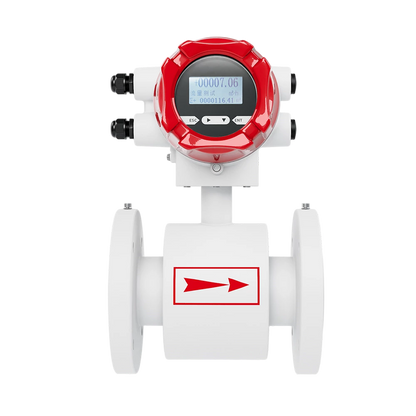

Supmea FMC400 Electromagnetic Flowmeter for Low Conductivity Medium

Supmea FMC400 Electromagnetic Flowmeter for Low Conductivity Medium

US$1,481.00
US$1,481.00
Sale Sold out
Prices Shown Include Delivery.

Lead Time: 4 Weeks Or More
View full details

Product Overview

The FMC400 Electromagnetic Flow Meter is a high-performance flow measurement solution designed for conductive liquids in closed pipelines. Based on Faraday's electromagnetic induction principle, it delivers highly accurate, bidirectional flow measurement without moving parts, ensuring long-term stability and virtually maintenance-free operation.Supporting 4–20 mA, pulse output, and RS485 Modbus RTU communication, the FMC400 integrates easily with PLC and SCADA systems. Its adjustable display orientation, multilingual interface, and wide selection of liner and electrode materials make it suitable for water treatment, chemical processing, mining, pulp & paper, and other demanding industrial applications.

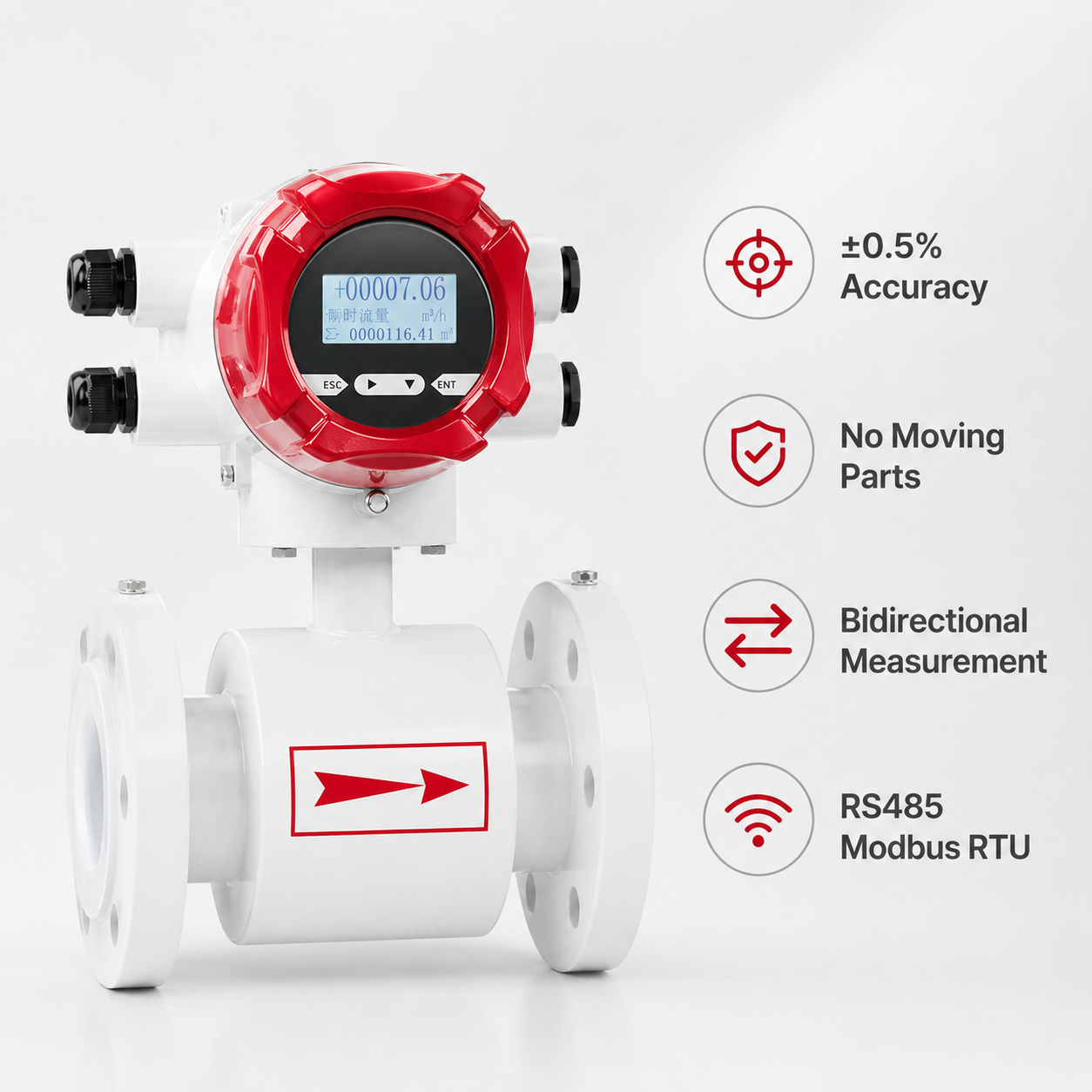

Key Features

  • Provides ±0.5% accuracy with excellent long-term stability for reliable process control.
  • The full-bore electromagnetic design eliminates mechanical wear, reducing maintenance and extending service life.
  • Measures forward and reverse flow with the same high level of accuracy.
  • Advanced low-frequency square-wave excitation ensures stable zero-point performance and reliable operation in noisy industrial environments.
  • The converter display can be rotated for convenient viewing after installation.
  • Designed for continuous operation in harsh industrial environments with a rugged aluminum housing and IP65 protection.

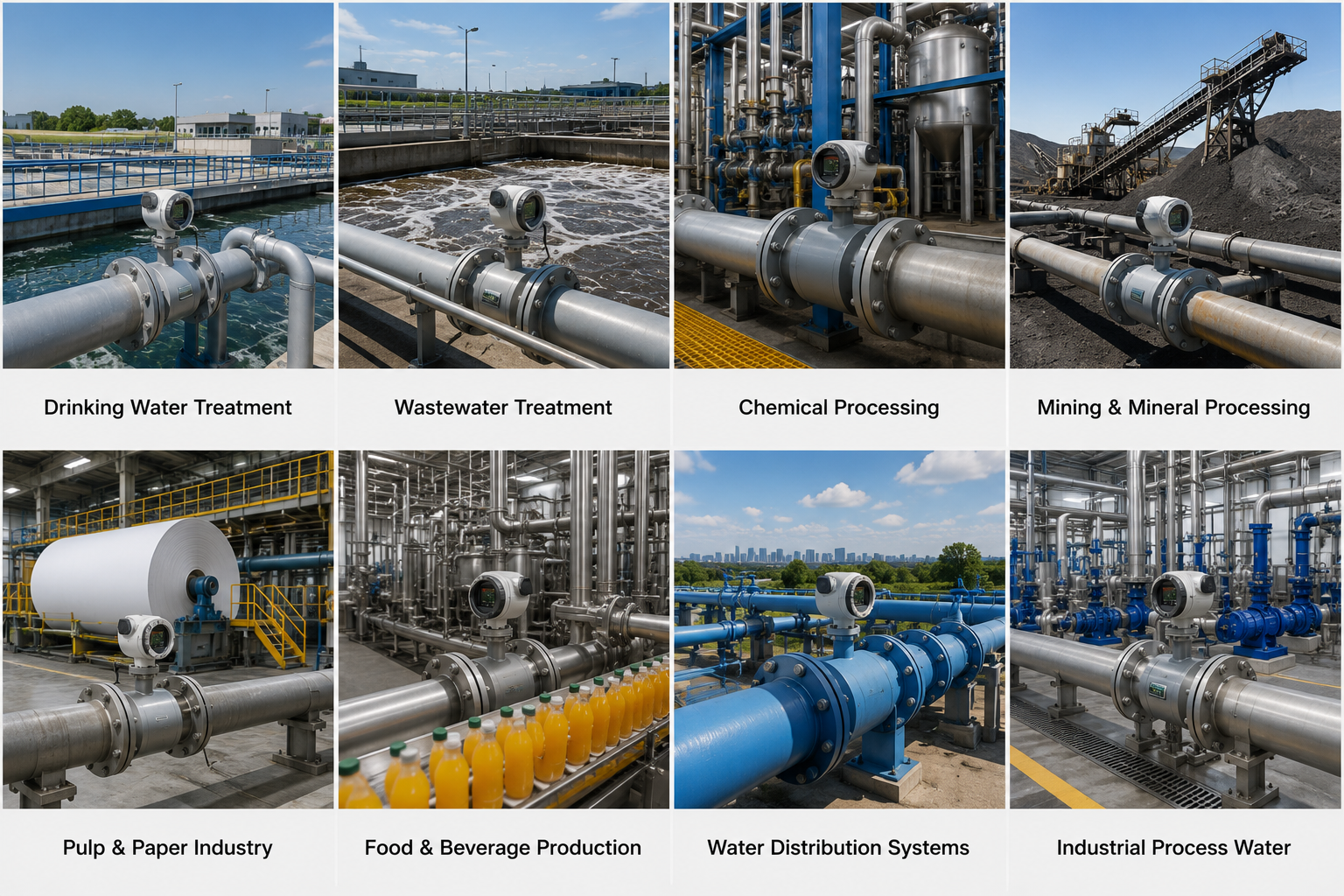

Applications

Technical Specifications

Measured Variable Volumetric Flow
Pipe Size DN10–DN1000 (3/8"–40")
Accuracy ±0.5% of Reading
Repeatability ≤0.16%
Flow Velocity 1.6–16.4 ft/s (0.5–5 m/s)
Output Signal 4–20 mA, Pulse
Communication RS485 (Modbus RTU)
Power Supply 110 VAC, 50/60 Hz or 24 VDC
Power Consumption ≤8 W
Minimum Conductivity ≥5 μS/cm
Process Temperature 14–248°F (-10–120°C, depending on liner)
Pressure Rating Up to 232 psi (PN16), optional higher pressure
Protection Rating IP65

Downloads

User Manual
Datasheet

FAQ

What liquids can the FMC400 measure?

The FMC400 is designed for electrically conductive liquids with conductivity above 5 μS/cm, including water, wastewater, slurry, acids, alkalis, and many chemical solutions.

Is regular maintenance required?

No. Because the flowmeter has no moving parts, routine maintenance is minimal, reducing downtime and operating costs.

Can the display be rotated after installation?

Yes. The converter display orientation can be adjusted, making it easier to read regardless of the installation position.

Does the flow direction affect measurement accuracy?

No. The FMC400 measures both forward and reverse flow accurately without recalibration.

What warranty do you provide?

Please refer to BayMeters Warranty Policy or contact our sales team for warranty details.

How long does shipping take?

Products in the US warehouse typically ship within 3–5 business days
