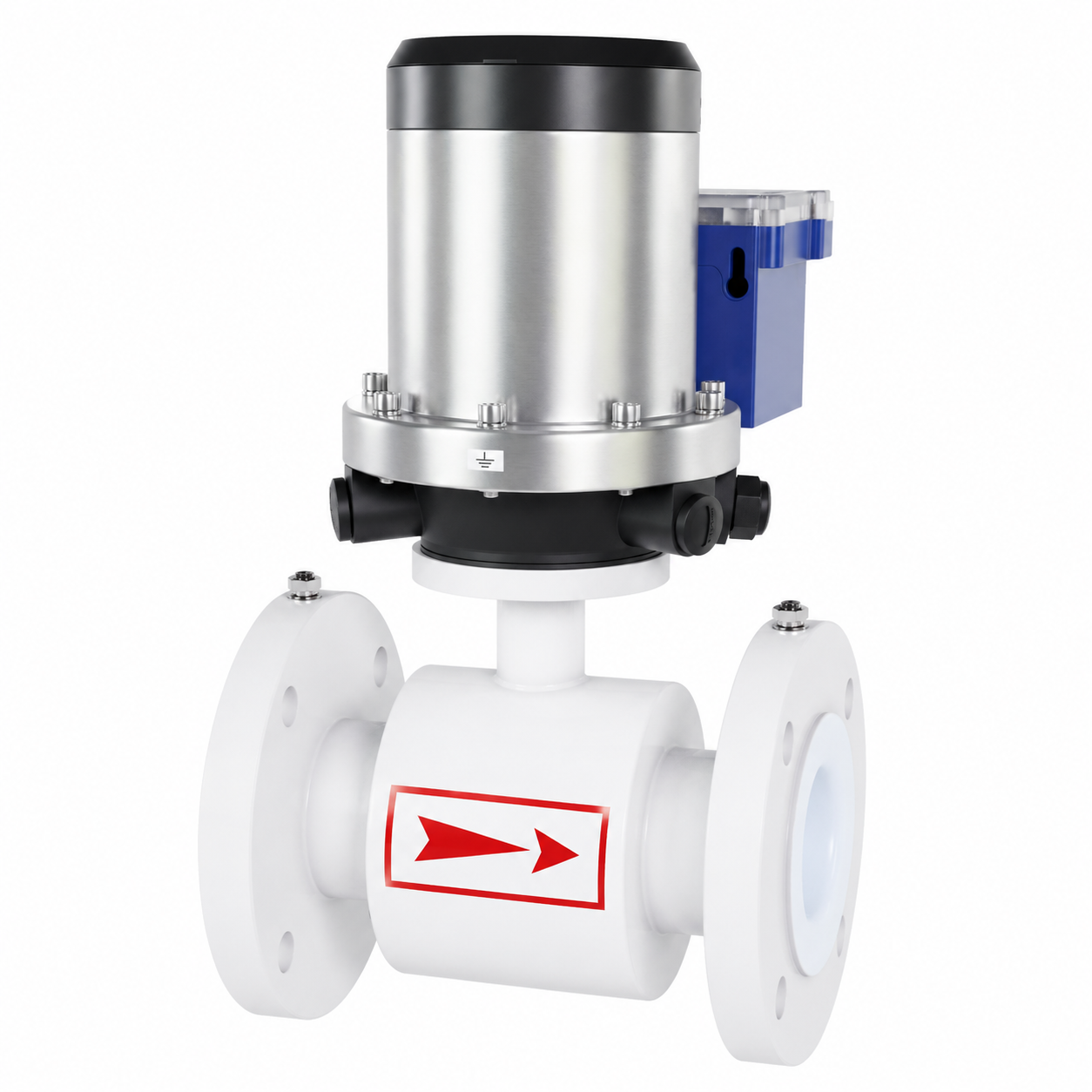

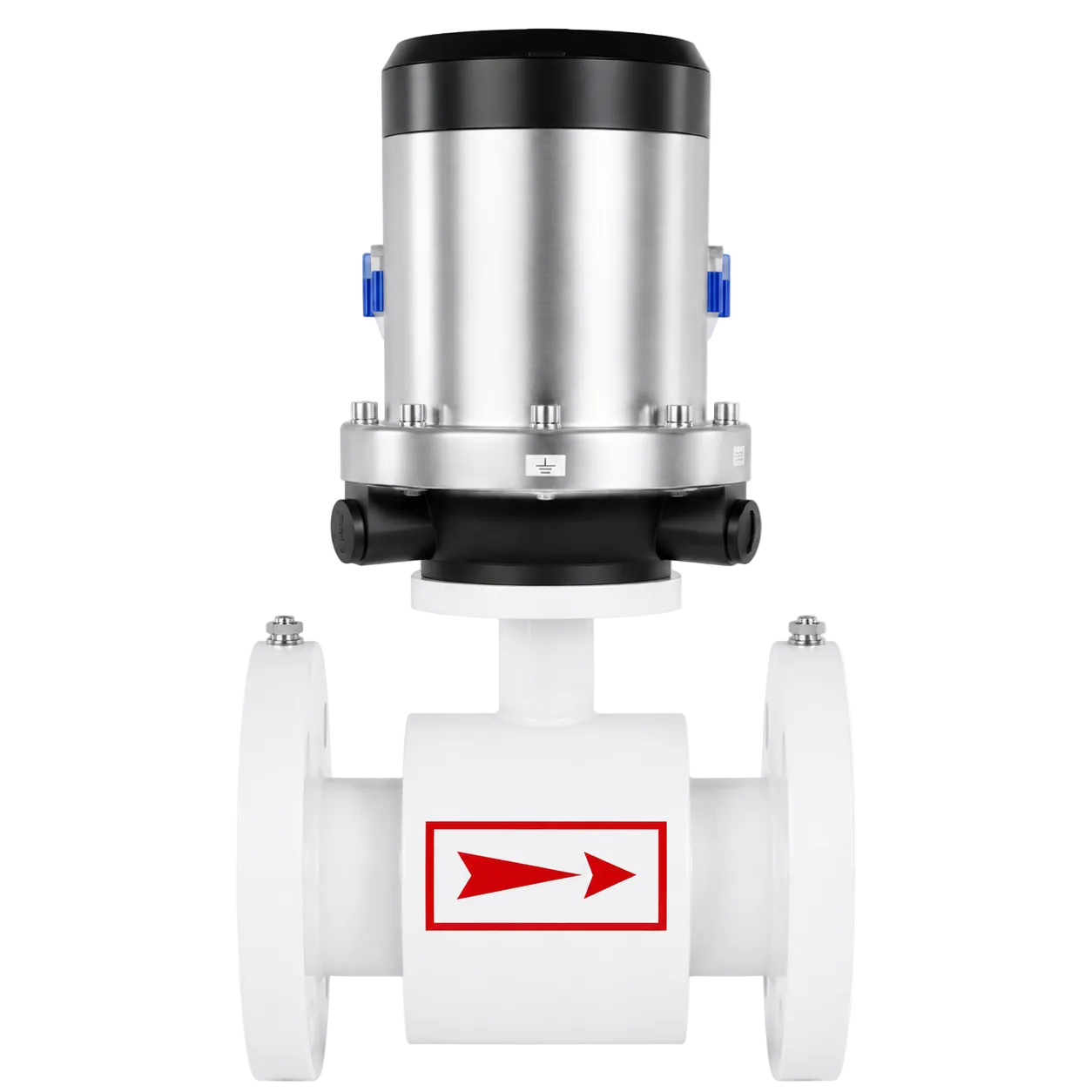

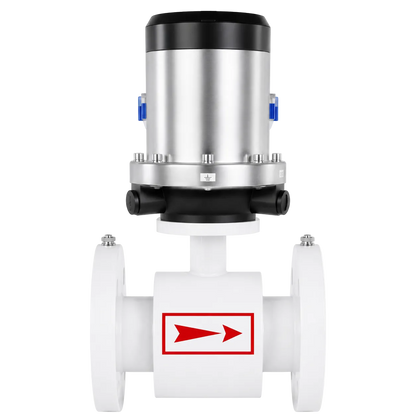

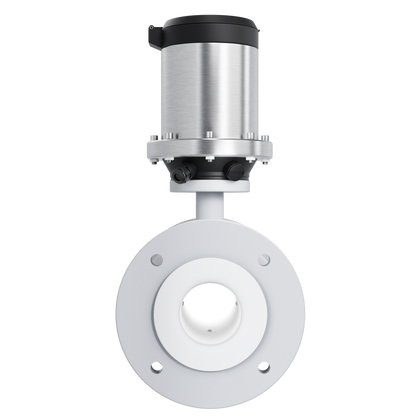

Supmea FMC800 Battery Power Magnetic Flowmeter

Supmea FMC800 Battery Power Magnetic Flowmeter

US$1,649.00
US$1,649.00
Sale Sold out
Prices Shown Include Delivery.

Lead Time: 4 Weeks Or More
View full details

Product Overview

The BayMeters Battery Powered Electromagnetic Flowmeter is designed for reliable flow measurement in locations where mains power is unavailable or difficult to access. Featuring a long-life lithium battery, IP68 protection, and optional 4G or RS485 communication, it is ideal for municipal water distribution, irrigation networks, groundwater monitoring, and remote industrial installations. Based on Faraday's electromagnetic induction principle, it delivers stable and accurate measurement for conductive liquids while minimizing maintenance requirements.

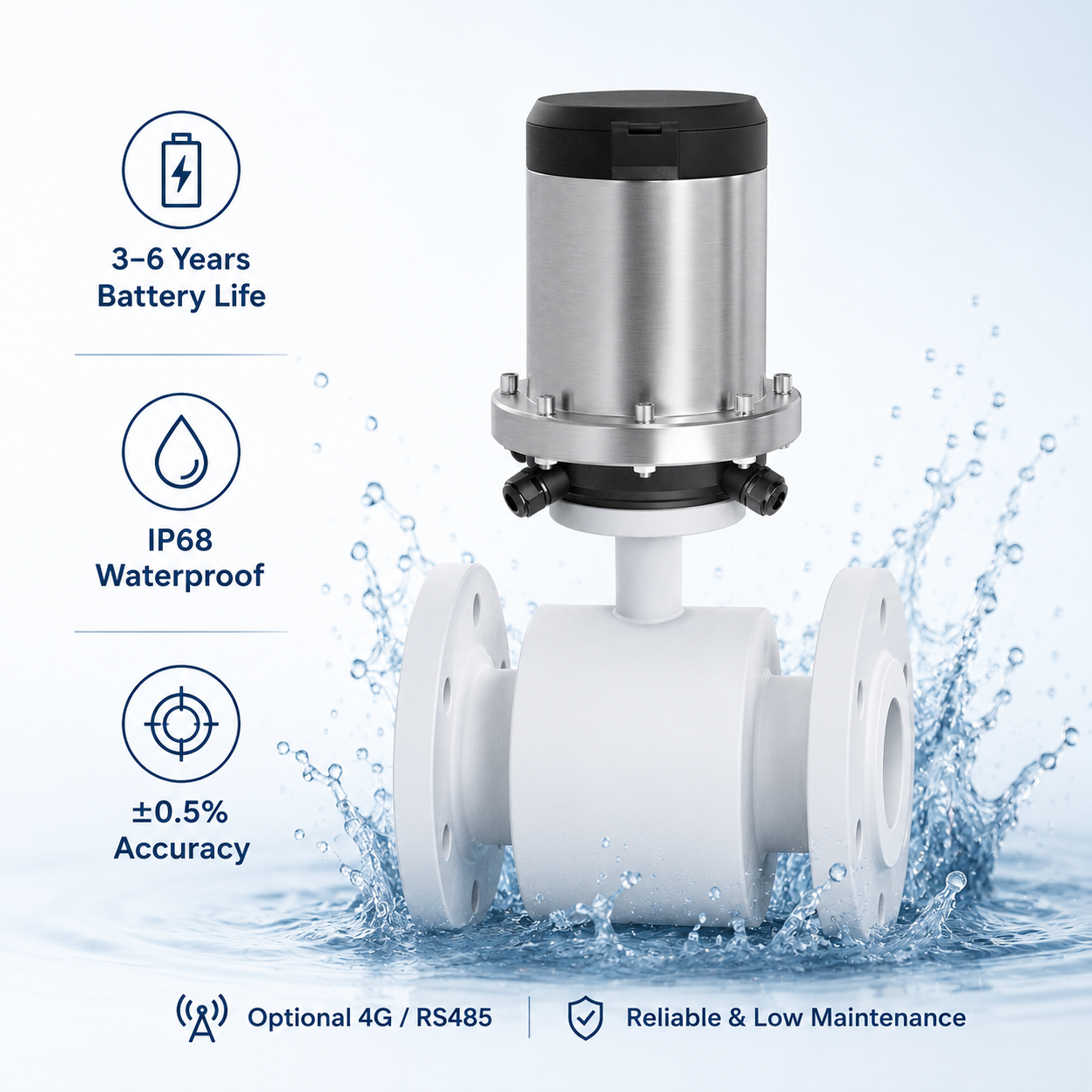

Key Features

  • Powered by an integrated 3.6V lithium battery capable of operating continuously for approximately 3–6 years without external power.
  • Provides Class 0.5 accuracy with excellent repeatability for reliable long-term monitoring.
  • Multiple electrode and lining materials provide compatibility with a wide variety of conductive liquids.

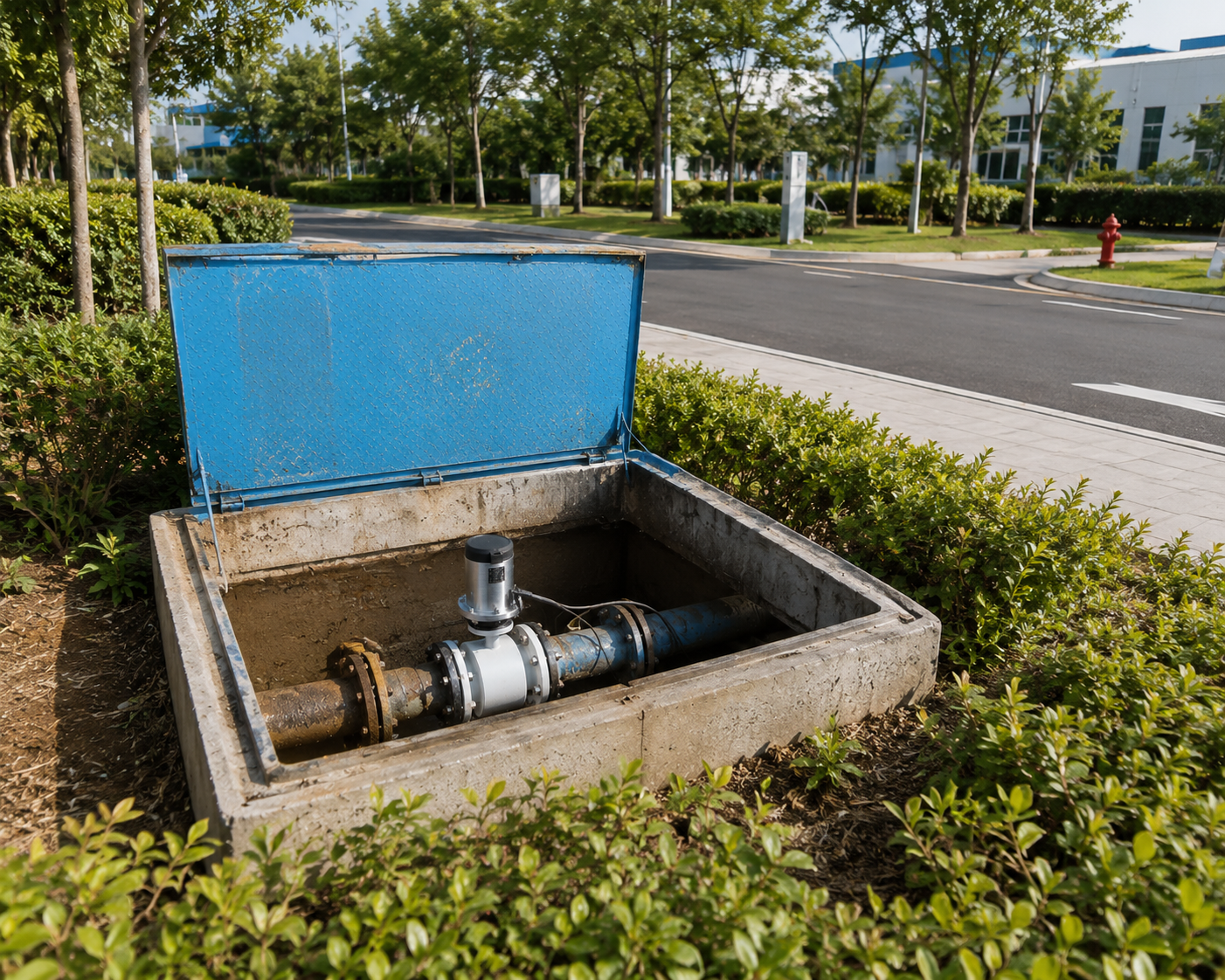

  • Fully sealed housing allows installation in underground pits, flooded chambers, and other harsh outdoor environments.
  • No moving mechanical parts reduce wear while ensuring long service life and stable performance.
  • Ideal for locations without stable power supply, including irrigation systems, district metering areas (DMA), and water distribution networks.

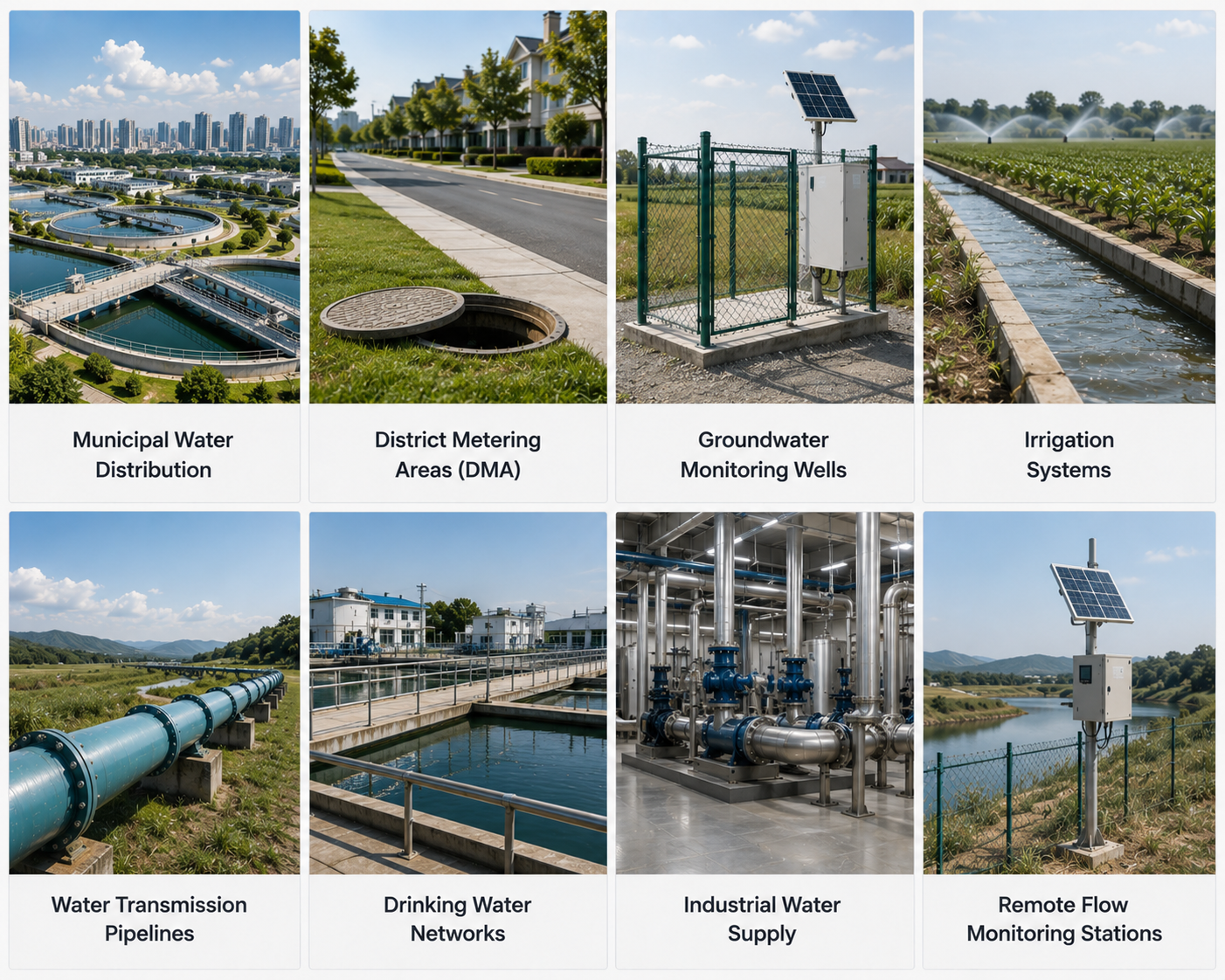

Applications

Technical Specifications

Accuracy ±0.5% of Reading
Repeatability 0.16%
Pipe Size DN15–DN1000 (1/2"–40")
Flow Velocity 0.5–5 m/s Recommended
Conductivity Requirement ≥20 μS/cm
Power Supply 3.6V Lithium Battery / Dual Power (Battery + 12VDC or 24VDC)
Communication RS485 (Modbus RTU), Optional 4G
Protection Rating IP68
Cable Entry M20 × 1.5
Operating Pressure Up to PN16 (DN15–DN250), PN10 (DN300–DN1000)
Medium Temperature Up to 120°C (depending on liner material)
Electrode Materials 316L SS, Hastelloy B/C, Titanium, Tantalum, Platinum-Iridium, Tungsten Carbide
Lining Materials PTFE, FEP, PFA, Polyurethane, Chloroprene Rubber

Downloads

User Manual
Datasheet

FAQ

What liquids can the FMC800 measure?

It measures electrically conductive liquids with a conductivity of at least 20 μS/cm.

Does the flowmeter require external power?

No. It can operate using an internal lithium battery. Dual-power versions with 12VDC or 24VDC are also available.

Is the flowmeter suitable for underground installation?

Yes. With its IP68-rated enclosure, the FMC800 is designed for underground chambers, meter pits, and other wet environments.

How often does the sensor require maintenance?

Yes. With its IP68-rated enclosure, the FMC800 is designed for underground chambers, meter pits, and other wet environments.

What warranty do you provide?

Please refer to BayMeters Warranty Policy or contact our sales team for warranty details.

How long does shipping take?

Products in the US warehouse typically ship within 3–5 business days
