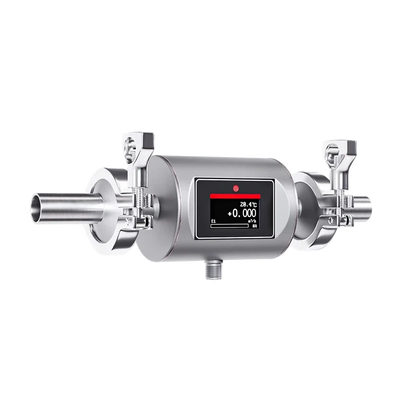

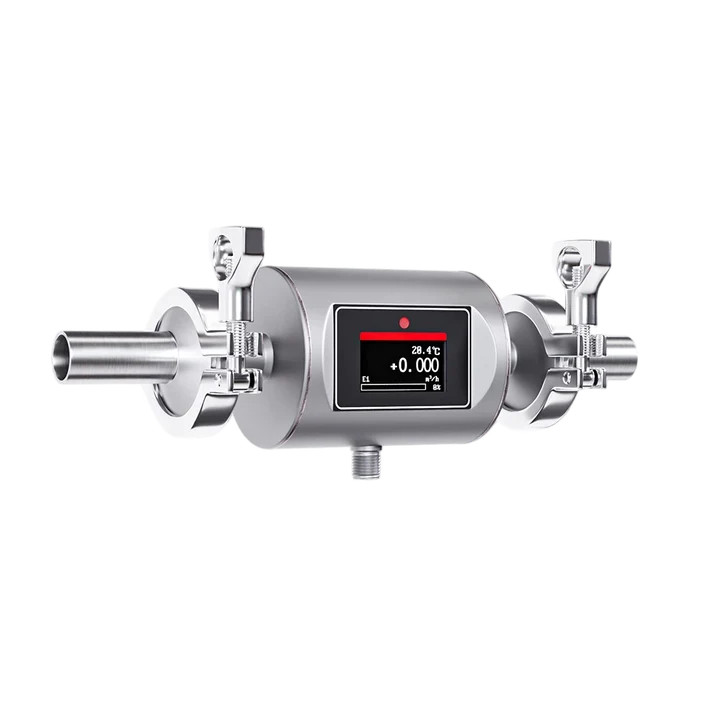

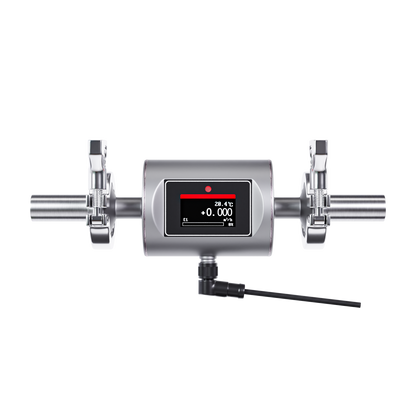

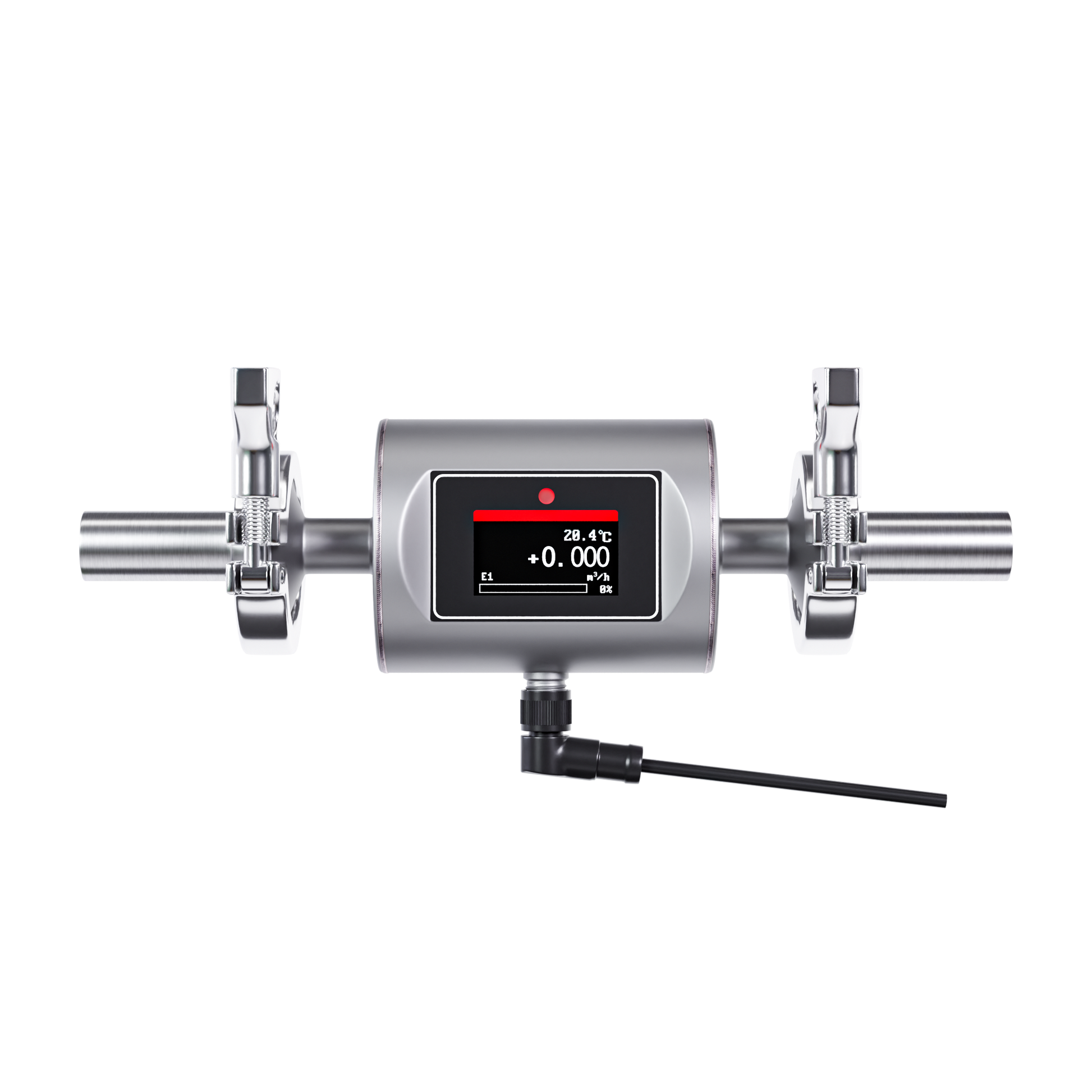

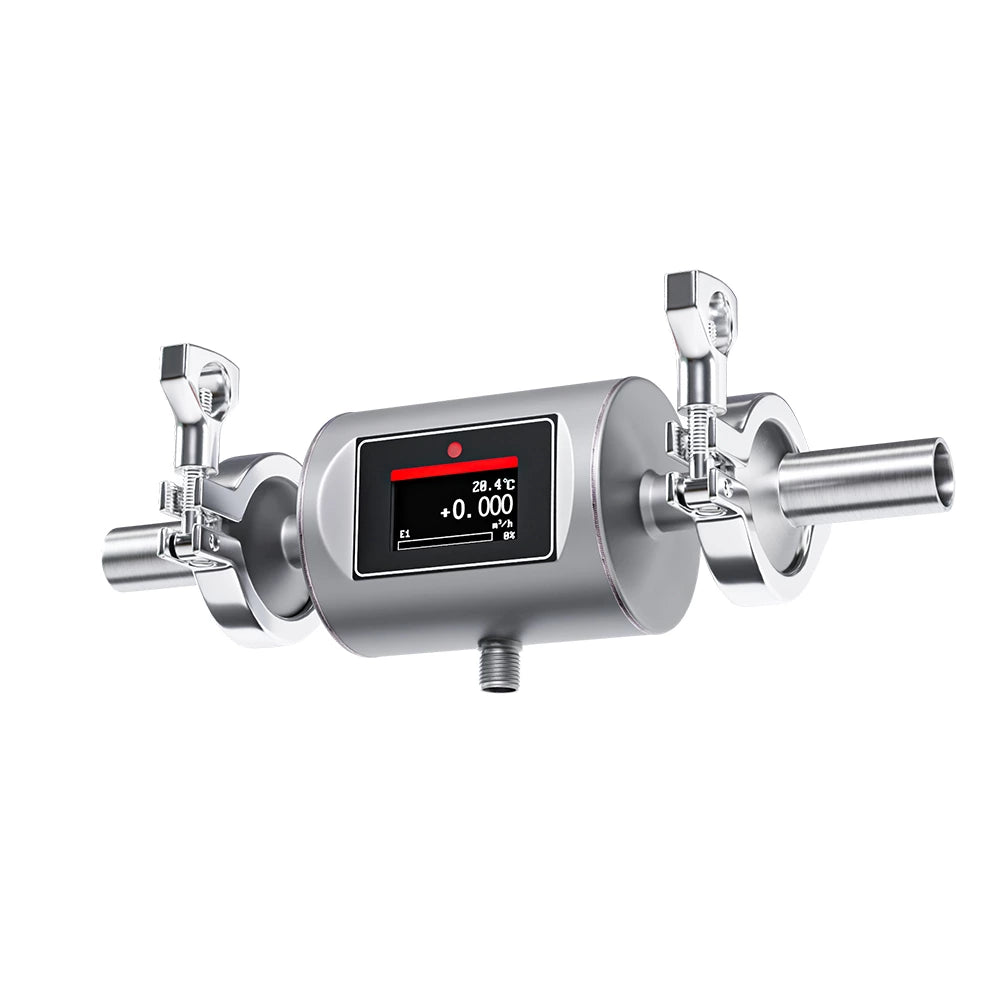

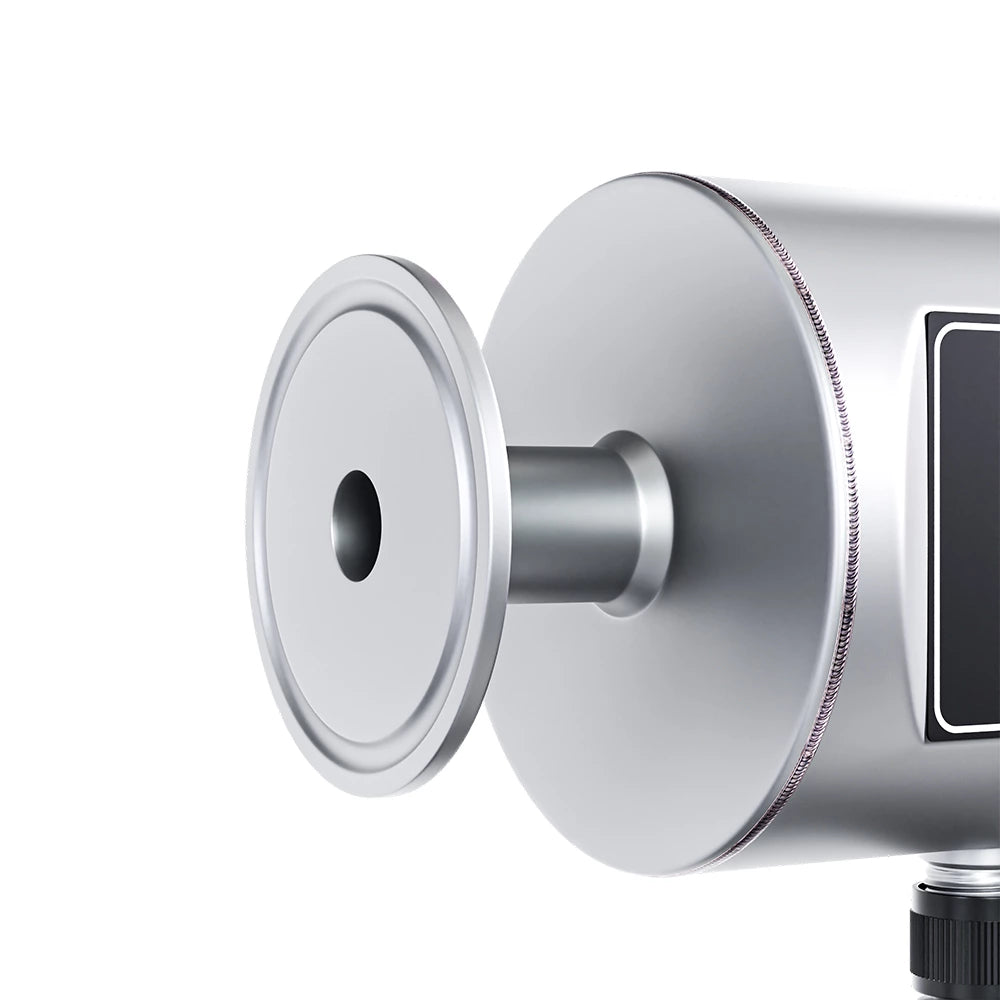

Supmea FMX240 Compact Electromagnetic Flowmeter

Supmea FMX240 Compact Electromagnetic Flowmeter

US$1,652.00
US$1,652.00
Sale Sold out
Prices Shown Include Delivery.

Lead Time: 4 Weeks Or More
View full details

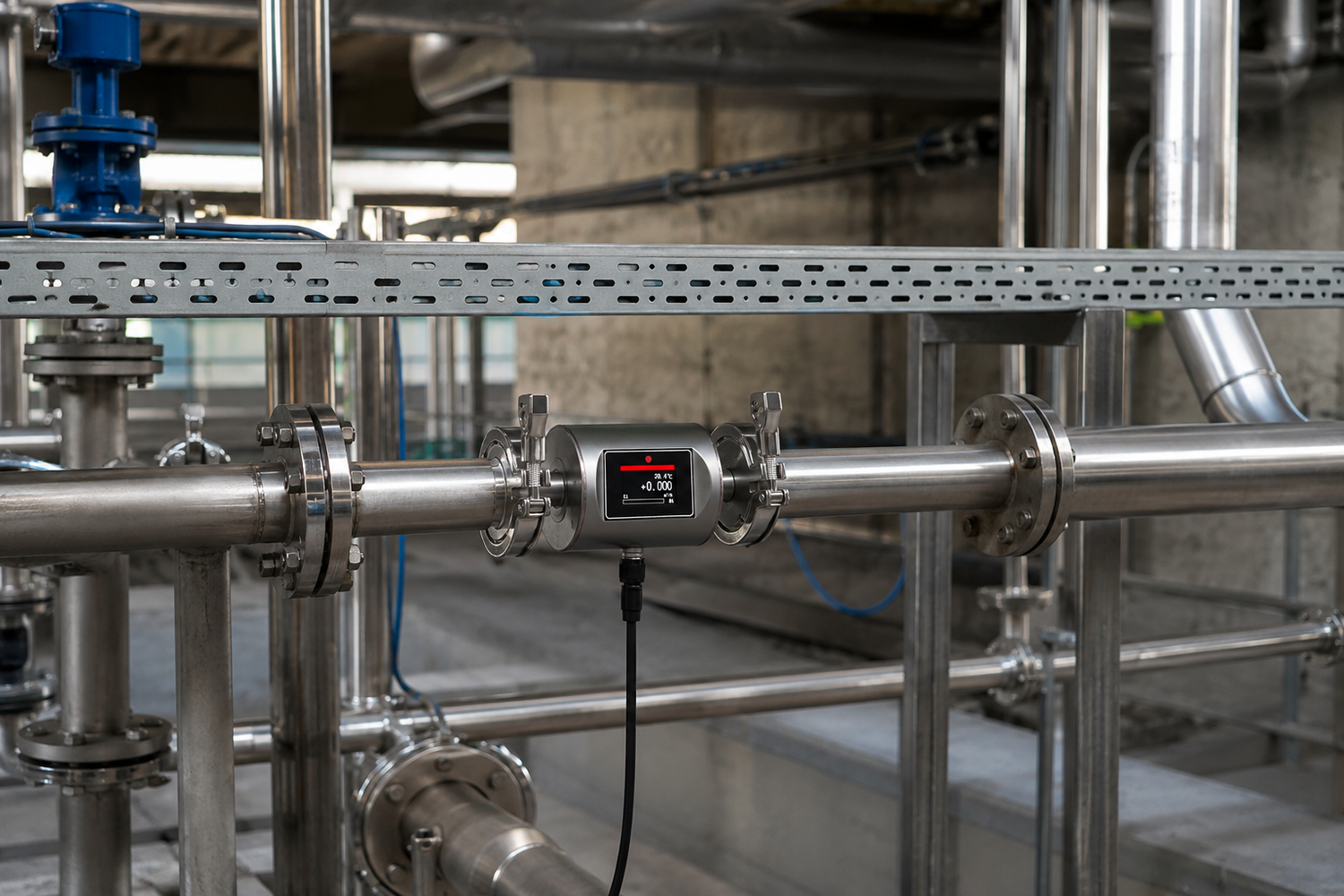

Product Overview

The SUP-FMX240 Compact Electromagnetic Flowmeter is an integrated electromagnetic flowmeter that combines the sensor and transmitter into one compact body, making installation easier while reducing wiring complexity. Designed for conductive liquids with conductivity above 2 μS/cm, it delivers accurate and stable volumetric flow measurement across water treatment, food processing, pharmaceutical, and industrial process applications.Built with a PEEK liner, 316L electrodes, an ARM Cortex-M4 processor, and a high-resolution OLED display, the FMX240 provides high accuracy, strong anti-interference capability, built-in temperature monitoring, and convenient infrared remote operation for demanding industrial environments.

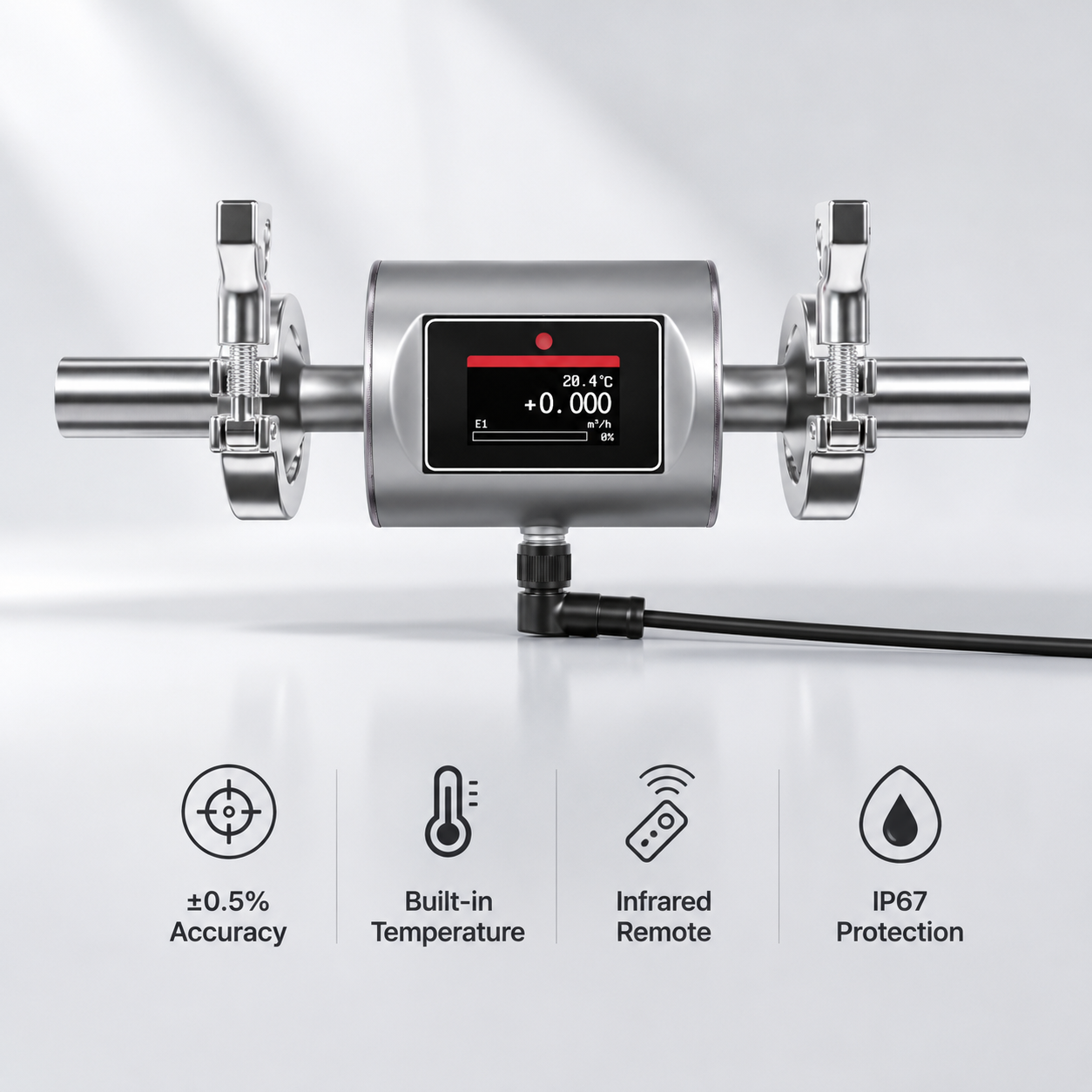

Key Features

  • Sensor and transmitter are integrated into a single housing, reducing installation space and simplifying field wiring.
  • Provides ±0.5% accuracy with excellent repeatability for reliable process monitoring.
  • Measurement remains stable regardless of variations in viscosity, density, pressure, temperature, or conductivity.
  • One-piece molded PEEK liner and electrodes provide long service life and reliable operation, even under negative pressure conditions.
  • Bright OLED display with multilingual menus and infrared remote control enables convenient non-contact setup.
  • Built-in diagnostics continuously monitor operating status to simplify commissioning and maintenance.

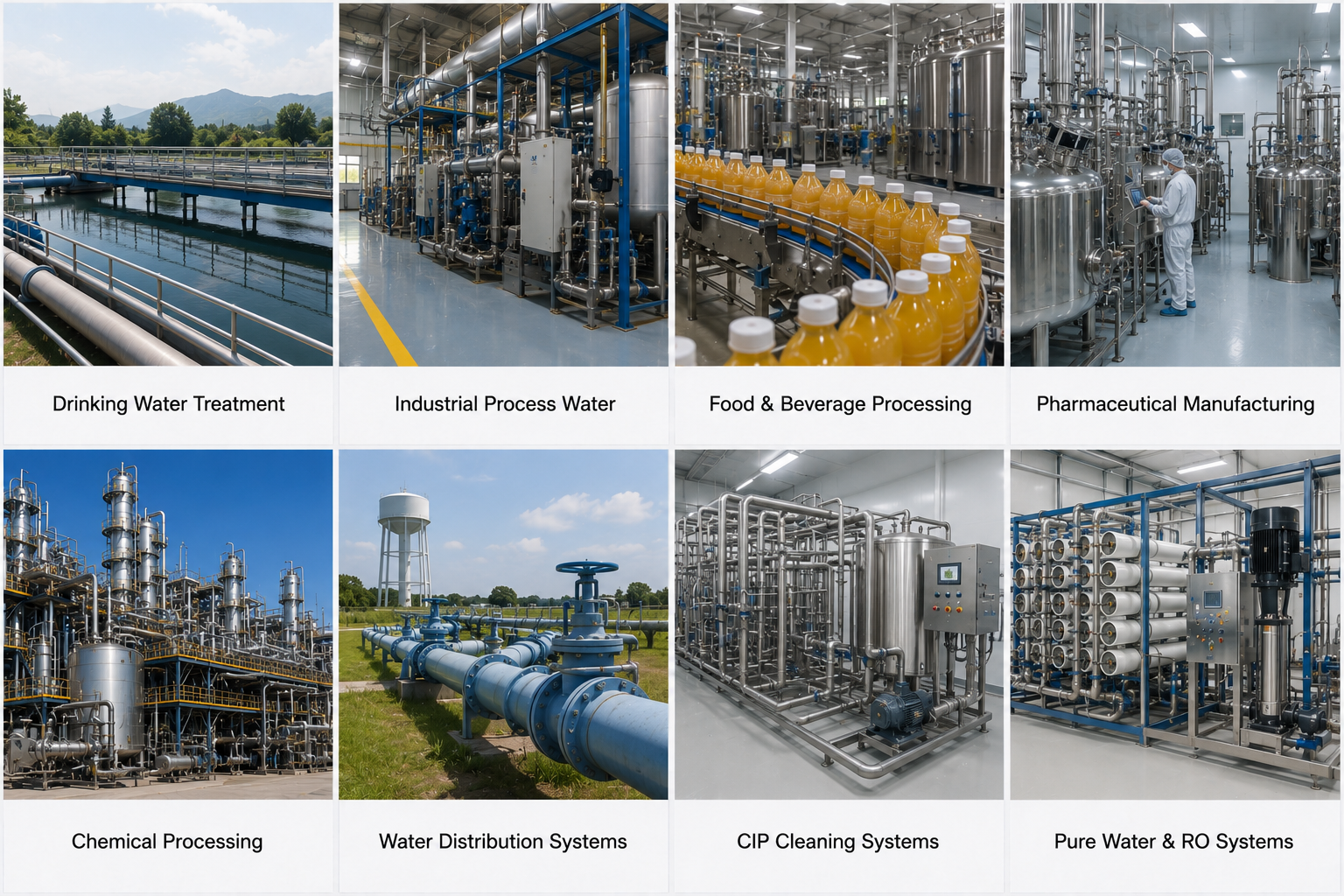

Applications

Technical Specifications

Measured Variable Volumetric Flow
Pipe Size DN6–DN65 (1/4"–2.5")
Accuracy ±0.5% of Reading
Repeatability ≤0.1%
Flow Output 4–20 mA
Communication RS485 (Modbus RTU)
Temperature Output 4–20 mA
Power Supply 18–36 VDC
Power Consumption <5 W
Medium Conductivity ≥2 μS/cm
Medium Temperature 32–176°F (0–80°C)
Process Pressure -14.5 to 914 psi (-0.1 to 6.3 MPa)
Protection Rating IP67

Downloads

User Manual
Datasheet

FAQ

What liquids can the FMX240 measure?

The FMX240 is designed for conductive liquids with electrical conductivity above 2 μS/cm, including water, wastewater, acids, alkalis, and many chemical solutions.

Can it measure temperature as well as flow?

Yes. The meter includes a built-in temperature measurement function and supports a dedicated temperature output.

Does fluid viscosity affect measurement accuracy?

No. Electromagnetic flow measurement is not influenced by viscosity, density, pressure, or temperature changes.

Can it be installed outdoors?

Yes. With an IP67 protection rating, the flowmeter is suitable for outdoor installation when proper wiring and environmental protection are provided.

What warranty do you provide?

Please refer to BayMeters Warranty Policy or contact our sales team for warranty details.

How long does shipping take?

Products in the US warehouse typically ship within 3–5 business days
