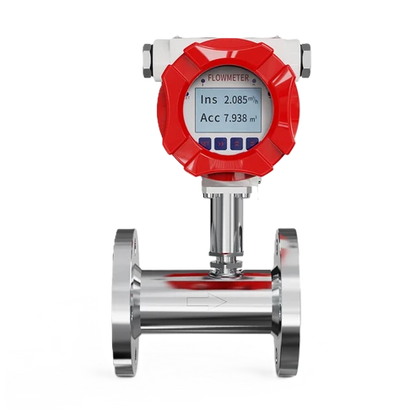

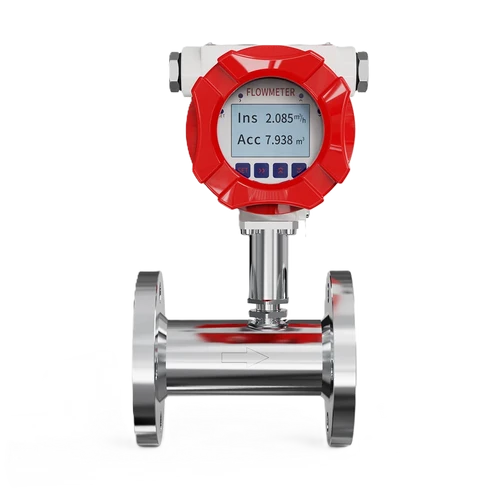

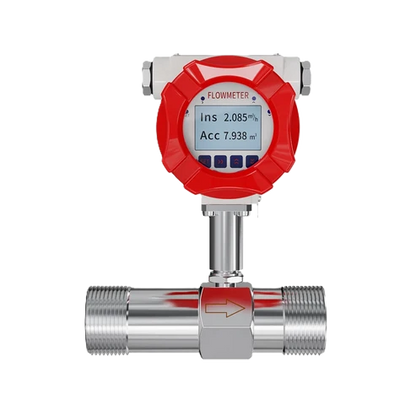

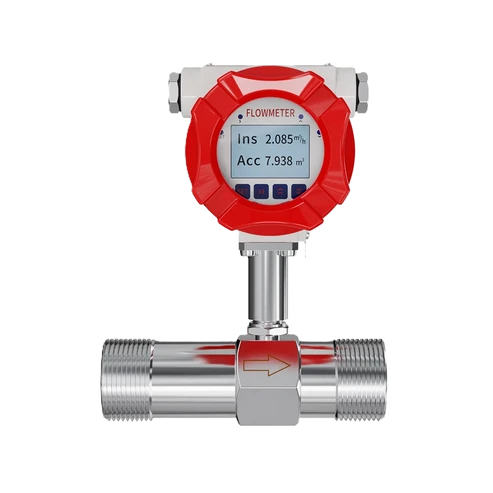

Supmea LWGY Turbine Flowmeter

Supmea LWGY Turbine Flowmeter

US$813.00
US$813.00
Sale Sold out
Prices Shown Include Delivery.

Lead Time: 4 Weeks Or More
View full details

Product Overview

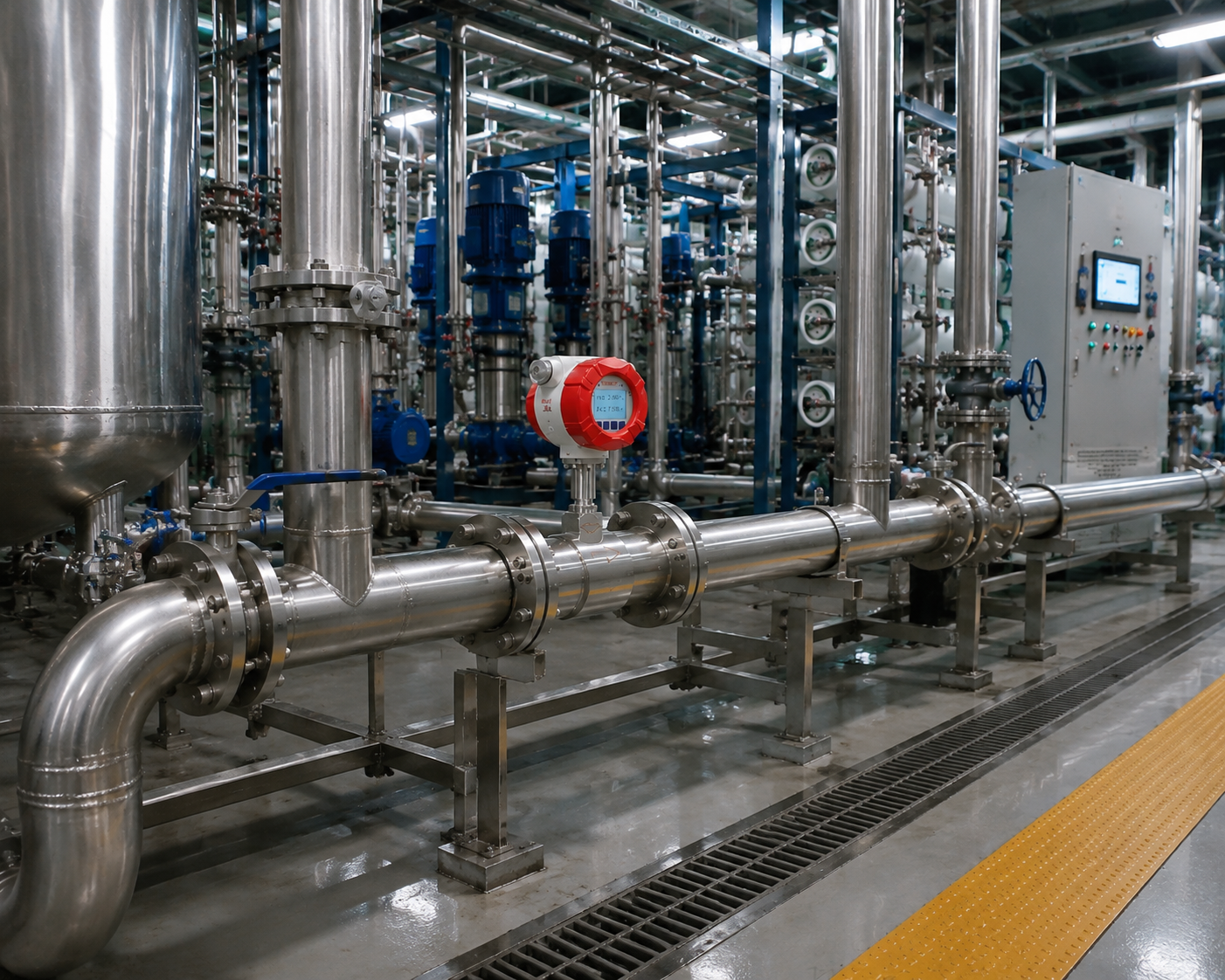

The LWGY-SUP Turbine Flowmeter is designed for accurate liquid flow measurement with high accuracy, wide measuring range, and reliable long-term operation. It uses an internal impeller structure to generate pulse signals proportional to flow velocity and supports multiple output options including pulse output, 4–20 mA current output, RS485 Modbus communication, and local display. The flowmeter is widely used in industries such as food & beverage, pharmaceutical, petrochemical, metallurgy, and water process applications. It is suitable for clean liquids that are compatible with stainless steel and other wetted materials.

Key Features

  • Provides reliable liquid flow measurement with accuracy classes of ±0.5% or ±1.0% depending on configuration.
  • Uses an impeller-based measurement principle with no complex moving mechanisms, providing stable operation and easy maintenance.
  • Optional display versions provide real-time flow rate and cumulative flow monitoring directly on the instrument.
  • Supports nominal diameters from DN4 to DN200 with range ratios up to 1:10 for larger sizes.
  • Supports pulse output, 4–20 mA current output, and RS485 Modbus communication for flexible integration with control systems.
  • Supports 12 VDC, 24 VDC, and optional 3.6 V lithium battery power supply configurations.

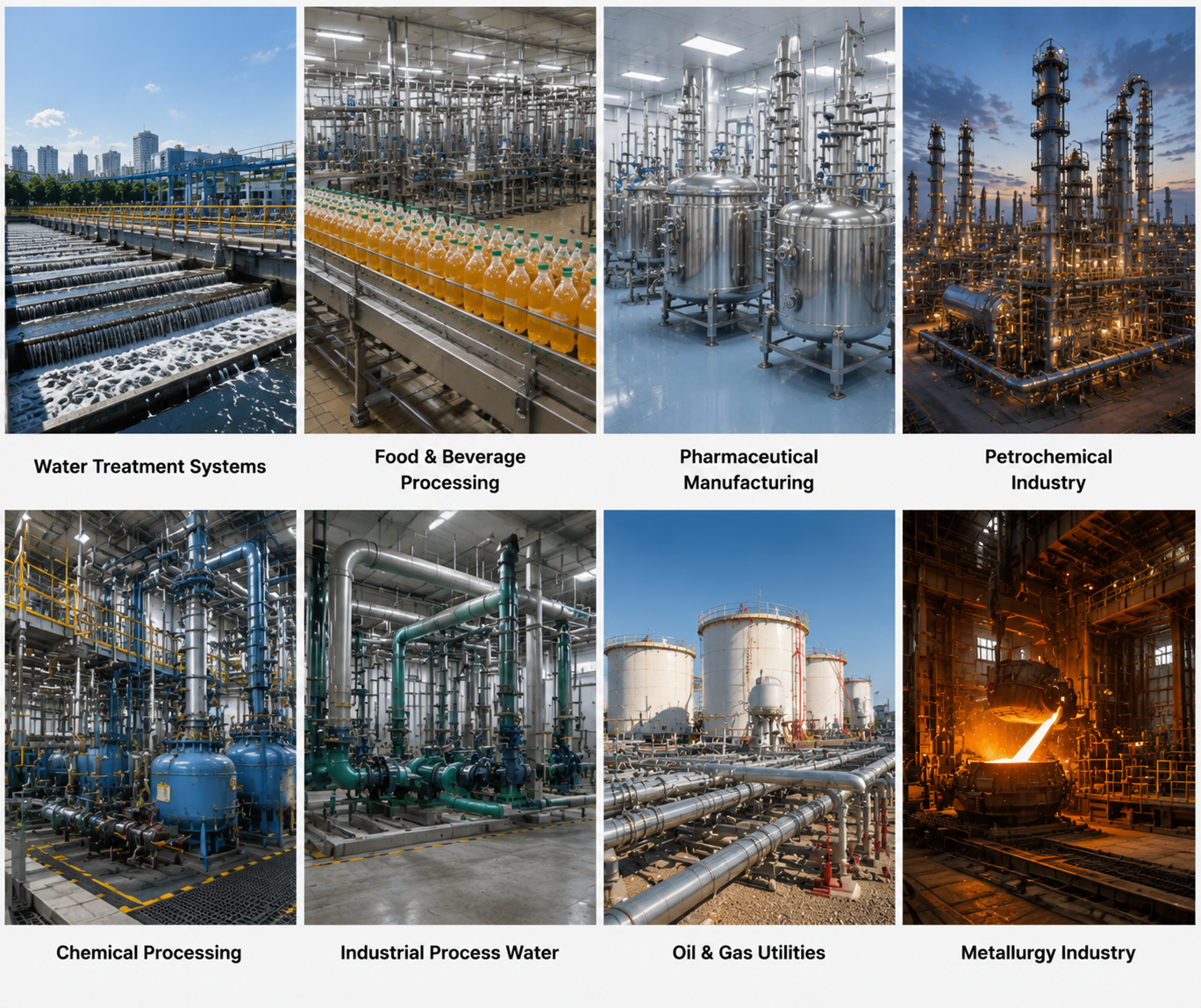

Applications

Technical Specifications

Accuracy Class 0.5 / 1.0
Range Ratio DN4–DN10: 1:6 DN15–DN200: 1:10
Flow Output Pulse Output / 4–20 mA
Communication RS485 Modbus RTU
Pulse Frequency 1–2000 Hz
Pulse Coefficient 1–20000 pulses/L
Power Supply 12 VDC / 24 VDC / 3.6 V Lithium Battery
Power Consumption Max. 0.15 W (12 VDC) Max. 0.5 W (24 VDC)
Medium Temperature -4 to 176°F (-20 to 80°C) Standard -4 to 248°F (-20 to 120°C) High Temperature
Operating Temperature -4 to 140°F (-20 to 60°C)
Protection Rating IP65 (IP67/IP68 optional)
Wetted Material 304SS / 316LSS
Impeller Material 430F Stainless Steel / Duplex Steel 2205

Downloads

User Manual
Datasheet

FAQ

What type of media can the LWGY-SUP Turbine Flowmeter measure?

The flowmeter is designed for clean liquids that do not corrode stainless steel, 430F stainless steel, ceramic, or carbide materials. The measured liquid should not contain fibers or solid particles.

Does this turbine flowmeter support both flow monitoring and total flow calculation?

Yes. Models with local display can show instantaneous flow rate and cumulative total flow values simultaneously.

Can the flowmeter be used outdoors?

Yes. The standard protection rating is IP65, with IP67/IP68 available by request. Outdoor installation should avoid direct sunlight and rain exposure.

What installation considerations are required?

The flowmeter should be installed in a fully filled pipeline with stable flow conditions. Straight pipe sections or flow conditioners may be required to reduce turbulence caused by bends, valves, or reducers.

What warranty do you provide?

Please refer to BayMeters Warranty Policy or contact our sales team for warranty details.

How long does shipping take?

Products in the US warehouse typically ship within 3–5 business days
