Supmea Metal Tube Rotameter

Supmea Metal Tube Rotameter

US$765.00
US$765.00
Sale Sold out
Prices Shown Include Delivery.

Lead Time: 4 Weeks Or More
View full details

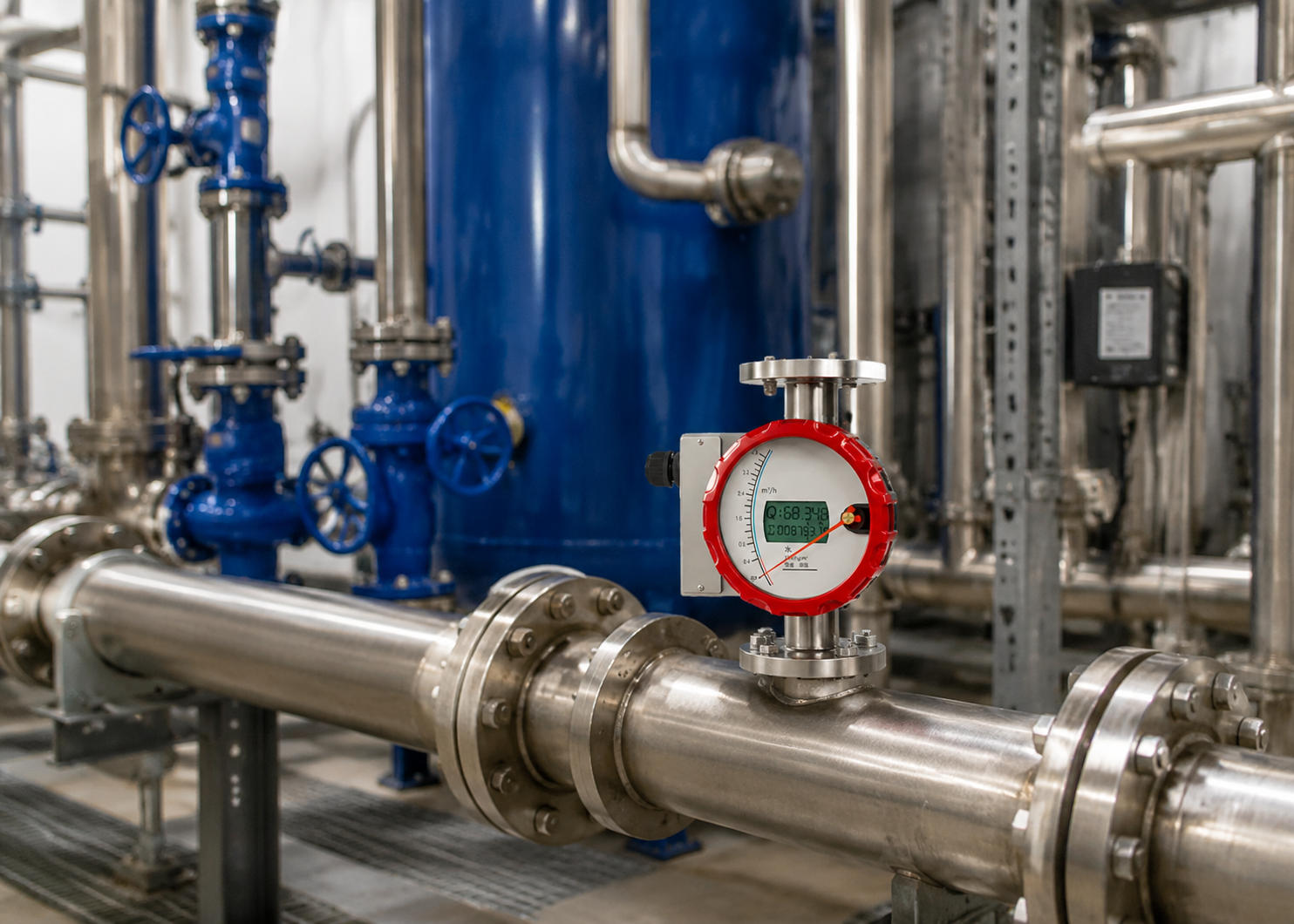

Product Overview

The Metal Tube Rotameter LZ is a reliable variable area flow meter designed for measuring the flow rate of liquids, gases, and steam in industrial process applications. With a compact metal tube structure, wide measuring range, and easy operation, it is especially suitable for low flow and small flow measurement. The rotameter supports multiple connection options, indicator configurations, and material selections to meet different industrial requirements. It is widely used in petrochemical, power generation, metallurgy, food processing, pharmaceutical, and water treatment industries.

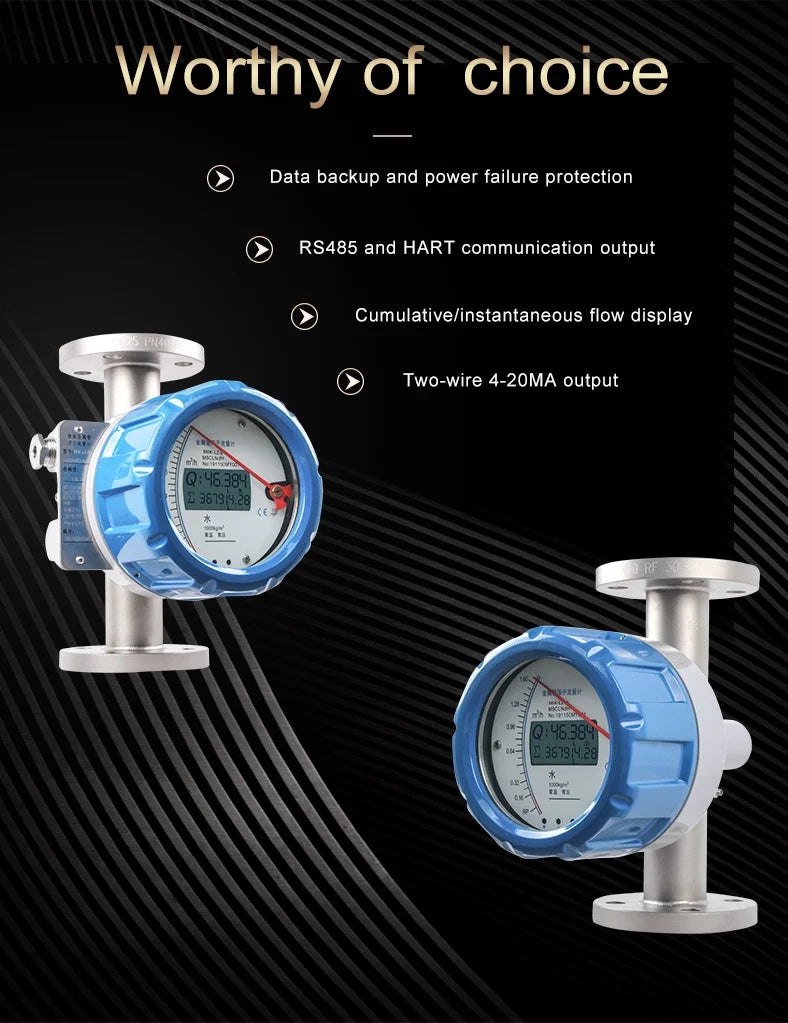

Key Features

  • Supports flow measurement of liquids, gases, and steam, suitable for various industrial process media.
  • Features a robust metal tube structure with small size and convenient installation, ideal for industrial environments.
  • Provides multiple wetted material options including 304 stainless steel, 316Ti stainless steel, 316L, Hastelloy, titanium alloy, and PTFE lining for different media conditions.
  • Supports electronic indicators with options including 4–20 mA output, HART communication, and RS485 Modbus communication depending on configuration.
  • Available in vertical, horizontal, sanitary, and customized installation structures to adapt to different pipeline layouts.
  • Designed for long-term operation with stable measurement performance and low maintenance requirements.

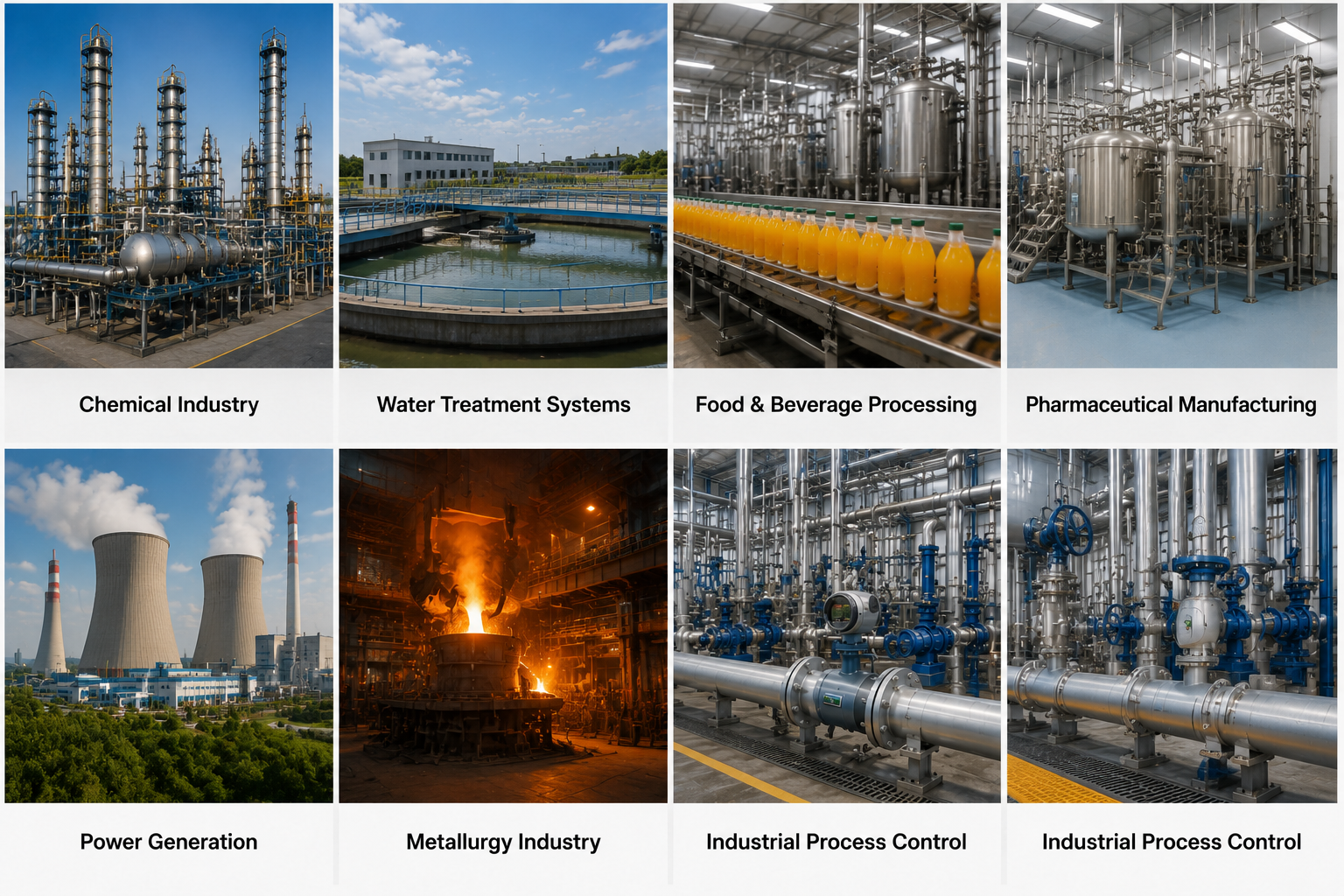

Applications

Technical Specifications

Medium Liquid, Gas, Steam
Connection Method Flange Clamp Customized connection
Nominal Size DN15–DN200 (0.59–7.87 in)
Measuring Tube Material 304 SS / 316Ti SS
Float Material 316L Hastelloy Titanium PTFE
Enclosure Protection IP65
Cable Interface M20 × 1.5 / 1/2 NPT
Output Signal 4–20 mA / HART / RS485 Modbus (optional)
Power Supply 24 VDC / 24 VAC / 110 VAC (configuration dependent)
Medium Viscosity DN15: <5 mPa·s; DN25: <250 mPa·s; DN50–DN150: <300 mPa·s
Hygienic Surface Finish <0.8 Ra (sanitary version)

Downloads

User Manual
Datasheet

FAQ

What media can the Metal Tube Rotameter LZ measure?

The LZ rotameter can measure liquid, gas, and steam flow, making it suitable for various industrial process applications.

What is the measuring principle of this flow meter?

It uses the variable area measurement principle, where the float position changes according to the flow rate inside the measuring tube.

Can the rotameter be used for corrosive media?

Yes. Different wetted materials such as 316L, Hastelloy, titanium alloy, and PTFE lining can be selected depending on the medium characteristics.

Is this product suitable for hygienic applications?

Yes. Sanitary versions are available with hygienic surface finishing requirements (<0.8 Ra).

What warranty do you provide?

Please refer to BayMeters Warranty Policy or contact our sales team for warranty details.

How long does shipping take?

Products in the US warehouse typically ship within 3–5 business days
