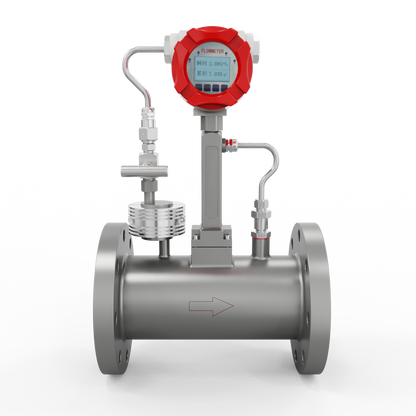

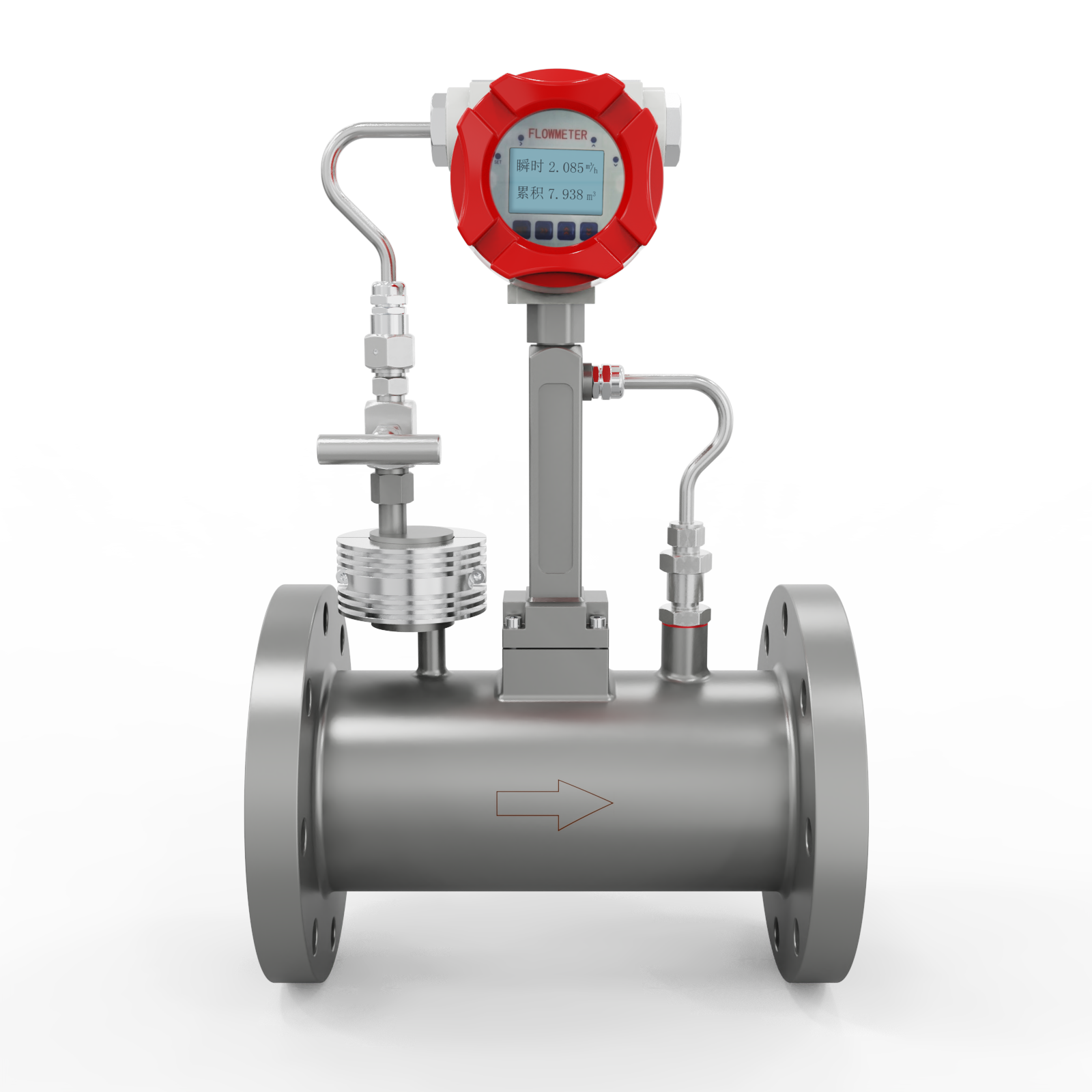

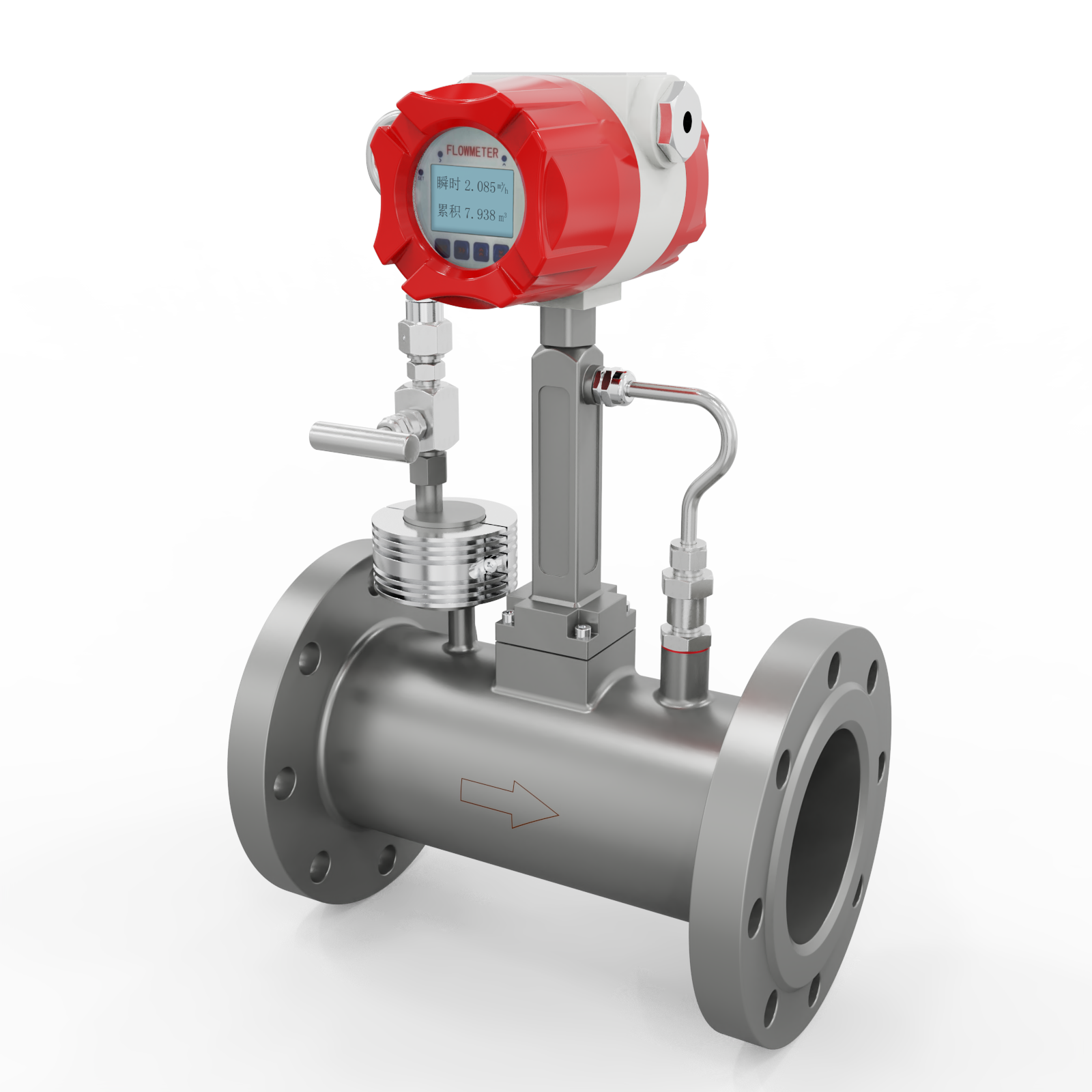

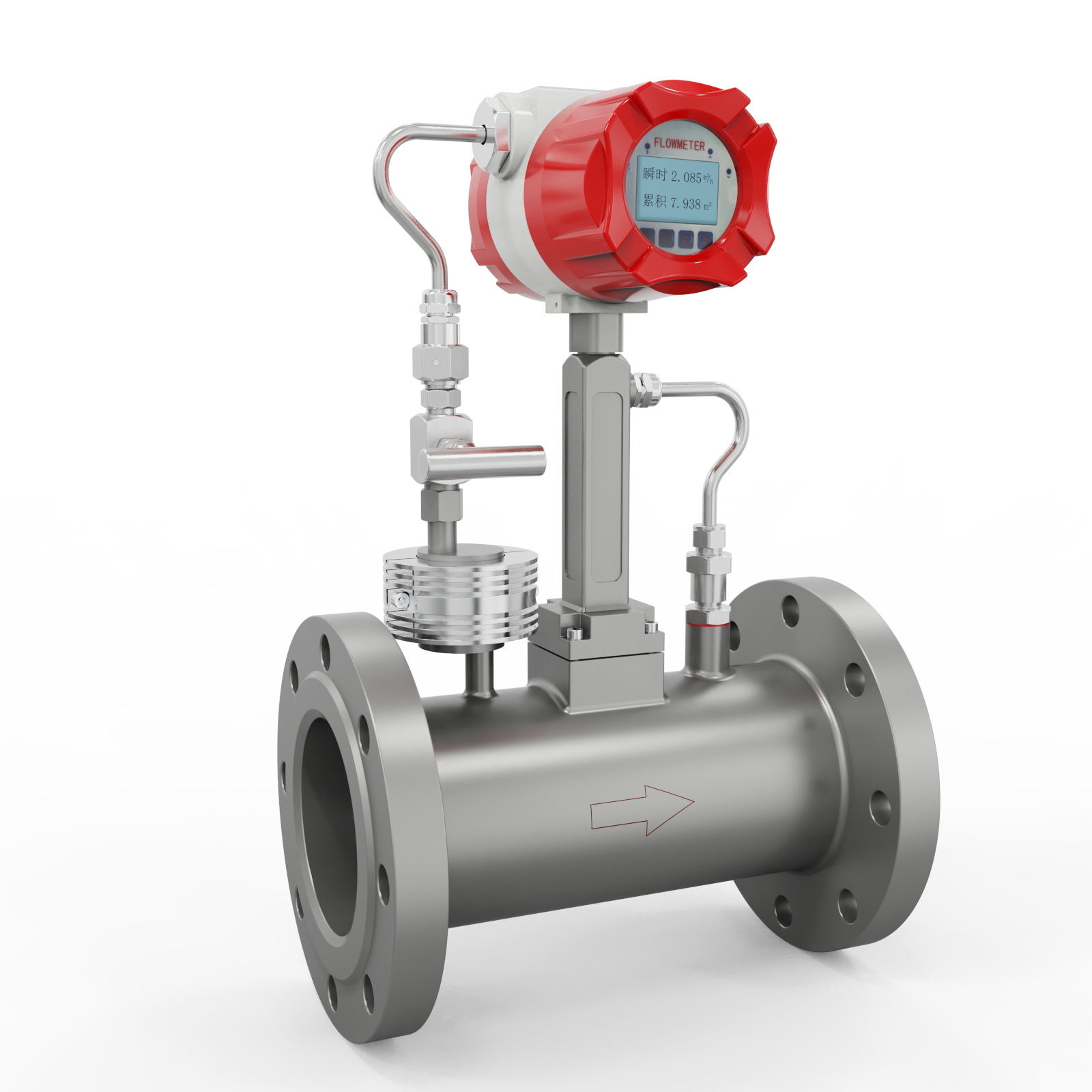

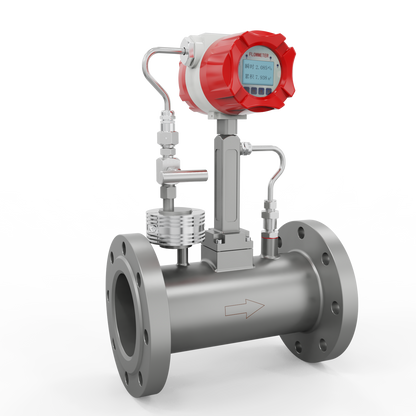

Supmea Vortex Flowmeter (with Temperature andr Pressure Compensation)

Supmea Vortex Flowmeter (with Temperature andr Pressure Compensation)

US$1,819.00
US$1,819.00
Sale Sold out
Prices Shown Include Delivery.

Low stock: 10 left • Lead Time: 2-4 Weeks
View full details

Product Overview

The SUP-LUGB Vortex Flow Meter is based on the Karman vortex principle and is designed for accurate measurement of liquid, gas, and steam flow. It features reliable performance, low maintenance requirements, low pressure loss, and excellent long-term stability. The meter is widely used in petroleum, chemical, pharmaceutical, metallurgy, power generation, environmental protection, food and beverage, and other industrial applications.

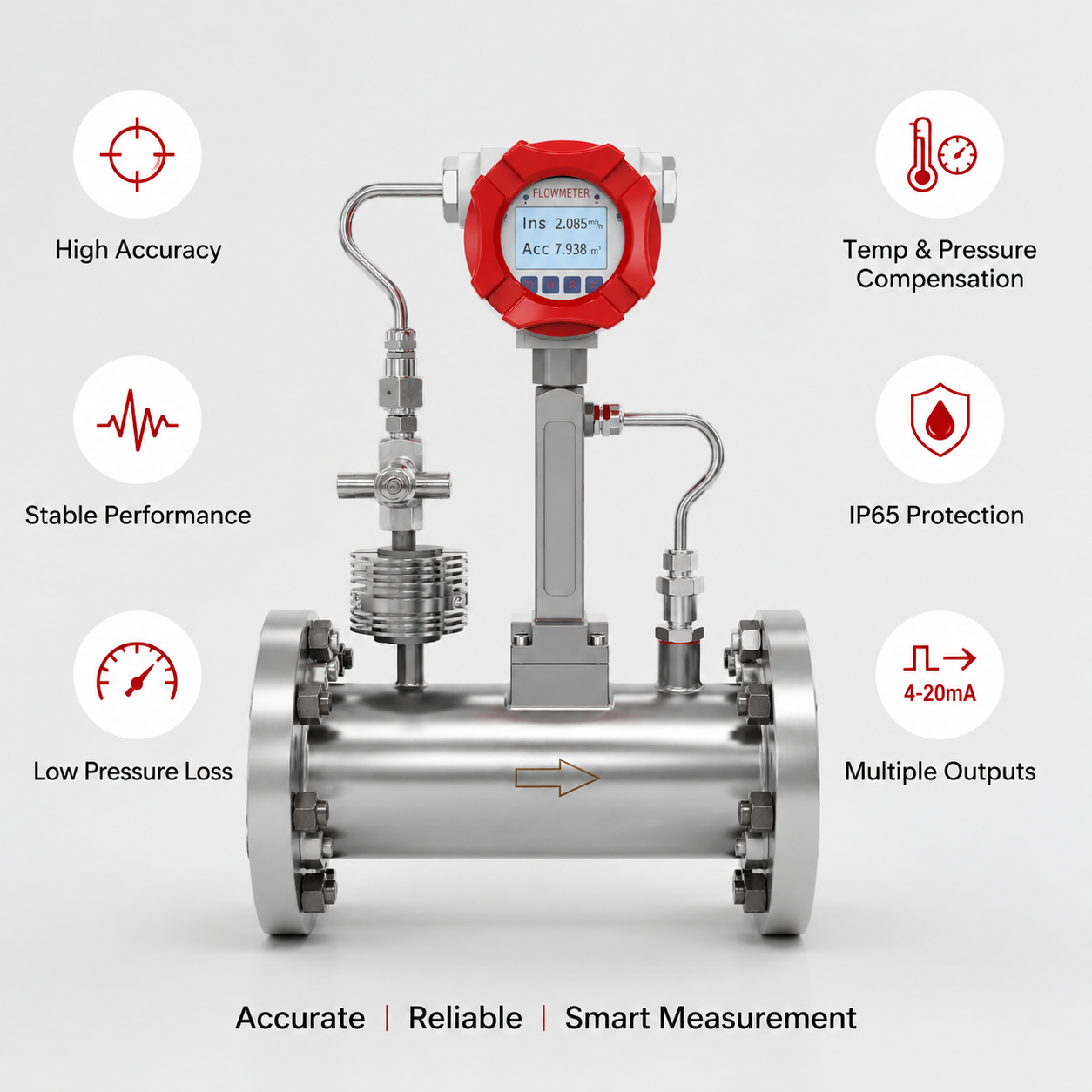

Key Features

  • Supports integrated temperature and pressure compensation to improve measurement accuracy for steam, gas, and other variable-density media.
  • Simple structure with no moving parts, reducing maintenance requirements.
  • Uses Karman vortex technology to provide reliable measurement of liquid, gas, and steam flow with stable performance.
  • Provides small pressure loss and a wide turndown ratio for efficient process measurement.
  • Supports pulse output, 4–20 mA signals, RS485 communication, and optional HART communication for integration with control systems.
  • Available with 24VDC power supply or lithium battery power options for different installation requirements.

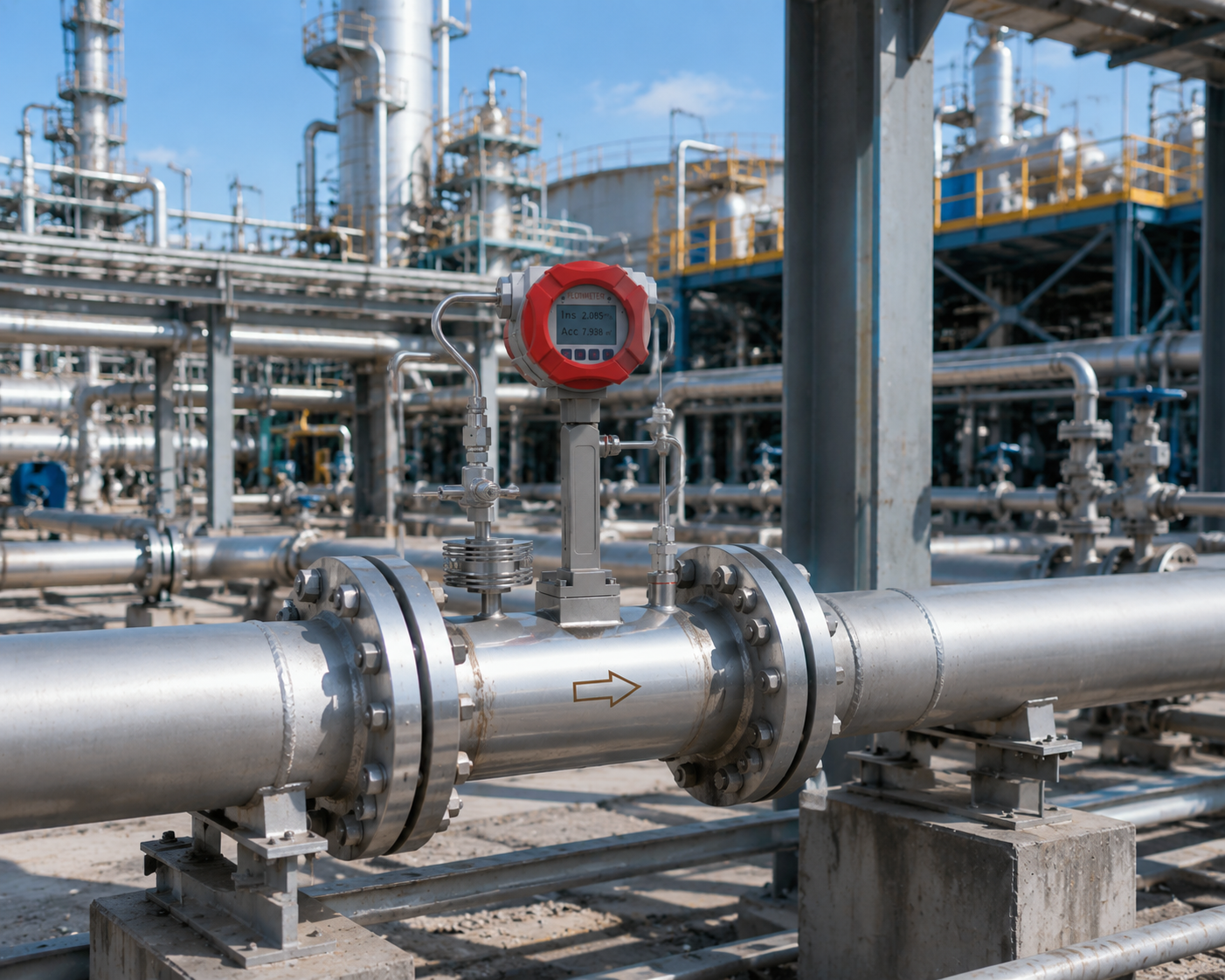

Applications

Technical Specifications

Nominal Diameter DN25–DN300 (1"–12")
Compensation Function Temperature & Pressure Compensation
Measuring Medium Liquid, Gas, Steam
Turndown Ratio Up to 8:1
Medium Temperature -40°F to +572°F
Ambient Temperature -4°F to +131°F
Body Material Stainless Steel
Protection Grade IP65
Power Supply 24VDC / 3.6V Battery
Output Signal Pulse, 4–20 mA
Communication RS485 / HART Optional
Accuracy ±1.5%

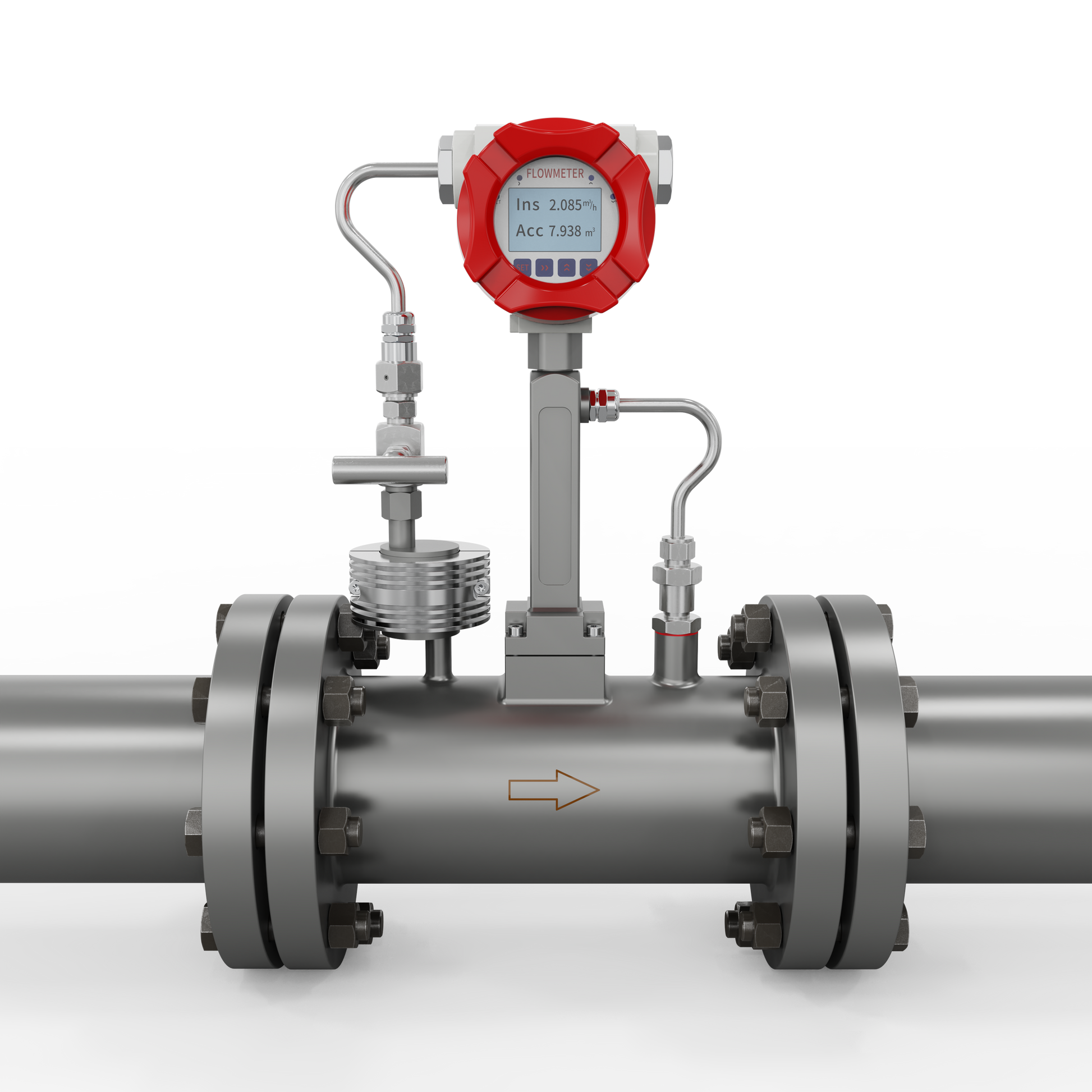

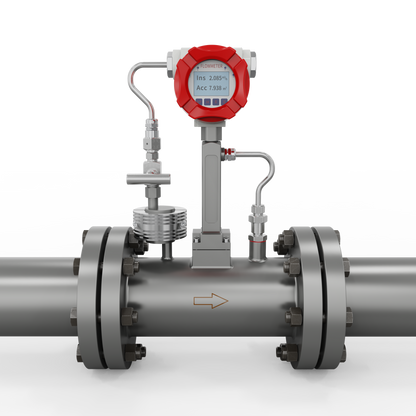

Connection Type Flange Connection

Downloads

User Manual
Datasheet

FAQ

How does a vortex flow meter work?

The flow meter uses the Karman vortex principle. When fluid passes through the bluff body inside the meter, vortices are generated at a frequency proportional to the flow velocity, allowing accurate flow measurement.

What output and communication options are available?

The meter supports pulse output, 4–20 mA analog output, RS485 communication, and optional HART communication for integration with automation systems.

Why does this vortex flow meter require temperature and pressure compensation?

Temperature and pressure changes affect the density of gases and steam. The integrated compensation function automatically corrects measurement values based on real-time operating conditions to improve accuracy.

Can this meter measure steam mass flow directly?

Yes. With integrated temperature and pressure compensation, the meter can calculate compensated flow values for saturated steam, superheated steam, and gas applications without requiring separate external sensors.

What warranty do you provide?

Please refer to BayMeters Warranty Policy or contact our sales team for warranty details.

How long does shipping take?

Products in the US warehouse typically ship within 3–5 business days
