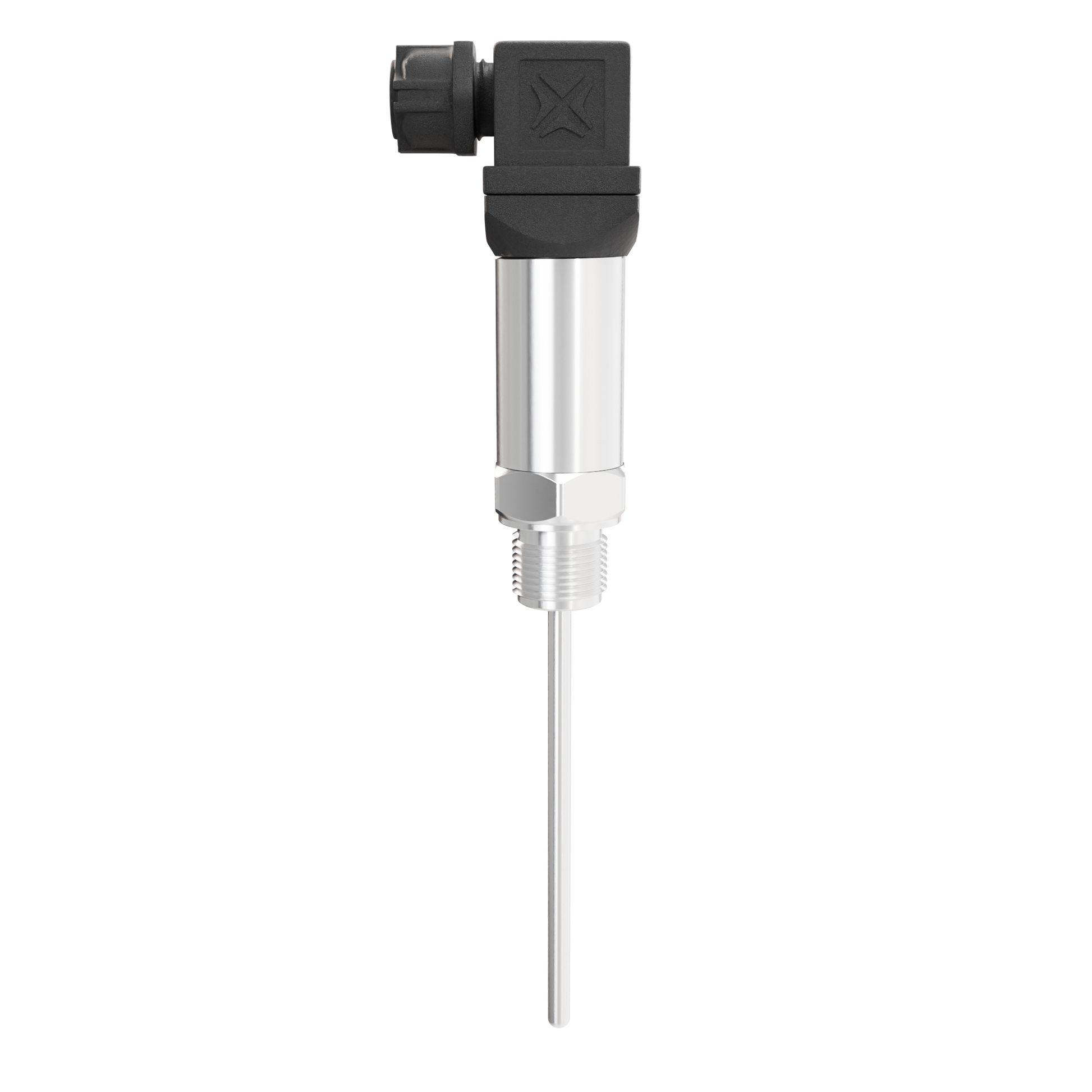

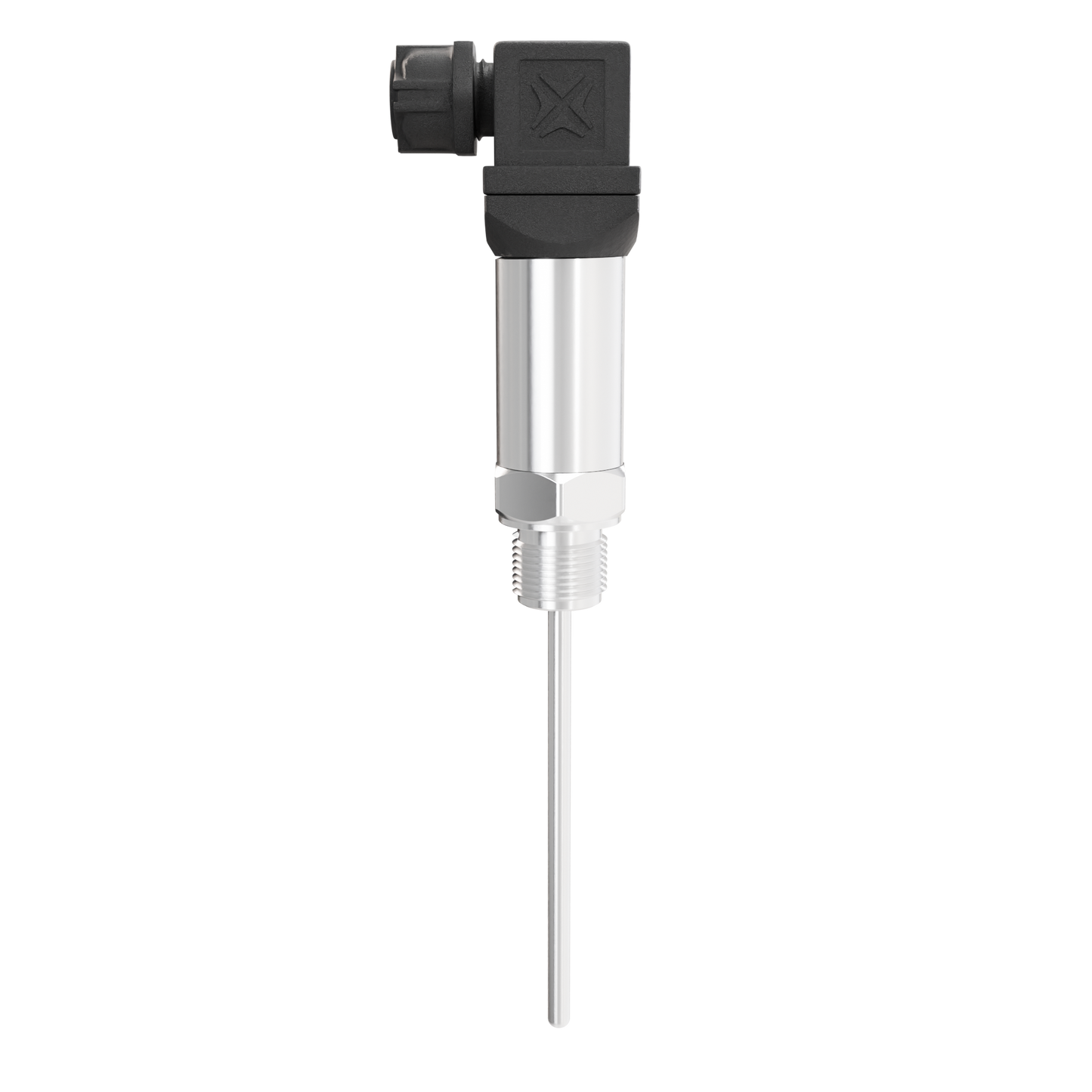

Integrated Temperature Transmitter SUP-P202

Integrated Temperature Transmitter SUP-P202

$90.00 USD
$90.00 USD
Sale Sold out
Shipping calculated at checkout.

Lead Time: 2-4 Weeks
View full details

Product Overview

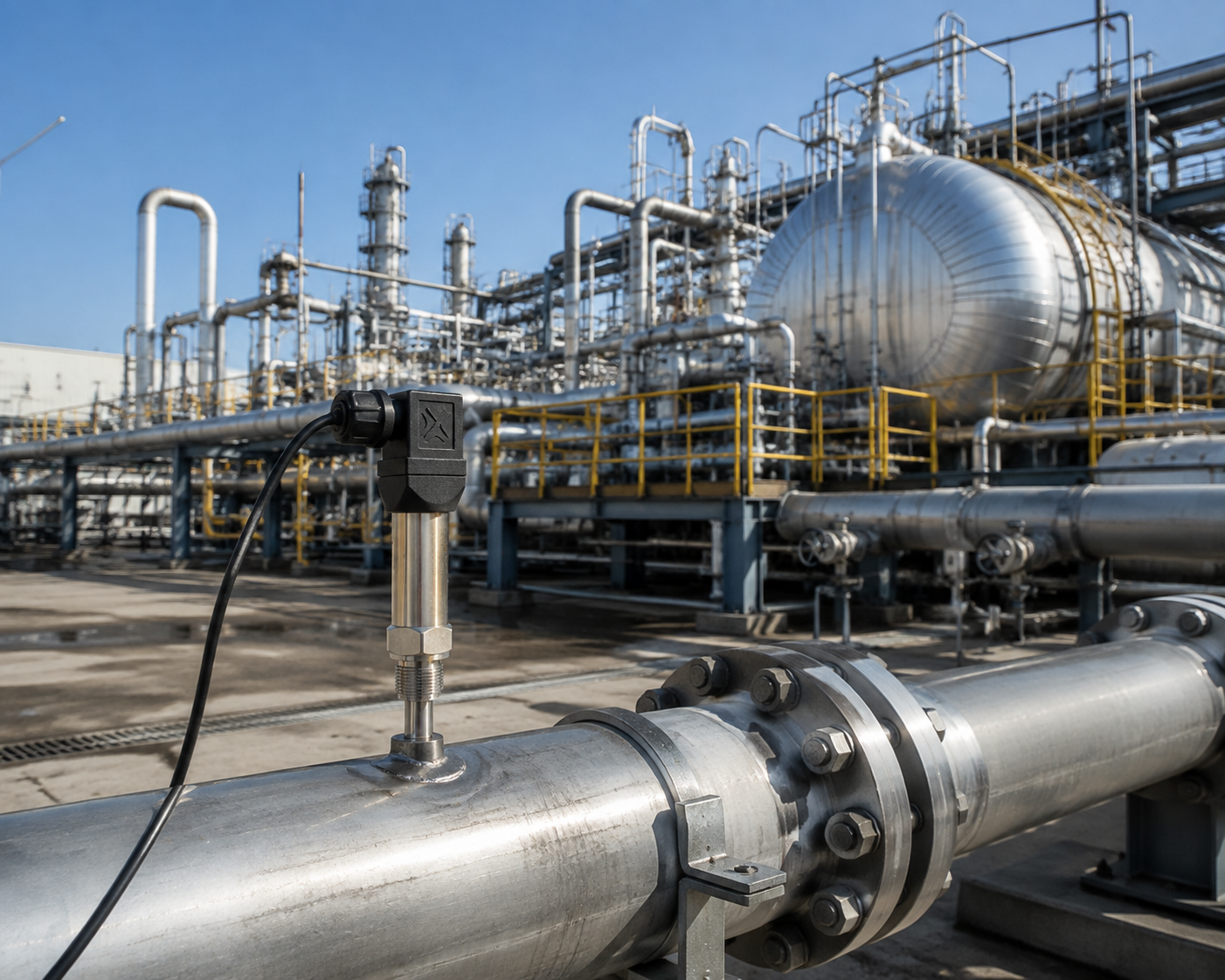

The SUP-P202 integrated temperature transmitter combines a Pt100 RTD temperature sensor with a high-precision signal conversion module to provide reliable temperature measurement and transmission. Featuring a high-resolution 24-bit ADC, stainless steel construction, and multiple output options including 4–20 mA and RS485 Modbus communication, it delivers stable and accurate temperature monitoring for industrial process applications.

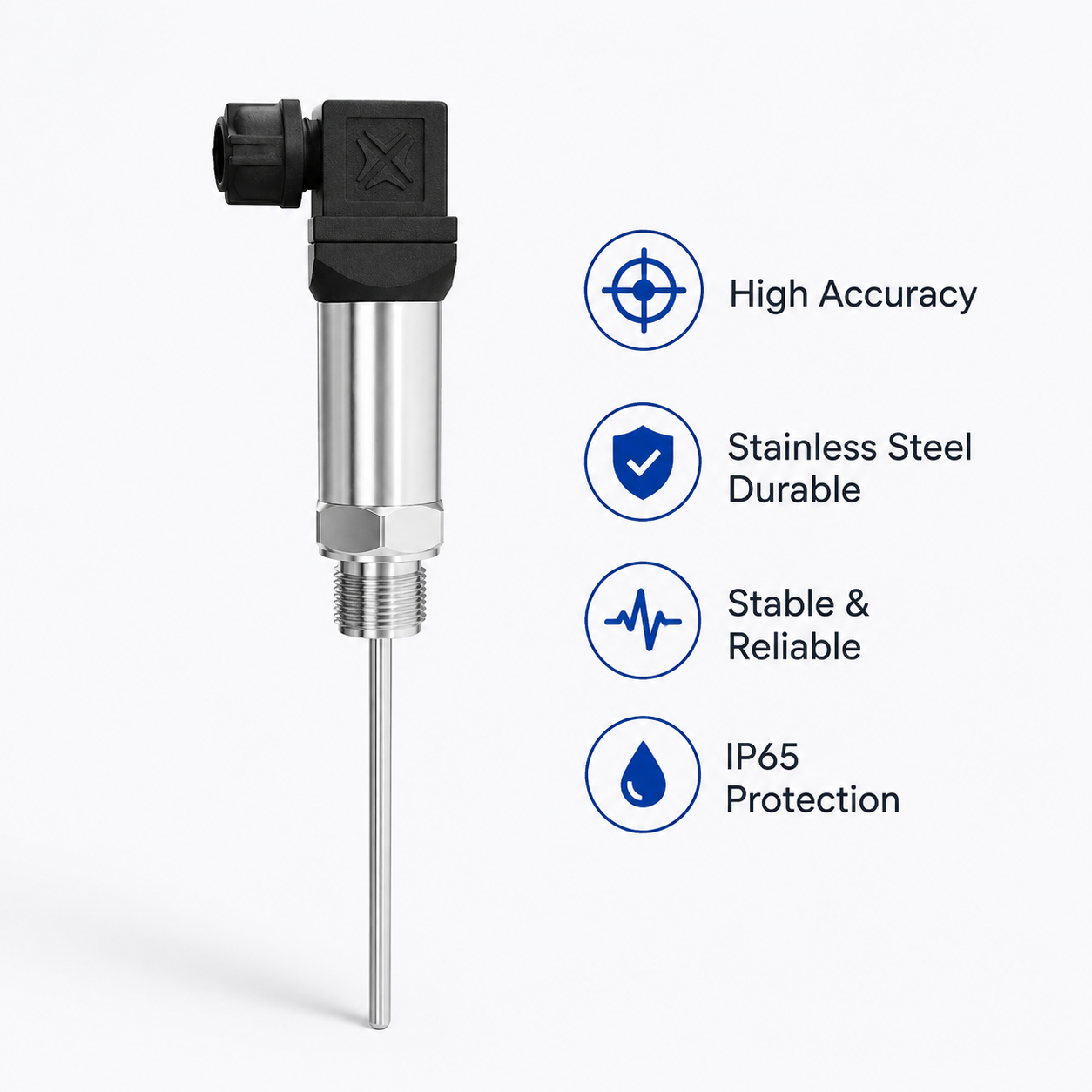

Key Features

  • Uses a built-in Pt100 resistance temperature detector as the sensing element for accurate process temperature monitoring.
  • Equipped with a 24-bit ADC for digital signal conversion, improving measurement stability and long-term reliability.
  • Supports 4–20 mA analog output, RS485 Modbus communication, and direct Pt100 output options for flexible system integration.
  • Features an all-stainless-steel structure with strong anti-interference capability, vibration resistance, and durability in industrial environments.
  • Supports multiple threaded process connections, probe diameters, probe lengths, and cable configurations to meet different installation requirements.
  • Compact design allows convenient installation in various industrial temperature measurement applications.

Applications

Technical Specifications

Temperature Sensor Pt100 RTD
Measuring Range -58 to 392°F (-50 to 200°C)
Accuracy ±0.5% F.S.
Response Time T90 ≤ 60s
Output Signal 4–20 mA / RS485 Modbus / Pt100
Power Supply 9–30 VDC (4–20 mA) 5–30 VDC (RS485)
Communication Protocol Modbus RTU
Process Connection M20×1.5, M27×2, M14×1.5, G1/2, G1/4, NPT1/2
Probe Material 304 Stainless Steel
Protection Rating IP65 (Display Head IP50)
Process Pressure ≤580 psi (4 MPa)

Downloads

User Manual
Datasheet

FAQ

Can it be used in explosion-proof applications?

No. According to the manual, this product is not intended for explosion-proof environments.

What is the maximum temperature range?

The SUP-P202 can measure temperatures from -58 to 392°F (-50 to 200°C).

Is the SUP-P202 suitable for corrosive media?

It is designed for non-corrosive media compatible with silicon and stainless steel materials. Special corrosion-resistant structures require customization.

What type of temperature sensor does the SUP-P202 use?

The SUP-P202 uses a Pt100 RTD sensor for accurate temperature measurement.

What warranty do you provide?

Please refer to BayMeters Warranty Policy or contact our sales team for warranty details.

How long does shipping take?

Products in the US warehouse typically ship within 3–5 business days
