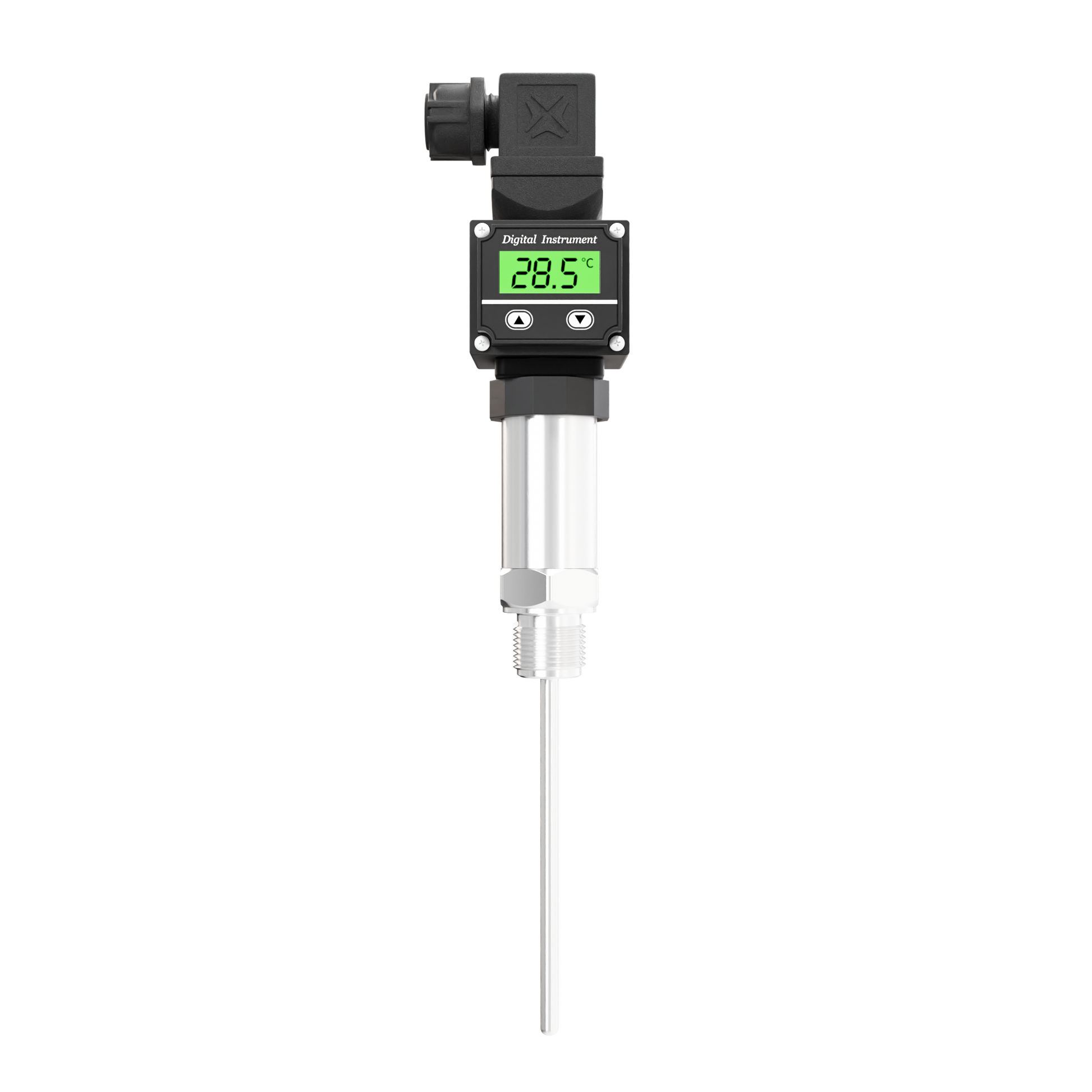

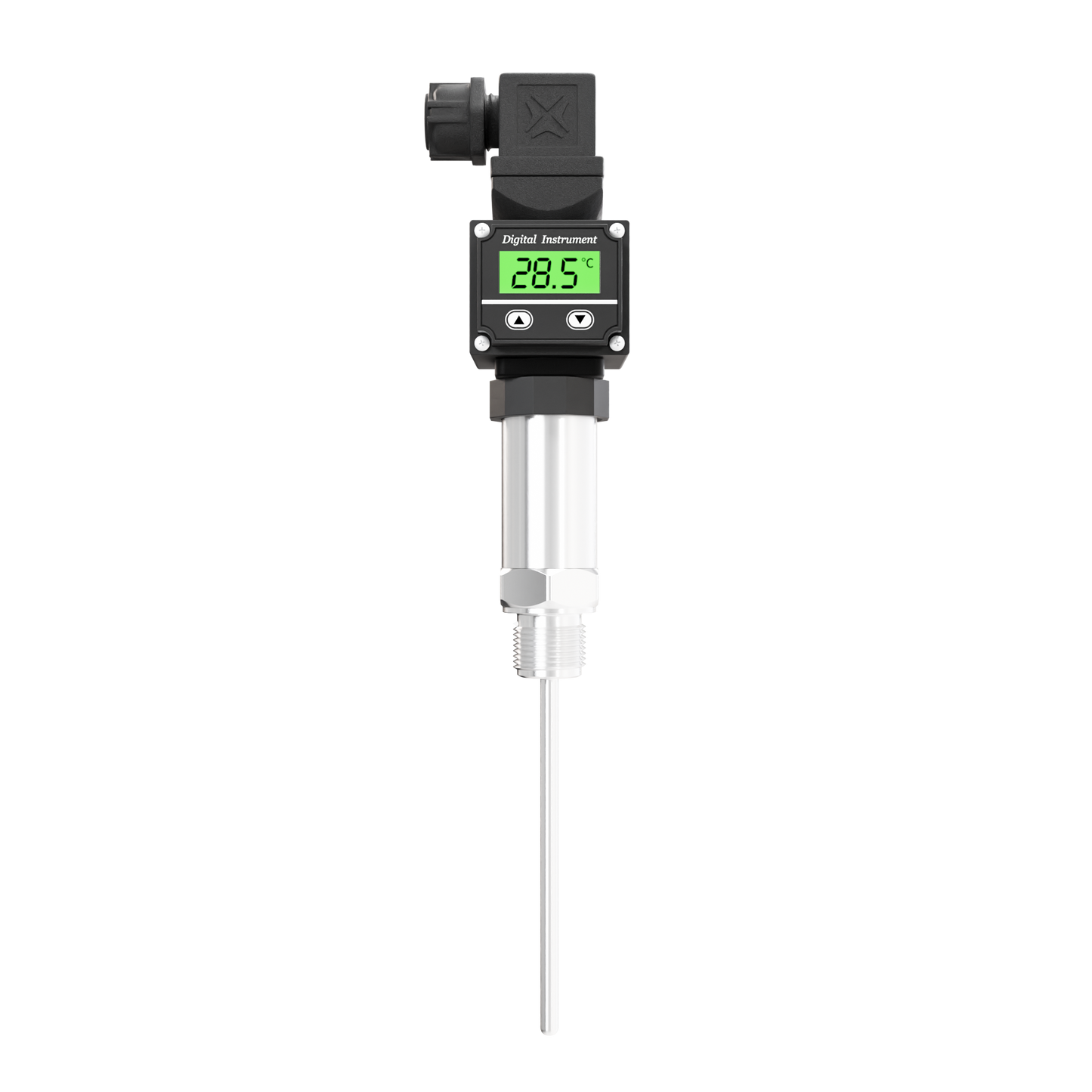

Integrated Digital Temperature Transmitter PX202

Integrated Digital Temperature Transmitter PX202

$207.00 USD
$207.00 USD
Sale Sold out
Shipping calculated at checkout.

Lead Time: 2-4 Weeks
View full details

Product Overview

The SUP-PX202 integrated temperature transmitter combines a Pt100 RTD temperature sensor with a high-precision signal conversion module to provide reliable temperature measurement and transmission. Features an integrated digital display and intelligent configuration functions, allowing local temperature reading, parameter adjustment, and RS485 Modbus communication for convenient operation and system integration.

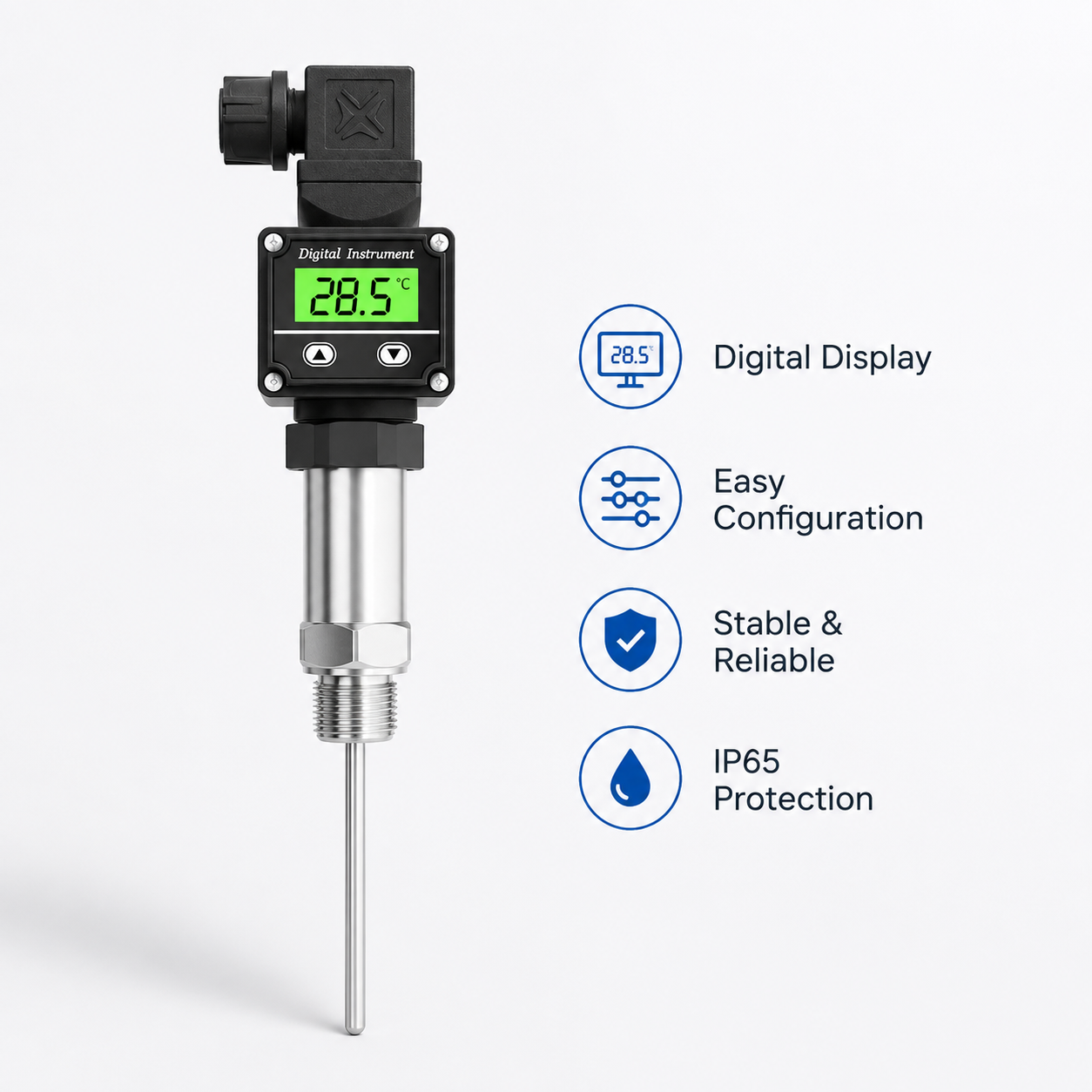

Key Features

  • Uses a built-in Pt100 resistance temperature detector as the sensing element for accurate process temperature monitoring.
  • Equipped with a 24-bit ADC for digital signal conversion, improving measurement stability and long-term reliability.
  • Equipped with a local digital display for real-time temperature monitoring without additional instruments.
  • Features an all-stainless-steel structure with strong anti-interference capability, vibration resistance, and durability in industrial environments.
  • Supports multiple threaded process connections, probe diameters, probe lengths, and cable configurations to meet different installation requirements.
  • Compact design allows convenient installation in various industrial temperature measurement applications.

Applications

Technical Specifications

Temperature Sensor Pt100 RTD
Measuring Range -58 to 392°F (-50 to 200°C)
Accuracy ±0.5% F.S.
Response Time T90 ≤ 60s
Output Signal 4–20 mA / RS485 Modbus / Pt100
Power Supply 9–30 VDC (4–20 mA) 5–30 VDC (RS485)
Communication Protocol Modbus RTU
Process Connection M20×1.5, M27×2, M14×1.5, G1/2, G1/4, NPT1/2
Probe Material 304 Stainless Steel
Protection Rating IP65 (Display Head IP50)
Display Integrated Digital Display

Downloads

User Manual
Datasheet

FAQ

Does PX202 support local temperature display?

Yes. PX202 integrates a digital display for direct temperature monitoring at the installation point.

What is the difference between PX202 and P202?

PX202 adds an integrated digital display and local configuration functions, while maintaining the same Pt100 temperature measurement principle.

Can parameters be adjusted on site?

Yes. Users can configure display range, decimal points, filtering settings, and measurement units through the local interface.

What communication protocol does PX202 support?

PX202 supports RS485 communication with Modbus RTU protocol.

What warranty do you provide?

Please refer to BayMeters Warranty Policy or contact our sales team for warranty details.

How long does shipping take?

Products in the US warehouse typically ship within 3–5 business days
