Supmea P260-M2 Slurry Submersible Level Transmitter

Supmea P260-M2 Slurry Submersible Level Transmitter

US$358.00
US$358.00
Sale Sold out
Prices Shown Include Delivery.

Low stock: 10 left • Lead Time: 2-4 Weeks
View full details

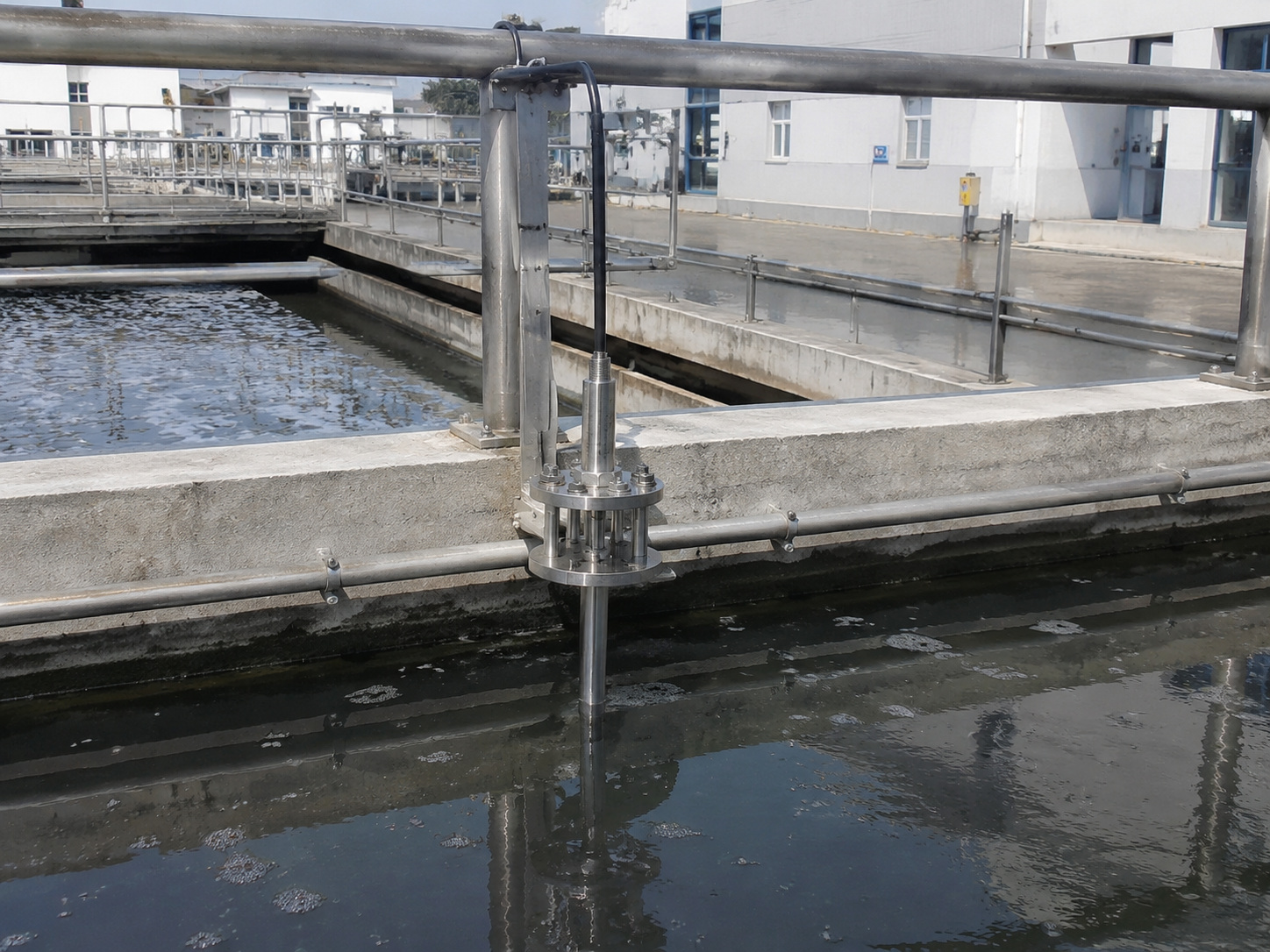

Product Overview

The SUP-P260-M2 submersible liquid level transmitter is designed for continuous level measurement in challenging liquid environments where sludge, slurry, turbulence, or floating solids may be present. It uses a high-reliability silicon piezoresistive pressure sensor to measure hydrostatic pressure generated by liquid height and converts it into a standard 4–20 mA output signal. With a durable 316 stainless steel housing, large diaphragm design, and IP68 waterproof protection, it provides stable and reliable level monitoring for wastewater, reservoirs, tanks, and other industrial liquid applications.

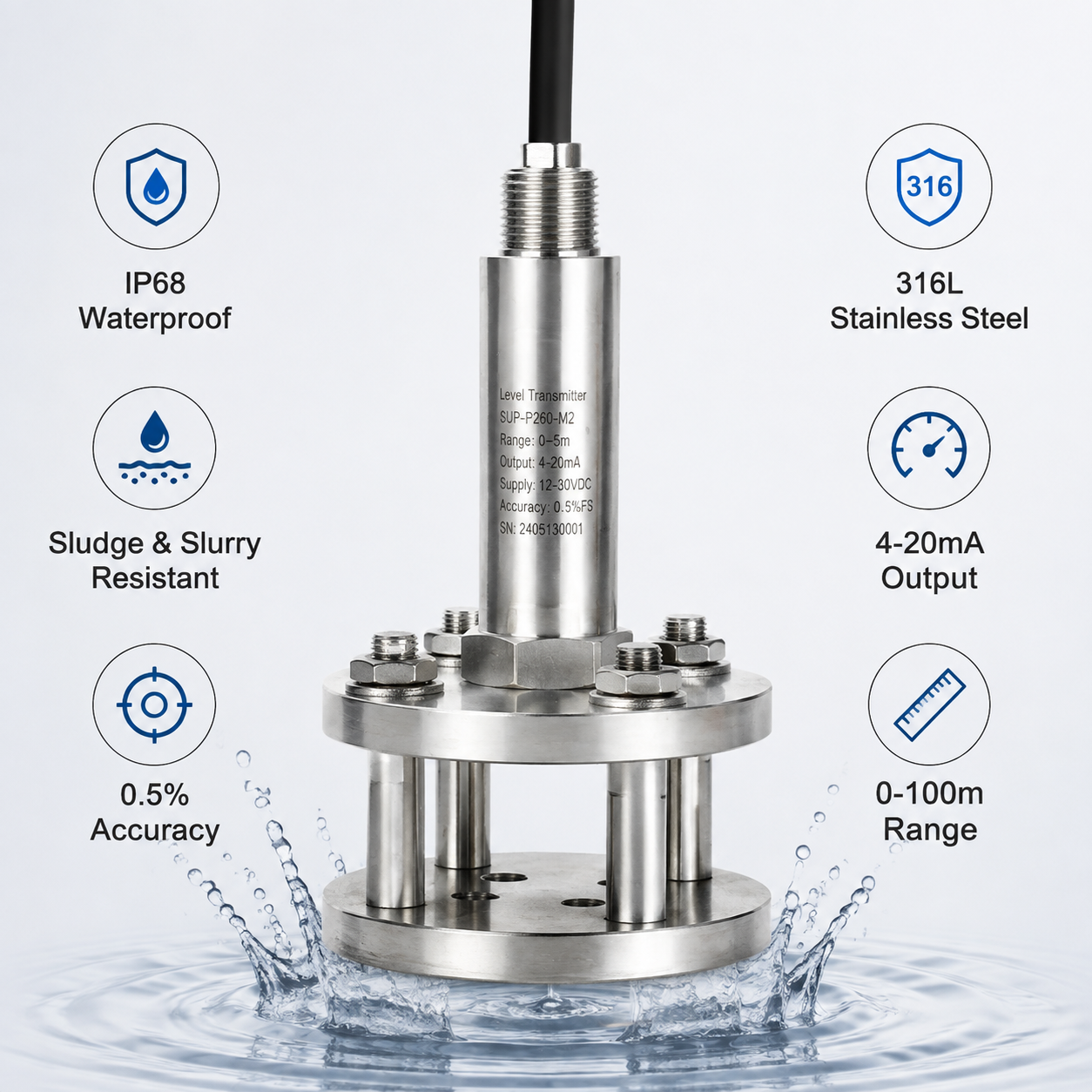

Key Features

  • Built for applications with sludge, slurry, turbulence, and floating solids, providing stable level measurement where conventional sensors may be affected.
  • The large-diameter 316 stainless steel diaphragm helps prevent blockage and damage caused by suspended solids or harsh media.
  • Uses 316 stainless steel wetted components for excellent corrosion resistance and long-term reliability in demanding environments.
  • Fully sealed design allows continuous submersion for open tanks, reservoirs, wells, and other liquid measurement applications.
  • Uses a silicon piezoresistive pressure sensor with automatic temperature compensation and digital signal correction for reliable measurement accuracy.
  • Supports standard 4–20 mA output and optional voltage or RS485 communication configurations.

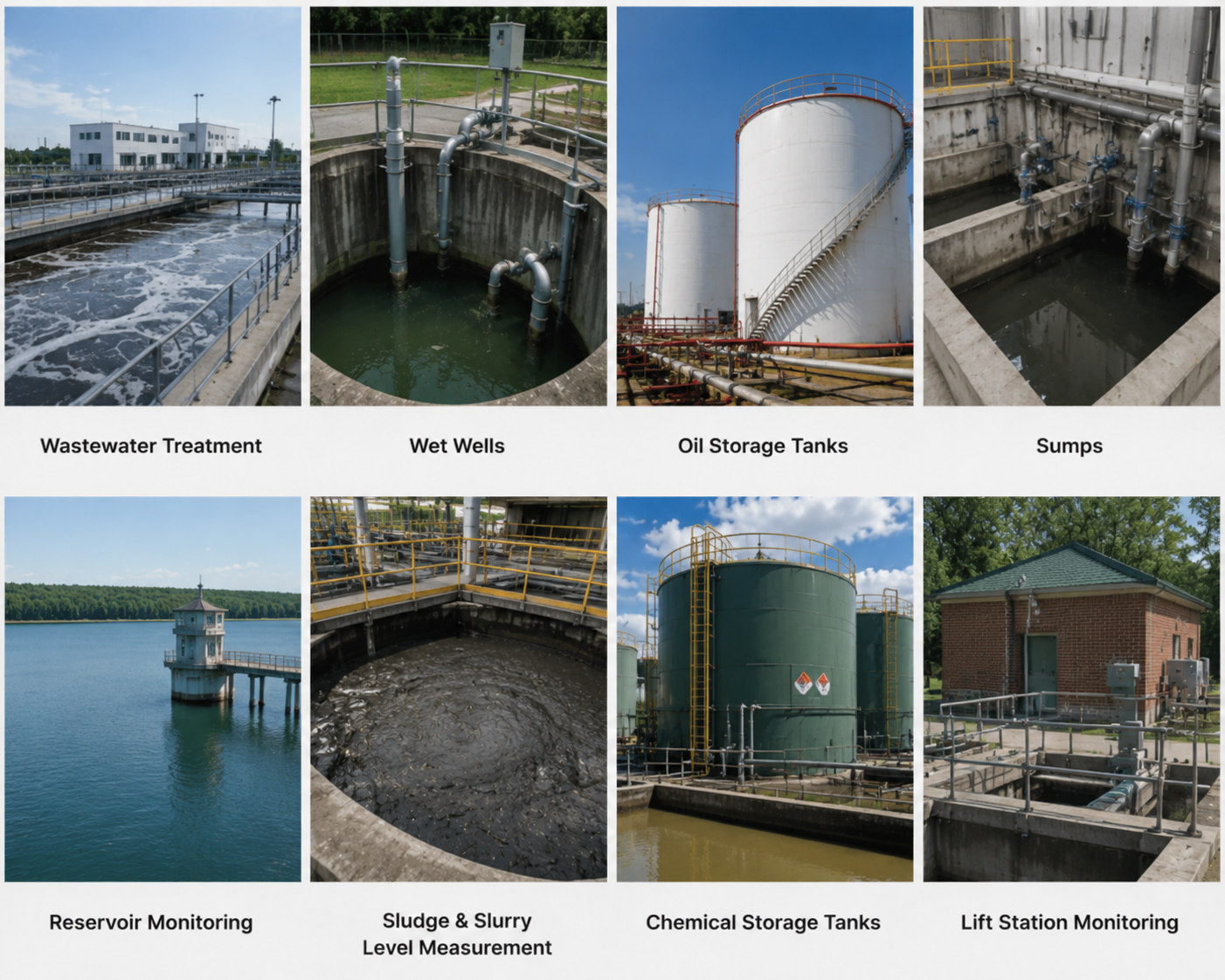

Applications

Technical Specifications

Measuring Range 0–1.6 ft to 0–328 ft H₂O (0–0.5–100 m)
Accuracy 0.5% FS
Stability ±0.2% FS/year
Pressure Type Gauge Pressure
Overload Pressure ≤200% FS
Output Signal 4–20 mA
Optional Output 0–5V / 0–10V / RS485
Power Supply 12–30 VDC
Medium Temperature -22 to 149°F (-30 to 65°C)
Temperature Compensation 32–122°F (0–50°C), -14–140°F (-10–60°C)
Protection Rating IP68
Diaphragm Material 316L Stainless Steel
Probe Material 304SS / 316LSS
Connection 1/2 inch NPT

Downloads

User Manual
Datasheet

FAQ

How does the SUP-P260-M2 measure liquid level?

The transmitter measures liquid level by sensing the hydrostatic pressure generated by the height of liquid above the sensor and converting it into an electrical output signal.

Can the transmitter be submerged continuously?

Yes. With IP68 waterproof protection, the SUP-P260-M2 is suitable for continuous submerged installation in tanks, wells, and reservoirs.

Can it work in wastewater with sludge or suspended solids?

Yes. The transmitter is specifically designed for difficult environments containing sludge, slurry, turbulence, and floating solids. The protected diaphragm design helps reduce clogging and damage risks.

Is it suitable for flowing or turbulent liquids?

Yes. Installation methods can be adapted for flowing liquids or fluctuating liquid surfaces by using guide pipes or damping devices to reduce measurement impact.

What warranty do you provide?

Please refer to BayMeters Warranty Policy or contact our sales team for warranty details.

How long does shipping take?

Products in the US warehouse typically ship within 3–5 business days
