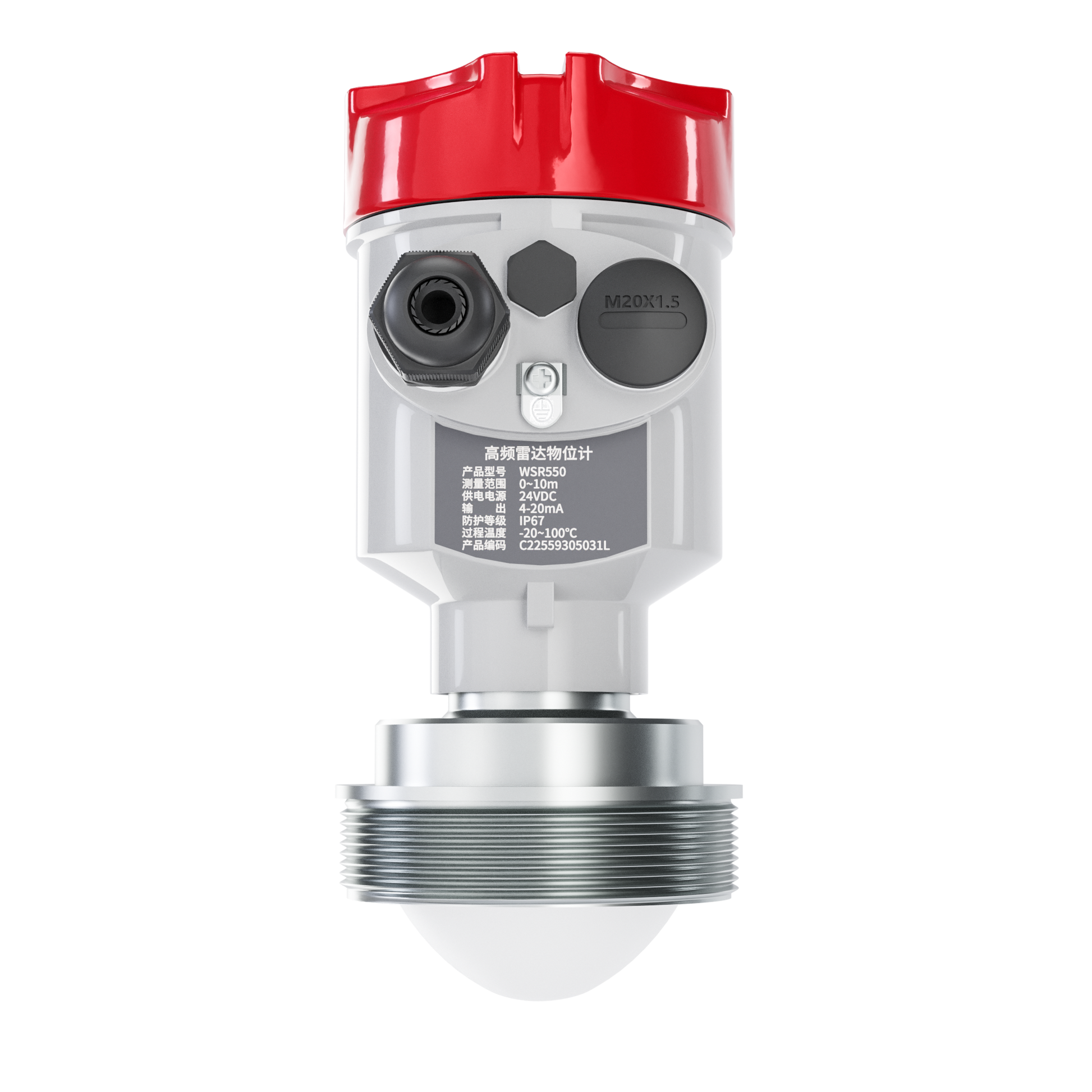

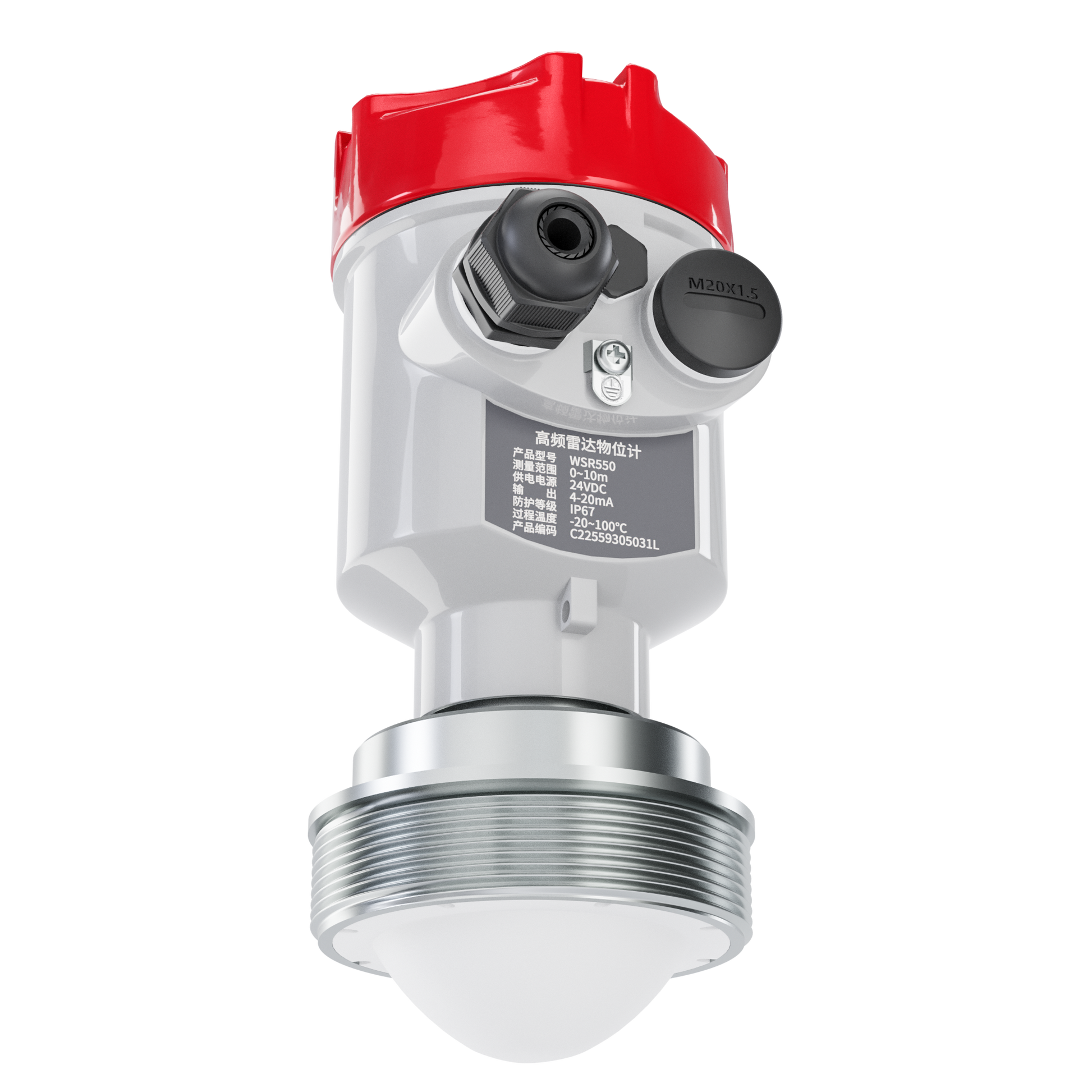

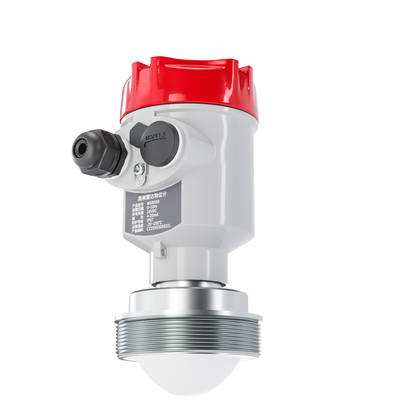

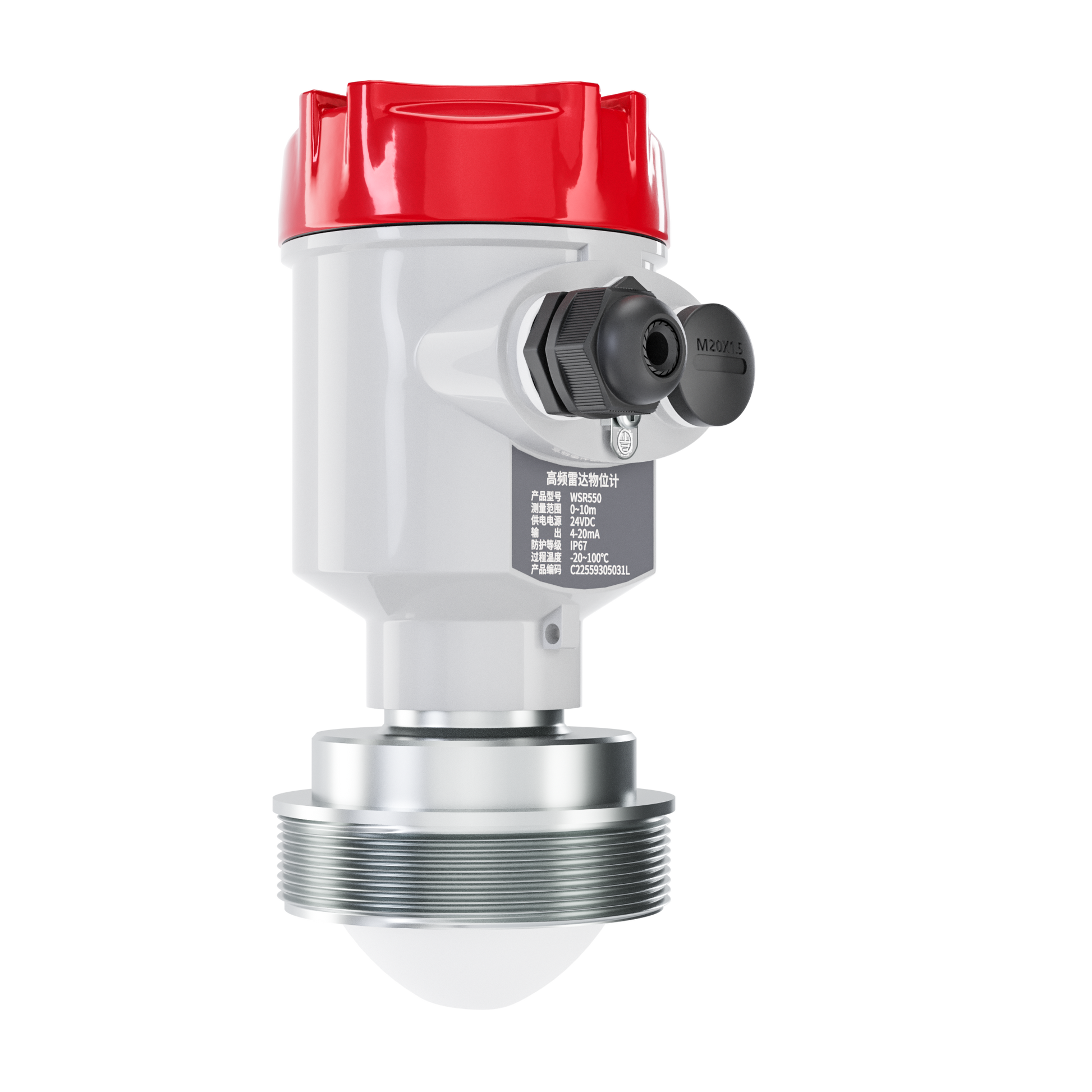

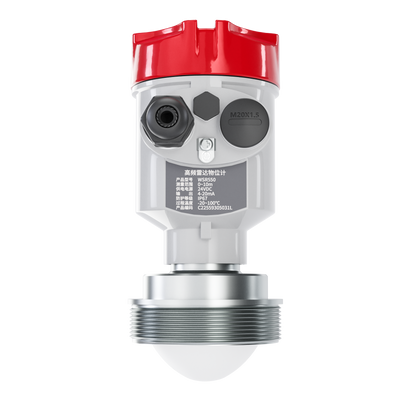

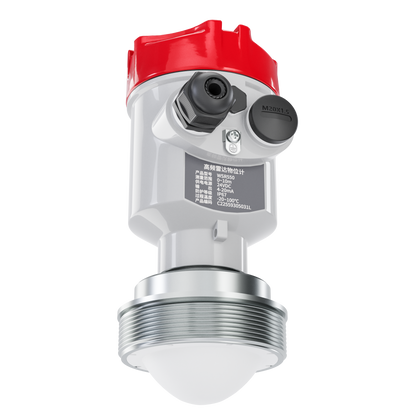

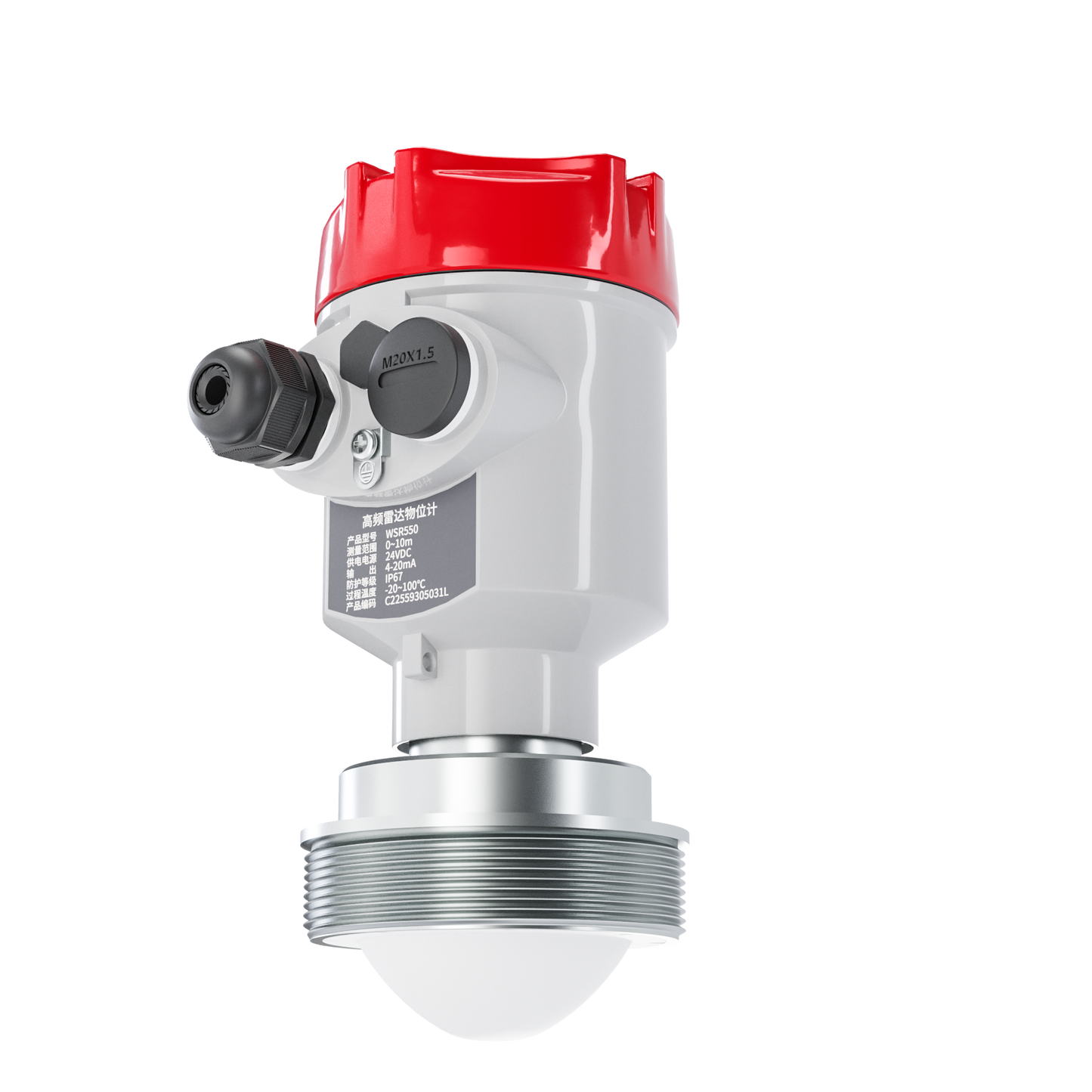

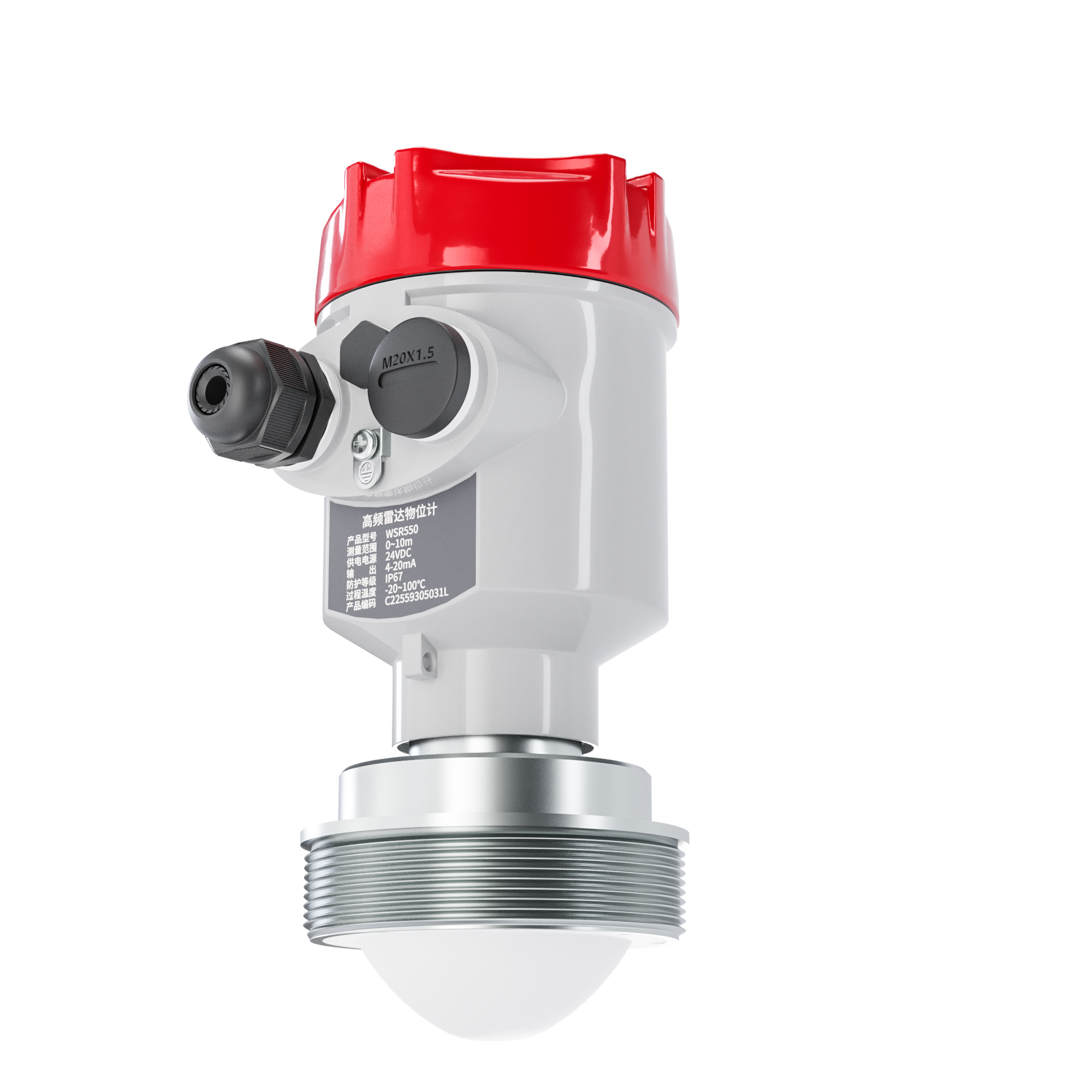

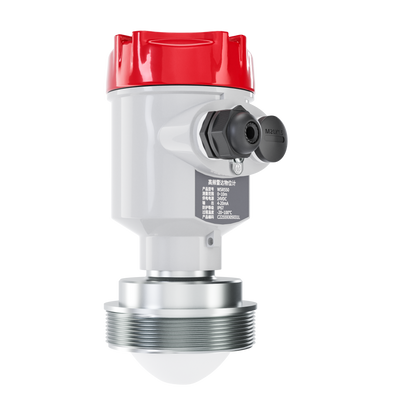

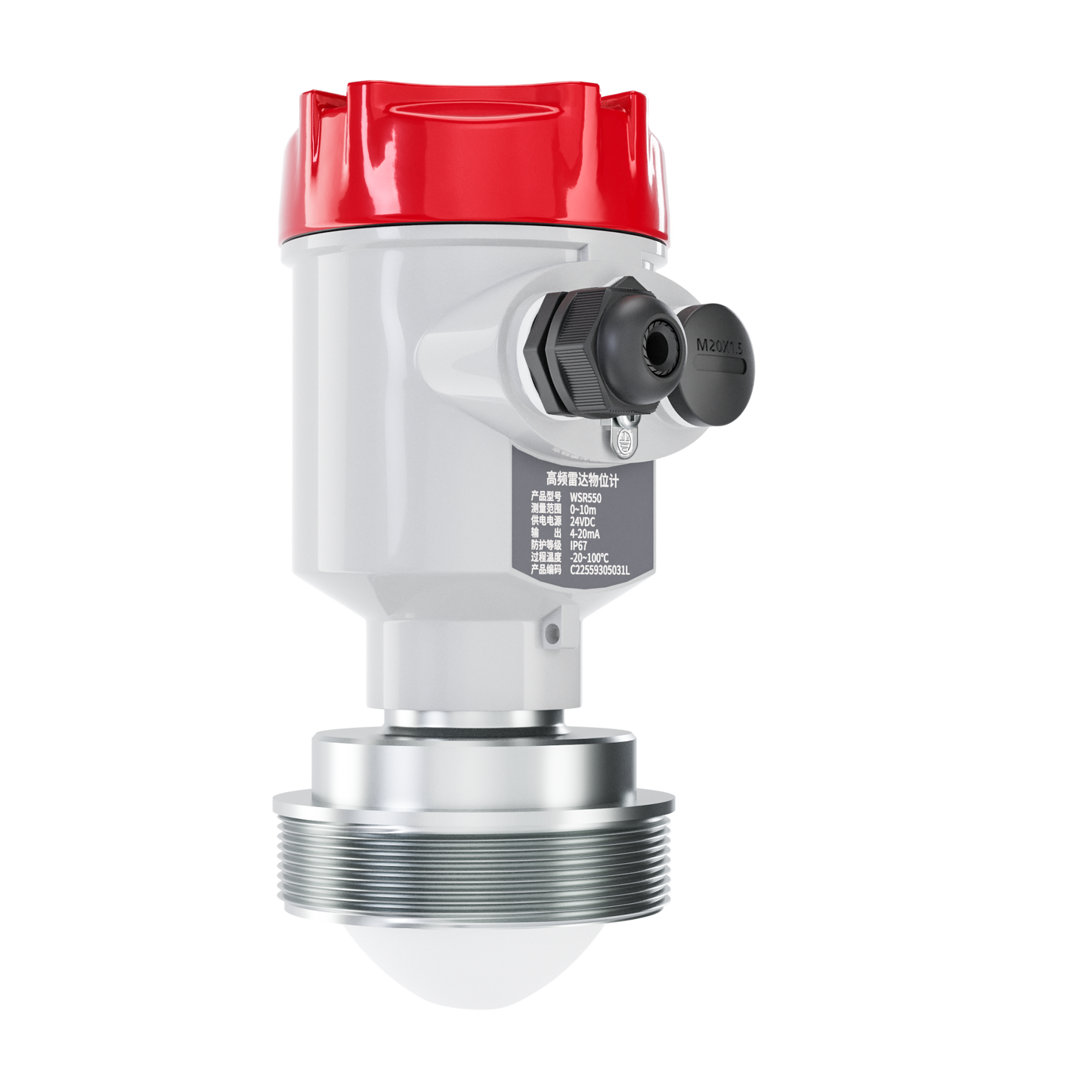

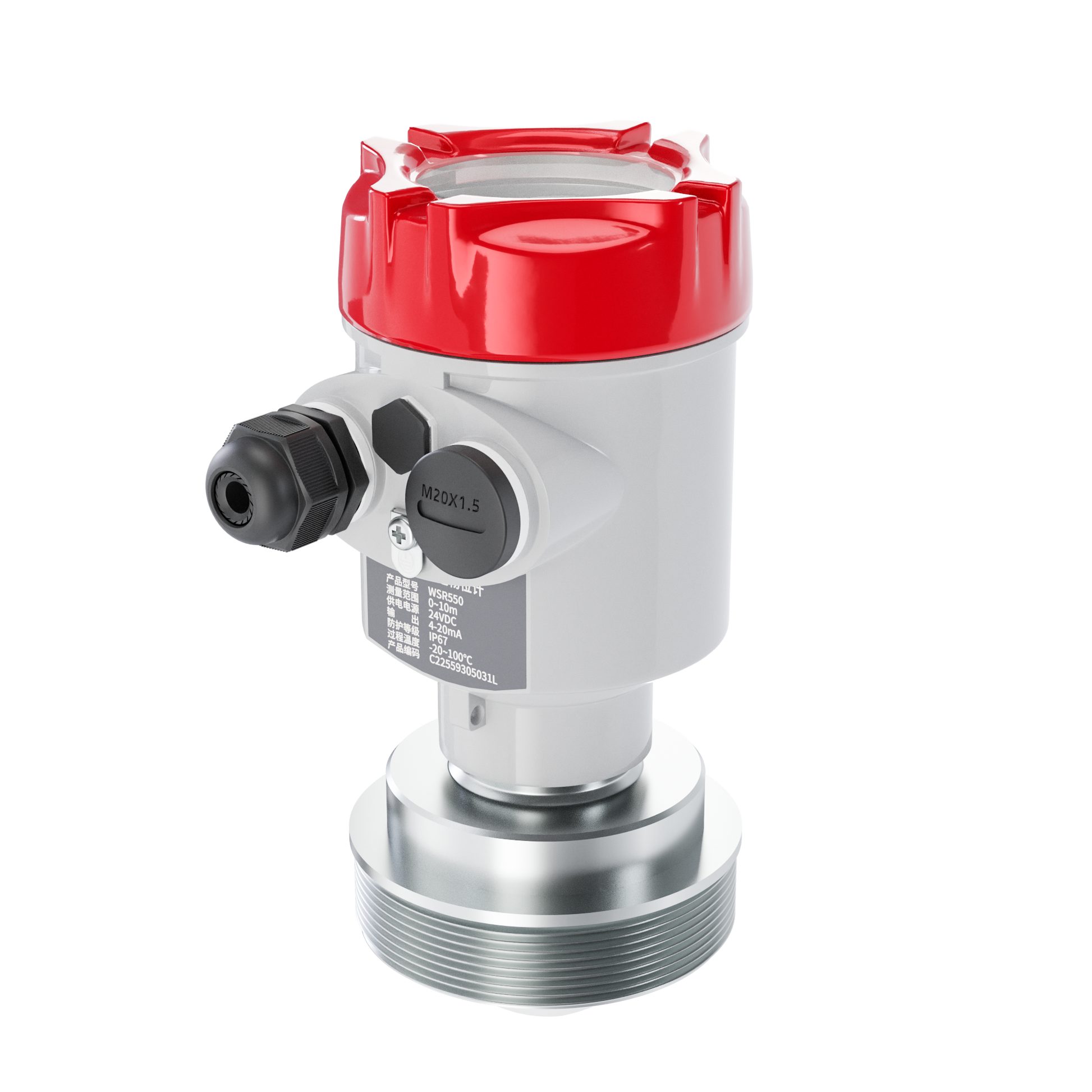

Supmea WSR550 80G Radar Level Transmitter

Supmea WSR550 80G Radar Level Transmitter

US$1,429.00
US$1,429.00
Sale Sold out
Prices Shown Include Delivery.

11 in stock • Lead Time: 2-4 Weeks
View full details

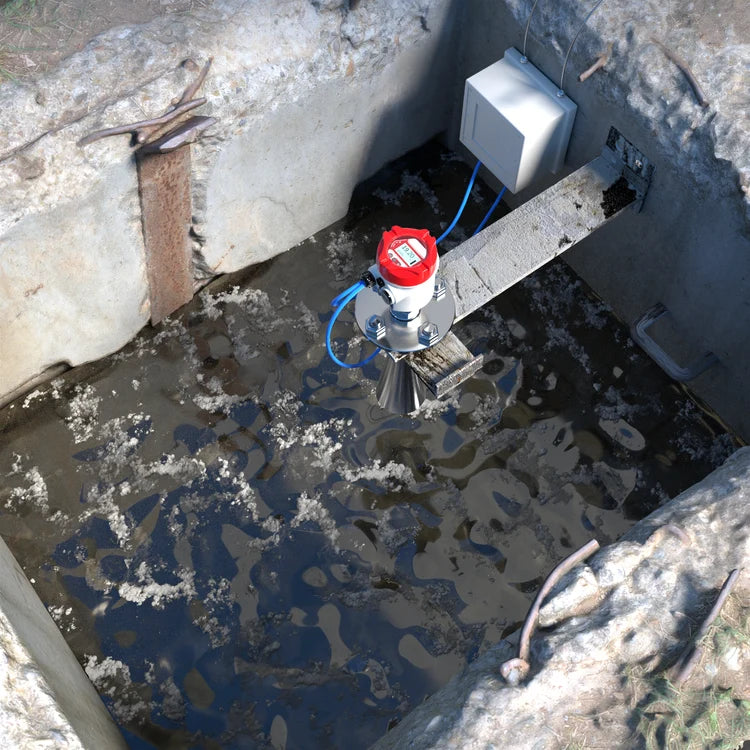

Product Overview

The SUP-WSR550 is a 76–81GHz FMCW radar level transmitter designed for accurate level measurement of liquids, solids, and powders. With high-frequency radar technology, it provides reliable measurement in challenging environments including dust, steam, high temperature, and corrosive media. Its compact design supports multiple process connections and communication options for flexible installation in industrial applications.

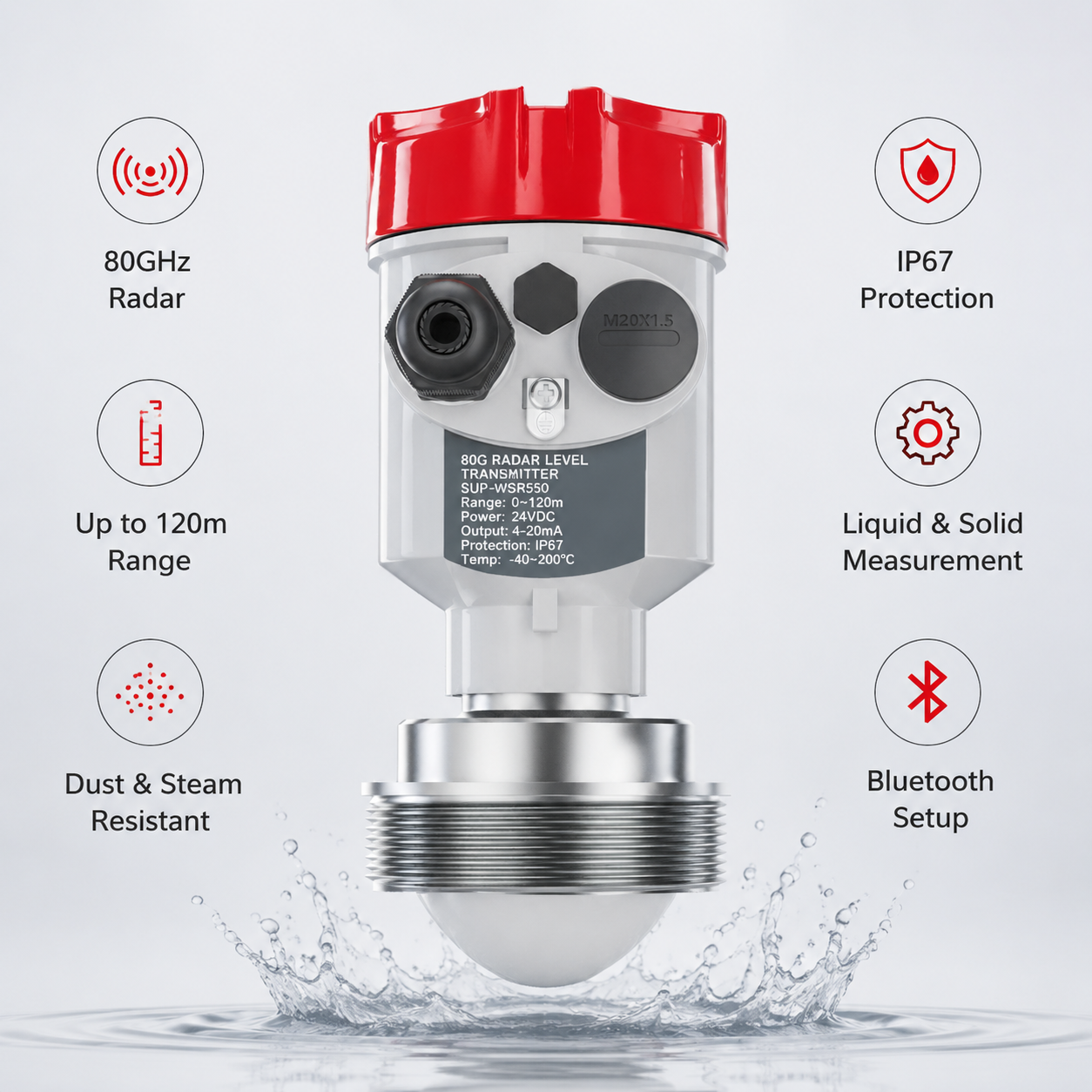

Key Features

  • Provides stable and precise level measurement with narrow beam angles and strong interference resistance, suitable for complex industrial conditions.
  • Supports measurement ranges from 0.26 ft to 394 ft, covering various tank and silo applications.
  • Designed for applications with dust, steam, agitation, crystallization, and high-temperature conditions up to 392°F (200°C).
  • Supports measurement of liquids, solid powders, and low dielectric constant materials with dielectric constant ≥2.
  • Available with threaded connections, universal flanges, anti-corrosion flanges, sanitary connections, and other customized options.
  • Supports 4–20mA output, RS485 Modbus, HART communication, and optional Bluetooth configuration.

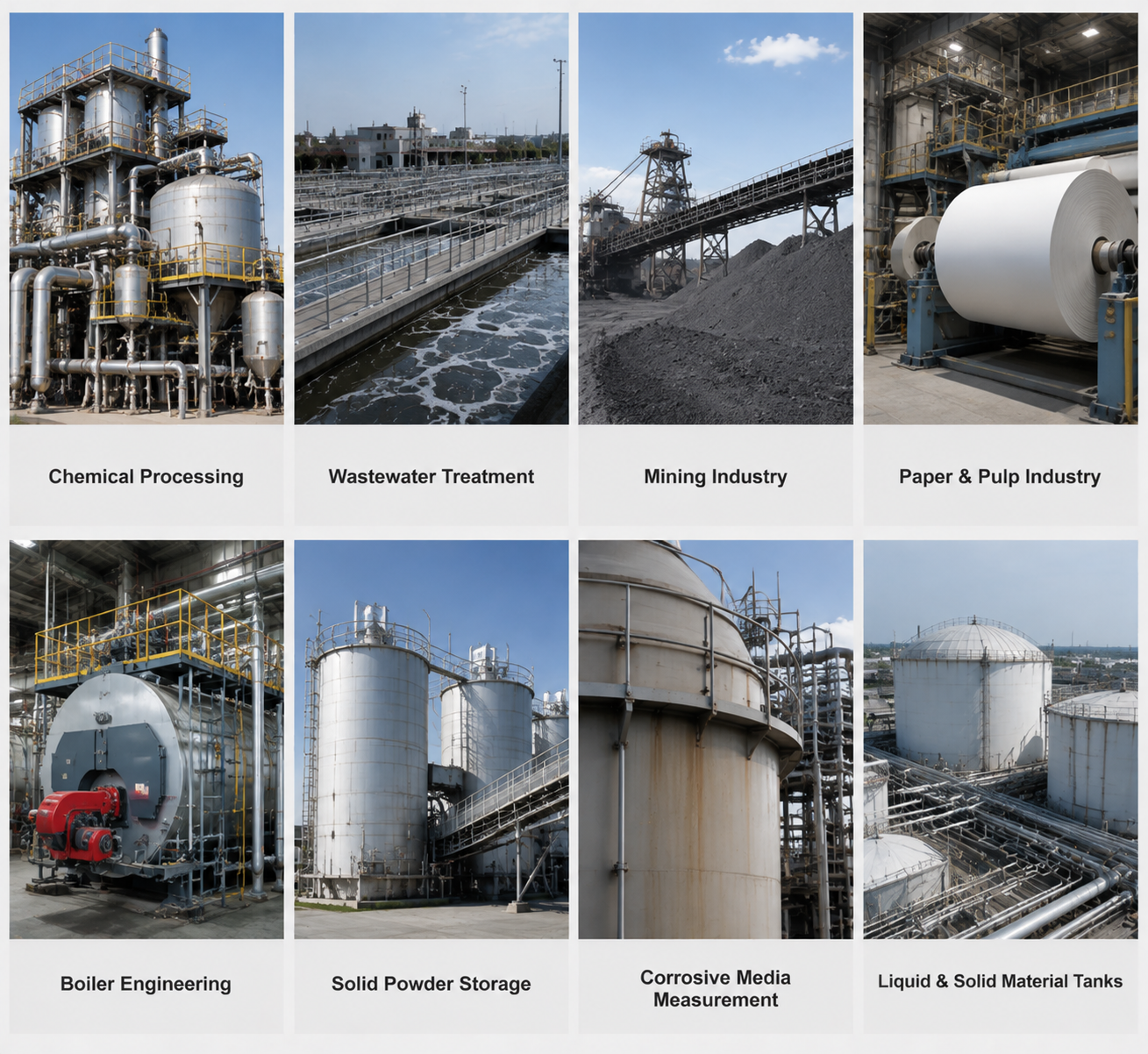

Applications

Technical Specifications

Radar Frequency 76–81 GHz
Measuring Range 0.26–32.8 ft / 0.26–65.6 ft / 0.26–98.4 ft / 0.98–196.9 ft
Accuracy Liquid: ±0.08 in; Solid: ±0.20 in
Measurement Interval Fastest 100 ms
Beam Angle 3° / 8° / 20°
Dielectric Constant ≥2
Power Supply 15–28 VDC, 220 VAC
Output Signal 4–20 mA, RS485
Communication HART, Modbus
Process Pressure -14.5 to 290 psi
Protection Rating IP67
Housing Material Aluminum Alloy, Stainless Steel
Process Connection Thread / Flange / Anti-corrosion Flange
Display 128×64 dot matrix display with 4 buttons

Downloads

User Manual
Datasheet

FAQ

What materials can the SUP-WSR550 measure?

The SUP-WSR550 can measure liquids, solid powders, and other materials with suitable dielectric properties.

What is the maximum measuring distance?

The maximum measuring range can reach 394 ft depending on the selected model configuration.

Can this radar level transmitter work in dusty environments?

Yes. The 80GHz radar technology provides reliable measurement in dusty, steamy, and harsh industrial environments.

Can it measure corrosive media?

Yes. Anti-corrosion flange and suitable antenna material options are available for corrosive applications.

What warranty do you provide?

Please refer to BayMeters Warranty Policy or contact our sales team for warranty details.

How long does shipping take?

Products in the US warehouse typically ship within 3–5 business days
