Supmea ADU1310 Low-Range Turbidity Sensor for Data Center

Supmea ADU1310 Low-Range Turbidity Sensor for Data Center

US$1,073.00
US$1,073.00
Sale Sold out
Prices Shown Include Delivery.

Low stock: 10 left • Lead Time: 2-4 Weeks

Datasheet User Manual

View full details

Technical Specifications

Accuracy ±2% or ±0.05 NTU, whichever is greater
Resolution 0.001 NTU
Response Time T90 ≤120 seconds
Outputs 4–20 mA and RS485 Modbus-RTU
Power Supply 9–28 VDC
Sample Flow Rate 0.026–0.264 gal/min
Operating Temperature 23–113°F (−5–45°C), non-freezing
Recommended Inlet Pressure Below 87 psi (0.6 MPa)
Protection Rating Sensor IP68; cable IP65
Housing Material 304 or 316L stainless steel
Process Connection G3/4 thread
Seal Material EPDM

Downloads

User Manual
Datasheet

FAQ

Can it be used in data center cooling systems?

Yes, it can monitor suspended contamination in compatible clear, water-based cooling circuits. Coolant color, glycol concentration and chemical compatibility should be confirmed before selection.

How often should the optical window be cleaned?

Cleaning frequency depends on water quality. Inspect and clean the optical window and flow cell regularly to prevent deposits from affecting the reading.

Can the sensor be installed in a flow cell?

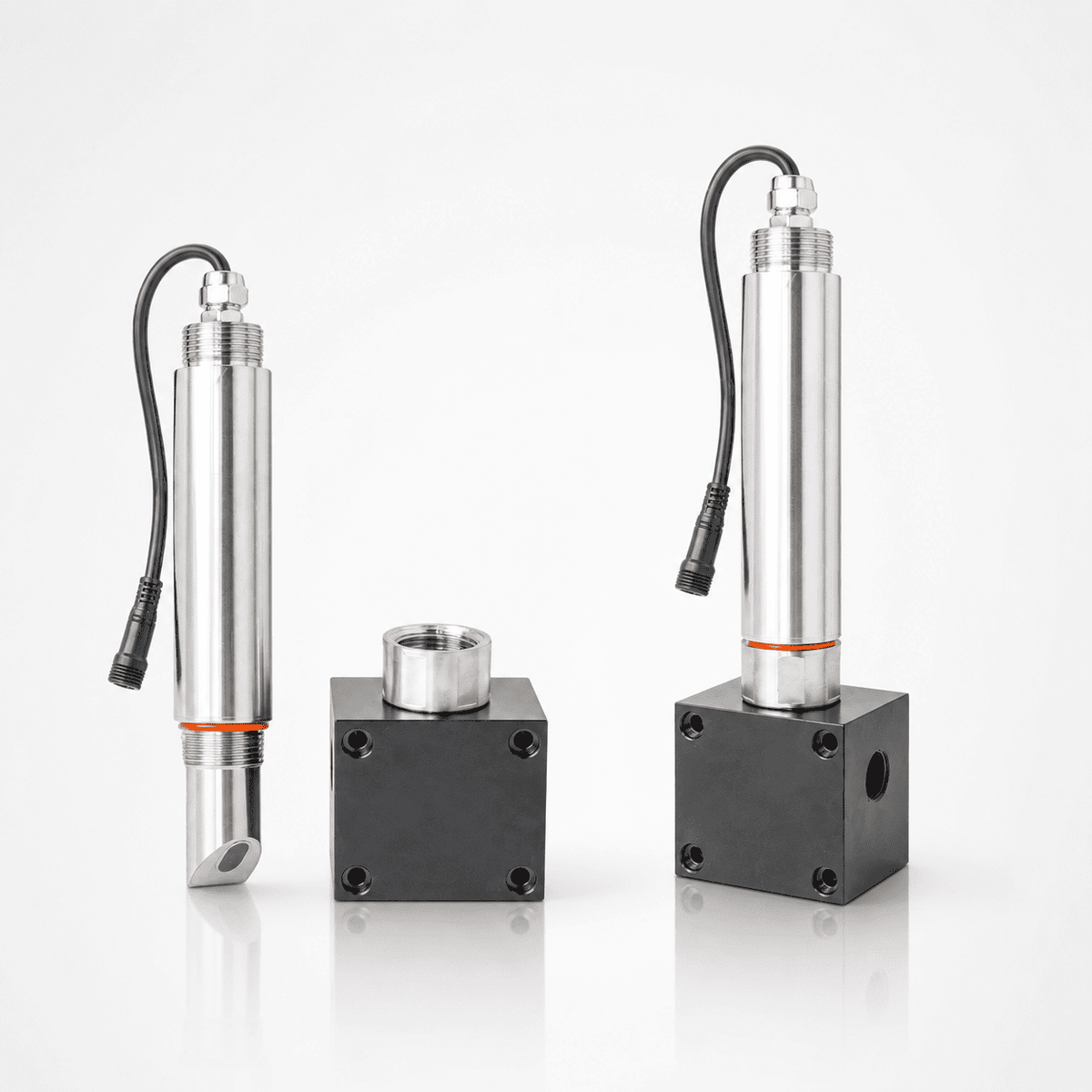

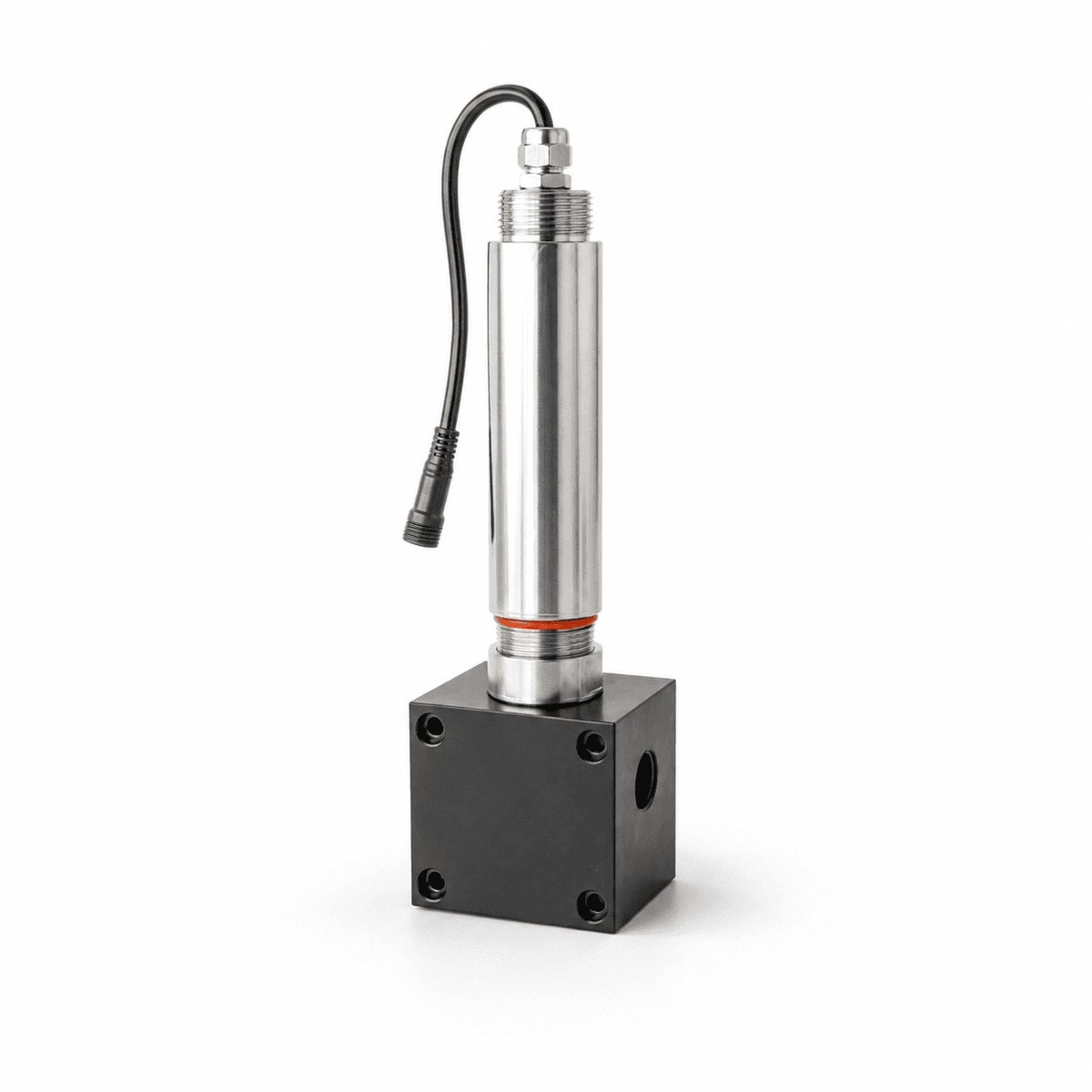

Yes. An optional PEEK flow cell is available. The recommended sample flow rate is approximately 500 mL/min.

Does the sensor require calibration before use?

The sensor is factory-calibrated. Regular verification and recalibration are recommended to maintain measurement accuracy.

What warranty do you provide?

Please refer to BayMeters Warranty Policy or contact our sales team for warranty details.

Do you provide technical support?

Yes. BayMeters provides technical support for product selection, installation, configuration, and troubleshooting. If you need assistance, please contact our technical support team.
Overview
Features
Applications
Specifications
Downloads
FAQ

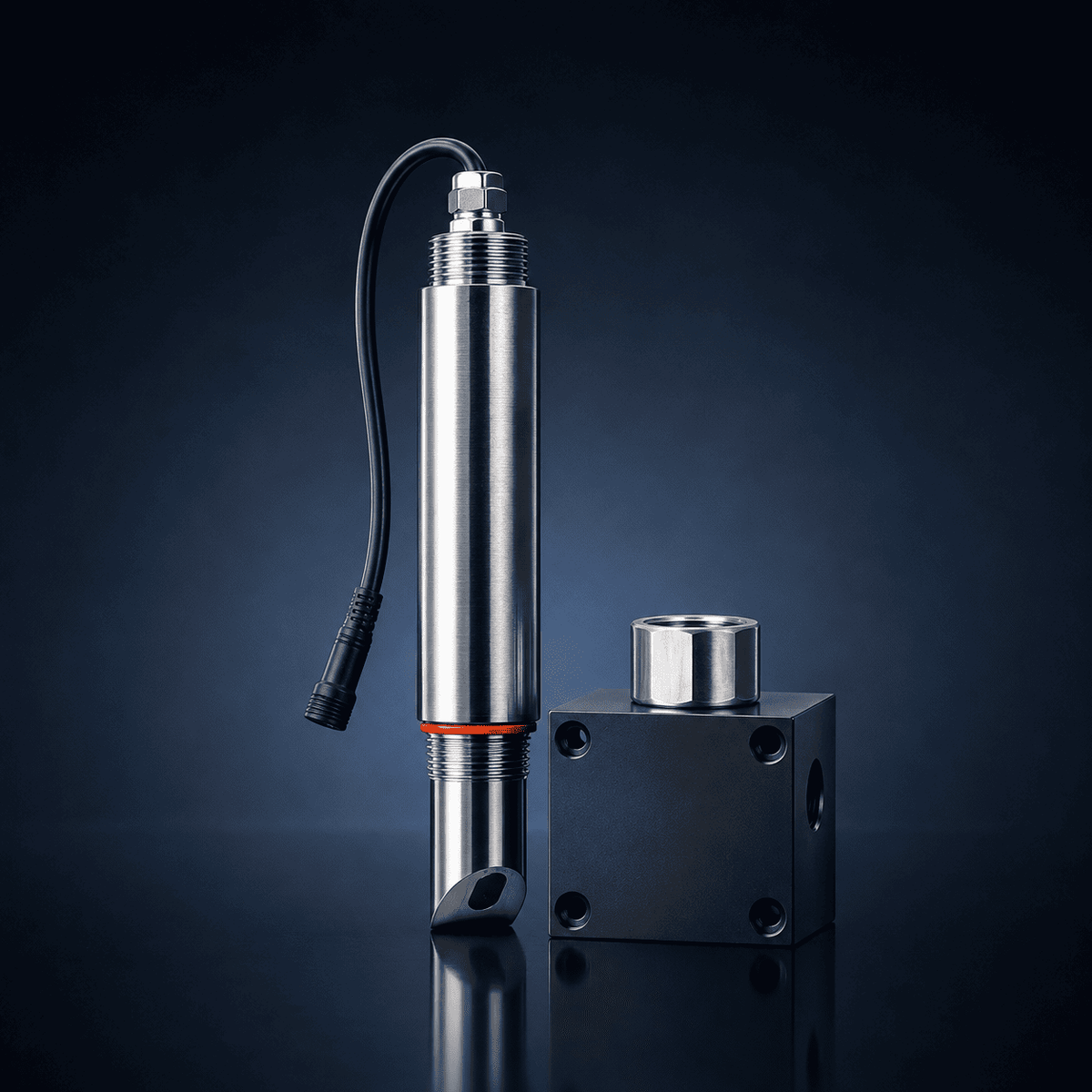

Product Overview

The Supmea ADU1310 is a low-range turbidity sensor for continuous monitoring of clear and high-purity water. It uses an 860 nm laser and 90° scattered-light technology to detect fine suspended particles from 0 to 100 NTU. The sensor is suitable for data center cooling water, drinking water, water treatment and high-purity process systems. It helps identify particle contamination and changes in water clarity before they affect system performance.

Key Features

  • Measures low-range turbidity from 0 to 100 NTU in clear and high-purity water.
  • Uses an 860 nm laser and 90° scattered-light technology for stable particle detection.
  • Features an angled optical window to reduce bubble adhesion and measurement interference.
  • Provides 4–20 mA and RS485 Modbus-RTU outputs for easy system integration.
  • Offers 304 or 316L stainless steel construction for reliable operation.
  • Supports inline, flow-cell and submersible installation with IP68 sensor protection.

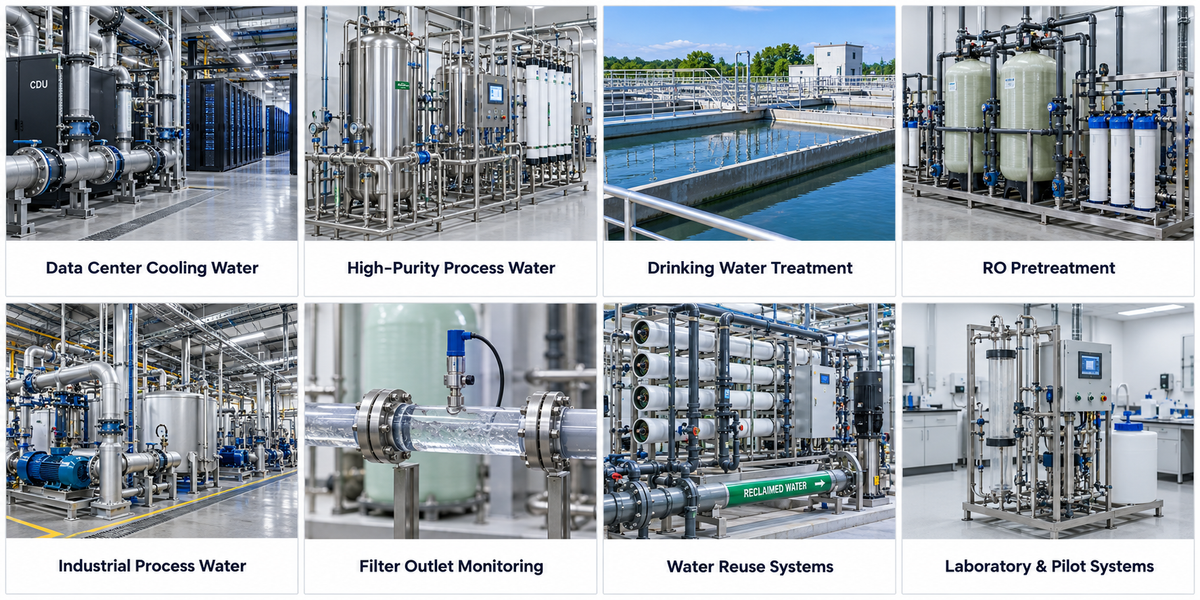

Applications
