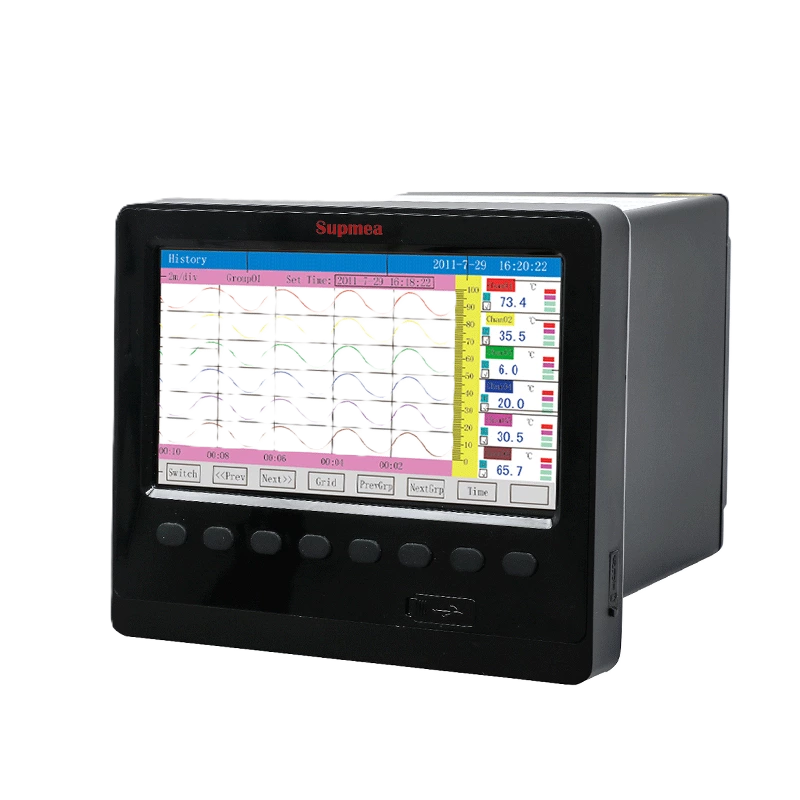

Paperless recorder up to 48 channels universal input R6000C

$1,063.00 USD

Sale Sold out

This is an all-inclusive reference price (product, international shipping, and import duties), based on a few selected configurations. Actual pricing may vary by size, options, and order quantity. Minimum order may apply for low-value items, while better pricing may be available for larger requirements. For a confirmed quote or to place an order, please contact us.

Input Channels 4 8 16

View full details

Introduction

Color paperless recorder with fixed point/program segment adopts the control algorithm of differential in advance. The proportional band P, integral time I and derivative time D are mutually independent of each another without affecting each other when being adjusted. The system overshoot can be controlled with strong anti-jamming capability.

Specification

Display 7 inch TFT display screen
Input Up to 48 channels of universal input
Relay output 1A/250VAC, Max 18 channels
Communication RS485, Modbus-RTU
Internal memory 64 Mbytes Flash
Power supply AC85～264V，50/60Hz; DC12～36V
Outer dimensions 185 × 154 × 176 mm (7.28" × 6.06" × 6.93")
DIN panel cutout 138 × 138 mm (5.43" × 5.43")

Dimension
