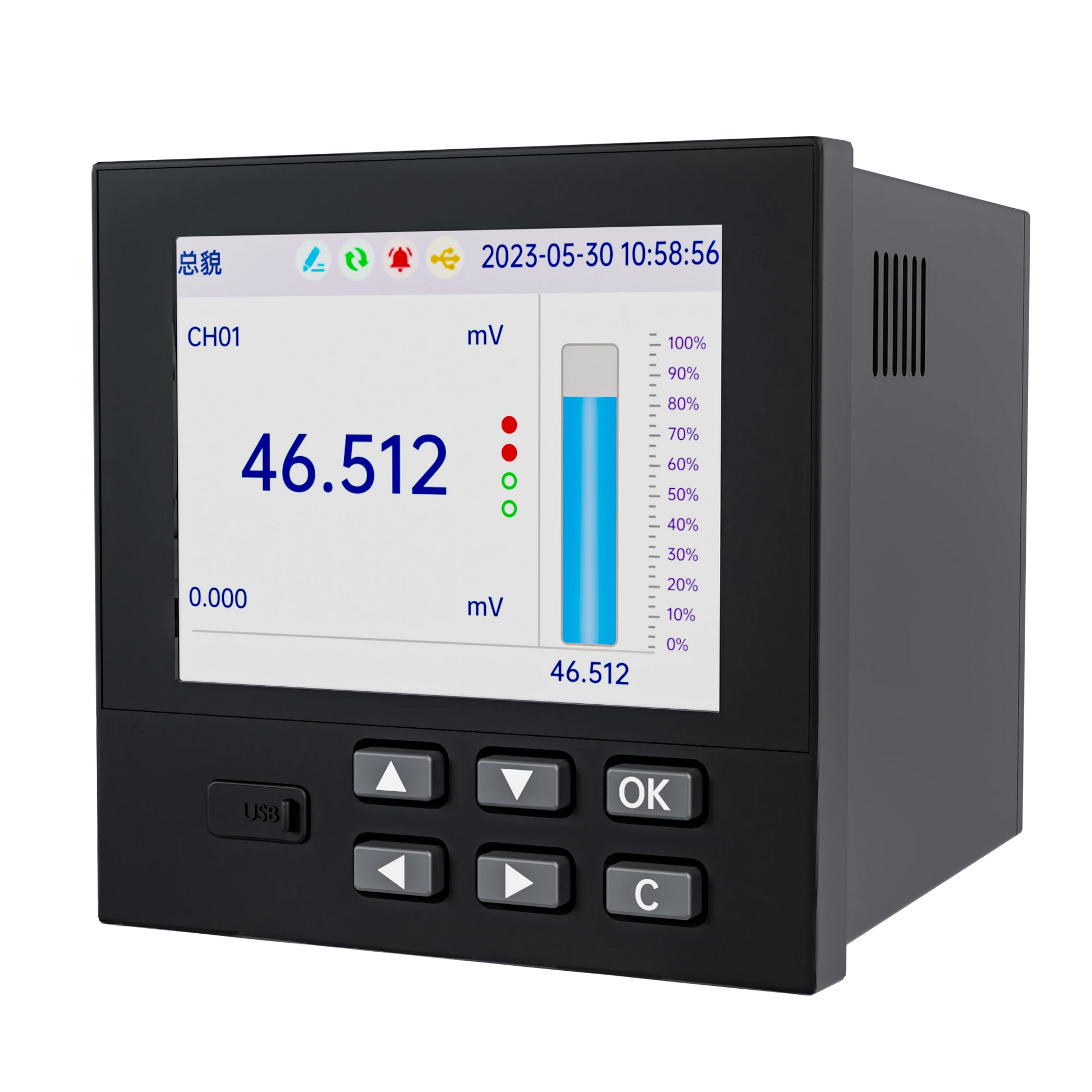

18-channel analog signal input paperless recorder RN3000

18-channel analog signal input paperless recorder RN3000

$1,149.00 USD
$1,149.00 USD
Sale Sold out
Shipping calculated at checkout.
Input Channels
View full details

Introduction

This product has a 18-channel analog signal input channel, 4-channel relay alarm output channel, 1-channel150mA distribution output channel,1-channel RS-485 communication interface ,and a USB data dump interface.This product has online firmware upgrade function, which can be done through a USB flash drive or 485 interface. It supports customized writing of the startup interface and screenshot display function.

Specification

  • Screen size 3.5-inch TFT true color LCD screen
  • Resolution 320 × 240High definition LED backlight
  • Dimension 96mm × 96mm × 100mm (3.78" × 3.78" × 3.94")
  • Cutout dimension 92mm × 92mm (3.62" × 3.62")
  • Panel thickness 1.5mm~6.0mm (0.06"~0.24")
  • Weight 0.37kg (0.82 lbs)
  • Power supply (85~264)VAC，(47~63)Hz(24VDC can be customized)
  • Internal storage 64M Bytes Flash (96M, 128M can be customized)
  • External storage U disk support (standard USB2.0 communication interface)
  • Maximum power consumption 10W
  • Relative humidity (10~85)% (No condensation)
  • Operating temperature (0~50)℃ (32°F~122°F)
  • Storage conditions Temperature: (-20~60)℃ (-4°F~140°F) Relative humidity: (5~95)% RH (No condensation)
