pH ORP controller SUP-PH6.5

$343.00 USD

Sale Sold out

3-Year-Limited-Warranty

Ships in 1-3 weeks

Product Overview

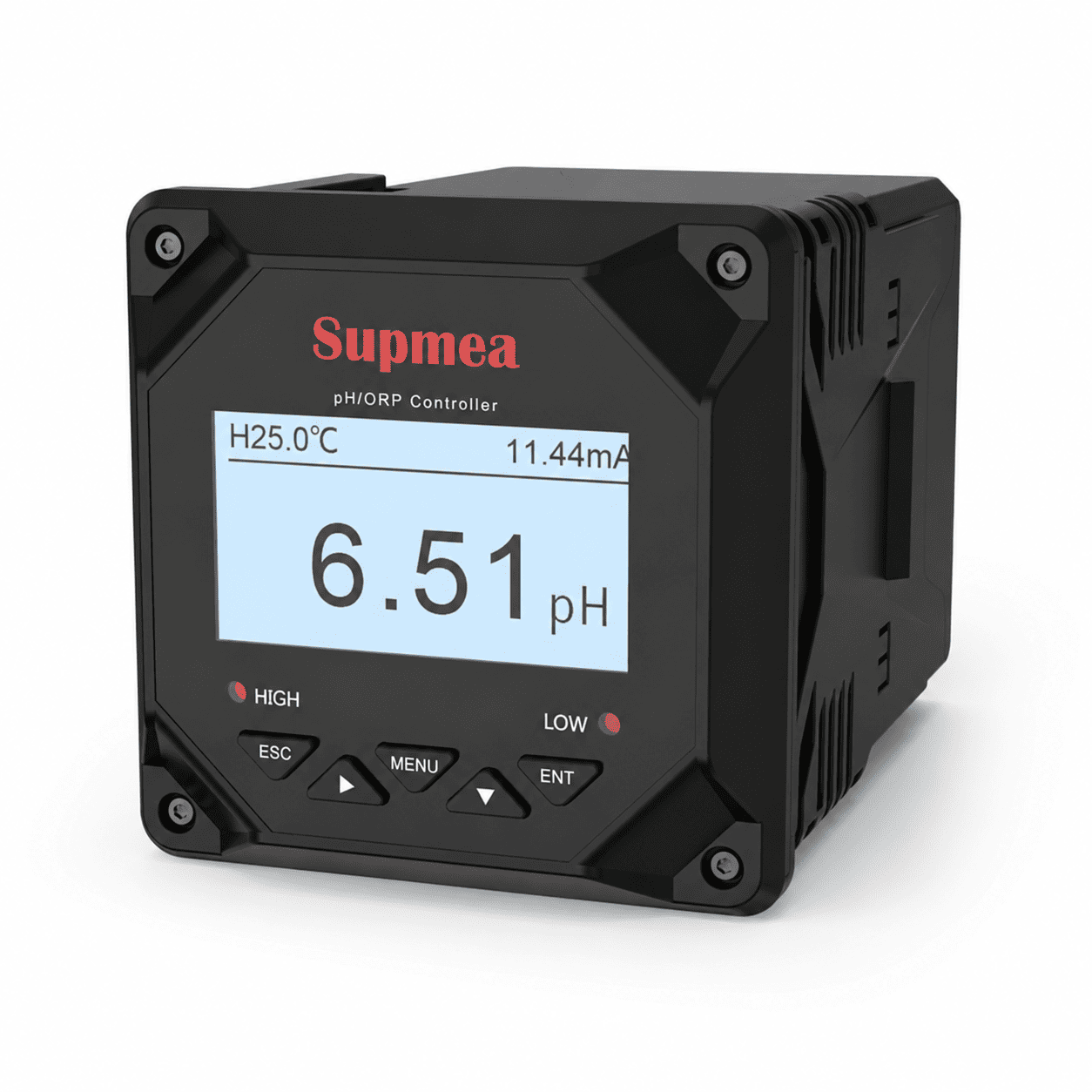

The SUP-PH6.5 pH/ORP Controller is an intelligent online chemical analysis controller designed for continuous monitoring of either pH or ORP, and temperature in industrial water treatment processes. It supports isolated 4–20 mA analog output and RS485 Modbus RTU communication, enabling seamless integration with PLC, DCS, and SCADA systems.

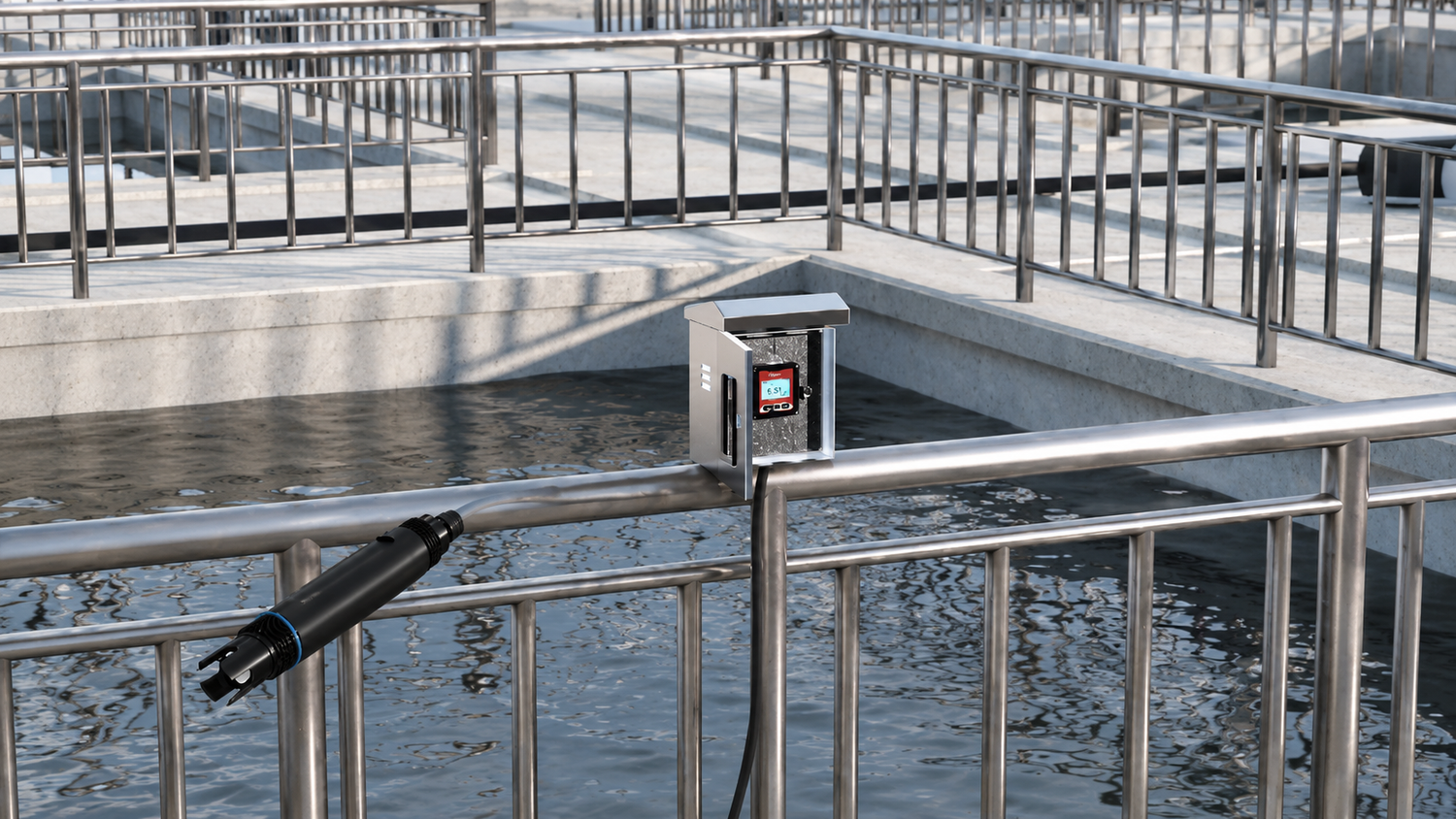

Featuring a modular hardware design, configurable high/low alarm outputs, automatic or manual temperature compensation, and a 2.8-inch LCD display, the controller provides stable, reliable performance for thermal power, chemical processing, pharmaceutical manufacturing, environmental protection, and municipal water treatment applications.

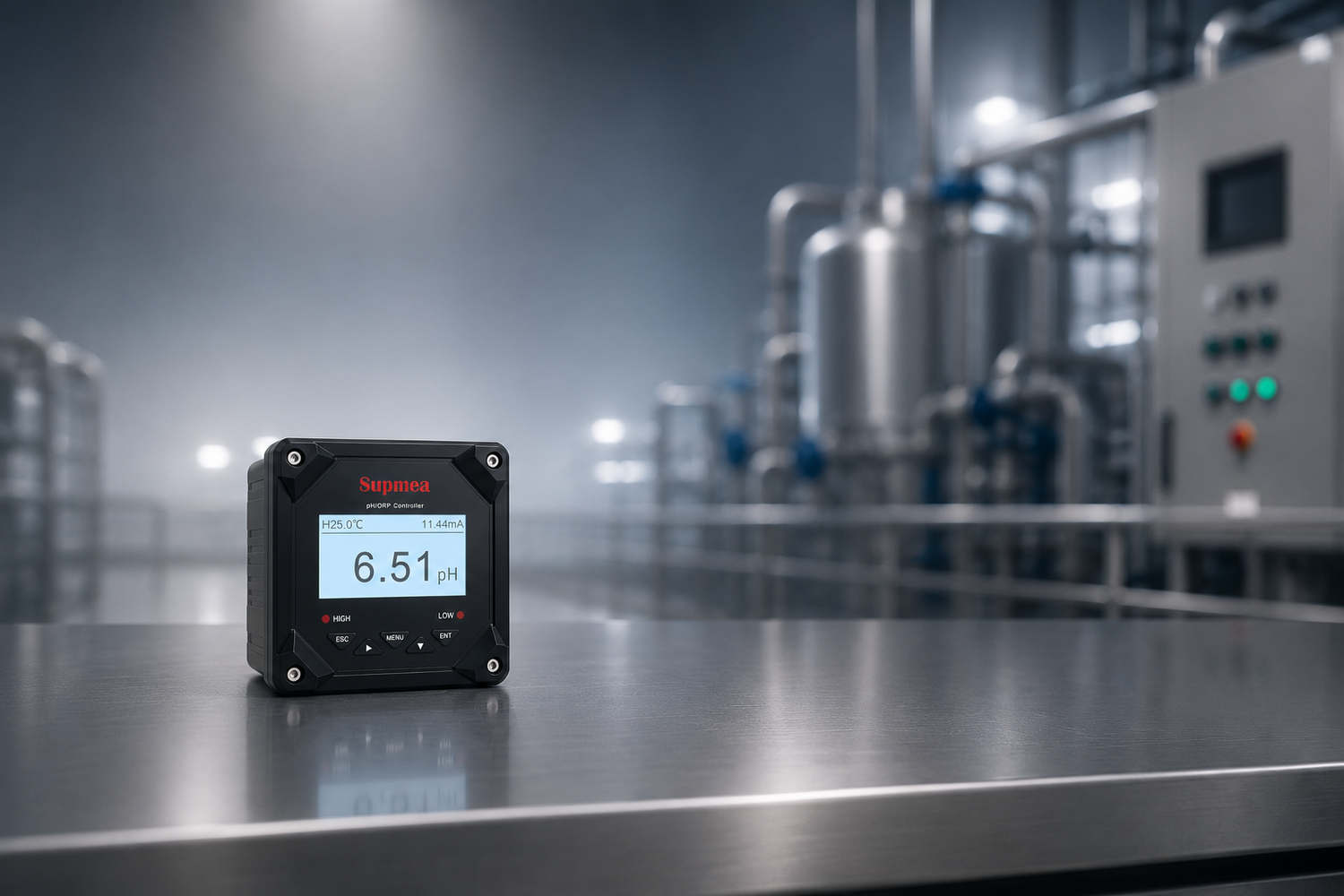

Key Features

Supports continuous online measurement of either pH or ORP, with automatic or manual temperature compensation for stable and accurate monitoring.

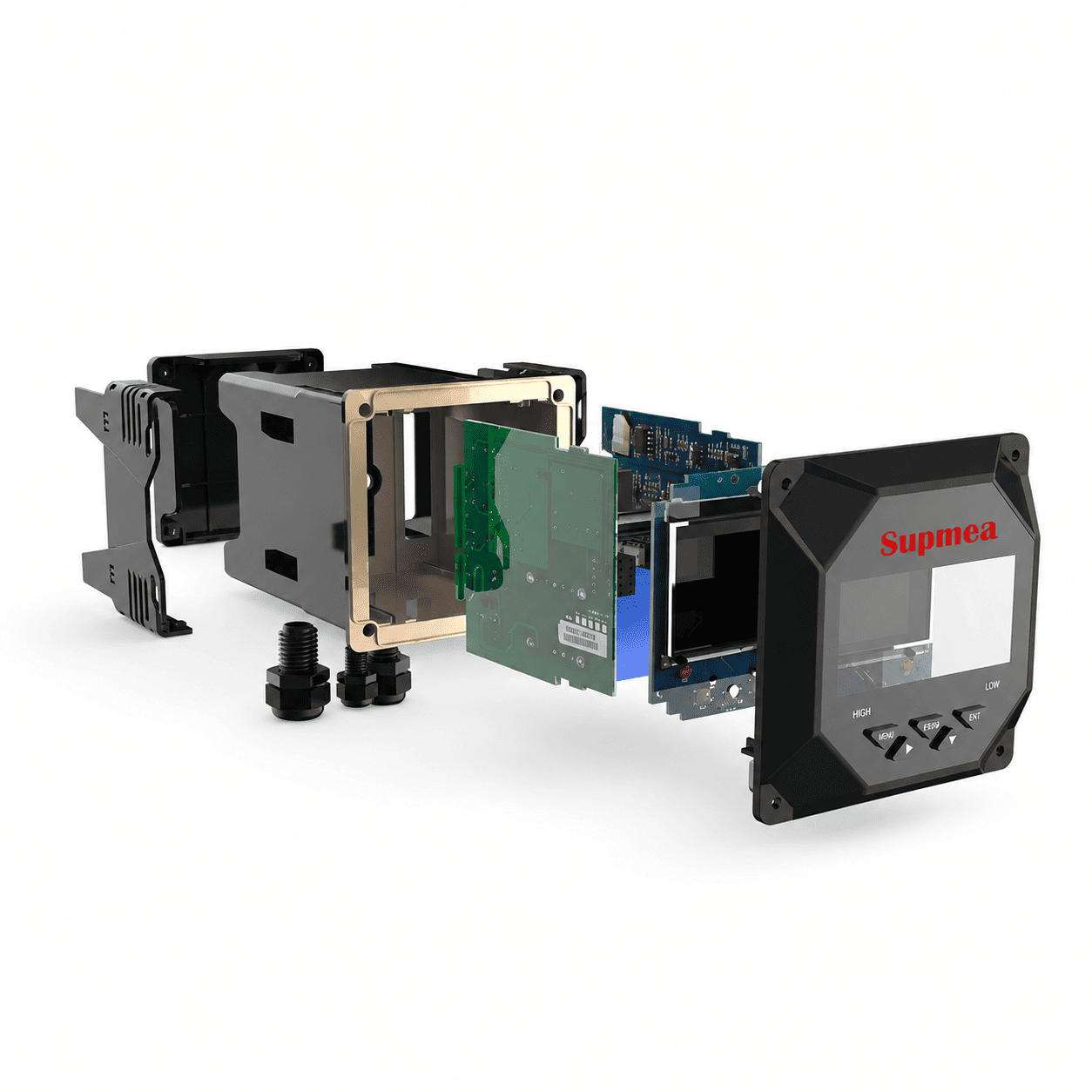

Board-card modular architecture simplifies assembly, maintenance, and future configuration upgrades.
Provides isolated analog transmission with excellent noise immunity for industrial environments.
Supports isolated RS485 communication for easy integration with industrial automation systems.
Supports configurable high/low alarm limits, alarm delay, and relay outputs for process control.
Supports NTC10K, Pt1000, and Pt100 sensors with manual or automatic temperature compensation.

Applications

Technical Specifications

Model	SUP-PH6.5
Measuring Range	pH: 0.00–14.00 pH ORP: -2000 to 2000 mV

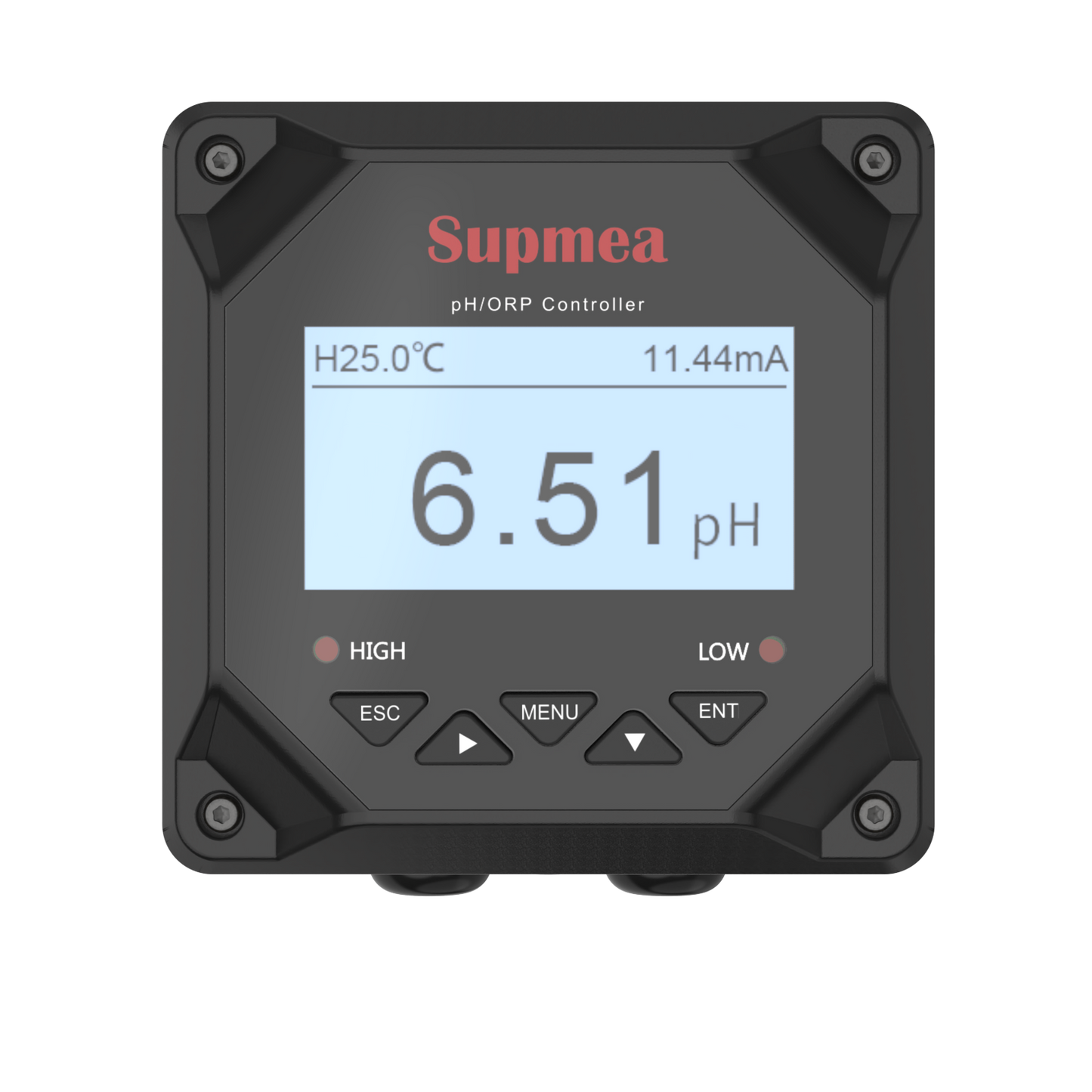

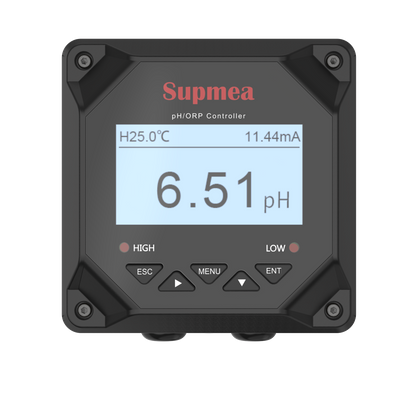

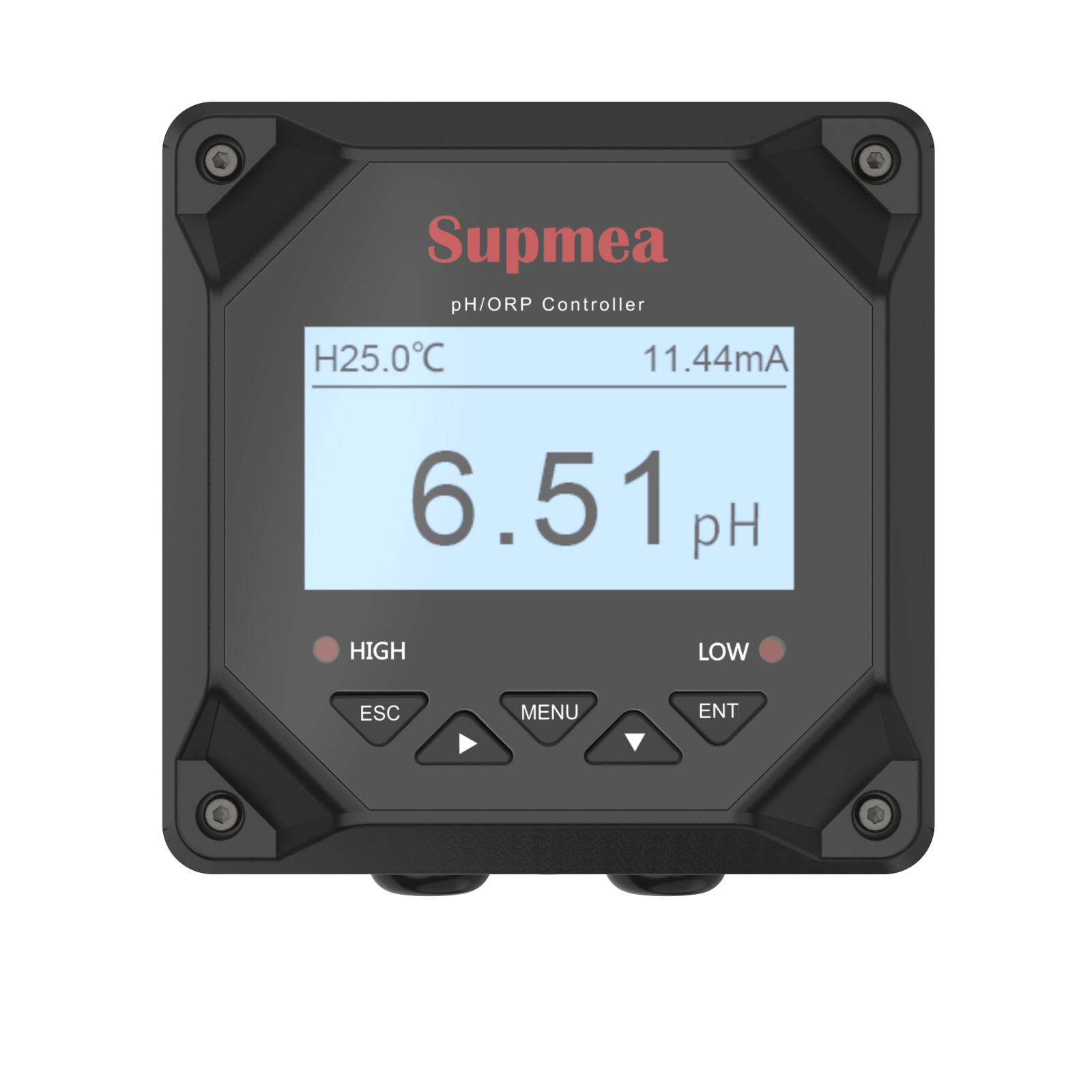

Display	2.8-inch Monochrome LCD 128 × 64 Resolution
Accuracy	pH: ±0.02 pH ORP: ±1 mV (±2 mV at extreme ranges)
Resolution	128 × 64 Display Resolution
Relay Output	2 × SPDT Relay, 250 VAC / 3 A
Output Signal	Isolated 4–20 mA (Max Loop 750 Ω, ±0.2% FS)
Communication	Isolated RS485, Modbus RTU
Power Supply	110 VAC 24VDC
Operating Temperature	32–140°F (0–60°C)
Protection Rating	IP5X
Dimensions	3.94 × 3.94 × 5.91 in (100 × 100 × 150 mm)
Multi-channel Input	Single-channel pH / ORP
Alarm Output	High & Low Alarm, Configurable Delay

Downloads

User Manual

Datasheet

FAQ

Can the SUP-PH6.5 measure pH and ORP at the same time?

No. The SUP-PH6.5 is a single-channel controller. It can be configured for either pH measurement or ORP measurement, but it cannot measure both parameters simultaneously. If your application requires monitoring multiple water quality parameters at the same time, consider a universal multi-parameter controller such as the SUP-DC2000.

What temperature sensors are supported?

The controller supports NTC10K as standard and Pt1000 / Pt100 temperature sensors for automatic or manual temperature compensation.

What mounting method is used?

The controller is designed for panel mounting with a 92.5 × 92.5 mm cutout and is recommended for indoor industrial installations.

Does the controller support PLC or SCADA systems?

Yes. The controller provides isolated 4–20 mA output and RS485 Modbus RTU communication for seamless integration with industrial control systems.

What warranty do you provide?

Please refer to BayMeters Warranty Policy or contact our sales team for warranty details.

How long does shipping take?

Products in the US warehouse typically ship within 3–5 business days
