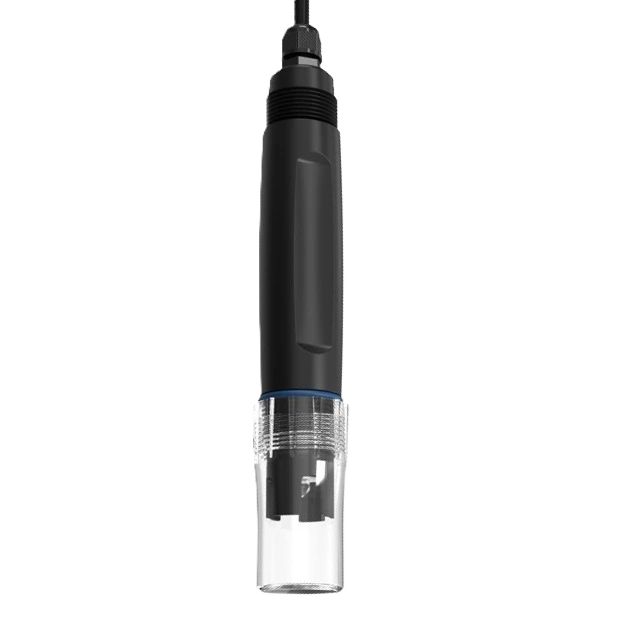

Plastic pH sensor pH6001

Plastic pH sensor pH6001

$116.00 USD
$116.00 USD
Sale Sold out
This is an all-inclusive reference price (product, international shipping, and import duties), based on a few selected configurations. Actual pricing may vary by size, options, and order quantity. Minimum order may apply for low-value items, while better pricing may be available for larger requirements. For a confirmed quote or to place an order, please contact us.

Low stock: 10 left • Ships in 3-5 business days
View full details

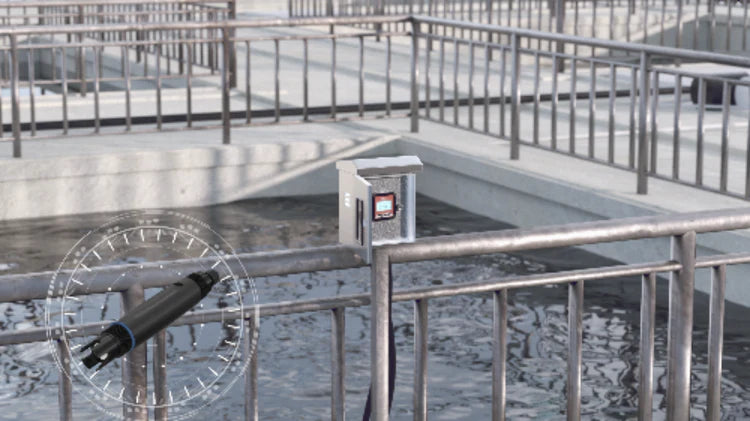

Product Overview

The SUP-PH6001 is a durable industrial pH electrode designed for continuous online pH monitoring in water treatment and dosing applications. It features an Ag/AgCl reference electrode, annular PTFE junction, and corrosion-resistant ABS housing to ensure stable measurement performance and reliable long-term operation.
Compatible with most industrial pH controllers, the sensor supports multiple installation methods and is ideal for environmental monitoring, aquaculture, chemical dosing, and general water treatment processes.

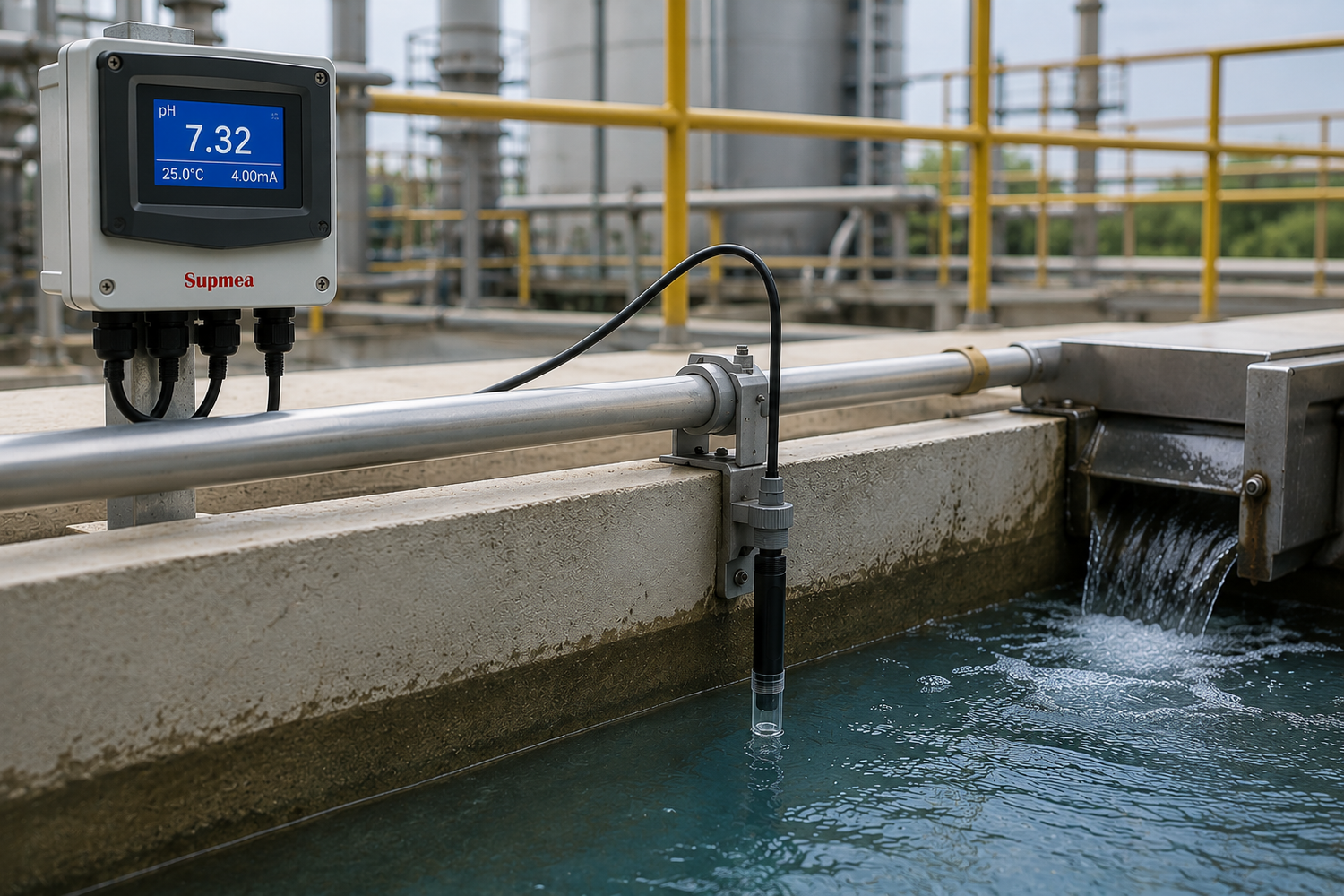

Key Features

  • Designed for continuous monitoring in industrial processes and compatible with most domestic and imported pH transmitters.
  • The Ag/AgCl reference system and annular PTFE junction provide stable readings with excellent resistance to contamination.
  • Supports NTC10K / PT1000 for improved measurement accuracy under varying process temperatures.
  • The corrosion-resistant ABS body is suitable for continuous operation in industrial water applications.
  • Supports Pipe installation，Threaded installation，Flange installation，Submersible installation allowing easy integration into existing systems.
  • Solid electrolyte structure and PTFE liquid junction minimize clogging while extending electrode lifespan.

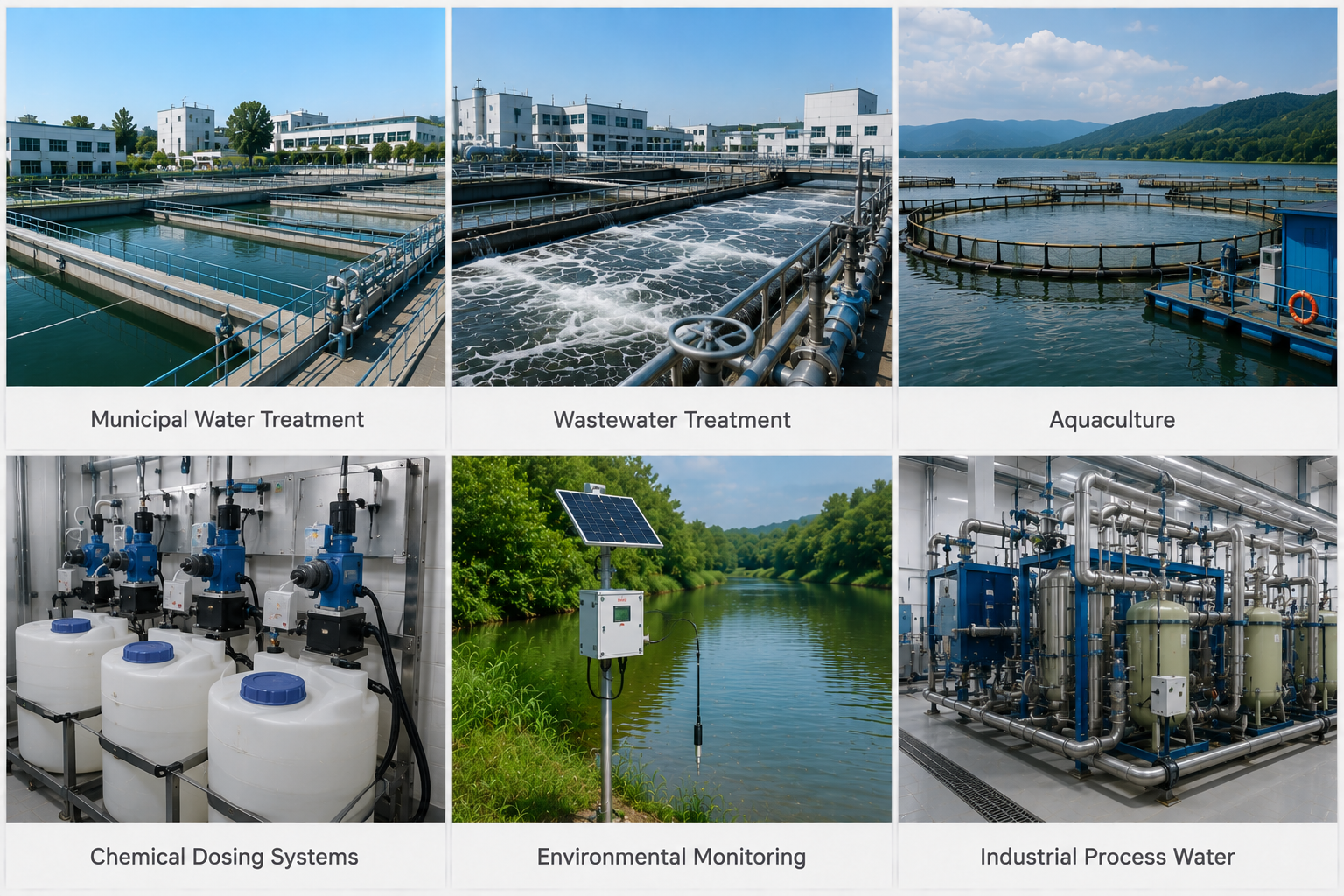

Applications

Technical Specifications

Measuring Range 2–12 pH
Temperature Range 32–176°F (0–80°C)
Pressure Rating 58 psi (0.4 MPa)
Temperature Compensation NTC10K / PT1000
Reference System Ag/AgCl
Junction Type Annular PTFE Junction
Housing Material ABS
Mounting Thread 3/4" NPT
Cable Length 16.4 ft (5 m), customizable
Sensor Size Φ0.98 × 6.50 in (Φ25 × 165 mm)

Downloads

User Manual
Datasheet

FAQ

What industries is the SUP-PH6001 suitable for?

It is widely used in water treatment, aquaculture, environmental protection, and chemical dosing systems requiring continuous online pH monitoring.

What controllers is the SUP-PH6001 compatible with?

The electrode is compatible with most domestic and imported industrial pH controllers using standard pH inputs.

How should the electrode be stored?

When not in use, rinse the electrode and store it with the protective cap filled with saturated KCl solution to keep the sensing membrane active.

How often should the electrode be calibrated?

Calibration frequency depends on the application. For critical industrial processes, regular calibration using standard buffer solutions is recommended to maintain optimal accuracy.

What warranty do you provide?

Please refer to BayMeters Warranty Policy or contact our sales team for warranty details.

How long does shipping take?

Products in the US warehouse typically ship within 3–5 business days
