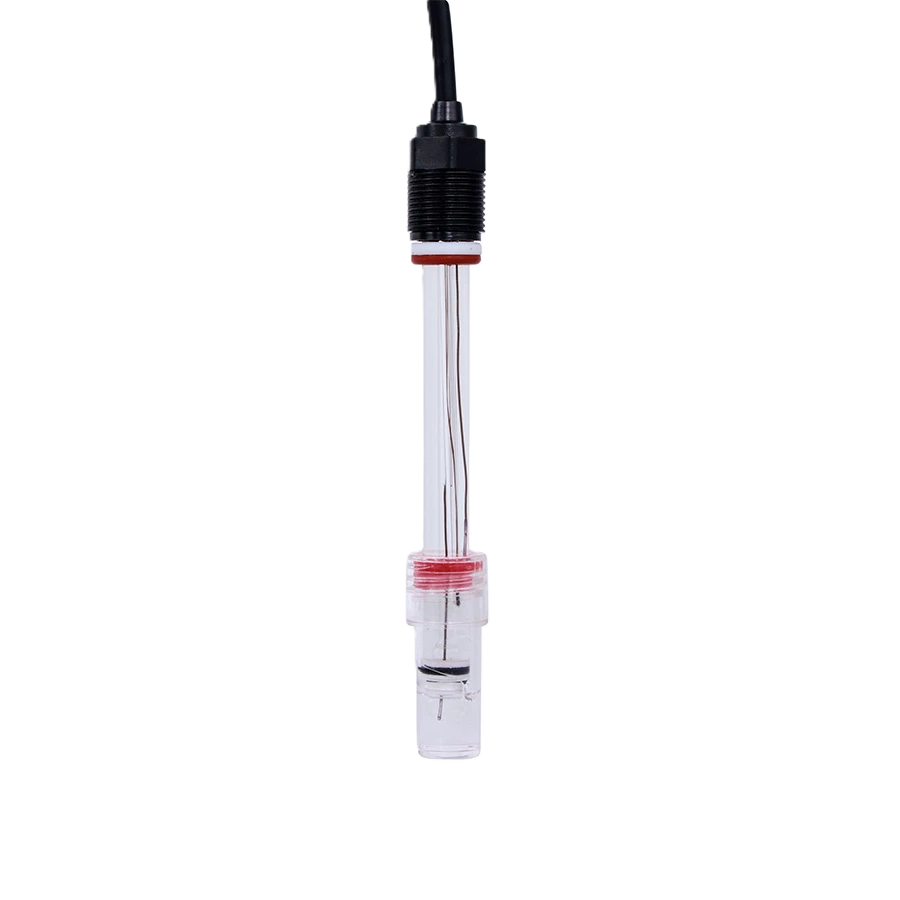

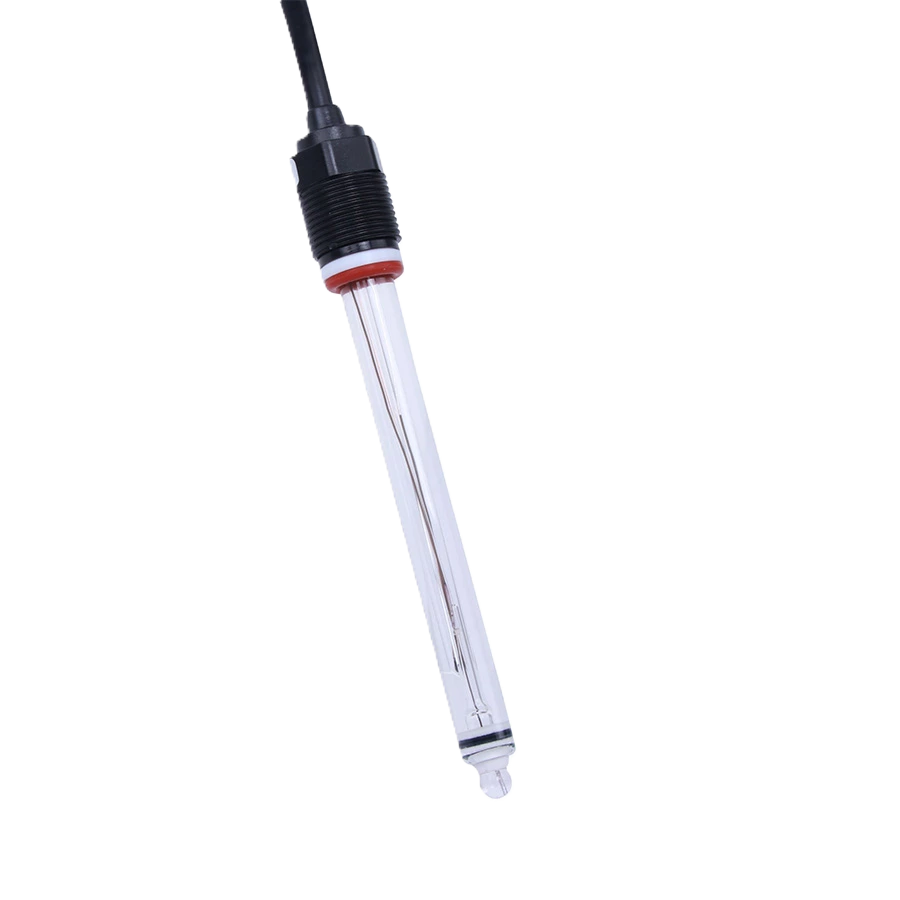

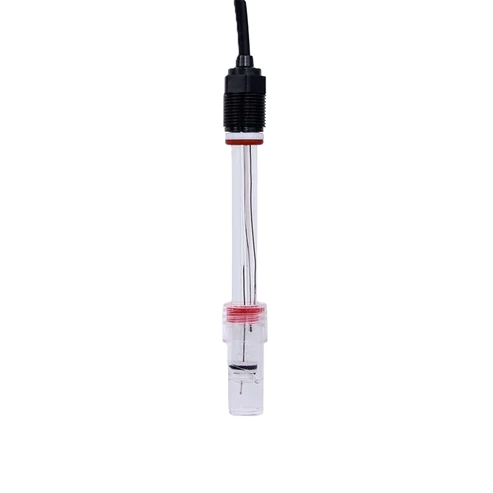

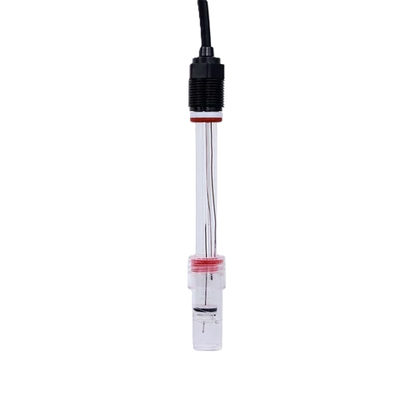

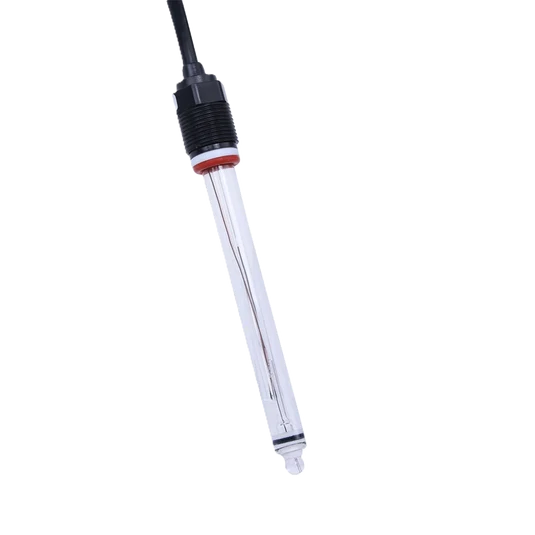

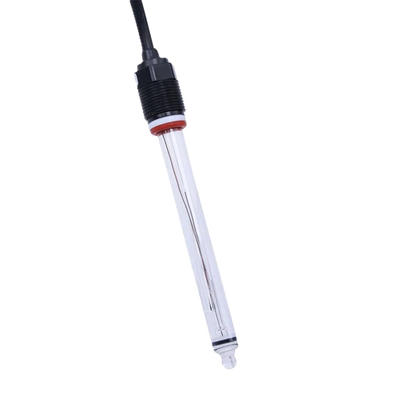

Glass pH sensor pH6002

$155.00 USD

Sale Sold out

This is an all-inclusive reference price (product, international shipping, and import duties), based on a few selected configurations. Actual pricing may vary by size, options, and order quantity. Minimum order may apply for low-value items, while better pricing may be available for larger requirements. For a confirmed quote or to place an order, please contact us.

No warranty

Low stock: 10 left • Ships in 3-5 business days

View full details

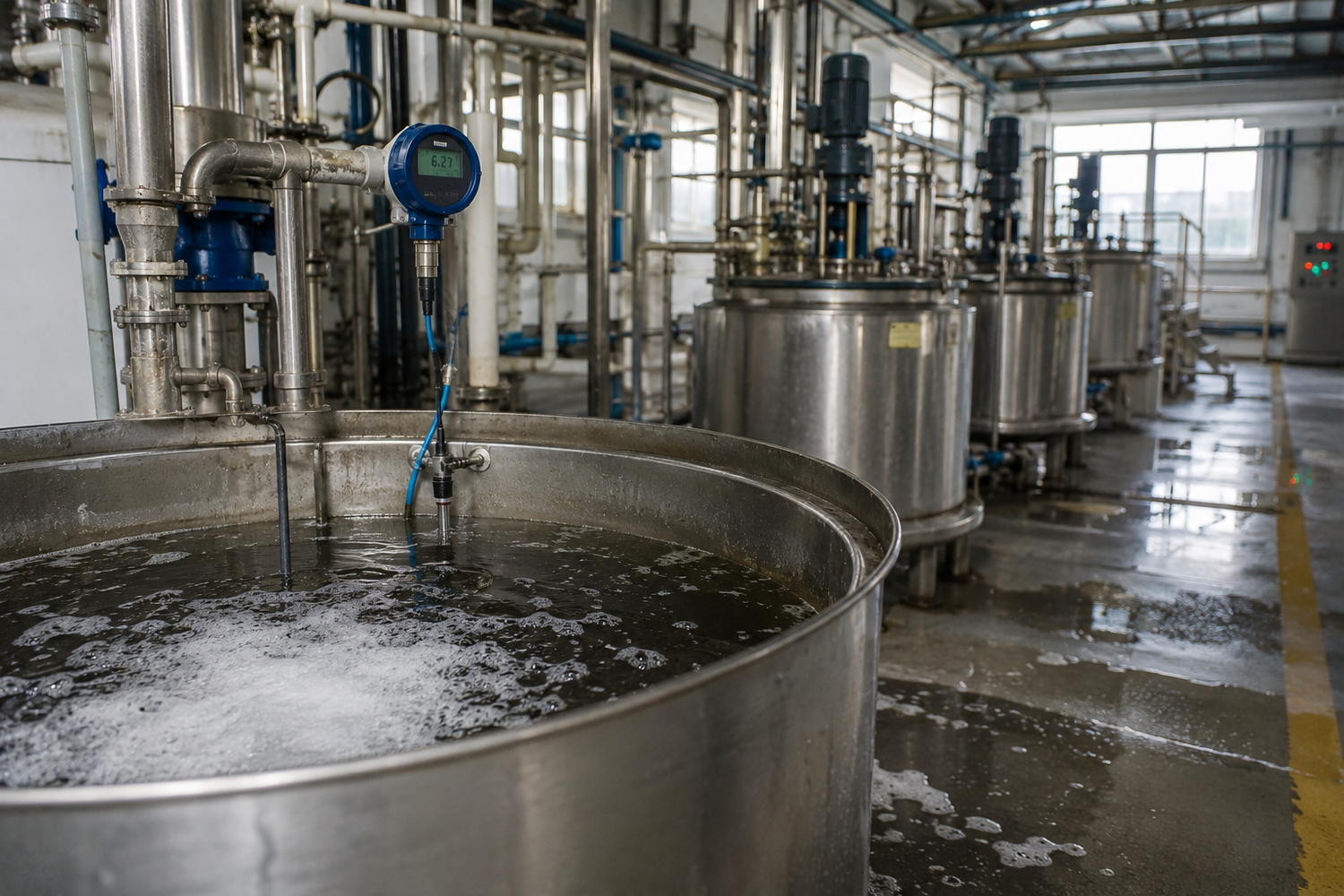

Product Overview

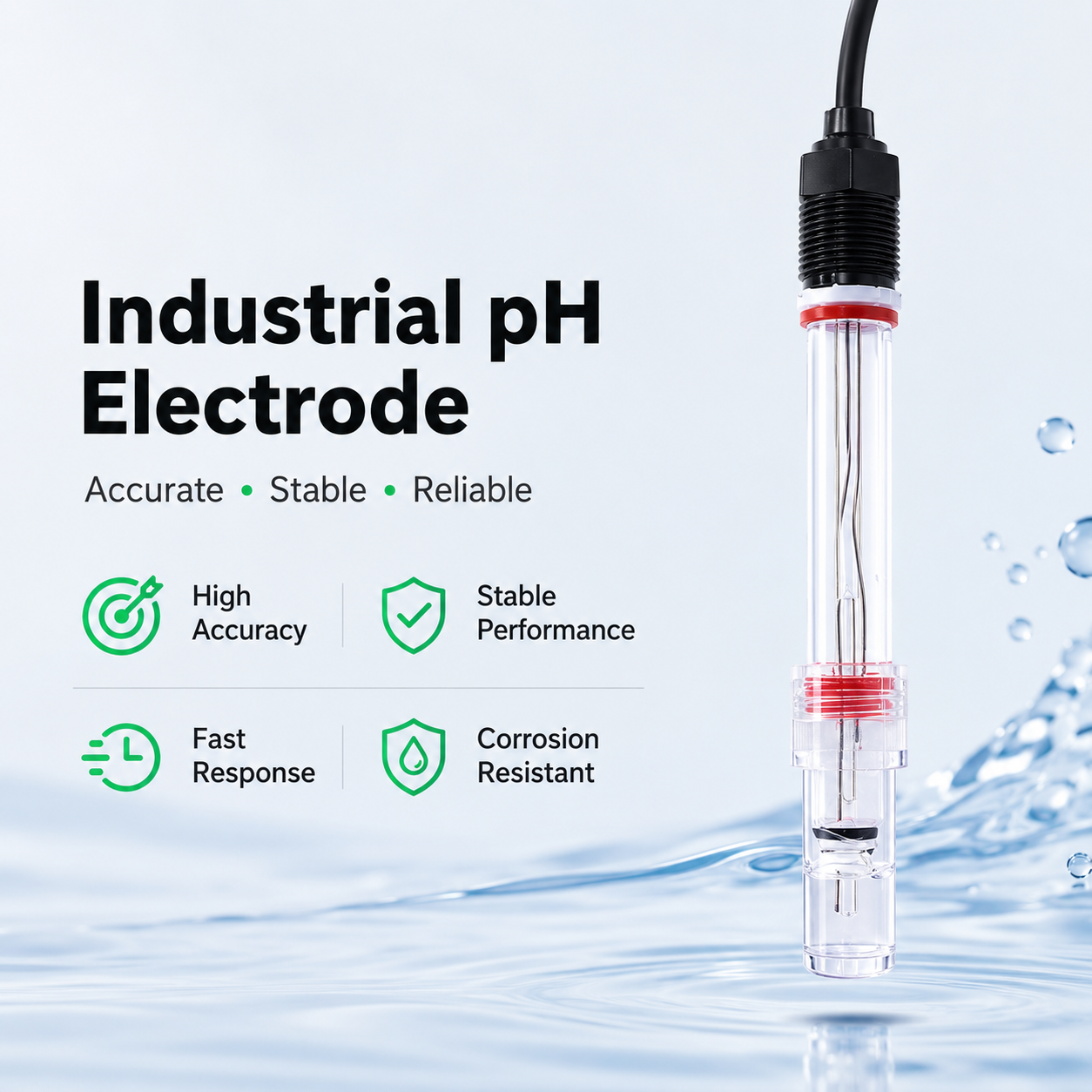

The SUP-PH6002 is a glass industrial pH electrode designed for continuous online pH monitoring in demanding industrial environments. It provides fast response, stable measurement, and excellent chemical resistance for wastewater treatment, drinking water, industrial process water, and environmental monitoring. Compatible with most industrial pH analyzers, it supports multiple temperature compensation options and flexible installation methods for long-term reliable operation.

Key Features

Provides stable and accurate pH measurement with excellent repeatability for continuous monitoring.
Compatible with most industrial pH controllers and supports multiple temperature compensation elements.
Glass sensing element and Ag/AgCl reference system deliver reliable performance in demanding process environments.
Supports threaded, immersion, pipe, and flow-cell installation to fit various applications.
Responds quickly to process changes, helping improve control efficiency.
Designed for continuous industrial operation with low maintenance requirements.

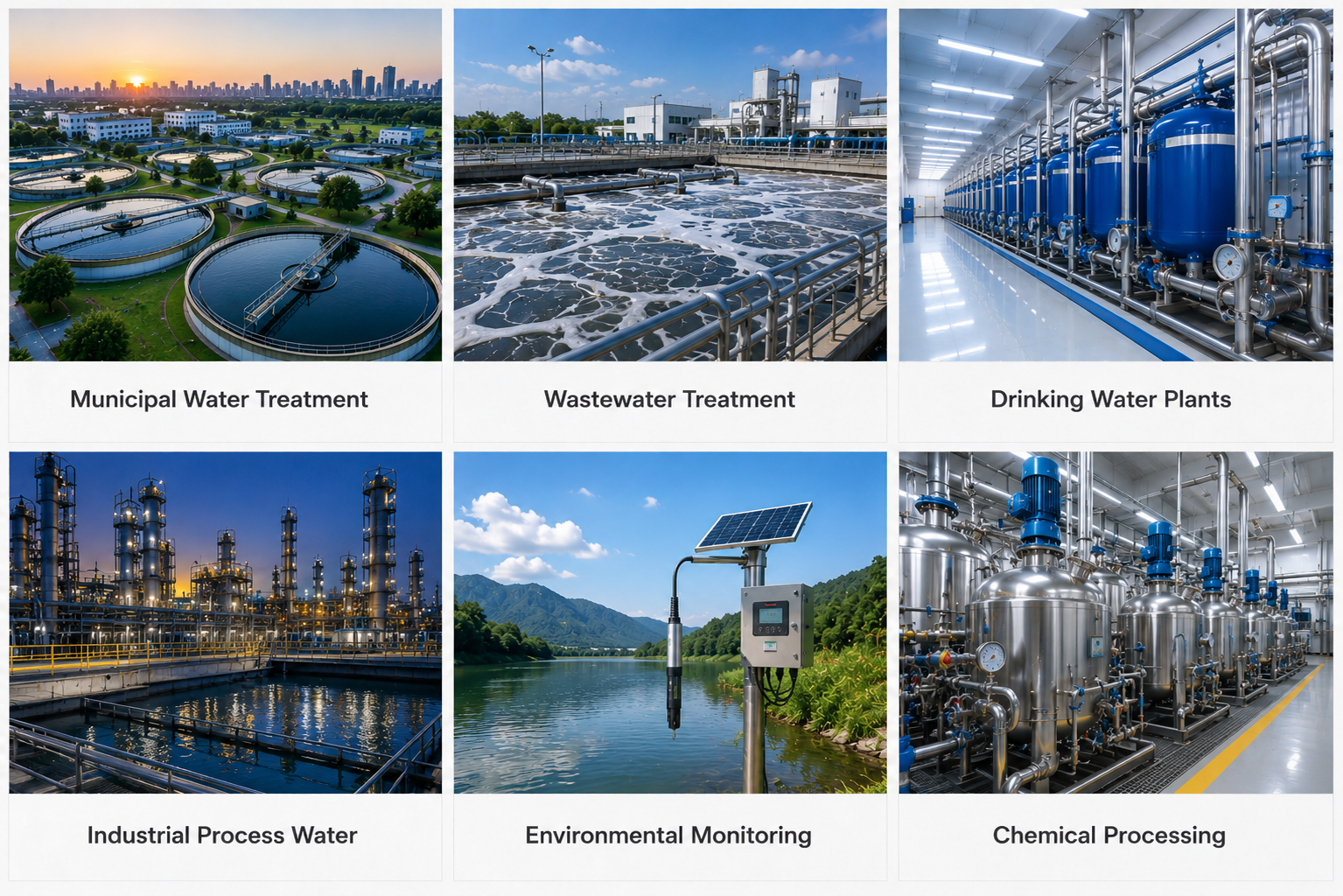

Applications

Technical Specifications

Measurement Range	0–14 pH
Operating Temperature	32–212°F (0–100°C)
Pressure Rating	87 psi (0.6 MPa)
Accuracy	±0.02 pH
Accuracy	±0.02 pH
Response Time	<1 minute
Zero Potential	7 pH
Reference System	Ag/AgCl
Temperature Compensation	Pt100 / Pt1000 / NTC10K / NTC22K
Process Connection	PG13.5
Electrode Material	Glass
Electrode Size	Ø0.47 × 4.72 in (Ø12 × 120 mm) (225 mm optional)
Standard Cable Length	16.4 ft (5 m), customizable
Installation	Threaded / Immersion / Pipe / Flow Cell
Output Signal	Electrode (mV)

Downloads

User Manual

Datasheet

FAQ

What applications is this electrode best suited for?

It is ideal for wastewater treatment, drinking water plants, environmental monitoring, industrial process water, and chemical processing where continuous online pH monitoring is required.

Is the SUP-PH6002 compatible with third-party pH controllers?

Yes. The SUP-PH6002 can be used with many industrial pH analyzers that support standard pH electrodes and compatible temperature compensation elements.

Which installation methods are supported?

The SUP-PH6002 supports threaded installation and can also be used with immersion holders, flow cells, and pipe mounting accessories.

How often should the electrode be calibrated?

Calibration frequency depends on the application. For most industrial water treatment systems, calibration every 2–4 weeks is recommended to maintain measurement accuracy.

What warranty do you provide?

Please refer to BayMeters Warranty Policy or contact our sales team for warranty details.

How long does shipping take?

Products in the US warehouse typically ship within 3–5 business days
