pH ORP controller PH8.5

pH ORP controller PH8.5

$766.00 USD
$766.00 USD
Sale Sold out
This is an all-inclusive reference price (product, international shipping, and import duties), based on a few selected configurations. Actual pricing may vary by size, options, and order quantity. Minimum order may apply for low-value items, while better pricing may be available for larger requirements. For a confirmed quote or to place an order, please contact us.

Low stock: 10 left • Ships in 3-5 business days
View full details

Product Overview

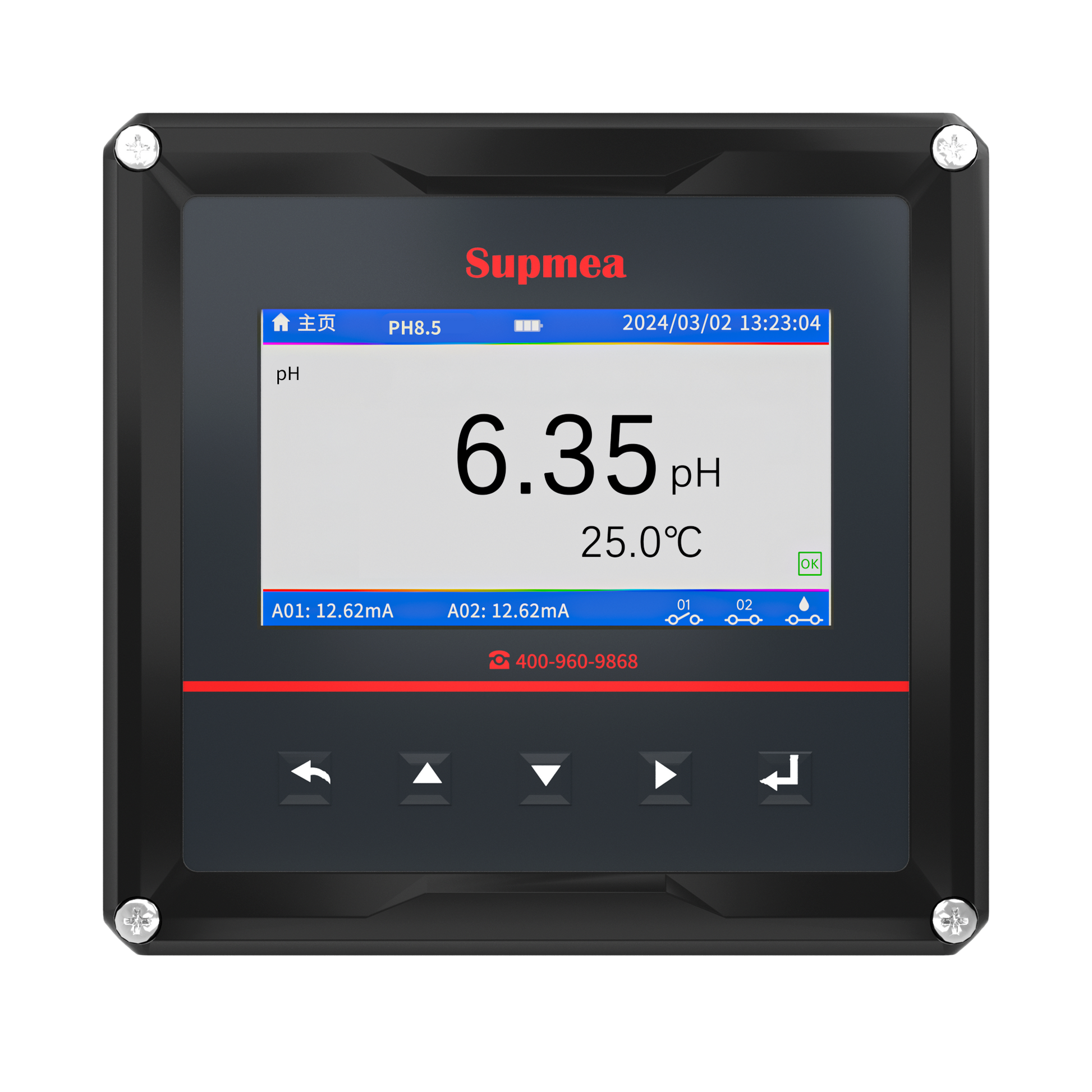

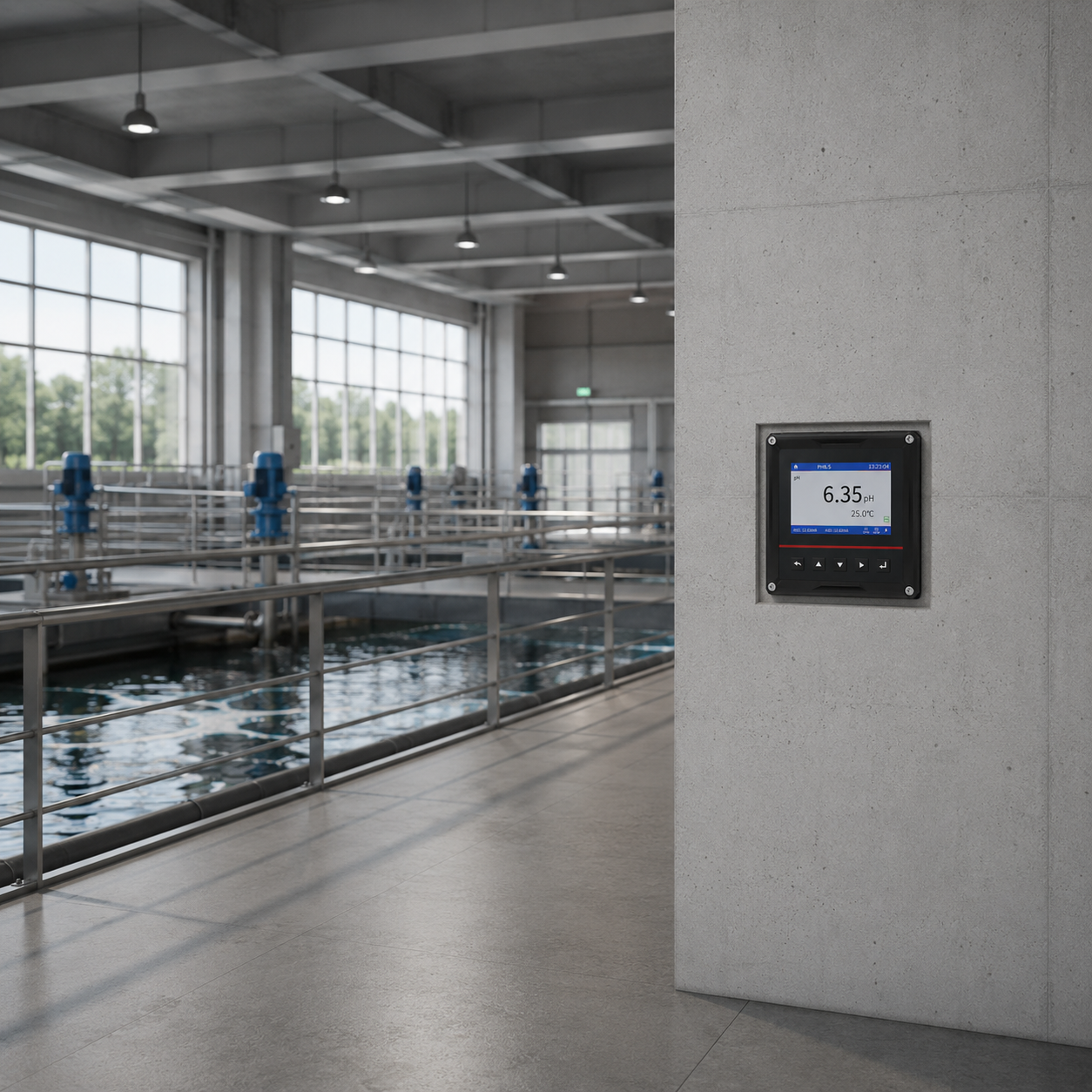

The SUP-pH8.5 Industrial pH/ORP Controller is designed for continuous online monitoring of pH, ORP, and temperature in industrial water treatment processes. Supporting both analog and digital sensors, it provides accurate measurement, intelligent control, and reliable communication for wastewater treatment, drinking water, chemical processing, food production, and environmental monitoring applications.

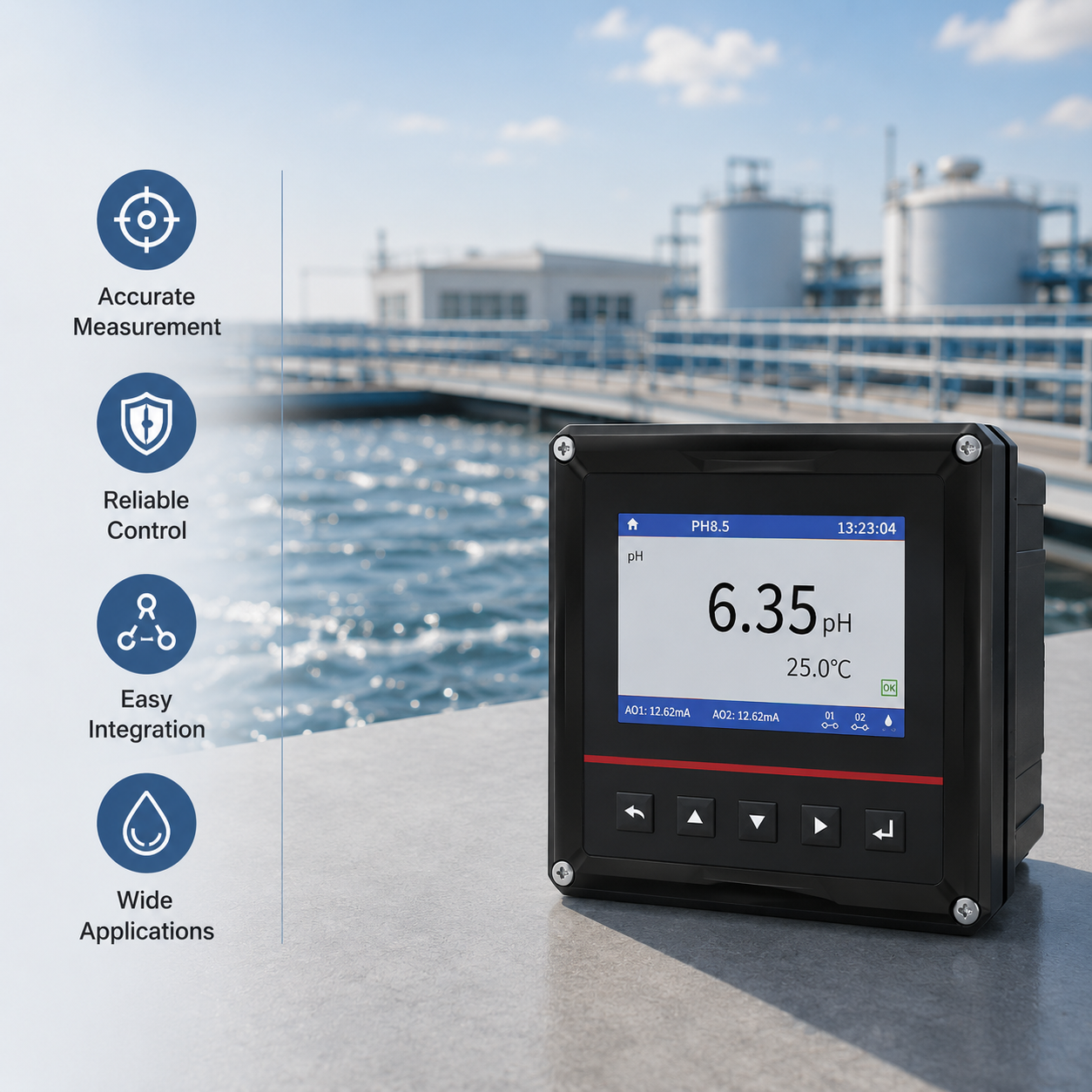

Key Features

  • Compatible with both analog and digital pH/ORP sensors, allowing flexible upgrades and easier maintenance throughout the system lifecycle.
  • Bright full-color LCD provides clear measurement values and real-time trend curves for quick process monitoring.
  • Supports manual and automatic temperature compensation with multiple compensation algorithms for improved measurement stability.
  • Two isolated configurable 4–20 mA outputs provide stable signal transmission for PLC and DCS integration.
  • Three programmable relay outputs support high/low alarms and automatic cleaning control for unattended operation.
  • Integrated isolated RS485 Modbus RTU communication enables seamless connection with industrial automation systems.

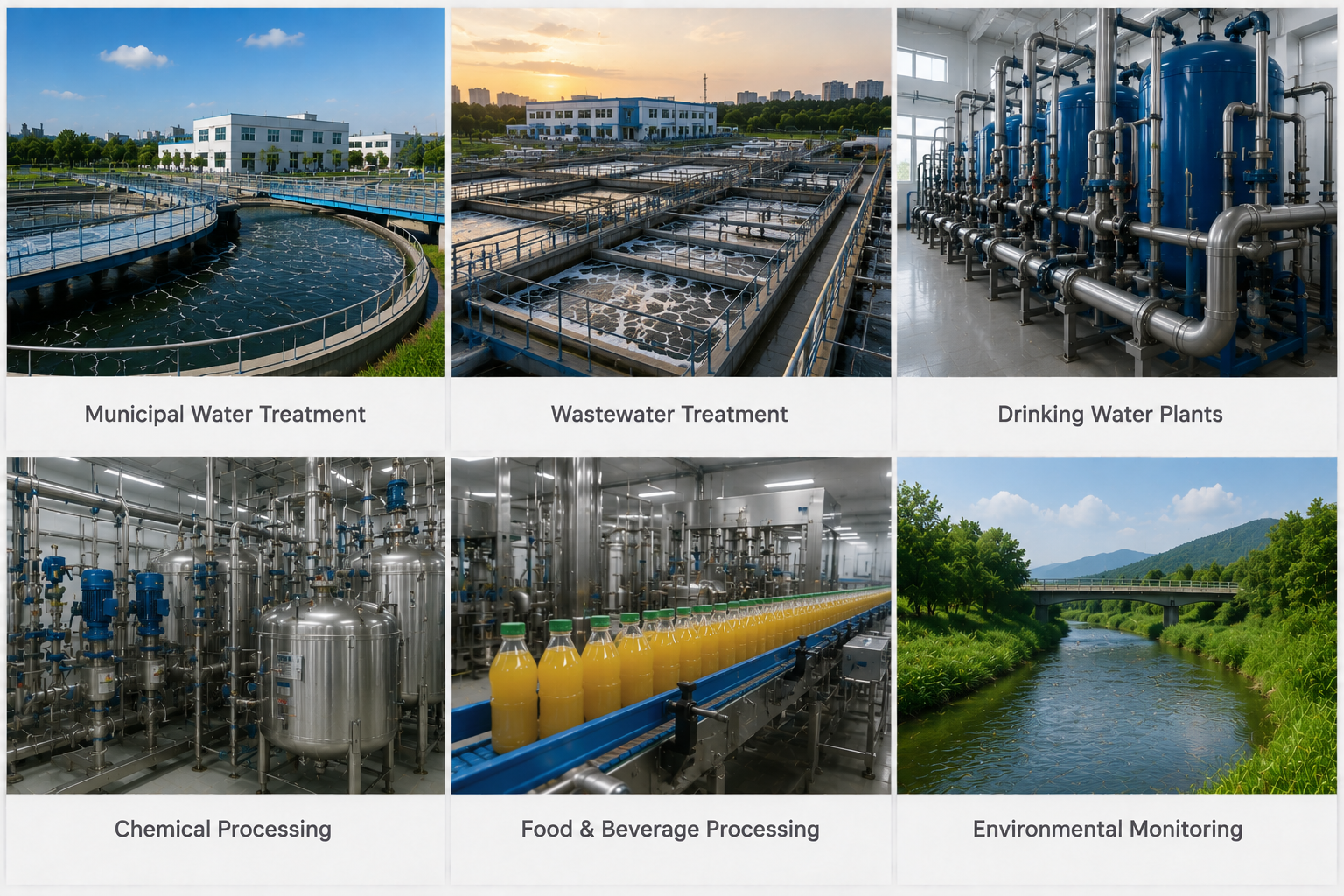

Applications

Technical Specifications

Range pH : 0.00–14.00 pH ORP: -2000 to +2000 mV
Accuracy ±0.01 pH / ±1 mV
Temperature Range 14–266°F (-10 to 130°C)
Temperature Compensation Automatic / Manual (Pt1000, NTC10K)
Analog Outputs 2 × Isolated 4–20 mA
Communication RS485 Modbus RTU
Relay Outputs 3 × Programmable Relays (5A @ 250VAC / 30VDC)
Data Storage 500,000 Records
Power Supply 90–260 VAC
Protection Rating IP65
Weight 1.87 lb (0.85 kg)

Downloads

User Manual
Datasheet

FAQ

Can the SUP-pH8.5 measure both pH and ORP simultaneously?

No. The SUP-pH8.5 is a single-channel controller that can be configured for either pH or ORP measurement. It supports both analog and digital sensors, but only one measurement type can be monitored at a time. If simultaneous pH and ORP monitoring is required, two controllers or a multi-parameter analyzer should be used.

Does the controller support automatic temperature compensation?

Yes. It supports both automatic and manual temperature compensation using compatible temperature sensors to improve measurement accuracy.

Is the controller suitable for outdoor installation?

The enclosure provides IP65 protection. For outdoor use, it should be installed inside a suitable weatherproof control cabinet to ensure long-term reliability.

How many relay outputs are available?

The controller includes three programmable relay outputs that can be configured for alarms, cleaning functions, or process control.

What warranty do you provide?

Please refer to BayMeters Warranty Policy or contact our sales team for warranty details.

How long does shipping take?

Products in the US warehouse typically ship within 3–5 business days
