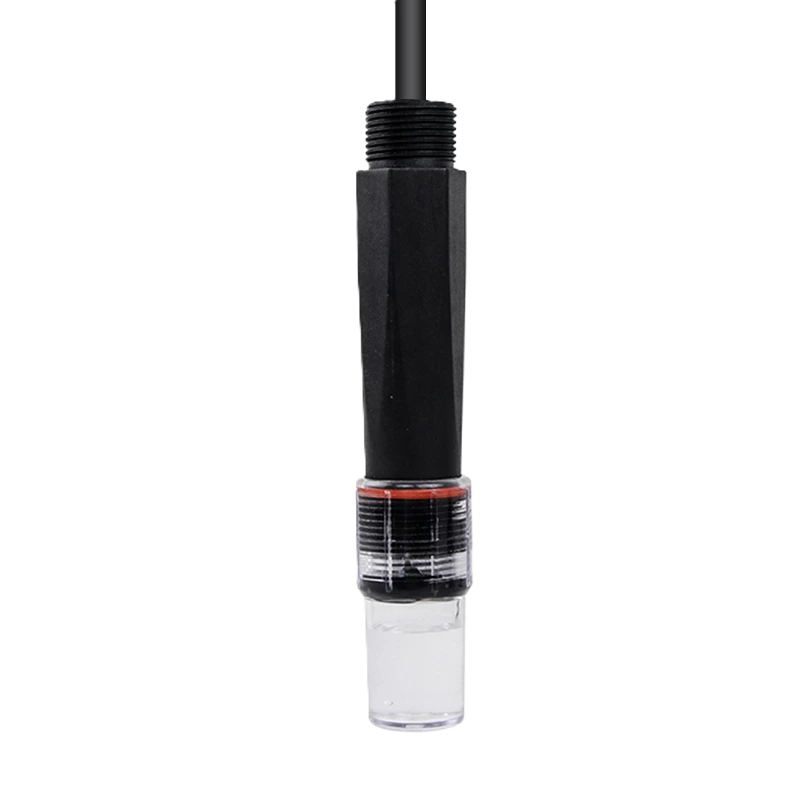

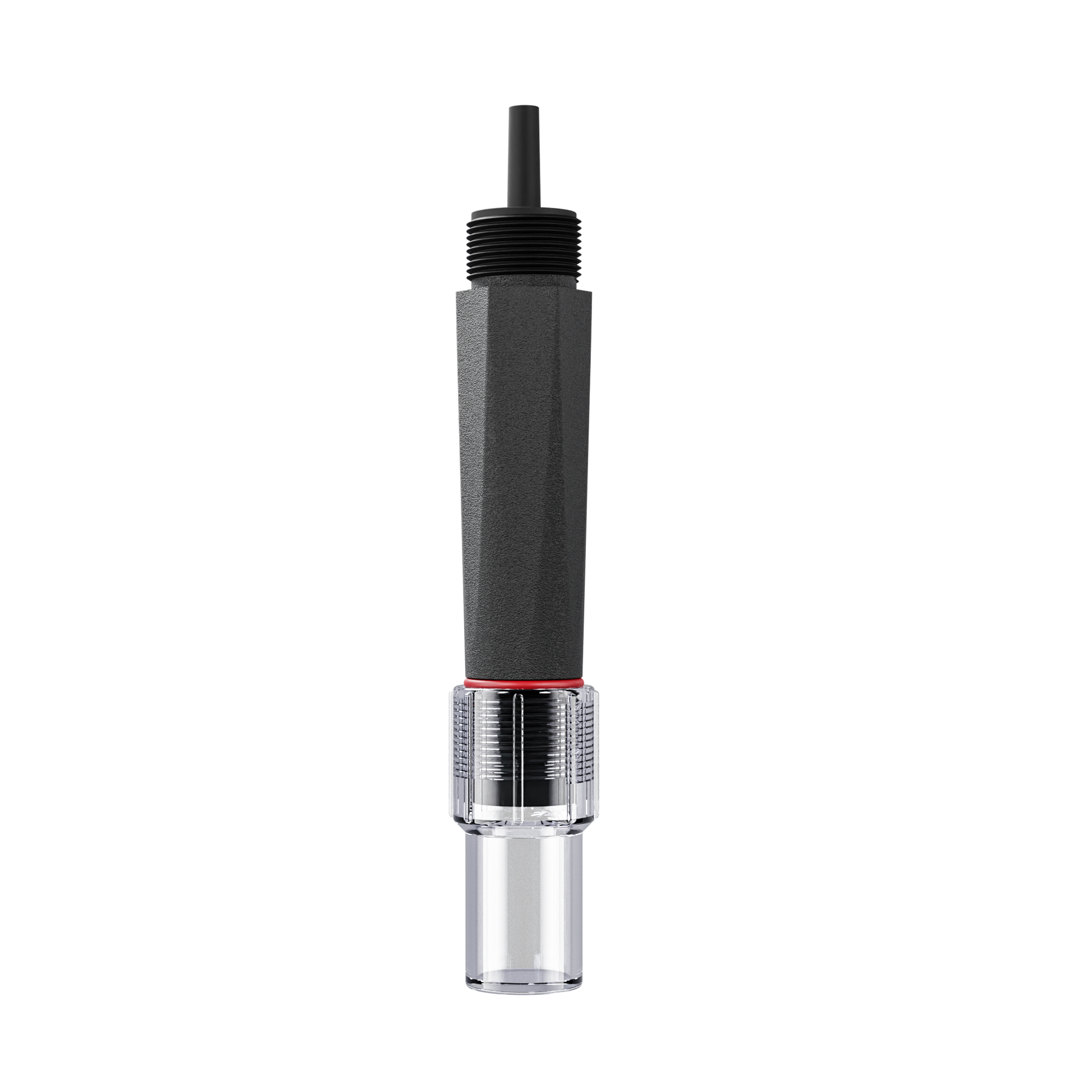

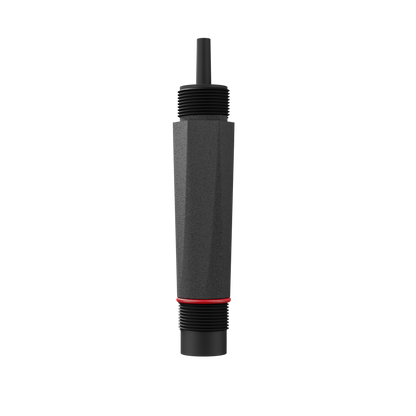

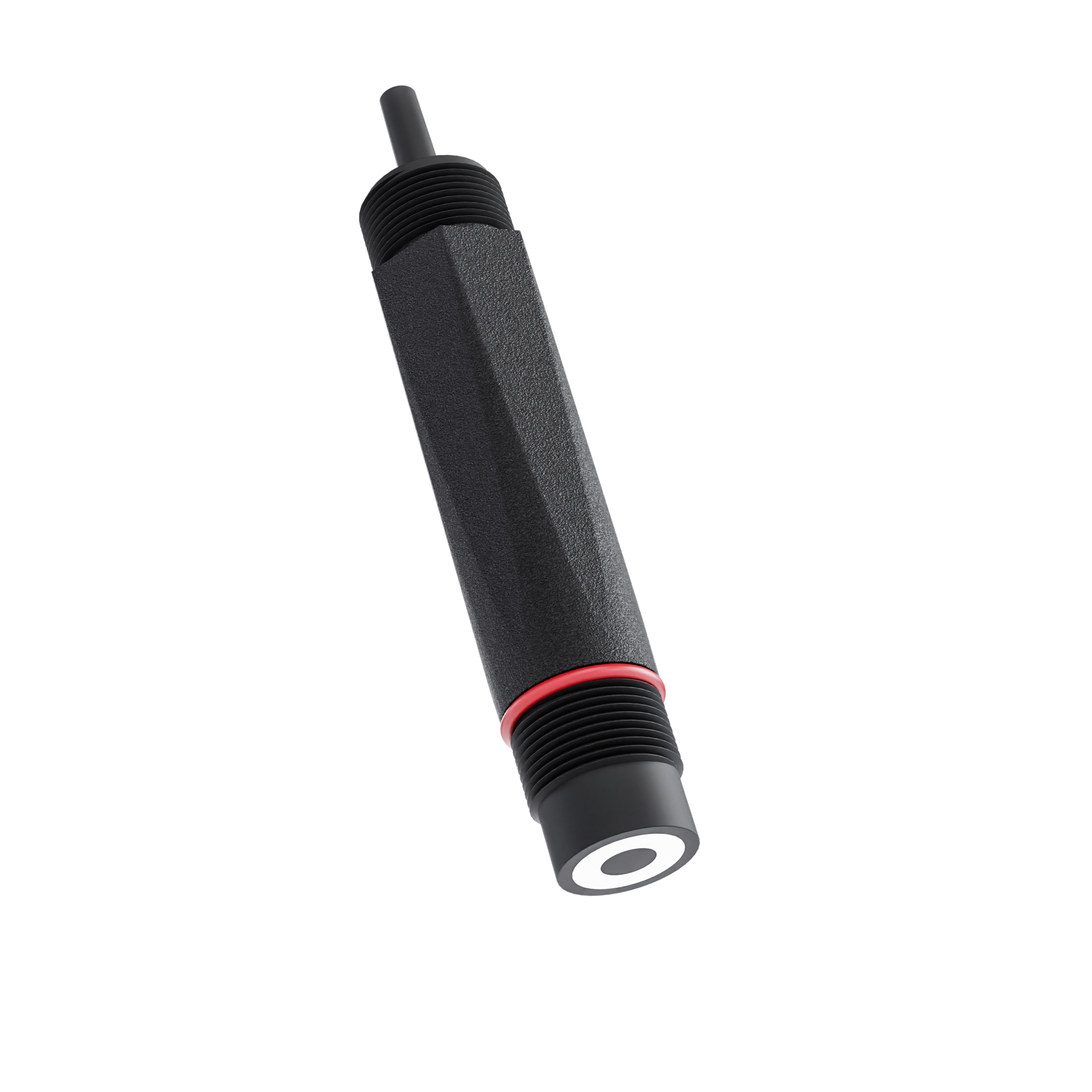

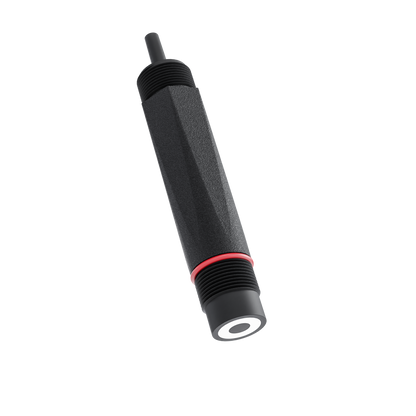

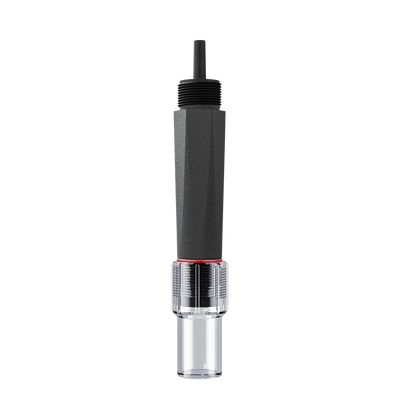

Flat pH sensor for flue gas desulfurization PH7001

$234.00 USD

Sale Sold out

This is an all-inclusive reference price (product, international shipping, and import duties), based on a few selected configurations. Actual pricing may vary by size, options, and order quantity. Minimum order may apply for low-value items, while better pricing may be available for larger requirements. For a confirmed quote or to place an order, please contact us.

No warranty

Low stock: 10 left • Ships in 3-5 business days

View full details

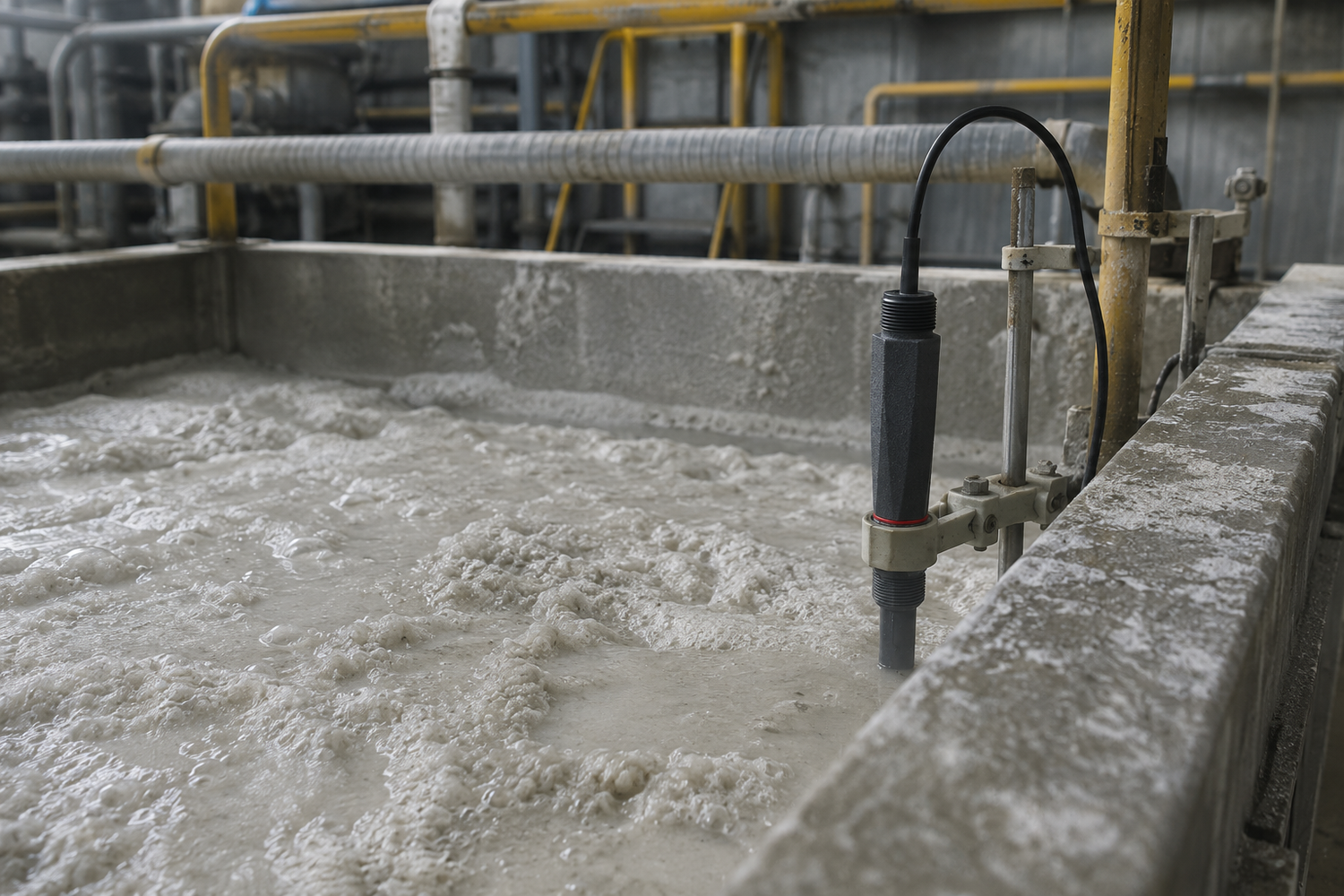

Product Overview

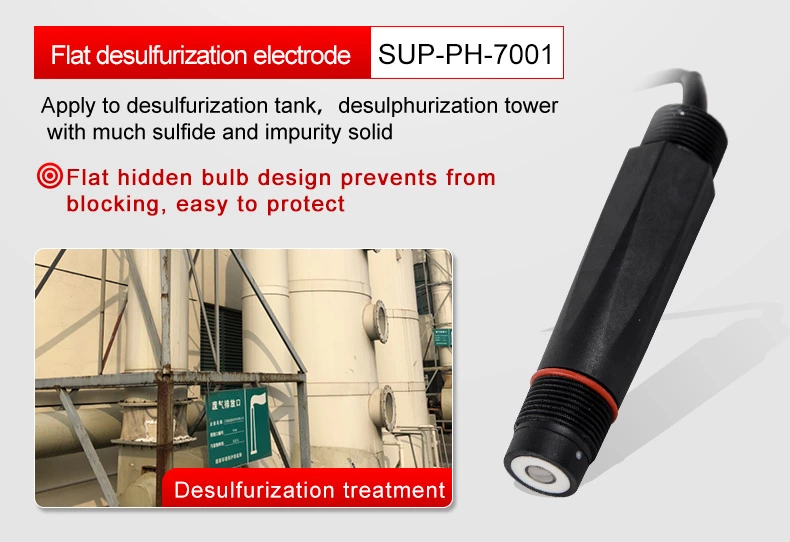

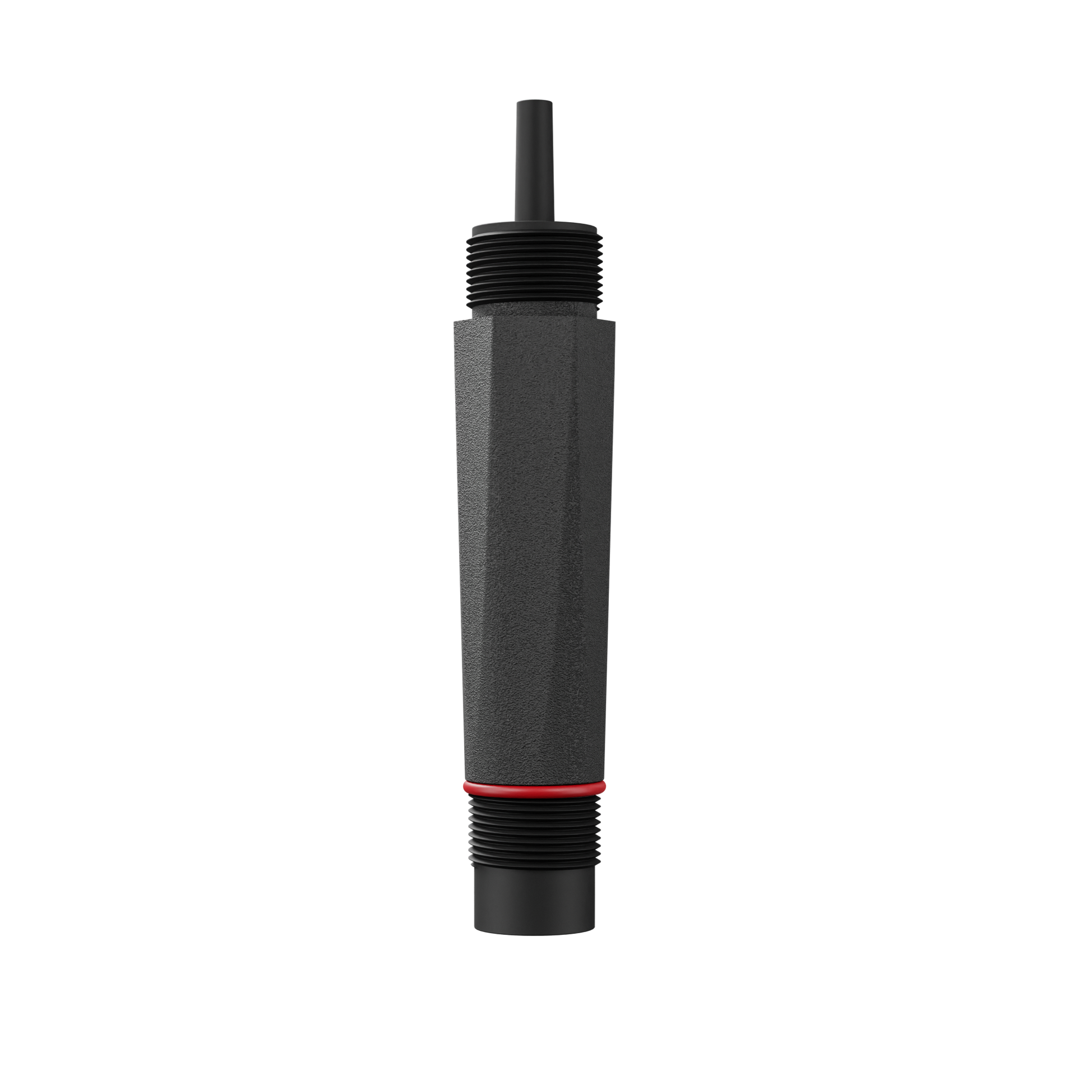

The SUP-PH7001 is a heavy-duty industrial pH electrode specifically engineered for flue gas desulfurization (FGD), lime slurry, mining, and other harsh process environments. Its PPS housing, ceramic salt bridge, and Ag/AgCl reference system provide reliable performance in high-solid media where conventional pH electrodes are prone to contamination. Designed for continuous online monitoring, it delivers stable measurements with minimal maintenance.

Key Features

Optimized for FGD systems, lime slurry, and high suspended solids where standard pH electrodes have reduced service life.
The rugged PPS body provides excellent mechanical strength and chemical resistance for harsh industrial environments.
A ceramic salt bridge helps reduce clogging and improves long-term measurement stability in dirty process media.
Ensures stable potential output and consistent pH measurements during continuous operation.
Supports Pt100, Pt1000, and NTC10K temperature elements for compatibility with most industrial analyzers.
Standard 3/4" NPT threaded connection allows quick installation into immersion holders, pipelines, and process tanks.

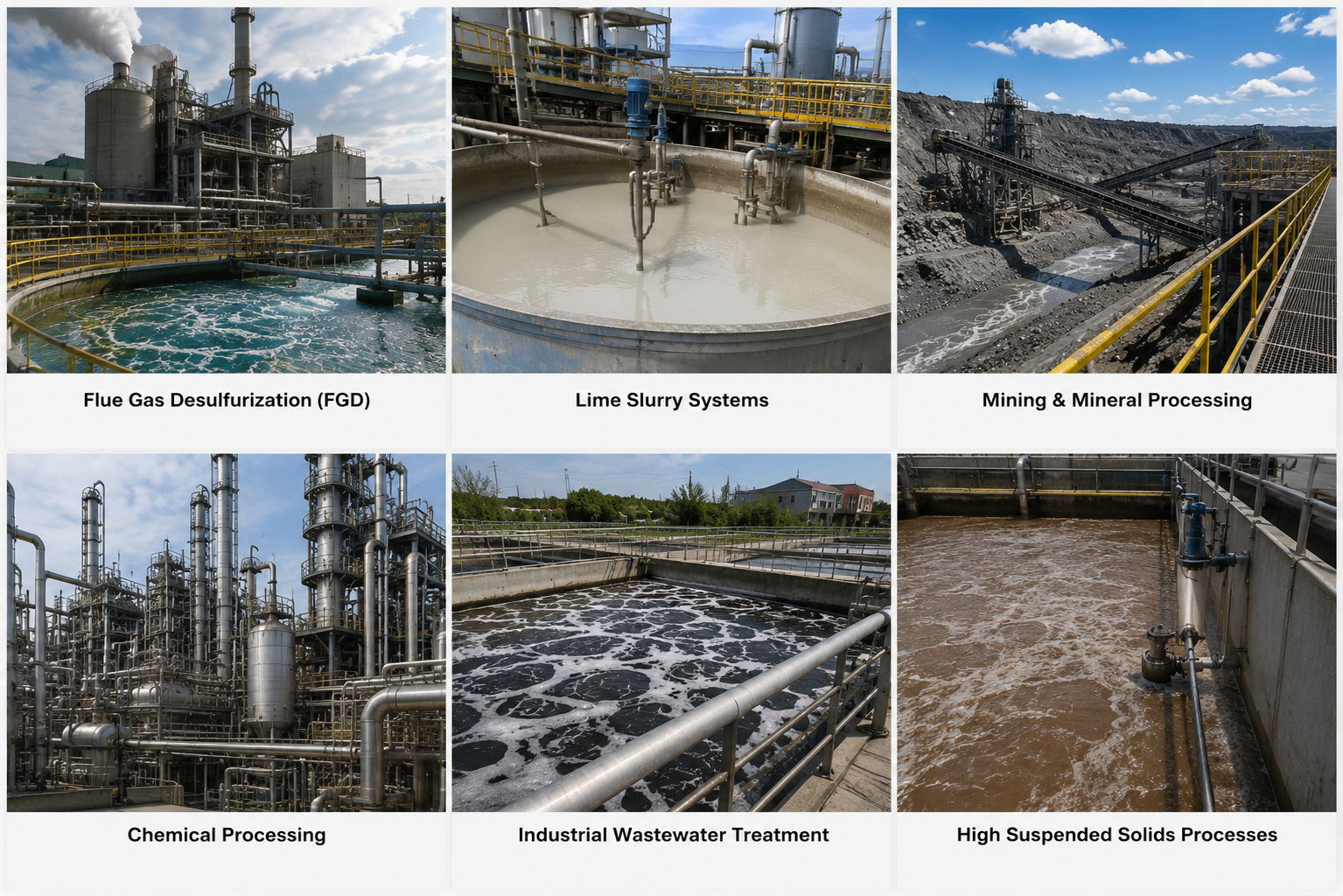

Applications

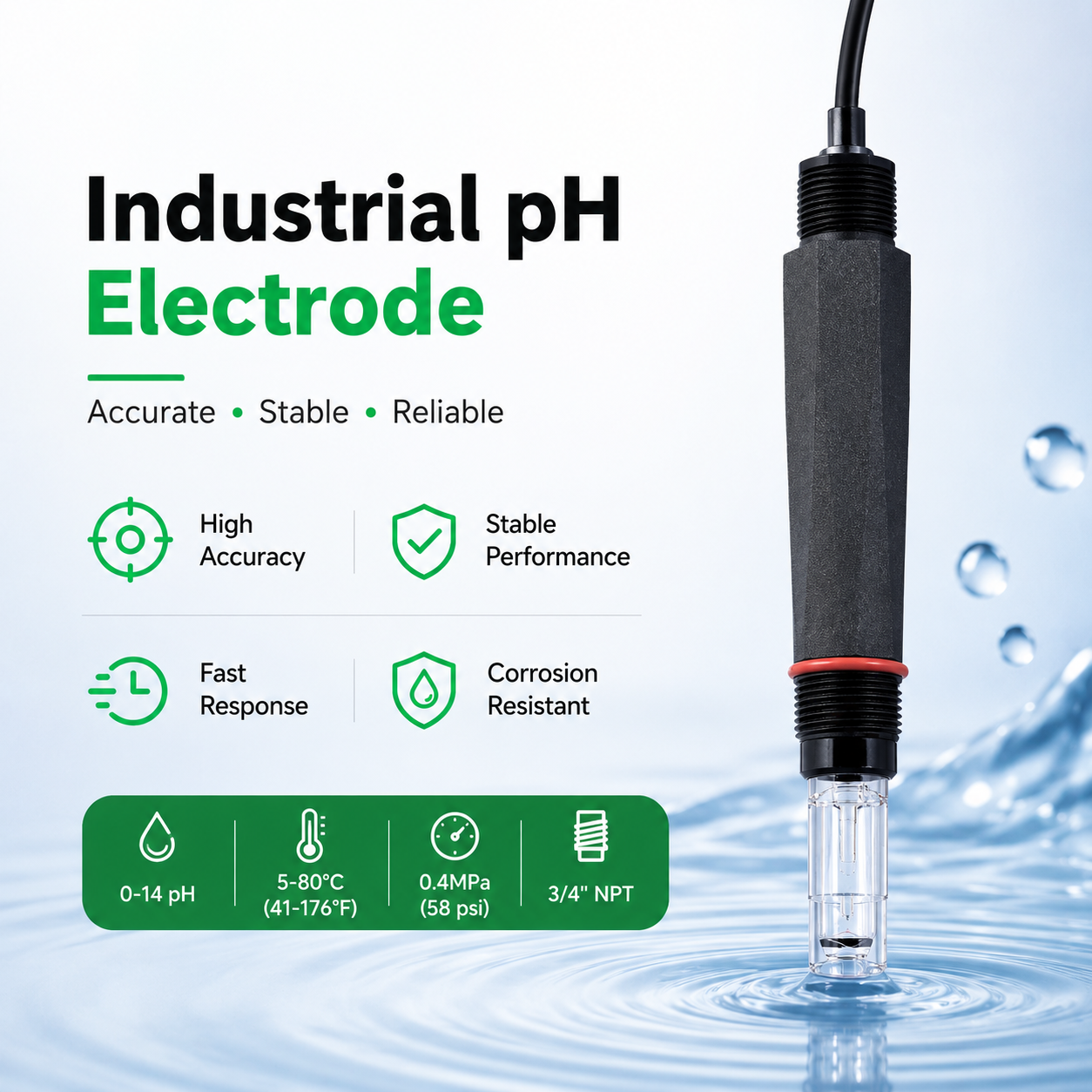

Technical Specifications

Measurement Range	0–14 pH
Operating Temperature	41–176°F (5–80°C)
Pressure Resistance	58 psi (0.4 MPa)
Reference System	Ag/AgCl
Temperature Compensation	Pt100 / Pt1000 / NTC10K
Process Connection	3/4" NPT
Housing Material	PPS
Response Time	<1 minute
Zero Potential	7 ±0.5 pH*
Electrode Slope	>98%
Cable Length	16.4 ft (5 m) Optional
Installation	Immersion / Pipe / Tank
Output Signal	Electrode (mV)

Downloads

User Manual

Datasheet

FAQ

What makes the SUP-PH7001 suitable for desulfurization systems?

The SUP-PH7001 is specifically designed for flue gas desulfurization (FGD) processes. Its PPS housing and ceramic junction resist fouling from lime slurry and suspended solids, helping maintain stable measurements.

Is the SUP-PH7001 suitable for continuous online monitoring?

Yes. It is built for continuous industrial operation and is compatible with most online pH analyzers using standard pH electrode inputs.

Which installation methods are supported?

The standard 3/4" NPT thread allows installation in immersion holders, pipelines, process tanks, and bypass flow cells.

How can electrode life be extended in harsh applications?

Regular cleaning of the sensing surface, proper calibration, and selecting the correct installation location can significantly improve performance and service life in abrasive process media.

What warranty do you provide?

Please refer to BayMeters Warranty Policy or contact our sales team for warranty details.

How long does shipping take?

Products in the US warehouse typically ship within 3–5 business days
