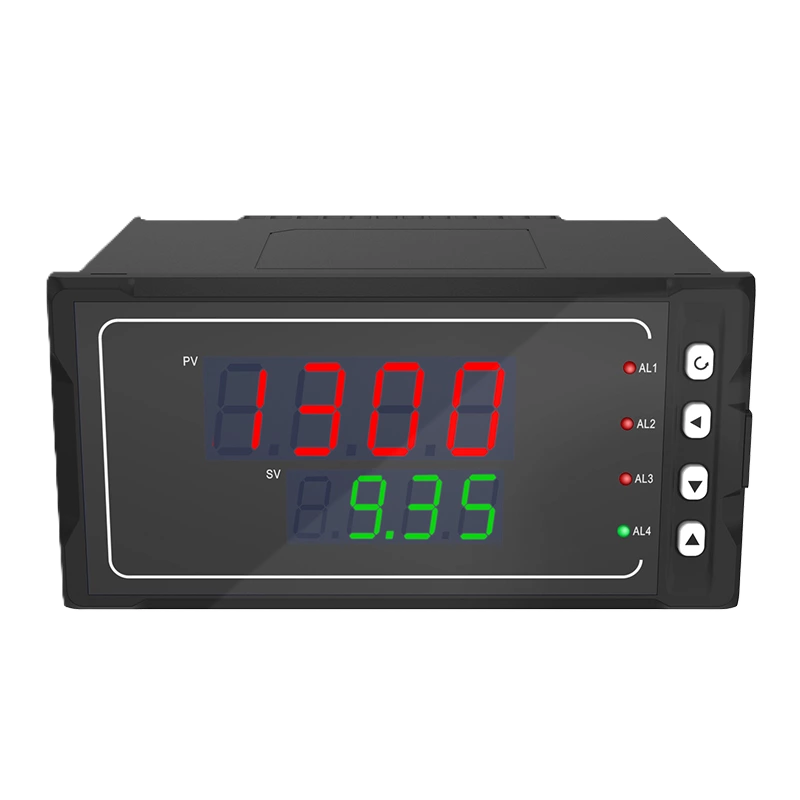

Easy Fuzzy PID Regulator 1300

Easy Fuzzy PID Regulator 1300

$229.00 USD
$229.00 USD
Sale Sold out
This is an all-inclusive reference price (product, international shipping, and import duties), based on a few selected configurations. Actual pricing may vary by size, options, and order quantity. Minimum order may apply for low-value items, while better pricing may be available for larger requirements. For a confirmed quote or to place an order, please contact us.
View full details

Introduction

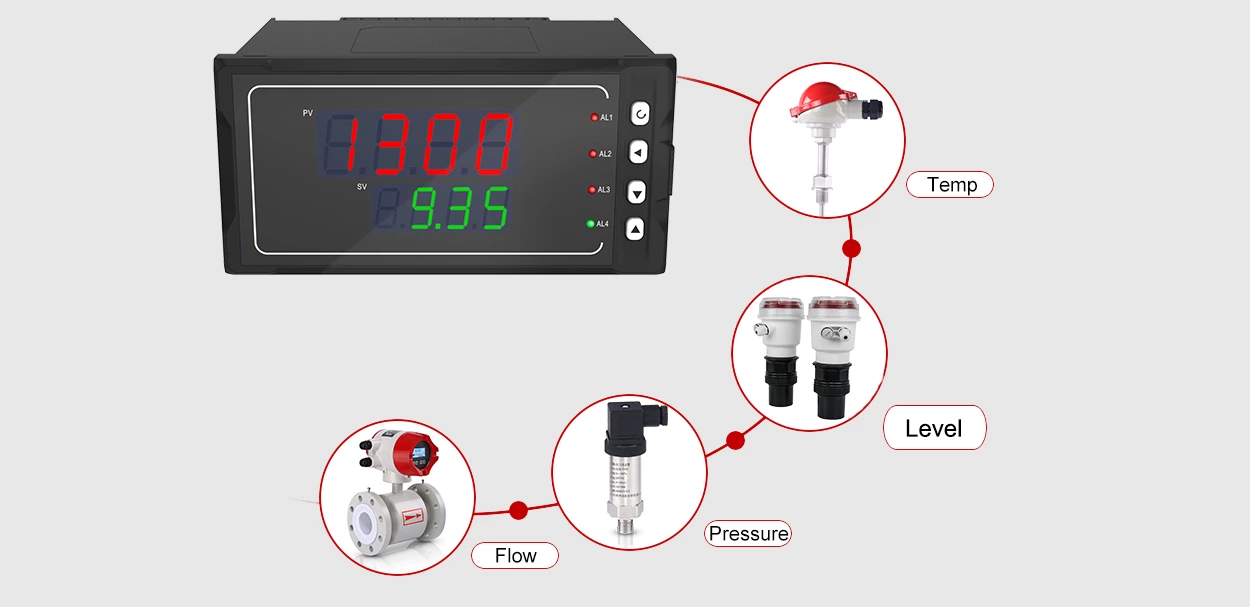

The easy fuzzy PID regulator adopts fuzzy PID formula for easy operation with measurement precision of 0.3%; 7 types of dimensions available, 33 types of signal input available; applicable to measurement of industrial process quantifiers including temperature, pressure, flow, liquid level, and humidity etc.

Specification

Display
Dual-screen LED display

Dimension

  • A. 16080110mm (6.303.154.33 inches)
  • B. 80160110mm (3.156.304.33 inches)
  • C. 9696110mm (3.783.784.33 inches)
  • D. 9648110mm (3.781.894.33 inches)
  • E. 4896110mm (1.893.784.33 inches)
  • F. 7272110mm (2.832.834.33 inches)
  • H. 4848110mm (1.891.894.33 inches)

Measurement Accuracy
±0.3% FS

Transmission Output
Analog output: 4-20mA、1-5V、0-10mA、0-5V、0-20mA、0-10V

Alarm Output

  • With upper and lower limit alarm function, with alarm return difference setting
  • Capacity:
  • Note: When the load exceeds the relay contact capacity, please do not directly carry the load

Power Supply

  • AC/DC 100~240V (Frequency 50/60Hz) Power consumption ≤5W
  • DC 12~36V Power consumption ≤3W

Use Environment

  • Operating temperature: -10~50℃ (14~122℉)
  • No condensation, no icing
