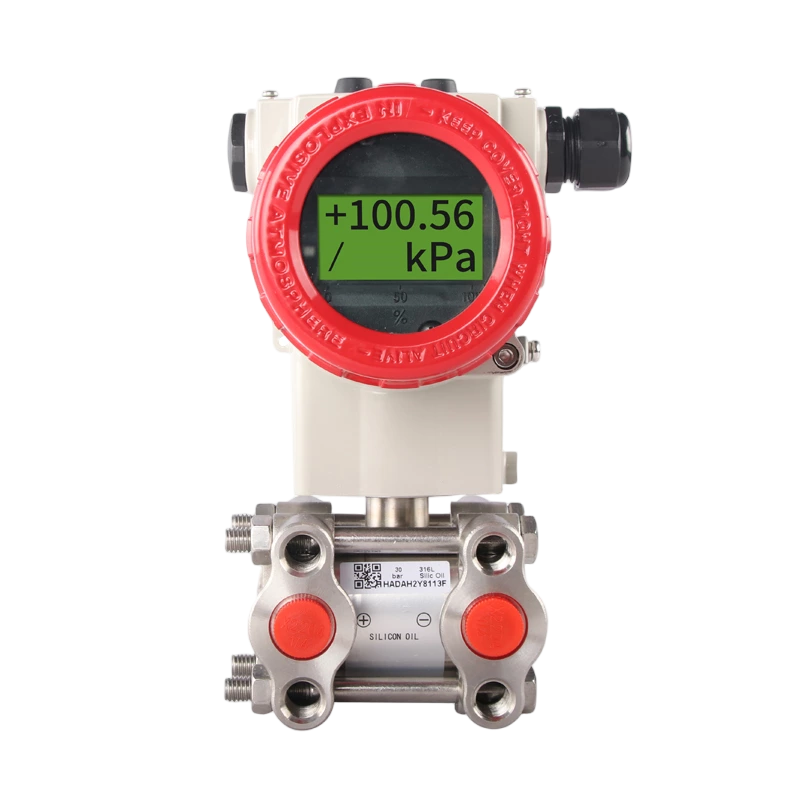

Supmea 2501 Differential Pressure Transmitter

Supmea 2501 Differential Pressure Transmitter

US$961.00
US$961.00
Sale Sold out
Prices Shown Include Delivery.

Low stock: 10 left • Lead Time: 2-4 Weeks
View full details

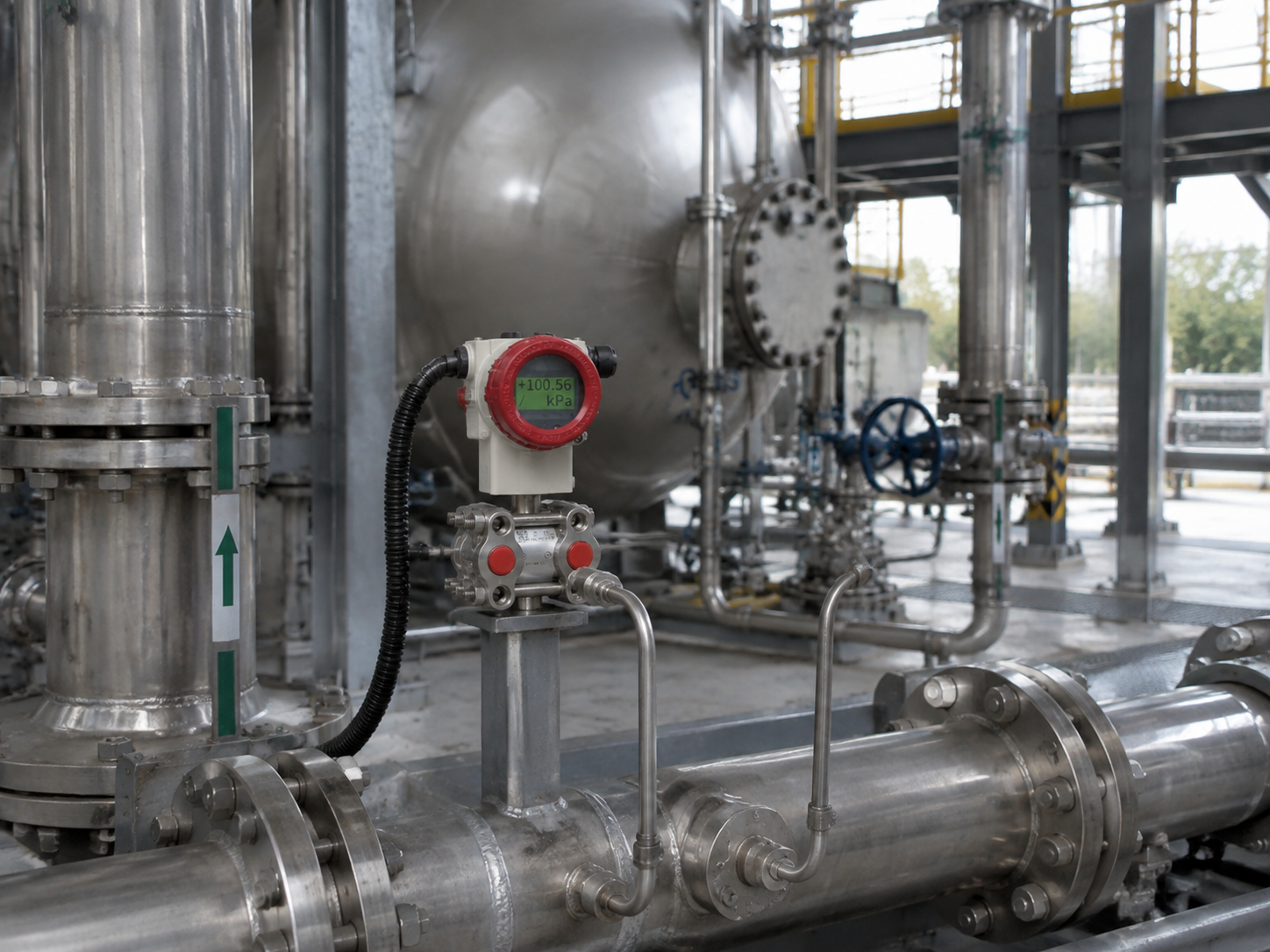

Product Overview

The SUP-2051 intelligent differential pressure transmitter adopts advanced monocrystalline silicon sensor technology and microprocessor-based signal processing for accurate and stable differential pressure measurement. It supports differential pressure, gauge pressure and absolute pressure measurement with reliable performance in industrial process applications.

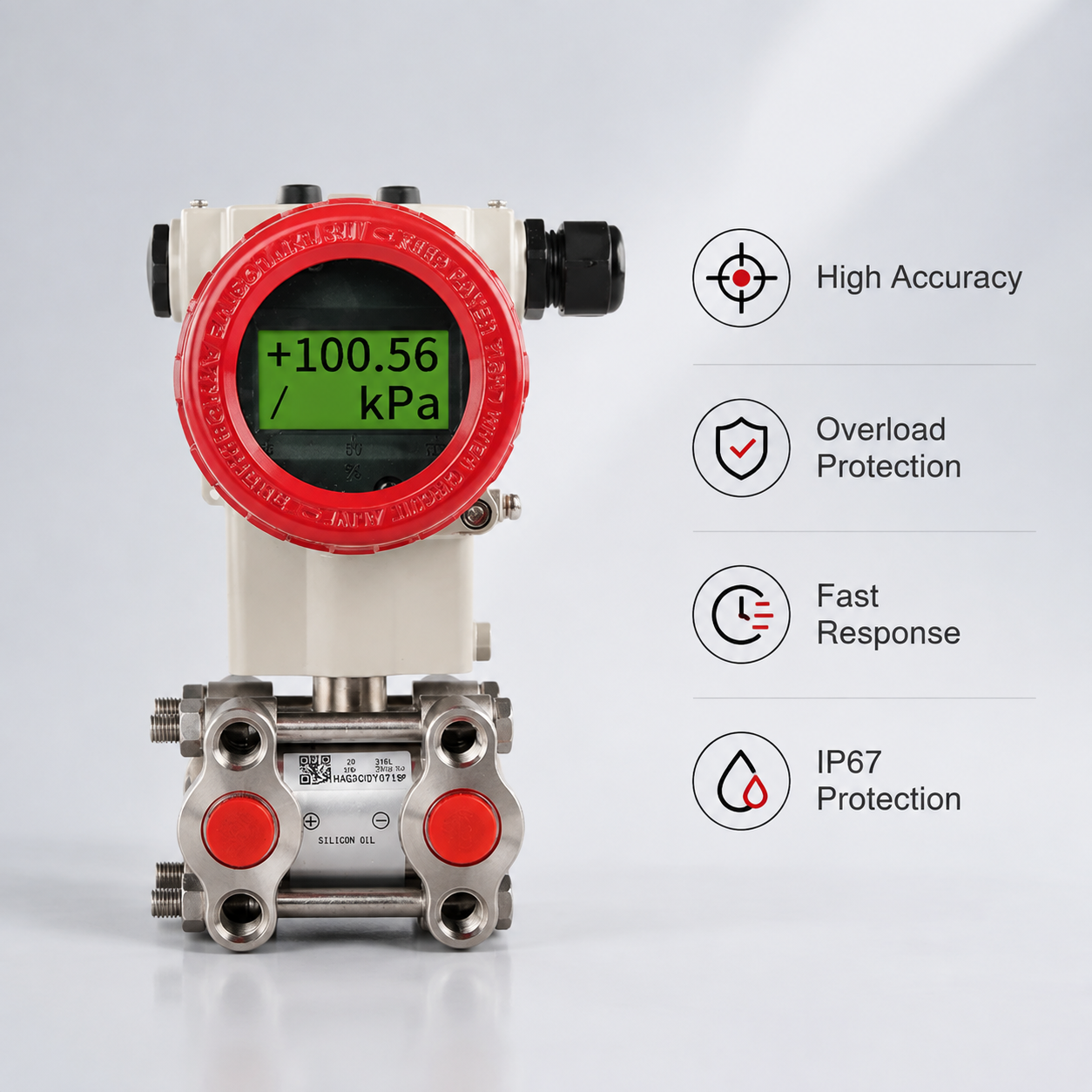

Key Features

  • Provides precise differential pressure monitoring with stable performance.
  • Uses advanced monocrystalline silicon sensing technology with excellent sensitivity, stability, and long-term reliability.
  • Built-in absolute pressure sensor improves measurement stability under varying process conditions.
  • Integrated overload diaphragm protects the sensor from pressure spikes.
  • Supports 4–20 mA, HART and RS485 communication options.
  • Features compact construction, IP67 protection, and long-term stability of ±0.1% FS / 3 years.

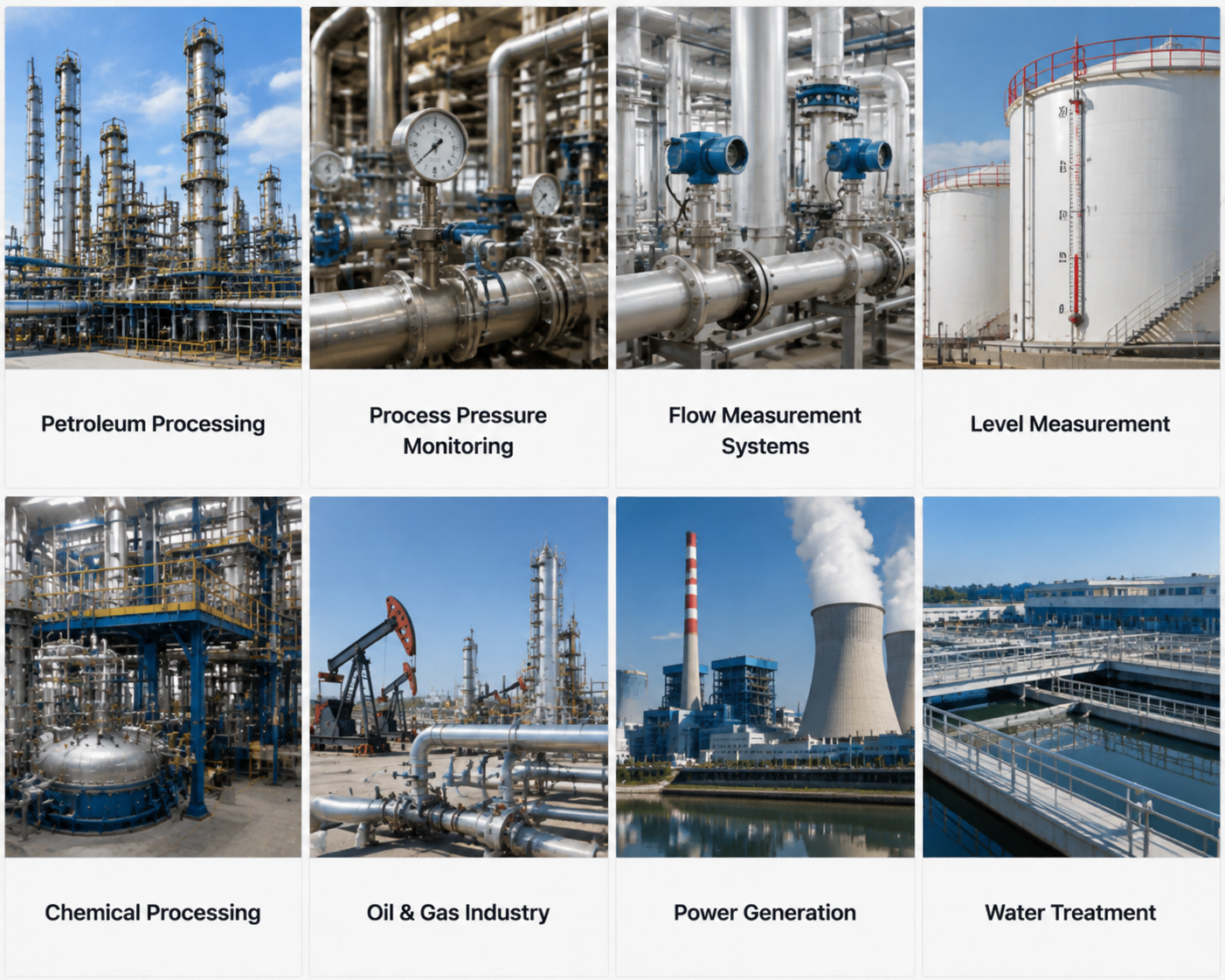

Applications

Technical Specifications

Measuring Range -14.5 to 435 psi (-100 kPa to 3 MPa)
Accuracy ±0.075% FS / ±0.1% FS
Output Signal 4–20 mA 4–20 mA + HART RS485 Modbus RTU
Power Supply 10–36 VDC
Process Connection 1/2" NPT, M20×1.5
Wetted Material 316 Stainless Steel
Static Pressure Up to 435 psi
Overload Capacity 150% FS
Ambient Temperature -40 to 185°F (-40 to 85°C)
Medium Temperature -40 to 212°F (-40 to 100°C)
Protection Rating IP67

Downloads

User Manual
Datasheet

FAQ

What is the difference between differential pressure and gauge pressure measurement?

Differential pressure measurement calculates the pressure difference between two process points, while gauge pressure measures pressure relative to atmospheric pressure.

Can SUP-2051 be used for flow measurement?

Yes. The transmitter can be combined with primary flow elements such as orifice plates to measure differential pressure flow.

What output signals are available?

The transmitter supports 4–20 mA two-wire output and optional HART communication for advanced configuration and monitoring.

What applications are suitable for differential pressure transmitters?

It is commonly used for flow monitoring, liquid level measurement, filter blockage detection and industrial process control.

What warranty do you provide?

Please refer to BayMeters Warranty Policy or contact our sales team for warranty details.

How long does shipping take?

Products in the US warehouse typically ship within 3–5 business days
