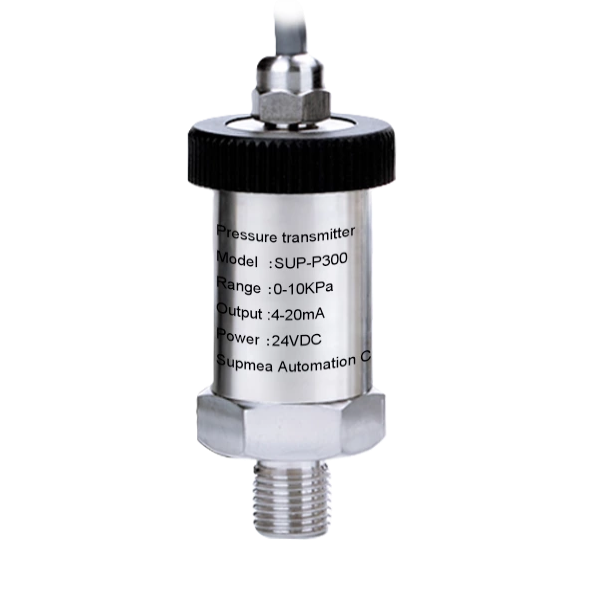

Supmea P300 Compact Pressure Transmitter with Cable Connector

Supmea P300 Compact Pressure Transmitter with Cable Connector

US$129.00
US$129.00
Sale Sold out
Prices Shown Include Delivery.

Low stock: 10 left • Lead Time: 2-4 Weeks
View full details

Product Overview

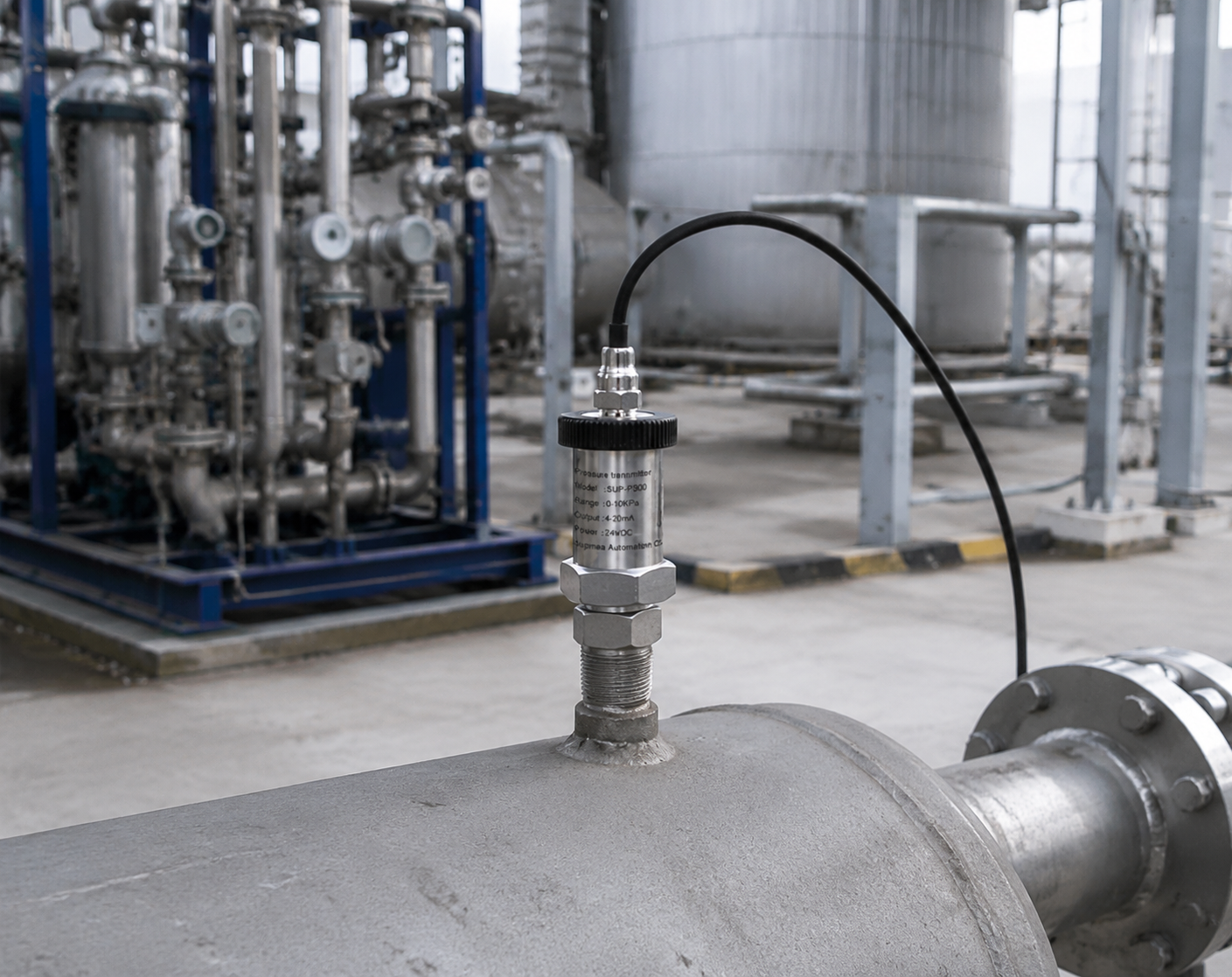

The SUP-P300 adopts a diffused silicon pressure sensor with a built-in processing circuit that converts the millivolt output of the sensor into standard voltage, current, or frequency signals. It can be directly connected to computers, controllers, PLCs, and display instruments for industrial automation.The cable connector version provides a flexible wiring solution with a sealed cable connection, making it suitable for industrial applications requiring stable signal transmission and easy installation.

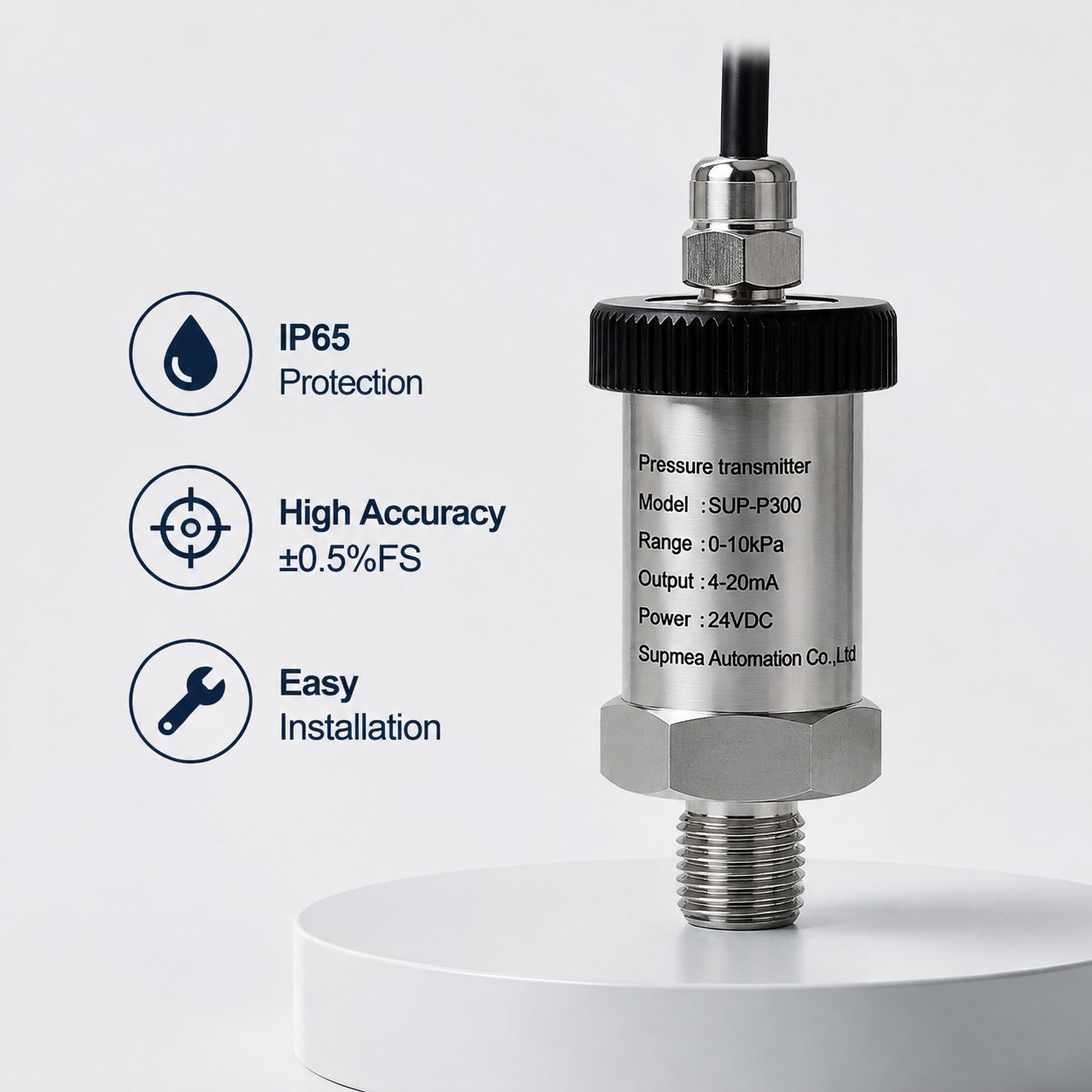

Key Features

  • Features a pre-wired cable connection for convenient installation and reliable signal transmission in industrial environments.
  • Strong anti-overload, anti-shock and anti-interference performance.
  • Multiple pressure ranges available for different applications.
  • Supports different cable length configurations to meet various installation requirements.
  • Laser-trimmed temperature compensation for stable performance.
  • Built-in surge voltage and reverse polarity protection.

Applications

Technical Specifications

Model SUP-P300
Measuring Range -14.5 ~ 8,702 psi (-0.1 ~ 60 MPa)
Accuracy 0.25% FS / 0.2% FS / 0.5% FS
Output Signal 4–20 mA / 1–5 V / 0–10 V / 0–20 mA / 0–5 V / RS485
Power Supply 24 VDC
Pressure Type Gauge Pressure / Absolute Pressure / Sealed Pressure
Process Connection NPT 1/4 (1/4" National Pipe Thread)
Wetted Material SS304 Body, SS316L Diaphragm
Medium Temperature -4 ~ 185°F (-20 ~ 85°C)
Protection Rating IP65
Electrical Connection Cable Connector

Downloads

User Manual
Datasheet

FAQ

What is the advantage of the cable connector version?

The cable connector design simplifies installation and provides reliable signal transmission for industrial pressure monitoring systems.

What is the SUP-P300 used for?

The SUP-P300 is designed for pressure measurement in industrial automation, water treatment, HVAC, manufacturing, medical equipment and other process control applications.

Can the cable length be customized?

Yes. Different cable lengths are available to meet various installation requirements.

Do you provide technical support?

Yes. BayMeters provides technical support for product selection, installation, configuration, and troubleshooting. If you need assistance, please contact our technical support team.

What warranty do you provide?

Please refer to BayMeters Warranty Policy or contact our sales team for warranty details.

How long does shipping take?

Products in the US warehouse typically ship within 3–5 business days
