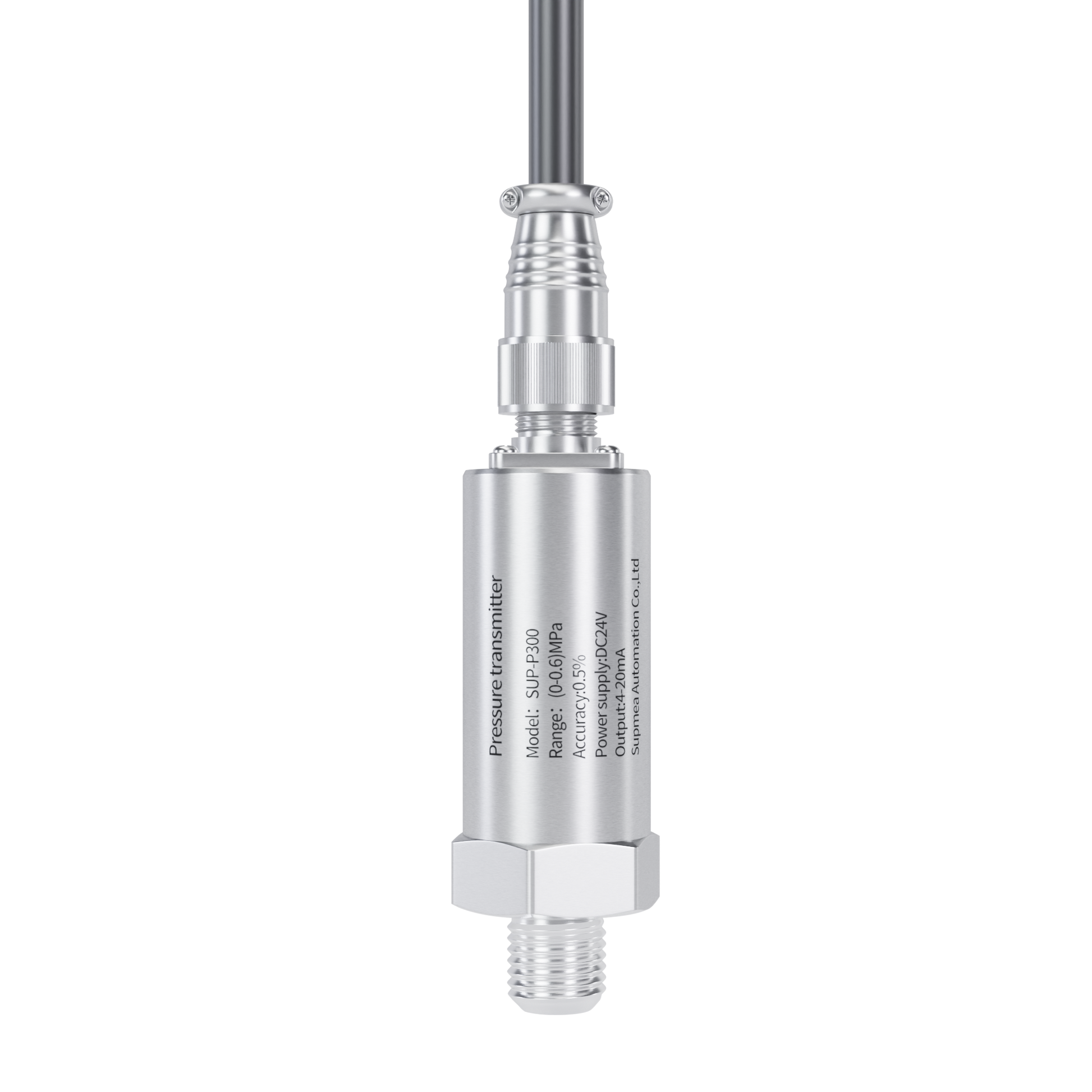

Supmea P300 Compact Pressure Transmitter with M12 Connector

Supmea P300 Compact Pressure Transmitter with M12 Connector

US$129.00
US$129.00
Sale Sold out
Prices Shown Include Delivery.

Low stock: 10 left • Lead Time: 2-4 Weeks
View full details

Product Overview

The SUP-P300 adopts a diffused silicon pressure sensor with a built-in processing circuit that converts the millivolt output of the sensor into standard voltage, current, or frequency signals. It can be directly connected to computers, controllers, PLCs, and display instruments for industrial automation.The M12 connector version provides a compact and reliable electrical connection solution, making it suitable for industrial automation systems requiring quick installation and secure signal transmission.

Key Features

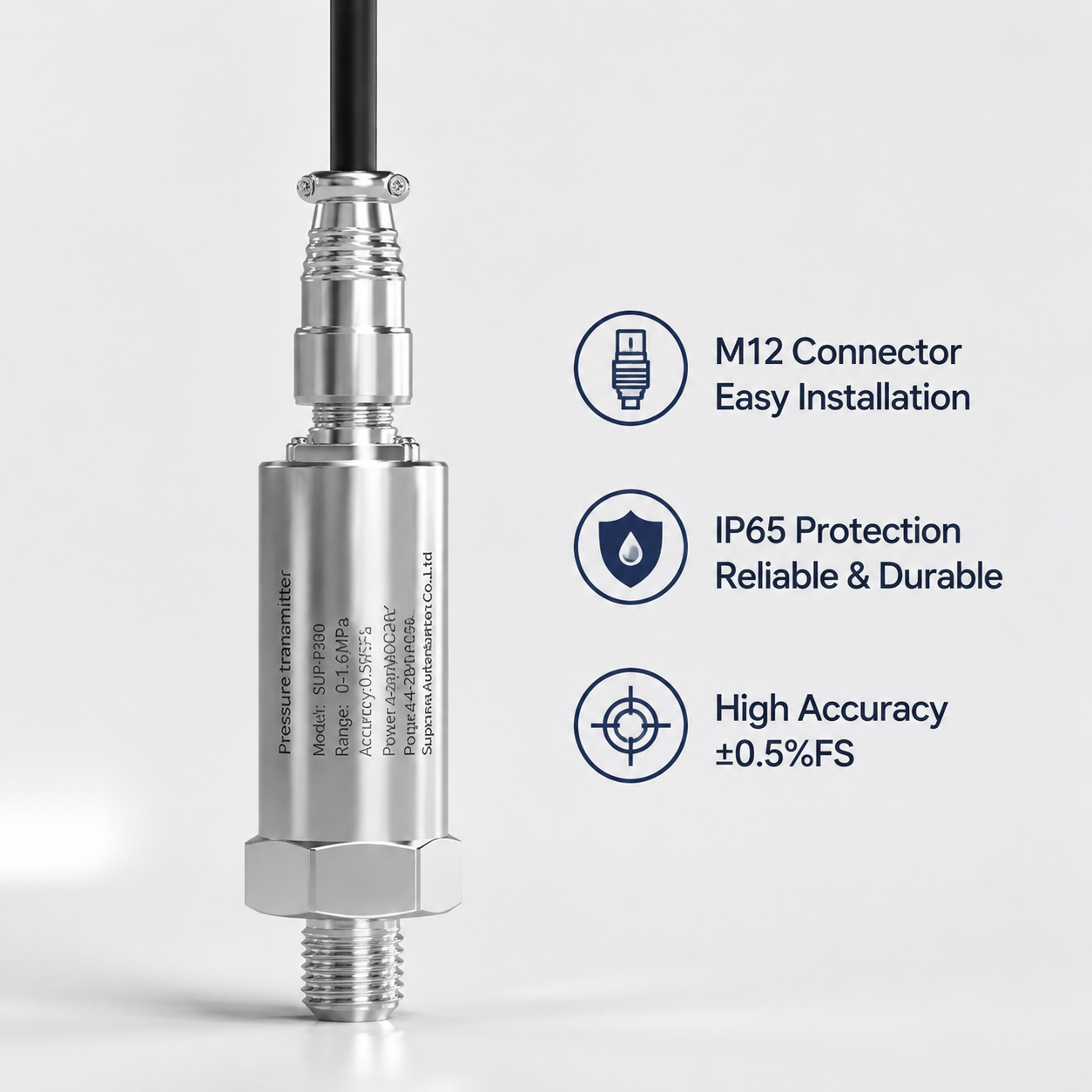

  • Equipped with an M12 connector for fast installation, reliable wiring, and convenient maintenance in industrial environments.
  • Strong anti-overload, anti-shock and anti-interference performance.
  • Multiple pressure ranges available for different applications.
  • The compact connector design helps reduce installation space requirements and improves system integration flexibility.
  • Laser-trimmed temperature compensation for stable performance.
  • Built-in surge voltage and reverse polarity protection.

Applications

Technical Specifications

Model SUP-P300
Measuring Range -14.5 ~ 8,702 psi (-0.1 ~ 60 MPa)
Accuracy 0.25% FS / 0.2% FS / 0.5% FS
Output Signal 4–20 mA / 1–5 V / 0–10 V / 0–20 mA / 0–5 V / RS485
Power Supply 24 VDC
Pressure Type Gauge Pressure / Absolute Pressure / Sealed Pressure
Process Connection NPT 1/4 (1/4" National Pipe Thread)
Wetted Material SS304 Body, SS316L Diaphragm
Medium Temperature -4 ~ 185°F (-20 ~ 85°C)
Protection Rating IP65
Electrical Connection M12 Connector

Downloads

User Manual
Datasheet

FAQ

What is the SUP-P300 used for?

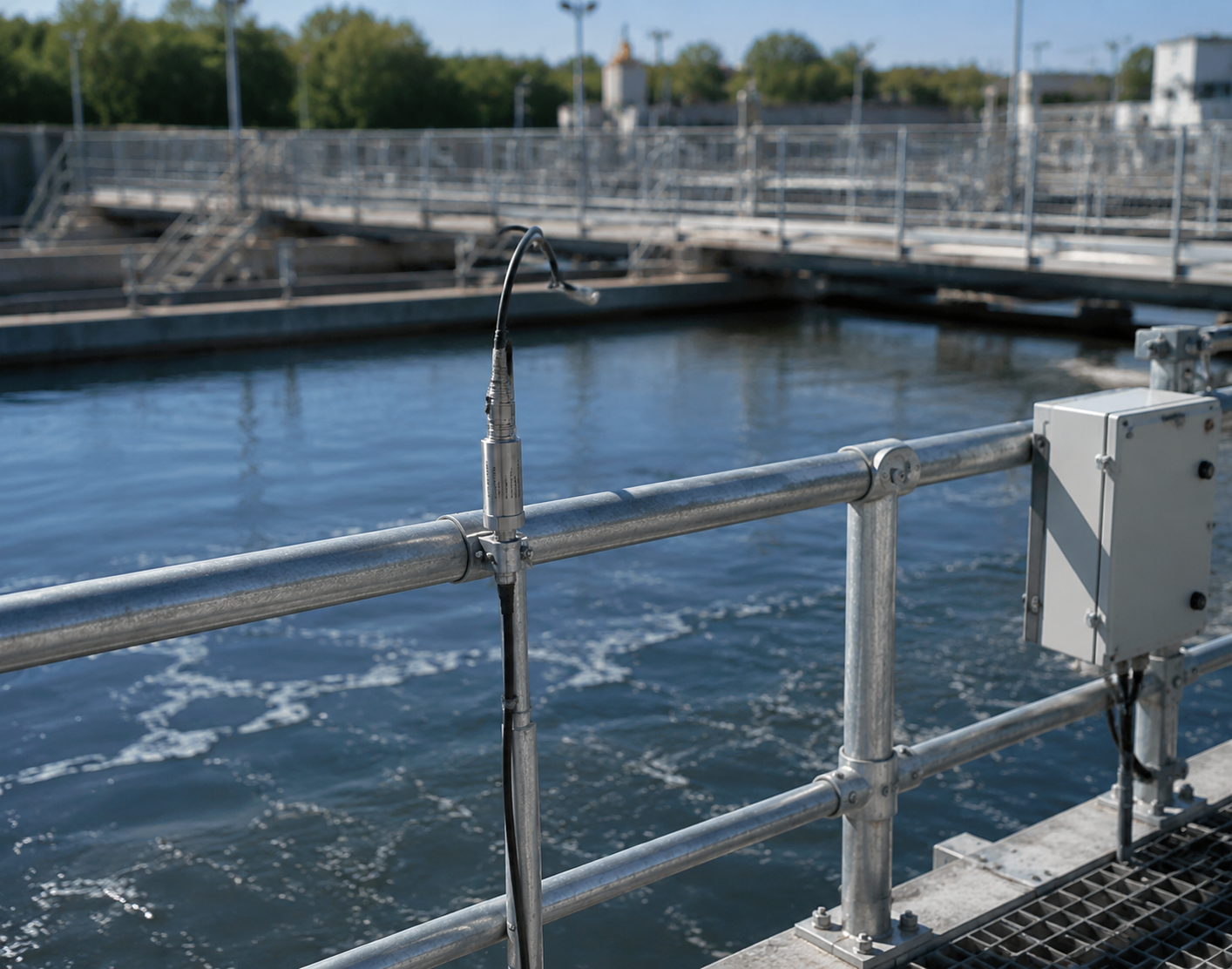

The SUP-P300 is designed for pressure measurement in industrial automation, water treatment, HVAC, manufacturing, medical equipment and other process control applications.

What is the advantage of the M12 connector version?

The M12 connector provides a compact and reliable connection method, helping simplify installation and maintenance in industrial automation applications.

Is the M12 version different in measurement performance?

No. The M12 connector version uses the same pressure measurement technology and specifications as the standard P300 transmitter. The main difference is the electrical connection design.

Do you provide technical support?

Yes. BayMeters provides technical support for product selection, installation, configuration, and troubleshooting. If you need assistance, please contact our technical support team.

What warranty do you provide?

Please refer to BayMeters Warranty Policy or contact our sales team for warranty details.

How long does shipping take?

Products in the US warehouse typically ship within 3–5 business days
