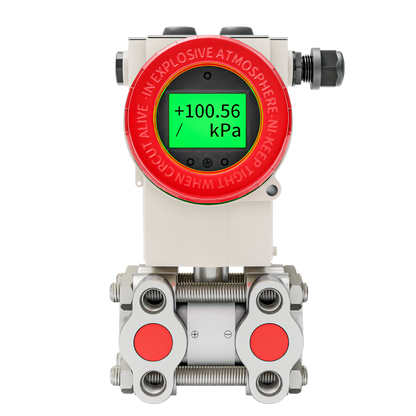

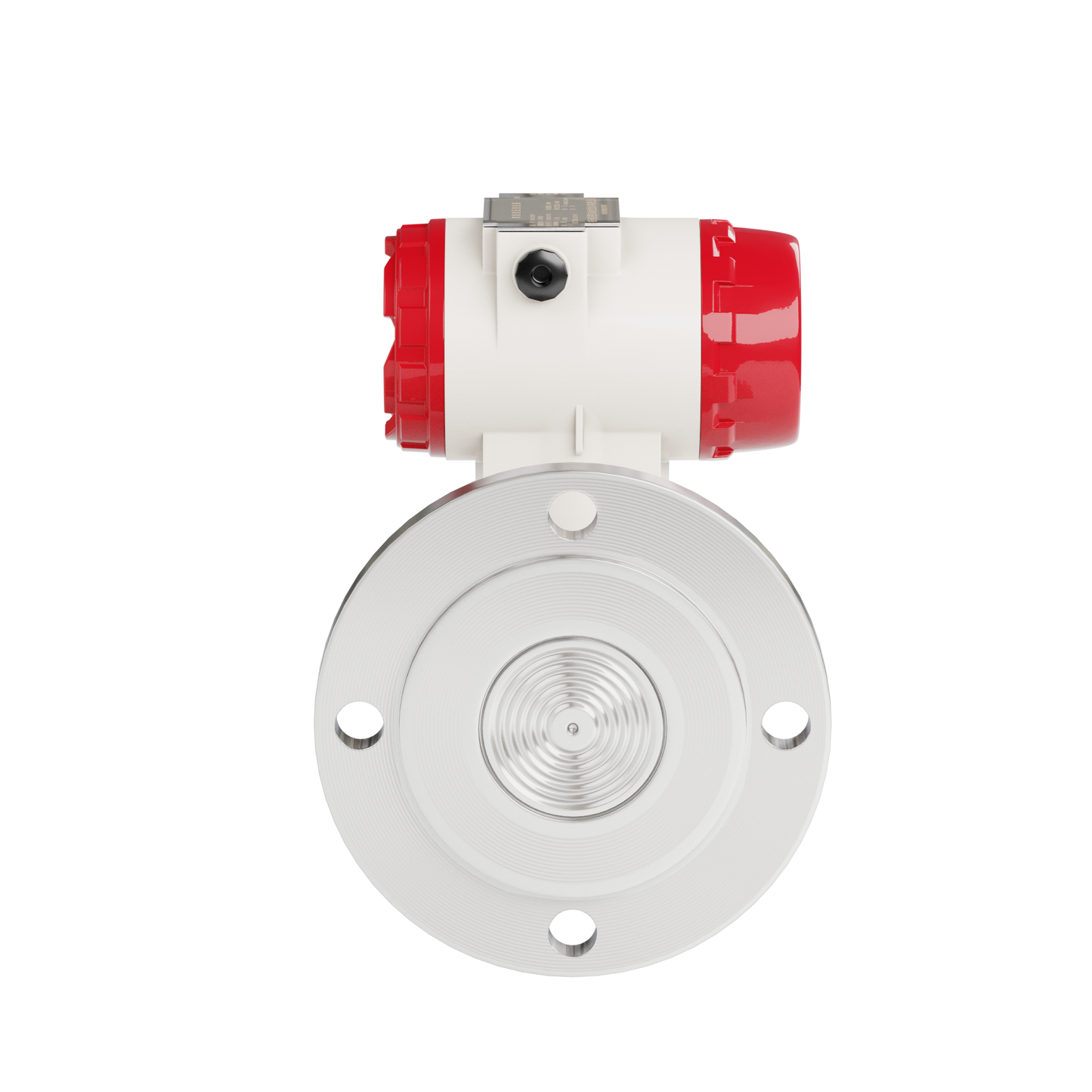

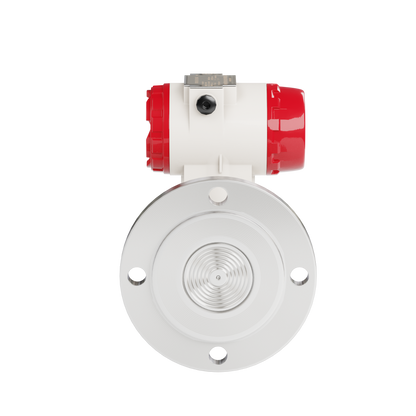

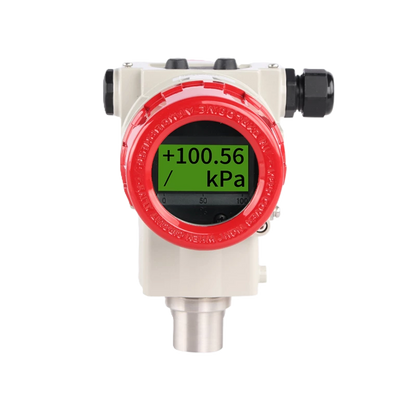

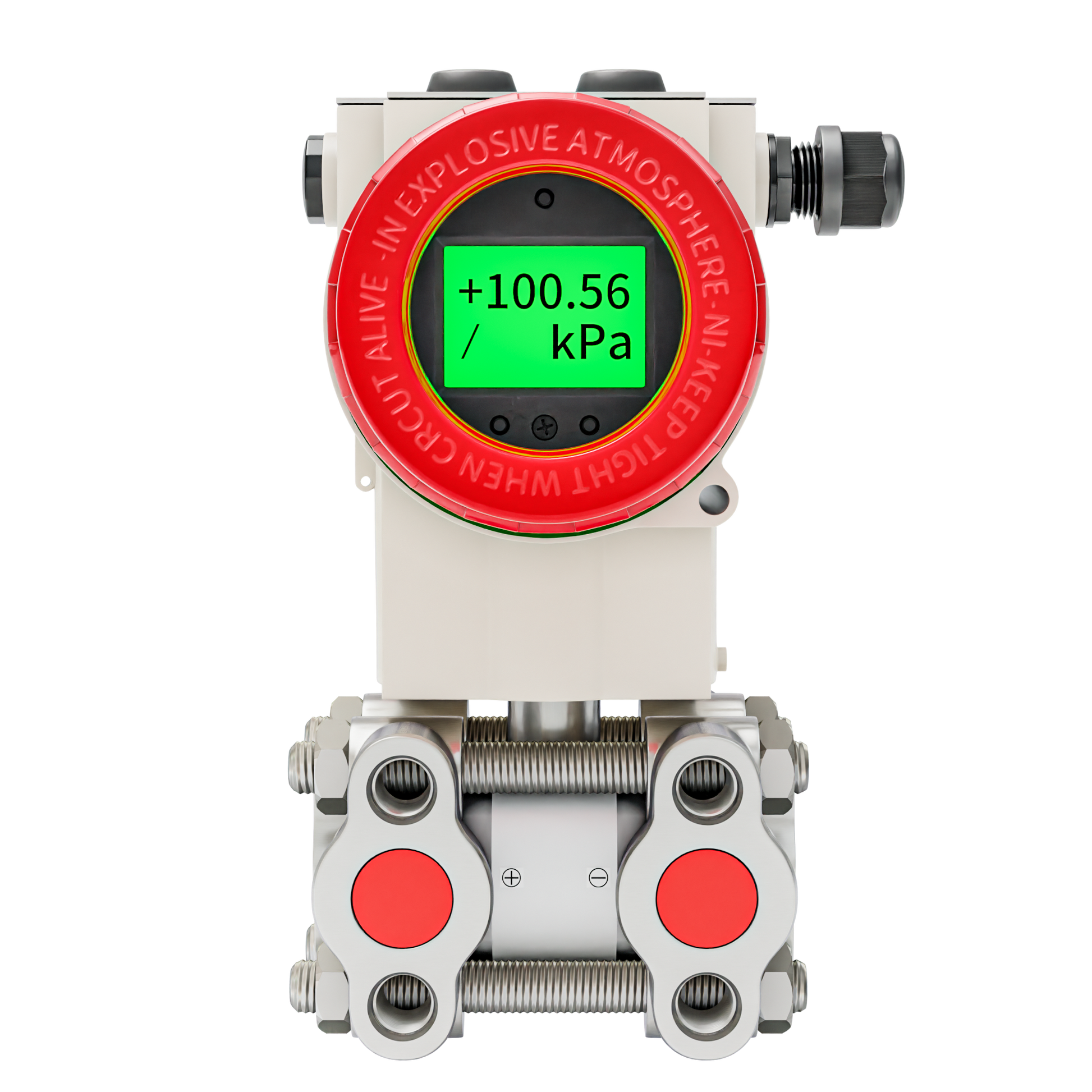

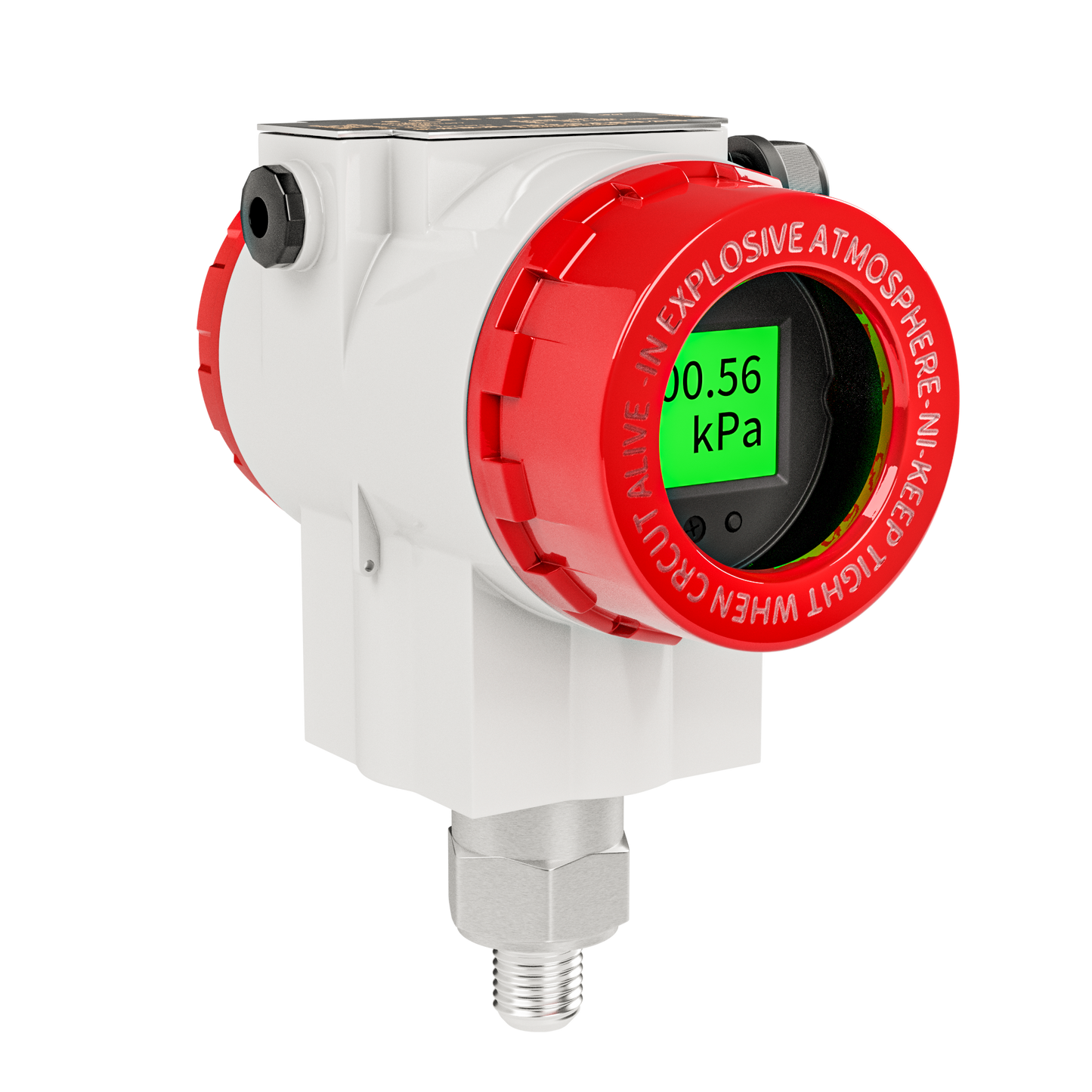

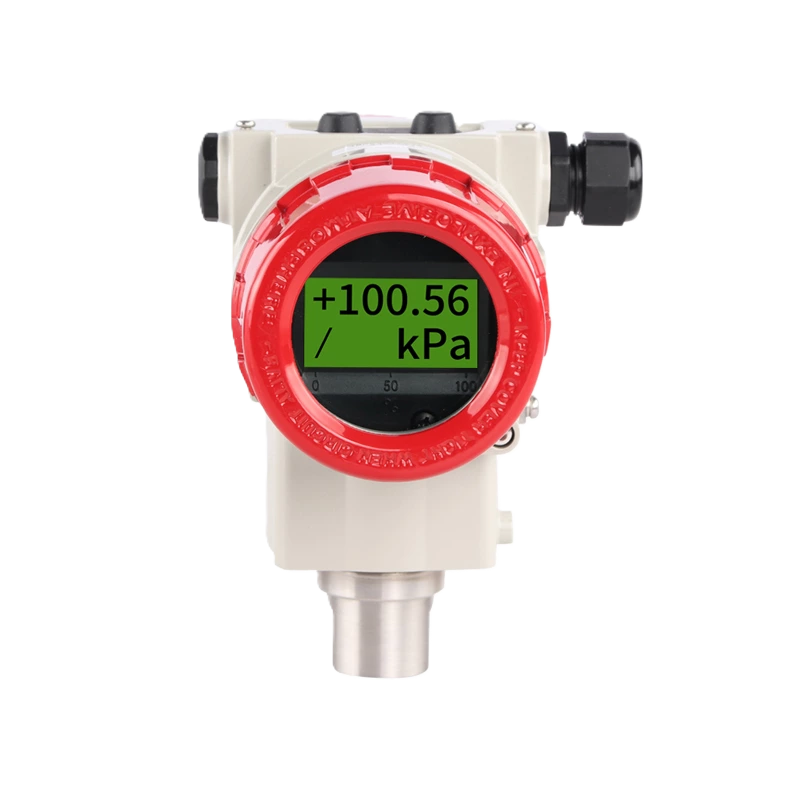

Supmea P3000 Pressure Transmitter With Silicon Sensor

Supmea P3000 Pressure Transmitter With Silicon Sensor

US$788.00
US$788.00
Sale Sold out
Prices Shown Include Delivery.

Low stock: 10 left • Lead Time: 2-4 Weeks
View full details

Product Overview

The SUP-P3000 is a high-precision smart pressure transmitter featuring a monocrystalline silicon pressure sensor and microprocessor-based signal processing technology. It supports gauge pressure and absolute pressure measurement with stable performance, fast response, and reliable signal transmission. The transmitter is widely used for pressure monitoring and control in petroleum, chemical, power generation, metallurgy, water treatment, brewing, and other industrial processes.

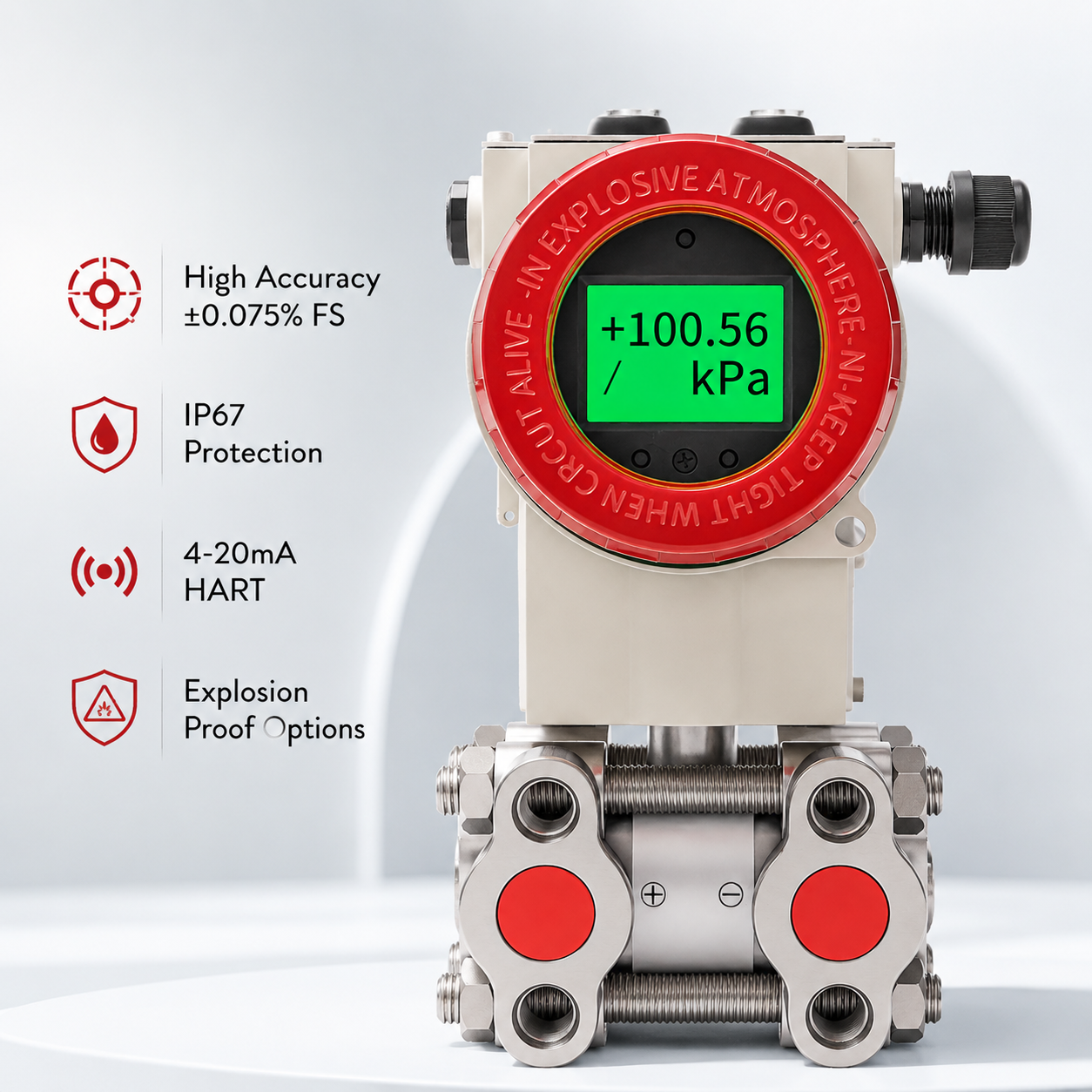

Key Features

  • Provides high-precision pressure measurement with accuracy options up to ±0.075% FS, suitable for demanding industrial applications.
  • Uses advanced monocrystalline silicon sensing technology with excellent sensitivity, stability, and long-term reliability.
  • Supports a wide measurement range from 0–0.6 kPa to 60 MPa for gauge pressure applications and 0–10 kPa to 3 MPa for absolute pressure measurement.
  • Supports standard 4–20 mA output and optional HART communication for integration with industrial control systems.
  • Available with different pressure types, thread connections, diaphragm materials, display options, and explosion-proof configurations.
  • Features compact construction, IP67 protection, and long-term stability of ±0.1% FS / 3 years.

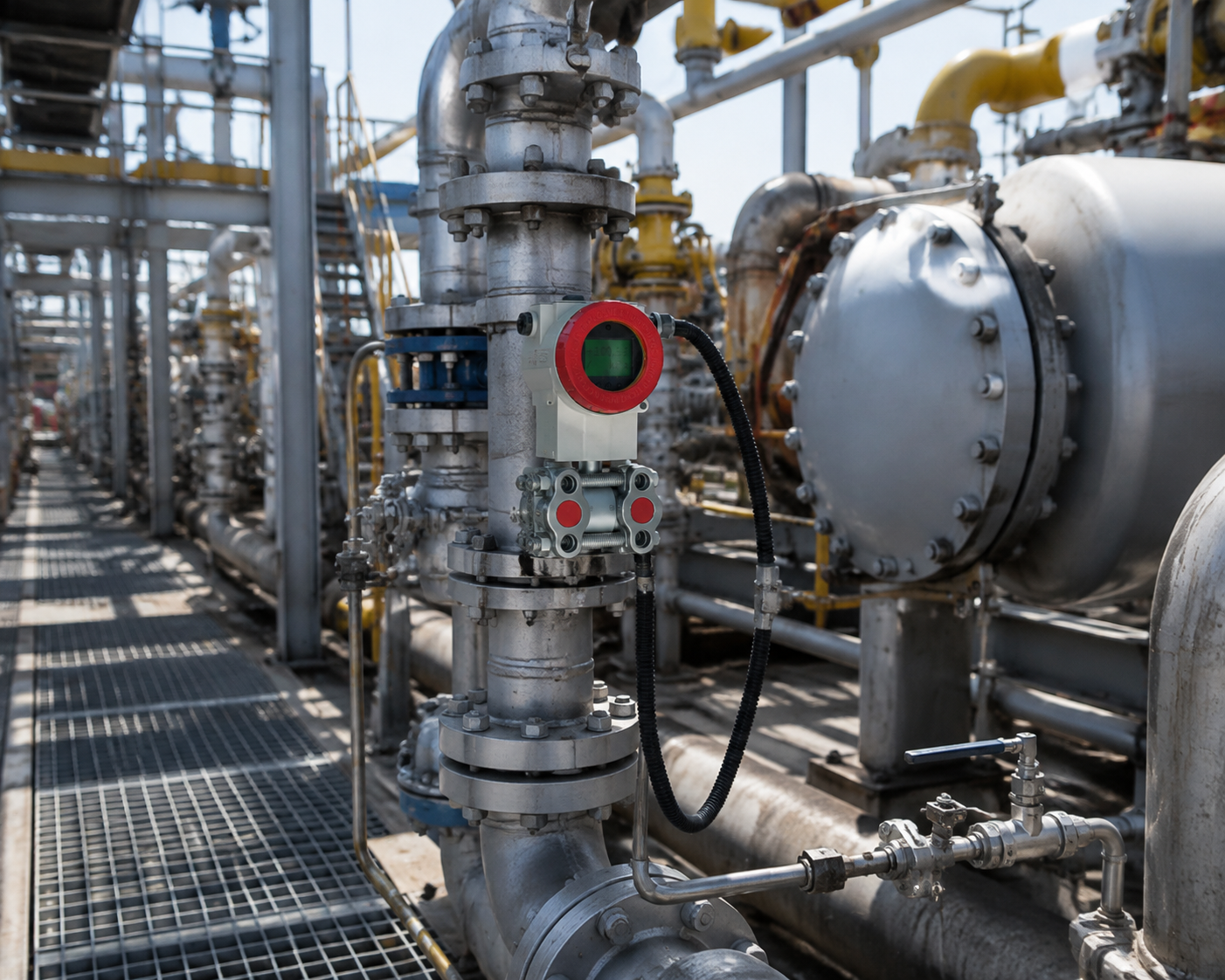

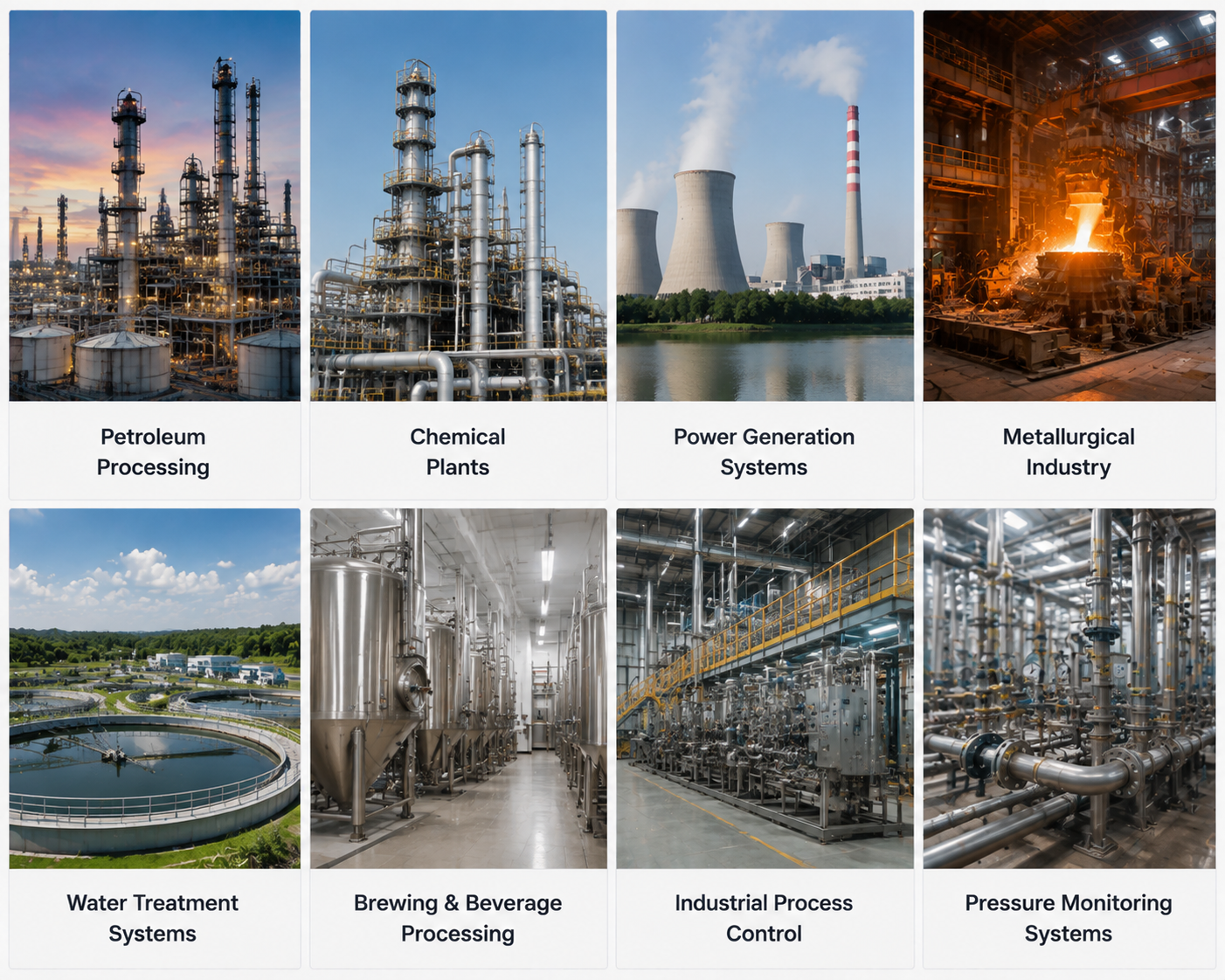

Applications

Technical Specifications

Measurement Range 0–0.6 kPa to 60 MPa (Gauge Pressure) 0–10 kPa to 3 MPa (Absolute Pressure)
Accuracy ±0.075% FS, ±0.1% FS
Output Signal 4–20 mA Two-wire System
Communication Optional HART Protocol
Power Supply 12–42 VDC (typically 24 VDC)
HART Power Supply 15–42 VDC
Operating Temperature -40 to 185°F (-40 to 85°C)
Medium Temperature -40 to 212°F (-40 to 100°C)
Protection Rating IP67
Long-Term Stability ±0.1% FS / 3 years
Display Optional LCD Display

Downloads

User Manual
Datasheet

FAQ

What type of pressure can the SUP-P3000 measure?

The SUP-P3000 supports gauge pressure and absolute pressure measurement for different industrial process applications.

Does it support explosion-proof applications?

Yes. The ordering options include explosion-proof configurations such as Ex ia, Ex d, and Ex tD versions.

What output signals are available?

The transmitter supports 4–20 mA two-wire output and optional HART communication for advanced configuration and monitoring.

Can the transmitter display pressure locally?

Yes. An optional LCD display is available for local pressure indication and configuration.

What warranty do you provide?

Please refer to BayMeters Warranty Policy or contact our sales team for warranty details.

How long does shipping take?

Products in the US warehouse typically ship within 3–5 business days
